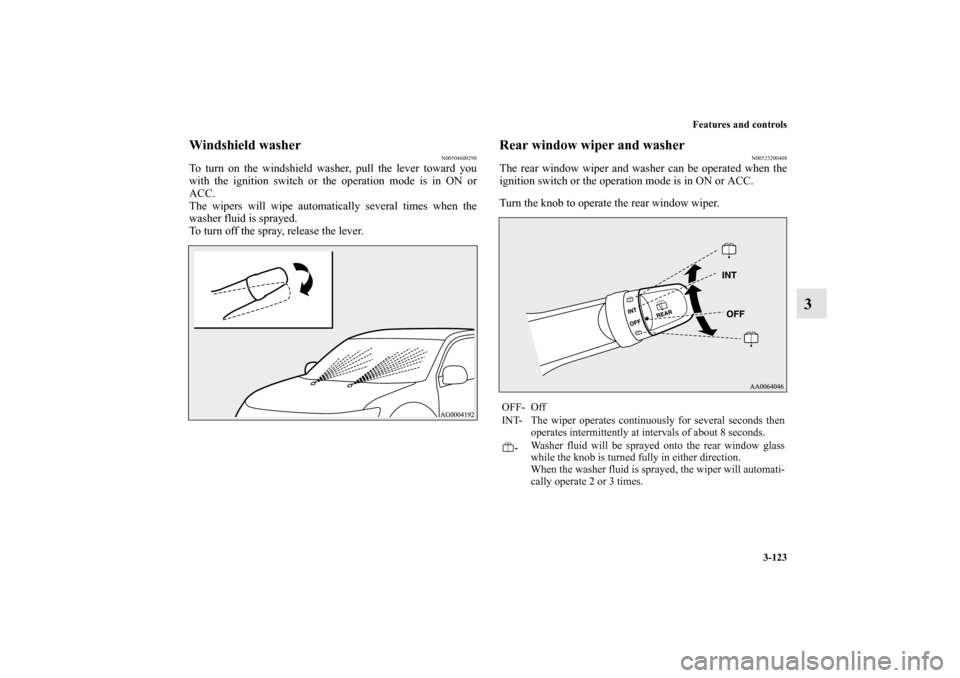

MITSUBISHI MIRAGE 2014 6.G Owners Manual

Features and controls
3-123
3
Windshield washer
N00504600298
To turn on the windshield washer, pull the lever toward you
with the ignition switch or the operation mode is in ON or
ACC.
The wipers will wipe automatically several times when the
washer fluid is sprayed.
To turn off the spray, release the lever.
Rear window wiper and washer
N00523200408
The rear window wiper and washer can be operated when the
ignition switch or the operation mode is in ON or ACC.
Turn the knob to operate the rear window wiper.OFF- Off
INT- The wiper operates continuously for several seconds then
operates intermittently at intervals of about 8 seconds.
-Washer fluid will be sprayed onto the rear window glass
while the knob is turned fully in either direction.
When the washer fluid is sprayed, the wiper will automati-
cally operate 2 or 3 times.
BK0162600US.book 123 ページ ２０１３年３月２２日　金曜日　午後２時４１分

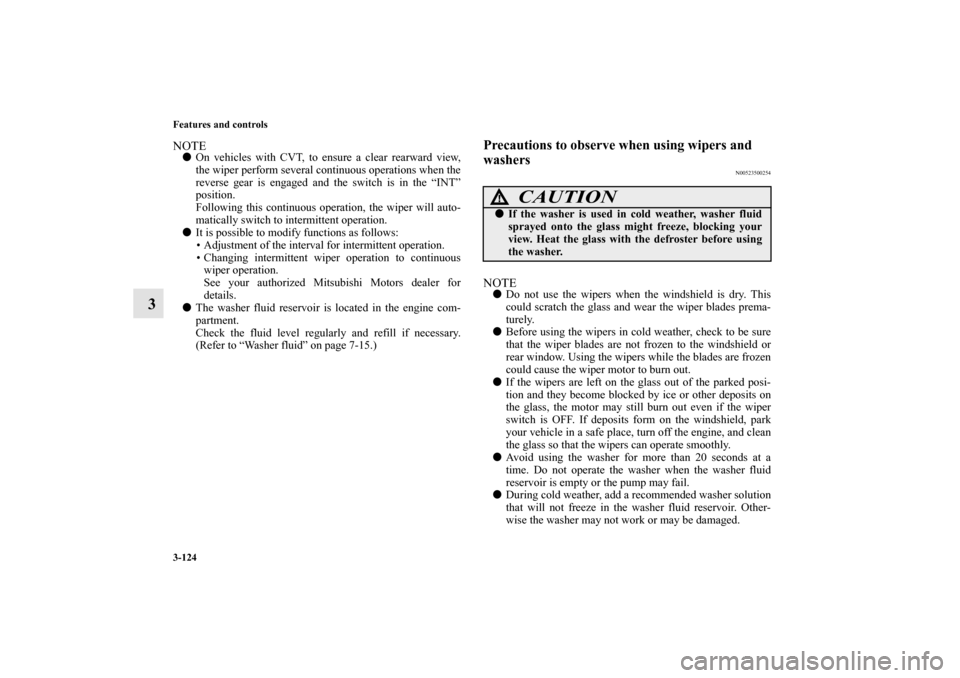

3-124 Features and controls
3
NOTE
On vehicles with CVT, to ensure a clear rearward view,
the wiper perform several continuous operations when the
reverse gear is engaged and the switch is in the “INT”
position.
Following this continuous operation, the wiper will auto-
matically switch to intermittent operation.

It is possible to modify functions as follows:
• Adjustment of the interval for intermittent operation.
• Changing intermittent wiper operation to continuous
wiper operation.
See your authorized Mitsubishi Motors dealer for
details.

The washer fluid reservoir is located in the engine com-
partment.
Check the fluid level regularly and refill if necessary.
(Refer to “Washer fluid” on page 7-15.)
Precautions to observe when using wipers and
washers
N00523500254
NOTE
Do not use the wipers when the windshield is dry. This
could scratch the glass and wear the wiper blades prema-
turely.

Before using the wipers in cold weather, check to be sure
that the wiper blades are not frozen to the windshield or
rear window. Using the wipers while the blades are frozen
could cause the wiper motor to burn out.

If the wipers are left on the glass out of the parked posi-
tion and they become blocked by ice or other deposits on
the glass, the motor may still burn out even if the wiper
switch is OFF. If deposits form on the windshield, park
your vehicle in a safe place, turn off the engine, and clean
the glass so that the wipers can operate smoothly.

Avoid using the washer for more than 20 seconds at a
time. Do not operate the washer when the washer fluid
reservoir is empty or the pump may fail.

During cold weather, add a recommended washer solution
that will not freeze in the washer fluid reservoir. Other-
wise the washer may not work or may be damaged.
CAUTION
!
If the washer is used in cold weather, washer fluid
sprayed onto the glass might freeze, blocking your
view. Heat the glass with the defroster before using
the washer.
BK0162600US.book 124 ページ ２０１３年３月２２日　金曜日　午後２時４１分

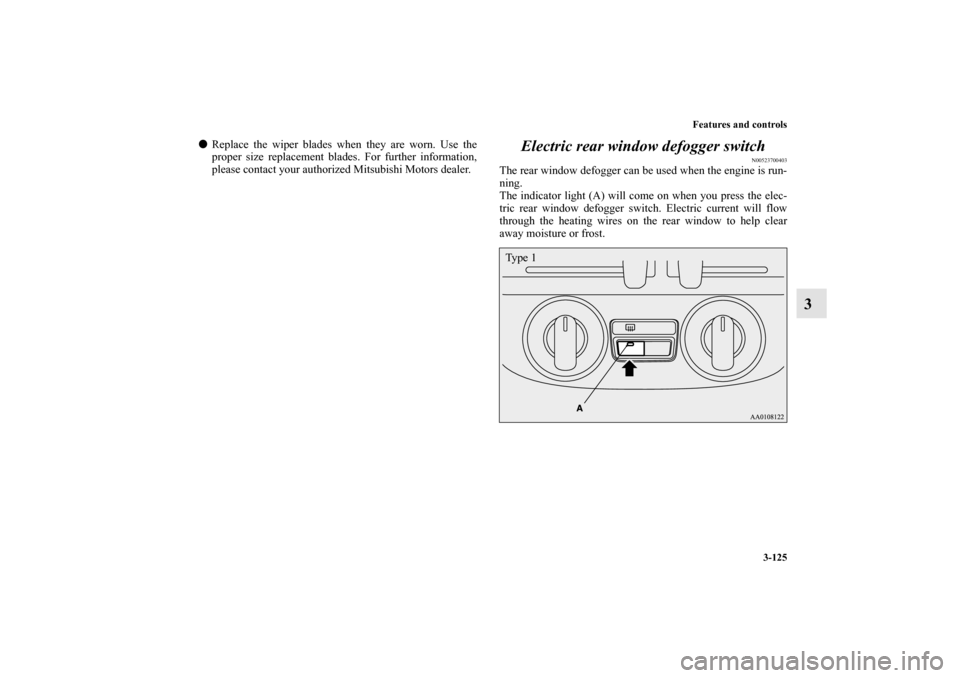

Features and controls
3-125
3

Replace the wiper blades when they are worn. Use the
proper size replacement blades. For further information,
please contact your authorized Mitsubishi Motors dealer.
Electric rear window defogger switch
N00523700403
The rear window defogger can be used when the engine is run-
ning.
The indicator light (A) will come on when you press the elec-
tric rear window defogger switch. Electric current will flow
through the heating wires on the rear window to help clear
away moisture or frost.Ty p e 1
BK0162600US.book 125 ページ ２０１３年３月２２日　金曜日　午後２時４１分

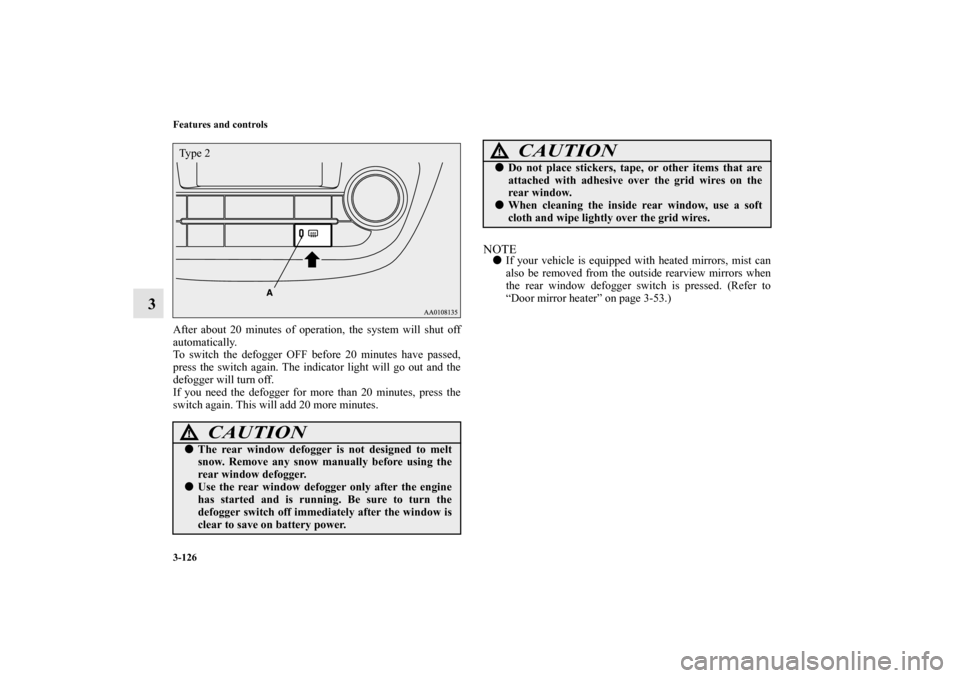

3-126 Features and controls
3
After about 20 minutes of operation, the system will shut off
automatically.
To switch the defogger OFF before 20 minutes have passed,
press the switch again. The indicator light will go out and the
defogger will turn off.
If you need the defogger for more than 20 minutes, press the
switch again. This will add 20 more minutes.
NOTE
If your vehicle is equipped with heated mirrors, mist can
also be removed from the outside rearview mirrors when
the rear window defogger switch is pressed. (Refer to
“Door mirror heater” on page 3-53.)
CAUTION
!
The rear window defogger is not designed to melt
snow. Remove any snow manually before using the
rear window defogger.
Use the rear window defogger only after the engine
has started and is running. Be sure to turn the
defogger switch off immediately after the window is
clear to save on battery power.Ty p e 2

Do not place stickers, tape, or other items that are
attached with adhesive over the grid wires on the
rear window.
When cleaning the inside rear window, use a soft
cloth and wipe lightly over the grid wires.
CAUTION
!
BK0162600US.book 126 ページ ２０１３年３月２２日　金曜日　午後２時４１分

Features and controls
3-127
3 Horn switch
N00523800185
To honk the horn, press around the “ ” mark on the steering
wheel.
Link System
(if so equipped)
N00563700043
The Link System takes control of the devices connected via the
USB input terminal or the Bluetooth
® 2.0 interface allowing
the connected devices to be operated by using the switches in
the vehicle or voice commands.
See the following section for details on how to operate.
Refer to “Bluetooth
® 2.0 interface” on page 3-128.
Refer to “USB input terminal” on page 3-153.
Refer to “To play tracks from USB device” on page 5-43.
Refer to “To play tracks from a Bluetooth
® device” on page 5-
56.
Bluetooth
® is a registered trademark of BLUETOOTH SIG,
INC.
Link System End User License Agreement
N00563800015
You have acquired a device that includes software licensed by
Mitsubishi Motors Corporation from JOHNSON CONTROLS
Inc (the automotive experience business unit), and their subse-
quent 3rd party suppliers. For a complete list of these 3rd party
products and their end user license agreements, please go to the
following website.
http://www.jciblueconnect.com/faq/fulldisclosure.pdf
BK0162600US.book 127 ページ ２０１３年３月２２日　金曜日　午後２時４１分

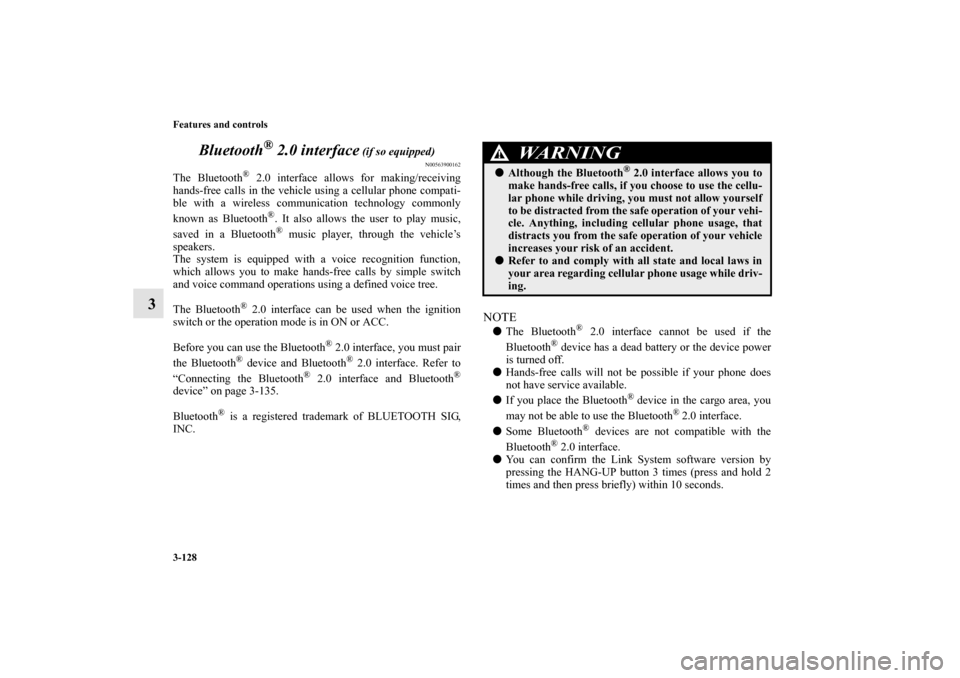

3-128 Features and controls
3Bluetooth
® 2.0 interface
(if so equipped)
N00563900162
The Bluetooth
® 2.0 interface allows for making/receiving
hands-free calls in the vehicle using a cellular phone compati-
ble with a wireless communication technology commonly
known as Bluetooth
®. It also allows the user to play music,
saved in a Bluetooth® music player, through the vehicle’s
speakers.
The system is equipped with a voice recognition function,
which allows you to make hands-free calls by simple switch
and voice command operations using a defined voice tree.
The Bluetooth
® 2.0 interface can be used when the ignition
switch or the operation mode is in ON or ACC.
Before you can use the Bluetooth
® 2.0 interface, you must pair
the Bluetooth
® device and Bluetooth
® 2.0 interface. Refer to
“Connecting the Bluetooth
® 2.0 interface and Bluetooth
®
device” on page 3-135.
Bluetooth
® is a registered trademark of BLUETOOTH SIG,
INC.
NOTE
The Bluetooth
® 2.0 interface cannot be used if the
Bluetooth
® device has a dead battery or the device power
is turned off.

Hands-free calls will not be possible if your phone does
not have service available.

If you place the Bluetooth
® device in the cargo area, you
may not be able to use the Bluetooth
® 2.0 interface.

Some Bluetooth
® devices are not compatible with the
Bluetooth
® 2.0 interface.

You can confirm the Link System software version by
pressing the HANG-UP button 3 times (press and hold 2
times and then press briefly) within 10 seconds.
WA R N I N G
!
Although the Bluetooth
® 2.0 interface allows you to
make hands-free calls, if you choose to use the cellu-
lar phone while driving, you must not allow yourself
to be distracted from the safe operation of your vehi-
cle. Anything, including cellular phone usage, that
distracts you from the safe operation of your vehicle
increases your risk of an accident.

Refer to and comply with all state and local laws in
your area regarding cellular phone usage while driv-
ing.
BK0162600US.book 128 ページ ２０１３年３月２２日　金曜日　午後２時４１分

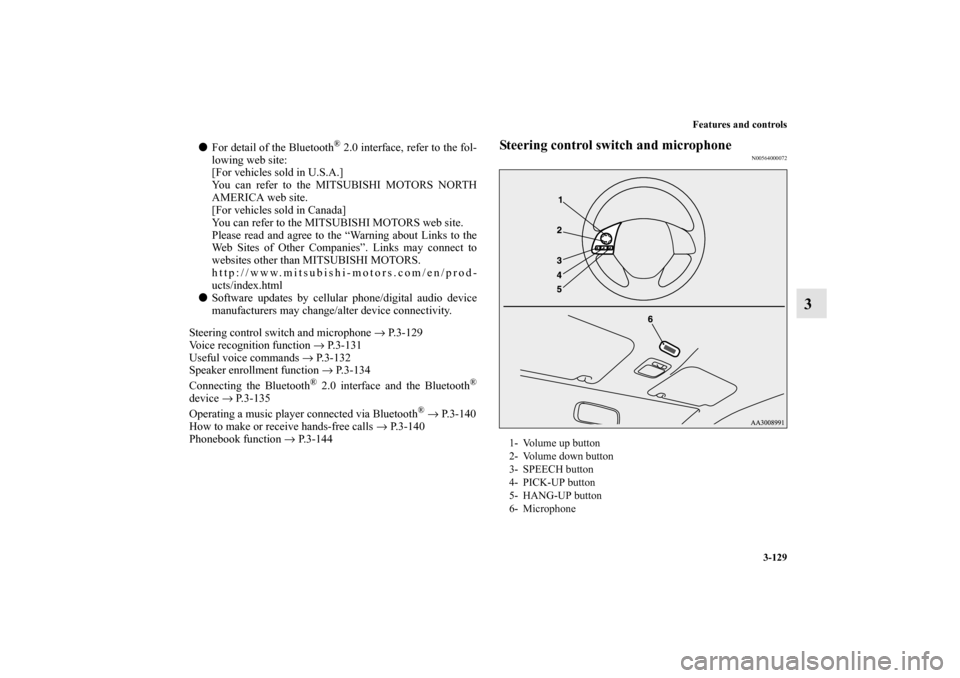

Features and controls
3-129
3

For detail of the Bluetooth
® 2.0 interface, refer to the fol-
lowing web site:
[For vehicles sold in U.S.A.]
You can refer to the MITSUBISHI MOTORS NORTH
AMERICA web site.
[For vehicles sold in Canada]
You can refer to the MITSUBISHI MOTORS web site.
Please read and agree to the “Warning about Links to the
Web Sites of Other Companies”. Links may connect to
websites other than MITSUBISHI MOTORS.
http://www.mitsubishi-motors.com/en/prod-
ucts/index.html

Software updates by cellular phone/digital audio device
manufacturers may change/alter device connectivity.
Steering control switch and microphone → P. 3 - 1 2 9
Voice recognition function → P. 3 - 1 3 1
Useful voice commands → P.3-132
Speaker enrollment function → P. 3 - 1 3 4
Connecting the Bluetooth
® 2.0 interface and the Bluetooth
®
device→ P. 3 - 1 3 5
Operating a music player connected via Bluetooth
® → P. 3 - 1 4 0
How to make or receive hands-free calls → P.3-140
Phonebook function → P.3-144
Steering control switch and microphone
N00564000072
1- Volume up button
2- Volume down button
3- SPEECH button
4- PICK-UP button
5- HANG-UP button
6- Microphone
BK0162600US.book 129 ページ ２０１３年３月２２日　金曜日　午後２時４１分

3-130 Features and controls
3
Volume up buttonPress this button to increase the volume. Volume down buttonPress this button to decrease the volume.SPEECH button
Press this button to change to voice recognition mode.
While the system is in voice recognition mode, “Listen-
ing” will appear on the audio display.

If you press the button briefly while in voice recognition
mode, it will interrupt prompting and allow voice com-
mand input.
Pressing the button longer will deactivate the voice recog-
nition mode.

Pressing this button briefly during a call will enable voice
recognition and allow voice command input.PICK-UP button
Press this button when an incoming call is received to
answer the telephone.

When another call is received during a call, press this but-
ton to put the first caller on hold and talk to the new caller.
• In such circumstances, you can press the button briefly
to switch between callers. You will switch to the first
caller and the other caller will be put on hold.
• To establish a three-way call in such situations, press the
SPEECH button to enter voice recognition mode and
then say “Join calls.”
HANG-UP button
Press this button when an incoming call is received to
refuse the call.

Press this button during a call to end the current call.
When another call is on hold, you will switch to that call.

If this button is pressed in the voice recognition mode, the
voice recognition mode will be deactivated.NOTE
When you press the SPEECH button to enter voice recog-
nition mode with a cellular phone paired to the system,
current information on the cellular phone, such as
“remaining battery life,” “signal strength” or “roaming,”
will be displayed on the audio display.*
*: Some cellular phones will not send this information to
the Bluetooth
® 2.0 interface.

Call waiting and three-way calls can be used by the
Bluetooth
® 2.0 interface, only if it is possible to use those
services with your cellular phone.
MicrophoneYour voice will be recognized by a microphone in the overhead
console, allowing you to make hands-free calls with voice
commands.NOTE
If a cellular phone is within close proximity of the micro-
phone, it may distort the sound quality. In this case, place
the cellular phone as far as possible from the microphone.
BK0162600US.book 130 ページ ２０１３年３月２２日　金曜日　午後２時４１分

Features and controls
3-131
3
Voice recognition function
N00564100086
The Bluetooth
® 2.0 interface is equipped with a voice recogni-
tion function.
Simply say voice commands and you can perform various
operations and make or receive hands-free calls.
With the Bluetooth
® 2.0 interface, voice recognition is possible
for US English, North American Spanish, Canadian French and
Japanese. The factory setting is “English.”
NOTE
If the voice command that you say differs from the pre-
defined command or cannot be recognised due to ambient
noise or some other reason, the Bluetooth
® 2.0 interface
will ask you for the voice command again up to 3 times.

For best performance and further reduction of ambient
noise, the vehicle windows should be closed, lower the
blower speed and refrain from conversation with your
passengers while engaging the voice recognition function.

Some voice commands have alternative commands.

Depending on the selected language, some functions may
not be available.

Language can be changed by using the audio control panel
besides the following procedure.
For details, refer to “To change the language (vehicles
with Bluetooth
® 2.0 interface)” on page 5-41.
Selecting the language1. Press the SPEECH button.
2. Say “Setup.”
3. Say “Language.”
4. The voice guide will say “Select a language: English,
Spanish, French or Japanese.” Say the desired language.
(Example: “English”)
5. The voice guide will say “English (Spanish, French or
Japanese) selected. Is this correct?” Say “Yes.”
If you say “No,” the system will return to Step 4.NOTE
The voice guide will repeat the same message twice. The
first message is in the current language, and the second
message is in the selected language.

If many entries are registered in the vehicle phonebook,
changing the language will take a longer time.

Changing the language deletes the mobile phonebook
imported to the Bluetooth
® 2.0 interface. If you wish to
use it, you will have to import it again.
6. When the voice guide says “English (Spanish, French or
Japanese) selected,” the language change process will be
completed and the system will return to the main menu.
BK0162600US.book 131 ページ ２０１３年３月２２日　金曜日　午後２時４１分

3-132 Features and controls
3
Useful voice commands
N00564200016
Help function
N00564300017
The Bluetooth
® 2.0 interface is equipped with a help function.
If you say “Help” when the system is waiting for a voice com-
mand input, the system will tell you a list of the commands that
can be used under the circumstances.
Canceling
N00564400018
There are 2 cancel functions.
If you are at the main menu, say “Cancel” to exit from the
Bluetooth
® 2.0 interface.
If you are anywhere else within the system, say “Cancel” to
return to the main menu.
Confirmation function setting
N00564500019
The Bluetooth
® 2.0 interface is equipped with a confirmation
function.
With the confirmation function activated, you are given more
opportunities than normal to confirm a command when making
various settings to the Bluetooth
® 2.0 interface. This allows
you to decrease the possibility that a setting is accidentally
changed.
The confirmation function can be turned on or off by following
the steps below.
1. Press the SPEECH button.
2. Say “Setup.”
3. Say “Confirmation prompts.”
4. The voice guide will say “Confirmation prompts are
. Would you like to turn confirmation prompts
.”
Answer “Yes” to change the setting or answer “No” to
keep the current setting.
5. The voice guide will say “Confirmation prompts are
” and then the system will return to the main
menu.
Security function
N00564600023
It is possible to use a passcode as a security function by setting
a passcode of your choice for the Bluetooth
® 2.0 interface.
When the security function is turned on, it is necessary to make
a voice input of a 4-digit passcode in order to use all functions
of the Bluetooth
® 2.0 interface, except for reception.
BK0162600US.book 132 ページ ２０１３年３月２２日　金曜日　午後２時４１分
