MITSUBISHI MIRAGE 2014 6.G Owners Manual

Features and controls
3-113
3
Charging system warning light
N00520600313
This light comes on in the event of a malfunction in the charg-
ing system or when the ignition switch is turned to the “ON”
position (engine off) or the operation mode is put in ON. When
the engine is started, the light should go out. Check to make
sure that the light has gone out before driving.Oil pressure warning light
N00520700170
This light comes on when the engine oil pressure is below nor-
mal. If the light stays on while driving, stop the engine as soon
as possible. Do not run the engine until the cause of the low oil
pressure is corrected.
High coolant temperature warning light - red
N00575700011
This light comes on in red if the coolant temperature becomes
excessively high.NOTE
The high coolant temperature warning light may illumi-
nate when the vehicle has been driven at high speeds or on
hilly roads. This illuminating does not necessarily indicate
a problem. It should stop if you keep the engine running
for a while or continue driving the vehicle.
CAUTION
!
If the warning light stays on while the engine is run-
ning, park your vehicle in a safe place as soon as
possible and contact an authorized Mitsubishi
Motors dealer or a repair facility of your choice to
have the system checked.
CAUTION
!
If this light comes on when the engine oil level is not
low, have your vehicle checked at an authorized
Mitsubishi Motors dealer or a repair facility of your
choice.
This warning light does not show the amount of oil
in the crankcase. This can only be determined by
checking the oil level with the dipstick with the
engine turned off.
CAUTION
!
If the light comes on during vehicle operation, it
indicates that the engine is possibly overheating.
Continued driving could make the engine fail.
Immediately stop the vehicle in a safe place and take
appropriate action. (Refer to “Engine overheating”
on page 6-5.)
BK0162600US.book 113 ページ ２０１３年３月２２日　金曜日　午後２時４１分

3-114 Features and controls
3

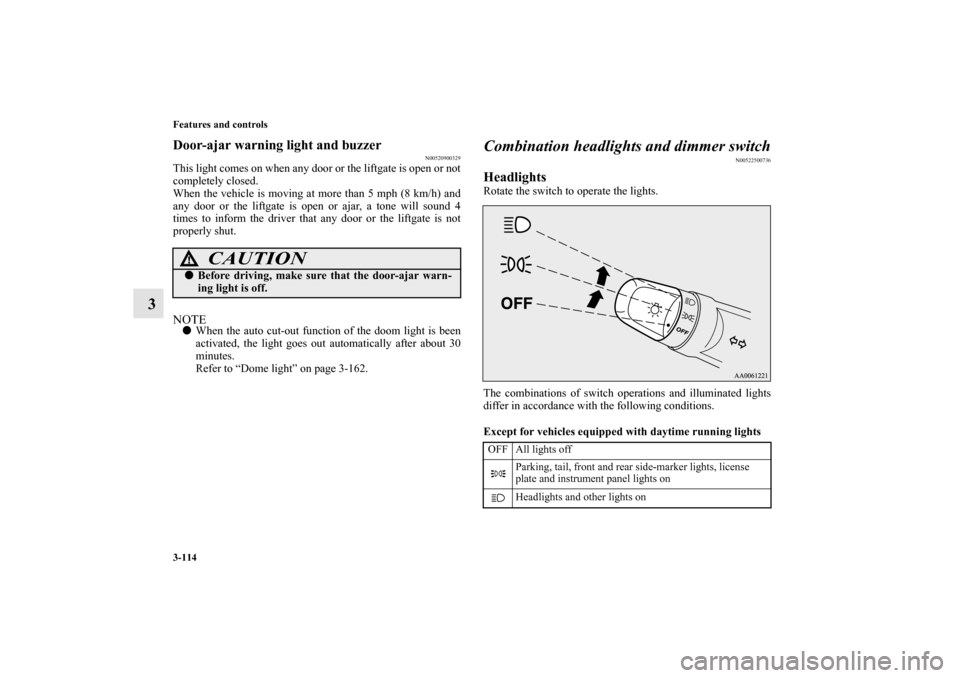

Door-ajar warning light and buzzer
N00520900329
This light comes on when any door or the liftgate is open or not
completely closed.
When the vehicle is moving at more than 5 mph (8 km/h) and
any door or the liftgate is open or ajar, a tone will sound 4
times to inform the driver that any door or the liftgate is not
properly shut.NOTE
When the auto cut-out function of the doom light is been
activated, the light goes out automatically after about 30
minutes.
Refer to “Dome light” on page 3-162.
Combination headlights and dimmer switch
N00522500736
HeadlightsRotate the switch to operate the lights.
The combinations of switch operations and illuminated lights
differ in accordance with the following conditions.
Except for vehicles equipped with daytime running lights

CAUTION
!
Before driving, make sure that the door-ajar warn-
ing light is off.
OFF All lights off
Parking, tail, front and rear side-marker lights, license
plate and instrument panel lights on
Headlights and other lights on
BK0162600US.book 114 ページ ２０１３年３月２２日　金曜日　午後２時４１分

Features and controls
3-115
3
Vehicles equipped with daytime running lights
[When the engine is started, and the parking brake is released]
The daytime running lights will be illuminated:NOTE
Once the daytime running light come on, they do not go
out until the ignition switch is turned to the “OFF” or
“ACC” position or the operation mode is changed to OFF
or ACC.
[When the engine is not running, or when the engine is running
but the parking brake is not released]
The engine starts when the lights are off.NOTE
Do not leave the headlights and other lights on for a long
period of time when the engine is not running. The battery
will run down.
When it rains, or when the vehicle has been washed, the
inside of the lens sometimes becomes foggy. This is the
same as when window glass mists up on a humid day, and
does not indicate a problem. When the light is switched
on, the heat will dry out the fog. However, if water col-
lects inside the light, have it checked by an authorized
Mitsubishi Motors dealer or a repair facility of your
choice.OFF The daytime running lights illuminated
The daytime running lights illuminated
Parking, tail, front and rear side-marker lights, license
plate and instrument panel lights on
Headlights and other lights on
OFF All lights off
Parking, tail, front and rear side-marker lights, license
plate and instrument panel lights on
Headlights and other lights on
BK0162600US.book 115 ページ ２０１３年３月２２日　金曜日　午後２時４１分

3-116 Features and controls
3

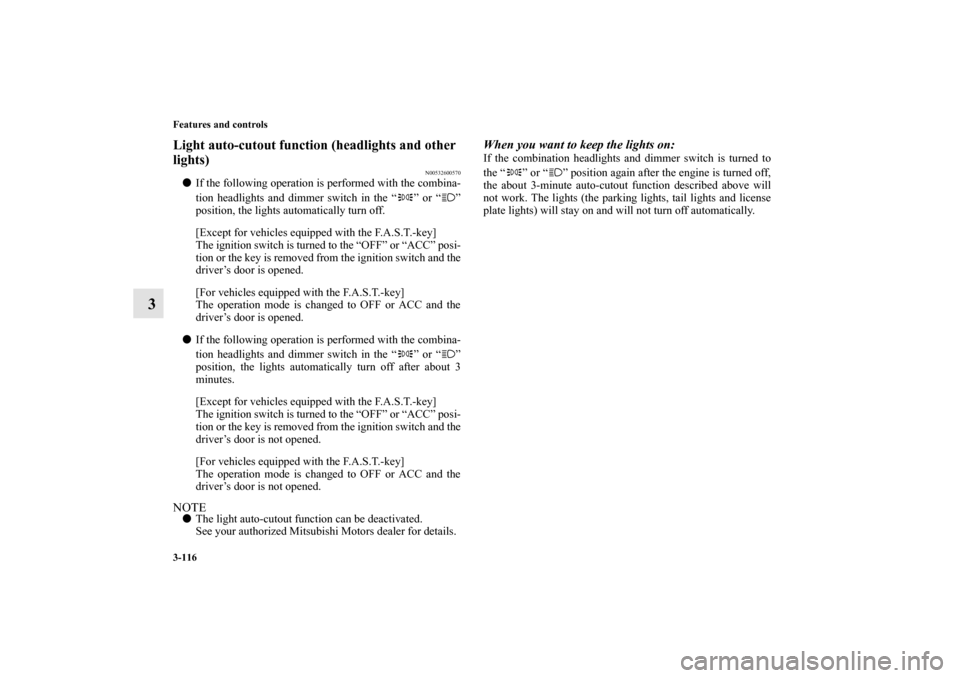

Light auto-cutout function (headlights and other
lights)
N00532600570

If the following operation is performed with the combina-
tion headlights and dimmer switch in the “ ” or “ ”
position, the lights automatically turn off.
[Except for vehicles equipped with the F.A.S.T.-key]
The ignition switch is turned to the “OFF” or “ACC” posi-
tion or the key is removed from the ignition switch and the
driver’s door is opened.
[For vehicles equipped with the F.A.S.T.-key]
The operation mode is changed to OFF or ACC and the
driver’s door is opened.

If the following operation is performed with the combina-
tion headlights and dimmer switch in the “ ” or “ ”
position, the lights automatically turn off after about 3
minutes.
[Except for vehicles equipped with the F.A.S.T.-key]
The ignition switch is turned to the “OFF” or “ACC” posi-
tion or the key is removed from the ignition switch and the
driver’s door is not opened.
[For vehicles equipped with the F.A.S.T.-key]
The operation mode is changed to OFF or ACC and the
driver’s door is not opened.NOTE
The light auto-cutout function can be deactivated.
See your authorized Mitsubishi Motors dealer for details.
When you want to keep the lights on:If the combination headlights and dimmer switch is turned to
the “ ” or “ ” position again after the engine is turned off,
the about 3-minute auto-cutout function described above will
not work. The lights (the parking lights, tail lights and license
plate lights) will stay on and will not turn off automatically.
BK0162600US.book 116 ページ ２０１３年３月２２日　金曜日　午後２時４１分

Features and controls
3-117
3

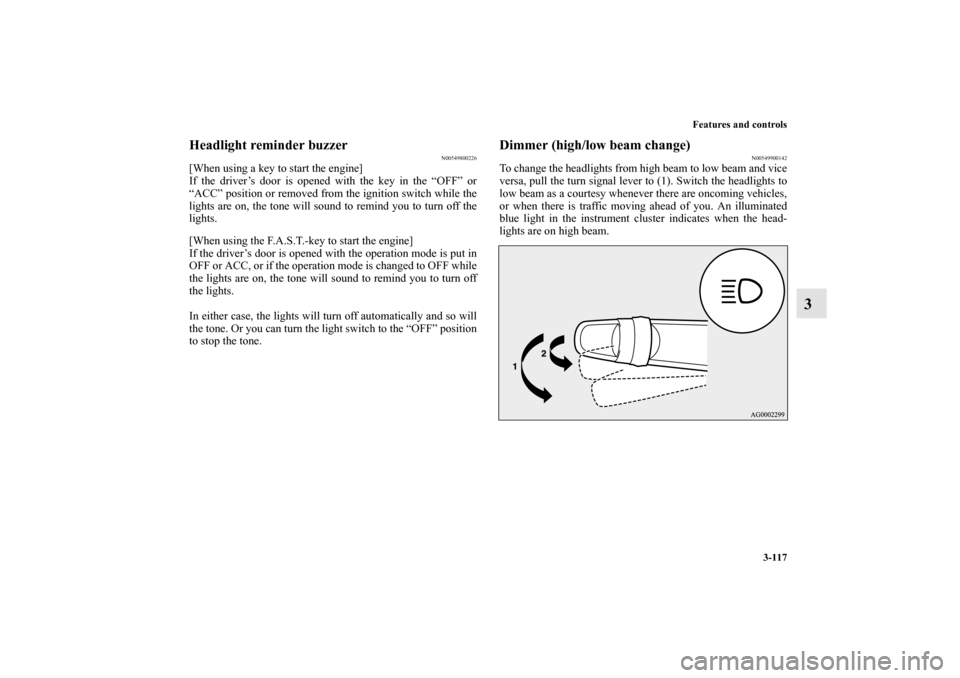

Headlight reminder buzzer
N00549800226
[When using a key to start the engine]
If the driver’s door is opened with the key in the “OFF” or
“ACC” position or removed from the ignition switch while the
lights are on, the tone will sound to remind you to turn off the
lights.
[When using the F.A.S.T.-key to start the engine]
If the driver’s door is opened with the operation mode is put in
OFF or ACC, or if the operation mode is changed to OFF while
the lights are on, the tone will sound to remind you to turn off
the lights.
In either case, the lights will turn off automatically and so will
the tone. Or you can turn the light switch to the “OFF” position
to stop the tone.
Dimmer (high/low beam change)
N00549900142
To change the headlights from high beam to low beam and vice
versa, pull the turn signal lever to (1). Switch the headlights to
low beam as a courtesy whenever there are oncoming vehicles,
or when there is traffic moving ahead of you. An illuminated
blue light in the instrument cluster indicates when the head-
lights are on high beam.
BK0162600US.book 117 ページ ２０１３年３月２２日　金曜日　午後２時４１分

3-118 Features and controls
3

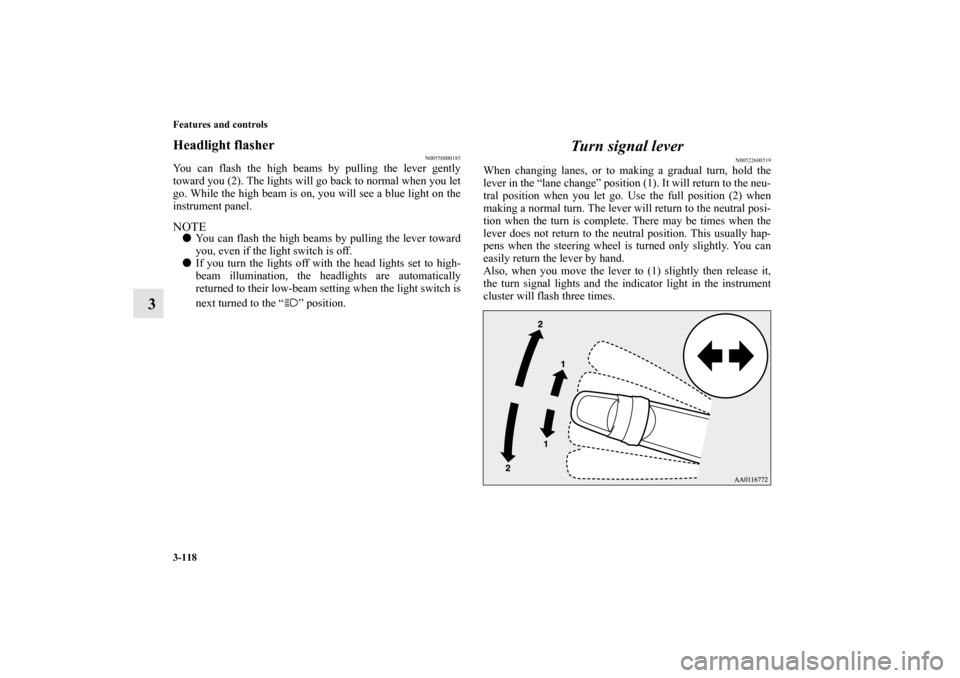

Headlight flasher
N00550000185
You can flash the high beams by pulling the lever gently
toward you (2). The lights will go back to normal when you let
go. While the high beam is on, you will see a blue light on the
instrument panel.NOTE
You can flash the high beams by pulling the lever toward
you, even if the light switch is off.

If you turn the lights off with the head lights set to high-
beam illumination, the headlights are automatically
returned to their low-beam setting when the light switch is
next turned to the “ ” position.
Turn signal lever
N00522600519
When changing lanes, or to making a gradual turn, hold the
lever in the “lane change” position (1). It will return to the neu-
tral position when you let go. Use the full position (2) when
making a normal turn. The lever will return to the neutral posi-
tion when the turn is complete. There may be times when the
lever does not return to the neutral position. This usually hap-
pens when the steering wheel is turned only slightly. You can
easily return the lever by hand.
Also, when you move the lever to (1) slightly then release it,
the turn signal lights and the indicator light in the instrument
cluster will flash three times.
BK0162600US.book 118 ページ ２０１３年３月２２日　金曜日　午後２時４１分

Features and controls
3-119
3

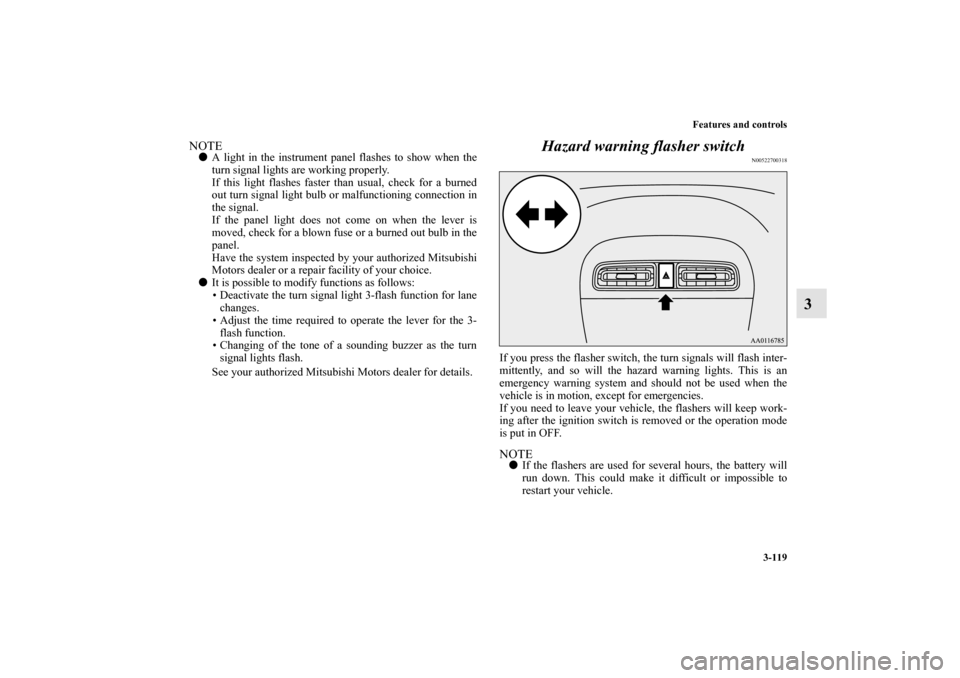

NOTE
A light in the instrument panel flashes to show when the
turn signal lights are working properly.
If this light flashes faster than usual, check for a burned
out turn signal light bulb or malfunctioning connection in
the signal.
If the panel light does not come on when the lever is
moved, check for a blown fuse or a burned out bulb in the
panel.
Have the system inspected by your authorized Mitsubishi
Motors dealer or a repair facility of your choice.

It is possible to modify functions as follows:
• Deactivate the turn signal light 3-flash function for lane
changes.
• Adjust the time required to operate the lever for the 3-
flash function.
• Changing of the tone of a sounding buzzer as the turn
signal lights flash.
See your authorized Mitsubishi Motors dealer for details.
Hazard warning flasher switch
N00522700318
If you press the flasher switch, the turn signals will flash inter-
mittently, and so will the hazard warning lights. This is an
emergency warning system and should not be used when the
vehicle is in motion, except for emergencies.
If you need to leave your vehicle, the flashers will keep work-
ing after the ignition switch is removed or the operation mode
is put in OFF.NOTE
If the flashers are used for several hours, the battery will
run down. This could make it difficult or impossible to
restart your vehicle.
BK0162600US.book 119 ページ ２０１３年３月２２日　金曜日　午後２時４１分

3-120 Features and controls

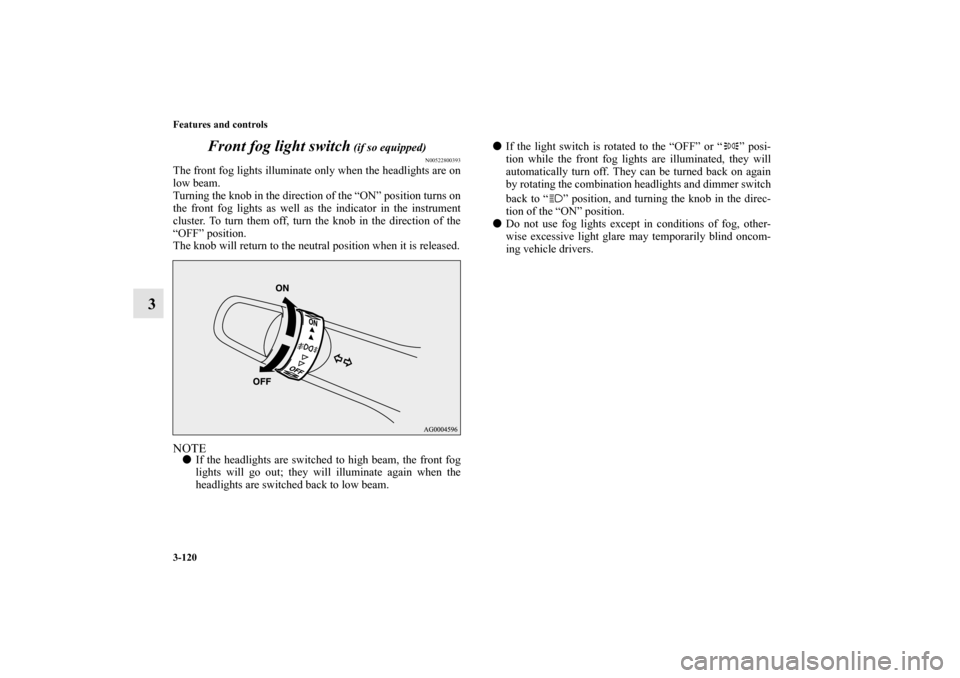

3Front fog light switch
(if so equipped)
N00522800393
The front fog lights illuminate only when the headlights are on
low beam.
Turning the knob in the direction of the “ON” position turns on
the front fog lights as well as the indicator in the instrument
cluster. To turn them off, turn the knob in the direction of the
“OFF” position.
The knob will return to the neutral position when it is released.NOTE
If the headlights are switched to high beam, the front fog
lights will go out; they will illuminate again when the
headlights are switched back to low beam.
If the light switch is rotated to the “OFF” or “ ” posi-
tion while the front fog lights are illuminated, they will
automatically turn off. They can be turned back on again
by rotating the combination headlights and dimmer switch
back to “ ” position, and turning the knob in the direc-
tion of the “ON” position.

Do not use fog lights except in conditions of fog, other-
wise excessive light glare may temporarily blind oncom-
ing vehicle drivers.
BK0162600US.book 120 ページ ２０１３年３月２２日　金曜日　午後２時４１分

Features and controls
3-121

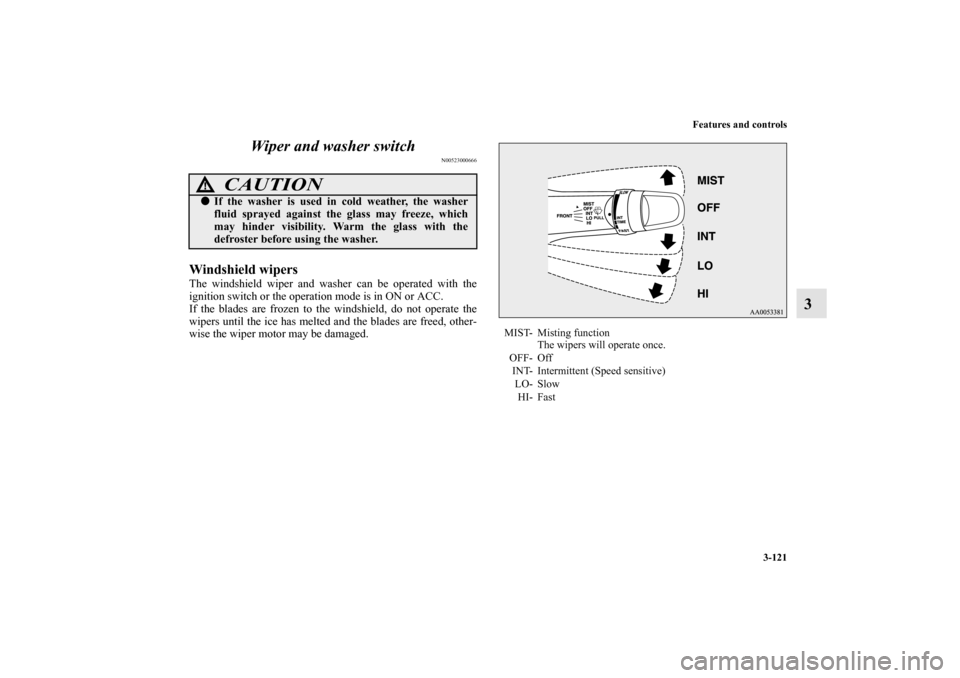

3 Wiper and washer switch
N00523000666
Windshield wipersThe windshield wiper and washer can be operated with the
ignition switch or the operation mode is in ON or ACC.
If the blades are frozen to the windshield, do not operate the
wipers until the ice has melted and the blades are freed, other-
wise the wiper motor may be damaged.
CAUTION
!
If the washer is used in cold weather, the washer
fluid sprayed against the glass may freeze, which
may hinder visibility. Warm the glass with the
defroster before using the washer.
MIST- Misting function
The wipers will operate once.
OFF- Off
INT- Intermittent (Speed sensitive)
LO- Slow
HI- Fast
BK0162600US.book 121 ページ ２０１３年３月２２日　金曜日　午後２時４１分

3-122 Features and controls
3

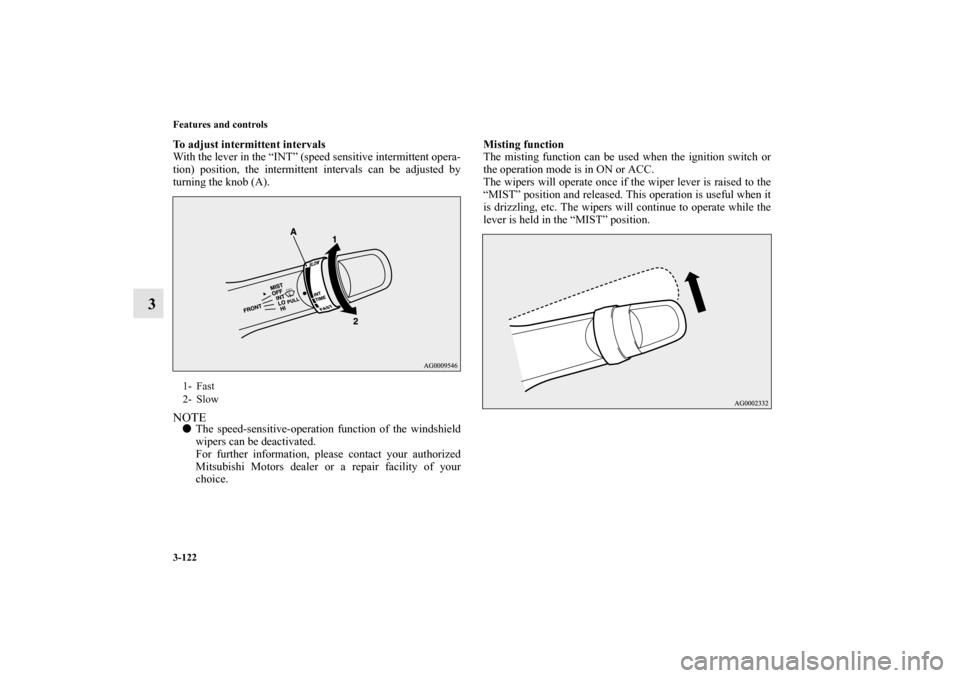

To adjust intermittent intervals
With the lever in the “INT” (speed sensitive intermittent opera-
tion) position, the intermittent intervals can be adjusted by
turning the knob (A). NOTE
The speed-sensitive-operation function of the windshield
wipers can be deactivated.
For further information, please contact your authorized
Mitsubishi Motors dealer or a repair facility of your
choice.Misting function
The misting function can be used when the ignition switch or
the operation mode is in ON or ACC.
The wipers will operate once if the wiper lever is raised to the
“MIST” position and released. This operation is useful when it
is drizzling, etc. The wipers will continue to operate while the
lever is held in the “MIST” position.1- Fast
2- Slow
BK0162600US.book 122 ページ ２０１３年３月２２日　金曜日　午後２時４１分
