MITSUBISHI MIRAGE 2014 6.G Owners Manual

Features and controls
3-103
3

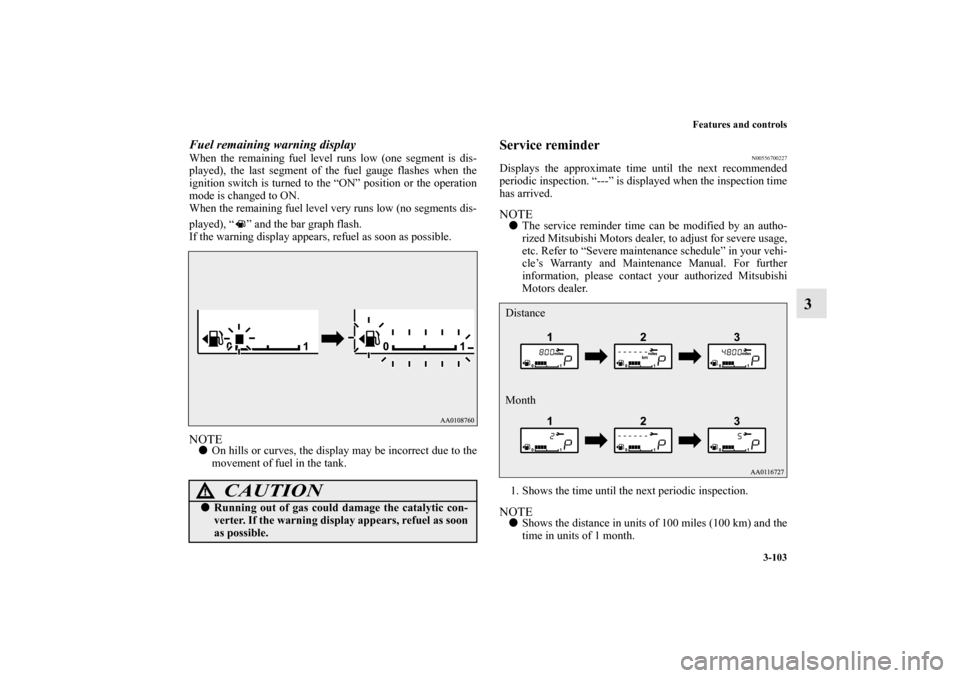

Fuel remaining warning displayWhen the remaining fuel level runs low (one segment is dis-
played), the last segment of the fuel gauge flashes when the
ignition switch is turned to the “ON” position or the operation
mode is changed to ON.
When the remaining fuel level very runs low (no segments dis-
played), “ ” and the bar graph flash.
If the warning display appears, refuel as soon as possible.NOTE
On hills or curves, the display may be incorrect due to the
movement of fuel in the tank.
Service reminder
N00556700227
Displays the approximate time until the next recommended
periodic inspection. “---” is displayed when the inspection time
has arrived.NOTE
The service reminder time can be modified by an autho-
rized Mitsubishi Motors dealer, to adjust for severe usage,
etc. Refer to “Severe maintenance schedule” in your vehi-
cle’s Warranty and Maintenance Manual. For further
information, please contact your authorized Mitsubishi
Motors dealer.
1. Shows the time until the next periodic inspection.NOTE
Shows the distance in units of 100 miles (100 km) and the
time in units of 1 month.
CAUTION
!
Running out of gas could damage the catalytic con-
verter. If the warning display appears, refuel as soon
as possible.
Distance
Month
BK0162600US.book 103 ページ ２０１３年３月２２日　金曜日　午後２時４１分

3-104 Features and controls
3

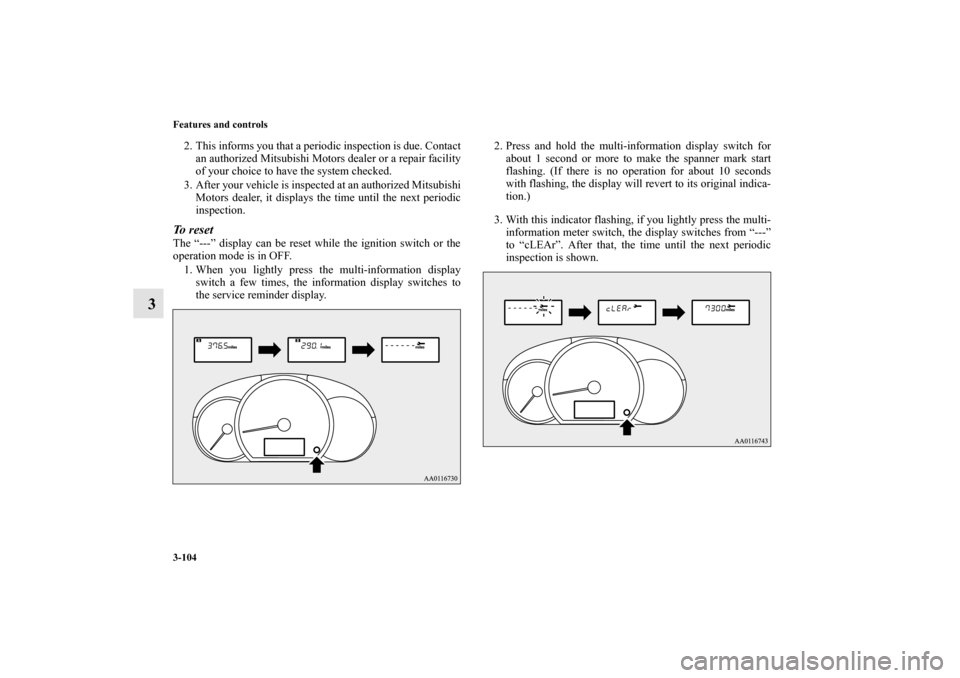

2. This informs you that a periodic inspection is due. Contact
an authorized Mitsubishi Motors dealer or a repair facility
of your choice to have the system checked.
3. After your vehicle is inspected at an authorized Mitsubishi
Motors dealer, it displays the time until the next periodic
inspection.To resetThe “---” display can be reset while the ignition switch or the
operation mode is in OFF.
1. When you lightly press the multi-information display
switch a few times, the information display switches to
the service reminder display.2. Press and hold the multi-information display switch for
about 1 second or more to make the spanner mark start
flashing. (If there is no operation for about 10 seconds
with flashing, the display will revert to its original indica-
tion.)
3. With this indicator flashing, if you lightly press the multi-
information meter switch, the display switches from “---”
to “cLEAr”. After that, the time until the next periodic
inspection is shown.BK0162600US.book 104 ページ ２０１３年３月２２日　金曜日　午後２時４１分

Features and controls
3-105
3

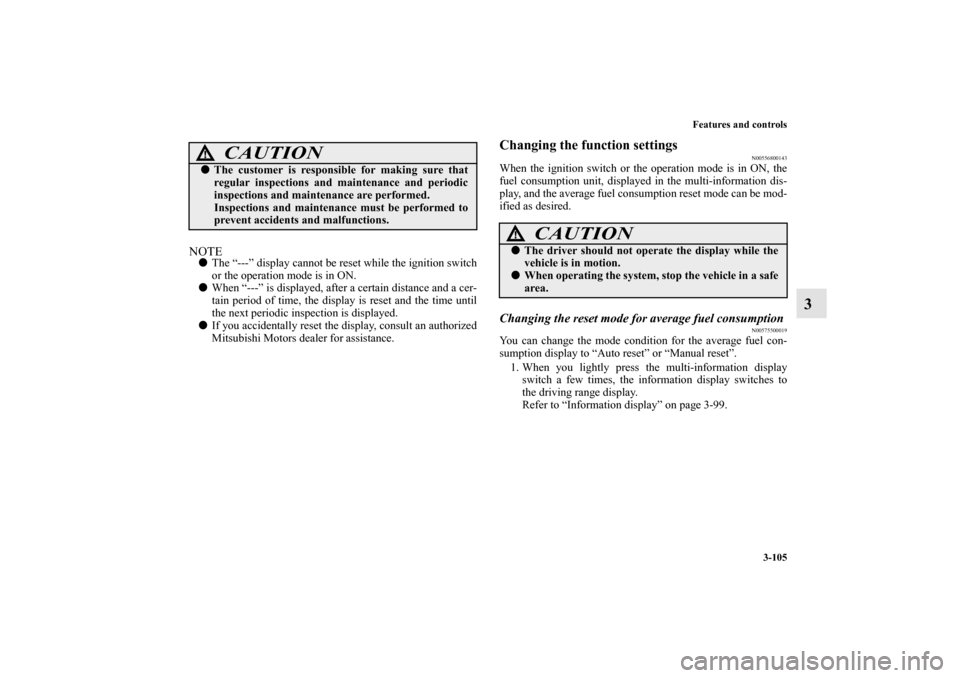

NOTE
The “---” display cannot be reset while the ignition switch
or the operation mode is in ON.

When “---” is displayed, after a certain distance and a cer-
tain period of time, the display is reset and the time until
the next periodic inspection is displayed.

If you accidentally reset the display, consult an authorized
Mitsubishi Motors dealer for assistance.
Changing the function settings
N00556800143
When the ignition switch or the operation mode is in ON, the
fuel consumption unit, displayed in the multi-information dis-
play, and the average fuel consumption reset mode can be mod-
ified as desired.Changing the reset mode for average fuel consumption
N00575500019
You can change the mode condition for the average fuel con-
sumption display to “Auto reset” or “Manual reset”.
1. When you lightly press the multi-information display
switch a few times, the information display switches to
the driving range display.
Refer to “Information display” on page 3-99.
CAUTION
!
The customer is responsible for making sure that
regular inspections and maintenance and periodic
inspections and maintenance are performed.
Inspections and maintenance must be performed to
prevent accidents and malfunctions.
CAUTION
!
The driver should not operate the display while the
vehicle is in motion.
When operating the system, stop the vehicle in a safe
area.
BK0162600US.book 105 ページ ２０１３年３月２２日　金曜日　午後２時４１分

3-106 Features and controls
3

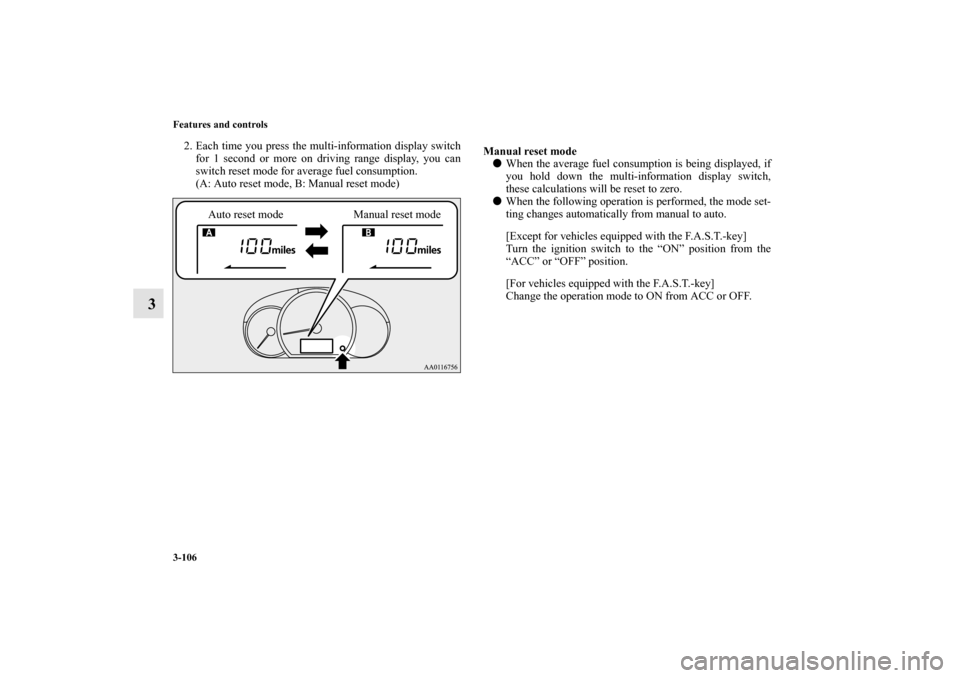

2. Each time you press the multi-information display switch
for 1 second or more on driving range display, you can
switch reset mode for average fuel consumption.
(A: Auto reset mode, B: Manual reset mode)Manual reset mode

When the average fuel consumption is being displayed, if
you hold down the multi-information display switch,
these calculations will be reset to zero.

When the following operation is performed, the mode set-
ting changes automatically from manual to auto.
[Except for vehicles equipped with the F.A.S.T.-key]
Turn the ignition switch to the “ON” position from the
“ACC” or “OFF” position.
[For vehicles equipped with the F.A.S.T.-key]
Change the operation mode to ON from ACC or OFF.
Auto reset mode Manual reset mode
BK0162600US.book 106 ページ ２０１３年３月２２日　金曜日　午後２時４１分

Features and controls
3-107
3

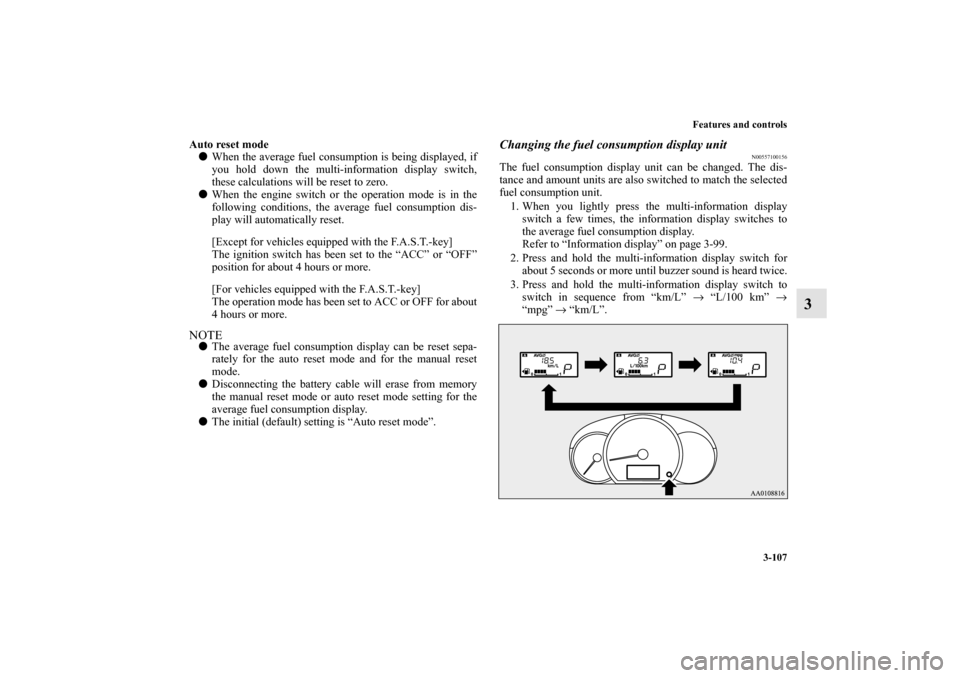

Auto reset mode

When the average fuel consumption is being displayed, if
you hold down the multi-information display switch,
these calculations will be reset to zero.

When the engine switch or the operation mode is in the
following conditions, the average fuel consumption dis-
play will automatically reset.
[Except for vehicles equipped with the F.A.S.T.-key]
The ignition switch has been set to the “ACC” or “OFF”
position for about 4 hours or more.
[For vehicles equipped with the F.A.S.T.-key]
The operation mode has been set to ACC or OFF for about
4 hours or more.NOTE
The average fuel consumption display can be reset sepa-
rately for the auto reset mode and for the manual reset
mode.

Disconnecting the battery cable will erase from memory
the manual reset mode or auto reset mode setting for the
average fuel consumption display.

The initial (default) setting is “Auto reset mode”.
Changing the fuel consumption display unit
N00557100156
The fuel consumption display unit can be changed. The dis-
tance and amount units are also switched to match the selected
fuel consumption unit.
1. When you lightly press the multi-information display
switch a few times, the information display switches to
the average fuel consumption display.
Refer to “Information display” on page 3-99.
2. Press and hold the multi-information display switch for
about 5 seconds or more until buzzer sound is heard twice.
3. Press and hold the multi-information display switch to
switch in sequence from “km/L” → “L/100 km” →
“mpg” → “km/L”.
BK0162600US.book 107 ページ ２０１３年３月２２日　金曜日　午後２時４１分

3-108 Features and controls
3

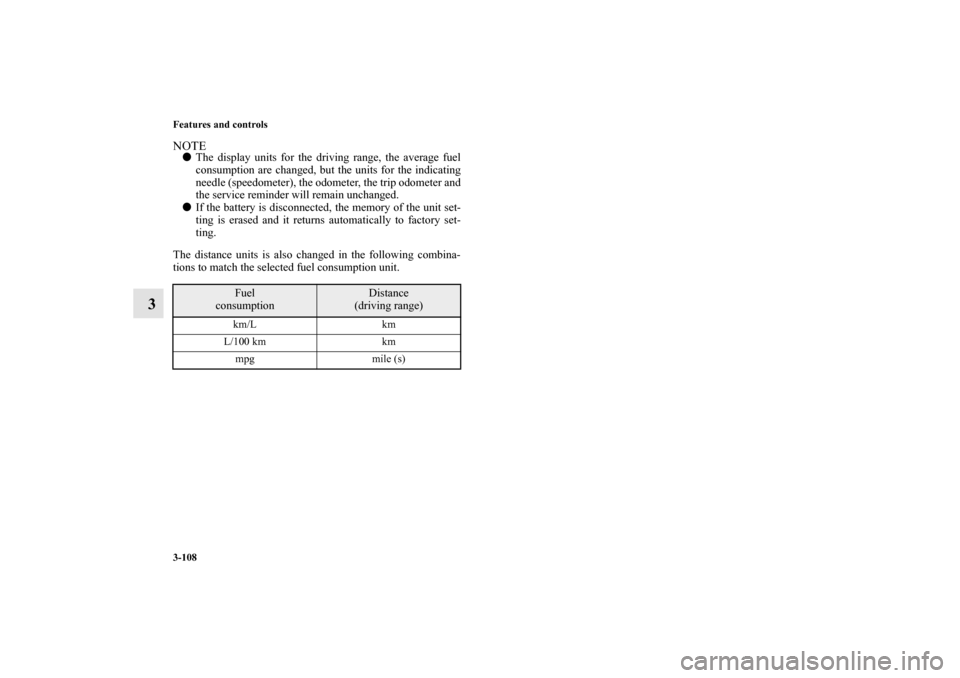

NOTE
The display units for the driving range, the average fuel
consumption are changed, but the units for the indicating
needle (speedometer), the odometer, the trip odometer and
the service reminder will remain unchanged.

If the battery is disconnected, the memory of the unit set-
ting is erased and it returns automatically to factory set-
ting.
The distance units is also changed in the following combina-
tions to match the selected fuel consumption unit.
Fuel
consumption
Distance
(driving range)
km/L km
L/100 km km
mpg mile (s)
BK0162600US.book 108 ページ ２０１３年３月２２日　金曜日　午後２時４１分

Features and controls
3-109
3 Indicator and warning light package
N00519800849
1- High beam indicator → P. 3 - 1 1 0
2- Electric power steering system warning light → P.3-75
3- Tire pressure monitoring system warning light (if so
equipped) → P.3-88
4- Turn signal indicators/Hazard warning lights → P. 3 - 1 1 0
5- Front fog light indicator (if so equipped) → P. 3 - 1 1 0
6- Door-ajar warning light → P. 3 - 1 1 4
7- Supplemental Restraint System (SRS) warning light
→ P.2-44
8- High coolant temperature warning light (red) → P. 3 - 1 1 3
9- Low coolant temperature indicator (green) → P. 3 - 1 1 0
10- Oil pressure warning light → P. 3 - 1 1 3
11- Engine malfunction indicator (“SERVICE ENGINE SOON”
or “Check engine light”) → P. 3 - 1 1 212- Charging system warning light → P. 3 - 1 1 3
13- Brake warning light → P.3-111
14- Anti-lock braking system warning light → P.3-73
15- Multi-information display → P.3-98
16- Driver ’s seat belt reminder/warning light → P.2-18
17- Cruise control indicator (if so equipped) → P.3-81
18- Active stability control (ASC) indicator/warning light →
P.3-78, 3-79
19- Active stability control (ASC) OFF indicator/warning light
→ P.3-78, 3-79
20- ECO indicator → P. 3 - 1 1 0
21- For details, refer to “Warning activator” on page 3-21 (if so
equipped)
22- For details, refer to “Warning activator” on page 3-21 (if so
equipped)
BK0162600US.book 109 ページ ２０１３年３月２２日　金曜日　午後２時４１分

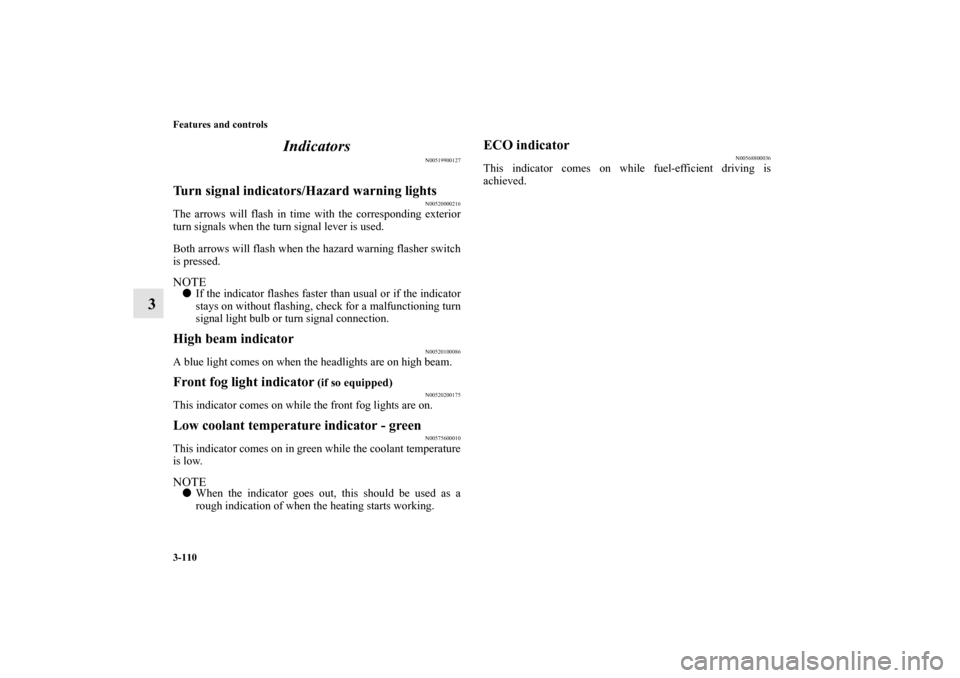

3-110 Features and controls
3Indicators
N00519900127
Turn signal indicators/Hazard warning lights
N00520000216
The arrows will flash in time with the corresponding exterior
turn signals when the turn signal lever is used.
Both arrows will flash when the hazard warning flasher switch
is pressed.NOTE
If the indicator flashes faster than usual or if the indicator
stays on without flashing, check for a malfunctioning turn
signal light bulb or turn signal connection.High beam indicator
N00520100086
A blue light comes on when the headlights are on high beam.Front fog light indicator
(if so equipped)
N00520200175
This indicator comes on while the front fog lights are on.Low coolant temperature indicator - green
N00575600010
This indicator comes on in green while the coolant temperature
is low.NOTE
When the indicator goes out, this should be used as a
rough indication of when the heating starts working.
ECO indicator
N00568800036
This indicator comes on while fuel-efficient driving is
achieved.
BK0162600US.book 110 ページ ２０１３年３月２２日　金曜日　午後２時４１分

Features and controls
3-111
3 Wa r n i n g l i g h t s
N00520300147
Brake warning light and buzzer
N00520400526
This light comes on when the ignition switch is turned to the
“ON” position (engine off) or the operation mode is put in ON.
When the engine is started, the light should go off a few sec-
onds later.
The warning light also illuminates after starting the engine
under the following conditions.

When the parking brake is still applied.

When the brake fluid level is low.

When the brake system circuit is not working properly.
When the vehicle is moving at more than 5 mph (8 km/h) and
the parking brake applied, a buzzer will sound to inform the
driver that the parking brake is not properly release.
Before driving, be sure that the parking brake is fully released
and the brake warning light is off.
CAUTION
!
If the brake warning light and the Anti-lock braking
system warning light are illuminated at the same
time, the braking force distribution function will not
operate, the vehicle may be destabilized during sud-
den braking under the following conditions.
• When the brake warning light does not go out even
when the parking brake is released.
• When the brake warning light stays on while driv-
ing.If the above occurs, avoid sudden braking and high-
speed driving. Park the vehicle in a safe place, and
contact an authorized Mitsubishi Motors dealer or a
repair facility of your choice as soon as possible.

The vehicle should be brought to a halt in the follow-
ing manner when brake performance is deterio-
rated.
• Confirm that the vehicle slows down when you
press down on the brake pedal harder than usual.
In some cases, the brake pedal may go all the way
to the floor.
• Should the brakes fail, use engine braking to
reduce your speed and slowly apply the parking
brake.
Depress the brake pedal to illuminate the stop
lights and to alert the vehicles behind you.
BK0162600US.book 111 ページ ２０１３年３月２２日　金曜日　午後２時４１分

3-112 Features and controls
3
Engine malfunction indicator (“SERVICE
ENGINE SOON” or “Check engine light”)
N00520500804
This indicator is a part of the onboard diagnostic (OBD) sys-
tem which monitors the emissions, engine control system or
continuously variable transmission (CVT) control system. If a
problem is detected in one of these systems, this indicator illu-
minates or flashes. When the ignition switch is turned to the
“ON” position or the operation mode is put in ON, this indica-
tor normally comes on and goes off after the engine has started.
This indicator will come on if the fuel tank filler cap is not
properly tightened. If this indicator comes on and stays on after
refueling, stop the engine and check that the cap is properly
tightened. (Turn the cap clockwise until you hear clicking
sounds.)
If this indicator does not go off after several seconds or lights
up while driving, have the system checked as soon as possible
at an authorized Mitsubishi Motors dealer or a repair facility of
your choice.
NOTE
Do not disconnect the battery cable when the engine mal-
function indicator (“SERVICE ENGINE SOON” or
“Check engine light”) is on.
The engine electronic control module stores critical OBD
information (especially exhaust emission data), which
may be lost if the battery cable is disconnected while the
engine malfunction indicator is on. This will make it diffi-
cult to diagnose the cause of future problems.
CAUTION
!
Driving for a long time with the engine malfunction
indicator on may cause more damage to the emission
control system. This could also affect fuel economy
and drivability.
If this indicator does not come on when the ignition
switch is turned to the “ON” position or the opera-
tion mode is put in ON, have the system checked at
an authorized Mitsubishi Motors dealer or a repair
facility of your choice.

If the engine malfunction indicator comes on while
the engine is running, avoid driving at high speeds.
During vehicle operation with the indicator on, the
vehicle may not accelerate when you depress the
accelerator pedal.
When the vehicle is stationary with the indicator on,
you must depress the brake pedal more firmly than
usual since the engine idling speed is higher than
usual and a vehicle with a CVT has a stronger ten-
dency to creep forward.
CAUTION
!
BK0162600US.book 112 ページ ２０１３年３月２２日　金曜日　午後２時４１分
