engine oil MITSUBISHI MIRAGE 2014 6.G Owners Manual

Quick index
1
If this warning light comes on or flashes while you’re driving...
N00200701136
NOTE
These warning lights will come on for a few seconds for a bulb check when the ignition switch is first turned to “ON” or the
operation mode is put in ON.
Warning lights
Do this
Ref. Page
Charging system warning light
Park your vehicle in a safe place and stop the engine.
Contact your Mitsubishi Motors dealer or a repair facility of your choice for
assistance.P. 3 - 1 1 3
(Illuminates and intermittent sounds)
Park your vehicle in a safe place and stop the engine.
Contact your Mitsubishi Motors dealer or a repair facility of your choice for
assistance.P. 3 - 2 1
Oil pressure warning light
Park your vehicle in a safe place and stop the engine, then check the engine
oil level.
If the light comes on while the engine oil level is normal, have the system
checked at an authorized Mitsubishi Motors dealer or a repair facility of your
choice as soon as possible.P. 3 - 1 1 3
BK0162600US.book 1 ページ ２０１３年３月２２日　金曜日　午後２時４１分

3-2 Features and controls

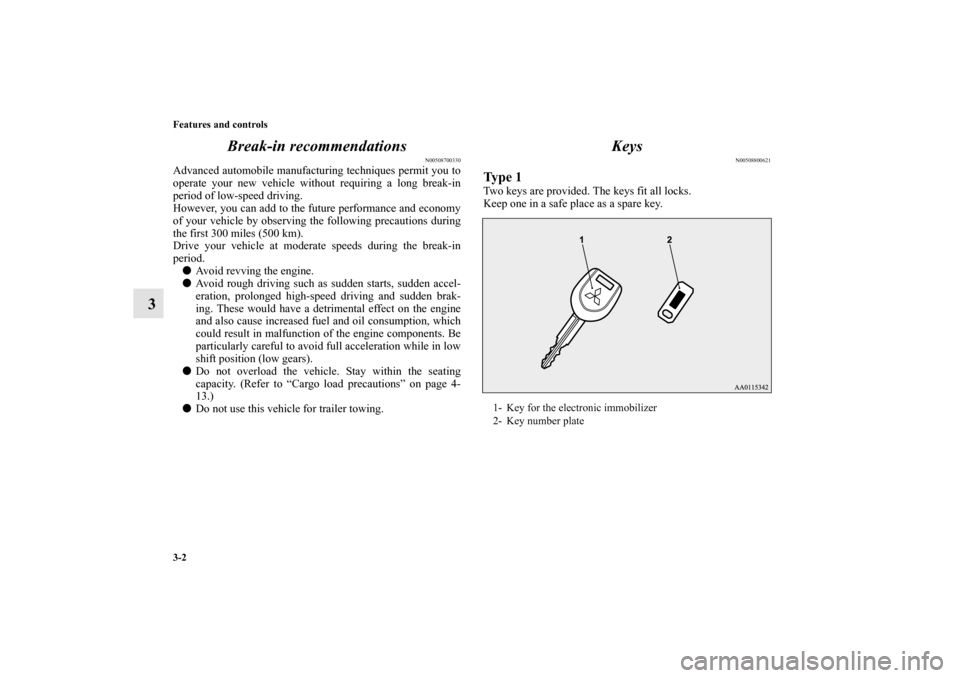

3Break-in recommendations
N00508700330
Advanced automobile manufacturing techniques permit you to
operate your new vehicle without requiring a long break-in
period of low-speed driving.
However, you can add to the future performance and economy
of your vehicle by observing the following precautions during
the first 300 miles (500 km).
Drive your vehicle at moderate speeds during the break-in
period.

Avoid revving the engine.

Avoid rough driving such as sudden starts, sudden accel-
eration, prolonged high-speed driving and sudden brak-
ing. These would have a detrimental effect on the engine
and also cause increased fuel and oil consumption, which
could result in malfunction of the engine components. Be
particularly careful to avoid full acceleration while in low
shift position (low gears).

Do not overload the vehicle. Stay within the seating
capacity. (Refer to “Cargo load precautions” on page 4-
13.)

Do not use this vehicle for trailer towing.
Keys
N00508800621
Ty p e 1Two keys are provided. The keys fit all locks.
Keep one in a safe place as a spare key.1- Key for the electronic immobilizer
2- Key number plate
BK0162600US.book 2 ページ ２０１３年３月２２日　金曜日　午後２時４１分

Features and controls
3-109
3 Indicator and warning light package
N00519800849
1- High beam indicator → P. 3 - 1 1 0
2- Electric power steering system warning light → P.3-75
3- Tire pressure monitoring system warning light (if so
equipped) → P.3-88
4- Turn signal indicators/Hazard warning lights → P. 3 - 1 1 0
5- Front fog light indicator (if so equipped) → P. 3 - 1 1 0
6- Door-ajar warning light → P. 3 - 1 1 4
7- Supplemental Restraint System (SRS) warning light
→ P.2-44
8- High coolant temperature warning light (red) → P. 3 - 1 1 3
9- Low coolant temperature indicator (green) → P. 3 - 1 1 0
10- Oil pressure warning light → P. 3 - 1 1 3
11- Engine malfunction indicator (“SERVICE ENGINE SOON”
or “Check engine light”) → P. 3 - 1 1 212- Charging system warning light → P. 3 - 1 1 3
13- Brake warning light → P.3-111
14- Anti-lock braking system warning light → P.3-73
15- Multi-information display → P.3-98
16- Driver ’s seat belt reminder/warning light → P.2-18
17- Cruise control indicator (if so equipped) → P.3-81
18- Active stability control (ASC) indicator/warning light →
P.3-78, 3-79
19- Active stability control (ASC) OFF indicator/warning light
→ P.3-78, 3-79
20- ECO indicator → P. 3 - 1 1 0
21- For details, refer to “Warning activator” on page 3-21 (if so
equipped)
22- For details, refer to “Warning activator” on page 3-21 (if so
equipped)
BK0162600US.book 109 ページ ２０１３年３月２２日　金曜日　午後２時４１分

Features and controls
3-113
3
Charging system warning light
N00520600313
This light comes on in the event of a malfunction in the charg-
ing system or when the ignition switch is turned to the “ON”
position (engine off) or the operation mode is put in ON. When
the engine is started, the light should go out. Check to make
sure that the light has gone out before driving.Oil pressure warning light
N00520700170
This light comes on when the engine oil pressure is below nor-
mal. If the light stays on while driving, stop the engine as soon
as possible. Do not run the engine until the cause of the low oil
pressure is corrected.
High coolant temperature warning light - red
N00575700011
This light comes on in red if the coolant temperature becomes
excessively high.NOTE
The high coolant temperature warning light may illumi-
nate when the vehicle has been driven at high speeds or on
hilly roads. This illuminating does not necessarily indicate
a problem. It should stop if you keep the engine running
for a while or continue driving the vehicle.
CAUTION
!
If the warning light stays on while the engine is run-
ning, park your vehicle in a safe place as soon as
possible and contact an authorized Mitsubishi
Motors dealer or a repair facility of your choice to
have the system checked.
CAUTION
!
If this light comes on when the engine oil level is not
low, have your vehicle checked at an authorized
Mitsubishi Motors dealer or a repair facility of your
choice.
This warning light does not show the amount of oil
in the crankcase. This can only be determined by
checking the oil level with the dipstick with the
engine turned off.
CAUTION
!
If the light comes on during vehicle operation, it
indicates that the engine is possibly overheating.
Continued driving could make the engine fail.
Immediately stop the vehicle in a safe place and take
appropriate action. (Refer to “Engine overheating”
on page 6-5.)
BK0162600US.book 113 ページ ２０１３年３月２２日　金曜日　午後２時４１分

4-6 Driving safety
4Safe driving techniques
N00629200137
Even this vehicle’s safety equipment, and your safest driving,
cannot guarantee that you can avoid an accident or injury.
However, if you give extra attention to the following areas, you
can better protect yourself and your passengers:

Drive defensively. Be aware of traffic, road and weather
conditions. Leave plenty of stopping distance between
your vehicle and the vehicle ahead.

Before changing lanes, check your mirrors, your blind
spots, and use your turn-signal light.

While driving, watch the behavior of other drivers, bicy-
clists, and pedestrians.

Always obey applicable laws and regulations. Be a polite
and alert driver. Always leave room for unexpected
events, such as sudden braking.

If you plan to drive in another country, obey their vehicle
registration laws and make sure you will be able to get the
right fuel.
Driving during cold weather
N00629400474

Check the battery. At the same time, check the terminals
and wiring. During extremely cold weather, the battery
will not be as strong. Also, the battery power level may
drop because more power is used for cold starting and
driving.
Before driving the vehicle, check to see if the engine runs
at the proper speed and if the headlights are as bright as
normally. Charge or replace the battery if necessary. Dur-
ing extreme cold weather, it is possible that a very low
battery could freeze.

Warm the engine sufficiently. After starting the engine,
allow a short warm-up time to distribute oil to all cylin-
ders. Then drive your vehicle slowly.

Stay at low speeds at first so that the manual transaxle oil
or the automatic transaxle fluid has time to spread to all
the lubrication points.

Manual transaxle can be harder to shift in cold weather
conditions. This is normal and shifting will get easier as
the transaxle warms up.
WA R N I N G
!
The battery gives off explosive hydrogen gas. Any
spark or flame can cause the battery to explode,
which could cause serious injury or death.
Always wear protective clothes and a face mask
when working with your battery, or let a skilled
mechanic do it.
BK0162600US.book 6 ページ ２０１３年３月２２日　金曜日　午後２時４１分

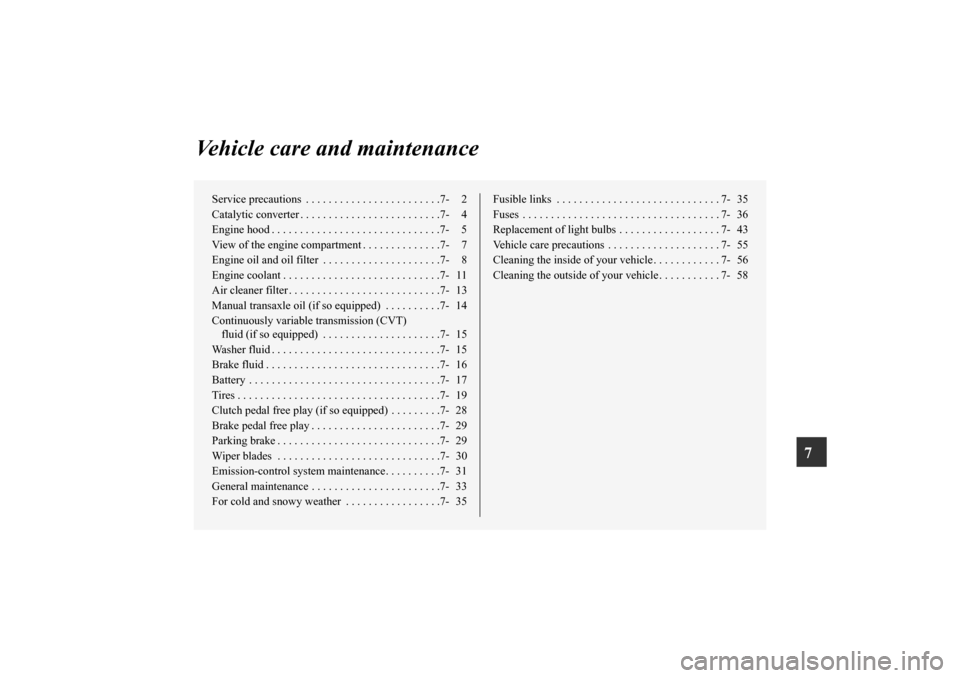

7
Vehicle care and maintenance
Service precautions . . . . . . . . . . . . . . . . . . . . . . . .7- 2
Catalytic converter . . . . . . . . . . . . . . . . . . . . . . . . .7- 4
Engine hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7- 5
View of the engine compartment . . . . . . . . . . . . . .7- 7
Engine oil and oil filter . . . . . . . . . . . . . . . . . . . . .7- 8
Engine coolant . . . . . . . . . . . . . . . . . . . . . . . . . . . .7- 11
Air cleaner filter . . . . . . . . . . . . . . . . . . . . . . . . . . .7- 13
Manual transaxle oil (if so equipped) . . . . . . . . . .7- 14
Continuously variable transmission (CVT)
fluid (if so equipped) . . . . . . . . . . . . . . . . . . . . .7- 15
Washer fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7- 15
Brake fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7- 16
Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7- 17
Tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7- 19
Clutch pedal free play (if so equipped) . . . . . . . . .7- 28
Brake pedal free play . . . . . . . . . . . . . . . . . . . . . . .7- 29
Parking brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7- 29
Wiper blades . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7- 30
Emission-control system maintenance. . . . . . . . . .7- 31
General maintenance . . . . . . . . . . . . . . . . . . . . . . .7- 33
For cold and snowy weather . . . . . . . . . . . . . . . . .7- 35Fusible links . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7- 35
Fuses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7- 36
Replacement of light bulbs . . . . . . . . . . . . . . . . . . 7- 43
Vehicle care precautions . . . . . . . . . . . . . . . . . . . . 7- 55
Cleaning the inside of your vehicle . . . . . . . . . . . . 7- 56
Cleaning the outside of your vehicle . . . . . . . . . . . 7- 58
BK0162600US.book 1 ページ ２０１３年３月２２日　金曜日　午後２時４１分

Vehicle care and maintenance
7-7
7
NOTE
If this does not close the engine hood properly, drop it
again from a slightly higher position.

Do not push down strongly on the engine hood. Depend-
ing on how strongly or where you push down, you could
create a dent in the vehicle body.

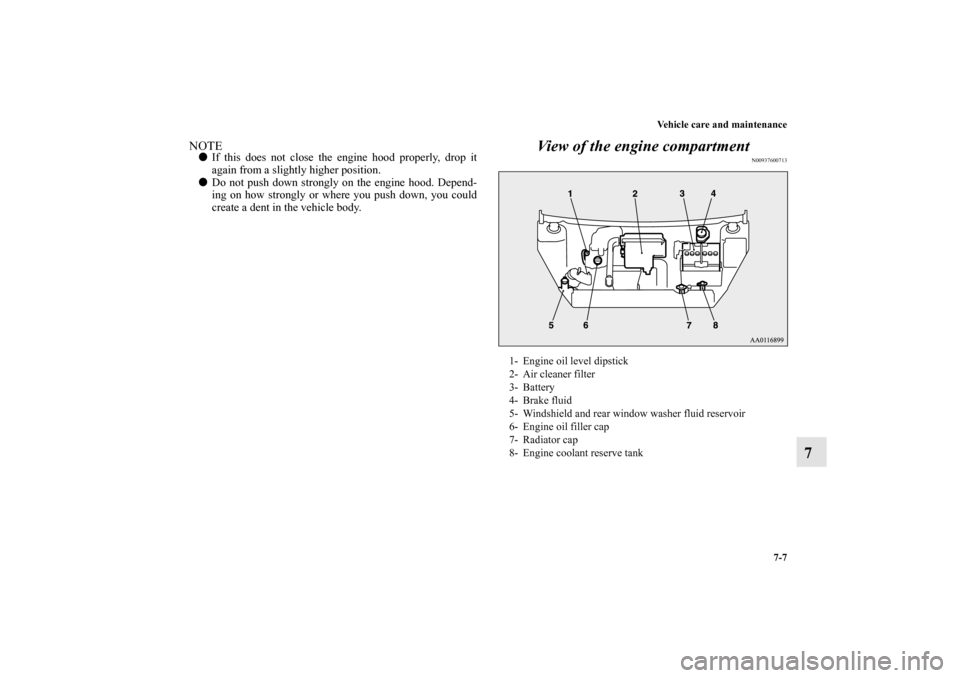

View of the engine compartment
N00937600713
1- Engine oil level dipstick
2- Air cleaner filter
3- Battery
4- Brake fluid
5- Windshield and rear window washer fluid reservoir
6- Engine oil filler cap
7- Radiator cap
8- Engine coolant reserve tank
BK0162600US.book 7 ページ ２０１３年３月２２日　金曜日　午後２時４１分

7-8 Vehicle care and maintenance

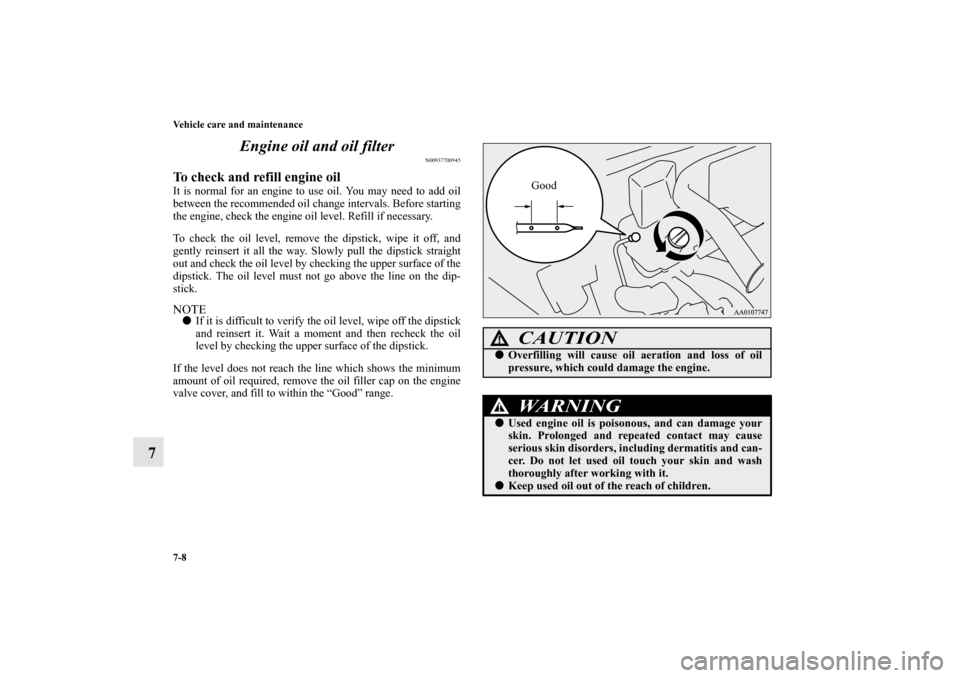

7Engine oil and oil filter
N00937700945
To check and refill engine oilIt is normal for an engine to use oil. You may need to add oil
between the recommended oil change intervals. Before starting
the engine, check the engine oil level. Refill if necessary.
To check the oil level, remove the dipstick, wipe it off, and
gently reinsert it all the way. Slowly pull the dipstick straight
out and check the oil level by checking the upper surface of the
dipstick. The oil level must not go above the line on the dip-
stick.NOTE
If it is difficult to verify the oil level, wipe off the dipstick
and reinsert it. Wait a moment and then recheck the oil
level by checking the upper surface of the dipstick.
If the level does not reach the line which shows the minimum
amount of oil required, remove the oil filler cap on the engine
valve cover, and fill to within the “Good” range.
CAUTION
!
Overfilling will cause oil aeration and loss of oil
pressure, which could damage the engine.
WA R N I N G
!
Used engine oil is poisonous, and can damage your
skin. Prolonged and repeated contact may cause
serious skin disorders, including dermatitis and can-
cer. Do not let used oil touch your skin and wash
thoroughly after working with it.
Keep used oil out of the reach of children.
Good
BK0162600US.book 8 ページ ２０１３年３月２２日　金曜日　午後２時４１分

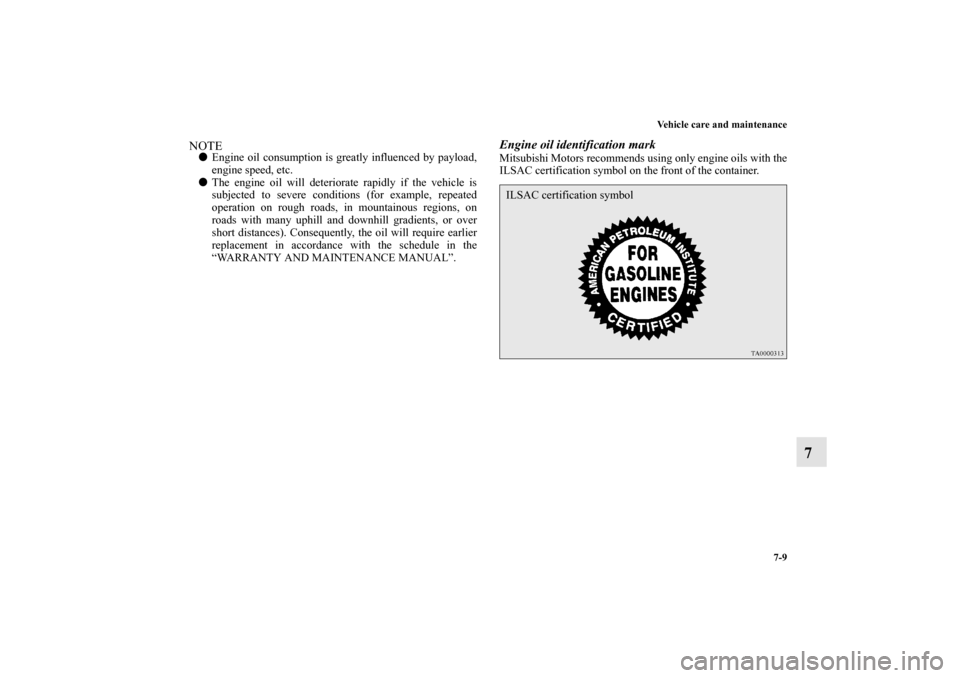

Vehicle care and maintenance
7-9
7
NOTE
Engine oil consumption is greatly influenced by payload,
engine speed, etc.

The engine oil will deteriorate rapidly if the vehicle is
subjected to severe conditions (for example, repeated
operation on rough roads, in mountainous regions, on
roads with many uphill and downhill gradients, or over
short distances). Consequently, the oil will require earlier
replacement in accordance with the schedule in the
“WARRANTY AND MAINTENANCE MANUAL”.
Engine oil identification markMitsubishi Motors recommends using only engine oils with the
ILSAC certification symbol on the front of the container.ILSAC certification symbol
BK0162600US.book 9 ページ ２０１３年３月２２日　金曜日　午後２時４１分

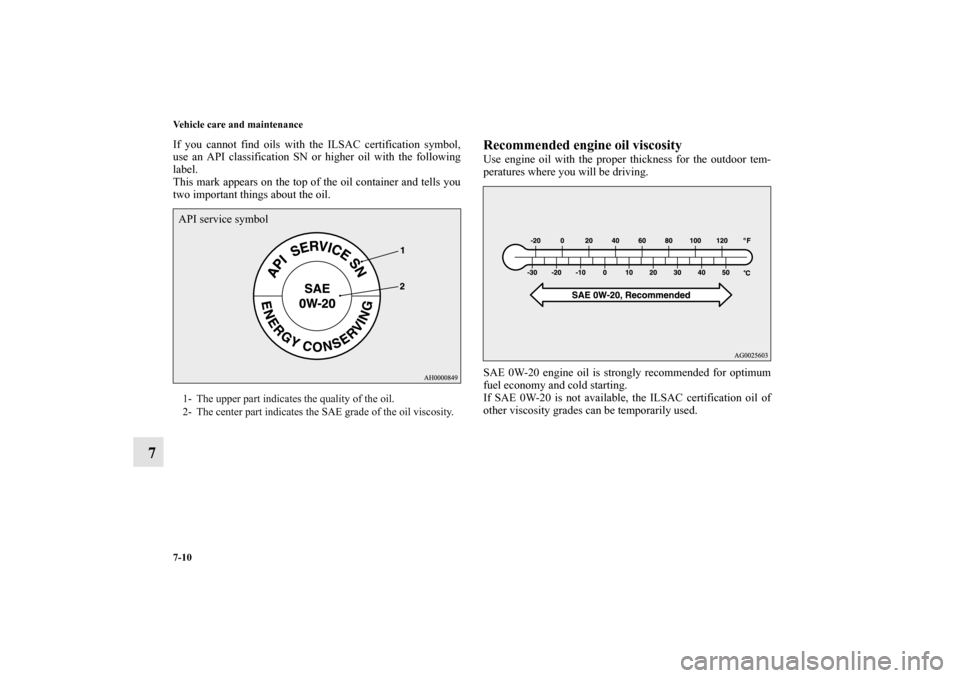

7-10 Vehicle care and maintenance
7
If you cannot find oils with the ILSAC certification symbol,
use an API classification SN or higher oil with the following
label.
This mark appears on the top of the oil container and tells you
two important things about the oil.
Recommended engine oil viscosityUse engine oil with the proper thickness for the outdoor tem-
peratures where you will be driving.
SAE 0W-20 engine oil is strongly recommended for optimum
fuel economy and cold starting.
If SAE 0W-20 is not available, the ILSAC certification oil of
other viscosity grades can be temporarily used.
1- The upper part indicates the quality of the oil.
2- The center part indicates the SAE grade of the oil viscosity.API service symbolBK0162600US.book 10 ページ ２０１３年３月２２日　金曜日　午後２時４１分
