2018 MIRAGE FAMILY
2018 MIRAGE FAMILY
OWNER’S HANDBOOK
MITSUBISHICARS.COM
REV 06/17
Page 2 of 14
1
Thank you for buying a Mitsubishi Mirage. There’s no doubt you’ve already realized how well your car
drives on the open road. What you may not know is all the great features\
that help your car perform the
way it does. In the pages ahead we’re going to run through the basics\
and prepare you for the road.
We hope you will visit the Mitsubishi Owner’s site where we store the latest Mitsubishi news
and special offers. Here you can also keep track of your car’s warranty and servicing needs,
get Roadside Assistance Information and tap into other owner-centric details. Just log on to
WWW.MITSUBISHICARS.COM/OWNERSONLY.
TABLE OF CONTENTS
Driver’s View ........... Page 2-3
Controls ................. Page 4
Own the Road ............. Page 5
Technology ............... Page 6
AC and USB .............. Page 7
Audio/Bluetooth
® .......... Page 8
Smartphone Link Display Audio
(SDA) (if equipped) . . . . . . . . . Page 9
FAQ’s .................. Page 12
Some of the information contained in this booklet may not be correct due\
to product changes which may have occurred after the time it was
published. Mitsubishi Motors North America, Inc. reserves the right to m\
ake changes at any time, without notice, to prices, color, materials,
specification and models.
Page 3 of 14
2
DRIVER’S VIEW
1 Side Mirror Adjustment ..............
Page 4
2 Headlights
....................... Page 4
3 Windshield Wiper Lever ..............
Page 4
4 Seat Heaters ......................
Page 4
5 Cruise Control (if equipped)
..........Page 5
6 Multi-Information Display (MID) .......
Page 5
7 ASC Off Switch
.................... Page 6
8 Start/Stop Engine Switch
(if equipped with FAST-key) ..........Page 6
9 Climate Controls ...................
Page 7
10 Audio Remote Control Switches
(if equipped) ..................... Page 8
11 Audio System .................. Page 8, 10
12 Bluetooth® Controls
.............. Page 8-9
1
2
10
5
12
7
86

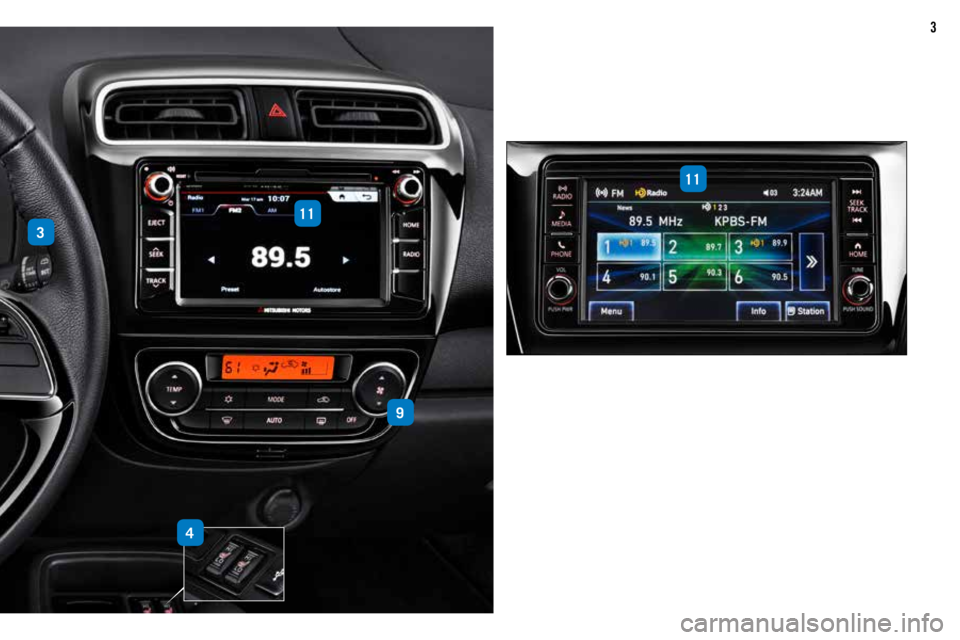

Page 4 of 14
3
11
11
9
3
4
Page 5 of 14
4CONTROLS
The wipers will operate once.
OFF
Intermittent (Speed sensitive)
Slow
Fast
WINDSHIELD WIPERS (MIRAGE)The wipers will operate once.
OFF
Intermittent (Speed sensitive)
Slow
Fast
WINDSHIELD WIPERS (G4)
REGULAR HEADLIGHTS
Headlights and other lights on.
Parking, tail, front and rear
sidemarker lights, license plate
and instrument panel lights on.
All lights off.
Pull lever toward driver to
activate high beams.SIDE MIRROR ADJUSTMENTThe side mirrors can be adjusted when the ignition
switch is in the “ON” or “ACC” position or the
operation mode is put in ON or ACC.
Move the lever
to the same side as the mirror you
wish to adjust.
SEAT HEATER SWITCH (IF EQUIPPED)
POSITION ACTION
HI For quick heating
NEUTRAL Heater off
LO Keeps seat warm
REAR WINDOW WIPER AND WASHER (MIRAGE)
Turn the knob [B] to operate the rear
window wiper.
The wiper operates continuously
for several seconds then operates
intermittently at intervals of about 8
seconds.
Washer fluid is sprayed, the wiper will
automatically operate 2 or 3 times.
Page 6 of 14
5OWN THE ROAD
CRUISE CONTROL (IF EQUIPPED)
CRUISE CONTROL ON/OFF SWITCH
Used to turn on and off the cruise control.
SET – SWITCH
Used to reduce the set speed and to set the desired
speed.
RES + SWITCH
Used to increase the set speed and to return to the
original set speed.
CANCEL SWITCH
Used to deactivate the set speed driving.
NOTE:When operating the cruise control switches, press the cruise control swi\
tches
correctly. The set speed driving may be deactivated automatically if two\
or more
switches of the cruise control are pressed at the same time. Minimum spe\
ed to
operate cruise control is about 25 mph.
TEMPERATURE INDICATOR L AMP OPERATION
1. TEMPERATURE INDICATOR ILLUMINATED GREEN
When the temperature indicator lamp is
illuminated Green this indicates the engine has
not reached normal operating temperature.
NOTE: This will result in cooler heater outlet
temperatures until engine reaches normal
operating temperatures.
2. TEMPERATURE INDICATOR LAMP OFF When the temperature indicator lamp is Off this indicates the engine is at normal
operating temperature.
3. TEMPERATURE INDICATOR LAMP ILLUMINATED RED
When the temperature indicator is illuminated Red this indicates the engine is overheating NOTE: If the engine is overheating, find a safe place to park the vehicle, then shut the
engine off and call Roadside Assistance as continued driving could cause\
the engine
to fail.
MULTI-INFORMATION DISPLAY SWITCH
Each time you lightly press the multi-information display switch (A), \
the display switches in the following order.
NOTE:
• When the ignition switch or the operation mode is in OFF, the driving ra\
nge display and average fuel consumption display are not displayed.
• While driving, the service reminder is not displayed even if you operate\
the multi-information display switch.1. Odometer
2. Trip Odometer - A
3. Trip Odometer - B
4. Miles to Empty/ Instrument Panel Light Dimmer Control
NOTE: Dimmer control is able to be used when the small (position)
light or headlight is in the ON position. Press and hold the
Multi-Information Display Switch to cycle through the different
illumination positions
5. Driving range display
6. Average fuel consumption display
7. Outside Temperature
8. Service reminder (distance)
9. Service reminder (months) (Mirage hatchback model only)
Page 7 of 14
6When the vehicle is placed in Reverse, the rearview camera system
automatically activates. A wide-angle view behind the vehicle is shown.TECHNOLOGY
KEYLESS ENTRY SYSTEM (IF EQUIPPED)REARVIEW CAMERA
START/STOP ENGINE SWITCH (IF EQUIPPED WITH FAST-KEY) ACTIVE STABILITY CONTROL (ASC) OFF SWITCH
TIRE PRESSURE MONITORING SYSTEM (TPMS)
While carrying the FAST-key within the operating range, the Start/
Stop button can be used to start the engine.
• Move the selector lever in “P” position and hold the brake
pedal Down. Push the Start/Stop button.
• To stop the engine, stop the vehicle completely and move the
selector lever to “P” then press the Start/Stop button.
*If you have to bring the engine to an emergency stop while driving, pre\
ss and
hold the Start/Stop button for 3 seconds or more, or press it quickly 3 \
times
or more.
• If you press the Start/Stop button without depressing the brake pedal, y\
ou can
change the operation mode in the order of OFF, ACC, ON, OFF.
• If the engine cannot be started or the operation mode cannot be changed,\
check the position of the FAST-key or the battery performance of the FAS\
T-key. You can deactivate the system by pressing down the “ASC OFF”
switch for 3 seconds or longer.
When the ASC is deactivated, the indicator will turn on. To reactivate
the ASC, momentarily press the “ASC OFF” switch; the indicator is \
turned off.
The Tire Pressure Monitoring System warning light illuminates
when one or more of your tires is significantly under inflated.
Please note that changes in the outside temperature may
decrease tire pressure causing the TPMS light to turn on. If the
TPMS light remains illuminated, check your tire pressure.
If the warning light illuminates, take the necessary measures referring \
to the
owner’s manual.
FAST-KEYNORMAL KEY
OPERATION INDICATOR LIGHT
LOCK (
) BUT TON
UNLOCK (
) BUT TON
TRUNK RELEASE (HOLD) BUT TON
( G 4 O N LY )
PANIC BUT TON
While carrying the FAST-key, press the driver’s door lock/unlock swit\
ch .
IF THE FAST-KEY IS NOT OPERATING PROPERLY
Remove the key from the FAST-key remote and
unlock the door manually. Then, insert the FAST-key
into the key slot in the floor console. Starting the engine and changing
the operation mode should be now possible. Remove the FAST-key from
the key slot after starting the engine or changing the operation mode.
ECO INDICATOR
This indicator will be displayed when fuel efficient driving
is achieved.
Page 8 of 14
7AIR CONDITIONING AND USB CONNECTION
MANUAL AIR CONDITIONINGAUTOMATIC AIR CONDITIONING (IF EQUIPPED)
- Temperature Control Dial/Switch
- Air conditioning switch
- Mode Selection Dial/Switch
- Air Selection Lever/Switch
- Blower Speed Selection Dial/Switch
- Defogger switch
- AUTO switch
- Electric rear window defogger switch
- OFF switch
CONNECTING A USB OR SMARTPHONE DEVICE (IF EQUIPPED)
Connecting a USB or Smartphone Device
1. Park your vehicle in a safe place and turn the ignition switch to the “\
OFF” position or put the Operation Mode in OFF.
2. Plug in the USB connecting cable that is supplied with your device and connect the USB end into the input terminal
located in the floor console box.
3. Turn the ignition switch or the Operation Mode to the “ACC” position. Turn on the audio system.
4. Press MENU on your Mirage’s audio touch screen.
5. Touch USB.
6. Touch Folder then select a track and begin playback.
The phone and cord are not included in the purchase
of the vehicle.
Page 9 of 14
8AUDIO / BLUETOOTH®
BLUETOOTH® CONTROLS
For a list of compatible Bluetooth devices, please go to
http://www.mitsubishicars.com/owners
SPEECH BUTTON: (SDA ONLY)
Change to voice recognition
PICK-UP BUTTON:
Answer an incoming call
HANG-UP BUTTON:
End a call or voice recognition
AUDIO REMOTE CONTROL SWITCHES
VOLUME UP SEEK
Change station or track
VOLUME DOWN MODE
Change the audio source
Bluetooth is a registered trademark of Bluetooth SIG, Inc.
LISTENING TO THE RADIO
- Selects AM/FM
- Selects type of Media
(MP3 and BT-A)
- Phone
- Power and Volume knob
- Seek stations up or down
- Returns to the initial display
- Tune stations / adjust
sound settings
AEB
C
D
F
G
Page 10 of 14
9AUDIO / BLUETOOTH®
This HD Radio receiver enables:
PSD Program Service Data: Contributes to the superior user
experience of HD Radio Technology. Presents song name,
artist, station IDs, HD2/HD3 Channel Guide, and other
relevant data streams.
HD2/HD3 Adjacent to traditional main stations are extra local FM
channels. These HD2/HD3 Channels provide new, original
music as well as deep cuts into traditional genre.
DIGITAL SOUND Digital, CD-quality sound. HD Radio Technology enables
local radio stations to broadcast a clean digital signal.
AM sounds like today’s FM and FM sounds like a CD. To Register a Bluetooth Device:
1.
Press the HOME key
2. Touch SETTING, then BLUETOOTH
3. Touch the NEW DEVICES
(If no Bluetooth devices are registered, Step 3 is not required)
• If the Bluetooth device is permitted to pair then it will allow the
connection to be made.
• Supports Ver. 2.1 + EDR
• Supported profiles: Bluetooth Audio A2DP(V1.1), AVRCP(V1.3);
Hands-free HFP(v1.5); Phonebook transfer PBAP(v1.0)
When Bluetooth is connected, 3 icons will display – the antenna level
(1 to 6), battery, Bluetooth connected (shown on the HOME screen) BLUETOOTH INFORMATION
TO ADJUST THE CLOCK
1. Press the HOME key
2. Touch SETTING, then CLOCK
- At this point, changes to the clock setting (time and format) can be
adjusted such as time format and time setting.
3. Touch SET
4. To return to the settings, touch BACK
5. The time setting changes is completed
