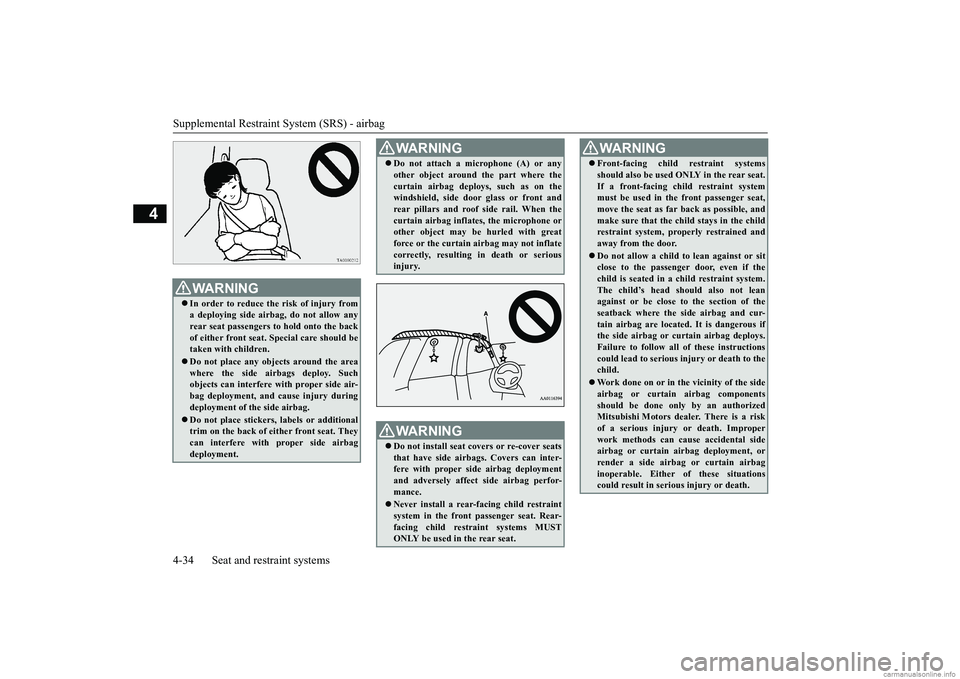

Supplemental Restraint System (SRS) - airbag 4-34 Seat and restraint systems
4
WA R N I N G In order to reduce the risk of injury from a deploying side airbag, do not allow any rear seat passengers to hold onto the back of either front seat. Special care should betaken with children. Do not place any obje
cts around the area
where the side airbags deploy. Such objects can interfere with proper side air- bag deployment, and cause injury duringdeployment of the side airbag. Do not place stickers,
labels or additional
trim on the back of either front seat. They can interfere with proper side airbag deployment.
 Do not attach a microphone (A) or any other object around the part where thecurtain airbag deploys
, such as on the
windshield, side door glass or front and rear pillars and roof
side rail. When the
curtain airbag inflates
, the microphone or
other object may be
hurled with great
force or the curtain airbag may not inflate correctly, resulting in death or seriousinjury.WA R N I N G Do not install seat covers or re-cover seats that have side airb
ags. Covers can inter-
fere with proper si
de airbag deployment
and adversely affect
side airbag perfor-
mance. Never install a rear-facing child restraint system in the front passenger seat. Rear- facing child restraint systems MUST ONLY be used in the rear seat.WA R N I N G
 Front-facing child restraint systems should also be used ON
LY in the rear seat.
If a front-facing child restraint systemmust be used in the front passenger seat, move the seat as far back as possible, and make sure that the child stays in the childrestraint system, properly restrained and away from the door. Do not allow a child to
lean against or sit
close to the passenger door, even if the child is seated in a child restraint system.The child’s head sh
ould also not lean
against or be close to the section of the seatback where the side airbag and cur-tain airbag are located. It is dangerous if the side airbag or cu
rtain airbag deploys.
Failure to follow all of these instructionscould lead to serious in
jury or death to the
child. Work done on or in th
e vicinity of the side
airbag or curtain
airbag components
should be done only
by an authorized
Mitsubishi Motors deal
er. There is a risk
of a serious injury
or death. Improper
work methods can cause accidental sideairbag or curtain ai
rbag deployment, or
render a side airb
ag or curtain airbag
inoperable. Either of these situationscould result in serious injury or death.WA R N I N G
BK0267800US.book 34 ページ ２０１８年５月３０日　水曜日　午後４時２４分

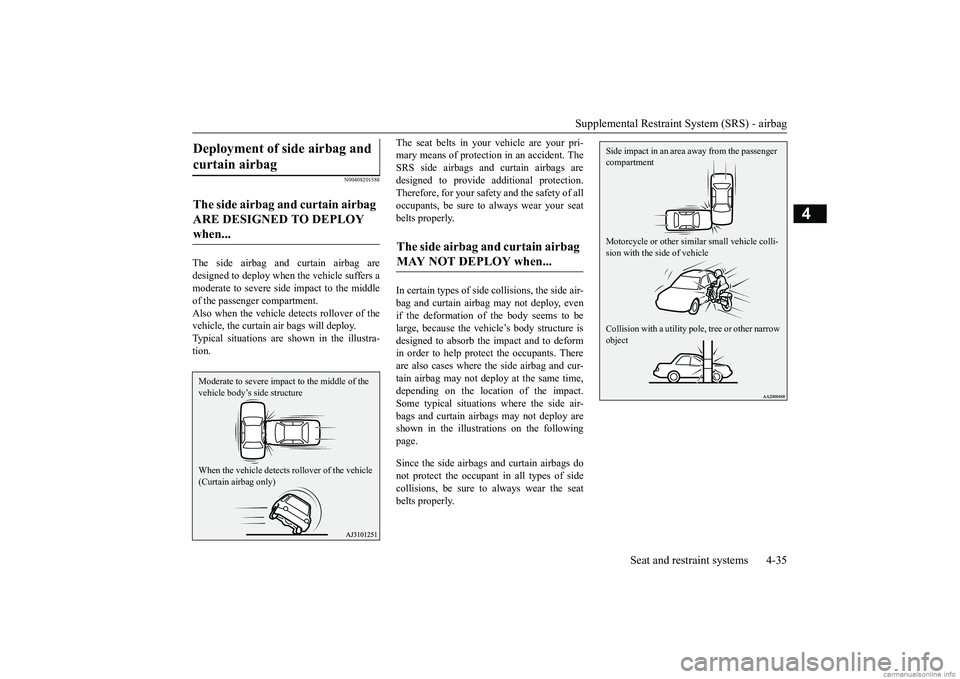

Supplemental Restraint System (SRS) - airbag
Seat and restraint systems 4-35
4
N00408201588
The side airbag and curtain airbag are designed to deploy when
the vehicle suffers a
moderate to severe side
impact to the middle
of the passenger compartment. Also when the vehicle detects rollover of the vehicle, the curtain air bags will deploy.Typical situations are
shown in the illustra-
tion.
The seat belts in your vehicle are your pri- mary means of protection in an accident. TheSRS side airbags and curtain airbags are designed to provide additional protection. Therefore, for your safety and the safety of alloccupants, be sure to
always wear your seat
belts properly. In certain types of side
collisions, the side air-
bag and curtain airbag may not deploy, even if the deformation of the body seems to belarge, because the vehicle’s body structure is designed to absorb the impact and to deform in order to help protect the occupants. Thereare also cases where the side airbag and cur- tain airbag may not de
ploy at the same time,
depending on the location of the impact.Some typical situations
where the side air-
bags and curtain airbags may not deploy are shown in the illustrations on the followingpage. Since the side airbags and curtain airbags do not protect the occupant in all types of side collisions, be sure to
always wear the seat
belts properly.
Deployment of side airbag and curtain airbag The side airbag and curtain airbag ARE DESIGNED TO DEPLOY when... Moderate to severe impact to the middle of the vehicle body’s side structure When the vehicle detects rollover of the vehicle (Curtain airbag only)
The side airbag and curtain airbag MAY NOT DEPLOY when...
Side impact in an area away from the passenger compartment Motorcycle or other similar small vehicle colli- sion with the side of vehicle Collision with a utility pole
, tree or other narrow
object
BK0267800US.book 35 ページ ２０１８年５月３０日　水曜日　午後４時２４分

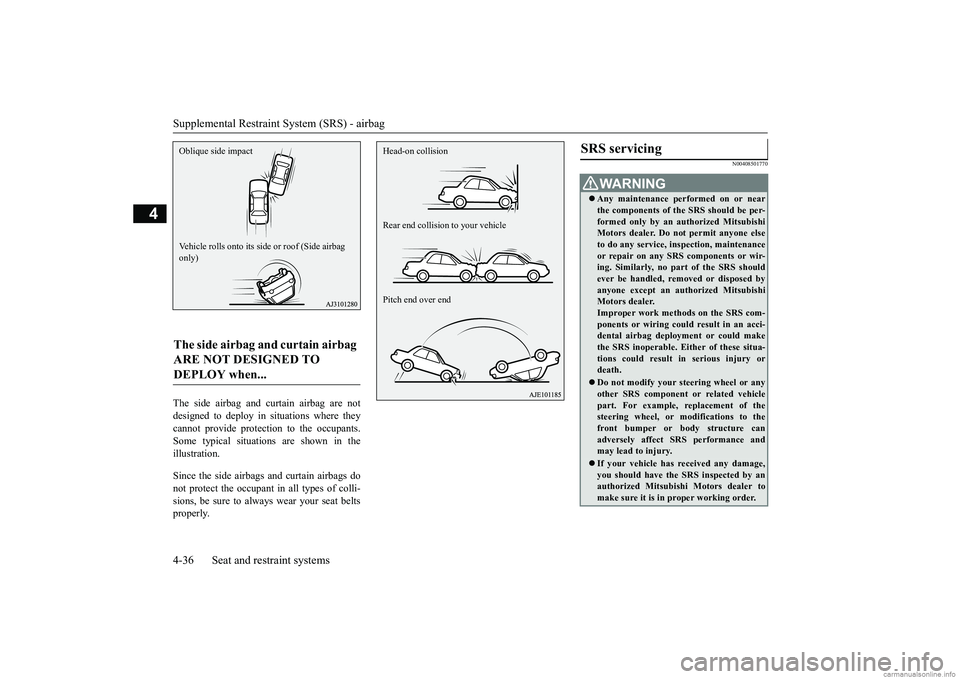

Supplemental Restraint System (SRS) - airbag 4-36 Seat and restraint systems
4
The side airbag and curtain airbag are not designed to deploy in situations where theycannot provide protecti
on to the occupants.
Some typical situations are shown in the illustration. Since the side airbags and curtain airbags do not protect the occupant
in all types of colli-
sions, be sure to always
wear your seat belts
properly.
N00408501770
The side airbag and curtain airbag ARE NOT DESIGNED TO DEPLOY when... Oblique side impact Vehicle rolls onto its side or roof (Side airbag only)
Head-on collision Rear end collision to your vehiclePitch end over end
SRS servicing
WA R N I N G Any maintenance performed on or near the components of the SRS should be per-formed only by an
authorized Mitsubishi
Motors dealer. Do not permit anyone else to do any service, in
spection, maintenance
or repair on any SRS components or wir- ing. Similarly, no part of the SRS should ever be handled, removed or disposed byanyone except an au
thorized Mitsubishi
Motors dealer. Improper work methods on the SRS com-ponents or wiring could result in an acci- dental airbag deployment or could make the SRS inoperable. Ei
ther of these situa-
tions could result in serious injury or death. Do not modify your steering wheel or any other SRS component
or related vehicle
part. For example, replacement of thesteering wheel, or modifications to the front bumper or body structure can adversely affect SRS performance andmay lead to injury. If your vehicle has re
ceived any damage,
you should have the
SRS inspected by an
authorized Mitsubish
i Motors dealer to
make sure it is in proper working order.
BK0267800US.book 36 ページ ２０１８年５月３０日　水曜日　午後４時２４分

Supplemental Restraint System (SRS) - airbag
Seat and restraint systems 4-37
4
 Do not modify your front seats, center pil- lar or center console. Such modificationscan adversely affect
SRS performance and
may lead to injury. Also, if you discove
r any tear or open
seam in the seat fabr
ic near the side air-
bag, have the seat in
spected by an autho-
rized Mitsubishi Motors dealer. If you have found any scratch, crack or damage to the portion of the front and rear pillars and roof
side rail, you should
have the SRS inspected by an authorized Mitsubishi Motors dealer.NOTE
 When you transfer ownership of the vehicle to another person, we urge you to alert the new owner that it is
equipped with the SRS
and refer that owner to the applicable sec- tions in this
owner’s manual.
 If you decide to junk or scrap your vehicle, we urge you to first take it to an authorized Mitsubishi Motors dealer so that the SRS canbe made safe for disposal.  If any of the following parts needs to be modified for use by
a handicapped person,
the advanced airbag sy
stem will be greatly
affected. Please consult an authorized Mitsubishi Motors dealer. •Driver’s seat • Front passenger seat • Front seat beltWA R N I N G
• Steering wheel • Instrument panel[For vehicles sold in U.S.A.] To contact Mitsubishi Motors North America, Inc.call 1-888-648-7820 or write to: Mitsubishi Motors North Amer- ica, Inc.Customer Relations Depart- ment P.O. Box 6400Cypress, CA 90630-0064 [For vehicles sold in Canada] To contact Mitsubishi Motor Sales of Canada, Inc.call 1-888-576-4878 or write to: Mitsubishi Motor Sales of Can- ada, Inc.Customer Relations Depart- ment P.O. Box 410094141 Dixie Road Mississauga, ON L4W 5C9NOTE
[For vehicles sold in PuertoRico] To contact Mitsubishi Motor Salesof Caribbean, Inc. call 1-787-251-8715 or write to: Mitsubishi Motor Sales ofCaribbean, Inc. Customer Service Department P.O. Box 192216SAN JUAN PR 00919-2216 [For vehicles sold in Guam] To contact Triple J Enterprises Inc.call (671) 649-3673 or write to: Triple J Enterprises, Inc. P.O. Box 6066TAMUNING GUAM 96931 [For vehicles sold in Saipan] To contact Triple J Motorscall (670) 234-7133 or write to:Triple J Motors P.O. Box 500487 SAIPAN, MP96950-0487
BK0267800US.book 37 ページ ２０１８年５月３０日　水曜日　午後４時２４分

Supplemental Restraint System (SRS) - airbag 4-38 Seat and restraint systems
4
N00408600383

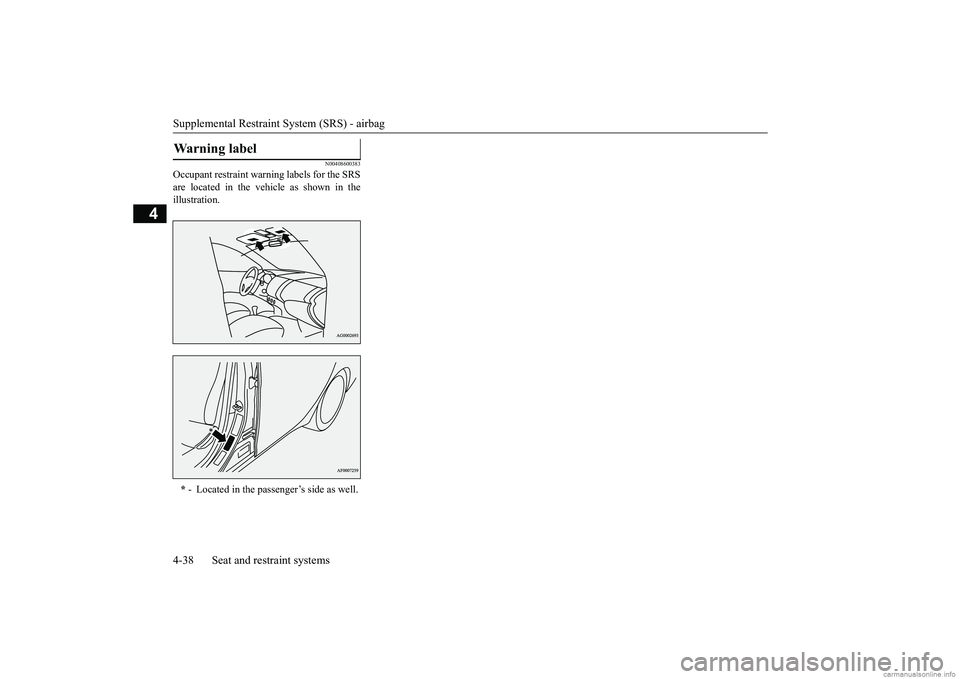

Occupant restraint warn
ing labels for the SRS
are located in the vehicle as shown in the illustration.Warning label * - Located in the passenger’s side as well.
BK0267800US.book 38 ページ ２０１８年５月３０日　水曜日　午後４時２４分

5
Features and controlsBreak-in recommendations ..............................................................5-2 Keys .................................................................................................5-2 Electronic immobilizer (Anti-theft starting system) ........................5-3Keyless entry system (if so equipped) ..............................................5-6 Free-hand Advanced Security
Transmitter (F.A.S.T.-key)
(if so equipped) ............................................................................5-9Door locks ......................................................................................5-25 Power door locks ......
...........
...........
...........
...........
...........
.........
.....5-26
Child safety locks for rear door ..........
...........
.........
.........
.........
.....5-27
Trunk lid ................
............
...........
...........
...........
...........
...........
.....5-28
Inside emergency trunk lid release ................................................5-29 Manual window control (if so equipped)........................................5-30Power window control ...................................................................5-30 Parking brake .................................................................................5-33 Steering wheel height adjustment ..................................................5-34Inside rearview mirror ...................................................................5-34 Outside rearview mirrors ...............................................................5-36 Ignition switch ...............................................................................5-37Starting the engine .........................................................................5-38 Manual transaxle (if so equipped) ..................................................5-40 Continuously variable transmission
(CVT) (if so equipped)..........5-42
Service brake .................................................................................5-47 Hill start assist ................................................................................5-48 Brake assist system ........................................................................5-49Anti-lock braking system ...............................................................5-50 Electric power steering system (EPS) ............................................5-51 Active stability control (ASC) .......................................................5-52Cruise control (if so equipped) .......................................................5-55
Tire pressure monitoring system (if so equipped) .......................... 5-59 Rear-view camera .......................................................................... 5-62 Instrument cluster .......................................................................... 5-64Multi-information display ............................................................. 5-65 Indicator and warning light package ............................................. 5-75 Indicators ....................................................................................... 5-76Warning lights ................................................................................ 5-76 Combination headlights and dimmer switch ................................. 5-79 Turn signal lever ............................................................................ 5-81Hazard warning flasher switch ...................................................... 5-82 Front fog light switch (if so equipped) .......................................... 5-82 Wiper and washer switch ............................................................... 5-82Electric rear window defogger switch ....
...........
...........
...........
...... 5-84
Horn switch ................................................................................... 5-85 Link System (if so equipped) ......................................................... 5-85USB input terminal ....
...........
...........
...........
...........
...........
............. 5-85
Sun visors ...................................................................................... 5-86 12 V power outlets ......................................................................... 5-87 HomeLink
® Wireless Control System (if so equipped) ................. 5-87
Interior lights ................................................................................. 5-92 Storage spaces ................................................................................ 5-93Cup holders .................................................................................... 5-94 Bottle holders ................................................................................. 5-95 Convenience hook ............
...........
...........
...........
...........
...........
...... 5-95
Assist grips .................................................................................... 5-96
BK0267800US.book 1 ページ ２０１８年５月３０日　水曜日　午後４時２４分

Break-in recommendations 5-2 Features and controls
5
N00508701382
Advanced automobile manufacturing tech- niques permit you to operate your new vehi- cle without requiring
a long break-in period
of low-speed driving. However, you can add to the future perfor- mance and economy of your vehicle byobserving the followi
ng precautions during
the first 300 miles (500 km). Drive your vehicle at moderate speeds during the break-in period.  Avoid revving the engine.  Avoid rough driving such as sudden starts, sudden acceleration, prolonged high- speed driving and sudden braking. These would have a detrimen
tal effect on the
engine and also cause increased fuel and oil consumption, wh
ich could result in
malfunction of the engine components. Beparticularly careful to
avoid full accelera-
tion while in low shift position (low gears). Do not overload the ve
hicle. Stay within
the seating capacity. (Refer to “Cargo load precautions” on page 6-10.) Do not use this vehi
cle for trailer towing.
N00508801703
Two keys are provided. The keys fit all locks. Keep one in a safe place as a spare key. Two keys are provided. The keys fit all locks. Keep one in a safe place as a spare key.
Two F.A.S.T.-keys and two emergency keys are provided. Keep one F.A.S.T.-key and one emergency key in a safe place together as a set of sparekeys.
Break-in recommendations
Keys Type 1 1- Key for the electronic immobilizer2- Key number plateType 2
1- Key for the electr
onic immobi
lizer and
keyless entry system
2- Key number plateTy p e 3
BK0267800US.book 2 ページ ２０１８年５月３０日　水曜日　午後４時２４分

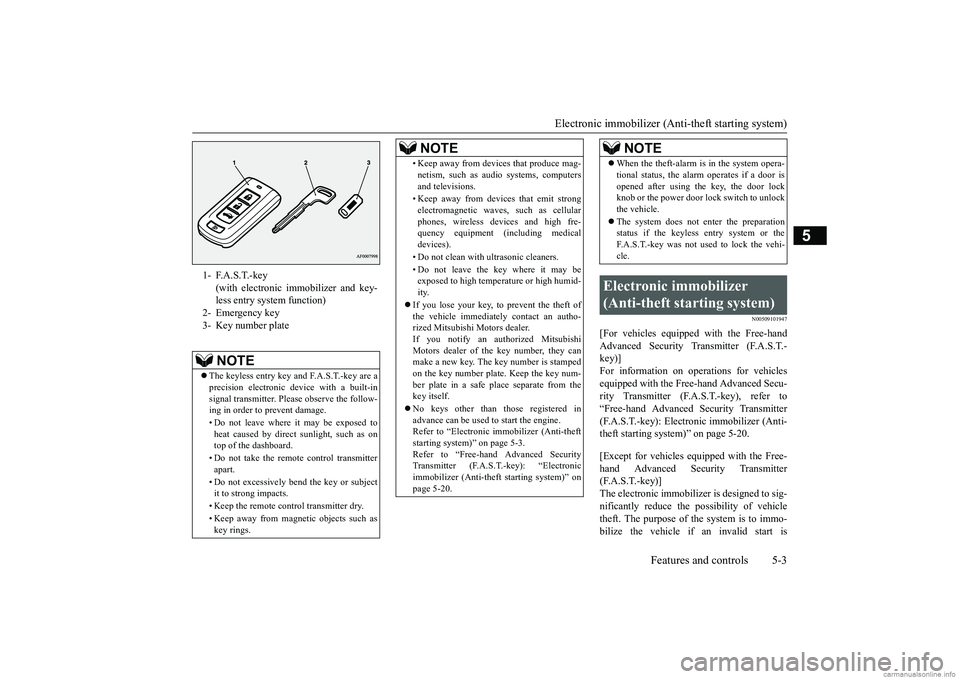

Electronic immobilizer (Ant
i-theft starting system)
Features and controls 5-3
5
N00509101947
[For vehicles equipped with the Free-hand Advanced Security Transmitter (F.A.S.T.-key)] For information on operations for vehicles equipped with the Free-hand Advanced Secu-rity Transmitter (F.A
.S.T.-key), refer to
“Free-hand Advanced
Security Transmitter
(F.A.S.T.-key): Electr
onic immobilizer (Anti-
theft starting system)” on page 5-20. [Except for vehicles e
quipped with the Free-
hand Advanced Secu
rity Transmitter
(F.A.S.T.-key)]The electronic immobilizer is designed to sig- nificantly reduce the
possibility of vehicle
theft. The purpose of the system is to immo-bilize the vehicle if an invalid start is
1- F.A.S.T.-key
(with electronic immobilizer and key-less entry system function)
2- Emergency key 3- Key number plate
NOTE
 The keyless entry key and F.A.S.T.-key are a precision electr
onic device wi
th a built-in
signal transmitter. Please observe the follow- ing in order to prevent damage. • Do not leave where it may be exposed to heat caused by direct sunlight, such as on top of the dashboard. • Do not take the remote
control transmitter
apart. • Do not excessively bend the key or subject it to strong impacts. • Keep the remote control transmitter dry. • Keep away from magne
tic objects such as
key rings.
• Keep away from devi
ces that produce mag-
netism, such as audio systems, computersand televisions. • Keep away from device
s that emit strong
electromagnetic waves, such as cellularphones, wireless devices and high fre- quency equipment (i
ncluding medical
devices). • Do not clean with ultrasonic cleaners. • Do not leave the key where it may be exposed to high temperature or high humid- ity.
 If you lose your key, to prevent the theft of the vehicle immediatel
y contact an autho-
rized Mitsubishi Motors dealer. If you notify an authorized Mitsubishi Motors dealer of the key number, they canmake a new key. The key number is stamped on the key number plate. Keep the key num- ber plate in a safe pl
ace separate from the
key itself.  No keys other than those registered in advance can be used to start the engine. Refer to “Electronic immobilizer (Anti-theft starting system)” on page 5-3.Refer to “Free-hand Advanced Security Transmitter (F.A.S.T.-key): “Electronic immobilizer (Anti-thef
t starting system)” on
page 5-20.NOTE
 When the theft-alarm is in the system opera- tional status, the alar
m operates if a door is
opened after using th
e key, the door lock
knob or the power door lock switch to unlock the vehicle.  The system does not enter the preparation status if the keyless entry system or the F.A.S.T.-key was not used to lock the vehi-cle.
Electronic immobilizer (Anti-theft starting system)
NOTE
BK0267800US.book 3 ページ ２０１８年５月３０日　水曜日　午後４時２４分

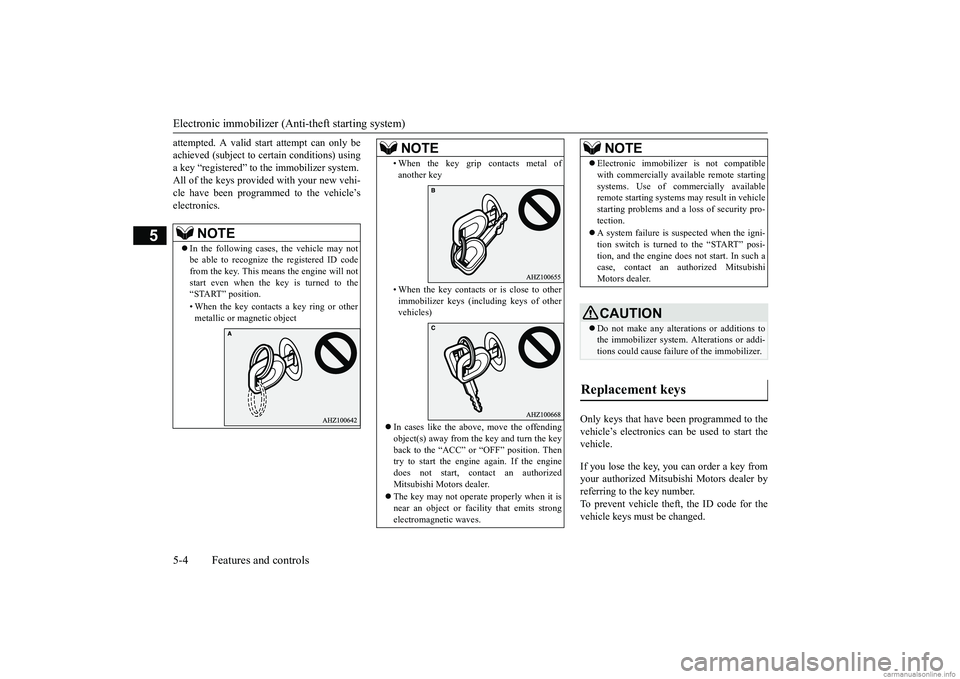

Electronic immobilizer (Anti-theft starting system) 5-4 Features and controls
5
attempted. A valid st
art attempt can only be
achieved (subject to ce
rtain conditions) using
a key “registered” to the immobilizer system. All of the keys provided with your new vehi- cle have been program
med to the vehicle’s
electronics.
Only keys that have been programmed to the vehicle’s electronics can be used to start the vehicle. If you lose the key, you can order a key from your authorized Mitsubi
shi Motors dealer by
referring to the key number. To prevent vehicle theft, the ID code for thevehicle keys must be changed.
NOTE
 In the following cases, the vehicle may not be able to recognize
the registered ID code
from the key. This mean
s the engine will not
start even when the key is turned to the “START” position. • When the key contacts a key ring or other metallic or ma
gnetic object
• When the key grip
contacts metal of
another key • When the key contacts or is close to other immobilizer keys (inc
luding keys of other
vehicles)
 In cases like the a
bove, move the offending
object(s) away from the key and turn the keyback to the “ACC” or “OFF” position. Then try to start the engine again. If the engine does not start, contact an authorizedMitsubishi Motors dealer.  The key may not operate
properly when it is
near an object or facility that emits strong electromagnetic waves.NOTE
 Electronic immobilize
r is not compatible
with commercially available remote startingsystems. Use of commercially availableremote starting systems may result in vehicle starting problems
and a loss of security pro-
tection.  A system failure is suspected when the igni- tion switch is turned to the “START” posi-tion, and the engine does
not start. In such a
case, contact an au
thorized Mitsubishi
Motors dealer.CAUTION Do not make any altera
tions or additions to
the immobilizer system.
Alterations or addi-
tions could cause failure of the immobilizer.
Replacement keys
NOTE
BK0267800US.book 4 ページ ２０１８年５月３０日　水曜日　午後４時２４分

Electronic immobilizer (Ant
i-theft starting system)
Features and controls 5-5
5

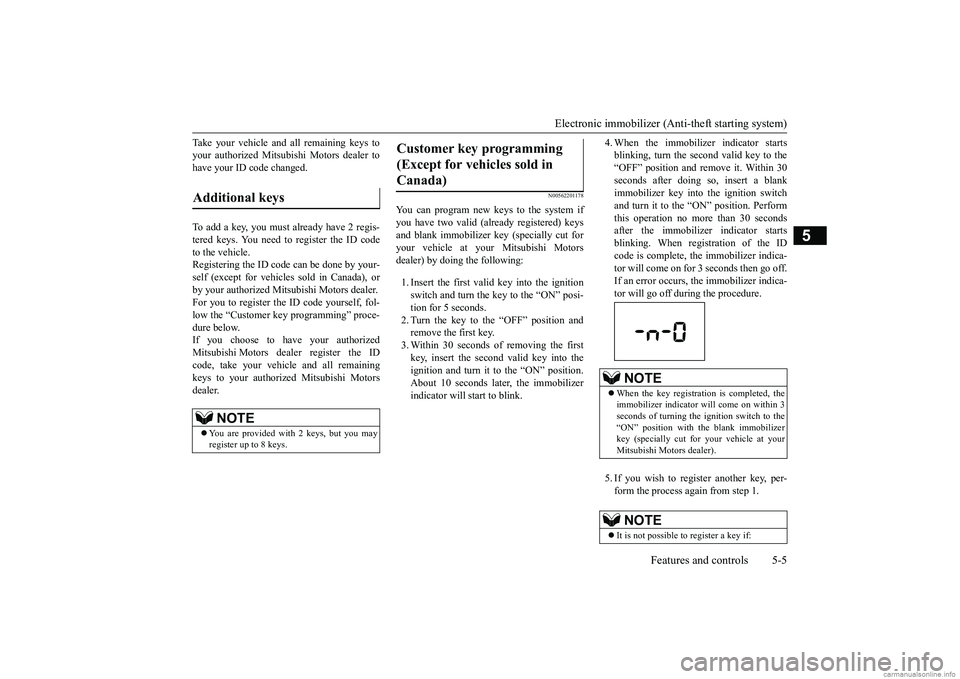

Take your vehicle and
all remaining keys to
your authorized Mitsubishi Motors dealer tohave your ID code changed. To add a key, you must already have 2 regis- tered keys. You need to register the ID code to the vehicle. Registering the ID code can be done by your- self (except for vehicles
sold in Canada), or
by your authorized Mits
ubishi Motors dealer.
For you to register the ID code yourself, fol- low the “Customer key programming” proce- dure below.If you choose to have your authorized Mitsubishi Motors dealer register the ID code, take your vehicle and all remainingkeys to your authorized Mitsubishi Motors dealer.
N00562201178
You can program new keys to the system if you have two valid (alr
eady registered) keys
and blank immobilizer ke
y (specially cut for
your vehicle at your Mitsubishi Motorsdealer) by doing the following: 1. Insert the first valid key into the ignition switch and turn the key to the “ON” posi-tion for 5 seconds. 2. Turn the key to the “OFF” position and remove the first key.3. Within 30 seconds of removing the first key, insert the second valid key into the ignition and turn it
to the “ON” position.
About 10 seconds late
r, the immobilizer
indicator will start to blink.
4. When the immobilizer indicator starts blinking, turn the second valid key to the“OFF” position and remove it. Within 30 seconds after doing so, insert a blank immobilizer key into
the ignition switch
and turn it to the “ON” position. Perform this operation no more than 30 seconds after the immobilizer indicator startsblinking. When regi
stration of the ID
code is complete, the immobilizer indica- tor will come on for 3 seconds then go off. If an error occurs, the immobilizer indica- tor will go off during the procedure. 5. If you wish to register another key, per- form the process again from step 1.
Additional keys
NOTE
 You are provided with 2 keys, but you may register up to 8 keys.
Customer key programming (Except for vehicles sold in Canada)
NOTE
 When the key registration is completed, the immobilizer indicator wi
ll come on within 3
seconds of turning the ignition switch to the “ON” position with th
e blank immobilizer
key (specially cut for your vehicle at your Mitsubishi Motors dealer). NOTE
 It is not possible to register a key if:
BK0267800US.book 5 ページ ２０１８年５月３０日　水曜日　午後４時２４分
