MITSUBISHI MIRAGE G4 2019 (in English) Manual Online

Free-hand Advanced
Security Transmitter (F.A.S
.T.-key) (if so equipped)
5-16 Features and controls
5
N00559801196
When the operation mode is in any mode other than OFF, and a door is opened and theF.A.S.T.-key is remove
d from the passenger
compartment the ID codes of the F.A.S.T.- key and the vehicle can no longer be verified.When the door is closed, the warning light blinks and the buzzer
sounds 4 times as a
warning. If the vehicle
starts, the inner buzzer
sounds once.
N00559901184
When the operation mode is in OFF, theF.A.S.T.-key is left in the passenger compart-ment, all the doors are closed, and someone tries to lock the vehicle by pressing the driver’s door lock/unlock switch, the warninglight blinks and the buz
zer sounds for about 3
seconds as a warning,
and the doors cannot be
locked.
N00560001185
When the operation mode is in OFF, andsomeone tries to lock the vehicle by pressingthe driver’s door lock/unlock switch while one of the doors is not fully closed, the warn- ing light blinks and the buzzer sounds forabout 3 seconds as a warning, and the doors cannot be locked.
N00560101199
When the operation mode is in any modeother than OFF, and someone tries to lock the vehicle by pressing the driver’s doorlock/unlock switch, the warning light blinks and the buzzer sounds
for about 3 seconds as
a warning, and the doors cannot be locked.
Refer to “Key lock-in preven- tion system” on page 5-16. Refer to “Door ajar preven- tion system” on page 5-16. Refer to “Operation mode OFF reminder system” on page 5-16.
F.A.S.T.-key take-out monitoring system

NOTE
 The F.A.S.T.-key take-out monitoring system does not function if the F.A.S.T.-key isremoved through a window without openinga door. This setting can be changed. See an authorized Mitsubishi Motors dealerfor details.  The warning may display even if the F.A.S.T.-key is in the operating range for starting the engine an
d changing the opera-
tion mode. The surrounding environment orelectromagnetic
waves may make it impossi-
ble to verify the ID codes of the F.A.S.T.-key and vehicle.
Key lock-in prevention system

Door ajar prevention system

Operation mode OFF reminder system

BK0267800US.book 16 ページ ２０１８年５月３０日　水曜日　午後４時２４分

Free-hand Advanced Securi
ty Transmitter (F.A.S.T.-key) (if so equipped)
Features and controls 5-17
5
N00514601357
 The operation mode can be in any mode to start the engine.  The starter motor will be turning for up to approximately 15 seconds if the engine switch is released at once. Pressing the engine switch again while the starter motor is still turning will stop the starter motor. The starter motor will be turningfor up to approximately 30 seconds while the engine switch is pressed. If the engine does not start, wait for awhile and then attempt to start the engine again. Trying repeatedly with the starter motor still turning will damage the startermechanism.  If the engine will not
start because the bat-
tery is weak or discharged, refer to“Jump-starting the engine” on page 8-2 for instructions.  A longer warm up period will only con- sume extra fuel. The engine is warmed up enough for driv- ing when the low coolant temperatureindicator goes out. Refer to “Low coolant temperature indi- cator” on page 5-76.
Your vehicle is equipped with an electroni- cally controlled fuel injection system. This is a system that automatically controls fuelinjection. There is usually no need to depress the accelerator pedal when starting the engine.To prevent battery drain, wait a few seconds between attempts to restart the engine. 1. Make sure all occupants are properly seated with seat belts fastened.2. Make sure the parking brake is applied. 3. Press and hold the brake pedal down firmly with your right foot.
4. Press and hold the clut
ch pedal all the way
down (manual transaxle). 5. On vehicles equipped with manual trans- axle, place the gearshift lever in the “N” (Neutral) position.On vehicles equippe
d with continuously
variable transmission (CVT), make sure the selector lever is in the “P” (PARK)position.
Starting and stopping the engine

Tips for starting

WA R N I N G Never run the engine in
a closed or poorly
ventilated area any longer than is neededto move your vehicle
out of the area. Car-
bon monoxide gas, wh
ich is odorless and
extremely poisonous, could build up and cause serious injury or death.CAUTION Do not push-start the vehicle.Do not run the engine at high rpms or drive at high speeds until
the engine has had a
chance to warm up.
Starting the engine

NOTE
 After the engine has not started for a while, the brake pedal effort needed to start theengine may become grea
ter. If this occurs,
depress the brake pedal more firmly than usual.NOTE
 For vehicles equipped with a manual trans- axle, the engine will
not start unless the
clutch pedal is fully depressed (Clutch inter- lock). This is a safety feature.
BK0267800US.book 17 ページ ２０１８年５月３０日　水曜日　午後４時２４分

Free-hand Advanced
Security Transmitter (F.A.S
.T.-key) (if so equipped)
5-18 Features and controls
5
6. Press the engine switch. 7. Confirm that all warning lights and warn-ing displays are functioning properly.
After several attempts
, you may experience
that the engine still does not start. 1. Make sure that all electric devices, such as lights, air conditi
oning blower and rear
window defogger, are turned off.
2. While depressing the brake pedal {contin- uously variable transmission (CVT)} orthe clutch pedal (ma
nual transaxle), press
the accelerator peda
l halfway and hold it
there, then crank th
e engine. Release the
accelerator pedal, immediately after the engine starts. 3. If the engine still wi
ll not start, the engine
could be flooded with too much gasoline. While depressing the brake pedal (CVT) or the clutch pedal (manual transaxle), push the accelerator pedal all the way down and hold it there, then press theengine switch to crank the engine. If the engine does not start after 5 to 6 seconds, push the engine switch to stop crankingthe engine, and release the accelerator pedal. Put the opera
tion mode in OFF.
Wait a few seconds, and then press theengine switch to cr
ank the engine again
while depressing the brake pedal (CVT) or the clutch pedal (manual transaxle), butdo not push the accelerator pedal. If the engine fails to start, repeat these proce- dures. If the engine sti
ll will not start, con-
tact your local Mitsubishi Motors dealer or a repair facility of your choice for assistance.
Startability of conti
nuously variable trans-
mission (CVT) vehicles with an ambient temperature of -4 °F (-20 °C) or lower
When the ambient temperature is -4 °F (-20 °C) or lower, it may not be possible to startfrom a standstill even with the selector lever in the “D” (DRIVE) or “R” (REVERSE) position.This phenomenon occurs
because the trans-
axle has not warmed up sufficiently; it does not indicate a problem.
If this occurs, place
the selector lever in the “P” (PARK) position and let the engine idle
for at least 10 minutes.
The transaxle will wa
rm up, and you will be
able to start normally. Do not leave the vehicle during warm-upoperation.
N00568200014
NOTE
 On vehicles equipped with continuously variable transmission (C
VT), the engine can
only be started when the selector lever is inthe “P” (PARK) or “N” (NEUTRAL) posi- tion. For safety reasons,
the engine should be
started when the selector lever is in the “P” (PARK) position in which the driving wheels lock.NOTE
 Minor noises may be he
ard on engine start-
up. These will disappear
as the engine warms
up.
When the engine is hard to start
Stopping the engine

WA R N I N G Do not operate the en
gine switch while
driving except in an emergency. If the engine is stopped whil
e driving, the brake
servomechanism will ce
ase to function and
braking efficiency will deteriorate. Also, the power steering system will not func-tion and it will require greater manual effort to operate the steering. This could result in a serious accident.
BK0267800US.book 18 ページ ２０１８年５月３０日　水曜日　午後４時２４分

Free-hand Advanced Securi
ty Transmitter (F.A.S.T.-key) (if so equipped)
Features and controls 5-19
5
1. Stop the vehicle. 2. Fully engage the parking brake while depressing the brake pedal. 3. On vehicles with
a manual transaxle,
press the engine switch to stop the engine, and then move the gearshift lever to the 1st (on a uphill) or “R” (Reverse) (on adownhill) position. On vehicles equippe
d with continuously
variable transmission (CVT), move theselector lever to th
e “P” (PARK) position,
and then press the engine switch to stop the engine.
N00568301139
Insert the F.A.S.T.-key into the key slot of thefloor console. Starting
the engine and chang-
ing the operation mode
should be now possi-
ble. Remove the F.A.S.T.-key from the key slotafter starting the engine or changing the oper- ation mode.
If the operation mode is in OFF and the driver’s door is opened with the F.A.S.T.-key in the key slot, a warning is issued with thewarning light and the buzzer buzzing for approximately 3 seconds to remind you to remove the key.
NOTE
 If you have to bring the engine to an emer- gency stop while drivi
ng, press and hold the
engine switch for 3 sec
onds or more, or press
it quickly 3 times or more. The engine will stop and the operation mode will go to ACC.  On vehicles equippe
d with continuously
variable transmission (CVT), do not stop the engine with the select
or lever in any position
other than the “P” (PARK) position. If the engine is stopped with
the selector lever in
any position other than the “P” (PARK) posi-tion, the operation mode will go to ACC rather than OFF. Put the operation mode
in OFF after placing
the selector lever in the “P” (PARK) posi- tion.
If the F.A.S.T.-key is not operat- ing properly

NOTE
 Do not insert into the
key slot anything other
than the F.A.S.T.-key. This could cause dam-age or a malfunction.
 Remove the object or ad
ditional key from the
F.A.S.T.-key before inserting the key into thekey slot. The vehicle
may not be able to
receive the registered ID code from the regis- tered key. Therefore, the engine may not start and the operation mode may not change.  The F.A.S.T.-key is fixed in the key slot when inserted in the illustrated direction.Simply pull out the key to remove it from the key slot.
F.A.S.T.-key reminder

NOTE
BK0267800US.book 19 ページ ２０１８年５月３０日　水曜日　午後４時２４分

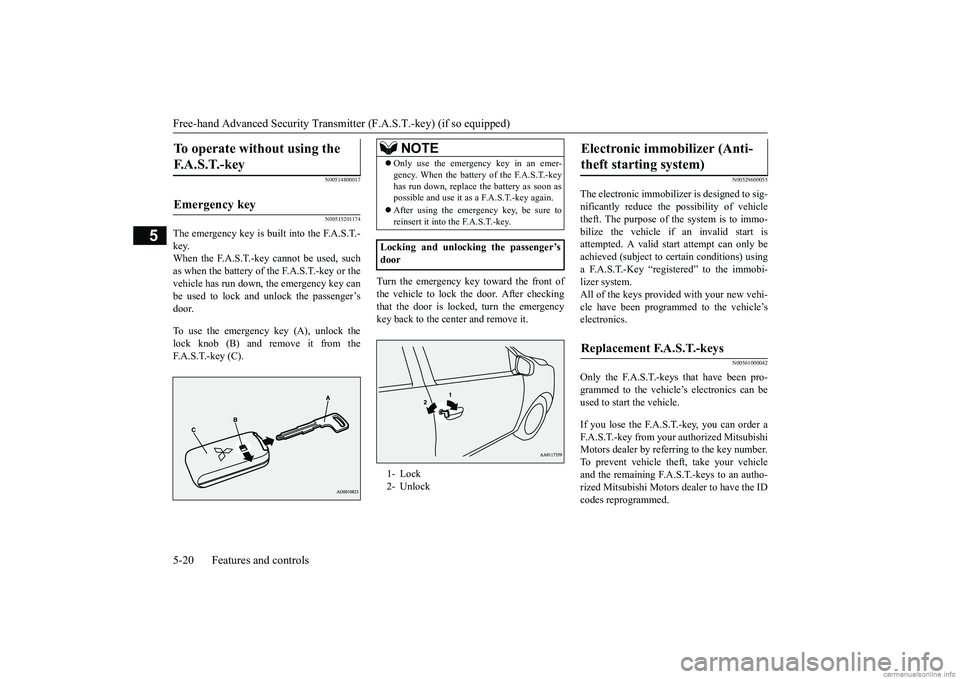

Free-hand Advanced
Security Transmitter (F.A.S
.T.-key) (if so equipped)
5-20 Features and controls
5
N00514800017 N00515201174
The emergency key is built into the F.A.S.T.- key.When the F.A.S.T.-key cannot be used, such as when the battery of the F.A.S.T.-key or the vehicle has run down, the emergency key can be used to lock and unlock the passenger’s door. To use the emergency key (A), unlock the lock knob (B) and remove it from the F.A.S.T.-key (C).
Turn the emergency key toward the front of the vehicle to lock the door. After checking that the door is locked, turn the emergencykey back to the center and remove it.
N00529600055
The electronic immobilize
r is designed to sig-
nificantly reduce the
possibility of vehicle
theft. The purpose of the system is to immo- bilize the vehicle if
an invalid start is
attempted. A valid st
art attempt can only be
achieved (subject to ce
rtain conditions) using
a F.A.S.T.-Key “registered” to the immobi- lizer system. All of the keys provided with your new vehi- cle have been program
med to the vehicle’s
electronics.
N00561000042
Only the F.A.S.T.-keys that have been pro-grammed to the vehicl
e’s electronics can be
used to start the vehicle. If you lose the F.A.S.T.-key, you can order a F.A.S.T.-key from your authorized MitsubishiMotors dealer by refe
rring to the key number.
To prevent vehicle theft, take your vehicle and the remaining F.A.S.T.-keys to an autho-rized Mitsubishi Motors
dealer to have the ID
codes reprogrammed.
To operate without using the F. A . S . T. - k e y

Emergency key

NOTE
 Only use the emergency key in an emer- gency. When the battery of the F.A.S.T.-keyhas run down, replace
the battery as soon as
possible and use it as a F.A.S.T.-key again.  After using the emergency key, be sure to reinsert it into the F.A.S.T.-key.
Locking and unlocking
the passenger’s
door 1- Lock 2- Unlock
Electronic immobilizer (Anti- theft starting system)

Replacement F.A.S.T.-keys

BK0267800US.book 20 ページ ２０１８年５月３０日　水曜日　午後４時２４分

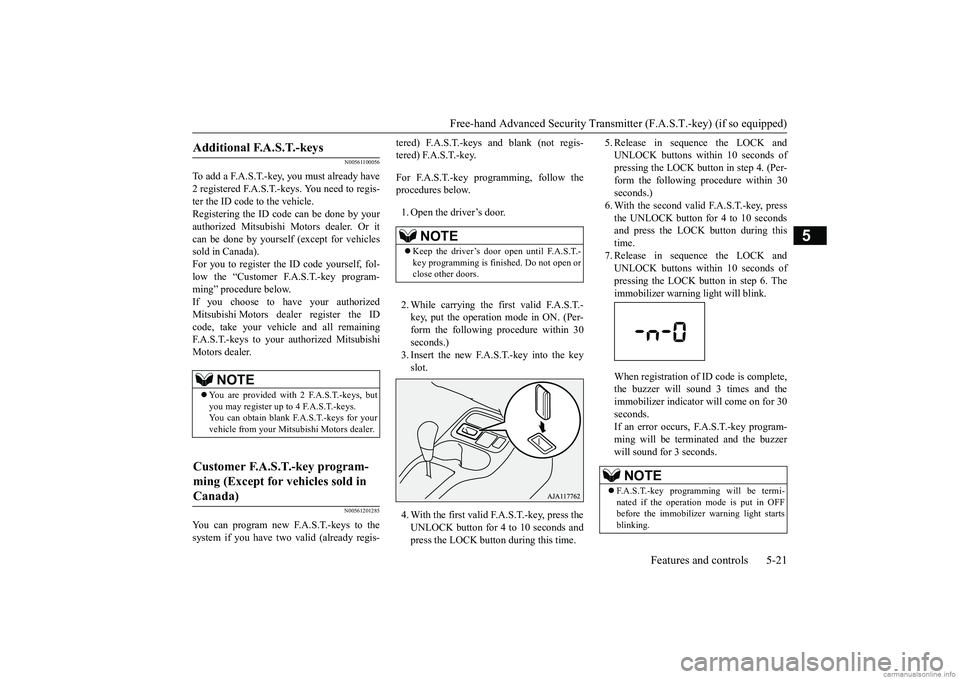

Free-hand Advanced Securi
ty Transmitter (F.A.S.T.-key) (if so equipped)
Features and controls 5-21
5
N00561100056
To add a F.A.S.T.-key, you must already have 2 registered F.A.S.T.-keys. You need to regis- ter the ID code to the vehicle.Registering the ID code can be done by your authorized Mitsubishi Motors dealer. Or it can be done by yourself (except for vehiclessold in Canada). For you to register the ID code yourself, fol- low the “Customer F.A.S.T.-key program- ming” procedure below. If you choose to have your authorizedMitsubishi Motors dealer register the ID code, take your vehicle and all remaining F.A.S.T.-keys to your authorized MitsubishiMotors dealer.
N00561201285
You can program new F.A.S.T.-keys to thesystem if you have tw
o valid (already regis-
tered) F.A.S.T.-keys
and blank (not regis-
tered) F.A.S.T.-key. For F.A.S.T.-key programming, follow the procedures below. 1. Open the driver’s door. 2. While carrying the first valid F.A.S.T.- key, put the operatio
n mode in ON. (Per-
form the following procedure within 30 seconds.)3. Insert the new F.A.S.T.-key into the key slot. 4. With the first valid F.A.S.T.-key, press the UNLOCK button for 4 to 10 seconds andpress the LOCK button during this time.
5. Release in sequence the LOCK and UNLOCK buttons within 10 seconds ofpressing the LOCK butt
on in step 4. (Per-
form the following procedure within 30 seconds.)6. With the second valid F.A.S.T.-key, press the UNLOCK button for 4 to 10 seconds and press the LOCK button during thistime. 7. Release in sequence the LOCK and UNLOCK buttons within 10 seconds of pressing the LOCK button in step 6. The immobilizer warning light will blink. When registration of ID code is complete, the buzzer will sound 3 times and theimmobilizer indicator will come on for 30 seconds. If an error occurs, F.A.S.T.-key program-ming will be terminated and the buzzer will sound for 3 seconds.
Additional F.A.S.T.-keys

NOTE
 You are provided with 2 F.A.S.T.-keys, but you may register up to 4 F.A.S.T.-keys. You can obtain blank F.A.S.T.-keys for your vehicle from your Mitsub
ishi Motors dealer.
Customer F.A.S.T.-key program- ming (Except for vehicles sold in Canada)

NOTE
 Keep the driver’s door open until F.A.S.T.- key programming is finished. Do not open or close other doors.
NOTE
 F.A.S.T.-key programming will be termi- nated if the operation mode is put in OFF before the immobilize
r warning light starts
blinking.
BK0267800US.book 21 ページ ２０１８年５月３０日　水曜日　午後４時２４分

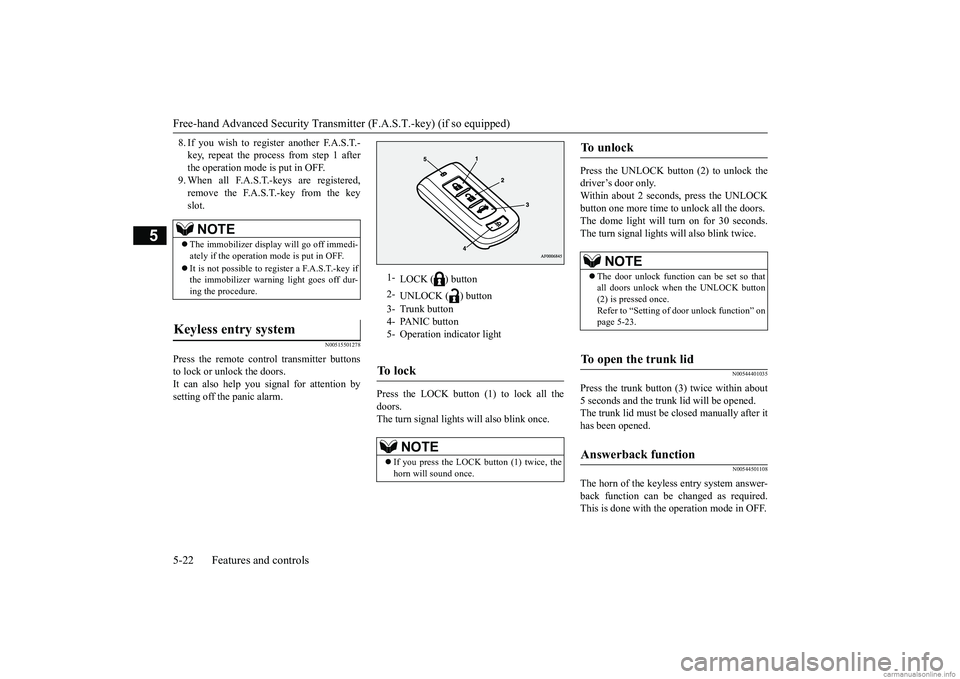

Free-hand Advanced
Security Transmitter (F.A.S
.T.-key) (if so equipped)
5-22 Features and controls
5
8. If you wish to register another F.A.S.T.- key, repeat the process from step 1 afterthe operation mode is put in OFF. 9. When all F.A.S.T.-keys are registered, remove the F.A.S.T.-key from the keyslot.
N00515501278
Press the remote control transmitter buttonsto lock or unlock the doors.It can also help you
signal for attention by
setting off the panic alarm.
Press the LOCK button (1) to lock all the doors.The turn signal lights
will also blink once.
Press the UNLOCK button (2) to unlock the driver’s door only. Within about 2 seconds, press the UNLOCK button one more time to unlock all the doors.The dome light will turn on for 30 seconds. The turn signal lights will also blink twice.
N00544401035
Press the trunk button (3
) twice within about
5 seconds and the trunk lid will be opened.The trunk lid must be cl
osed manually after it
has been opened.
N00544501108
The horn of the keyless entry system answer-back function can be changed as required. This is done with the operation mode in OFF.
NOTE
 The immobilizer displa
y will go off immedi-
ately if the operation
mode is put in OFF.
 It is not possible to register a F.A.S.T.-key if the immobilizer warning light goes off dur- ing the procedure.
Keyless entry system

1-
LOCK ( ) button
2-
UNLOCK ( ) button
3- Trunk button 4- PANIC button 5- Operation indicator lightTo l o c k

NOTE
 If you press the LOCK button (1) twice, the horn will sound once.
To unlock

NOTE
 The door unlock function can be set so that all doors unlock when the UNLOCK button (2) is pressed once.Refer to “Setting of do
or unlock function” on
page 5-23.
To open the trunk lid

Answerback function

BK0267800US.book 22 ページ ２０１８年５月３０日　水曜日　午後４時２４分

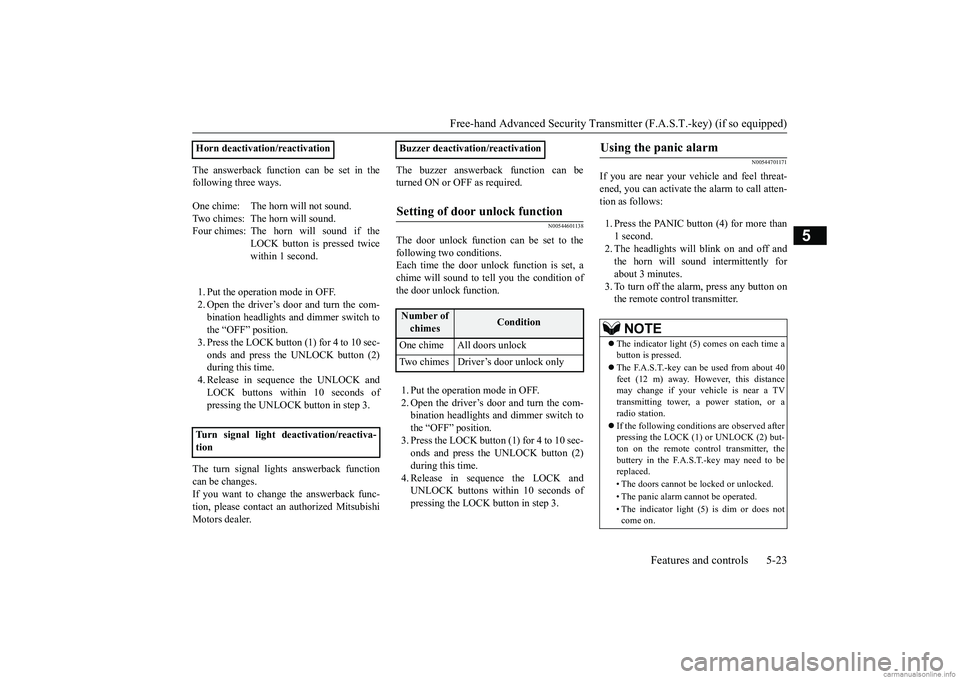

Free-hand Advanced Securi
ty Transmitter (F.A.S.T.-key) (if so equipped)
Features and controls 5-23
5
The answerback function can be set in the following three ways. 1. Put the operation mode in OFF. 2. Open the driver’s door and turn the com- bination headlights and dimmer switch tothe “OFF” position. 3. Press the LOCK button (1) for 4 to 10 sec- onds and press the UNLOCK button (2)during this time. 4. Release in sequence the UNLOCK and LOCK buttons within 10 seconds ofpressing the UNLOCK button in step 3.
The turn signal lights answerback function can be changes.If you want to change the answerback func- tion, please contact an
authorized Mitsubishi
Motors dealer.
The buzzer answerback function can be turned ON or OFF as required.
N00544601138
The door unlock function can be set to thefollowing two conditions.Each time the door unlock function is set, a chime will sound to
tell you the condition of
the door unlock function. 1. Put the operation mode in OFF. 2. Open the driver’s door and turn the com-bination headlights a
nd dimmer switch to
the “OFF” position. 3. Press the LOCK button (1) for 4 to 10 sec-onds and press the UNLOCK button (2) during this time. 4. Release in sequence the LOCK andUNLOCK buttons within 10 seconds of pressing the LOCK button in step 3.
N00544701171
If you are near your vehicle and feel threat-ened, you can activate th
e alarm to call atten-
tion as follows: 1. Press the PANIC button (4) for more than 1 second. 2. The headlights will blink on and off and the horn will sound intermittently forabout 3 minutes. 3. To turn off the alarm, press any button on the remote control transmitter.
Horn deactivation/reactivation One chime: The horn will not sound. Two chimes: The horn will sound.Four chimes: The horn will sound if the
LOCK button is pressed twice within 1 second.
Turn signal light deactivation/reactiva- tion
Buzzer deactivation/reactivationSetting of door unlock function

Number of chimes
Condition
One chime All doors unlock Two chimes Driver’s door unlock only
Using the panic alarm

NOTE
 The indicator light (5)
comes on each time a
button is pressed.  The F.A.S.T.-key can be used from about 40 feet (12 m) away. However, this distance may change if your ve
hicle is near a TV
transmitting tower, a
power station, or a
radio station.  If the following conditions are observed after pressing the LOCK (1) or UNLOCK (2) but- ton on the remote control transmitter, the buttery in the F.A.S.T.-key may need to bereplaced. • The doors cannot be locked or unlocked.• The panic alarm
cannot be operated.
• The indicator light
(5) is dim or does not
come on.
BK0267800US.book 23 ページ ２０１８年５月３０日　水曜日　午後４時２４分

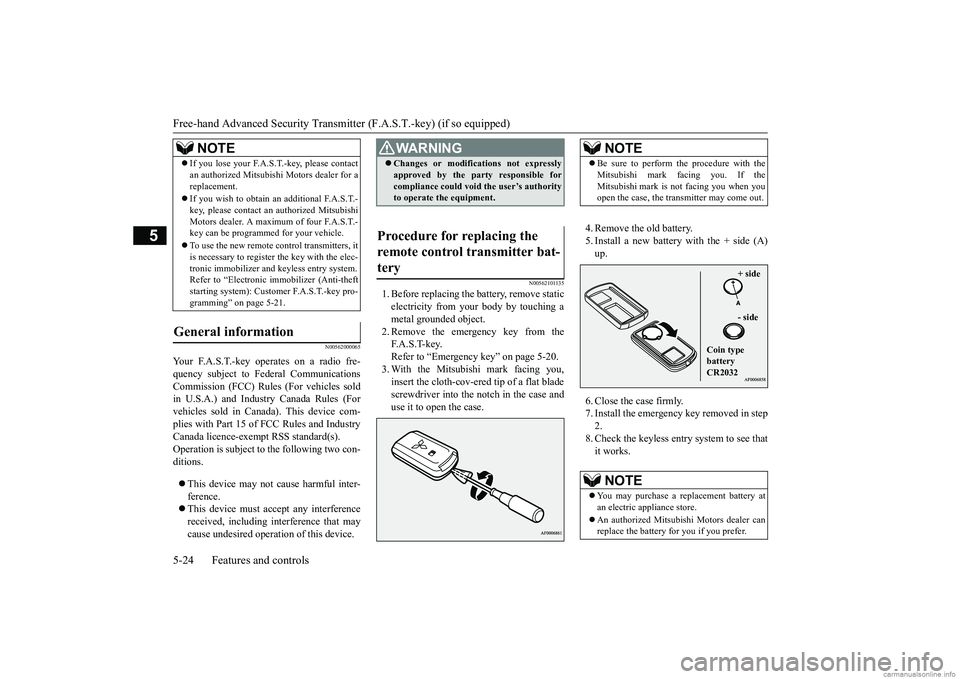

Free-hand Advanced
Security Transmitter (F.A.S
.T.-key) (if so equipped)
5-24 Features and controls
5
N00562000065
Your F.A.S.T.-key operates on a radio fre- quency subject to Federal Communications Commission (FCC) Rules (For vehicles sold in U.S.A.) and Industry Canada Rules (Forvehicles sold in Cana
da). This device com-
plies with Part 15 of FCC Rules and Industry Canada licence-exem
pt RSS standard(s).
Operation is subject to the following two con- ditions.  This device may not
cause harmful inter-
ference. This device must ac
cept any interference
received, including interference that may cause undesired operation of this device.
N00562101135
1. Before replacing the battery, remove staticelectricity from your body by touching ametal grounded object. 2. Remove the emergency key from the F. A . S . T- k e y.Refer to “Emergency key” on page 5-20. 3. With the Mitsubishi mark facing you, insert the cloth-cov-ered tip of a flat bladescrewdriver into the notch in the case and use it to open the case.
4. Remove the old battery. 5. Install a new battery with the + side (A) up. 6. Close the case firmly. 7. Install the emergency key removed in step2. 8. Check the keyless entry system to see that it works.
 If you lose your F.A.S.T.
-key, please contact
an authorized Mitsubish
i Motors dealer for a
replacement.  If you wish to obtain an
additional F.A.S.T.-
key, please contact an
authorized Mitsubishi
Motors dealer. A maximu
m of four F.A.S.T.-
key can be programmed for your vehicle.  To use the new remote control transmitters, it is necessary to register
the key with the elec-
tronic immobilizer and
keyless entry system.
Refer to “Electronic immobilizer (Anti-theft starting system): Customer F.A.S.T.-key pro- gramming” on page 5-21.
General information

NOTE
WA R N I N G Changes or modifica
tions not expressly
approved by the party responsible forcompliance could void the user’s authorityto operate the equipment.
Procedure for replacing the remote control transmitter bat- tery

NOTE
 Be sure to perform the procedure with the Mitsubishi mark fa
cing you. If the
Mitsubishi mark is not facing you when youopen the case, the transmitter may come out.NOTE
 You may purchase a replacement battery at an electric appliance store.  An authorized Mitsubishi Motors dealer can replace the battery for you if you prefer.
+ side - side
Coin type battery CR2032
BK0267800US.book 24 ページ ２０１８年５月３０日　水曜日　午後４時２４分

Door locks
Features and controls 5-25
5
N00509201599
Turn the key toward the front of the vehicle to lock the door. After checking that the door is locked, turn the key back to the center and remove it.
Move the lock knob to the lock position to lock the door. All doors should be kept locked while driv-ing.
CAUTION When the remote control transmitter case is opened, be careful to keep water, dust, etc.out. Also, do not touch the internal compo-nents.
Door locks
WA R N I N G Make sure all doors are tightly closed and locked while driving.• Locked doors, in co
mbination with the
use of seat belts, can help reduce the risk of ejection in
an accident.
• Locked doors can help keep passengers, especially small children, from openingdoors and falling out
of moving vehicles.
• Locked doors can help
prevent outsiders
from gaining access to your vehicle when you slow or come to a stop.
 Lock your vehicle when
ever you leave it.
Children who get into unlocked vehicles may not be able to get out. Childrentrapped inside vehicles can quickly beovercome by heat
and suffer serious
injury or death due to heat stroke. Never leave a ch
ild alone in the vehicle. In
addition to the risk
of heat stroke, chil-
dren can activate switches and controls,resulting in an injury
or fatal accident.
When closing a door,
make sure that the
door is fully closed and the door-ajarwarning display goes out on the informa-tion screen on the multi-information dis- play. If the door is aj
ar it could
open while
driving and caus
e an accident.
To lock and unlock with the key (driver’s door) (except for vehi- cles equipped with the F.A.S.T.-key) 1- Lock 2- UnlockWA R N I N G
NOTE
 When locking or unlocking with the key, only the driver’s door will be locked orunlocked.To lock or unlock all doors, use the power door lock switches, the keyless entry system or the F.A.S.T-key operation. (if soequipped) Refer to “Power door locks” on page 5-26, “Keyless entry system” on pages 5-6 and5-22, and “To operate using the F.A.S.T.- key” on page 5-12.  In vehicles equipped wi
th the F.A.S.T.-key,
the passenger’s door can be locked and unlocked using the emergency key.Refer to “Emergency key” on page 5-20.
To lock or unlock the door from the inside
BK0267800US.book 25 ページ ２０１８年５月３０日　水曜日　午後４時２４分
