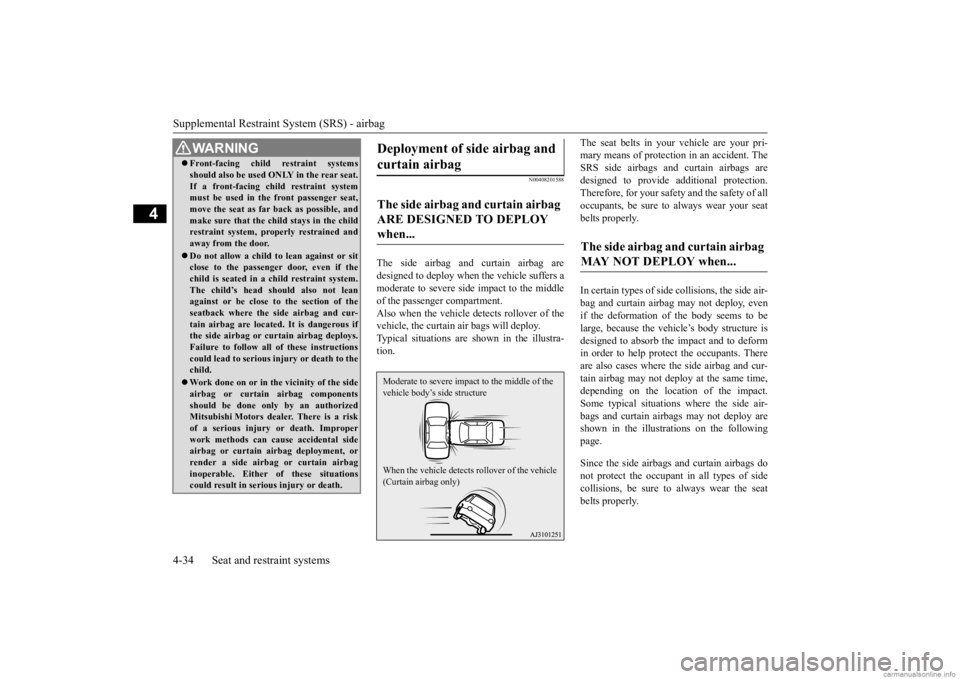

The side airbag and curtain airbag are designed to deploy when
the vehicle suffers a
moderate to severe side
impact to the middle
of the passenger compartment. Also when the vehicle detects rollover of the vehicle, the curtain air bags will deploy.Typical situations are
shown in the illustra-
tion.
The seat belts in your vehicle are your pri- mary means of protection in an accident. TheSRS side airbags and curtain airbags are designed to provide additional protection. Therefore, for your safety and the safety of alloccupants, be sure to
always wear your seat
belts properly. In certain types of side
collisions, the side air-
bag and curtain airbag may not deploy, even if the deformation of the body seems to belarge, because the vehicle’s body structure is designed to absorb the impact and to deform in order to help protect the occupants. Thereare also cases where the side airbag and cur- tain airbag may not deploy at the same time, depending on the location of the impact.Some typical situations
where the side air-
bags and curtain airbags may not deploy are shown in the illustrations on the followingpage. Since the side airbags and curtain airbags do not protect the occupant
in all types of side
collisions, be sure to
always wear the seat
belts properly.
 Front-facing child restraint systems should also be used ON
LY in the rear seat.
If a front-facing child restraint systemmust be used in the front passenger seat, move the seat as far back as possible, and make sure that the child stays in the childrestraint system, properly restrained and away from the door. Do not allow a child to lean against or sit close to the passenger door, even if the child is seated in a child restraint system.The child’s head sh
ould also not lean
against or be close to the section of the seatback where the side airbag and cur-tain airbag are located. It is dangerous if the side airbag or cu
rtain airbag deploys.
Failure to follow all of these instructionscould lead to serious in
jury or death to the
child. Work done on or in th
e vicinity of the side
airbag or curtain
airbag components
should be done only
by an authorized
Mitsubishi Motors deal
er. There is a risk
of a serious injury
or death. Improper
work methods can cause accidental sideairbag or curtain ai
rbag deployment, or
render a side airb
ag or curtain airbag
inoperable. Either of these situationscould result in serious injury or death.WA R N I N G
Deployment of side airbag and curtain airbag The side airbag and curtain airbag ARE DESIGNED TO DEPLOY when... Moderate to severe impact to the middle of the vehicle body’s side structure When the vehicle detects rollover of the vehicle (Curtain airbag only)
The side airbag and curtain airbag MAY NOT DEPLOY when...
BK0284300US.book 34 ページ ２０１９年５月２３日　木曜日　午後１２時２２分

Supplemental Restraint System (SRS) - airbag
Seat and restraint systems 4-35
4

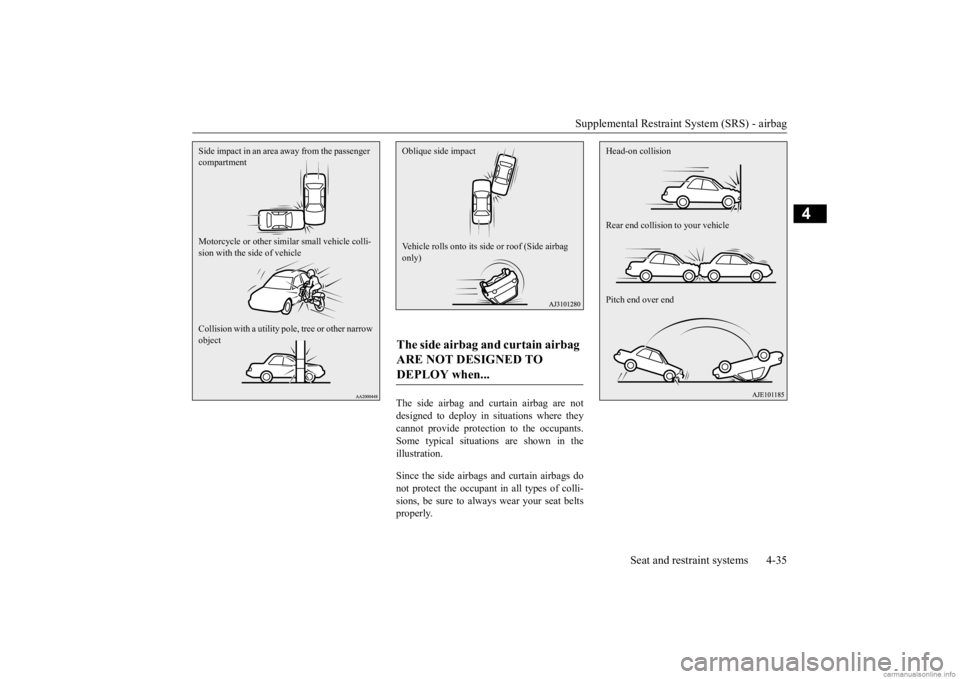

The side airbag and curtain airbag are not designed to deploy in situations where theycannot provide protectio
n to the occupants.
Some typical situations are shown in the illustration. Since the side airbags and curtain airbags do not protect the occupant
in all types of colli-
sions, be sure to always
wear your seat belts
properly.
Side impact in an area away from the passenger compartment Motorcycle or other similar small vehicle colli- sion with the side of vehicle Collision with a utility pole
, tree or other narrow
object
The side airbag and curtain airbag ARE NOT DESIGNED TO DEPLOY when... Oblique side impact Vehicle rolls onto its side or roof (Side airbag only)
Head-on collision Rear end collision to your vehiclePitch end over end
BK0284300US.book 35 ページ ２０１９年５月２３日　木曜日　午後１２時２２分

Supplemental Restraint System (SRS) - airbag 4-36 Seat and restraint systems
4
N00408501783
SRS servicing

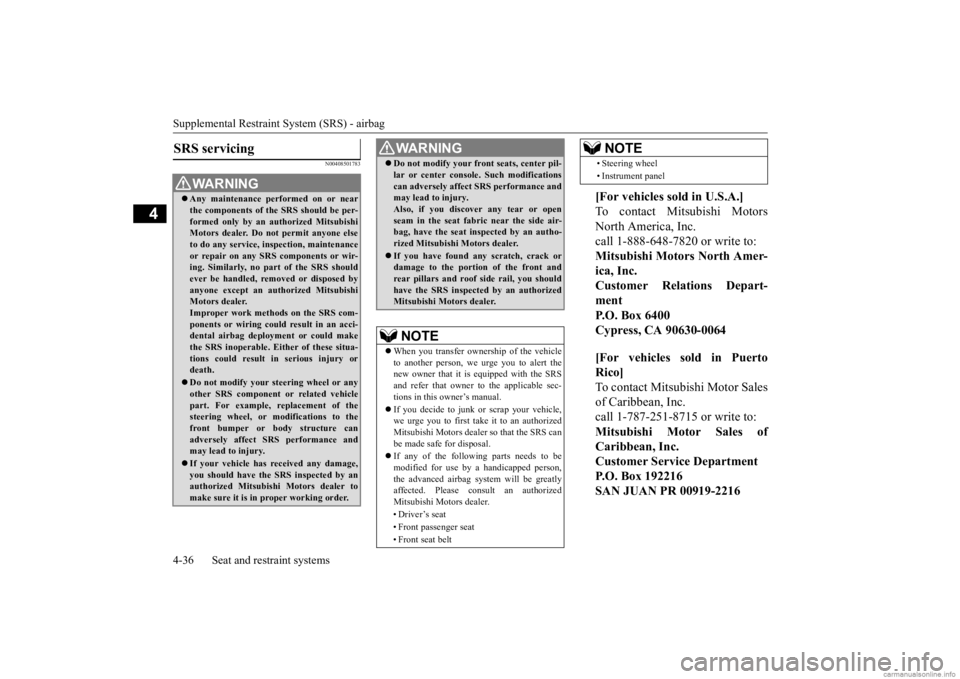

WA R N I N G Any maintenance performed on or near the components of the SRS should be per-formed only by an

authorized Mitsubishi
Motors dealer. Do not permit anyone else to do any service, in
spection, maintenance
or repair on any SRS components or wir- ing. Similarly, no part of the SRS should ever be handled, removed or disposed byanyone except an au
thorized Mitsubishi
Motors dealer. Improper work methods on the SRS com-ponents or wiring could result in an acci- dental airbag deploym
ent or could make
the SRS inoperable. Ei
ther of these situa-
tions could result in serious injury or death. Do not modify your steering wheel or any other SRS component
or related vehicle
part. For example, replacement of thesteering wheel, or modifications to the front bumper or body structure can adversely affect SR
S performance and
may lead to injury. If your vehicle has re
ceived any damage,
you should have the
SRS inspected by an
authorized Mitsubishi Motors dealer to make sure it is in proper working order.
 Do not modify your front seats, center pil- lar or center console. Such modificationscan adversely affect
SRS performance and
may lead to injury. Also, if you discove
r any tear or open
seam in the seat fabr
ic near the side air-
bag, have the seat in
spected by an autho-
rized Mitsubishi Motors dealer. If you have found any scratch, crack or damage to the portion of the front and rear pillars and roof
side rail, you should
have the SRS inspected by an authorized Mitsubishi Motors dealer.NOTE
 When you transfer ownership of the vehicle to another person, we
urge you to alert the
new owner that it is
equipped with the SRS
and refer that owner to
the applicable sec-
tions in this owner’s manual.  If you decide to junk or scrap your vehicle, we urge you to first take it to an authorized Mitsubishi Motors dealer so that the SRS canbe made safe for disposal.  If any of the following parts needs to be modified for use by
a handicapped person,
the advanced airbag sy
stem will be greatly
affected. Please consult an authorized Mitsubishi Motors dealer. •Driver’s seat • Front passenger seat • Front seat beltWA R N I N G
• Steering wheel • Instrument panel[For vehicles sold in U.S.A.] To contact Mitsubishi Motors North America, Inc.call 1-888-648-7820 or write to: Mitsubishi Motors North Amer- ica, Inc.Customer Relations Depart- ment P.O. Box 6400Cypress, CA 90630-0064 [For vehicles sold in Puerto Rico] To contact Mitsubishi Motor Salesof Caribbean, Inc. call 1-787-251-8715 or write to: Mitsubishi Motor Sales ofCaribbean, Inc. Customer Service Department P.O. Box 192216SAN JUAN PR 00919-2216NOTE
BK0284300US.book 36 ページ ２０１９年５月２３日　木曜日　午後１２時２２分

Supplemental Restraint System (SRS) - airbag
Seat and restraint systems 4-37
4
N00408600383
Occupant restraint warn
ing labels for the SRS
are located in the vehicle as shown in the illustration.
[For vehicles sold in Guam] To contact Triple J Enterprises Inc.call (671) 649-3673 or write to: Triple J Enterprises, Inc. P.O. Box 6066TAMUNING GUAM 96931 [For vehicles sold in Saipan] To contact Triple J Motorscall (670) 234-7133 or write to: Triple J Motors P.O. Box 500487SAIPAN, MP96950-0487
Wa r n i n g l a b e l * - Located in the passenger’s side as well.
BK0284300US.book 37 ページ ２０１９年５月２３日　木曜日　午後１２時２２分

BK0284300US.book 38 ページ ２０１９年５月２３日　木曜日　午後１２時２２分

5
Features and controlsBreak-in recommendations ..............................................................5-2 Keys .................................................................................................5-2 Electronic immobilizer (Anti-theft starting system) ........................5-3Keyless entry system (if so equipped) ..............................................5-6 Free-hand Advanced Security
Transmitter (F.A.S.T.-key)
(if so equipped) ............................................................................5-9Door locks ......................................................................................5-25 Power door locks ......
...........
...........
...........
...........
...........
.........
.....5-27
Child safety locks for rear door ..........
...........
.........
.........
.........
.....5-28
Trunk lid ................
............
...........
...........
...........
...........
...........
.....5-28
Inside emergency trunk lid release ................................................5-29 Power window control ...................................................................5-30Parking brake .................................................................................5-33 Steering wheel height adjustment ..................................................5-34 Inside rearview mirror ...................................................................5-34Outside rearview mirrors ...............................................................5-36 Ignition switch ...............................................................................5-37 Starting the engine .........................................................................5-38Manual transaxle (if so equipped) ..................................................5-40 Continuously variable transmission
(CVT) (if so equipped)..........5-41
Service brake .................................................................................5-46Hill start assist ................................................................................5-47 Brake assist system ........................................................................5-49 Anti-lock braking system ...............................................................5-49Electric power steering system (EPS) ............................................5-51 Active stability control (ASC) .......................................................5-52 Cruise control (if so equipped) .......................................................5-54Tire pressure monitoring system (TPMS) .....................................5-58
Rear-view camera .......................................................................... 5-62 Instrument cluster .......................................................................... 5-64 Multi-information display ............................................................. 5-65Indicator and warning light package ............................................. 5-74 Indicators ....................................................................................... 5-75 Warning lights ................................................................................ 5-75Combination headlights and dimmer switch ................................. 5-78 Turn signal lever ............................................................................ 5-79 Hazard warning flasher switch ...................................................... 5-80Front fog light switch (if so equipped) .......................................... 5-80 Wiper and washer switch ............................................................... 5-81 Electric rear window defogger switch ....
...........
...........
...........
...... 5-82
Horn switch ................................................................................... 5-83 Link System (if so equipped) ......................................................... 5-83 USB input terminal ....
...........
...........
...........
...........
...........
............. 5-83
Sun visors ...................................................................................... 5-84 12 V power outlets ......................................................................... 5-85 Interior lights ................................................................................. 5-86Storage spaces ................................................................................ 5-87 Cup holders .................................................................................... 5-87 Bottle holders ................................................................................. 5-88Convenience hook ............
...........
...........
...........
...........
...........
...... 5-88
Assist grips .................................................................................... 5-89
BK0284300US.book 1 ページ ２０１９年５月２３日　木曜日　午後１２時２２分

Break-in recommendations 5-2 Features and controls
5
N00508701382
Advanced automobile manufacturing tech- niques permit you to operate your new vehi- cle without requiring
a long break-in period
of low-speed driving. However, you can add to the future perfor- mance and economy of your vehicle byobserving the followi
ng precautions during
the first 300 miles (500 km). Drive your vehicle at moderate speeds during the break-in period.  Avoid revving the engine.  Avoid rough driving such as sudden starts, sudden acceleration, prolonged high- speed driving and sudden braking. These would have a detrimen
tal effect on the
engine and also cause increased fuel and oil consumption, wh
ich could result in
malfunction of the engine components. Beparticularly careful to
avoid full accelera-
tion while in low shift position (low gears). Do not overload the ve
hicle. Stay within
the seating capacity. (Refer to “Cargo load precautions” on page 6-11.) Do not use this vehi
cle for trailer towing.
N00508801804
Two keys are provided. The keys fit all locks. Keep one in a safe place as a spare key. Two F.A.S.T.-keys and two emergency keys are provided. Keep one F.A.S.T.-key and one emergency key in a safe pl
ace together as a set of spare
keys.
Break-in recommendations
Keys Type 1 1- Key for the electr
onic immobilizer and
keyless entry system
2- Key number plateType 2
1- F.A.S.T.-key
(with electronic im
mobilizer and key-
less entry system function)
2- Emergency key 3- Key number plate
NOTE
 The keyless entry key a
nd F.A.S.T.-key are a
precision electr
onic device with a built-in
signal transmitter. Pleas
e observe the follow-
ing in order to prevent damage. • Do not leave where it may be exposed to heat caused by
direct sunlight, such as on
top of the dashboard. • Do not take the remote control transmitter apart. • Do not excessively be
nd the key or subject
it to strong impacts. • Keep the remote control transmitter dry. • Keep away from magnetic objects such as key rings.
BK0284300US.book 2 ページ ２０１９年５月２３日　木曜日　午後１２時２２分

Electronic immobilizer (Ant
i-theft starting system)
Features and controls 5-3
5
N00509101950
[For vehicles equippe
d with the Free-hand
Advanced Security Transmitter (F.A.S.T.-key)] For information on operations for vehicles equipped with the Free-hand Advanced Secu-rity Transmitter (F.A.S.T.-key), refer to “Free-hand Advanced Se
curity Transmitter
(F.A.S.T.-key): Electronic immobilizer (Anti-theft starting system)” on page 5-20. [Except for vehicles equipped with the Free- hand Advanced Security Transmitter (F.A.S.T.-key)]The electronic immobilizer is designed to sig- nificantly reduce the
possibility of vehicle
theft. The purpose of the system is to immo-bilize the vehicle if
an invalid start is
attempted. A valid start attempt can only be achieved (subject to certain conditions) usinga key “registered” to the immobilizer system. All of the keys provided with your new vehi- cle have been program
med to the vehicle’s
electronics.
• Keep away from devices that produce mag- netism, such as audio systems, computersand televisions. • Keep away from devices that emit strong electromagnetic waves, such as cellularphones, wireless devices and high fre- quency equipment (i
ncluding medical
devices). • Do not clean with ultrasonic cleaners. • Do not leave the key where it may be exposed to high temperature or high humid- ity.
 If you lose your key, to prevent the theft of the vehicle immediatel
y contact an autho-
rized Mitsubishi Motors dealer. If you notify an authorized Mitsubishi Motors dealer of the key number, they canmake a new key. The key number is stamped on the key number plate.
Keep the key num-
ber plate in a safe pl
ace separate from the
key itself.  No keys other than those registered in advance can be used
to start the engine.
Refer to “Electronic immobilizer (Anti-theft starting system)” on page 5-3.Refer to “Free-hand Advanced Security Transmitter (F.A.S.T.-key): “Electronic immobilizer (Anti-thef
t starting system)” on
page 5-20.NOTE
 When the theft-alarm is in the system opera- tional status, th
e alarm operates if a door is
opened after using th
e key, the door lock
knob or the power door lock switch to unlock the vehicle.  The system does not enter the preparation status if the keyless entry system or the F.A.S.T.-key was not used to lock the vehi-cle.
Electronic immobilizer (Anti-theft starting system)
NOTE
NOTE
 In the following cases, the vehicle may not be able to recognize
the registered ID code
from the key. This means the engine will not start even when the key is turned to the “START” position. • When the key contacts
a key ring or other
metallic or magnetic object
BK0284300US.book 3 ページ ２０１９年５月２３日　木曜日　午後１２時２２分

Electronic immobilizer (Anti-theft starting system) 5-4 Features and controls
5
Only keys that have been programmed to the vehicle’s electronics can
be used to start the
vehicle. If you lose the key, you can order a key from your authorized Mitsubishi Motors dealer by referring to the key number. To prevent vehicle theft, the ID code for thevehicle keys must be changed.
Take your vehicle and all remaining keys to your authorized Mitsubishi Motors dealer tohave your ID code changed. To add a key, you must
already have 2 regis-
tered keys. You need to
register the ID code
to the vehicle. Registering the ID code can be done by your- self, or by your authorized Mitsubishi Motors dealer.For you to register the ID code yourself, fol- low the “Customer key programming” proce- dure below.If you choose to have your authorized Mitsubishi Motors dealer register the ID code, take your vehicle and all remainingkeys to your authorized Mitsubishi Motors dealer.
N00562201224
You can program new keys to the system ifyou have two valid (alr
eady registered) keys
and blank immobilizer ke
y (specially cut for
• When the key grip contacts metal of another key • When the key contacts
or is close to other
immobilizer keys (inc
luding keys of other
vehicles)
 In cases like the above, move the offending object(s) away from the key and turn the keyback to the “ACC” or
“OFF” position. Then
try to start the engine again. If the engine does not start, cont
act an authorized
Mitsubishi Motors dealer.  The key may not operate properly when it is near an object or fac
ility that emits strong
electromagnetic waves.NOTE
 Electronic immobilizer is not compatible with commercially available remote startingsystems. Use of commercially availableremote starting systems may result in vehicle starting problems and a loss of security pro- tection.  A system failure is suspected when the igni- tion switch is turned to the “START” posi-tion, and the engine does
not start. In such a
case, contact an au
thorized Mitsubishi
Motors dealer.CAUTION Do not make any altera
tions or additions to
the immobilizer system.
Alterations or addi-
tions could cause failur
e of the immobilizer.
Replacement keys
NOTE
Additional keys
NOTE
You are provided with 2 keys, but you may register up to 8 keys.
Customer key programming
BK0284300US.book 4 ページ ２０１９年５月２３日　木曜日　午後１２時２２分

Electronic immobilizer (Ant
i-theft starting system)
Features and controls 5-5
5
your vehicle at your Mitsubishi Motors dealer) by doing the following: 1. Insert the first vali
d key into the ignition
switch and turn the key to the “ON” posi- tion for 5 seconds. 2. Turn the key to the “OFF” position andremove the first key. 3. Within 30 seconds of
removing the first
key, insert the second valid key into theignition and turn it to the “ON” position. About 10 seconds late
r, the immobilizer
indicator will start to blink. 4. When the immobilizer indicator starts blinking, turn the second valid key to the“OFF” position and remove it. Within 30 seconds after doing so, insert a blank immobilizer key into
the ignition switch
and turn it to the “ON” position. Perform this operation no more than 30 seconds after the immobilizer indicator startsblinking. When regi
stration of the ID
code is complete, the immobilizer indica- tor will come on for 3 seconds then go off.If an error occurs, the immobilizer indica- tor will go off during the procedure.
5. If you wish to register another key, per- form the process again from step 1.
N00562301137
Your electronic imm
obilizer operates on a
radio frequency subject to Federal Communi- cations Commission (FCC) Rules. Thisdevice complies with
part 15 of FCC Rules.
Operation is subject to the following two con- ditions.  This device may not
cause harmful inter-
ference.  This device must ac
cept any interference
received, including interference that may cause undesired operation of this device.
NOTE
 When the key registration is completed, the immobilizer indicator wi
ll come on within 3
seconds of turning the ignition switch to the“ON” position with
the blank immobilizer
key (specially cut for your vehicle at your Mitsubishi Motors dealer). NOTE
 It is not possible to
register a key if:
• the immobilizer indi
cator goes off during
the procedure • the immobilizer indica
tor does not come on
within 30 seconds after step 4.
 The procedure will be terminated automati- cally if: • a period of 30 seconds or longer elapses from the moment when the first key isturned to the “OFF” position to the moment when the second key is turned to the “ON” position • a period of 30 seconds or longer elapses from the moment when the second key isturned to the “OFF” position to the momentwhen the blank immobilizer key is turned to the “ON” position • more than 20 seconds elapses after the immobilizer indicato
r starts blinking
General information
WA R N I N GChanges or modifica
tions not expressly
approved by the party responsible forcompliance could void the user’s authority to operate the equipment.
BK0284300US.book 5 ページ ２０１９年５月２３日　木曜日　午後１２時２２分
