Fig. 200: Flow Chart DR-6 (1.8L) (2 of 2)
DR-7: CODE 21 COOLANT TEMP. SENSOR CIRCUIT - 1.8L

Fig. 201: Circuit Diagram DR-7 (1.8L)

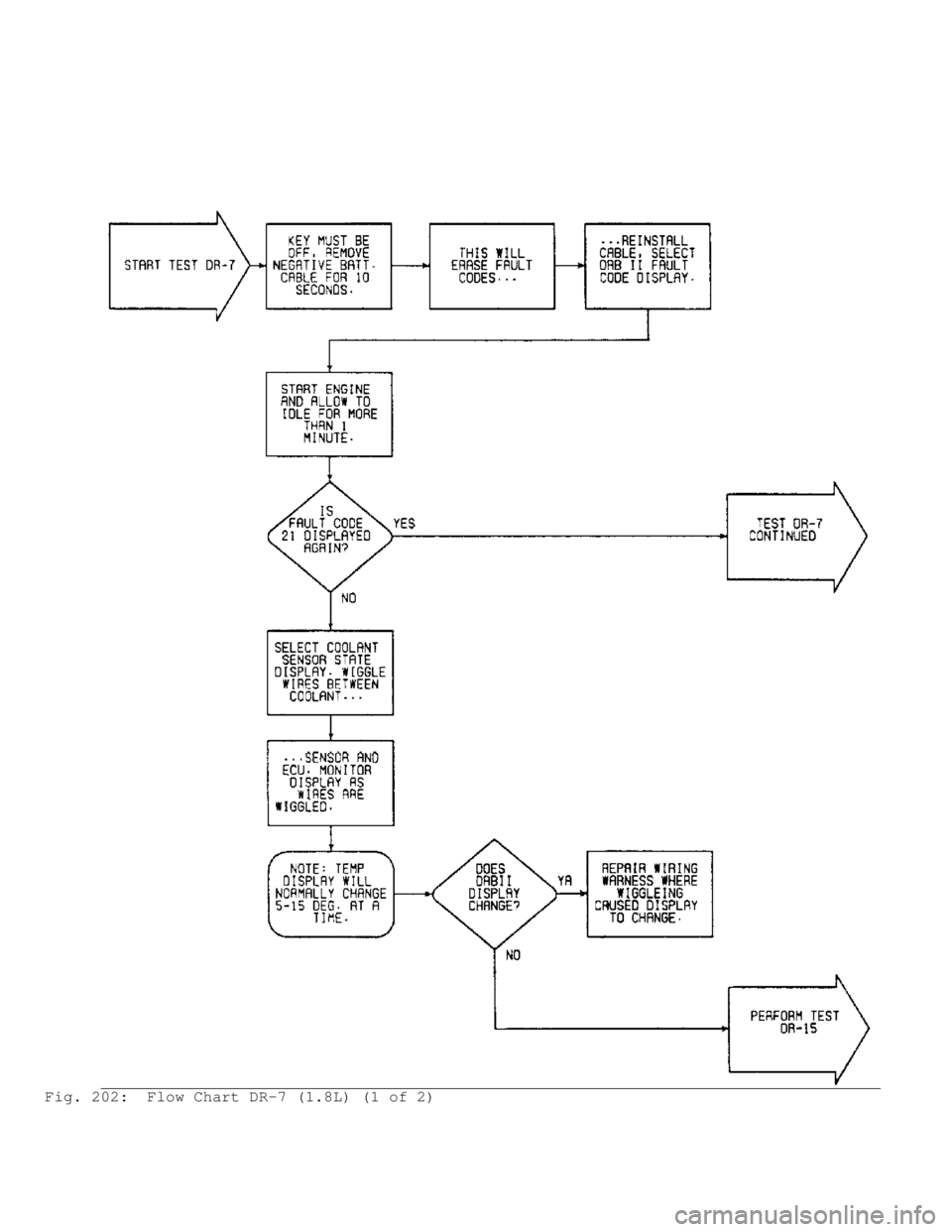

Fig. 202: Flow Chart DR-7 (1.8L) (1 of 2)

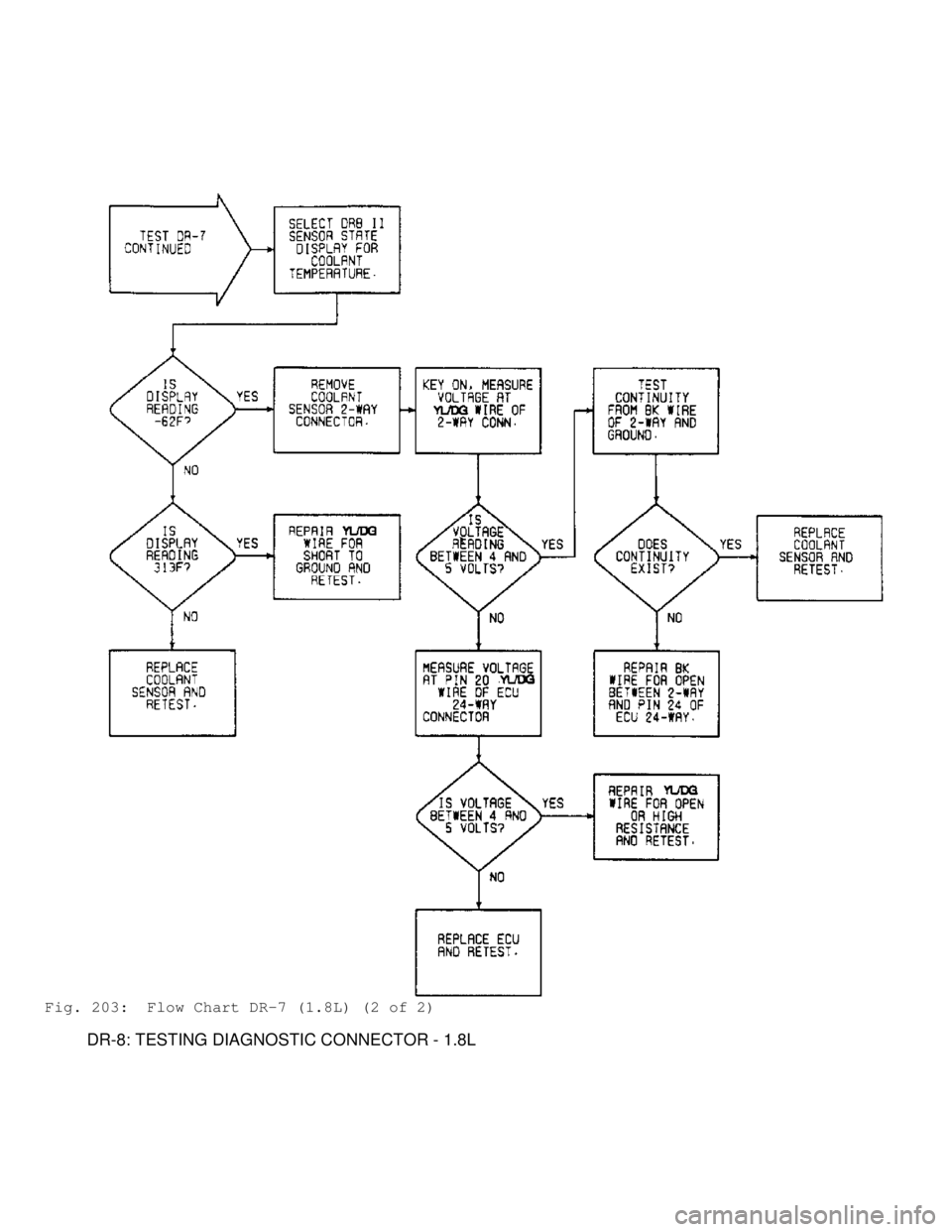

Fig. 203: Flow Chart DR-7 (1.8L) (2 of 2)
DR-8: TESTING DIAGNOSTIC CONNECTOR - 1.8L

Fig. 204: Circuit Diagram DR-8 (1.8L)
Fig. 205: Flow Chart DR-8 (1.8L)
DR-9: CODE 23 TOP DEAD CENTER SENSOR CONNECTOR - 1.8L

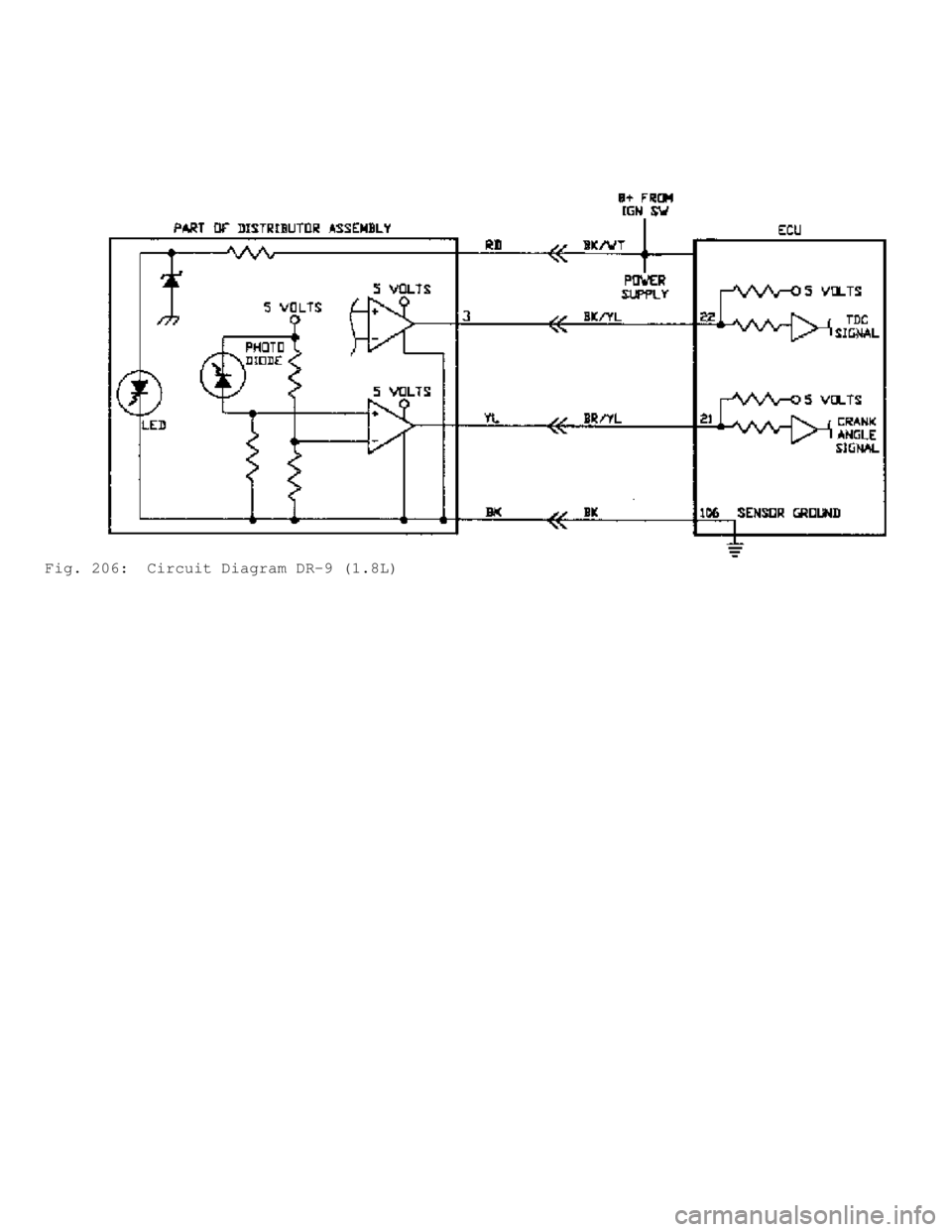

Fig. 206: Circuit Diagram DR-9 (1.8L)

Fig. 207: Flow Chart DR-9 (1.8L)
DR-10: CODE 24 VEHICLE SPEED SENSOR CIRCUIT - 1.8L

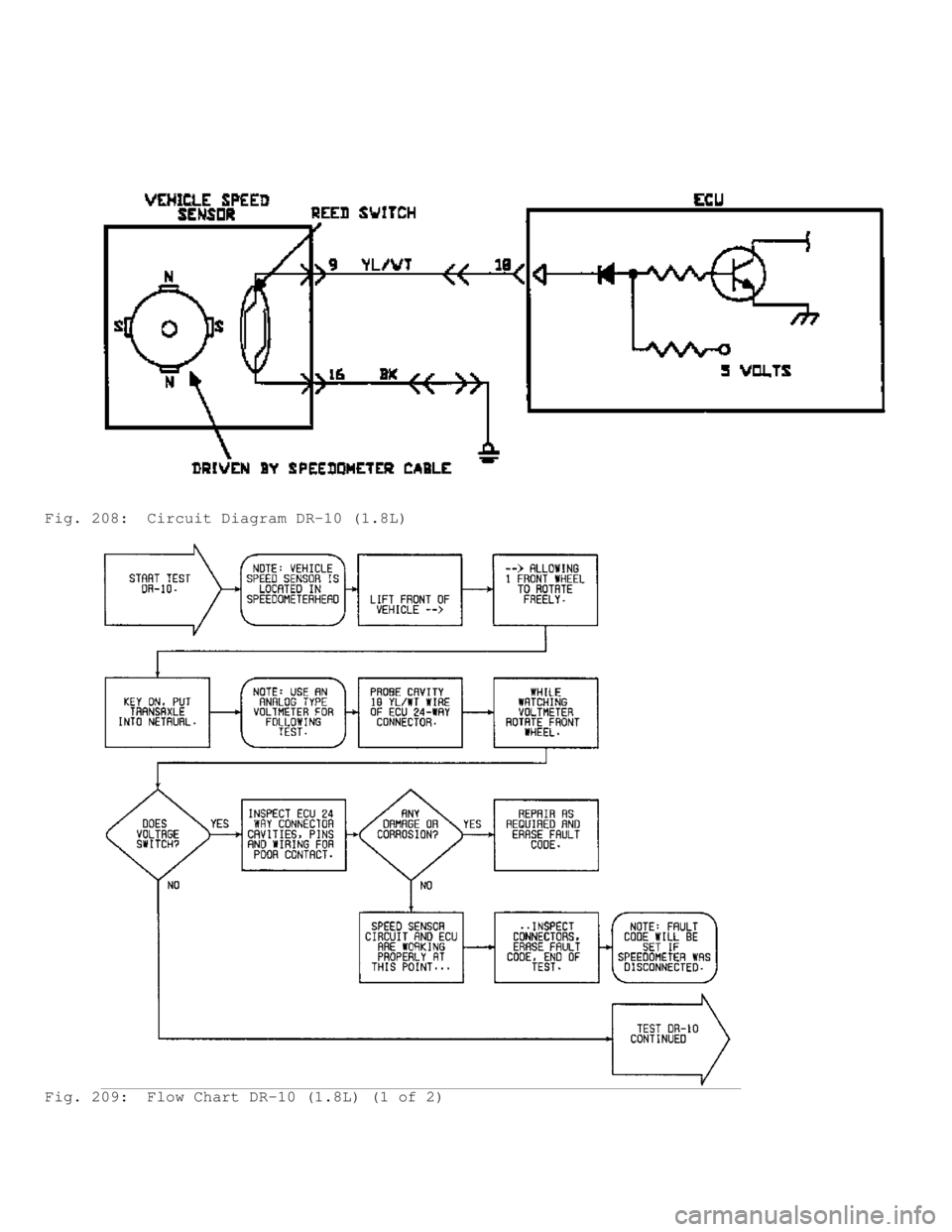

Fig. 208: Circuit Diagram DR-10 (1.8L)
Fig. 209: Flow Chart DR-10 (1.8L) (1 of 2)

Fig. 210: Flow Chart DR-10 (1.8L) (2 of 2)
DR-11: CODE 25 BAROMETRIC PRESSURE SENSOR CIRCUIT - 1.8L

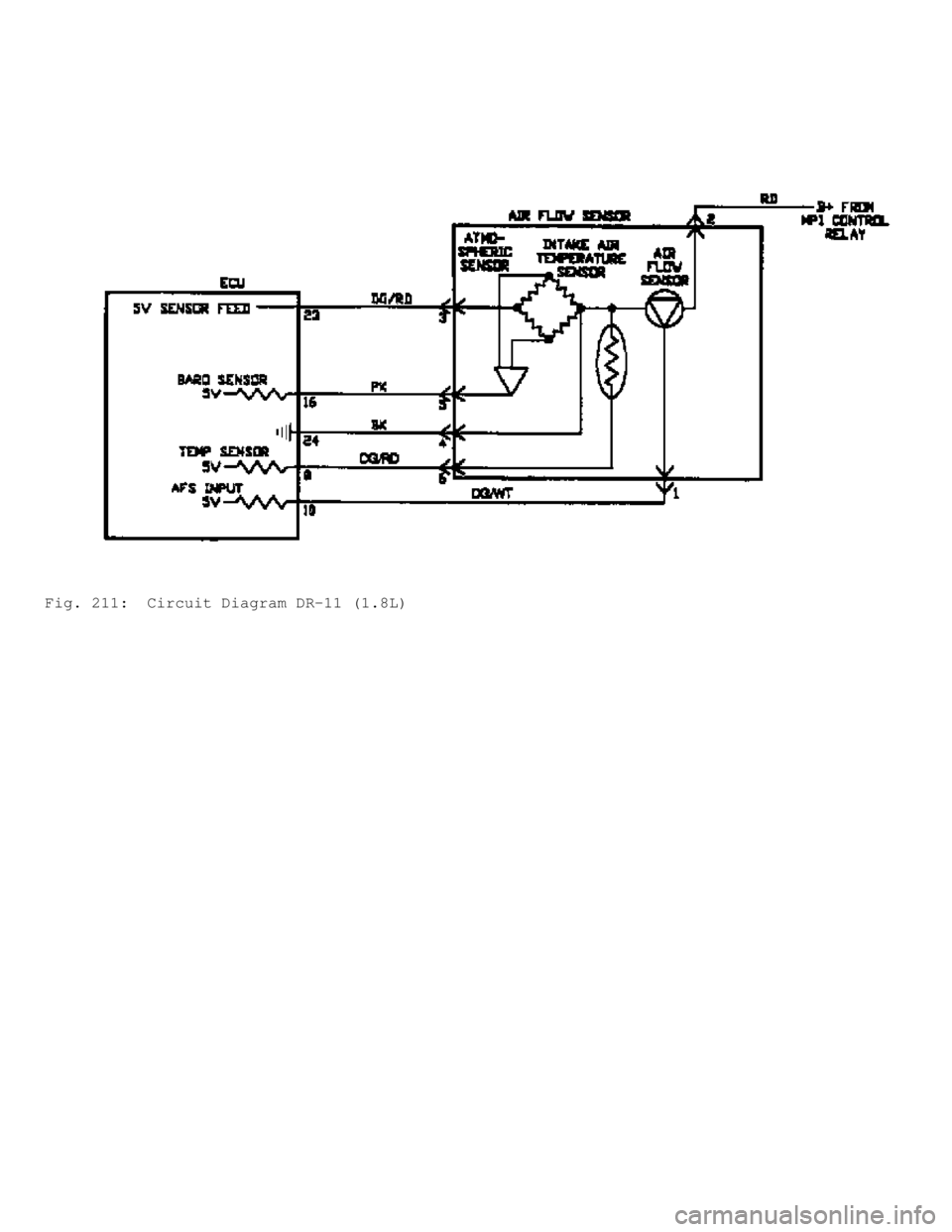

Fig. 211: Circuit Diagram DR-11 (1.8L)
