MITSUBISHI MONTERO 1991 Service Manual

Fig. 212: Flow Chart DR-11 (1.8L) (1 of 2)

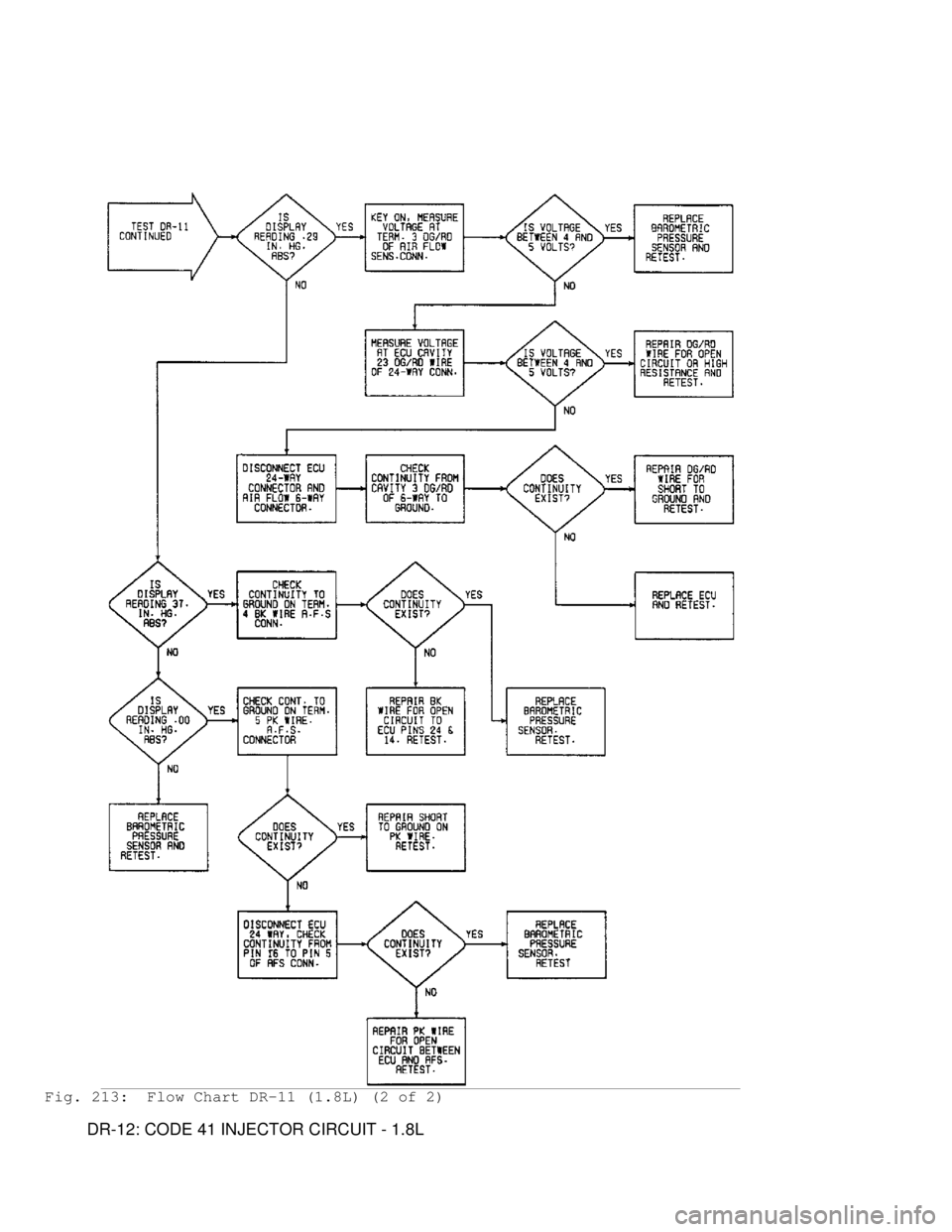

Fig. 213: Flow Chart DR-11 (1.8L) (2 of 2)
DR-12: CODE 41 INJECTOR CIRCUIT - 1.8L

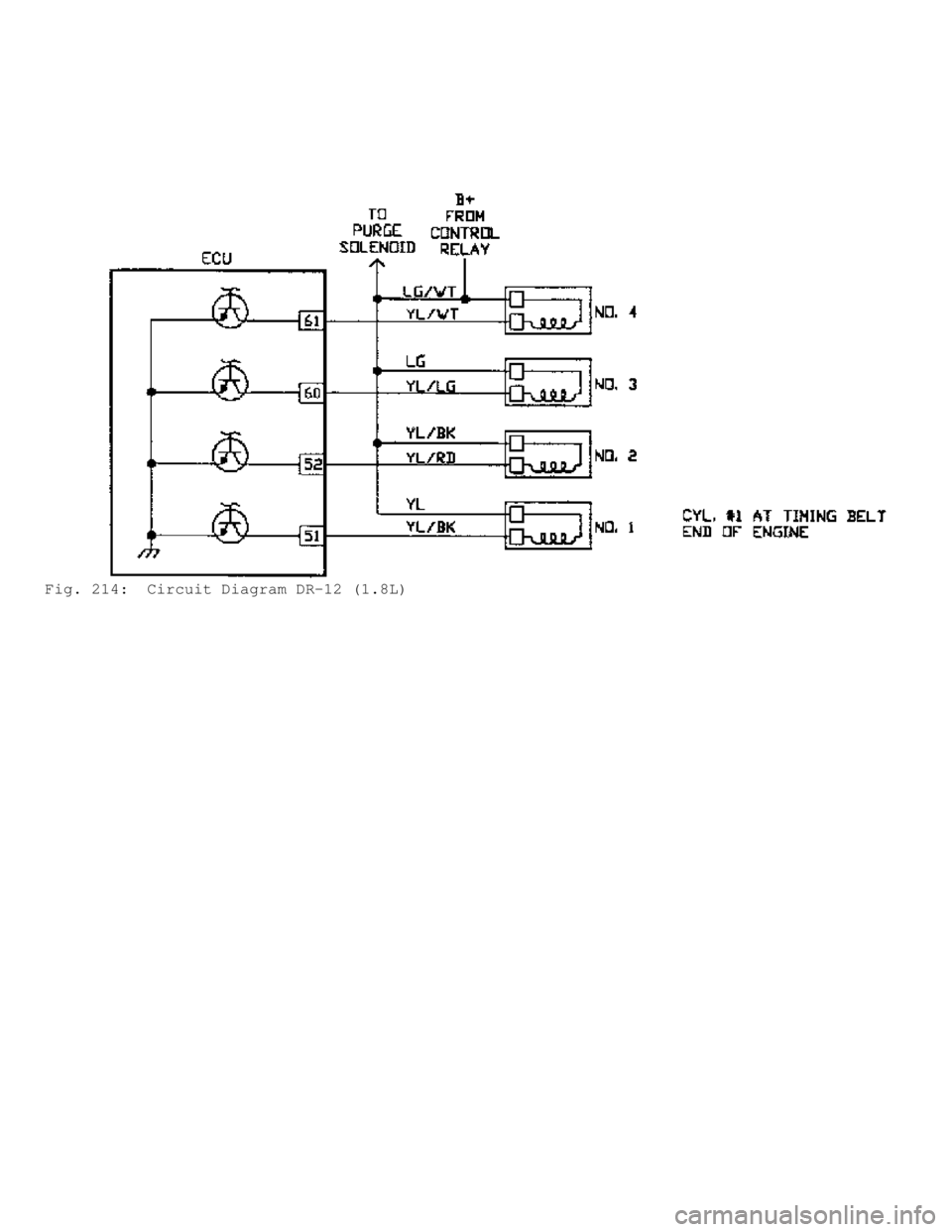

Fig. 214: Circuit Diagram DR-12 (1.8L)

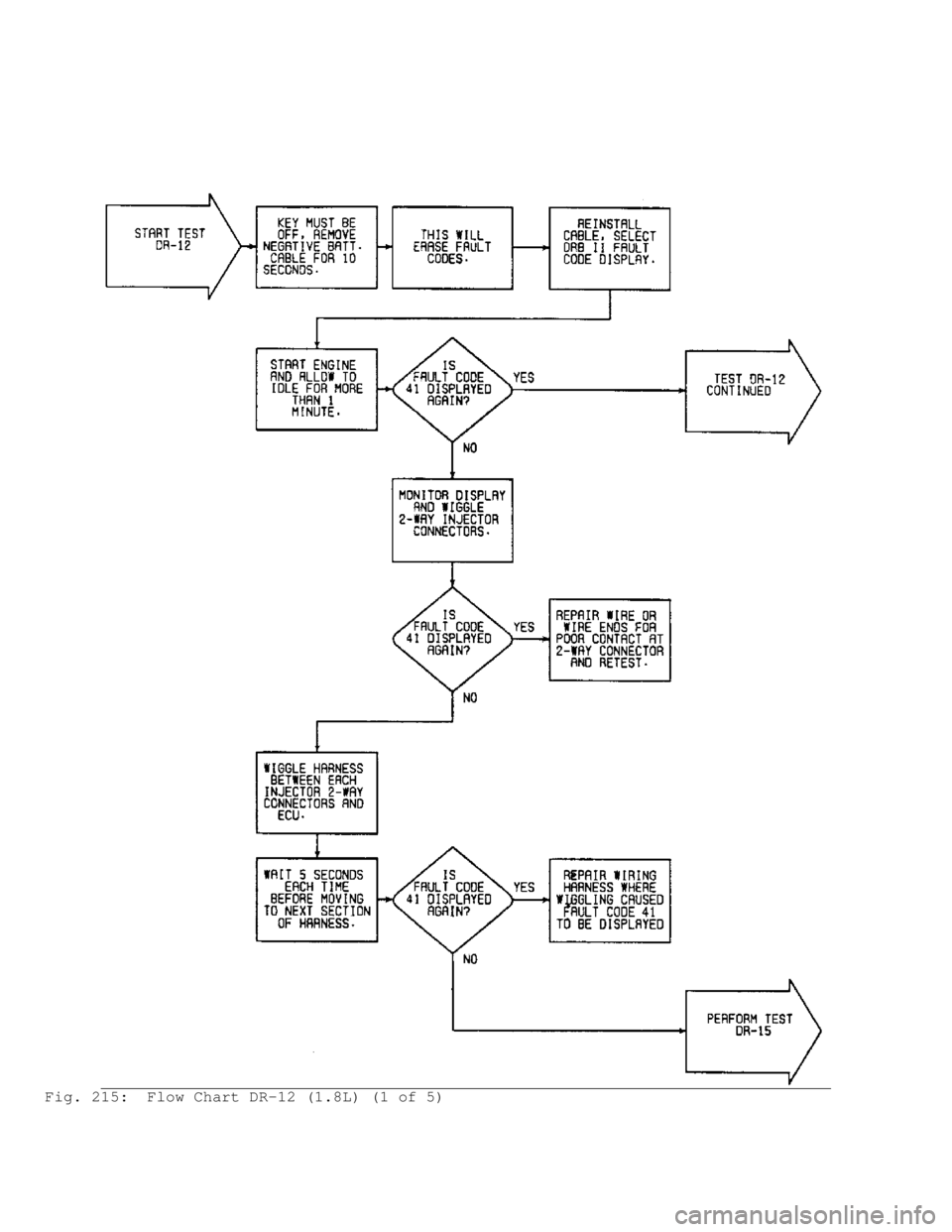

Fig. 215: Flow Chart DR-12 (1.8L) (1 of 5)

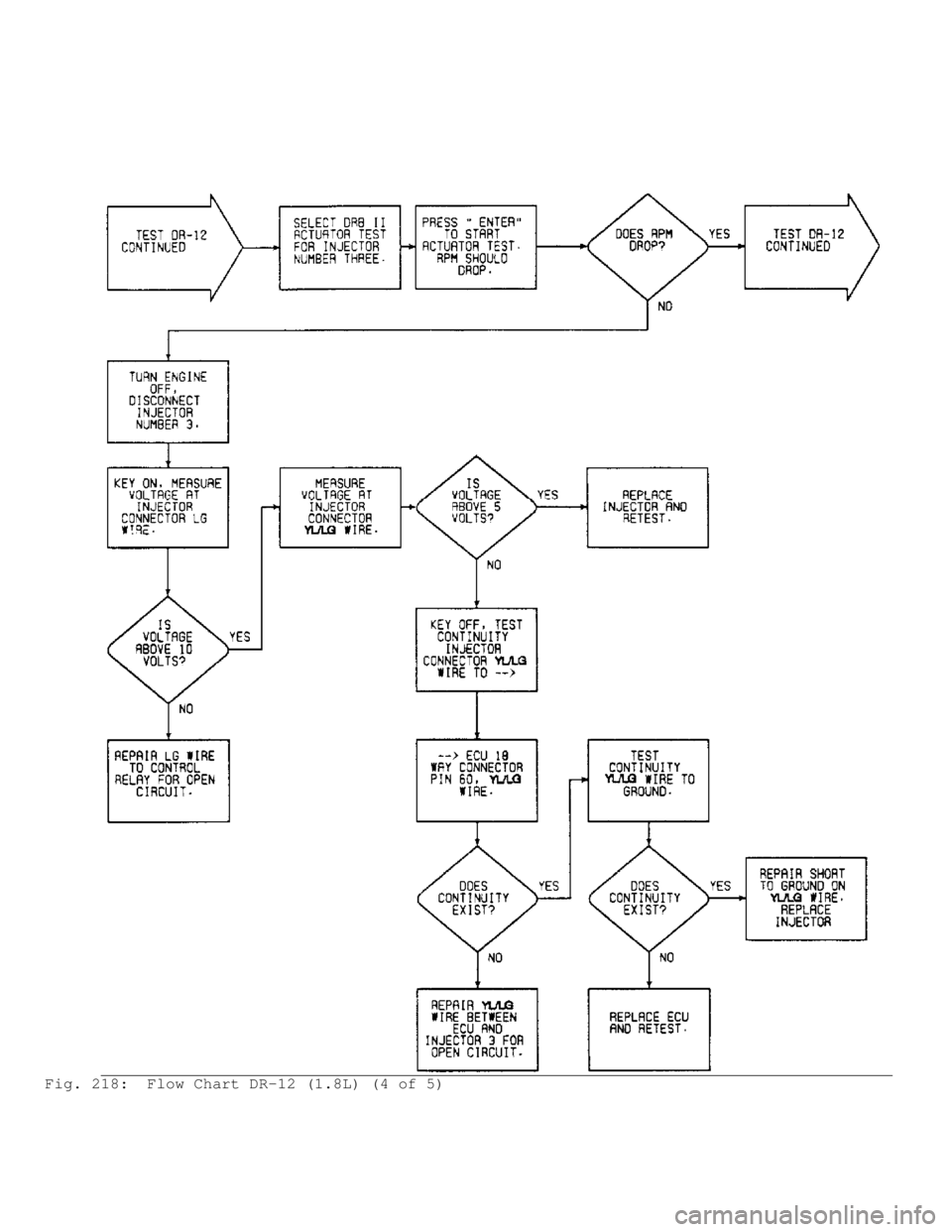

Fig. 216: Flow Chart DR-12 (1.8L) (2 of 5)

Fig. 217: Flow Chart DR-12 (1.8L) (3 of 5)

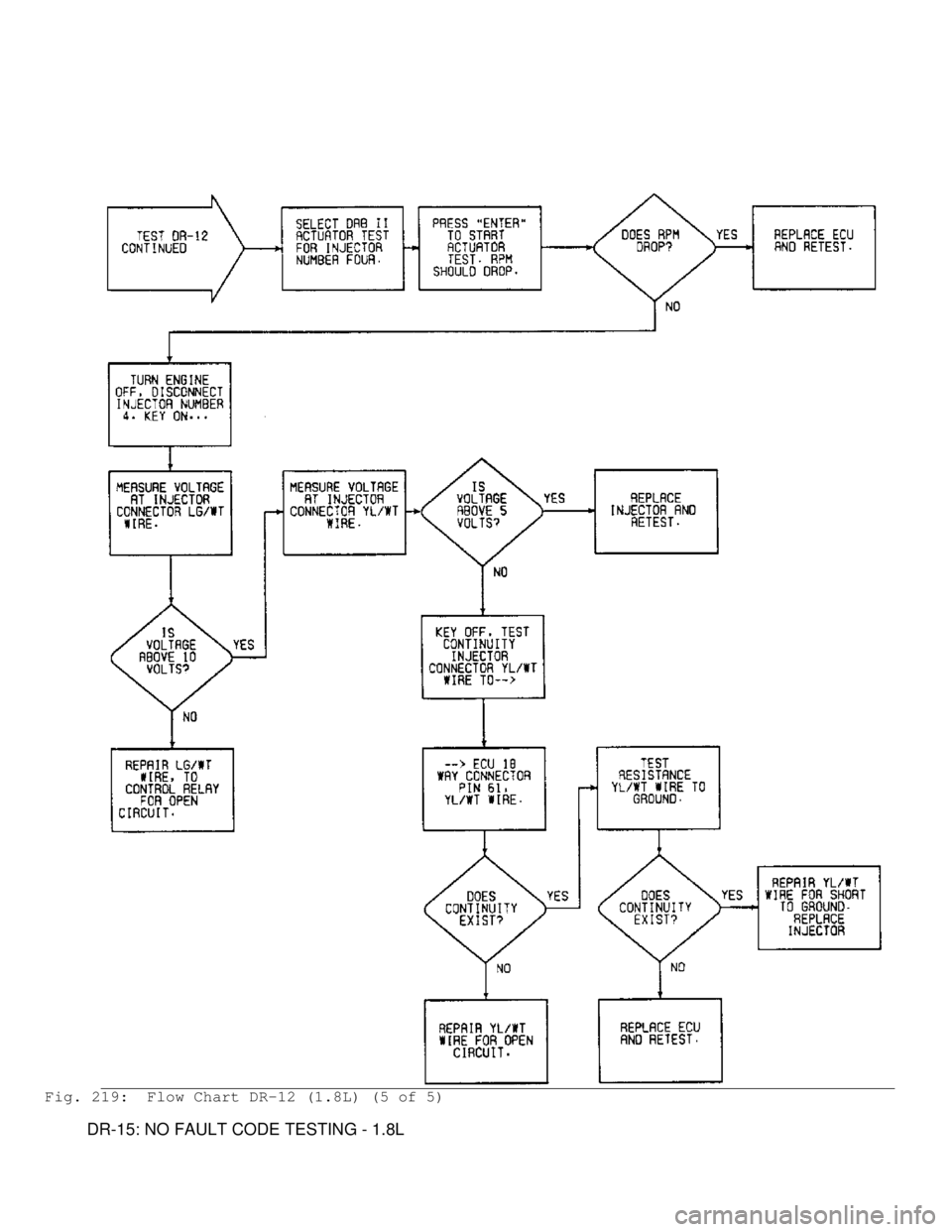

Fig. 218: Flow Chart DR-12 (1.8L) (4 of 5)

Fig. 219: Flow Chart DR-12 (1.8L) (5 of 5)
DR-15: NO FAULT CODE TESTING - 1.8L

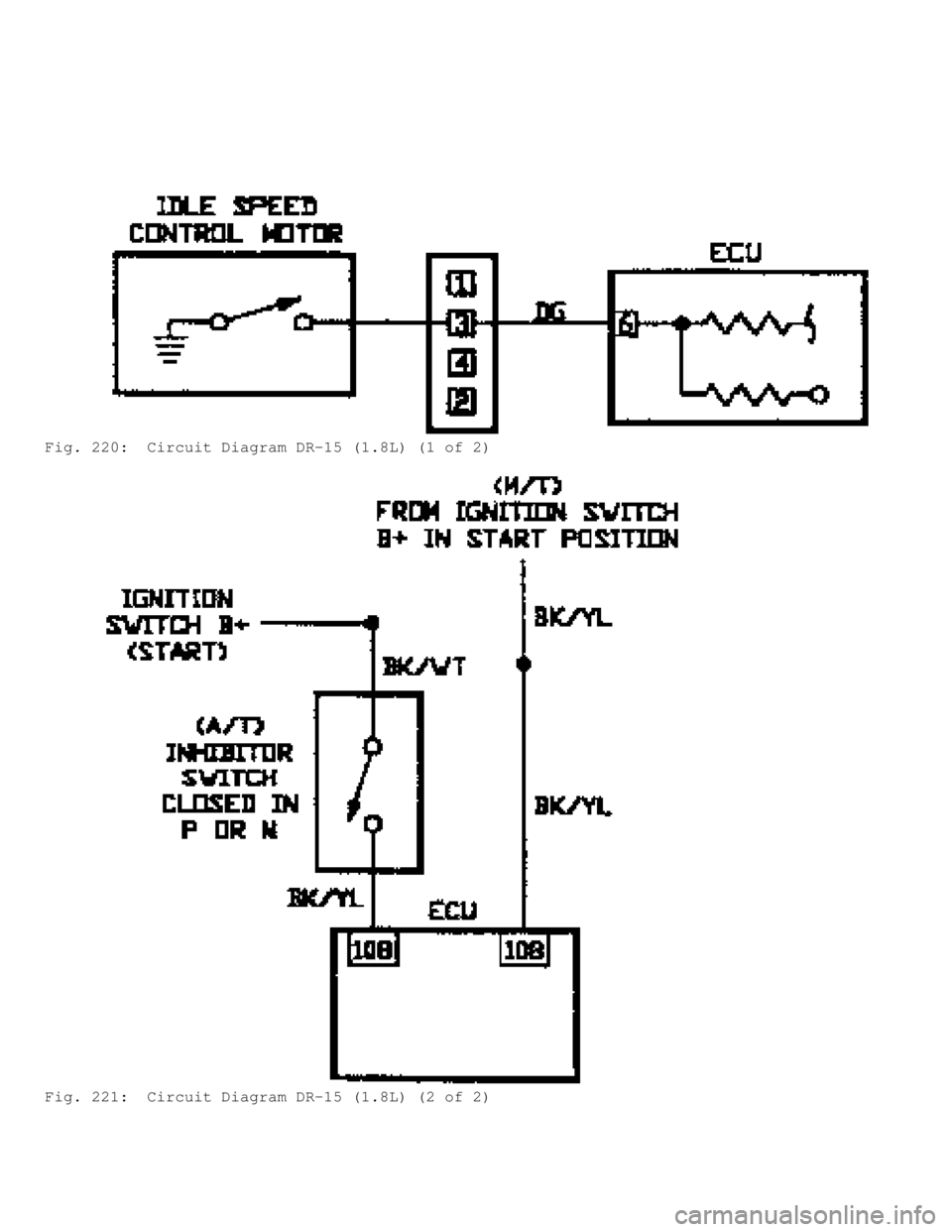

Fig. 220: Circuit Diagram DR-15 (1.8L) (1 of 2)
Fig. 221: Circuit Diagram DR-15 (1.8L) (2 of 2)

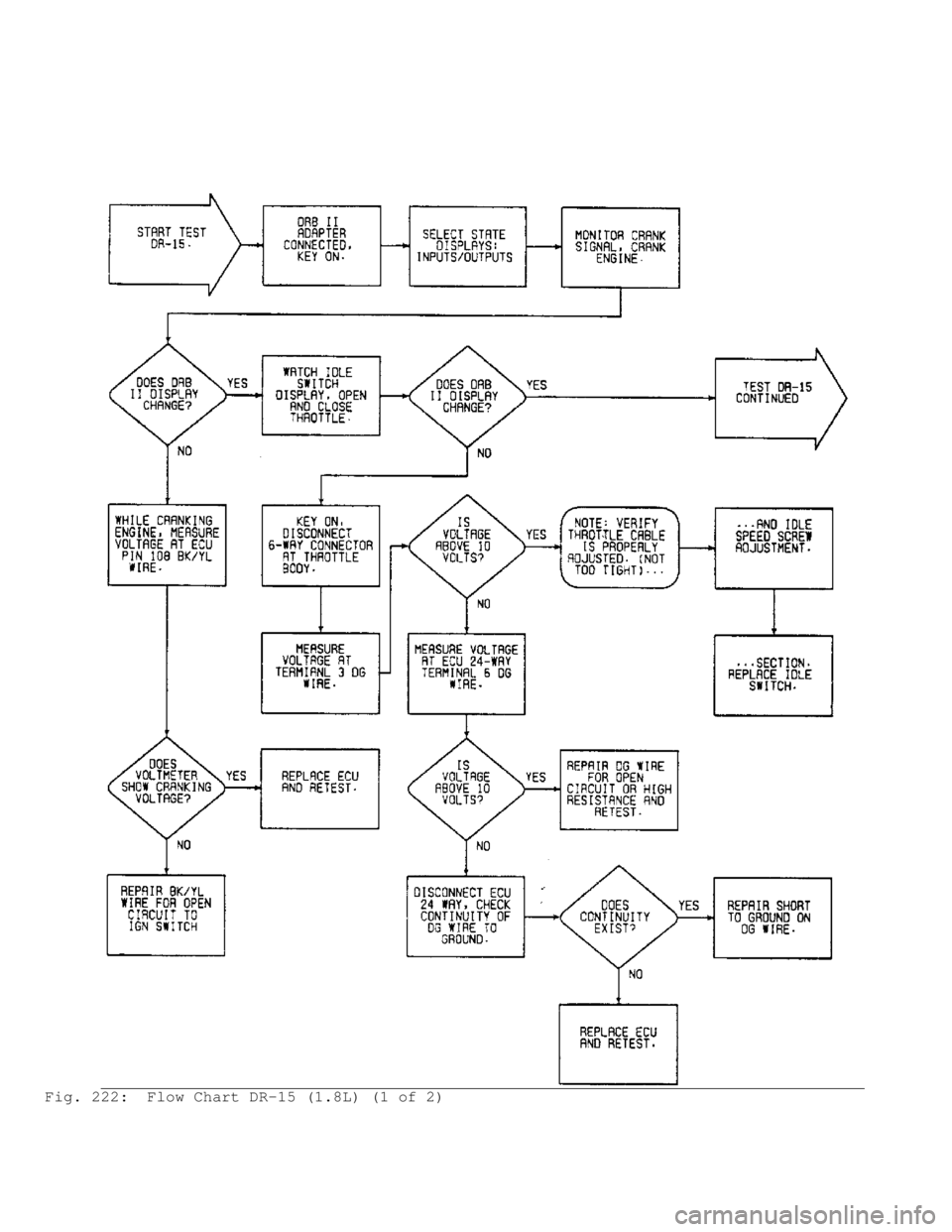

Fig. 222: Flow Chart DR-15 (1.8L) (1 of 2)
