MITSUBISHI MONTERO 1998 Service Manual

Condition Code Procedure
Air pressure incorrect .. B .................. Require repair
Bead broken ............. A ............ Require replacement.
Bead leaking, caused
by tire ................ A .. Require repair or replacement.
Bead wire/cord exposed .. A ............ Require replacement.
Cord or belt material
exposed ................ A ............ Require replacement.
Cord ply separations .... A ............ Require replacement.
Directional/asymmetrical
tires mounted
incorrectly ............ B ....... Require remounting and/or
repositioning.
Irregular tread wear,
affecting performance .. 2 ........ (1) Suggest replacement.
Load ratings less
than OEM
specifications ......... B ............ Require replacement.
Mixed tread types (all
season, performance, mud
and snow) on same axle . A ............ Require replacement.
Number of punctures
exceeds manufacturer's
limit .................. B ............ Require replacement.
Out of balance .......... B . Require rebalance of tire/wheel
assembly.
Ply separation .......... A ............ Require replacement.
Pull or lead, caused
by tire ................ A .. Require repair or replacement.
Radial and bias or
bias-belted ply tires
on same axle ........... B .. Require repair or replacement.
Radials are on the front
and not on the rear .... B ........... ( 2) Require repair or
replacement.
Run flat damage ......... A ............ Require replacement.
Shoulder cut ............ A ............ Require replacement.
Shoulder puncture ....... A ............ Require replacement.
Shoulder with plug ...... A ............ Require replacement.
Sidewall bulge .......... A ............ Require replacement.
Sidewall cut ............ A ............ Require replacement.
Sidewall indentation .... .. ......... No service required or
suggested.
Sidewall puncture ....... A ............ Require replacement.
Sidewall with plug ...... A ............ Require replacement.
Speed rating
designations
different
on same axle ........... 2 .. Suggest repair or replacement.
Tire and wheel assembly
has excessive run-out .. B ........... ( 3) Require repair or
replacement of appropriate
part.
Tires with more than
1/4" diameter difference
on a four-wheel drive
vehicle ................ B ............ Require replacement.
Tread area puncture larger
in diameter than
manufacturer's
specifications ......... B ............ Require replacement.
Tread missing pieces

(chunking),
exposing cord .......... A ............ Require replacement.
Tread missing pieces
(chunking), not
exposing cord .......... 1 ............ Suggest replacement.
Tread separations A ............ Require replacement.
Tube in tubeless tire 3 .... (4) Suggest removal of tube.
Weather-checking ........ .. ......... No service required or
suggested.
Worn to tread wear
indicators ............. B ............ Require replacement.
( 1) - Determine and correct cause of irregular tire wear.
( 2) - If radials and bias or bias-belted ply tires are on the
same vehicle, the radials must be on the rear axle,
except for high-pressure temporary spares.
( 3) - Excessive is defined as enough to contribute to
performance problems. Match mounting may correct
run-out. If not, require replacement of appropriate
part. Refer to manufacturer's specifications.
( 4) - Most manufacturers do not recommend tubes in tubeless
tires. Inspect tire and wheel assembly to determine
the reason for a tube in tubeless tire. Recommendation
for repair or replacement should be based upon condition
of tires and/or wheel listed in these guidelines.









\









\









\









\









\









\









\


VALVE STEMS
VALVE STEM INSPECTION








\









\









\









\









\









\









\


Condition Code Procedure
Bent .................... 1 ........... Suggest replacement.
Broken .................. A ........... Require replacement.
Cut, but not leaking .... 1 ........... Suggest replacement.
Deteriorated
(cracking, dry rot) .... 1 ........... Suggest replacement.
Leaking ................. A . Require repair or replacement.
Missing ................. C ........... Require replacement.
Threads damaged ......... A . Require repair or replacement.
Threads stripped ........ A ........... Require replacement.
Valve cap missing ....... C .... Require replacement of cap.
Weather-checking ........ 1 ........... Suggest replacement.
Won't take air .......... A . Require repair or replacement.









\









\









\









\









\









\









\


WHEEL ATTACHMENT HARDWARE
For conditions noted below, also check conditions of wheel
stud holes.
CAUTION: Proper lug nut torque is essential. Follow recommended
torque specifications and tightening sequence. DO NOT
lubricate threads unless specified by the vehicle
manufacturer.
WHEEL ATTACHMENT HARDWARE INSPECTION









\









\









\









\









\









\









\


Condition Code Procedure
Bent .................... A ............ Require replacement.
Broken .................. A ........ ( 1) Require replacement.

Loose ................... B ... Require repair or replacement
of affected component.
Lug nut installed
backward ............... B .. Require repair or replacement.
Lug nut mating type
incorrect .............. B ..... Require replacement of nut.
Lug nut mating surface
dished ................. A ..... Require replacement of nut.
Lug nut rounded ......... A . (2) Require replacement of nut.
Lug nut seized .......... A . ( 2) Require replacement of nut.
Stud incorrect .......... B .... Require replacement of stud.
Threads damaged ......... A ... Require repair or replacement
of component with damaged
threads.
Threads stripped ........ A .......... Require replacement of
component with stripped
threads.
( 1) - Some manufacturers require replacement of all studs on
that wheel if two or more studs or nuts on the same
wheel are broken or missing.
( 2) - Only required if removing wheel.









\









\









\









\









\









\









\


WHEELS (RIMS)
WARNING: Mounting a regular tire on a high-pressure compact spare
wheel is not permitted. Attempting to mount a tire of one
diameter on a wheel of a different diameter or flange
type may result in serious injury or death. If the wheel
identification stamp is not legible, or cannot be found,
do not use the wheel until the size and type have been
properly identified. Wheels of different diameter,
offset, or width cannot be mixed on the same axle. Bead
seat tapers cannot be interchanged.
WHEEL (RIM) INSPECTION









\









\









\









\









\









\









\


Condition Code Procedure
Bead leaking, caused
by wheel ............... A ........... ( 1) Require repair or
replacement.
Bent hub mounting
surface ................ A ............ Require replacement.
Bent rim, causing
vibration .............. 2 ........ ( 1) Suggest replacement.
Broken .................. A ............ Require replacement.
Cast wheel porous,
causing a leak ......... A .. Require repair or replacement.
Clip-on balance weight is
incorrect type
for rim flange ......... 2 ............ Suggest replacement.
Corrosion, affecting
structural integrity ... A ............ Require replacement.
Corrosion build-up on
wheel mounting
surface ................ A ................. Require repair.
Cracked ................. A ............ Require replacement.
Directional/asymmetrical
wheels mounted
incorrectly ............ B ....... Require remounting and/or
repositioning.

Load capacity less than
OEM specifications ..... B ............ Require replacement.
Offset mismatched
on same axle ........... B ............ Require replacement.
Rivets leaking .......... A ............ Require replacement.
Run-out beyond
OEM specs .............. B ............ Require replacement.
Stud holes elongated .... A ........ (2) Require replacement.
Welded or brazed
repair ................. 2 ............ Suggest replacement.
Welds leaking ........... A ............ Require replacement.
Wheel centering (pilot)
hole incorrect ......... B ............ Require replacement.
( 1) - CAUTION: DO NOT attempt to correct a bent rim.
( 2) - Inspect wheel attaching hardware for damage.









\









\









\









\









\









\









\

SUN ROOF - POWER
1998 Mitsubishi Montero
1998 ACCESSORIES & EQUIPMENT
Mitsubishi - Power Sun Roofs
Eclipse, Galant, Montero, Montero Sport, 3000GT
DESCRIPTION & OPERATION
Sun roof is actuated by an overhead console-mounted switch.
Sun roof motor, located near switch, moves sun roof panel by means of
drive cables. If necessary, sun roof can be closed manually using
manual closure wrench stored in vehicle's tool pouch.
On vehicles equipped with Electronic Timer Alarm Control
System (ETACS) ECU, sun roof can be operated up to 30 seconds after
ignition switch is turned to OFF position.
Sun roof motor incorporates a safety feature that initially
limits opening or closing of roof glass panel. Sun roof will not fully
close from fully open position without first releasing and then
depressing slide switch during operation. Sun roof initially stops
about 8" short of fully closed position.
COMPONENT LOCATIONS
COMPONENT LOCATIONS TABLE








\









\









\









\









\









\






Component Location
Data Link Connector (DLC) ....... Under Left Side Of Dash,
Below Steering Column
Sun Roof ECU
Galant ............................... Inside Headliner,
On Left Rear Of Sun Roof
Montero Sport ........................ Inside Headliner,
On Right Front Of Sun Roof
Eclipse, Montero & 3000GT ............ Inside Headliner,
On Front Center Of Sun Roof
Sun Roof Motor ................ Inside Headliner, Near ECU









\









\









\









\









\









\






SERVICING
LUBRICATION
NOTE: Only Lubrication procedures during reassembly of sliding
roof assembly components are available from manufacturer at
time of publication.
ADJUSTMENTS
SUN ROOF FIT
1) Fully close sun roof. Fully open sun shade. Remove side
covers from underneath sun roof. Loosen 6 sun roof glass mounting nuts
and adjust glass forward, backward or sideways, if necessary.
2) If adjustment cannot be made by loosening mounting nuts,
check if sun roof glass or motor is in fully closed position. Readjust
as necessary.

SUN ROOF GLASS FIT
1) Fully close sun roof. Ensure roof glass panel is parallel
with roof opening. Sun roof glass panel parallelism should be within .
04" (1 mm), above and below roof surface. If parallelism is not as
specified, adjust glass panel by loosening sun roof glass panel
attaching screws and repositioning glass panel. Tighten screws. See
Fig. 1 .
2) If adjustment cannot be made by loosening mounting screws,
check if sun roof glass or motor is in fully closed position. Readjust
as necessary.

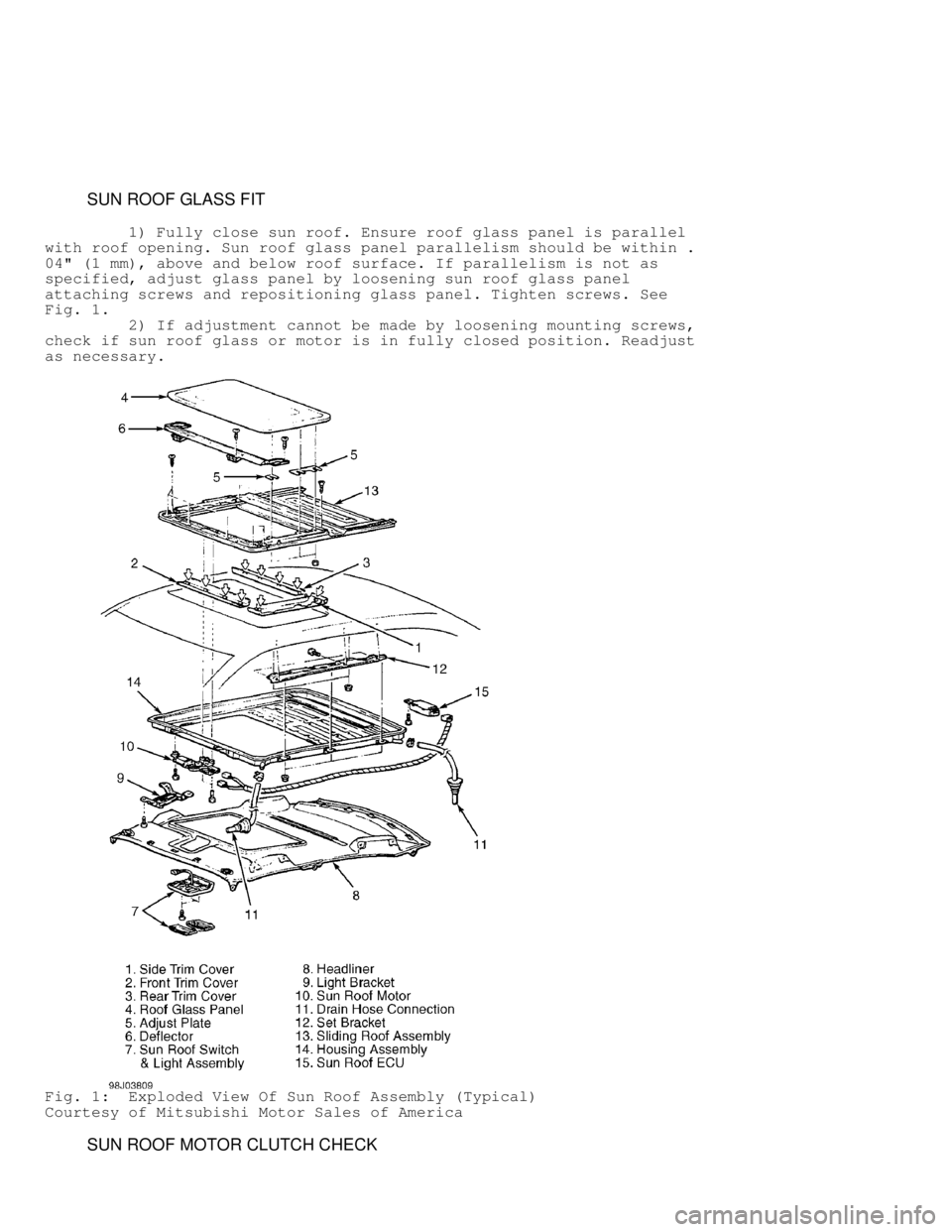

Fig. 1: Exploded View Of Sun Roof Assembly (Typical)
Courtesy of Mitsubishi Motor Sales of America
SUN ROOF MOTOR CLUTCH CHECK

Except Eclipse & Montero Sport
1) Remove sun roof motor. See DRIVE MOTOR R & I under REMOVAL
& INSTALLATION. Using crank handle stored in tool pouch, place crank
handle into drive motor shaft.
2) Place spring scale on crank handle about 3.92" (100 mm)
from drive motor shaft. Ensure spring scale is at right angle to crank
handle. On Galant, connect battery source to sun roof motor connector
terminals No. 1 and 4 to rotate motor. See Fig. 4. On Montero, connect
battery source to sun roof motor connector terminals No. 1 and 3 to
rotate motor. See Fig. 5. On 3000GT, connect battery source to sun
roof motor connector terminals No. 1 and 2 to rotate motor. See Fig. 6
.
3) On Galant, spring scale should read 30-38 INCH lbs. (3.4-
4.3 N.m). On Montero and 3000GT, spring scale should read 35-43 INCH
lbs. (3.9-4.9 N.m). If clutch sliding force is not as specified, on
Galant and Montero, adjust motor adjusting nut to left or right. On
3000GT, replace sun roof motor.
TROUBLE SHOOTING
Check following items listed below symptom to aid in
diagnosis and repair of sun roof assembly.
SUN ROOF INOPERATIVE
* Fusible link or multipurpose fuse.
* Sun roof switch.
* Drive motor.
ROOF GLASS PANEL DOES NOT OPERATE CORRECTLY
* Foreign matter lodged in guide rail.
* Drive motor drive gear not correctly indexed with drive
cables.
* Decrease in clutch slipping force of drive motor.
* Misaligned roof glass panel causing binding.
NOISY MOTOR OPERATION
* Drive motor drive gear not correctly indexed with drive
cables.
* Worn or damaged drive motor pinion bearing.
* Worn or deformed drive cable.
NOISY ROOF PANEL OPERATION
* Foreign matter lodged in guide rail.
* Loose guide rail and lid.
WATER LEAKS
* Dust accumulation in housing assembly.
* Clogged drain hose.
* Broken or disconnected drain hose.
* Worn roof lid weatherstrip.
* Excessive roof panel-to-roof opening clearance and/or
incorrectly fitted weatherstrip.
WIND NOISE
* Loose or deformed deflector.

COMPONENT TESTS
DRIVE MOTOR
Eclipse & Montero Sport
Remove drive motor. See DRIVE MOTOR R & I under REMOVAL &
INSTALLATION. Using 12-volt power supply, apply voltage to 2-terminal
connector. Reverse power supply leads to reverse motor direction.
Replace motor as necessary.
Galant
Remove drive motor. See DRIVE MOTOR R & I under REMOVAL &
INSTALLATION. Using 12-volt power supply, apply voltage to terminals
No. 1 (Blue wire) and No. 4 (Blue/White wire) of 6-terminal drive
motor connector. Reverse power supply leads to reverse motor
direction. Replace motor as necessary.
Montero
Remove drive motor. See DRIVE MOTOR R & I under REMOVAL &
INSTALLATION. Using 12-volt power supply, apply voltage to terminals
No. 1 (Green wire) and No. 3 (Green/Red wire and Black wire) of 4-
terminal drive motor connector. Reverse power supply leads to reverse
motor direction. Replace motor as necessary.
3000GT
Remove drive motor. See DRIVE MOTOR R & I under REMOVAL &
INSTALLATION. Using 12-volt power supply, apply voltage to terminals
No. 1 (Red/Blue wire) and No. 2 (Red/Yellow wire) of 8-terminal driv\
e
motor connector. Reverse power supply leads to reverse motor
direction. Replace motor as necessary.
DRIVE MOTOR LIMIT SWITCH
Eclipse & Montero Sport

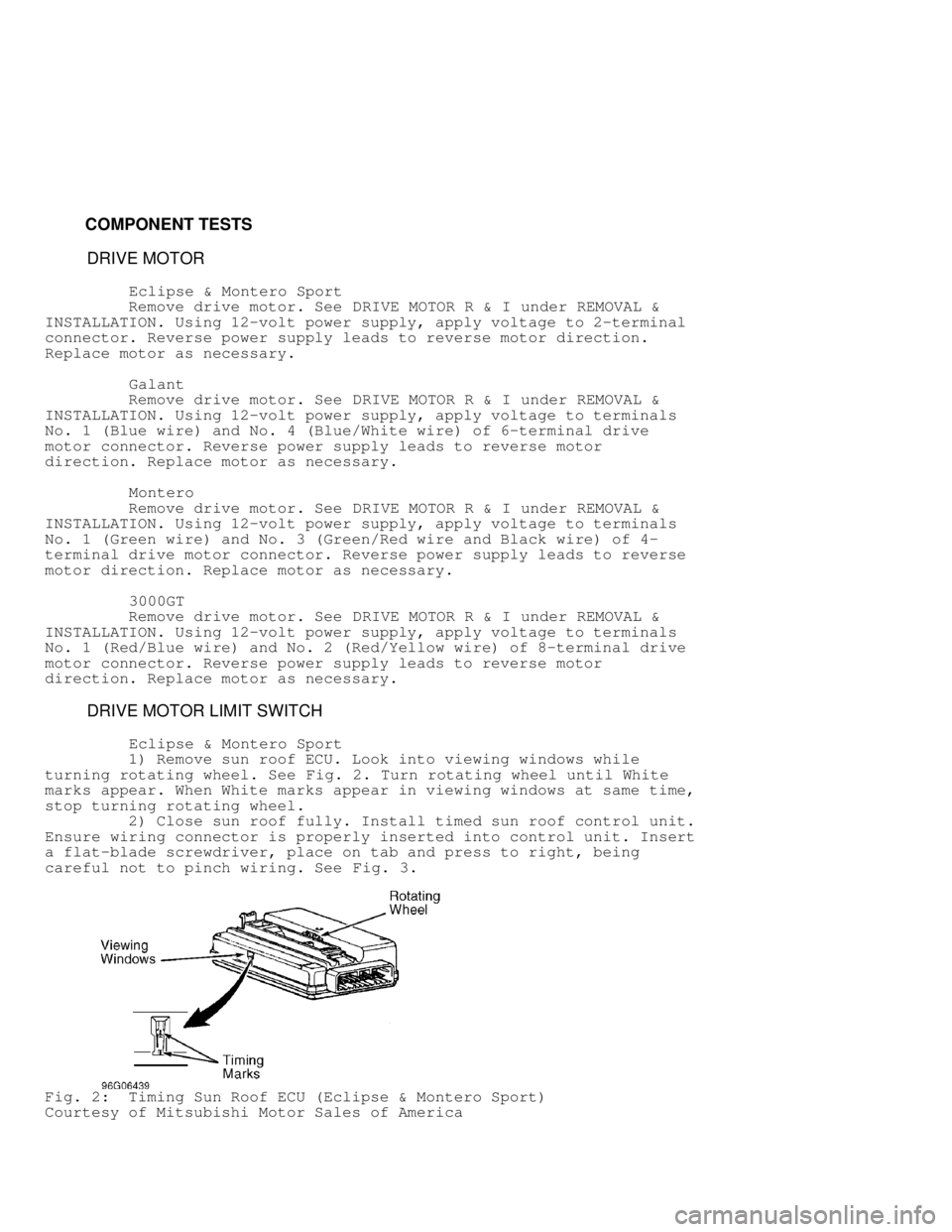

1) Remove sun roof ECU. Look into viewing windows while
turning rotating wheel. See Fig. 2. Turn rotating wheel until White
marks appear. When White marks appear in viewing windows at same time,
stop turning rotating wheel.
2) Close sun roof fully. Install timed sun roof control unit.
Ensure wiring connector is properly inserted into control unit. Insert
a flat-blade screwdriver, place on tab and press to right, being

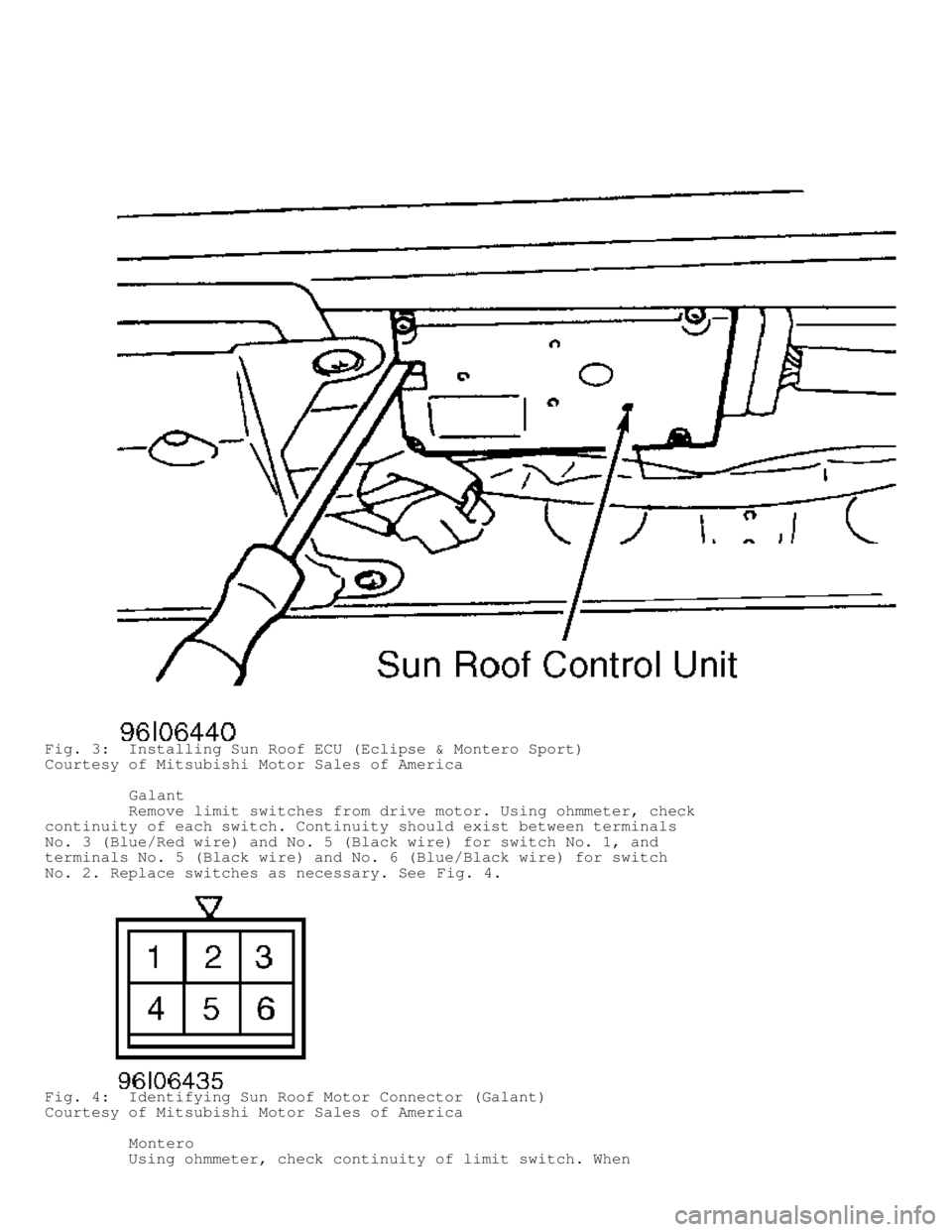

careful not to pinch wiring. See Fig. 3.
Fig. 2: Timing Sun Roof ECU (Eclipse & Montero Sport)
Courtesy of Mitsubishi Motor Sales of America

Fig. 3: Installing Sun Roof ECU (Eclipse & Montero Sport)
Courtesy of Mitsubishi Motor Sales of America
Galant
Remove limit switches from drive motor. Using ohmmeter, check
continuity of each switch. Continuity should exist between terminals
No. 3 (Blue/Red wire) and No. 5 (Black wire) for switch No. 1, and
terminals No. 5 (Black wire) and No. 6 (Blue/Black wire) for switch
No. 2. Replace switches as necessary. See Fig. 4.
Fig. 4: Identifying Sun Roof Motor Connector (Galant)
Courtesy of Mitsubishi Motor Sales of America
Montero

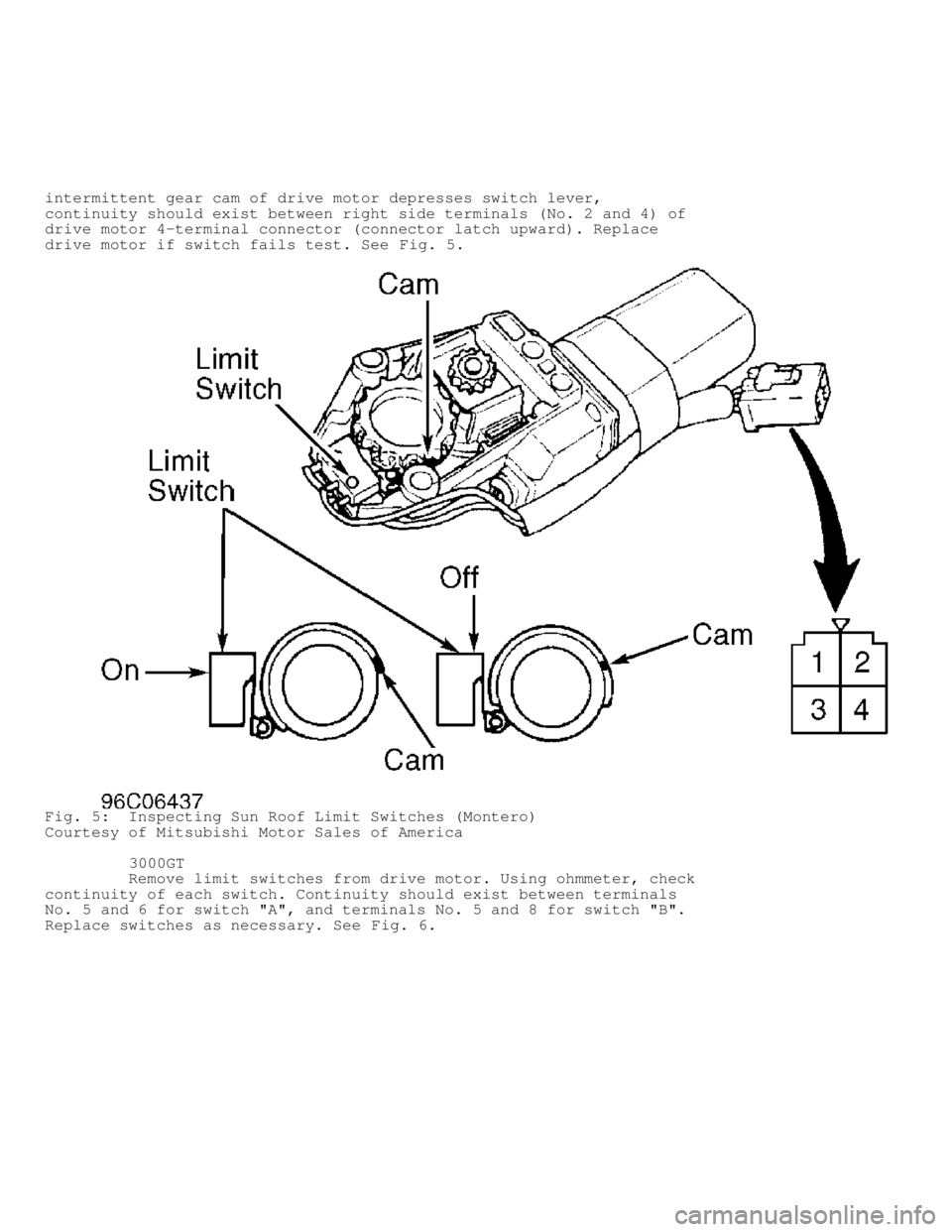

Using ohmmeter, check continuity of limit switch. When

intermittent gear cam of drive motor depresses switch lever,
continuity should exist between right side terminals (No. 2 and 4) of
drive motor 4-terminal connector (connector latch upward). Replace
drive motor if switch fails test. See Fig. 5.
Fig. 5: Inspecting Sun Roof Limit Switches (Montero)
Courtesy of Mitsubishi Motor Sales of America
3000GT
Remove limit switches from drive motor. Using ohmmeter, check
continuity of each switch. Continuity should exist between terminals
No. 5 and 6 for switch "A", and terminals No. 5 and 8 for switch "B".
Replace switches as necessary. See Fig. 6.
