Page 1397 of 1501

MITSUBISHI MONTERO 1998 Service Manual Does Not Close battery as necessary
Faulty wiring Check all wiring and
connections leadi

Does Not Close battery as necessary
Faulty wiring Check all wiring and
connections leading to
relay
Neutral safety switch Replace neutral safety
faulty switch
Starter relay faulty Replace starter relay
\
\
\
\
\
\
\

Starter Drive Starter motor loose on Tighten starter
Will Not mountings attach bolts
Disengage
Worn drive end bushing See STARTER article
Damaged engine flywheel Replace flywheel and
teeth starter pinion gear for
damage
Drive yolk return spring Replace return spring
broken or missing
Faulty ignition switch Replace ignition switch
Insufficient clearance Replace starter
between winding leads to solenoid
solenoid terminal and main
contact in solenoid
Starter clutch not Replace starter clutch
disengaging
Ignition starter switch Replace ignition switch
contacts sticking
\
\
\
\
\
\
\

Starter Relay Faulty solenoid switch, Check all wiring
Operates but switch connections or between relay and
Solenoid Does Not solenoid or replace
relay or solenoid as
necessary
Broken lead or loose Repair wire or wire
soldered connections connections as
necessary
\
\
\
\
\
\
\

Solenoid Plunger Weak battery Charge or replace
Vibrates When battery as necessary
Switch is Engaged
Solenoid contacts Clean contacts or
corroded replace solenoid
Faulty wiring Check all wiring
leading to solenoid
Broken connections inside Repair connections or
switch cover replace solenoid
Open hold-in wire Replace solenoid
\
\
\
\
\
\
\

Low Current Draw Worn brushes or weak Replace brushes or
brush springs as
necessary

Page 1477 of 1501

MITSUBISHI MONTERO 1998 Service Manual WIPER/WASHER SYSTEM
1998 Mitsubishi Montero
1998 ACCESSORIES & EQUIPMENT
Mitsubishi - Wiper/Washer Systems
Diamante, Eclipse, Galant, Mirage, Montero, Montero Sport,

WIPER/WASHER SYSTEM
1998 Mitsubishi Montero
1998 ACCESSORIES & EQUIPMENT
Mitsubishi - Wiper/Washer Systems
Diamante, Eclipse, Galant, Mirage, Montero, Montero Sport,
3000GT
DESCRIPTION & OPERATION

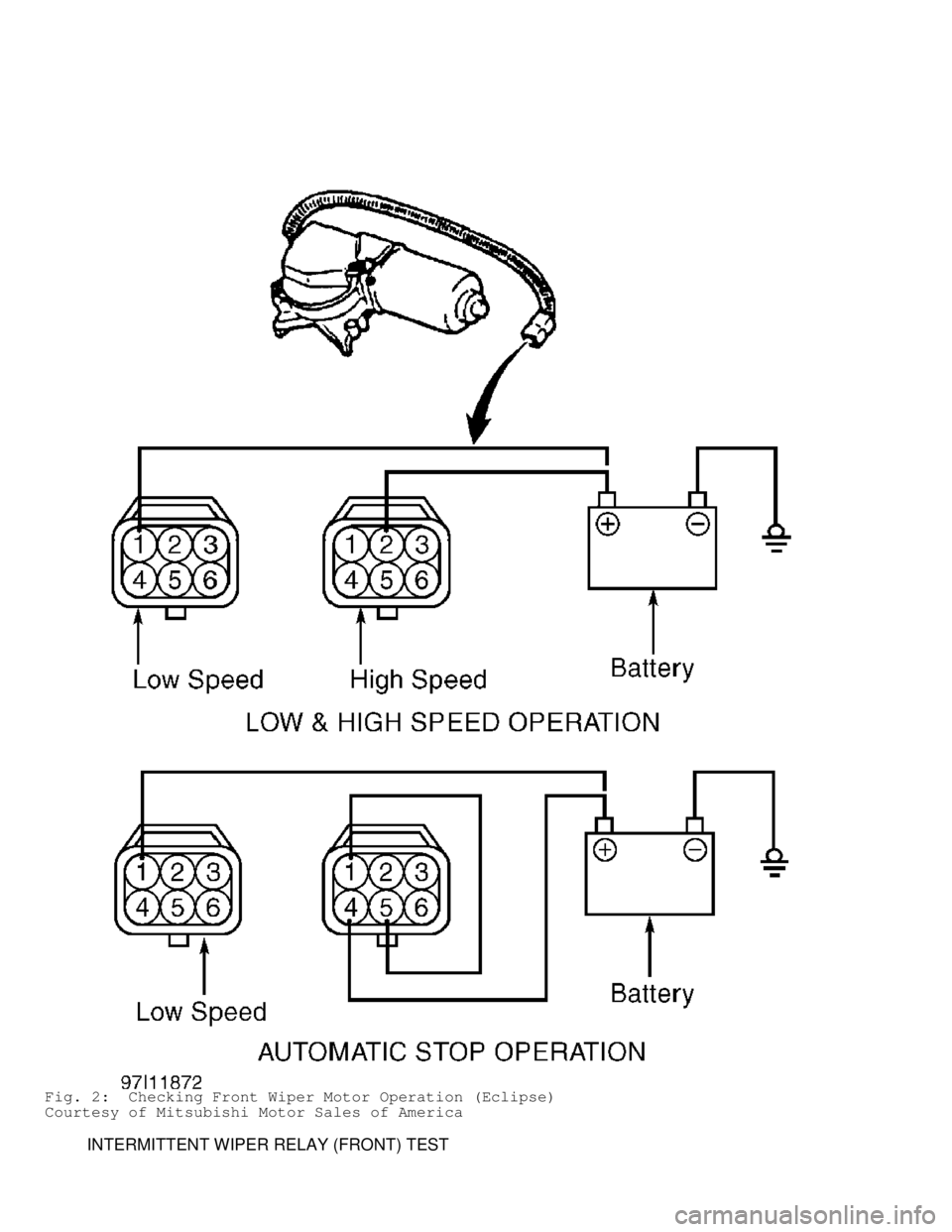

All models are equipped with a 2-speed wiper motor with an
optional intermittent wiper feature. Some models are equipped with a
rear wiper/washer.
Galant is equipped with a wiper system that varies
intermittent setting speed with vehicle speed. System uses ignition
switch, wiper switch, intermittent switch, washer switch, vehicle
speed sensor, and Electronic Time Alarm Control System (ETACS) ECU.

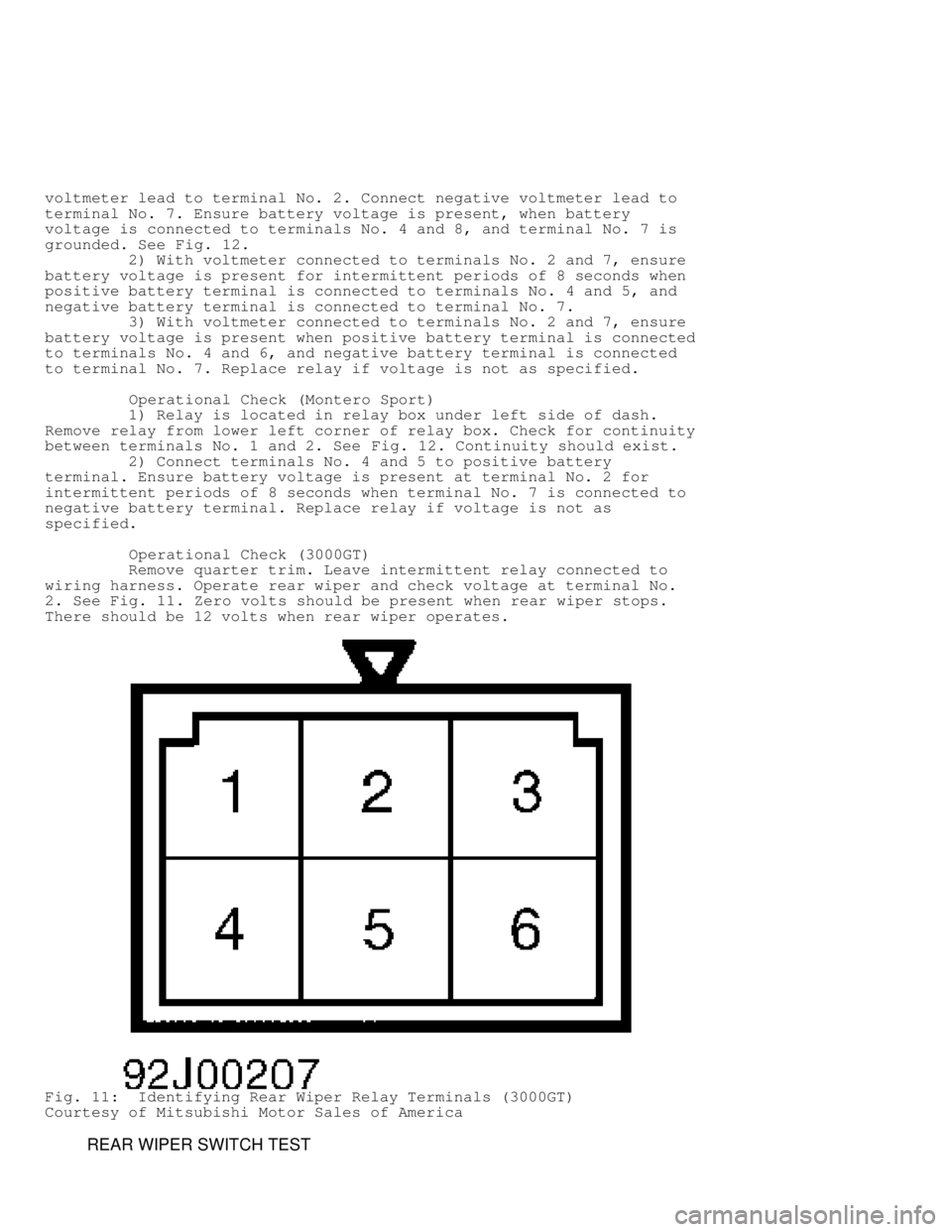

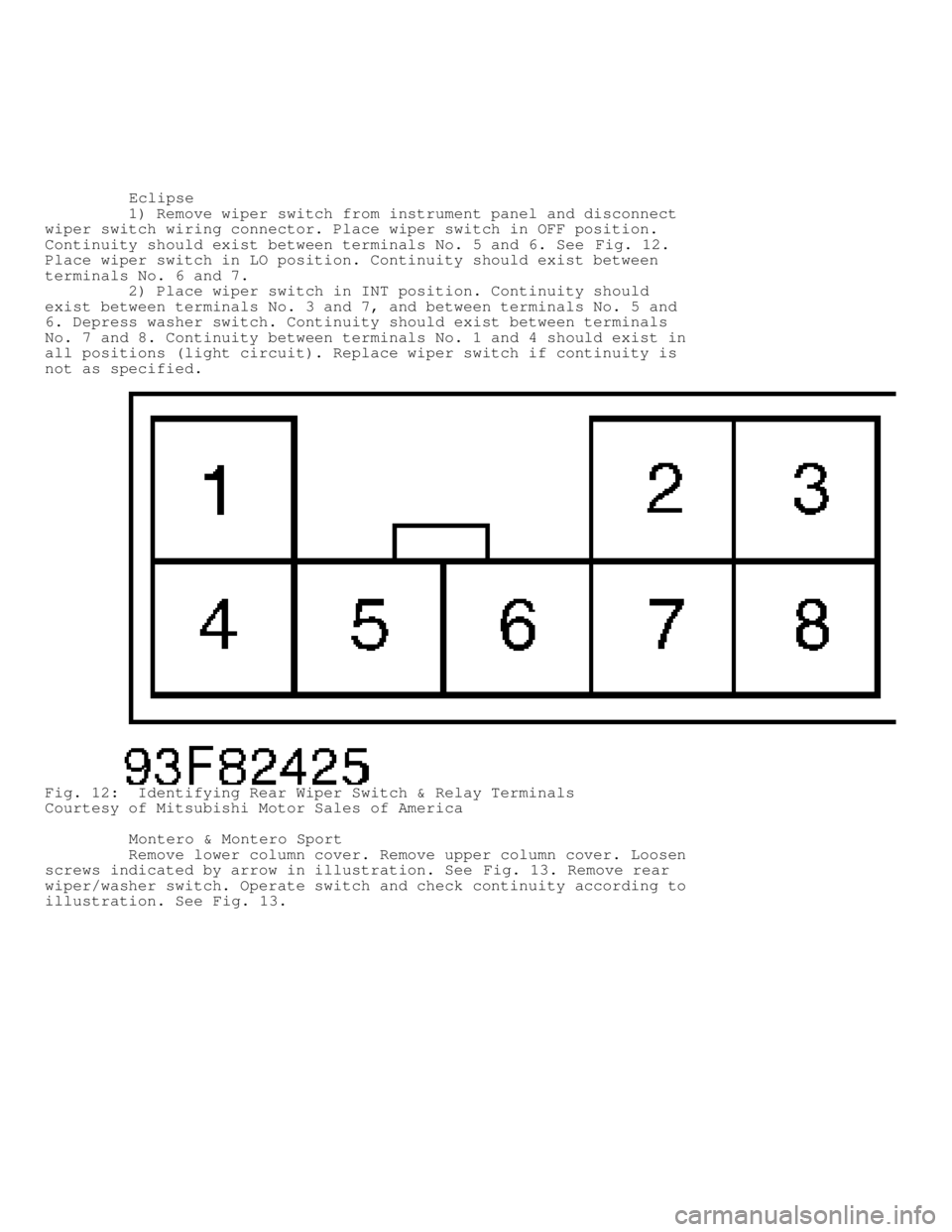

COMPONENT LOCATIONS
COMPONENT LOCATIONS TABLE\
\
\
\
\
\

Component Location
Assist-ECU (Diamante) ............. Above Right Kick Panel
ETACS-ECU ....................... Behind Left Side Of Dash

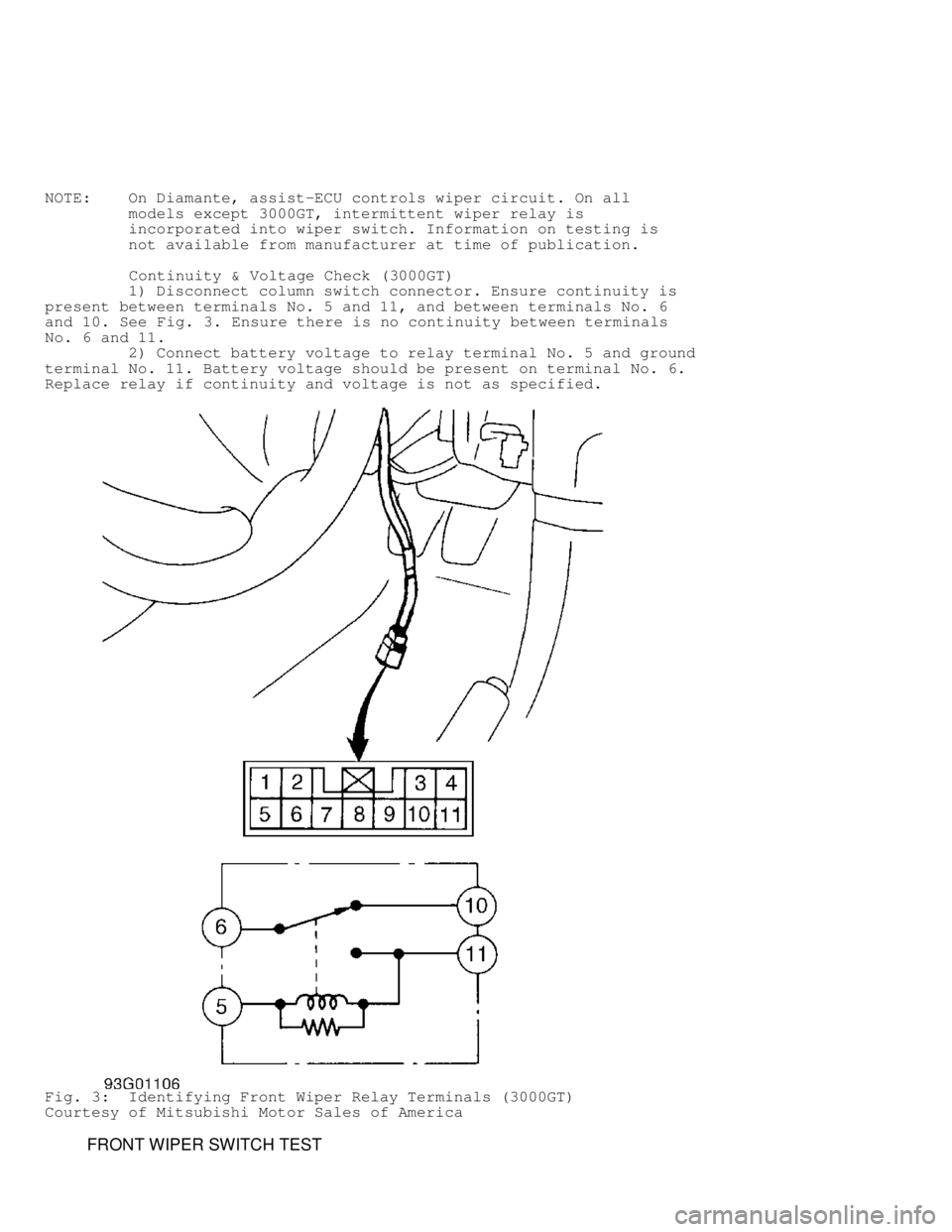

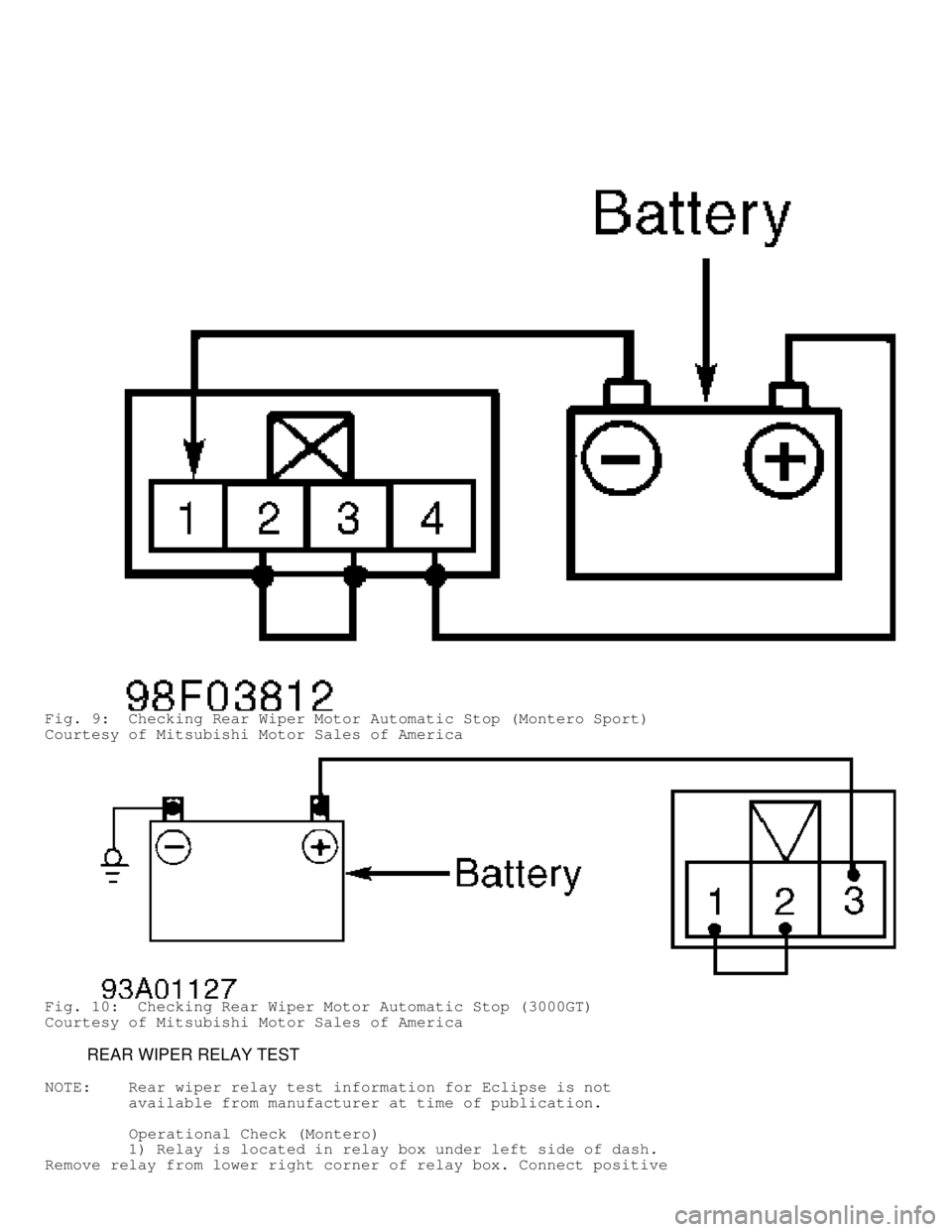

Wiper Relay
Front
Except Diamante &
3000GT ....................... Integral With Steering
Column Switch
Rear
Eclipse .............. Within Rear Wiper/Washer Switch
Montero &
Montero Sport ................ On Relay Block, Behind
Left Side Of Dash
3000GT ................ Behind Left Rear Quarter Panel

\
\
\
\
\
\

ADJUSTMENTS
FRONT WIPER ARM ADJUSTMENT
Ensure wiper motor is in park position. Position wiper arm
and blade assembly so tip of blade is specified distance above front
window trim. See FRONT WIPER ADJUSTMENT SPECIFICATIONS table.
FRONT WIPER ADJUSTMENT SPECIFICATIONS TABLE
\
\
\
\
\
\

Driver's Side Passenger's Side
Model In. (mm) In. (mm)
Diamante ....... 2.56-3.15 (65-80) .... .79-1.38 (20-35)
Eclipse .......... .19-.59 (5-15) .... 1.65-2.05 (42-52)
Galant ........... .39-.79 (10-20) ..... .39-.79 (10-20)
Mirage .......... .79-1.18 (20-30) .... .79-1.18 (20-30)
Montero ......... .98-1.38 (25-35) ... 1.38-1.77 (35-45)
Montero Sport ... .98-1.20 (25-31) ... 1.20-1.50 (31-38)
3000GT ........... .59-.79 (15-20) ..... .59-.79 (15-20)
\
\
\
\
\
\
