diagram MITSUBISHI MONTERO 1998 Owner's Manual

Removal & Installation
Disconnect WSS connector. Remove WSS bolts. Remove WSS from
vehicle. To install, reverse removal procedure. Sensors are not
interchangeable. Adjust wheel WSS-to-rotor gap. See WHEEL SPEED SENSOR
(WSS) under ADJUSTMENTS. To complete installation, reverse removal
procedure. Tighten WSS bolts to specification. See
TORQUE SPECIFICATIONS .
WHEEL SENSOR ROTOR
Removal & Installation
Remove brake disc. Remove disc assembly. Remove wheel
bearings. Remove axle hub. Remove bolts attaching sensor rotor to hub
assembly. To install, reverse removal procedure.
OVERHAUL
HYDRAULIC UNIT
DO NOT attempt to overhaul or disassemble hydraulic unit. If
hydraulic unit is defective, replace entire assembly.
TORQUE SPECIFICATIONS
TORQUE SPECIFICATIONS








\









\









\









\









\









\









\







Application INCH Lbs. (N.m)\
"G" Sensor Mounting Bolt ................................. 80 (9.0)\
Wheel Speed Sensor (WSS) Bolt .................... 84-120 (9.5-14.6\
)









\









\









\









\









\









\









\







WIRING DIAGRAMS

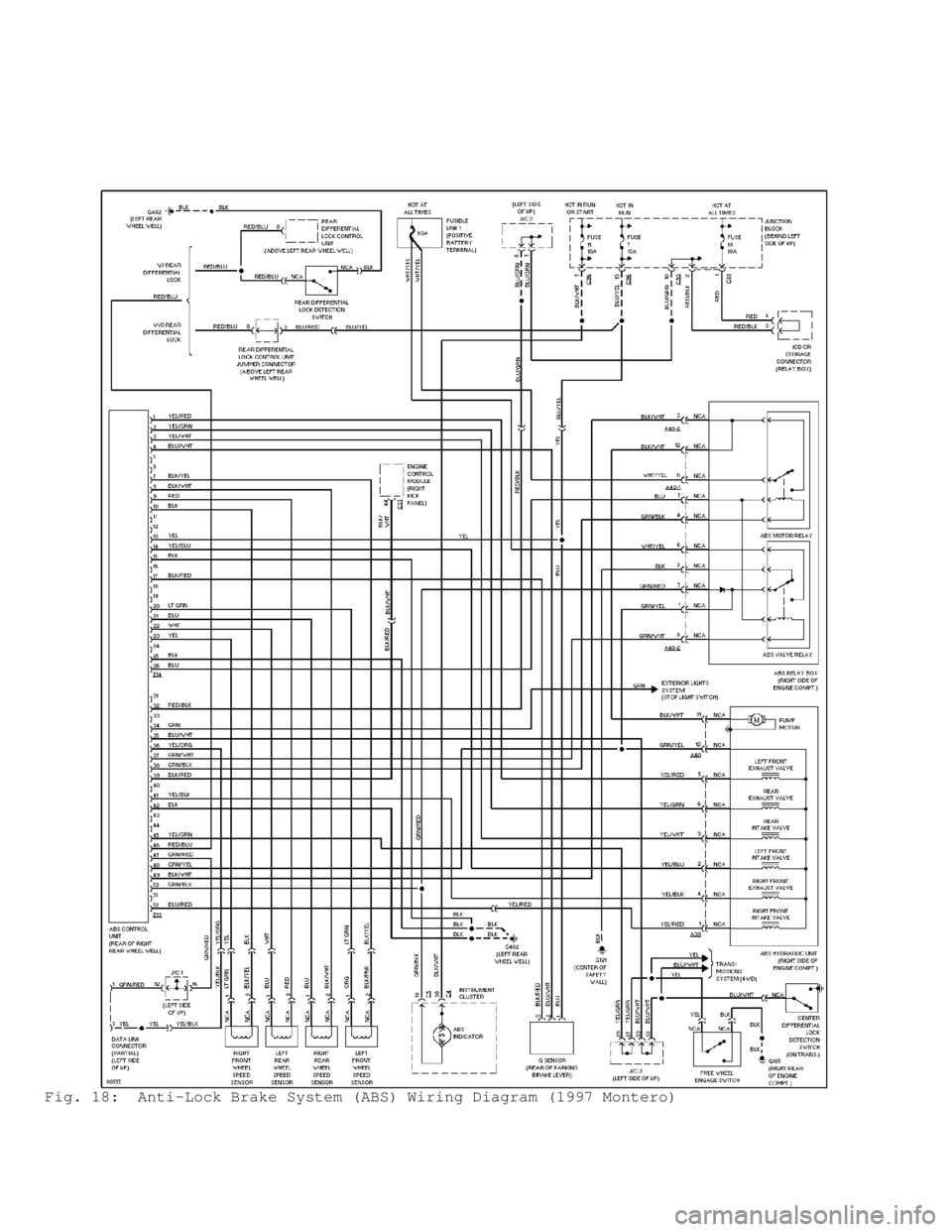

Fig. 18: Anti-Lock Brake System (ABS) Wiring Diagram (1997 Montero)\

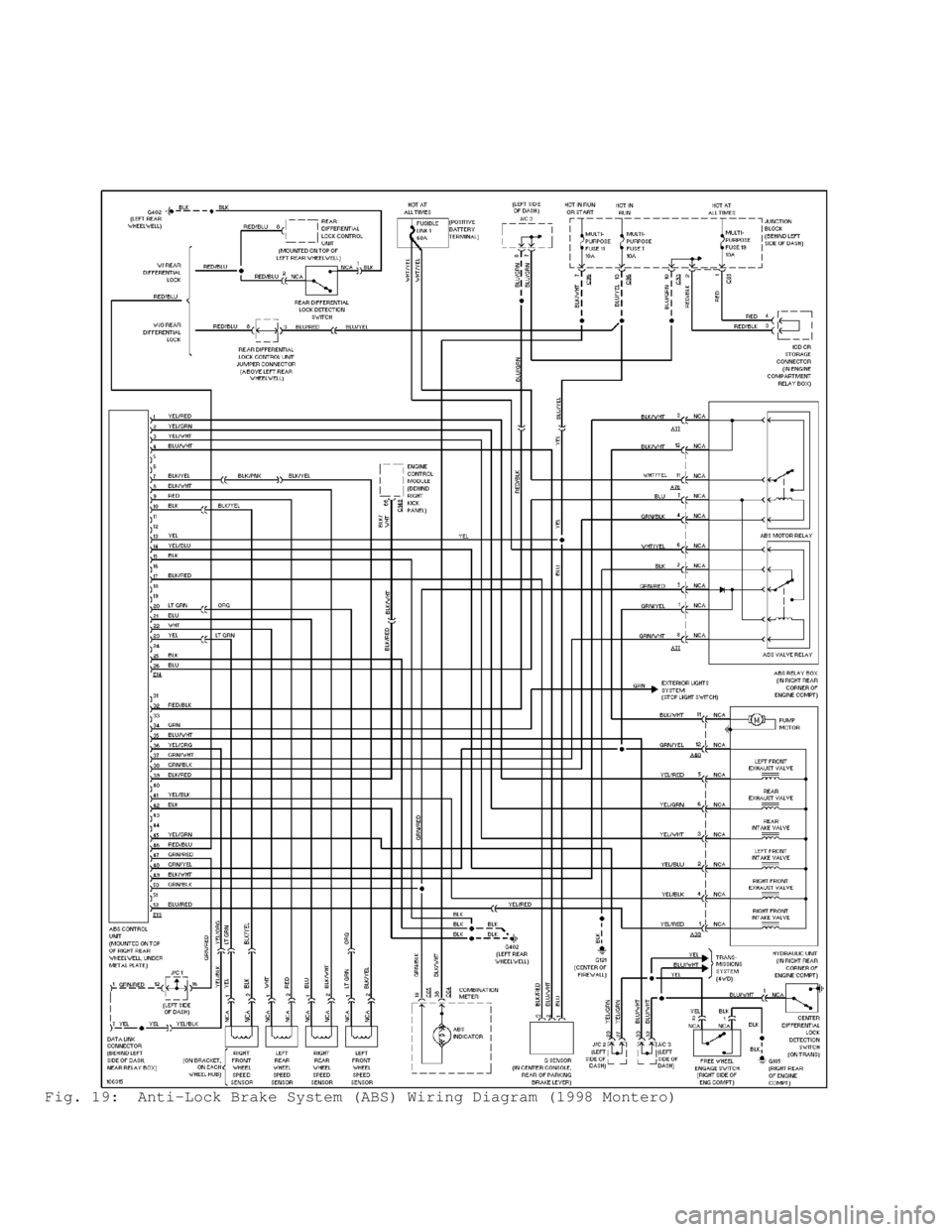

Fig. 19: Anti-Lock Brake System (ABS) Wiring Diagram (1998 Montero)\

Once repairs have been performed, DTCs must be cleared from
TCM memory. DTCs may be cleared by disconnecting negative battery
cable for 10 seconds or more. Reconnect cable and ensure DTCs have
been cleared. Start engine and warm to normal operating temperature.
Run engine at idle for 10 minutes. DTCs may also be cleared using scan
tool. Refer to manufacturer's instruction manual.
DIAGNOSTIC TESTS
NOTE: For terminal and wire color identification, see WIRING
DIAGRAMS.
DTC 11: THROTTLE POSITION (TP) SENSOR
For diagnosis and testing information, see appropriate SELF-
DIAGNOSTICS article in ENGINE PERFORMANCE section. If TP sensor is
okay, check wiring harness and connectors between TP sensor and TCM.
Repair if necessary. If wiring harness and connectors are okay,
replace TCM.
DTC 15 & 16: OPEN OR SHORT IN OIL TEMPERATURE SENSOR CIRCUIT
1) Test oil temperature for proper operation. See OIL
TEMPERATURE SENSOR under COMPONENT TESTING. If oil temperature sensor
is okay, check wire harness, connectors and ground circuit for poor
connections or damage. Go to next step.
2) If wire harness and connectors are okay, check DTCs again
and verify code No. 15 or No. 16 still exists. If either code still
exists, replace TCM.
DTC 21 & 22: SHORT OR OPEN IN IGNITION SIGNAL CIRCUIT
1) Using an external tachometer, verify vehicles' tachometer
is operating accurately. If tachometer is incorrect, check ignition
coil and ignition power transistor and circuits for malfunction. See
appropriate SELF-DIAGNOSTICS article in ENGINE PERFORMANCE section.
2) If tachometer is okay, check TCM wire harness connector
for poor connection. If wire harness is okay, recheck DTCs. If codes
reappear check wire harness between ignition power transistor and TCM.
If wire harness is okay, replace TCM.
DTC 23 & 24: OPEN OR SHORT IN SIGNAL LINE (ECT) FROM ECM TO
TCM
Check wire harness, connectors and ground circuit for poor
connections or damage. Go to next step. If wire harness and connectors
are okay, check DTCs again and verify code No. 23 or No. 24 still
exists. If either code still exists, replace TCM.
DTC 29 & 30: SHORT OR OPEN IN PARK/NEUTRAL POSITION (PNP)
SWITCH CIRCUIT
1) Check PNP switch for correct operation. See. If PNP switch
is okay, disconnect switch connector and measure voltage between
harness connector terminal No. 1 and ground.
2) If battery voltage does not exist, check wire harness and
connectors. See WIRING DIAGRAMS. If battery voltage exists, check wire
harness and connectors between PNP switch and TCM. If wire harness is
okay, replace TCM.
DTC 31: INPUT SPEED SENSOR

If DTC 51 is set also, go to DTC 51: 1ST GEAR RATIO SIGNAL
INCORRECT test. If DTC 51 is not set, check overdrive brake for a
mechanical failure. See OVERDRIVE BRAKE in MITSUBISHI R4AW3 & V4AW3
OVERHAUL article.
SYMPTOM TROUBLE SHOOTING
NOTE: Check system using appropriate scan tool. See WIRING DIAGRAMS
for electrical schematics and COMPONENT TESTING.
COMMUNICATION WITH SCAN TOOL NOT POSSIBLE
If scan tool cannot communicate with TCM, check proper
connection with DLC. Check TCM power circuits, TCM ground circuits and
malfunctioning TCM.
SHIFT POINTS INCORRECT
If shift points are incorrect, check for DTCs. If no DTC is
present, check oil temperature sensor, pattern select switch, 4WD low
range detection switch and TCM for proper operation.
UPSHIFTS OCCUR SPONTANEOUSLY
If upshifting occurs spontaneously, check park/neutral
position switch, overdrive switch and TCM for proper operation.
TCC LOCK-UP MALFUNCTIONING
If TCC lock-up system is not operating properly, check torque
converter, valve body, lock-up switch and oil temperature switch.
COMPONENT TESTING
A/T FLUID TEMPERATURE SWITCH
1) Remove fluid temperature switch, located to rear of
neutral safety switch. Immerse switch in container of ATF up to top
threaded portion of switch. Using a DVOM, check continuity between
switch terminals. Continuity should not exist when fluid temperature
is 257
F (125C) or less.
2) When fluid is heated to 289-304F (143-151C), continuity
should exist. Replace switch if necessary. Apply thread sealant to
fluid temperature switch threads and install in transmission.
BRAKELIGHT SWITCH
1) Disconnect electrical connector from brakelight switch,
located near brake pedal. Using ohmmeter, ensure continuity exists
between terminal No. 2 (White/Red wire) and terminal No. 3 (Green
wire) with brake pedal released. Replace brakelight switch if
continuity does not exist. Continuity should not exist between
terminals No. 2 and No. 3 with brake pedal depressed.
2) If continuity does not exist, ensure brake pedal is
properly adjusted so brakelight switch has proper travel for switch
operation. If proper brakelight switch travel exists, replace
brakelight switch.
ENGINE COOLANT TEMPERATURE (ECT) SENSOR

SOLENOIDS
Removal & Installation
Solenoids are located on transmission valve body. See Fig. 3.
Remove bolt, solenoid and gasket from valve body. To install, reverse
removal procedure.
THROTTLE POSITION SENSOR
NOTE: For removal and installation information, see appropriate
SELF-DIAGNOSTICS article in ENGINE PERFORMANCE section.
TORQUE SPECIFICATIONS
TORQUE SPECIFICATIONS








\









\









\









\









\









\









\







Application INCH Lbs. (N.m)\
Park/Neutral Switch Bolt .................................. 48 (5.4)\
Park/Neutral Switch Lock Nut .............................. 35 (4.0)\









\









\









\









\









\









\









\







WIRING DIAGRAMS

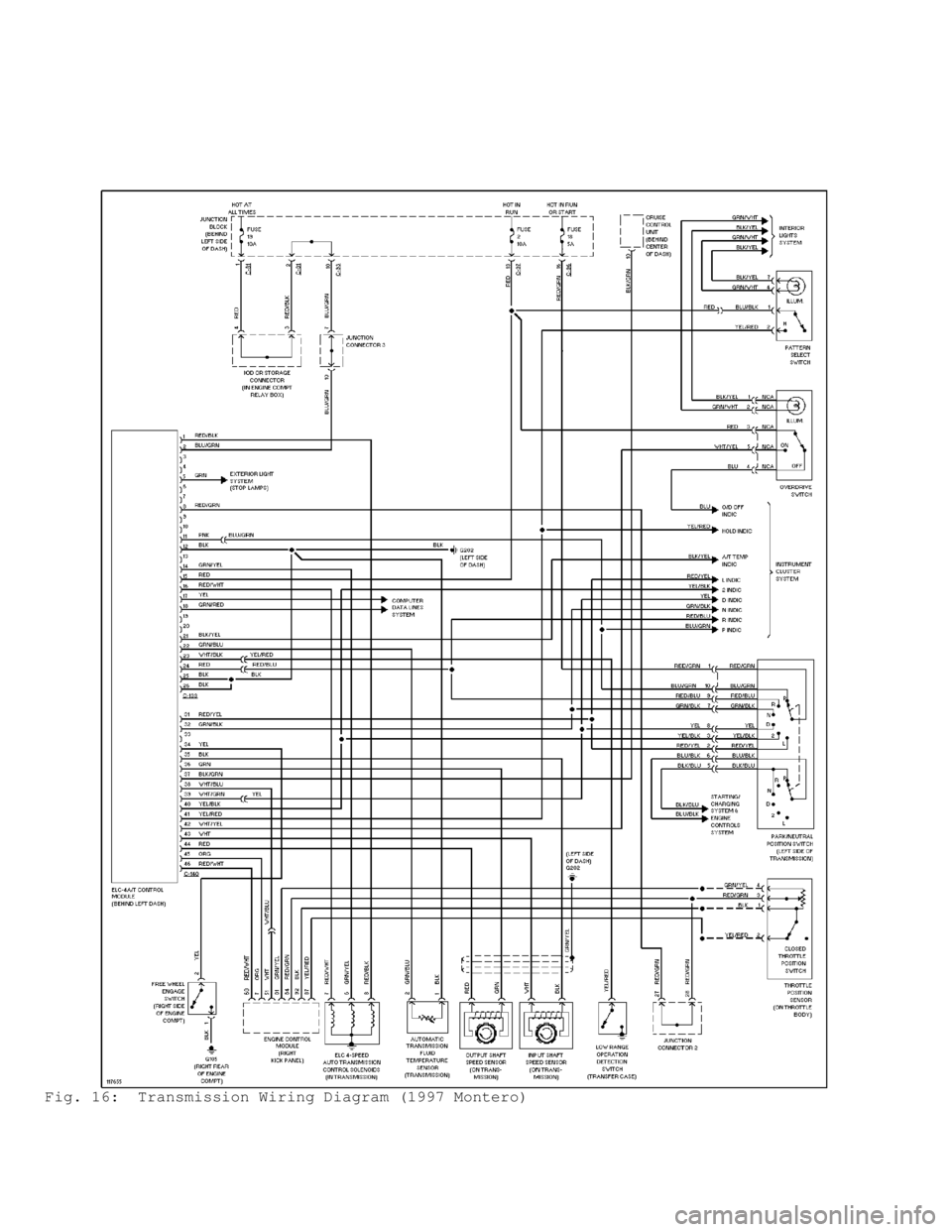

Fig. 16: Transmission Wiring Diagram (1997 Montero)

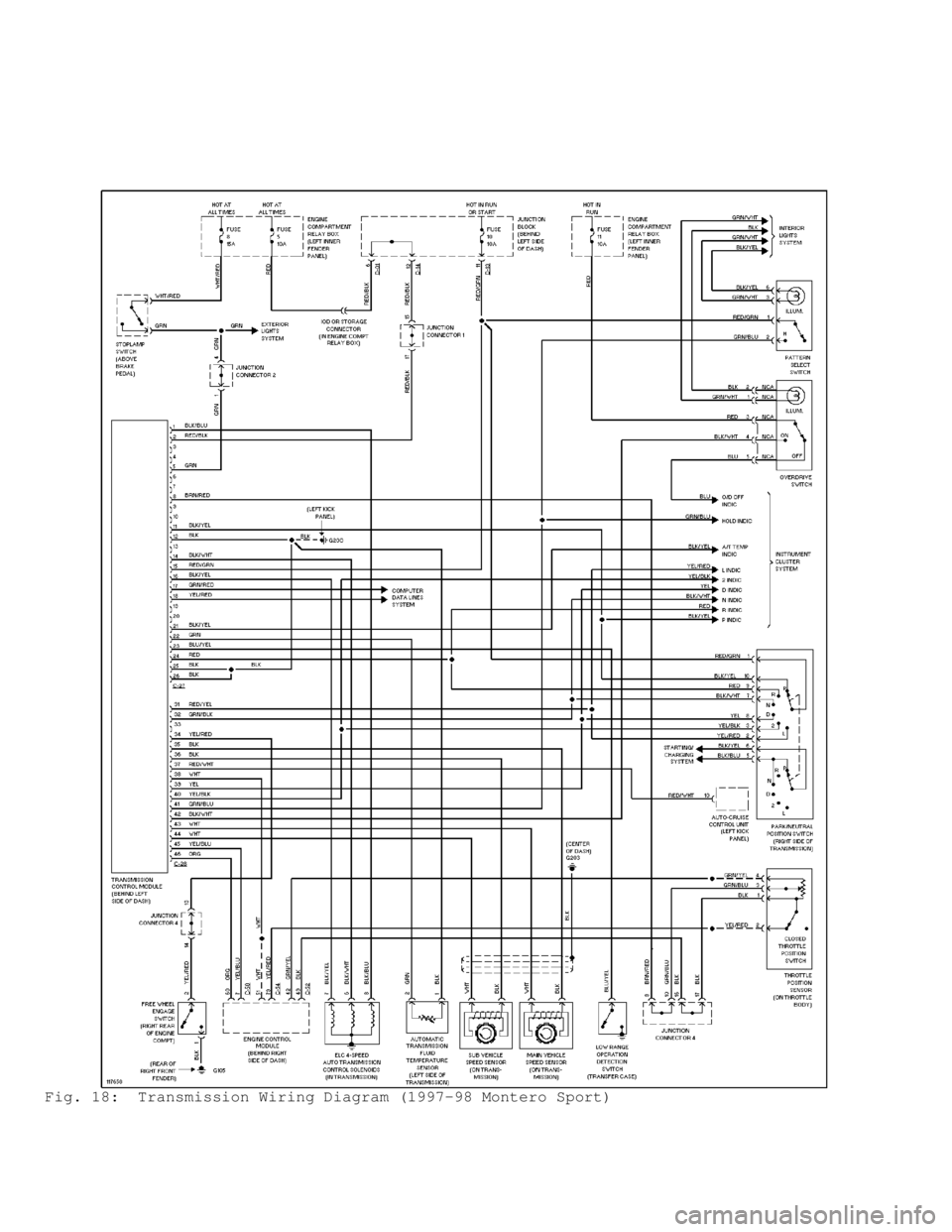

Fig. 17: Transmission Wiring Diagram (1998 Montero)

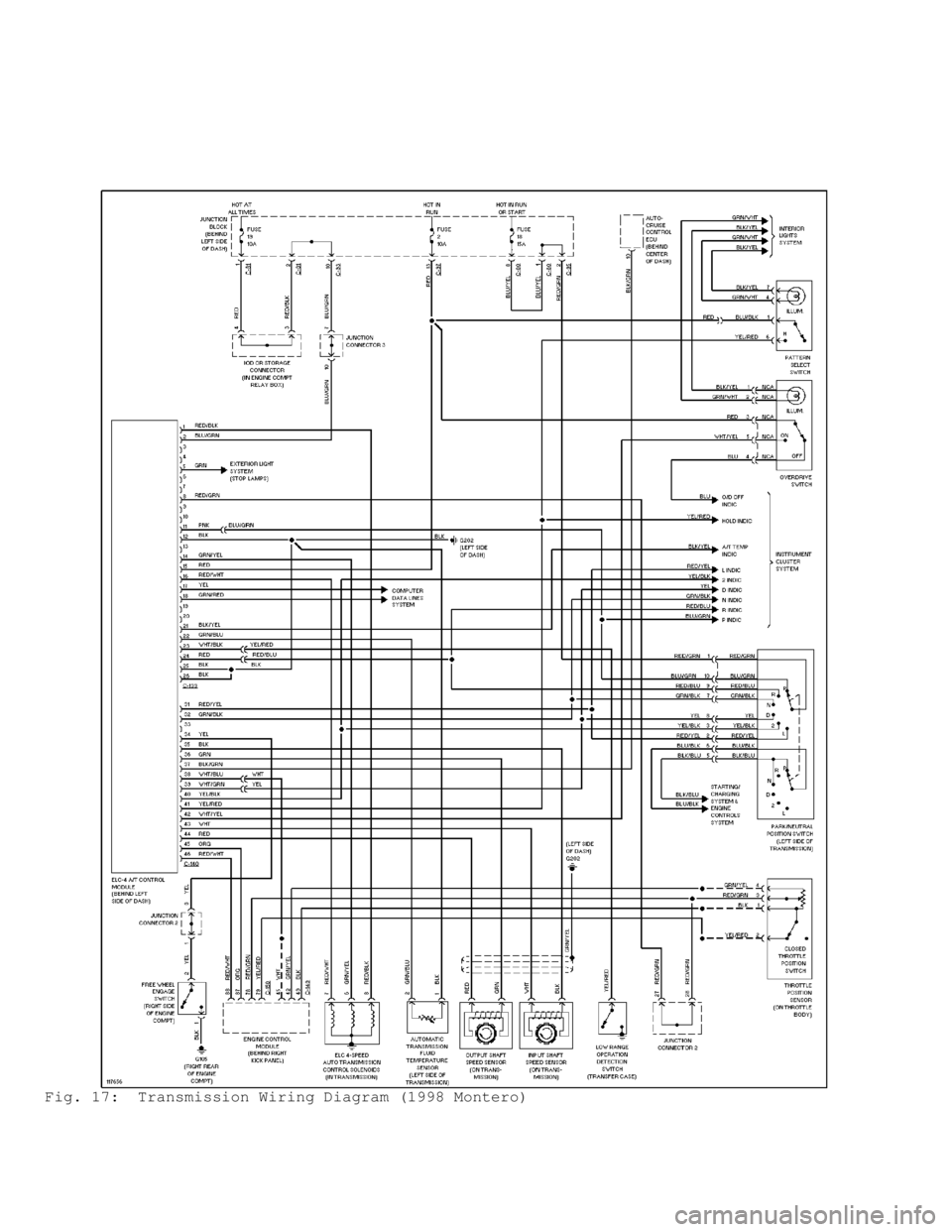

Fig. 18: Transmission Wiring Diagram (1997-98 Montero Sport)

ELECTRIC COOLING FAN
COMPONENT TESTING
Radiator Fan Motor (Diamante)
1) Disconnect radiator fan motor connectors A39 and A40.
Ground fan motor connector A39 terminal No. 2 (Black wire). Using a
fused jumper wire, connect battery voltage to fan motor connector A39
terminal No. 1 (Blue/Black wire). See Fig. 7. See WIRING DIAGRAMS. Fan
motor should operate at low speed with no abnormal noises or
interferences. Repair or replace components as necessary.
2) Ground fan motor connector A39 terminal No. 2 (Black wire)\
and connector A40 terminal No. 2 (Black wire). Using a fused jumper
wire, connect battery voltage to fan motor connector A39 terminal No.
1 (Blue/Black wire). See Fig. 7. See WIRING DIAGRAMS. Fan motor should
operate at medium speed with no abnormal noises or interferences.
Repair or replace components as necessary.
3) Ground fan motor connector A39 terminal No. 2 (Black wire)\
and connector A40 terminal No. 2 (Black wire). Using 2 fused jumper
wires, connect battery voltage to fan motor connector A39 terminal No.
1 (Blue/Black wire) and to connector A40 terminal No. 1 (Green wire)\
.
See Fig. 7. See WIRING DIAGRAMS. Fan motor should operate at high
speed with no abnormal noises or interferences. Repair or replace
components as necessary.
Fig. 7: Testing Radiator Fan Motor (Diamante)
Courtesy of Mitsubishi Motor Sales of America.
Radiator Fan Motor (Eclipse)
1) Disconnect radiator fan motor 4-pin connector. Ground fan
