diagram MITSUBISHI MONTERO 1998 Workshop Manual

Fig. 11: Wiring Diagram (1997-98 Eclipse - 2.0L A/T)

Fig. 12: Wiring Diagram (1997-98 Eclipse - 2.0L M/T)

Fig. 13: Wiring Diagram (1997-98 Eclipse - 2.0L Turbo & 2.4L)

Fig. 14: Wiring Diagram (1997-98 Galant)

Fig. 15: Wiring Diagram (1997-98 Mirage)

Fig. 16: Wiring Diagram (1997-98 Montero)

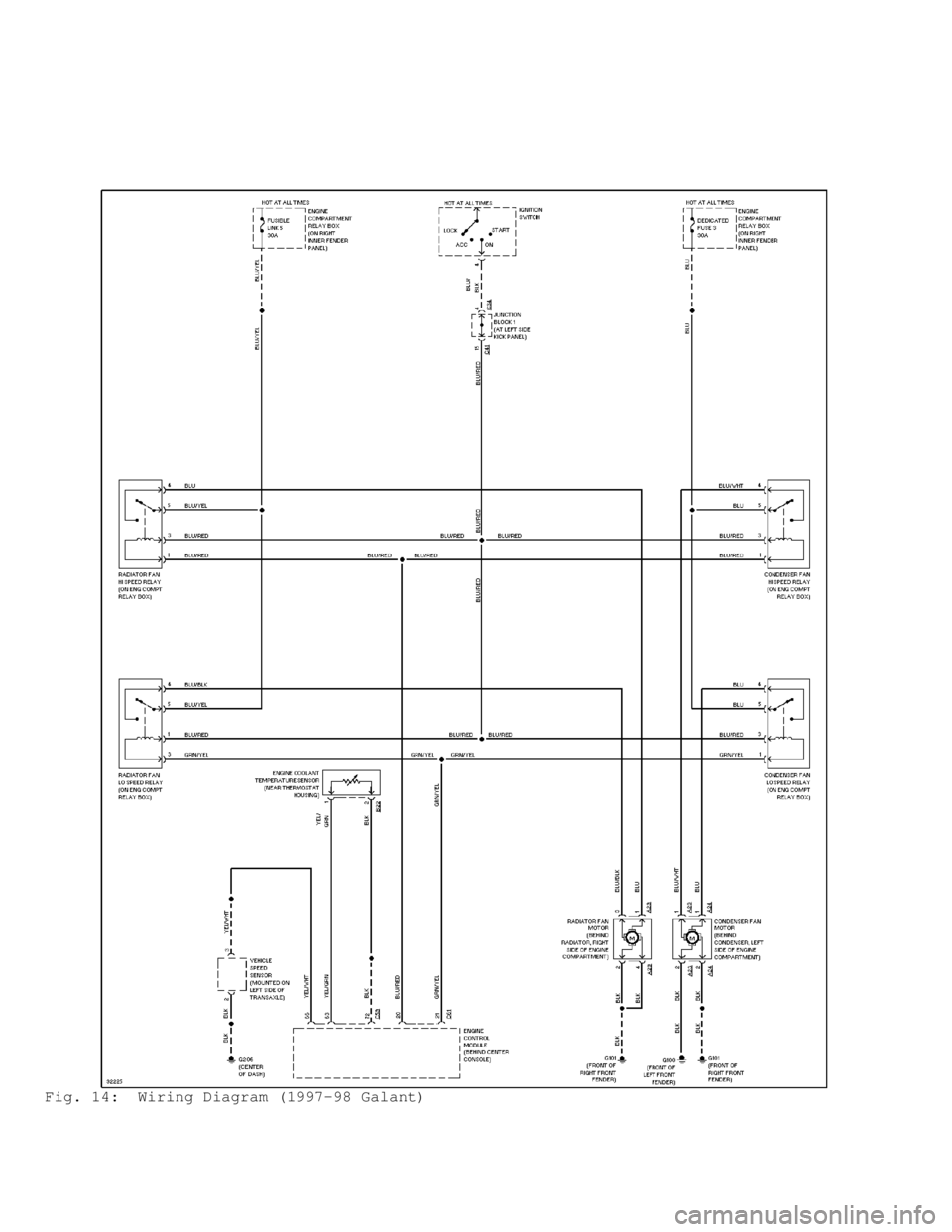

Fig. 17: Wiring Diagram (1997-98 Montero Sport)

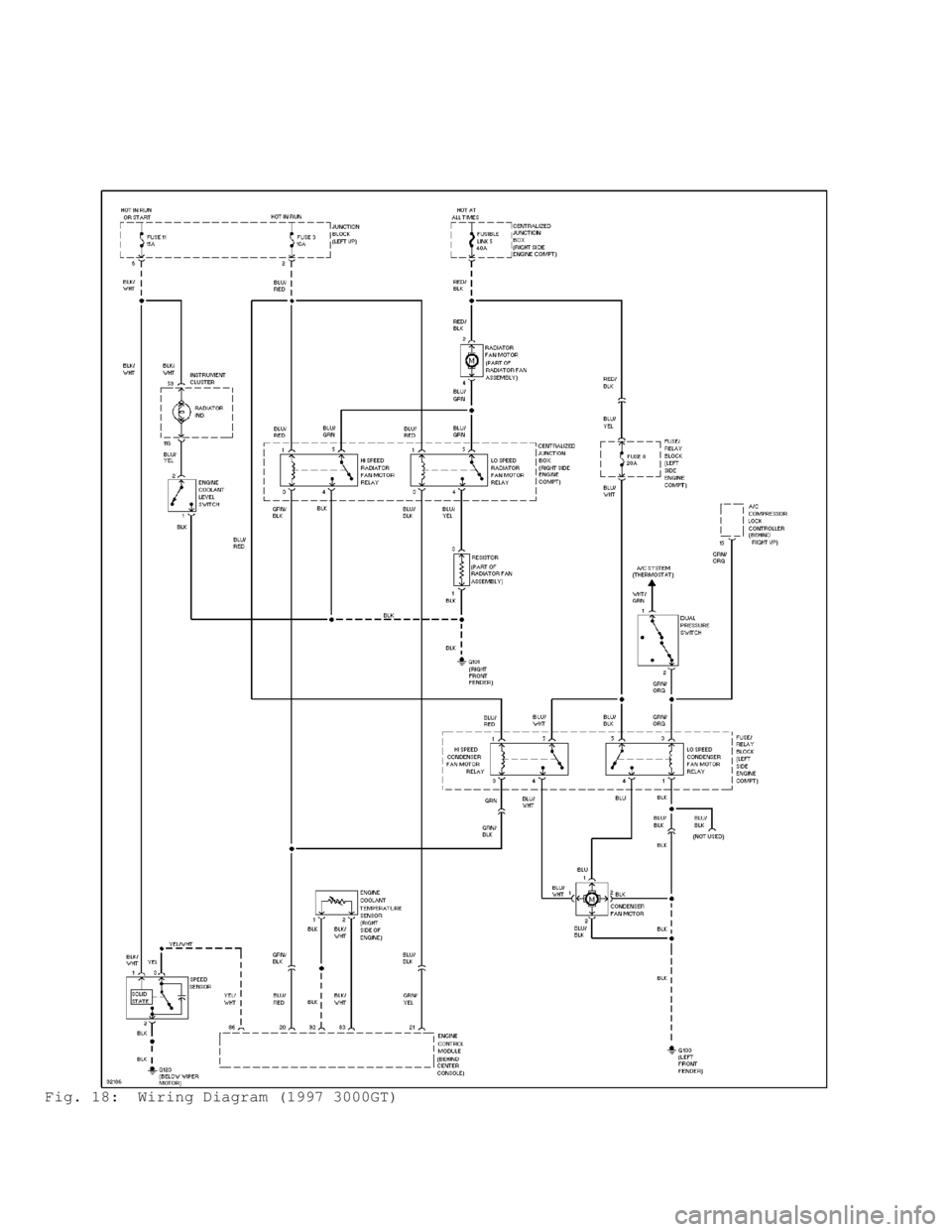

Fig. 18: Wiring Diagram (1997 3000GT)

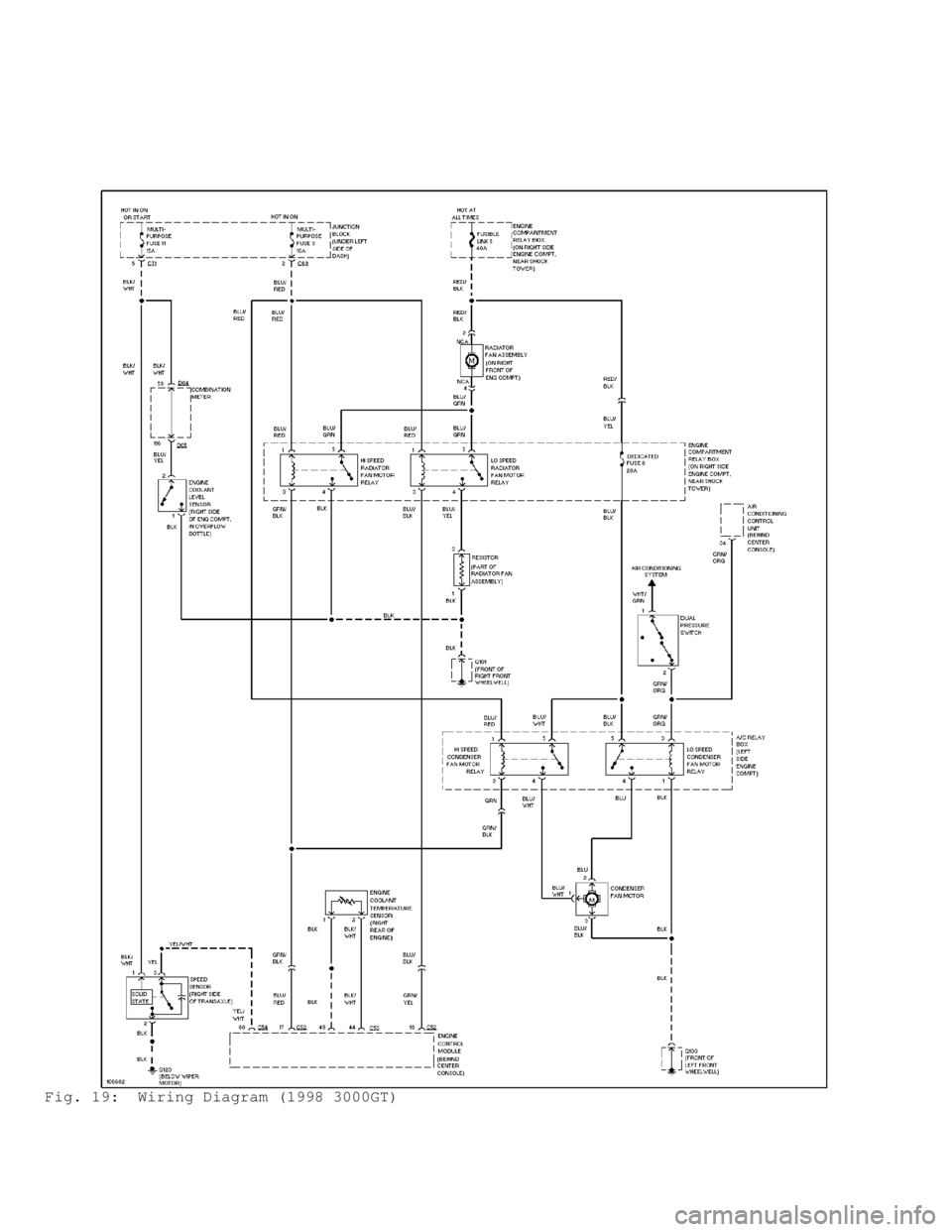

Fig. 19: Wiring Diagram (1998 3000GT)

check cruise control ECU connector C-50 and joint connector C-130.
Repair as necessary. See Figs. 13, 16 and 28. If malfunction remains,
check harness between combination meter (instrument cluster) and
cruise control ECU. Repair as necessary.
3) Disconnect combination meter connector C-04. See Fig. 9.
Check for continuity at harness side between terminal No. 43 and
ground. If continuity is present, go to next step. If continuity is
not present, check harness between combination meter and ground.
Repair as necessary.
4) Inspect combination meter connector C-04. If connector is
defective, repair as necessary. If connector is okay and malfunction
remains, replace cruise control ECU.
CODE 14: VACUUM PUMP POWER SUPPLY
Code 14 is displayed when drive signals for vacuum pump
release valve, control valve and motor are not input into cruise
control ECU. Probable causes are:
* Malfunction of stoplight switch.
* Malfunction of connector.
* Malfunction of harness.
* Malfunction of cruise control ECU.
1) Disconnect vacuum pump connector A-105. See Fig. 6. At
harness side of connector, check voltage between terminal No. 1 and
ground. If battery voltage is present, go to next step. If battery
voltage is not present, check stoplight switch. See
BRAKELIGHT/STOPLIGHT SWITCH TEST under COMPONENT TESTS. Replace as
necessary. If switch is okay, check connectors to combination meter,
stoplight switch and vacuum pump. Repair as necessary. If connectors
are okay and malfunction remains, check and repair circuit between
cruise control ECU and vacuum pump. If malfunction remains, replace
cruise control ECU.
2) Check connectors and circuit between cruise control ECU
and vacuum pump. See WIRING DIAGRAMS. Repair as necessary. If
connectors and circuit are okay, replace cruise control ECU.
CODE 15: CRUISE CONTROL SWITCH
Code 15 is displayed if RESUME switch or SET switch remains
on. Probable cause is malfunction of cruise control switch. Replace
cruise control switch.
CODE 16: CRUISE CONTROL ECU
Code 16 is displayed if there is an abnormality in CANCEL
hold circuit or microprocessor monitor circuit in cruise control ECU.
Probable cause is malfunction of cruise control ECU. Replace cruise
control ECU.
CODE 17: THROTTLE POSITION SENSOR
Code 17 is displayed if a voltage of 1.5 volts or more exists
when closed throttle position switch is ON or 0.2 volt or less exists
when closed throttle position switch is OFF for a continuous period of
4 seconds or more. Probable causes are:
* Malfunction of throttle position sensor.
* Malfunction of connector.
* Malfunction of harness.
* Malfunction of cruise control ECU.
