MITSUBISHI MONTERO 1998 Service Manual

Does Not Illuminate
(Cruise Control Operation Normal) .................. 12









\









\









\









\









\









\






Fig. 4: Identifying Cruise Control Circuit Connector Terminals:
IOD Or Storage Connector (A-09X)
Courtesy of Mitsubishi Motor Sales of America
Fig. 5: Identifying Cruise Control Circuit Connector Terminals:
Cruise Control Actuator Connector (A-57 Or A-95)
Courtesy of Mitsubishi Motor Sales of America

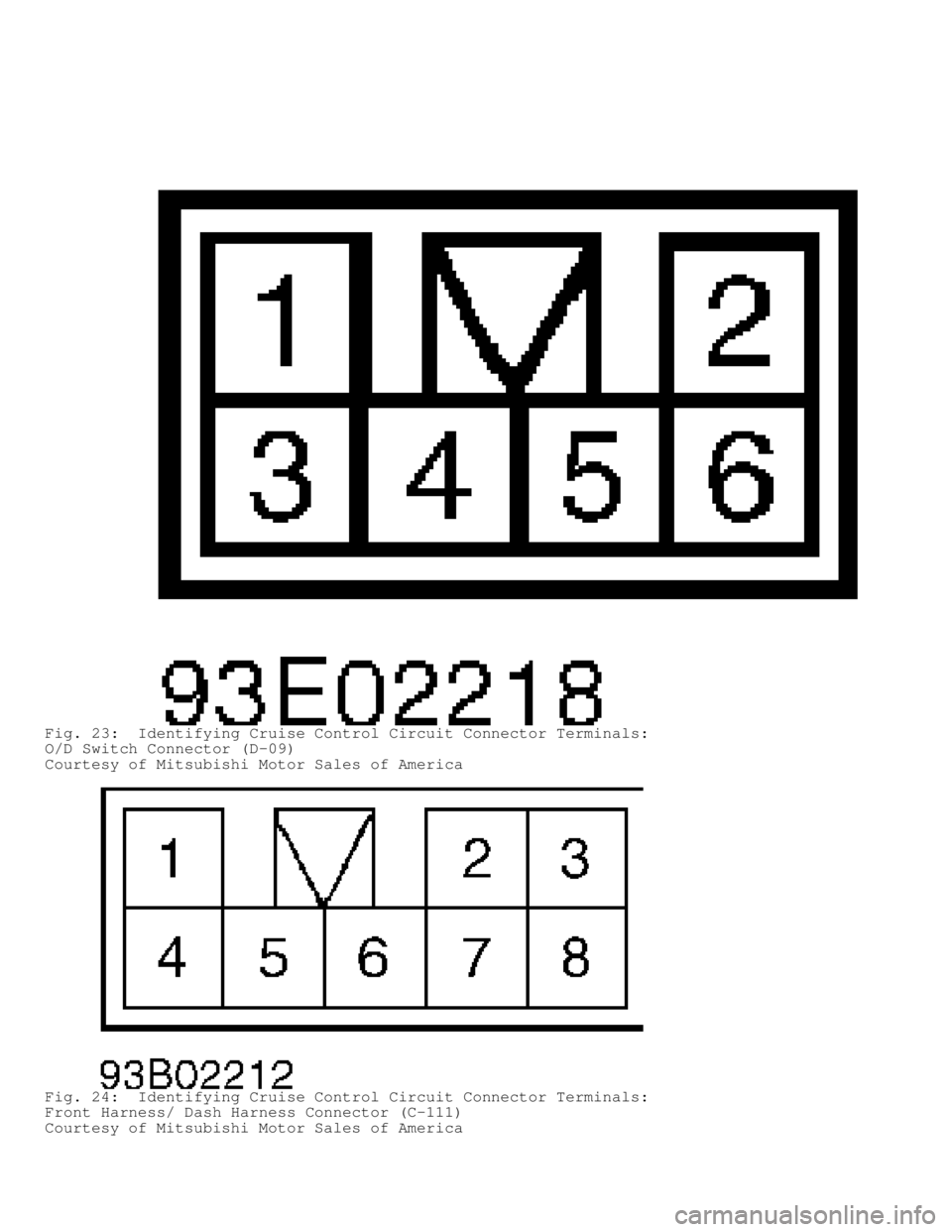

Fig. 6: Identifying Cruise Control Circuit Connector Terminals:
Vacuum Pump Connector (A-105)
Courtesy of Mitsubishi Motor Sales of America

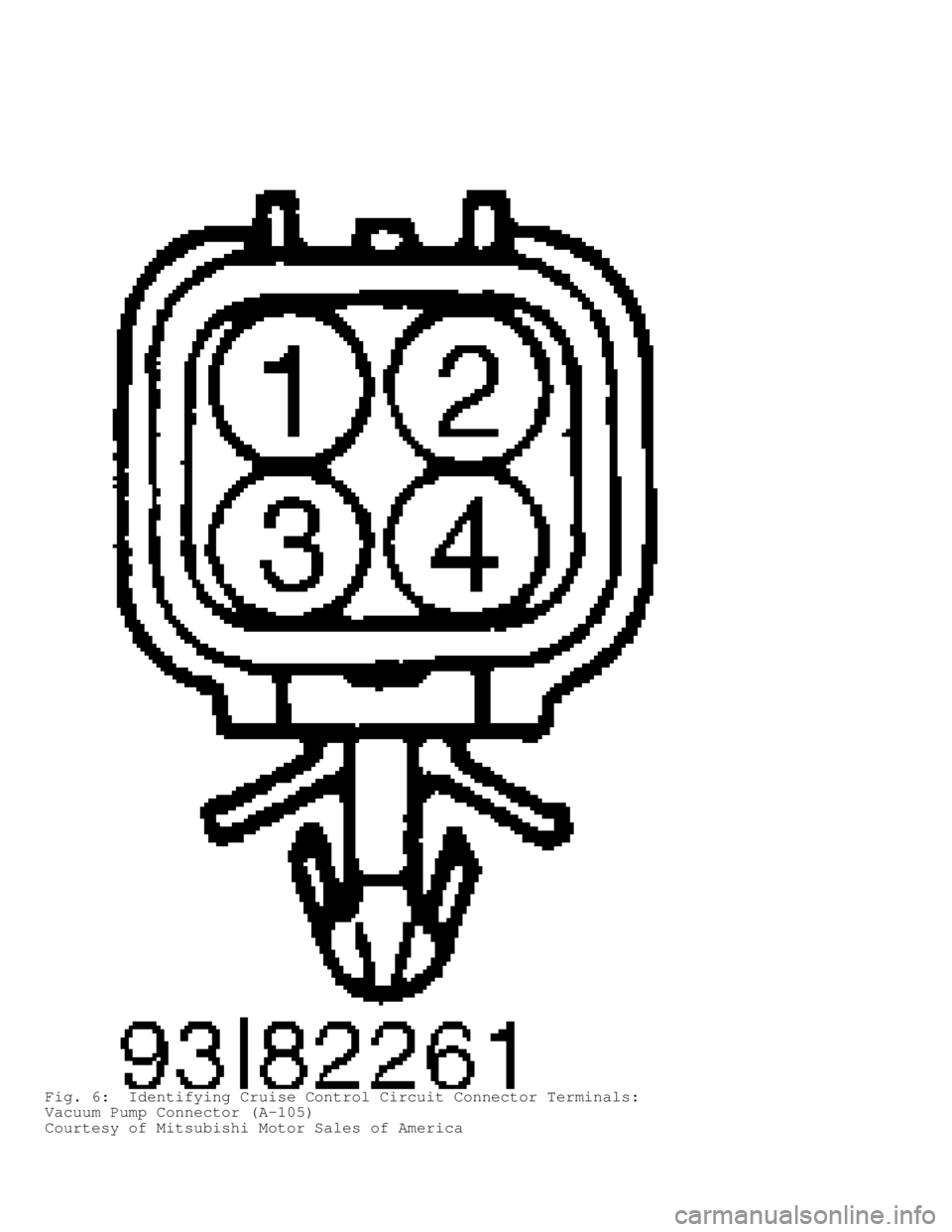

Fig. 7: Identifying Cruise Control Circuit Connector Terminals:
Park/Neutral Switch Connector (B-08)
Courtesy of Mitsubishi Motor Sales of America

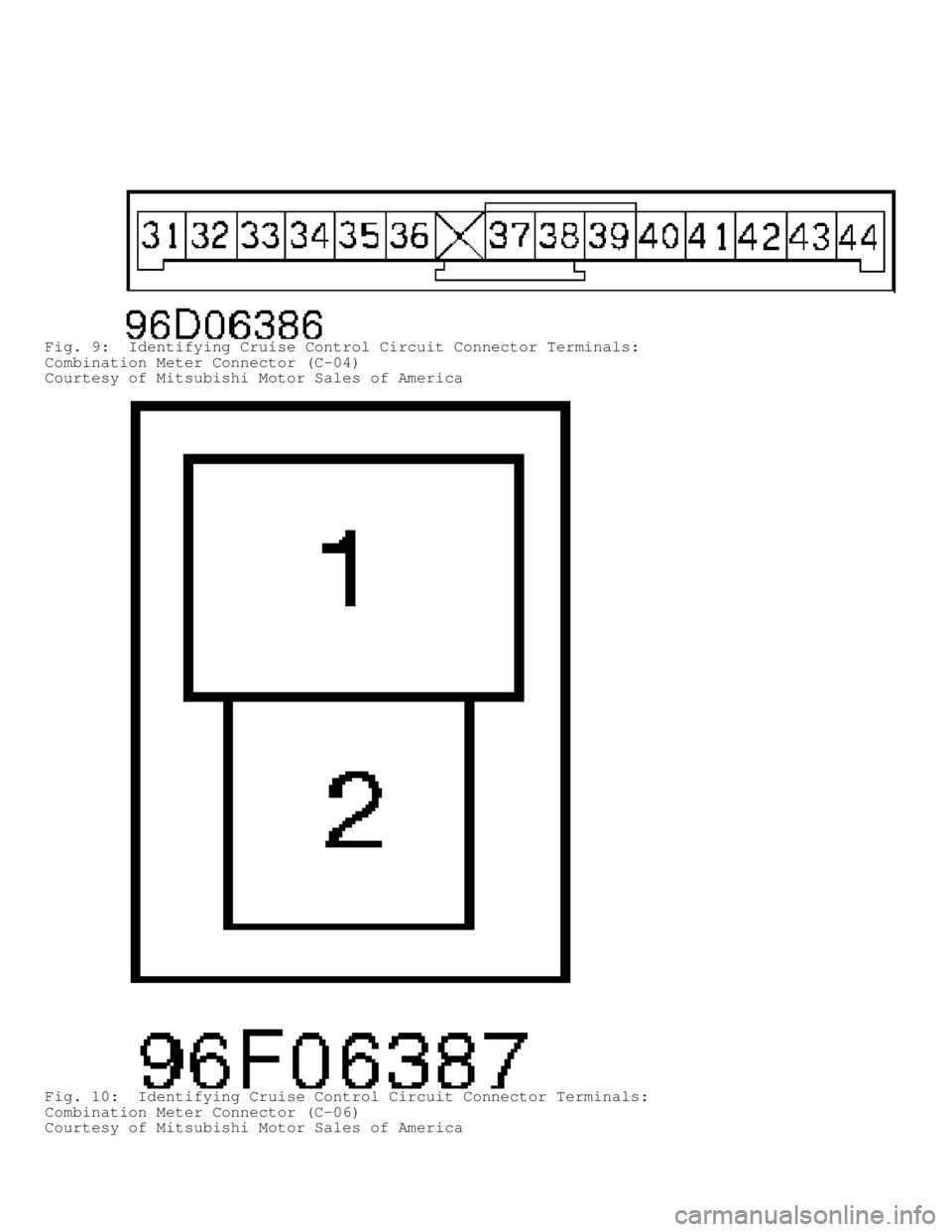

Fig. 8: Identifying Cruise Control Circuit Connector Terminals:
Cruise Control Main Switch Connector (C-01)
Courtesy of Mitsubishi Motor Sales of America

Fig. 9: Identifying Cruise Control Circuit Connector Terminals:
Combination Meter Connector (C-04)
Courtesy of Mitsubishi Motor Sales of America
Fig. 10: Identifying Cruise Control Circuit Connector Terminals:
Combination Meter Connector (C-06)
Courtesy of Mitsubishi Motor Sales of America

Fig. 11: Identifying Cruise Control Circuit Connector Terminals:
Combination Meter Connector (C-12)
Courtesy of Mitsubishi Motor Sales of America
Fig. 12: Identifying Cruise Control Circuit Connector Terminals:
Dash Harness/Transmission Harness Connector (C-124)
Courtesy of Mitsubishi Motor Sales of America
Fig. 13: Identifying Cruise Control Circuit Connector Terminals:
Cruise Control ECU Connector (C-50)
Courtesy of Mitsubishi Motor Sales of America
Fig. 14: Identifying Cruise Control Circuit Connector Terminals:
Stoplight Switch Connector (C-55)
Courtesy of Mitsubishi Motor Sales of America

Fig. 15: Identifying Cruise Control Circuit Connector Terminals:
Clockspring Connector (C-128)
Courtesy of Mitsubishi Motor Sales of America
Fig. 16: Identifying Cruise Control Circuit Connector Terminals:
Joint Connectors No. 1, 2 & 3 (C-130, C-131 & C-132)
Courtesy of Mitsubishi Motor Sales of America

Fig. 17: Identifying Cruise Control Circuit Connector Terminals:
Junction Block Connector (C-79)
Courtesy of Mitsubishi Motor Sales of America

Fig. 18: Identifying Cruise Control Circuit Connector Terminals:
Junction Block Connector (C-80)
Courtesy of Mitsubishi Motor Sales of America
Fig. 19: Identifying Cruise Control Circuit Connector Terminals:
Junction Block Connector (C-81)
Courtesy of Mitsubishi Motor Sales of America

Fig. 20: Identifying Cruise Control Circuit Connector Terminals:
Junction Block Connector (C-93)
Courtesy of Mitsubishi Motor Sales of America
Fig. 21: Identifying Cruise Control Circuit Connector Terminals:
Junction Block Connector (C-94)
Courtesy of Mitsubishi Motor Sales of America
Fig. 22: Identifying Cruise Control Circuit Connector Terminals:
Junction Block Connector (C-101)
Courtesy of Mitsubishi Motor Sales of America

Fig. 23: Identifying Cruise Control Circuit Connector Terminals:
O/D Switch Connector (D-09)
Courtesy of Mitsubishi Motor Sales of America
Fig. 24: Identifying Cruise Control Circuit Connector Terminals:
Front Harness/ Dash Harness Connector (C-111)
Courtesy of Mitsubishi Motor Sales of America
