differential MITSUBISHI MONTERO 1998 Workshop Manual

Using voltmeter, backprobe rear differential lock control
unit connector between terminal No. 6 (ground) and specified terminal
under specified conditions. See WIRING DIAGRAMS. See
REAR DIFFERENTIAL LOCK CONTROL UNIT VOLTAGE table. If voltage is not
as specified, replace control unit.
REAR DIFFERENTIAL LOCK CONTROL UNIT VOLTAGE









\









\









\









\









\









\









\








Terminal No. Circuit Voltage
3 .................... Ignition Switch (IG1) ............ ( 1) Zero
3 .................... Ignition Switch (IG1) ......... ( 2) Battery
9 (ON side) ............. Rear Lock Switch .......... ( 2)( 3) Zero
1 (OFF side) ............ Rear Lock Switch ....... ( 2)( 4) Battery
10 ...................... Indicator Light ........... ( 2)( 5) Zero
10 ...................... Indicator Light ........ ( 2)( 6) Battery
2 .................. Vehicle Speed Reed Switch ............. ( 7) 5
8 ................. Rear Lock Detection Switch ...... ( 2)( 5) Zero
8 ................. Rear Lock Detection Switch ... ( 2)( 6) Battery
4 ..................... Rear Lock Air Pump ....... ( 2)( 8) Battery
4 ..................... Rear Lock Air Pump .......... ( 2)( 9) Zero
5 ................... Center Lock Operation ..... ( 2)( 10) Battery
5 ...................... Detection Switch ....... ( 2)( 10) Battery
5 ...................... Detection Switch .......... ( 2)( 11) Zero
( 1) - Ignition off.
( 2) - Ignition on.
( 3) - ON side or OFF side.
( 4) - In Neutral.
( 5) - Rear differential locked.
( 6) - Rear differential free.
( 7) - Select Drive or 1st gear and drive forward slowly.
( 8) - When filing or holding.
( 9) - When releasing.
( 10 ) - Center differential free.
( 11 ) - Center differential locked.









\









\









\









\









\









\









\








REAR DIFFERENTIAL LOCK DETECTION SWITCH
NOTE: DO NOT apply more pressure than required to bring pressure
gauge reading to about 4 psi (.28 kg/cm).
1) Raise and support vehicle. Remove air pipe and air hose
connections. Connect a pressure gauge and air regulator (for adjusting
compressed air pressure) to air hose. See Fig. 2. Using air regulator,
adjust compressed air pressure until pressure gauge indicates about 4
psi (.28 kg/cm
).
2) While an assistant holds one wheel on one side of vehicle
stationary, slowly turn wheel on other side of vehicle. Using
ohmmeter, check for continuity between rear differential lock
detection switch connector terminals.
3) With air supplied, continuity should exist. With air
released, continuity should not exist. If continuity is not as
specified, replace lock detection switch.

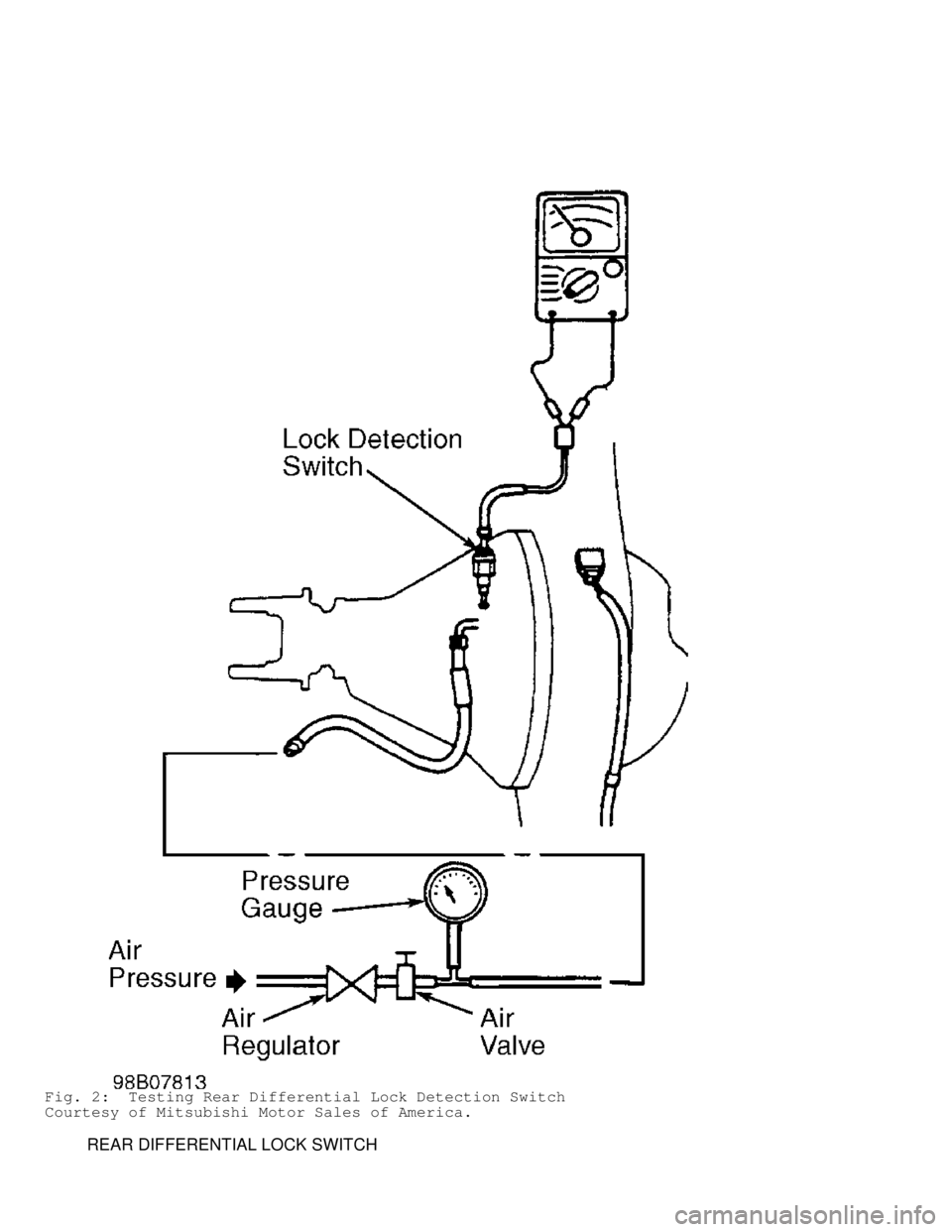

Fig. 2: Testing Rear Differential Lock Detection Switch
Courtesy of Mitsubishi Motor Sales of America.
REAR DIFFERENTIAL LOCK SWITCH

1) Using ohmmeter, check for continuity between specified
rear differential lock switch terminals with switch in specified
positions. See WIRING DIAGRAMS.
2) With lock switch in ON position, continuity should exist
between terminals No. 2 and 5. With lock switch in OFF position,
continuity should exist between terminals No. 2 and 3.
3) Continuity should also exist between terminals No. 1 and 6
with lock switch in ON or OFF position. If continuity is not as
specified, replace lock switch.
REAR DIFFERENTIAL LOCK SYSTEM AIR LEAKAGE CHECK
NOTE: DO NOT apply more pressure than required to bring pressure
gauge reading to about 5 psi (.35 kg/cm).
1) Remove rear differential lock air pump and remove air hose
from air pump. Connect a pressure gauge and air regulator (for
adjusting compressed air pressure) to air hose. Using air regulator,
adjust compressed air pressure until pressure gauge indicates about 5
psi (.35 kg/cm
).
2) Shut off air valve. Wait about 10 minutes and check if air
pressure has dropped. If air pressure has dropped, air hose is not
leaking.
REMOVAL & INSTALLATION
REAR DIFFERENTIAL LOCK AIR PUMP
Removal & Installation
Remove rear seat. Remove bracket from rear differential lock
air pump and remove air pump. Disconnect air hoses from air pump.
Disconnect electrical connector from air pump. To install, reverse
removal procedure.
REAR DIFFERENTIAL LOCK CONTROL UNIT
Removal & Installation
Remove left side lower quarter trim panel in rear
compartment. Remove rear differential lock control unit. Disconnect
electrical connector from control unit. To install, reverse removal
procedure.
WIRING DIAGRAMS

Fig. 3: Rear Differential Lock System Wiring Diagram (1997 Montero)

Fig. 4: Rear Differential Lock System Wiring Diagram (1998 Montero)

Fig. 5: Rear Differential Lock System Wiring Diagram (1998
Montero Sport)

* DRIVETRAIN SYSTEMS UNIFORM INSPECTION GUIDELINES *
1998 Mitsubishi Montero
GENERAL INFORMATION
Drivetrain/Transmission Motorist Assurance Program
Standards For Automotive Repair
All Makes and Models
INTRODUCTION TO MOTORIST ASSURANCE PROGRAM (MAP)
CONTENTS
OVERVIEW OF MOTORIST ASSURANCE PROGRAM
OVERVIEW OF SERVICE REQUIREMENTS & SUGGESTIONS
Drive/Power Train Assemblies
AUTOMATIC TRANSMISSION/TRANSAXLE ASSEMBLIES
DIFFERENTIAL AND FINAL DRIVE ASSEMBLIES
MANUAL TRANSMISSION/TRANSAXLE ASSEMBLIES
TRANSFER CASE ASSEMBLIES
Drive/Power Train Components
ACTUATORS (ELECTRICAL)
ACTUATORS (VACUUM)
AXLES
BEARINGS AND RACES
BELL CRANKS
BELL HOUSINGS
BUSHINGS (EXTERNAL)
CABLES (SPEEDOMETER)
CABLES (TV, DETENT AND SHIFT)
CARRIER BEARINGS
CLUTCH CABLES AND CABLE HOUSINGS
CLUTCH DISCS (MANUAL TRANSMISSION)
CLUTCH FORKS
CLUTCH LINKAGES (MECHANICAL)
CLUTCH MASTER CYLINDERS
CLUTCH PEDALS
CLUTCH PIVOTS
CLUTCH PRESSURE PLATES
CLUTCH RELEASE BEARINGS
CLUTCH SLAVE CYLINDERS (CONCENTRIC)
CLUTCH SLAVE CYLINDERS (CONVENTIONAL OR EXTERNAL)
COMPANION FLANGES
CONNECTORS
COOLER BYPASS VALVES
COOLER LINES
COOLERS
CV JOINTS
DIP STICK TUBES
DIP STICKS (FLUID LEVEL INDICATORS)
DOWEL PINS, GUIDES AND PILOT HOLES
DRIVE SHAFT FLANGES
DRIVE SHAFTS AND HALF SHAFTS
DUST BOOTS
ENGINE MOUNTS
EXCITER RINGS
FILLER TUBES
FILTERS AND SCREENS

NOTE: Whenever transmission or drivetrain service is performed
that affects the suspension alignment, for example,
removing the engine cradle, it is required that the
alignment be checked and corrected if necessary.
AUTOMATIC TRANSMISSION/TRANSAXLE ASSEMBLIES
AUTOMATIC TRANSMISSION/TRANSAXLE ASSEMBLY INSPECTION








\









\









\









\









\









\









\


Condition Code Procedure
Any internal component
failure that requires
removal of the assembly
from the vehicle for
service. ( 1) ........... A ........... ( 2) Require repair or
replacement of the automatic
transmission/transaxle
assembly.
( 1) - It is Required that the torque converter and all other
failure related components be inspected for cause and
condition.
( 2) - For components not requiring removal of the assembly,
refer to the component listing in this document.









\









\









\









\









\









\









\


DIFFERENTIAL AND FINAL DRIVE ASSEMBLIES
NOTE: Does not include half shafts.
DIFFERENTIAL AND FINAL DRIVE ASSEMBLY INSPECTION









\









\









\









\









\









\









\


Condition Code Procedure
Any internal component
failure that requires
removal of the assembly
from the vehicle for
service. ( 1) ........... A ... Require repair or replacement
of the differential assembly.
( 1) - For components not requiring removal of the assembly,
refer to the component listing in this document.









\









\









\









\









\









\









\


MANUAL TRANSMISSION/TRANSAXLE ASSEMBLIES
MANUAL TRANSMISSION/TRANSAXLE ASSEMBLY INSPECTION








\









\









\









\









\









\









\


Condition Code Procedure
Any internal component
failure that requires
removal of the assembly
from the vehicle for
service. ( 1) ........... A ... Require repair or replacement
of the manual
transmission/transaxle
assembly.
( 1) - For components not requiring removal of the assembly,

refer to the component listing in this document.








\









\









\









\









\









\









\


TRANSFER CASE ASSEMBLIES
TRANSFER CASE ASSEMBLY INSPECTION








\









\









\









\









\









\









\


Condition Code Procedure
Any internal component
failure that requires
removal of the assembly
from the vehicle for
service. ( 1) ........... A ... Require repair or replacement
of the transfer case
differential assembly.
( 1) - For components not requiring removal of the assembly,
refer to the component listing in this document.









\









\









\









\









\









\









\


DRIVE TRAIN/COMPONENTS
The conditions listed for the components included in this
section assume that the problem has been isolated to the specific
component through proper testing.
ACTUATORS (ELECTRICAL)
ACTUATOR (ELECTRICAL) INSPECTION








\









\









\









\









\









\









\


Condition Code Procedure
Attaching hardware
broken ................. A ... Require repair or replacement
of hardware.
Attaching hardware
missing ................ C .......... Require replacement of
hardware.
Attaching hardware not
functioning ............ A ... Require repair or replacement
of hardware.
Connector broken ........ A .. Require repair or replacement.
Connector (Weatherpack
type) leaking .......... A .. Require repair or replacement.
Connector melted,
affecting performance .. A ........... ( 1) Require repair or
replacement.
Connector melted, not
affecting performance .. 2 ........... ( 1) Suggest repair or
replacement.
Connector missing ....... C ............ Require replacement.
Inoperative ............. A ........ ( 2) Require replacement.
Missing ................. C ............ Require replacement.
Noisy ................... 2 .. Suggest repair or replacement.
Out of adjustment ....... B .. Require repair or replacement.
Terminal broken ......... A .. Require repair or replacement.
Terminal burned, affecting
performance ............ A ........... ( 1) Require repair or
replacement.
Terminal burned, not
affecting performance .. 1 ........... ( 1) Suggest repair or
