Page 116 of 1501
1) Before proceeding, see SERVICE PRECAUTIONS. Deactivate
SRS. See DISABLING & ACTIVATING AIR BAG SYSTEM .
2) Remove components for access to front impact sensors as
necessary. See Fig. 7. Remove front impact sensor mounting bolts.
Slide Green section of connector to release lock. Push down on pawl.
Disconnect electrical connector. Remove front impact sensor.
3) To install, reverse removal procedure. Position sensor
with arrow facing toward front of vehicle. Tighten bolts to
specification. See TORQUE SPECIFICATIONS . Activate SRS. See procedures
under DISABLING & ACTIVATING AIR BAG SYSTEM . Check AIR BAG warning
light for proper system function. SYSTEM OPERATION CHECK.

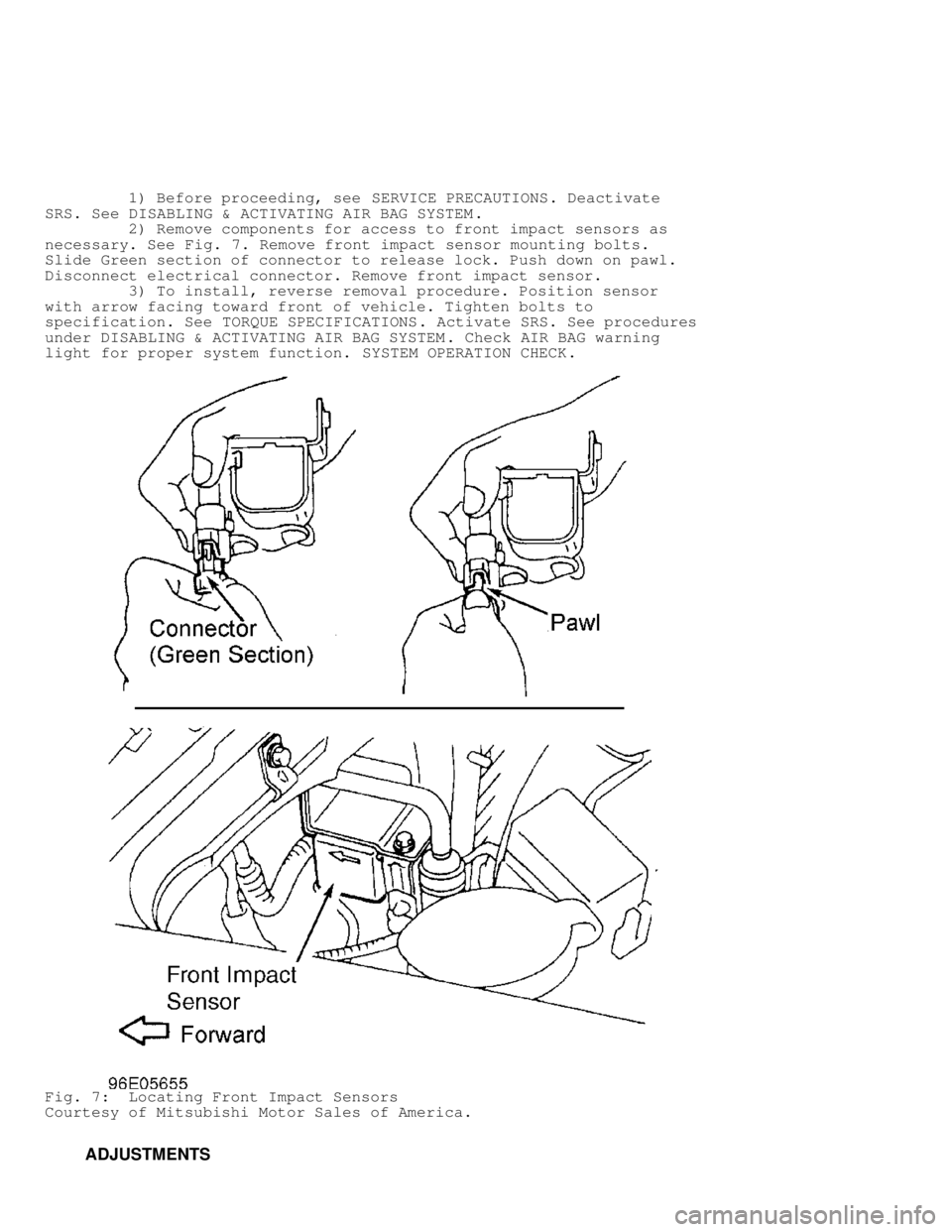

Fig. 7: Locating Front Impact Sensors
Courtesy of Mitsubishi Motor Sales of America.
ADJUSTMENTS
Page 185 of 1501
SHOE HARDWARE
SHOES
SOCKETS
SPEED SENSORS (ELECTRONIC WHEEL AND VEHICLE)
STEEL BRAKE LINES
STOPLIGHT SWITCHES
SWITCHES
TIRES
TOOTHED RINGS (TONE WHEEL)
VACUUM BOOSTERS
VACUUM HOSES
VALVES
WHEEL ATTACHING HARDWARE
WHEEL BEARINGS, RACES AND SEALS
WHEEL CYLINDERS
WIRING HARNESSES
INTRODUCTION TO MOTORIST ASSURANCE PROGRAM (MAP)
OVERVIEW OF MOTORIST ASSURANCE PROGRAM
The Motorist Assurance Program is the consumer outreach
effort of the Automotive Maintenance and Repair Association, Inc.
(AMRA). Participation in the Motorist Assurance Program is drawn from
retailers, suppliers, independent repair facilities, vehicle
manufacturers and industry associations.
Our organization's mission is to strengthen the relationship
between the consumer and the auto repair industry. We produce
materials that give motorists the information and encouragement to
take greater responsibility for their vehicles-through proper,
manufacturer-recommended, maintenance. We encourage participating
service and repair shops (including franchisees and dealers) to adopt:\
1) a Pledge of Assurance to their Customers and
2) the Motorist Assurance Program Standards of Service.
All participating service providers have agreed to subscribe
to this Pledge and to adhere to the promulgated Standards of Service
demonstrating to their customers that they are serious about customer
satisfaction.
These Standards of Service require that an inspection of the
vehicle's (problem) system be made and the results communicated to the\
customer according to industry standards. Given that the industry did
not have such standards, the Motorist Assurance Program successfully
promulgated industry inspection communication standards in 1994-95 for
the following systems: Exhaust, Brakes, ABS, Steering and Suspension,
Engine Maintenance and Performance, HVAC, and Electrical Systems.
Further, revisions to all of these inspection communication standards
are continually re-published. In addition to these, standards for
Drive Train and Transmissions have recently been promulgated.
Participating shops utilize these Uniform Inspection & Communication
Standards as part of the inspection process and for communicating
their findings to their customers.
The Motorist Assurance Program continues to work
cooperatively and proactively with government agencies and consumer
groups toward solutions that both benefit the customer and are
mutually acceptable to both regulators and industry. We maintain the
belief that industry must retain control over how we conduct our
business, and we must be viewed as part of the solution and not part
of the problem. Meetings with state and other government officials
(and their representatives), concerned with auto repair and/or
consumer protection, are conducted. Feedback from these sessions is
brought back to the association, and the program adjusted as needed.
To assure auto repair customers recourse if they were not
Page 219 of 1501
![MITSUBISHI MONTERO 1998 Service Manual Diamante, Eclipse,
Montero Sport & Galant .......................... 6.9-7.1 (175-181)\
Mirage ........................................... 6.4-6.6 (164-167)\
Montero ..........................](/img/19/57333/w960_57333-218.png "MITSUBISHI MONTERO 1998 Service Manual Diamante, Eclipse,
Montero Sport & Galant .......................... 6.9-7.1 (175-181)\
Mirage ........................................... 6.4-6.6 (164-167)\
Montero ..........................")
Diamante, Eclipse,
Montero Sport & Galant .......................... 6.9-7.1 (175-181)\
Mirage ........................................... 6.4-6.6 (164-167)\
Montero .......................................... 7.3-7.5 (186-191)\
3000GT ........................................... 7.0-7.2 (177-182)\
\
\
\
\
\
\
\
3) Tighten lock nut, and ensure brake pedal height is within
specification. Start engine to evacuate brake booster chamber. Stop
engine, and apply brake several times to remove vacuum from brake
booster.
4) Using hand pressure, depress brake pedal to measure free
play before resistance is felt. Free play distance for all models is
0.10-0.31" (3-8 mm). If distance is not within specification, it is
probably caused by excessive play between the brake pedal arm and the
clevis pin. Check and replace as necessary.
5) Start engine and apply 110 lbs. (490 N) of pressure to
brake pedal. With the carpet pulled back, measure the distance between
the brake pedal and the floorboard. If the distance is not 3.1-3.5"
(80-90 mm) check for air in brake hydraulic system, brake adjustment
or defective parking brake component or adjustment. Adjust or repair
as necessary.
LOAD-SENSING PROPORTIONING VALVE (LSPV)
Montero
1) Park vehicle on level surface. Remove excess weight from
vehicle. Make sure the lever is all the way towards the valve side.
Measure length of entire spring. See Fig. 1.
If spring length is not within specification, adjust spring
support until correct length is obtained. See LSPV SPRING LENGTH
table.
Fig. 1: Adjusting Load-Sensing Proportioning Valve Spring (Montero)
Courtesy of Mitsubishi Motor Sales of America.
BRAKE BOOSTER PUSH ROD
Page 220 of 1501
Adjustment (Except Diamante)
1) Place the Push Rod Adjusting Gauge (MB991714) in the
master cylinder, position gauge shaft so it contacts master cylinder
piston and tighten wing bolt.
2) Apply a vacuum of 9.7 psi (-66.7 kPa) for Eclipse, Galant\
,
Montero and 3000GT and 19.6 psi (-66.7 kPa) for Mirage and Montero
Sport to the brake booster using a hand held vacuum pump.
3) Rotate the gauge tool so it is positioned offset from
center of the brake booster. See Fig. 2.

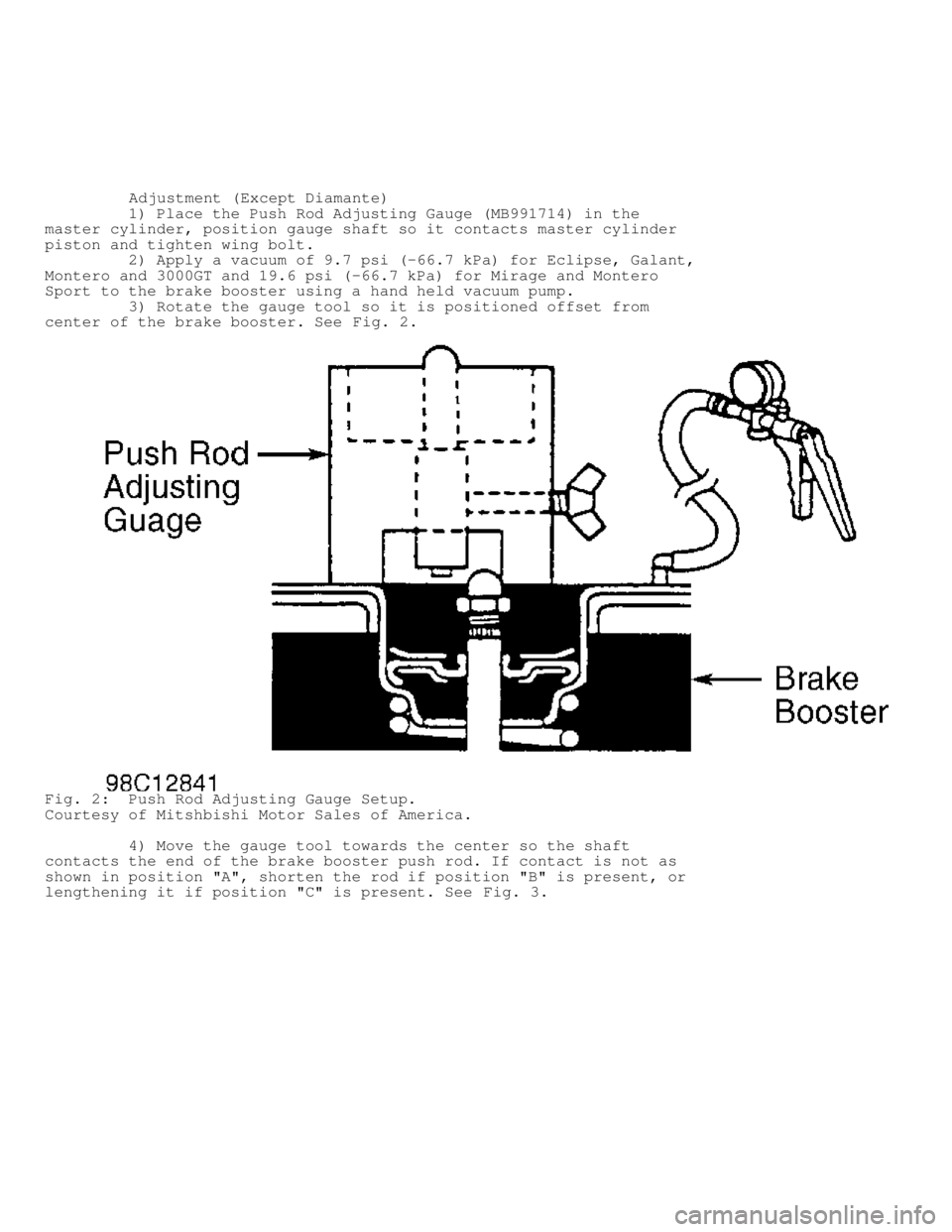

Fig. 2: Push Rod Adjusting Gauge Setup.
Courtesy of Mitshbishi Motor Sales of America.
4) Move the gauge tool towards the center so the shaft
contacts the end of the brake booster push rod. If contact is not as
shown in position "A", shorten the rod if position "B" is present, or
lengthening it if position "C" is present. See Fig. 3.
Page 226 of 1501
and check fluid input and output pressures at LSPV. See
LSPV PRESSURE SPECIFICATIONS table.
4) Disconnect spring at support and pull spring and lever
toward support until spring length is 10.1" (257 mm). See Fig. 1.
Slowly depress brake pedal and check input and output pressures at
LSPV. See LSPV PRESSURE SPECIFICATIONS table. If fluid input pressure
is okay and output pressure is not within specification, replace LSPV
assembly. Remove gauges and bleed brake system.
LSPV PRESSURE SPECIFICATIONS
\
\
\
\
\
\
\
LSPV Spring Inlet Pressure Outlet Pressure
Length psi (kg/cm) psi (kg/cm)
8.9" (227 mm) ............. 1422 (100) .......... 873-1002 (61-\
70)
8.9" (227 mm) ............. 2560 (180) ......... 1129-1314 (79-\
92)
10.1" (257 mm) ............ 2560 (180) ....... 1863-2148 (131-1\
51)
\
\
\
\
\
\
\
NON-LOAD-SENSING PROPORTIONING VALVE
Pressure Test (Except Montero)
1) Connect pressure gauges to input and output ports of
proportioning valve. See Fig. 8. Bleed brake system. See
BLEEDING BRAKE SYSTEM .

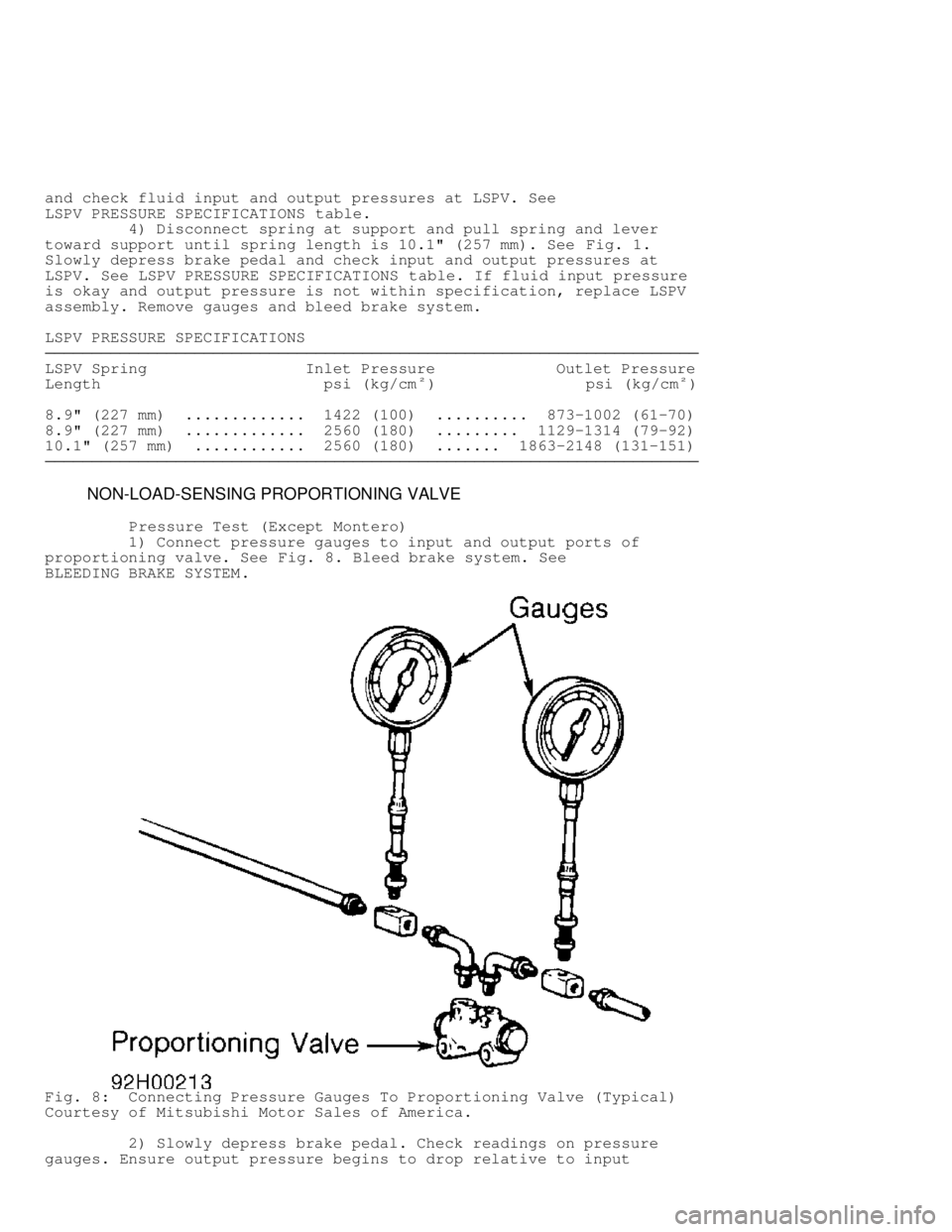

Fig. 8: Connecting Pressure Gauges To Proportioning Valve (Typical)
Courtesy of Mitsubishi Motor Sales of America.
2) Slowly depress brake pedal. Check readings on pressure
gauges. Ensure output pressure begins to drop relative to input
Page 233 of 1501
WHEEL CYLINDERS
Removal & Installation
Raise and support vehicle. Remove rear brake drum and shoes.
See REAR BRAKE DRUM & SHOES . Remove wheel cylinder and seal assembly.
To install, reverse removal procedure. Bleed brakes. See
BLEEDING BRAKE SYSTEM .
MASTER CYLINDER
Removal
Drain brake fluid from master cylinder. Remove sensor
connector (if equipped). Disconnect brake lines from master cylinder,
and install plugs to prevent brake fluid spillage. Remove master
cylinder from booster and separate reservoirs from housing (if
necessary).
Installation
To install, reverse removal procedure. Before installation,
check and adjust clearance between back of master cylinder piston and
power brake push rod. See MASTER CYLINDER PUSH ROD under ADJUSTMENTS.
After installation, adjust pedal height. See BRAKE PEDAL HEIGHT & FREE
PLAY under ADJUSTMENTS. Bleed brake system.
POWER BRAKE BOOSTER
Removal
Remove brake master cylinder. See MASTER CYLINDER. Disconnect
vacuum hose from power brake booster. Disconnect clevis pin attaching
brake pedal to power brake booster push rod. From inside vehicle,
remove 4 nuts attaching power brake booster to firewall. Remove power
brake booster.
Installation
To install, reverse removal procedure. Install master
cylinder. Bleed brake system if necessary.
POWER BRAKE BOOSTER CHECK VALVE
NOTE: To test check valve before removal, see POWER BRAKE BOOSTER
under TESTING.
Removal & Installation
Remove vacuum hose with check valve from power brake booster.
Loosen hose clamp(s) and remove check valve from hose on Mirage and
Summit. On all models, coat end(s) of check valve with sealant before
installation. Install valve with arrow (identification mark) pointing
toward intake manifold. Install and secure hose clamp(s).
REAR AXLE BEARINGS & OIL SEAL
Removal (Montero & Montero Sport)
1) With disc or drum removed, disconnect brake line from
caliper or wheel cylinder. Disconnect parking brake cable end, and
remove cable attaching bolts. Remove brake backing plate, bearing case
and axle shaft as an assembly. If axle shaft binds, use slide hammer
and puller to remove.
2) Remove shims, "O" ring and snap ring. Retain shims for
installation. Secure axle shaft assembly in a vise, and remove one
retainer bolt from backing plate. Push bearing case completely to side
of dust cover. Place adhesive tape around edge of bearing case at
Page 236 of 1501
![MITSUBISHI MONTERO 1998 Service Manual \
\
\
\
\
\
\
Removal & Installation (3000GT AWD Mo](/img/19/57333/w960_57333-235.png "MITSUBISHI MONTERO 1998 Service Manual \
\
\
\
\
\
\
Removal & Installation (3000GT AWD Mo")
\
\
\
\
\
\
\
Removal & Installation (3000GT AWD Models)
1) Raise and support vehicle. Remove wheels. Remove wheel
speed sensor (if equipped). Remove caliper and rotor.
2) Remove 4 bolts and separate rear drive axle from hub
companion flange. Using Yoke Holder (MB990767), hold rear axle hub and\
remove axle nut at companion flange.
3) Using slide hammer and Hub Adapter (MB991354), remove axl\
e
shaft from knuckle. Place axle in hydraulic press. Using an
appropriate bearing splitter, remove ABS rotor (if equipped) and outer\
axle bearing.
4) Remove inner bearing and seal from axle. Using Bearing
Installer Handle (MB990938) and Adapter (MB990931), install bearing
and axle seal.
5) Using Installer (MB990799), install dust shield onto axle\
shaft. Using hydraulic press, install outer axle bearing onto axle
shaft so seal lip is facing towards axle shaft. Press on wheel speed
sensor rotor (if equipped) with groove on speed sensor rotor is facing\
towards axle shaft flange.
6) Install axle shaft assembly into knuckle and tighten axle
nut to 188-217 ft. lbs. (260-300 N.m.). To complete installation,
reverse removal procedure. Tighten bolts to specification.
OVERHAUL
NOTE: For exploded views of calipers, see Figs. 13 through 17. For
exploded view of master cylinder, see Fig. 18.

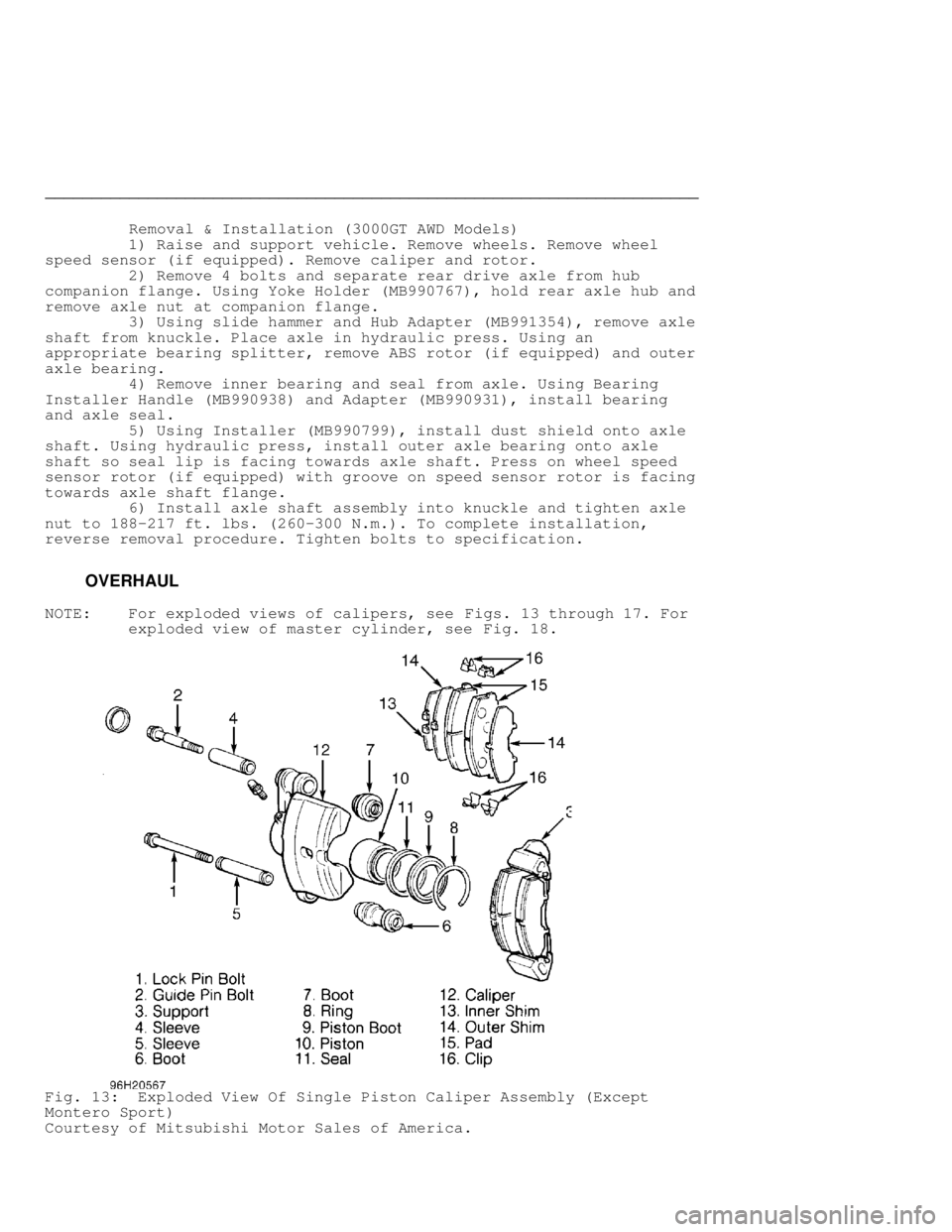

Fig. 13: Exploded View Of Single Piston Caliper Assembly (Except
Montero Sport)
Courtesy of Mitsubishi Motor Sales of America.
Page 260 of 1501
specified, bleed system and inspect hydraulic and clutch components.
See CLUTCH PEDAL SPECIFICATIONS table.
CLUTCH PEDAL INTERLOCK SWITCH
1) Place transmission in Neutral and apply parking brake.
Turn ignition switch to START position with clutch pedal not
depressed. Engine should not crank. If engine cranks, adjust or
replace interlock switch.
2) Disconnect interlock switch connector. Interlock switch
connector is located at clutch pedal. Depress and release interlock
switch. Using ohmmeter, check continuity between interlock switch
terminals. If continuity exists with interlock switch depressed and
does not exist with switch released, switch is okay. Adjust or replace
as necessary.
REMOVAL & INSTALLATION
CLUTCH ASSEMBLY
Removal (2WD Models)
1) Disconnect negative battery cable. Remove shift knob, dust
cover retaining plate, gaskets, stopper plate and control lever
assembly. Raise and support vehicle.
2) Remove front exhaust pipe. Drain transmission fluid. Index
mark drive shaft flange and remove drive shaft.
3) Disconnect back-up light switch connector, speedometer
cable connection and exhaust pipe mounting bracket. Remove lower
bellhousing cover. Disconnect clutch cable from clutch lever.
4) Support transmission with jack. Remove rear engine mount
nuts and bolts from transmission. Remove crossmember with rear engine
mount. Remove remaining bellhousing bolts, move transmission toward
rear and lower from vehicle.
5) If reusing pressure plate, index mark pressure plate to
flywheel for installation reference. Install a clutch alignment tool
to prevent pressure plate and clutch disc from dropping. Loosen
pressure plate bolts gradually in a crisscross pattern to avoid
warping pressure plate flange during removal. Remove pressure plate
and clutch disc. See Fig. 3.
Inspection
1) Check release bearing and release fork for damage or wear.
DO NOT clean release bearing assembly in solvent.
2) Inspect pressure plate surface for wear, cracks, and/or
discoloration. Measure diaphragm spring ends for wear and uneven
height. Replace assembly if height difference between fingers exceeds
.02" (.5 mm).
3) Check facing of clutch disc for loose rivets, uneven
contact, deterioration, seizure or oil saturation. Measure distance
from clutch disc surface to head of rivet. Replace clutch disc if
distance is less than .012" (.30 mm). Replace worn or defective
components as necessary. See Fig. 4.
CAUTION: Install clutch disc with manufacturer's stamp mark (located
near hub of clutch disc) toward pressure plate.
Installation
1) Using a clutch alignment tool, install pressure plate and
clutch disc. If reusing pressure plate, ensure index marks are
aligned. Tighten bolts evenly in a crisscross pattern to
specification. See TORQUE SPECIFICATIONS . See Fig. 3.
2) Clean release bearing sliding surface. DO NOT clean
Page 261 of 1501
release bearing with solvent. Apply a light coat of multipurpose
grease to release bearing sliding surface. Apply a very light coating
of grease to input shaft splines. DO NOT allow grease or dirt on
clutch disc or pressure plate surfaces.
3) To install remaining components, reverse removal
procedure. Refill all fluids to proper levels. Adjust all control
cables, clutch pedal height and free play. See CLUTCH PEDAL HEIGHT and
CLUTCH PEDAL FREE PLAY under ADJUSTMENTS. See Fig. 1.
Removal (4WD Models)
1) Remove switch panel from rear console. Remove suspension
control switch or hole cover. Disconnect rear console harness
connector. Remove side panel. Remove rear console assembly. Remove
shift lever knob(s). Remove floor console harness connector. Remove
front console assembly.
2) Move transmission lever to Neutral position and transfer
lever to 4H (4WD high range) position. Remove control lever boot
retainer and boot. Remove transmission and transfer control lever
assemblies. Remove control lever bushing (transmission), gaskets and
stopper plates.
3) Raise and support vehicle. Remove skid plate and front
exhaust pipe. Drain transmission and transfer case fluid. Index mark
front and rear drive shaft flanges. Remove front and rear drive
shafts.
4) Remove drive shaft dust seals. Disconnect HI/LO and
2WD/4WD detection switch connectors. Disconnect back-up light switch
connector. Disconnect center differential lock detection switch
connector. Disconnect center differential lock operation switch
connector. Disconnect 4WD operation detection switch.
5) Disconnect speedometer cable. Remove clutch slave cylinder
heat shield. Remove clutch slave cylinder (without disconnecting
hydraulic line) and wire aside. Remove starter and starter cover.
Remove heat shield, both transmission stays and bellhousing lower
cover.
6) Support transmission with transmission jack. Remove
transfer case roll stopper and bracket. Remove crossmember and engine
mounting rear insulator. Remove transfer case protector bracket and
mass damper. Remove remaining bellhousing bolts. Pull toward rear of
vehicle to free transmission input shaft from clutch. Lower
transmission/transfer assembly from vehicle.
7) If reusing pressure plate, mark pressure plate to flywheel
for installation reference. Insert a clutch alignment tool to prevent
pressure plate and clutch disc from dropping. Loosen pressure plate
bolts gradually in a crisscross pattern to avoid warping pressure
plate flange during removal. Remove pressure plate and clutch disc.
See Fig. 3 .
Fig. 3: Removing & Installing Clutch On Flywheel (Typical)
Courtesy of Mitsubishi Motor Sales of America.
Inspection
1) Check release bearing and release fork for damage or wear.
