Remove hazard light switch from instrument panel. Disconnect
switch connector. Using an ohmmeter, check switch continuity. With
switch in OFF position, continuity should exist between terminals No.
5 and 7, and between terminals No. 8, 9 and 10. With switch in ON
position, continuity should exist between terminals No. 1-4, between
terminals No. 5 and 6, and between terminals No. 9 and 10. See Fig. 34
. If continuity is not as specified, replace switch.
Montero
Remove hazard light switch from instrument panel. Disconnect
switch connector. Using an ohmmeter, check switch continuity. With
switch in OFF position, continuity should exist between terminals No.
5 and 7, and between terminals No. 8, 9 and 10. With switch in ON
position, continuity should exist between terminals No. 1-6, and
between terminals No. 9 and 10. See Fig. 34. If continuity is not as
specified, replace switch.
3000GT
Remove hazard light switch from instrument panel. Disconnect
switch connector. Using an ohmmeter, check switch continuity. With
switch in OFF position, continuity should exist between terminals No.
2 and 3, and between terminals No. 5 and 8. With switch in ON
position, continuity should exist between terminals No. 2 and 3,
between terminals No. 6, 9 and 10, and between terminals No. 7 and 8.
See Fig. 34 . If continuity is not as specified, replace switch.
Fig. 34: Identifying Hazard Light Switch Connector Terminals &
Foglight Switch Connector Terminals (3000GT)
Courtesy of Mitsubishi Motor Sales of America
INSTRUMENT PANEL RHEOSTAT TEST
Remove driver-side knee protector. Remove rheostat from
instrument panel. Connect battery and 40-watt test light to rheostat.
See Figs. 35 -38. Operate rheostat. If brightness changes smoothly
without switching off, rheostat function is normal. If brightness does
not change smoothly or switches off, replace rheostat.

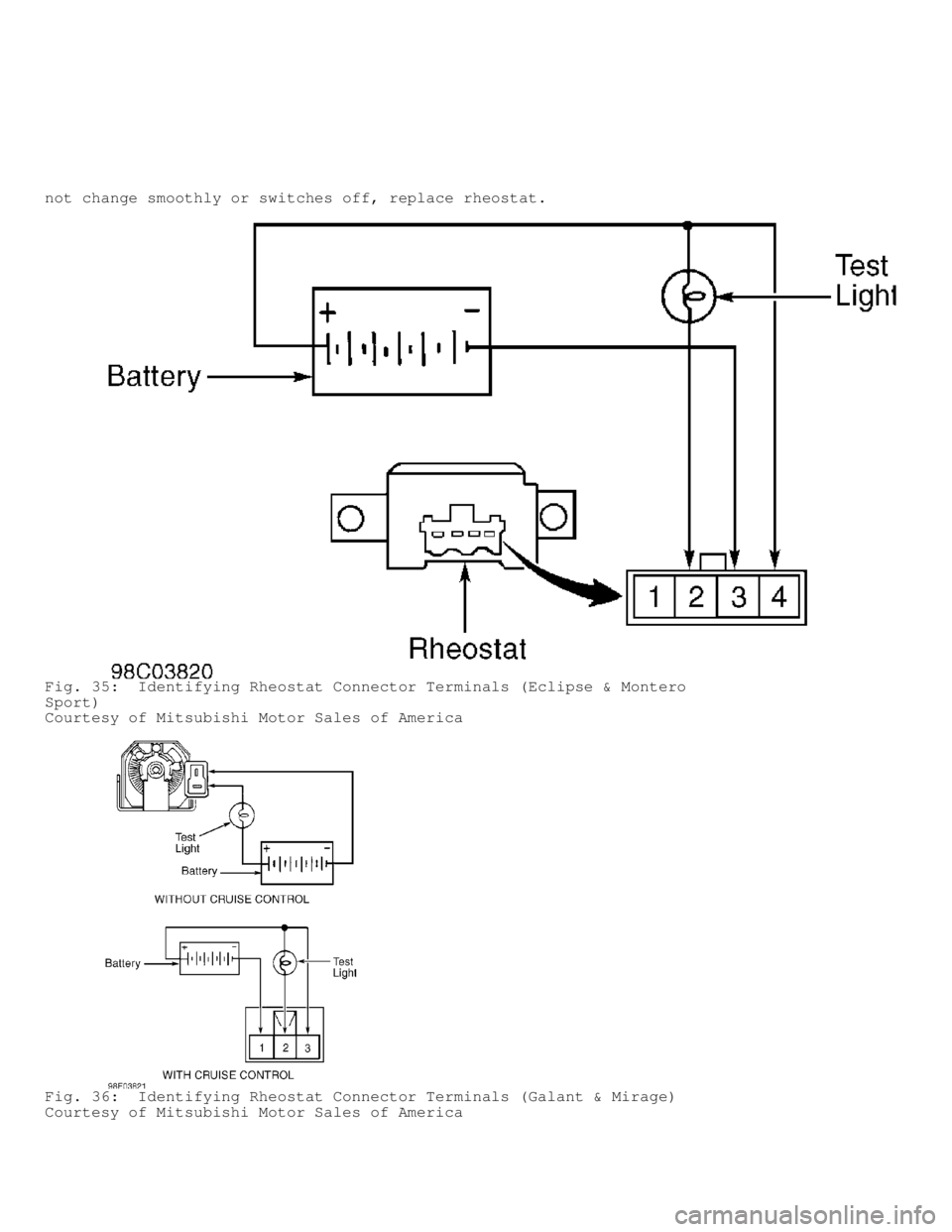

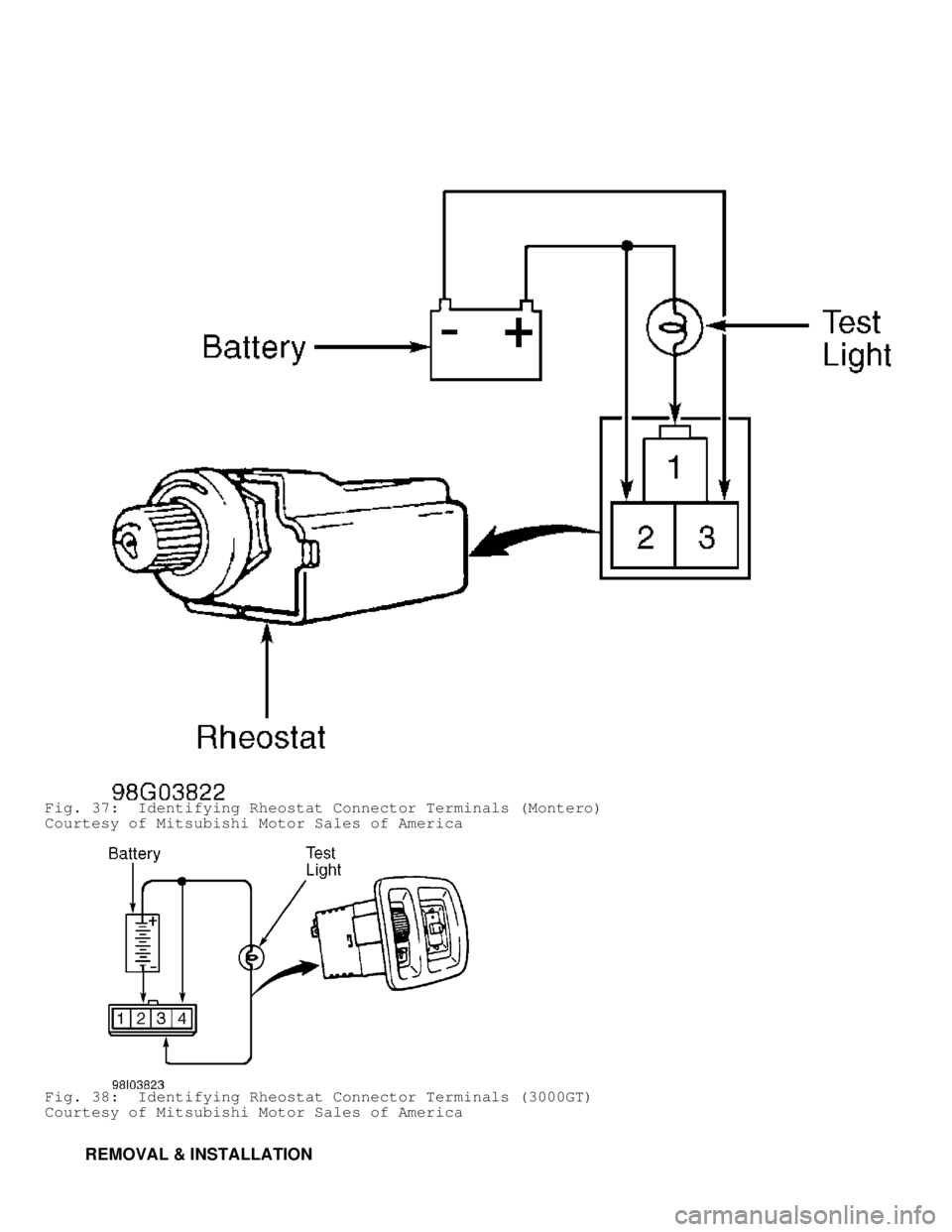

Fig. 35: Identifying Rheostat Connector Terminals (Eclipse & Montero
Sport)
Courtesy of Mitsubishi Motor Sales of America
Fig. 36: Identifying Rheostat Connector Terminals (Galant & Mirage)
Courtesy of Mitsubishi Motor Sales of America
* PLEASE READ THIS FIRST *
WARNING: Deactivate air bag system before performing any service
operation. See AIR BAG RESTRAINT SYSTEMS article. Do not
apply electrical power to any component on steering column
without first deactivating air bag system. Air bag may
deploy.
INSTRUMENT CLUSTER
Removal & Installation (Eclipse, Galant & Mirage)
Disconnect negative battery cable. Remove cluster cover.
Remove cluster mounting screws. Remove cluster by turning upper part
toward front. Disconnect all necessary electrical connectors. Remove
instrument cluster. To install, reverse removal procedure. See Fig. 39
, 40 or 42.

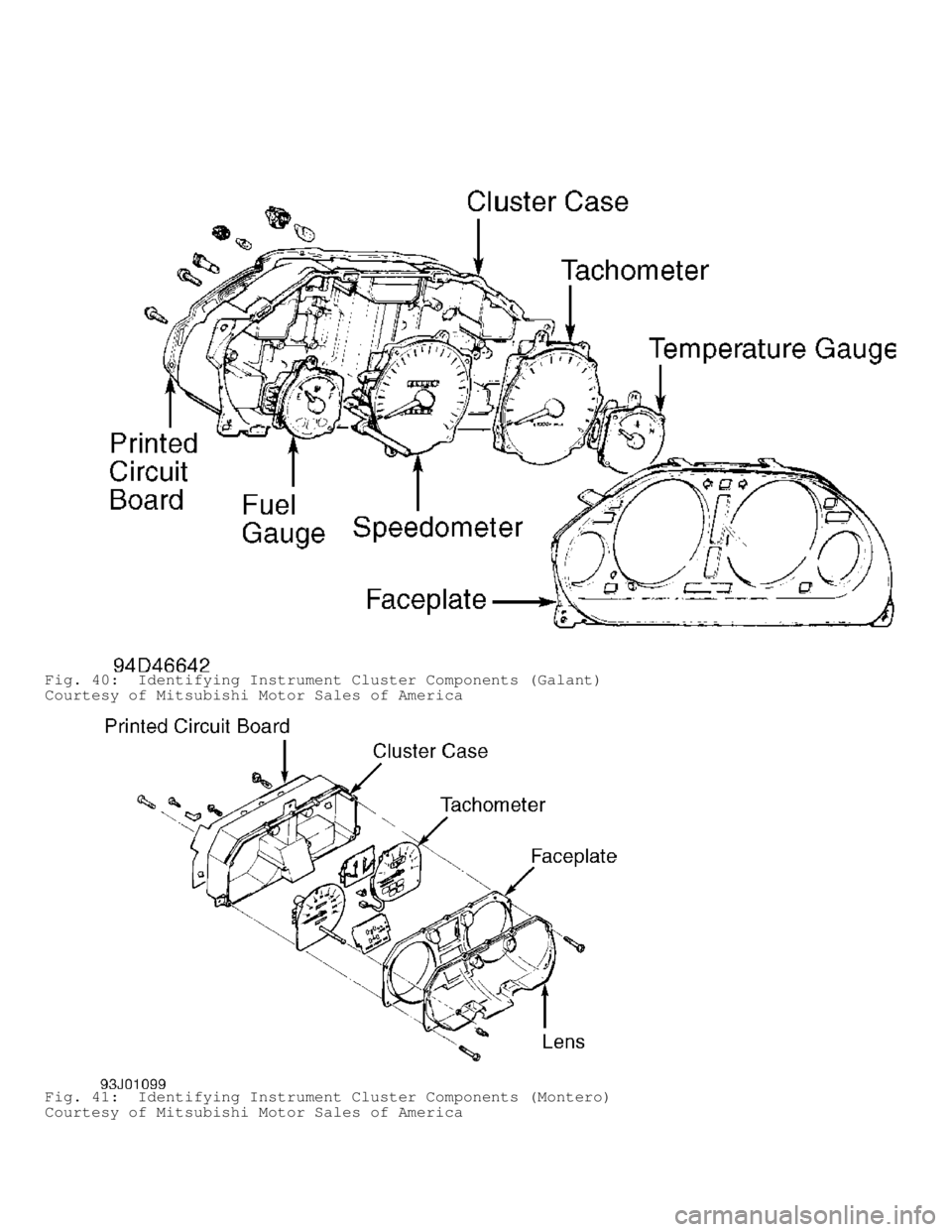

Fig. 39: Identifying Instrument Cluster Components (Eclipse)
Courtesy of Mitsubishi Motor Sales of America
cover plug. Remove cluster cover. Remove screws from instrument
cluster. Disconnect all connectors from back of instrument cluster.
Remove cluster. To install, reverse removal procedure. See Fig. 41.
Removal & Installation (Montero Sport)
Disconnect negative battery cable. Remove instrument cluster
cover. Remove screws from instrument cluster. Disconnect all
connectors attaching cluster. Remove cluster. To install, reverse
removal procedure. See Fig. 43.

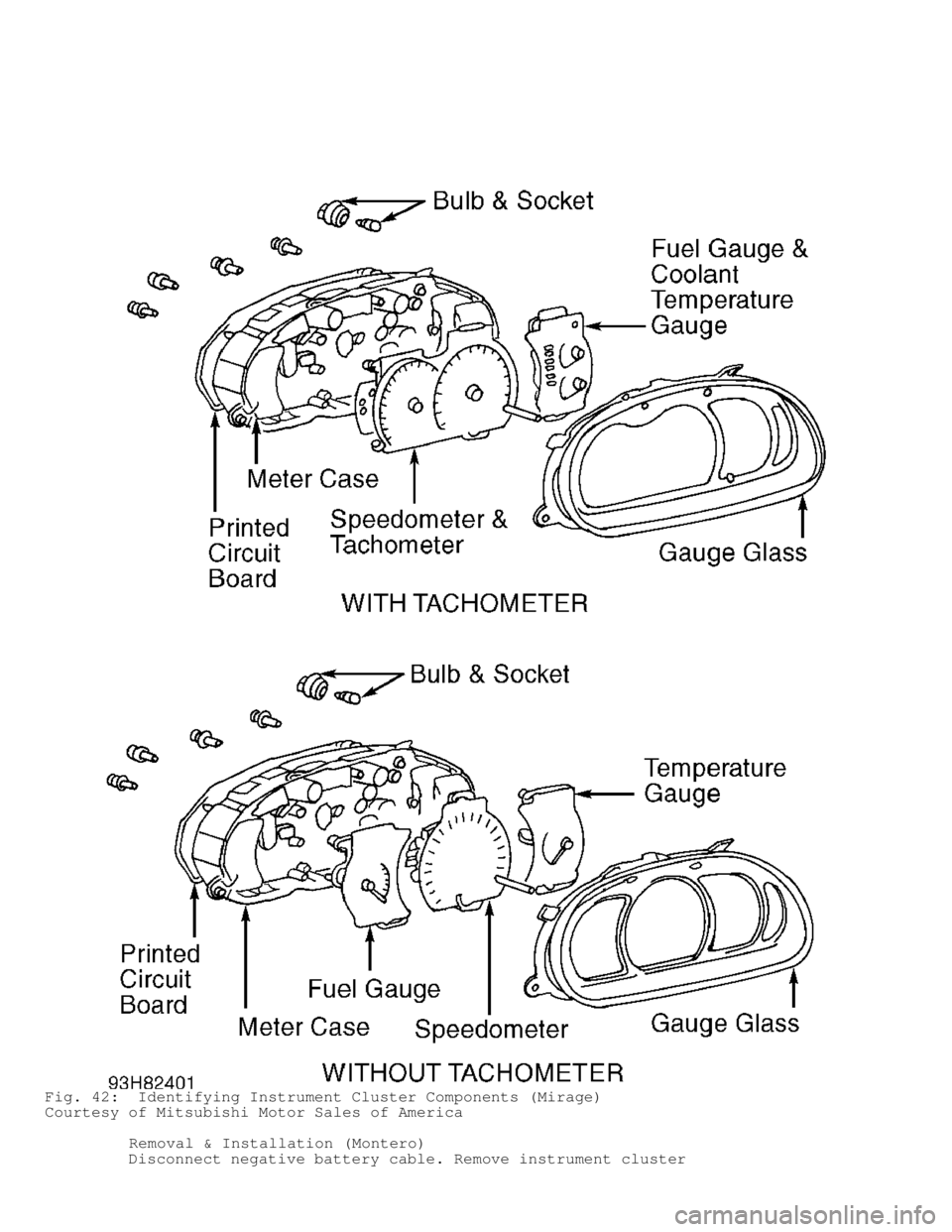

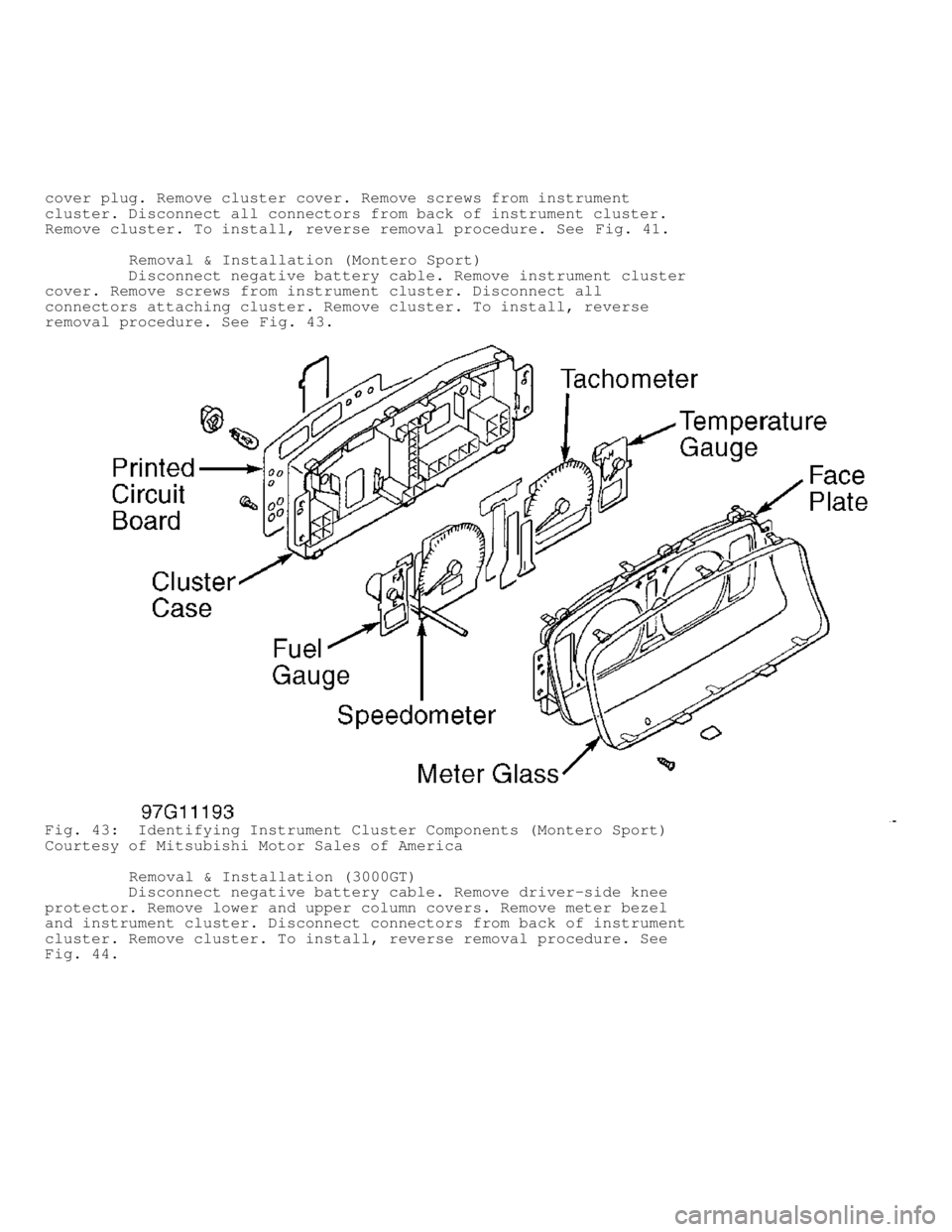

Fig. 43: Identifying Instrument Cluster Components (Montero Sport)
Courtesy of Mitsubishi Motor Sales of America

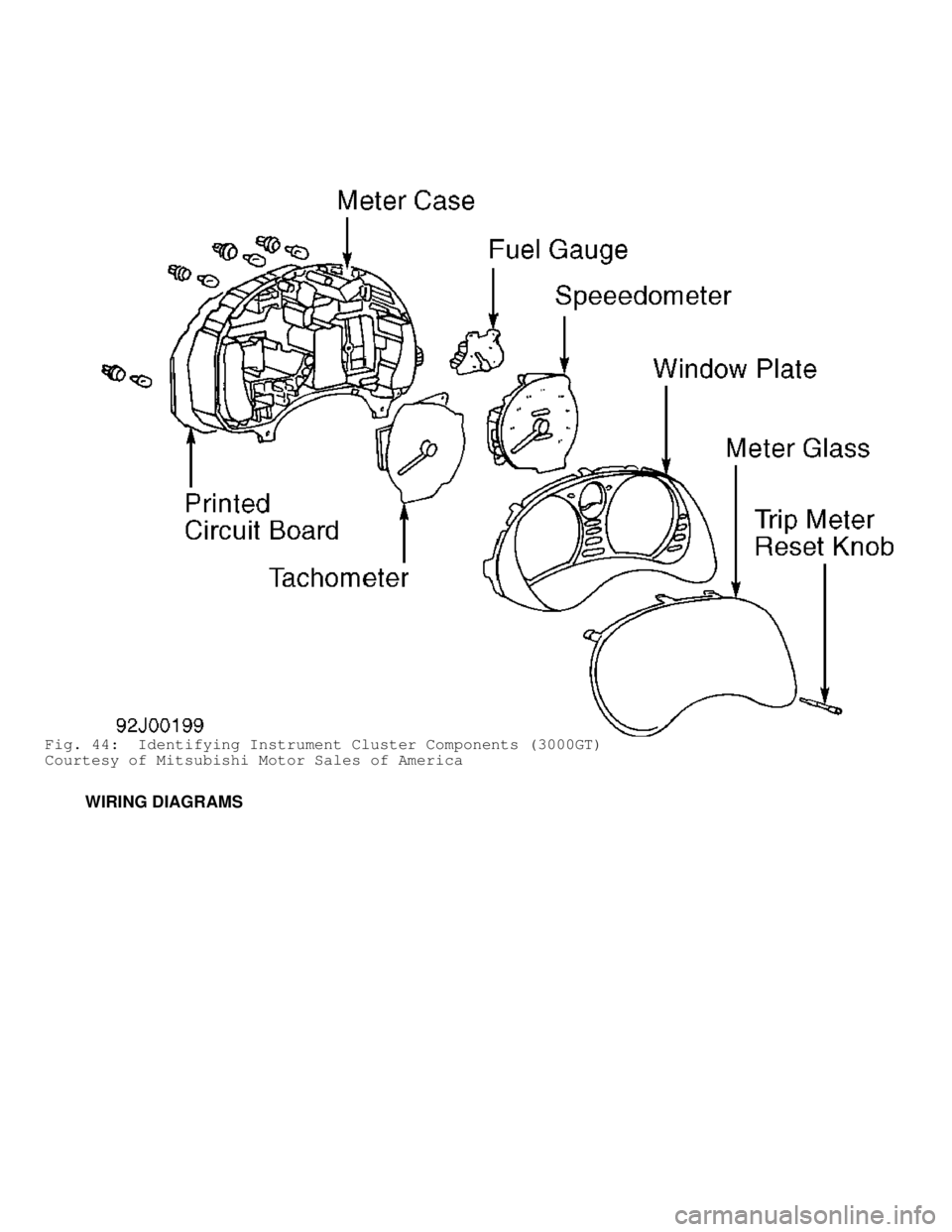

Removal & Installation (3000GT)
Disconnect negative battery cable. Remove driver-side knee
protector. Remove lower and upper column covers. Remove meter bezel
and instrument cluster. Disconnect connectors from back of instrument
cluster. Remove cluster. To install, reverse removal procedure. See
Fig. 44 .
