Multi Information display - Type 2
Features and controls 5-179
5
N00556601193

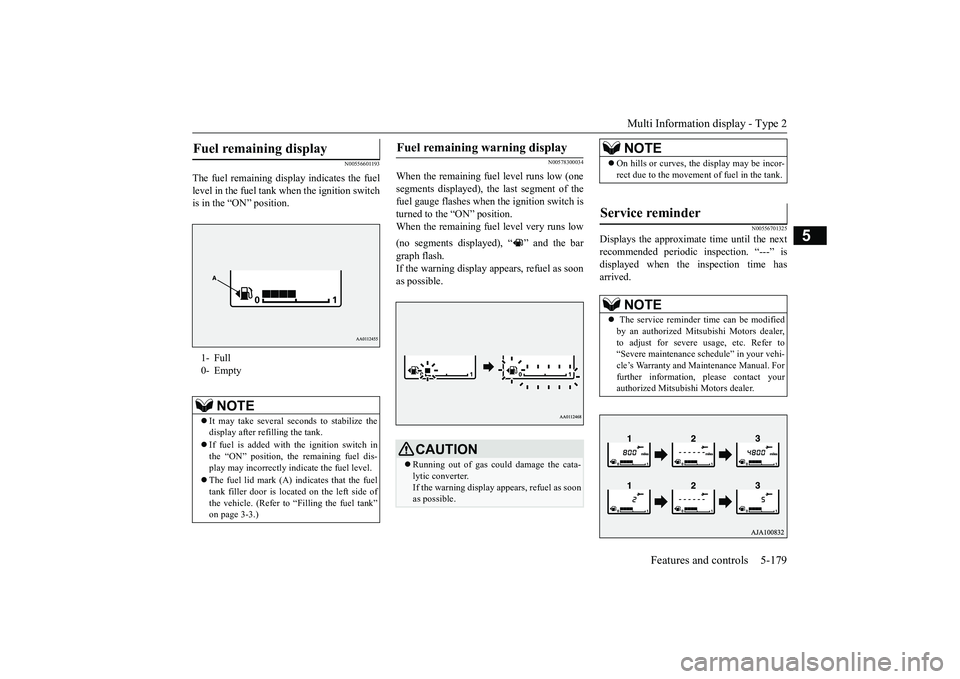

The fuel remain
ing display indicates the fuel
level in the fuel tank when the ignition switch is in the “ON” position.
N00578300034
When the remaining fuel level runs low (one segments displayed), the last segment of the fuel gauge flashes when
the ignition switch is
turned to the “ON” position. When the remaining fuel level very runs low (no segments displayed), “ ” and the bar graph flash. If the warning display a
ppears, refuel as soon
as possible.
N00556701325
Displays the approximate time until the next recommended periodic inspection. “---” isdisplayed when the inspection time has arrived.
Fuel remaining display 1- Full0- Empty
NOTE
 It may take several se
conds to stabilize the
display after refilling the tank.  If fuel is added with the ignition switch in the “ON” position, th
e remaining fuel dis-
play may incorrectly i
ndicate the fuel level.
 The fuel lid mark (A) indicates that the fuel tank filler door is located on the left side ofthe vehicle. (Refer to “Filling the fuel tank” on page 3-3.)
Fuel remaining warning display
CAUTION Running out of gas coul
d damage the cata-
lytic converter.If the warning display appears, refuel as soon as possible.
NOTE
 On hills or curves, the display may be incor- rect due to the movement of fuel in the tank.
Service reminder
NOTE
 The service reminder
time can be modified
by an authorized Mitsubishi Motors dealer,to adjust for severe usage, etc. Refer to “Severe maintenance sc
hedule” in your vehi-
cle’s Warranty and Main
tenance Manual. For
further information,
please contact your
authorized Mitsubish
i Motors dealer.
BK0264300US.book 179 ページ ２０１８年２月２８日　水曜日　午後５時１６分

Multi Information display - Type 2 5-180 Features and controls
5

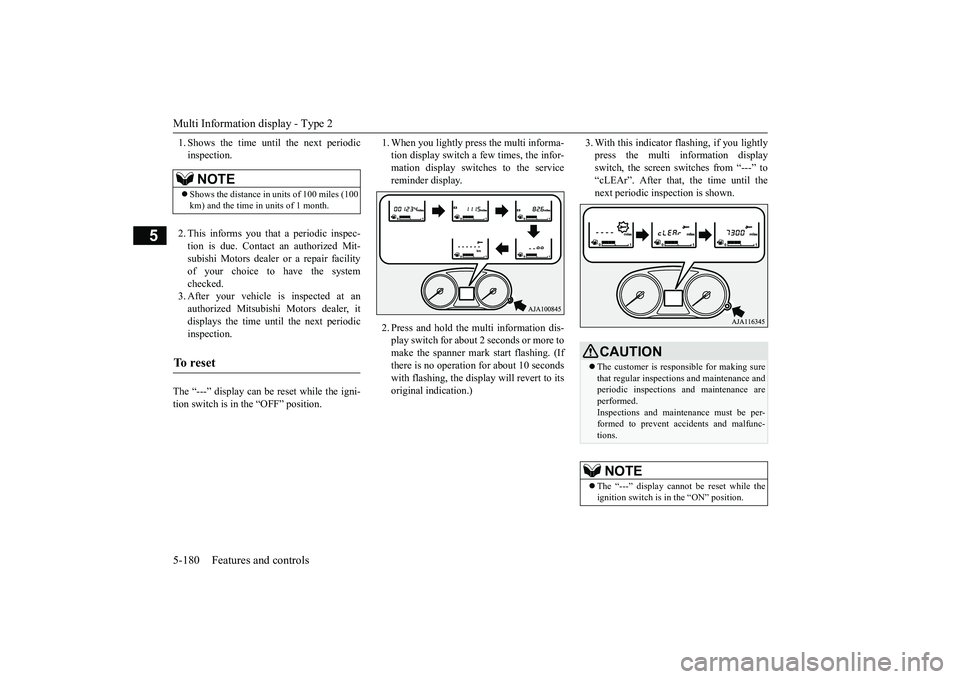

1. Shows the time until the next periodic inspection. 2. This informs you that a periodic inspec- tion is due. Contact
an authorized Mit-
subishi Motors dealer or a repair facilityof your choice to have the system checked. 3. After your vehicle is inspected at anauthorized Mitsubishi Motors dealer, it displays the time until the next periodic inspection.
The “---” display can be reset while the igni- tion switch is in the “OFF” position.
1. When you lightly press the multi informa- tion display switch a few times, the infor-mation display switches to the service reminder display. 2. Press and hold the mu
lti information dis-
play switch for about 2 seconds or more tomake the spanner mark start flashing. (If there is no operation for about 10 seconds with flashing, the display will revert to itsoriginal indication.)
3. With this indicator flashing, if you lightly press the multi information displayswitch, the screen sw
itches from “---” to
“cLEAr”. After that, the time until the next periodic inspection is shown.
NOTE
 Shows the distance in units of 100 miles (100 km) and the time in units of 1 month.
To r e s e t
CAUTION The customer is responsible for making sure that regular inspections
and maintenance and
periodic inspections
and maintenance are
performed.Inspections and mainte
nance must be per-
formed to prevent accidents and malfunc- tions.NOTE
 The “---” display cannot
be reset while the
ignition switch is in the “ON” position.
BK0264300US.book 180 ページ ２０１８年２月２８日　水曜日　午後５時１６分

Multi Information display - Type 2
Features and controls 5-181
5
N00556801209

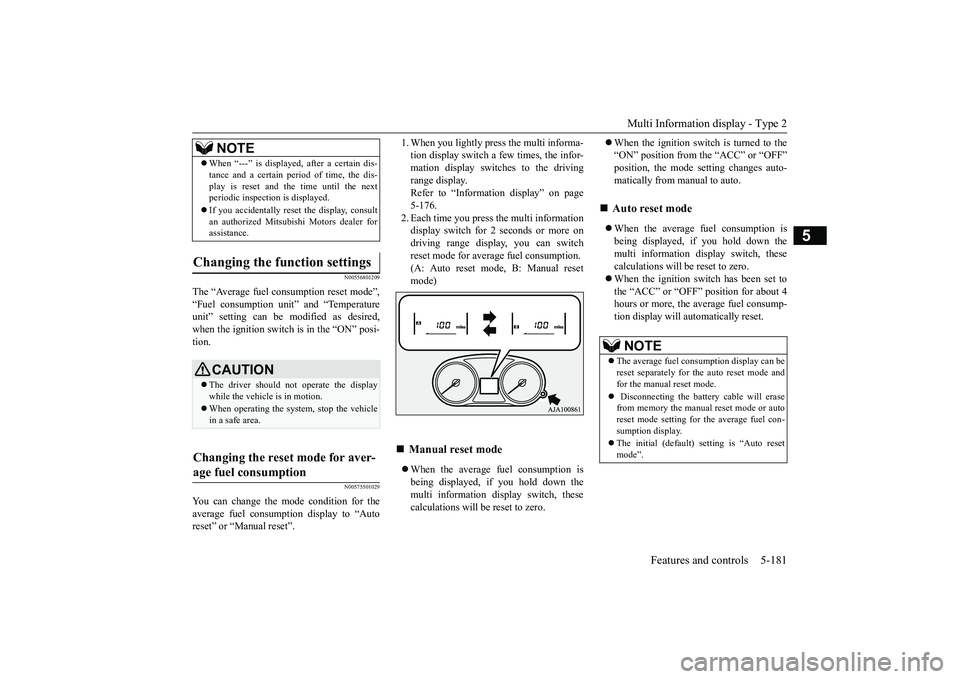

The “Average fuel consumption reset mode”, “Fuel consumption un
it” and “Temperature
unit” setting can be
modified as desired,
when the ignition switch is in the “ON” posi- tion.
N00575501029
You can change the mode condition for theaverage fuel consumption display to “Auto reset” or “Manual reset”.
1. When you lightly press the multi informa- tion display switch a few times, the infor-mation display switches to the driving range display. Refer to “Information display” on page5-176. 2. Each time you press the multi information display switch for 2 seconds or more ondriving range display, you can switch reset mode for average fuel consumption. (A: Auto reset mode, B: Manual reset mode)  When the average fuel consumption is being displayed, if you hold down the multi information display switch, thesecalculations will
be reset to zero.
 When the ignition switch is turned to the “ON” position from the “ACC” or “OFF”position, the mode se
tting changes auto-
matically from manual to auto.  When the average fuel consumption is being displayed, if you hold down themulti information display switch, these calculations will be reset to zero.  When the ignition switch has been set to the “ACC” or “OFF” position for about 4 hours or more, the average fuel consump-tion display will automatically reset.
 When “---” is displaye
d, after a certain dis-
tance and a certain pe
riod of time, the dis-
play is reset and the time until the nextperiodic inspecti
on is displayed.
 If you accidentally rese
t the display, consult
an authorized Mitsubishi Motors dealer for assistance.
Changing the function settings
CAUTION The driver should not operate the display while the vehicle is in motion. When operating the system, stop the vehicle in a safe area.
Changing the reset mode for aver- age fuel consumption
NOTE

Manual reset mode

Auto reset mode NOTE
The average fuel cons
umption display can be
reset separately for the auto reset mode and for the manual reset mode.  Disconnecting the batt
ery cable will erase
from memory the manual reset mode or auto reset mode setting for the average fuel con-sumption display.  The initial (default) setting is “Auto reset mode”.
BK0264300US.book 181 ページ ２０１８年２月２８日　水曜日　午後５時１６分

Multi Information display - Type 2 5-182 Features and controls
5
N00557101179

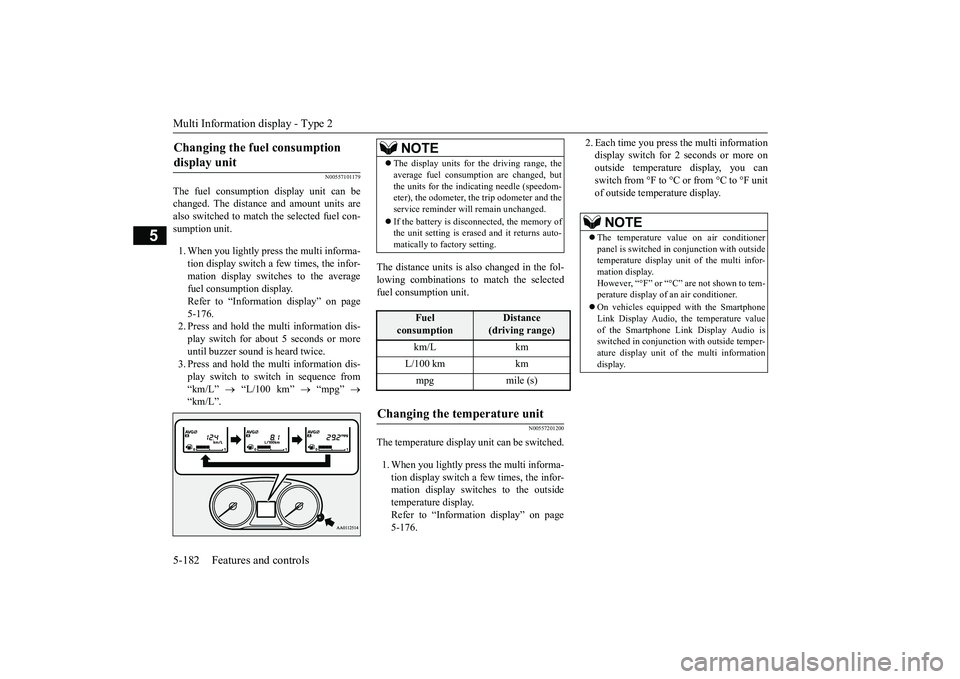

The fuel consumption display unit can be changed. The distance and amount units are also switched to match the selected fuel con- sumption unit. 1. When you lightly press the multi informa- tion display switch a few times, the infor- mation display switches to the average fuel consumption display. Refer to “Information display” on page 5-176.2. Press and hold the multi information dis- play switch for about 5 seconds or more until buzzer sound is
heard twice.
3. Press and hold the multi information dis- play switch to swit
ch in sequence from
“km/L”
 “L/100 km”
 “mpg”

“km/L”.
The distance units is also changed in the fol- lowing combinations to match the selected fuel consumption unit.
N00557201200
The temperature display unit can be switched. 1. When you lightly press the multi informa- tion display switch a few times, the infor- mation display switches to the outsidetemperature display. Refer to “Information display” on page 5-176.
2. Each time you press the multi information display switch for 2 seconds or more onoutside temperatur
e display, you can
switch from °F to °C or from °C to °F unit of outside temperature display.
Changing the fuel consumption display unit
NOTE
 The display units for the driving range, the average fuel consumption are changed, butthe units for the indica
ting needle (speedom-
eter), the odometer, the trip odometer and the service reminder will
remain unchanged.
 If the battery is disconnected, the memory of the unit setting is erased and it returns auto- matically to factory setting.
Fuel
consumption
Distance
(driving range)
km/L km L/100 km km mpg mile (s)
Changing the temperature unit
NOTE
 The temperature value on air conditioner panel is switched in
conjunction with outside
temperature display unit of the multi infor- mation display.However, “°F” or “°C” are not shown to tem- perature display of
an air conditioner.
 On vehicles equippe
d with the Smartphone
Link Display Audio, the temperature value of the Smartphone Li
nk Display Audio is
switched in conjunction
with outside temper-
ature display unit of
the multi information
display.
BK0264300US.book 182 ページ ２０１８年２月２８日　水曜日　午後５時１６分

Indicator light, warning light, and information screen display list (multi information display - Type 1)
Features and controls 5-183
5
N00557701074 N00557801349

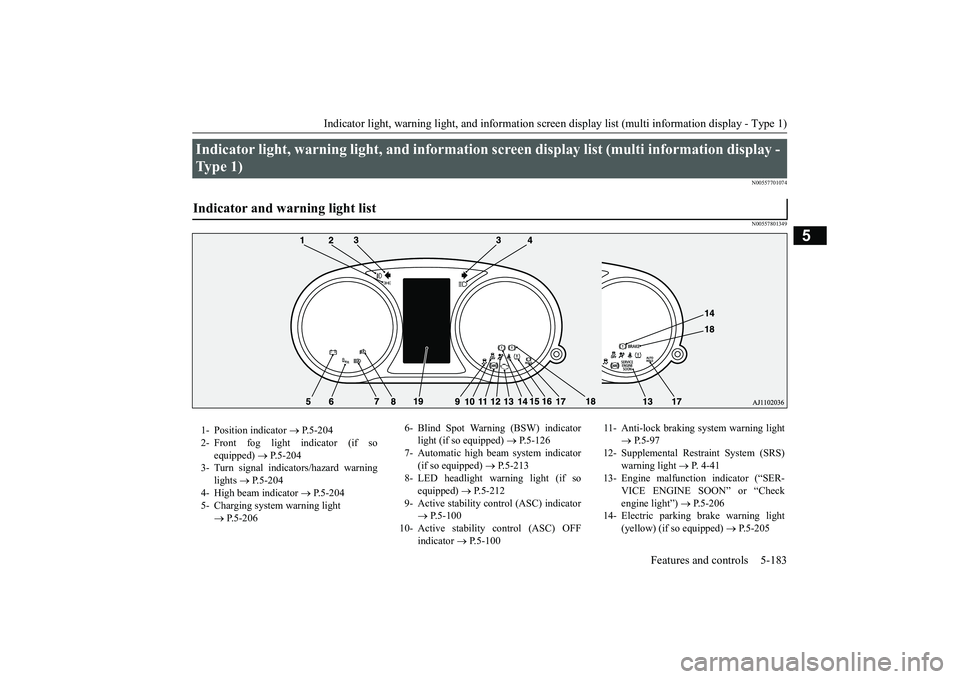

Indicator light, warning light, and information
screen display list (multi information display -
Type 1) Indicator and warning light list 1- Position indicator
 P.5-204
2- Front fog light indicator (if so
equipped)
 P.5-204
3- Turn signal indicators/hazard warning
lights
 P.5-204
4- High beam indicator
 P.5-204
5- Charging system warning light
 P.5-206
6- Blind Spot Warning (BSW) indicator
light (if so equipped)
 P.5-126
7- Automatic high beam system indicator
(if so equipped)
 P.5-213
8- LED headlight warning light (if so
equipped)
 P.5-212
9- Active stability control (ASC) indicator
 P.5-100
10- Active stability
control (ASC) OFF
indicator
 P.5-100
11- Anti-lock braking
system warning light
 P.5-97
12- Supplemental Restra
int System (SRS)
warning light
 P. 4 - 4 1
13- Engine malfuncti
on indicator (“SER-
VICE ENGINE SOON” or “Check engine light”)
 P.5-206
14- Electric parking
brake warning light
(yellow) (if so equipped)
 P.5-205
BK0264300US.book 183 ページ ２０１８年２月２８日　水曜日　午後５時１６分

Indicator light, warning light, and information screen display list (multi information display - Type 1) 5-184 Features and controls
5
N00557901119
When there is information to be announced,
such as light reminder, the
tone sounds and the screen sw
itches to the displays show
n below. Refer to
the appropriate page and ta
ke the necessary measures.
When the cause of the warning display is elimin
ated, the warning displa
y goes out automatically.
Refer to Warning disp
lay list on page 5-185.
Refer to Other interrupt displays on page 5-199. 15- Seat belt remi
nder/warning light
 P.4-23
16- Tire pressure monitoring system warn-
ing light
 P.5-140
17- Brake auto hold indicator (if so
equipped)
 P.5-92
18- Brake warning light (red)
 P.5-205
19- Information screen display list
 P.5-184

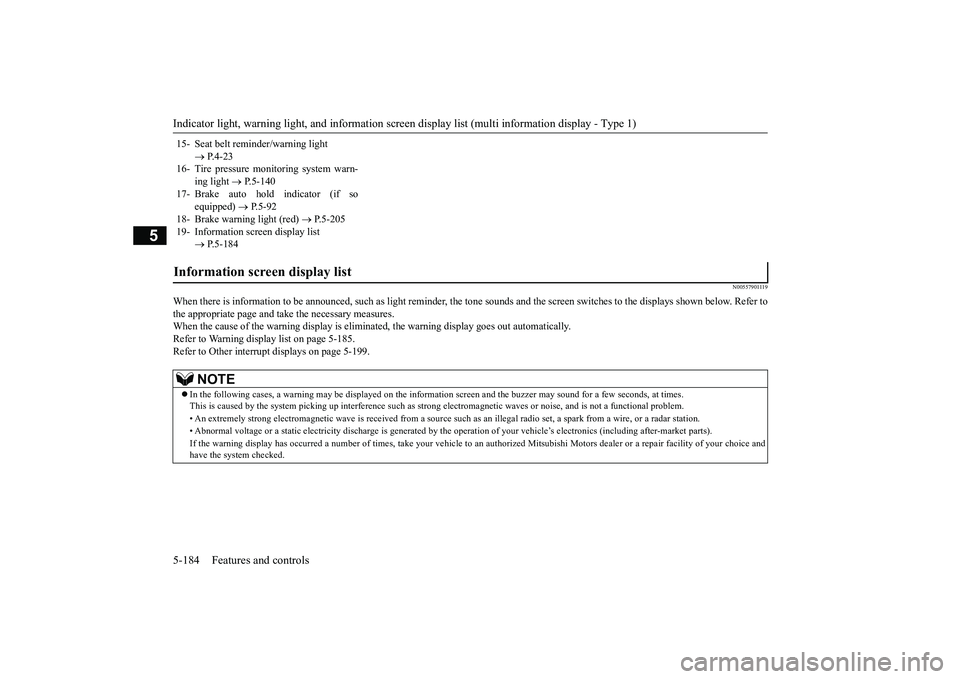

Information screen display list
NOTE
In the following cases, a warning may be
displayed on the information screen and th
e buzzer may sound for a
few seconds, at tim
es.
This is caused by the system picking up in
terference such as strong el
ectromagnetic waves
or noise, and is not a functional pro
blem.
• An extremely strong electrom
agnetic wave is received from a s
ource such as an illegal radio se
t, a spark from a wire, or a rad
ar station.
• Abnormal voltage or a static
electricity disc
harge is generated by the operation of
your vehicle’s electr
onics (including afte
r-market parts).
If the warning display has oc
curred a number of times, take your
vehicle to an author
ized Mitsubishi Motors
dealer or a repair
facility of your choice and
have the system checked.
BK0264300US.book 184 ページ ２０１８年２月２８日　水曜日　午後５時１６分

Indicator light, warning light, and information screen display list (multi information display - Type 1)
Features and controls 5-185
5
N00558001335

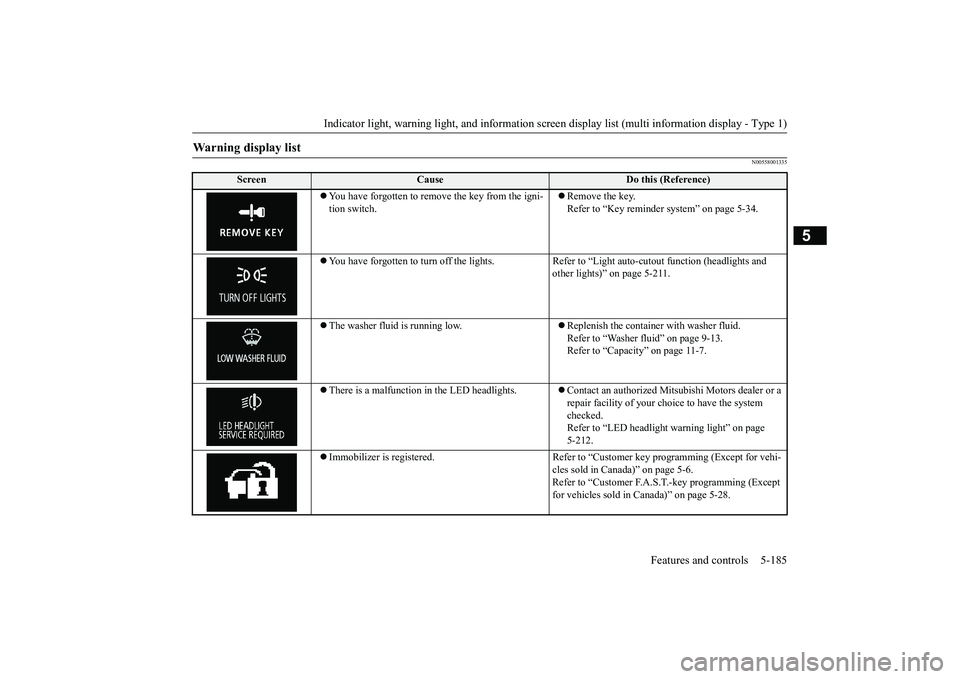

Warning display list
Screen
Cause
Do this (Reference)
 You have forgotten to rem
ove the key from the igni-
tion switch.
 Remove the key. Refer to “Key reminder system” on page 5-34.
 You have forgotten to turn off
the lights. Refer to “Light auto
-cutout function (headlights and
other lights)” on page 5-211.
 The washer fluid is running low.
Replenish the container with washer fluid. Refer to “Washer fluid” on page 9-13.Refer to “Capacity” on page 11-7.
 There is a malfunction
in the LED headlights.
Contact an authorized Mitsubishi Motors dealer or a repair facility of your choi
ce to have the system
checked. Refer to “LED headlight
warning light” on page
5-212.
 Immobilizer is registered. Refer to “Cus
tomer key programming (Except for vehi-
cles sold in Canada)” on page 5-6. Refer to “Customer F.A.S.
T.-key programming (Except
for vehicles sold in Canada)” on page 5-28.
BK0264300US.book 185 ページ ２０１８年２月２８日　水曜日　午後５時１６分

Indicator light, warning light, and information screen display list (multi information display - Type 1) 5-186 Features and controls
5

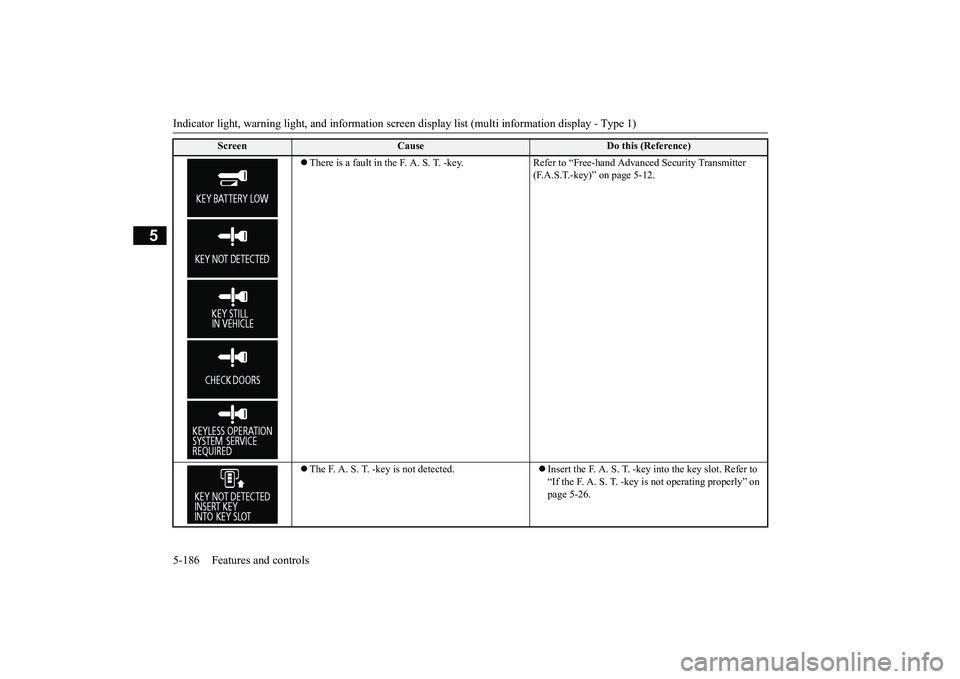

 There is a fault in the F. A. S. T. -key. Refer to “Free-hand Advanced Security Transmitter
(F.A.S.T.-key)” on page 5-12.
 The F. A. S. T. -key is not detected.
Insert the F. A. S. T. -key
into the key slot. Refer to
“If the F. A. S. T. -key is not operating properly” on page 5-26.
Screen
Cause
Do this (Reference)
BK0264300US.book 186 ページ ２０１８年２月２８日　水曜日　午後５時１６分

Indicator light, warning light, and information screen display list (multi information display - Type 1)
Features and controls 5-187
5

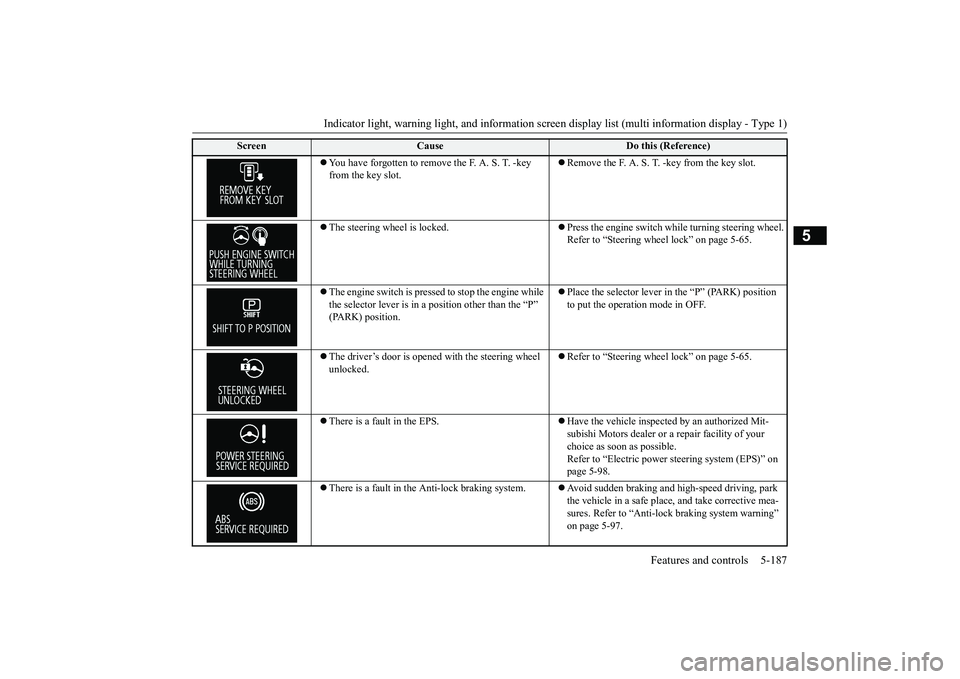

 You have forgotten to remove
the F. A. S. T. -key
from the key slot.
 Remove the F. A. S. T.
-key from the key slot.
 The steering wheel is locked.
Press the engine switch wh
ile turning steering wheel.
Refer to “Steering wheel lock” on page 5-65.
 The engine switch is presse
d to stop the engine while
the selector lever is in a position other than the “P” (PARK) position.
 Place the selector lever in
the “P” (PARK) position
to put the operati
on mode in OFF.
 The driver’s door is opened with the steering wheel unlocked.
 Refer to “Steering wheel lock” on page 5-65.
 There is a fault in the EPS.
Have the vehicle inspected by an authorized Mit- subishi Motors dealer or a
repair facility of your
choice as soon as possible. Refer to “Electric power
steering system (EPS)” on
page 5-98.
 There is a fault in the Anti-lock braking system.
Avoid sudden braking and hi
gh-speed driving, park
the vehicle in a safe place, and take corrective mea- sures. Refer to “Anti-lock braking system warning” on page 5-97.
Screen
Cause
Do this (Reference)
BK0264300US.book 187 ページ ２０１８年２月２８日　水曜日　午後５時１６分

Indicator light, warning light, and information screen display list (multi information display - Type 1) 5-188 Features and controls
5

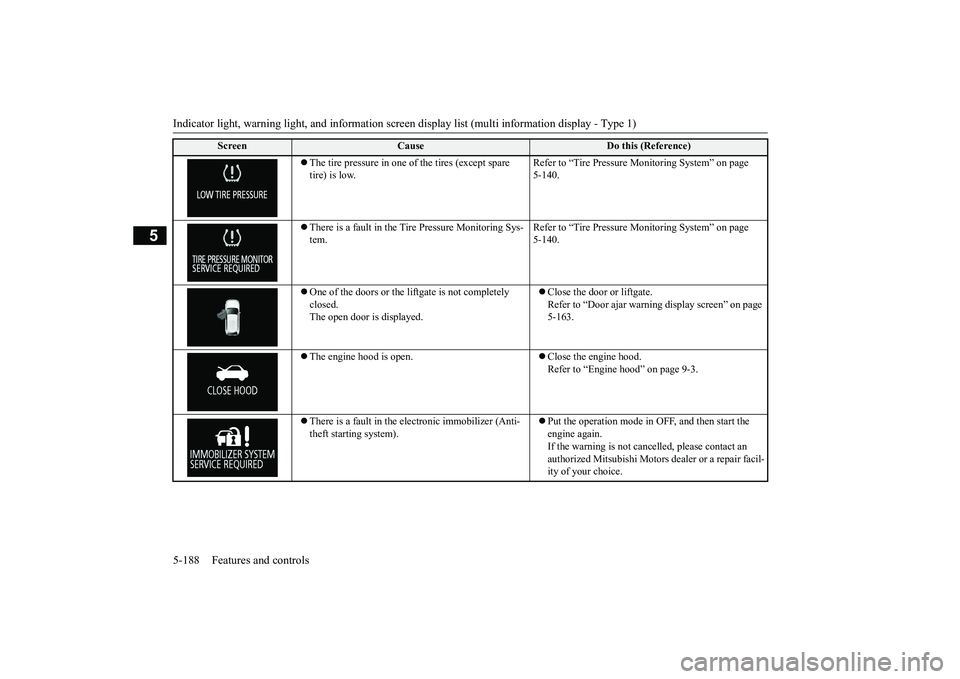

 The tire pressure in one of the tires (except spare tire) is low.
Refer to “Tire Pressure Monitoring System” on page 5-140.
 There is a fault in the Tire Pressure Monitoring Sys- tem.
Refer to “Tire Pressure Monitoring System” on page 5-140.
 One of the doors or the liftgate is not completely closed.The open door is displayed.
 Close the door or liftgate. Refer to “Door ajar warnin
g display screen” on page
5-163.
 The engine hood is open.
Close the engine hood. Refer to “Engine hood” on page 9-3.
 There is a fault in the electronic immobilizer (Anti- theft starting system).
 Put the operation mode in OFF, and then start the engine again. If the warning is not cancel
led, please contact an
authorized Mitsubishi Motors dealer or a repair facil-ity of your choice.
Screen
Cause
Do this (Reference)
BK0264300US.book 188 ページ ２０１８年２月２８日　水曜日　午後５時１６分
