MITSUBISHI OUTLANDER 2019 Owner's Manual (in English)

Indicator light, warning light, and information screen display list (multi information display - Type 1)
Features and controls 5-199
5
N00558201395
The operation status of each syst
em is displayed on the informat
ion screen. For furthe
r details, refer to
the appropriate page
for each system.

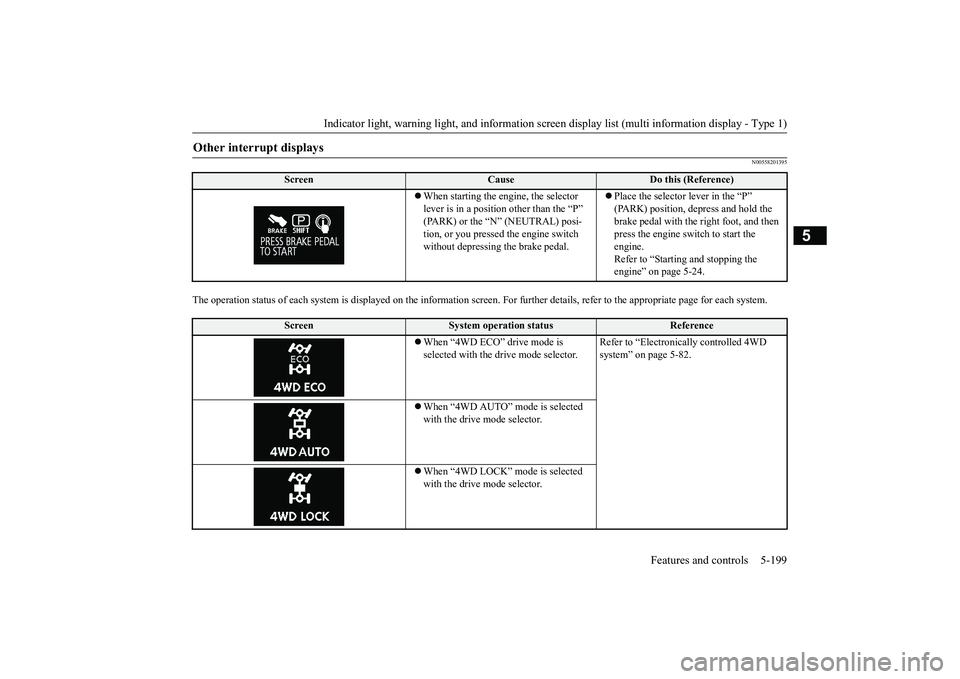

Other interrupt displays
Screen
Cause
Do this (Reference)
 When starting the engine, the selector lever is in a positi
on other than the “P”
(PARK) or the “N” (NEUTRAL) posi-tion, or you pressed the engine switch without depressing the brake pedal.
 Place the selector lever in the “P” (PARK) position, depress and hold the brake pedal with the right foot, and then press the engine switch to start the engine. Refer to “Starting and stopping the engine” on page 5-24.
Screen
System operation status
Reference
 When “4WD ECO” drive mode is selected with the drive mode selector.
Refer to “Electronica
lly controlled 4WD
system” on page 5-82.
 When “4WD AUTO” mode is selected with the drive mode selector.  When “4WD LOCK” mode is selected with the drive mode selector.
BK0264300US.book 199 ページ ２０１８年２月２８日　水曜日　午後５時１６分

Indicator light, warning light, and information screen display list (multi information display - Type 1) 5-200 Features and controls
5

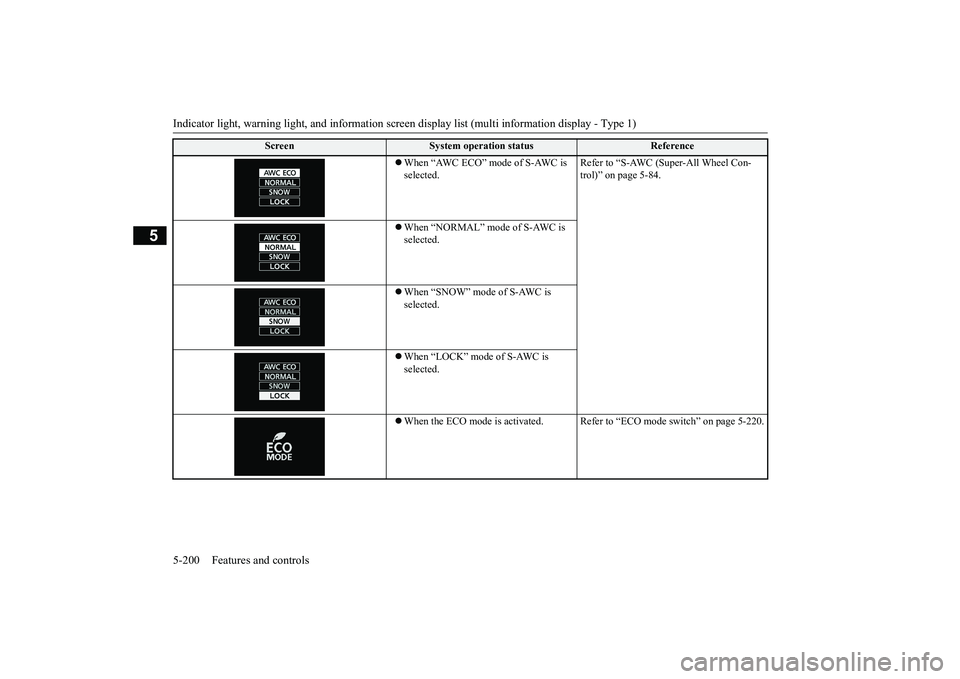

 When “AWC ECO” mode of S-AWC is selected.
Refer to “S-AWC (Super-All Wheel Con- trol)” on page 5-84.
 When “NORMAL” mode of S-AWC is selected.  When “SNOW” mode of S-AWC is selected.  When “LOCK” mode of S-AWC is selected.  When the ECO mode is ac
tivated. Refer to “ECO m
ode switch” on page 5-220.
Screen
System operation status
Reference
BK0264300US.book 200 ページ ２０１８年２月２８日　水曜日　午後５時１６分

Indicator light, warning light, and information screen display list (multi information display - Type 1)
Features and controls 5-201
5

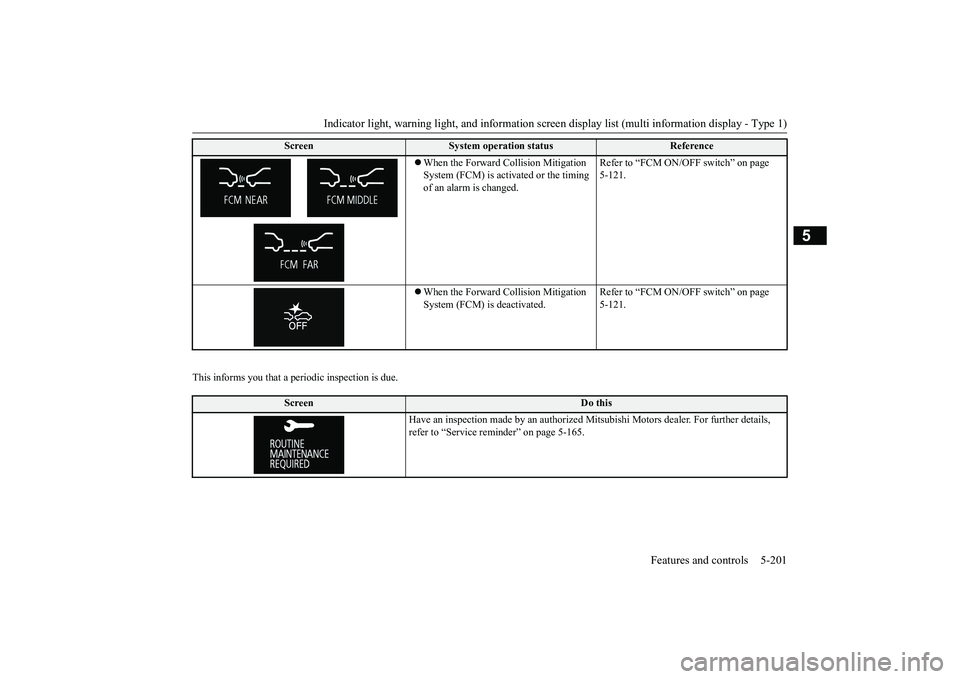

This informs you that a periodic inspection is due.
 When the Forward Collision Mitigation System (FCM) is acti
vated or the timing
of an alarm is changed.
Refer to “FCM ON/OFF switch” on page 5-121.
 When the Forward Collision Mitigation System (FCM) is deactivated.
Refer to “FCM ON/OFF switch” on page 5-121.
Screen
Do this
Have an inspection made by an authorized Mi
tsubishi Motors dealer
. For further details,
refer to “Service remin
der” on page 5-165.
Screen
System operation status
Reference
BK0264300US.book 201 ページ ２０１８年２月２８日　水曜日　午後５時１６分

Indicator light, warning light, and information screen display list (multi information display - Type 1) 5-202 Features and controls
5

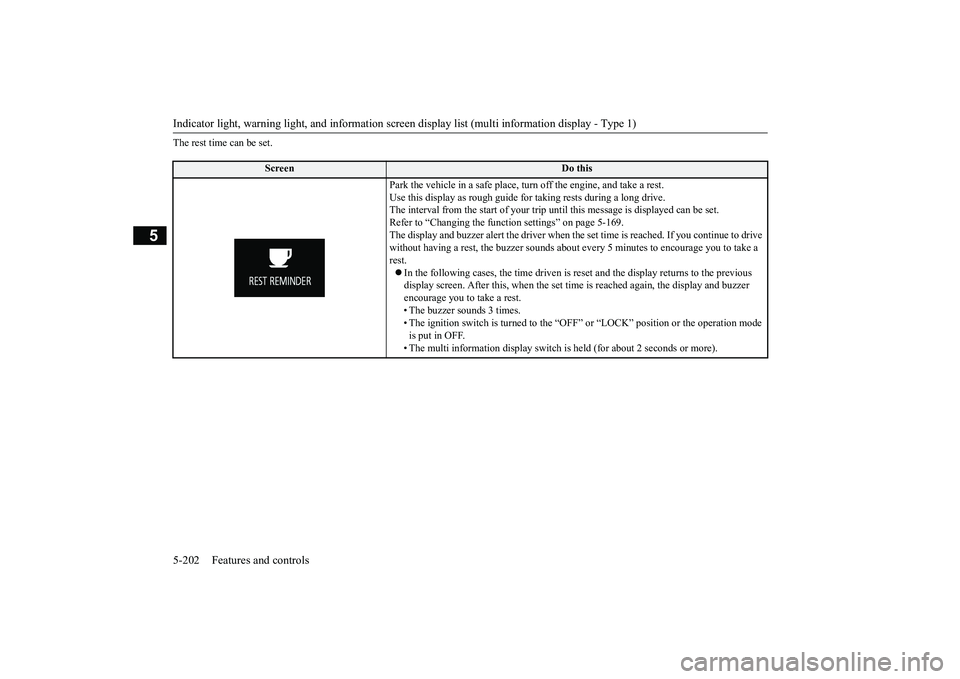

The rest time can be set.
Screen
Do this
Park the vehicle in a safe place, tu
rn off the engine,
and take a rest.
Use this display as rough guide
for taking rests during a long drive.
The interval from the start of your trip
until this message is
displayed can be set.
Refer to “Changing the function settings” on page 5-169. The display and buzzer alert the driver when th
e set time is reached.
If you continue to drive
without having a rest, the buzzer sounds about
every 5 minutes to encourage you to take a
rest.  In the following cases, the time driven is reset and the display returns to the previous display screen. After this, when the set time
is reached again,
the display and buzzer
encourage you to take a rest. • The buzzer sounds 3 times.• The ignition switch is turned to the “OFF”
or “LOCK” position or the operation mode
is put in OFF. • The multi information display switch is
held (for about 2 seconds or more).
BK0264300US.book 202 ページ ２０１８年２月２８日　水曜日　午後５時１６分

Indicator and warning light package (multi information display - Type 2)
Features and controls 5-203
5
N00519801921

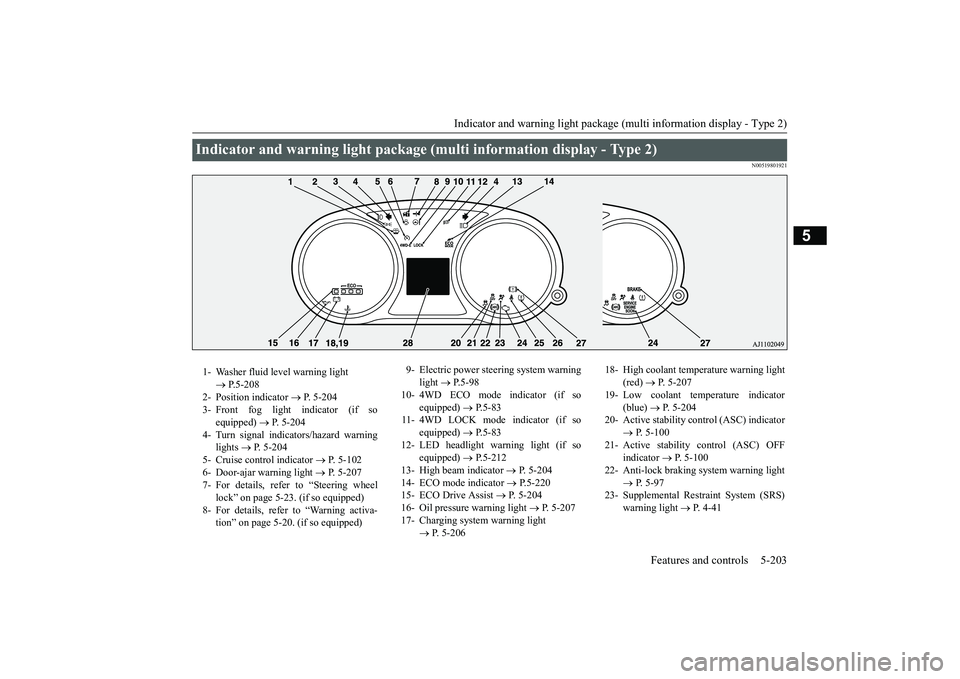

Indicator and warning light package (mu
lti information display - Type 2)
1- Washer fluid level warning light
 P.5-208
2- Position indicator
 P. 5-204
3- Front fog light indicator (if so
equipped)
 P. 5-204
4- Turn signal indicators/hazard warning
lights
 P. 5-204
5- Cruise control indicator
 P. 5-102
6- Door-ajar warning light
 P. 5-207
7- For details, refer to “Steering wheel
lock” on page 5-23. (if so equipped)
8- For details, refer to “Warning activa-
tion” on page 5-20. (if so equipped)
9- Electric power steering system warning
light
 P.5-98
10- 4WD ECO mode indicator (if so
equipped)
 P.5-83
11- 4WD LOCK mode indicator (if so
equipped)
 P.5-83
12- LED headlight warning light (if so
equipped)
 P.5-212
13- High beam indicator
 P. 5-204
14- ECO mode indicator
 P.5-220
15- ECO Drive Assist
 P. 5-204
16- Oil pressure warning light
 P. 5-207
17- Charging system warning light
 P. 5-206
18- High coolant temperature warning light
(red)
 P. 5-207
19- Low coolant temp
erature indicator
(blue)
 P. 5-204
20- Active stability control (ASC) indicator
 P. 5-100
21- Active stability control (ASC) OFF
indicator
 P. 5-100
22- Anti-lock braking system warning light
 P. 5-97
23- Supplemental Restra
int System (SRS)
warning light
 P. 4 - 4 1
BK0264300US.book 203 ページ ２０１８年２月２８日　水曜日　午後５時１６分

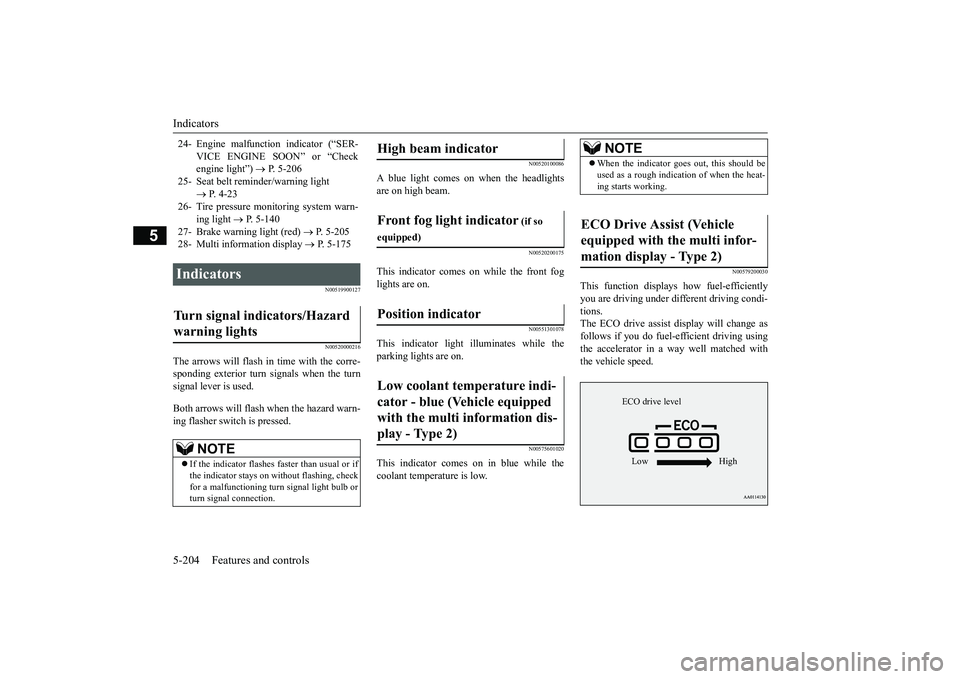

Indicators 5-204 Features and controls
5
N00519900127 N00520000216
The arrows will flash in time with the corre- sponding exterior turn signals when the turnsignal lever is used. Both arrows will flash
when the hazard warn-
ing flasher swit
ch is pressed.
N00520100086
A blue light comes on when the headlights are on high beam.
N00520200175
This indicator comes on while the front foglights are on.
N00551301078
This indicator light illuminates while theparking lights are on.
N00575601020
This indicator comes on in blue while thecoolant temperature is low.
N00579200030
This function displays
how fuel-efficiently
you are driving under different driving condi- tions. The ECO drive assist di
splay will change as
follows if you do fuel-efficient driving using the accelerator in a way well matched with the vehicle speed.
24- Engine malfuncti
on indicator (“SER-
VICE ENGINE SOON” or “Check engine light”)
 P. 5-206
25- Seat belt remi
nder/warning light
 P. 4-23
26- Tire pressure moni
toring system warn-
ing light
 P. 5-140
27- Brake warning light (red)
 P. 5-205
28- Multi information display
 P. 5-175
Indicators Turn signal indicators/Hazard warning lights
NOTE
 If the indicator flashes faster than usual or if the indicator stays on wi
thout flashing, check
for a malfunctioning turn signal light bulb or turn signal connection.
High beam indicator Front fog light indicator
(if so
equipped)Position indicator Low coolant temperature indi- cator - blue (Vehicle equipped with the multi information dis- play - Type 2)
NOTE
 When the indicator go
es out, this should be
used as a rough indication of when the heat-ing starts working.
ECO Drive Assist (Vehicle equipped with the multi infor-mation display - Type 2)
ECO drive level Low High
BK0264300US.book 204 ページ ２０１８年２月２８日　水曜日　午後５時１６分

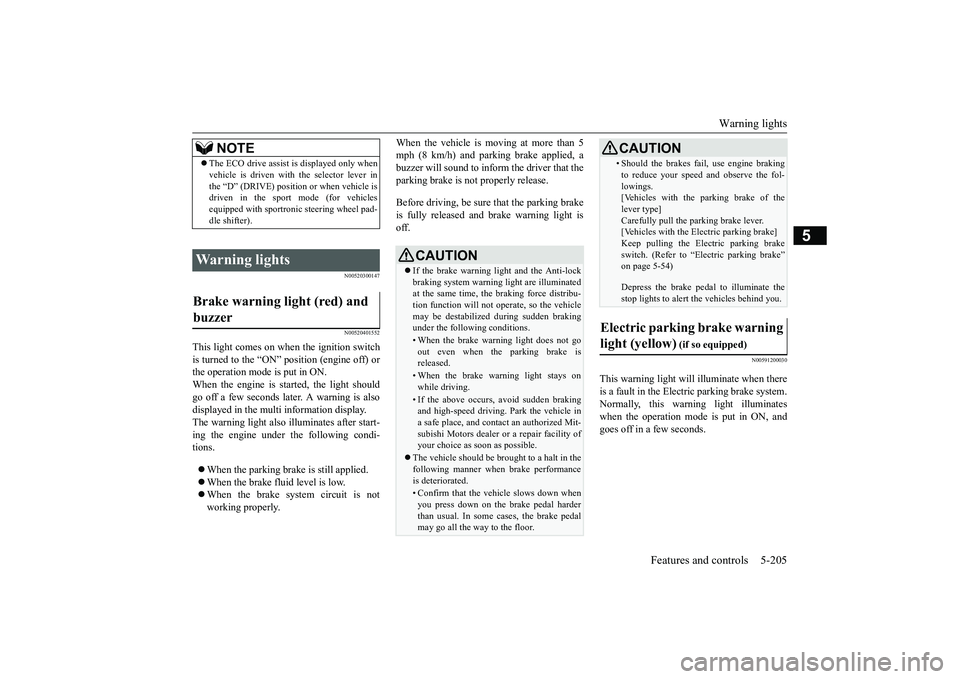

Warning lights
Features and controls 5-205
5
N00520300147 N00520401552
This light comes on when the ignition switch is turned to the “ON” position (engine off) orthe operation mode is put in ON. When the engine is started, the light should go off a few seconds later. A warning is alsodisplayed in the multi information display. The warning light also illuminates after start- ing the engine under the following condi-tions.  When the parking brake is still applied.  When the brake fluid level is low.  When the brake system circuit is not working properly.
When the vehicle is moving at more than 5 mph (8 km/h) and parking brake applied, abuzzer will sound to inform the driver that the parking brake is not properly release. Before driving, be sure that the parking brake is fully released and brake warning light isoff.
N00591200030
This warning light will illuminate when there is a fault in the Electr
ic parking brake system.
Normally, this warning light illuminateswhen the operation mode is put in ON, and goes off in a few seconds.
NOTE
 The ECO drive assist is displayed only when vehicle is driven with the selector lever inthe “D” (DRIVE) position or when vehicle isdriven in the sport mode (for vehicles equipped with sportroni
c steering wheel pad-
dle shifter).
Warning lights Brake warning light (red) and buzzer
CAUTION If the brake warning light and the Anti-lock braking system warning
light are illuminated
at the same time, the braking force distribu- tion function will not ope
rate, so the vehicle
may be destabilized during sudden brakingunder the following conditions.• When the brake warning light does not goout even when the parking brake is released.• When the brake warning light stays onwhile driving.• If the above occurs, avoid sudden brakingand high-speed driving. Park the vehicle in a safe place, and contact an authorized Mit-subishi Motors dealer or a repair facility of your choice as soon as possible.
 The vehicle should be brought to a halt in the following manner when brake performance is deteriorated.• Confirm that the vehicle slows down whenyou press down on the brake pedal harderthan usual. In some cases, the brake pedal may go all the way to the floor.
• Should the brakes fail, use engine braking to reduce your speed and observe the fol-lowings.[Vehicles with the parking brake of the lever type] Carefully pull the pa
rking brake lever.
[Vehicles with the Electric parking brake] Keep pulling the Elec
tric parking brake
switch. (Refer to “Electric parking brake”on page 5-54) Depress the brake pedal to illuminate the stop lights to alert th
e vehicles behind you.
Electric parking brake warning light (yellow)
(if so equipped)
CAUTION
BK0264300US.book 205 ページ ２０１８年２月２８日　水曜日　午後５時１６分

Warning lights 5-206 Features and controls
5

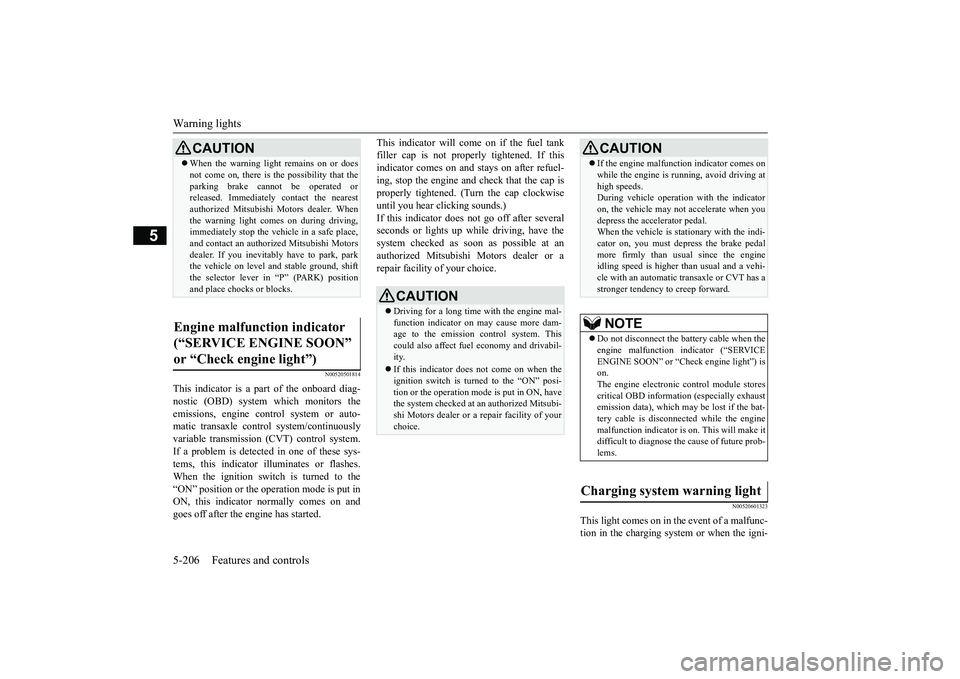

N00520501814
This indicator is a pa
rt of the onboard diag-
nostic (OBD) system which monitors the emissions, engine control system or auto- matic transaxle control system/continuouslyvariable transmission (CVT) control system. If a problem is detected in one of these sys- tems, this indicator illuminates or flashes.When the ignition switch is turned to the “ON” position or the ope
ration mode is put in
ON, this indicator
normally comes on and
goes off after the engine has started.
This indicator will come on if the fuel tank filler cap is not properly tightened. If thisindicator comes on and stays on after refuel- ing, stop the engine and check that the cap is properly tightened. (Turn the cap clockwiseuntil you hear clicking sounds.) If this indicator does not go off after several seconds or lights up while driving, have thesystem checked as soon as possible at an authorized Mitsubishi Motors dealer or a repair facility of your choice.
N00520601323
This light comes on in the event of a malfunc-tion in the charging system or when the igni-
CAUTION When the warning light remains on or does not come on, there is the possibility that theparking brake cannot
be operated or
released. Immediately contact the nearest authorized Mitsubishi
Motors dealer. When
the warning light comes on during driving,immediately stop the vehi
cle in a safe place,
and contact an authorized Mitsubishi Motors dealer. If you inevitably have to park, parkthe vehicle on level a
nd stable ground, shift
the selector lever in “P” (PARK) position and place chocks
or blocks.
Engine malfunction indicator (“SERVICE ENGINE SOON” or “Check engine light”)
CAUTION Driving for a long time
with the engine mal-
function indicator on may cause more dam- age to the emission control system. This could also affect fuel
economy and drivabil-
ity. If this indicator does not come on when the ignition switch is turned to the “ON” posi- tion or the operation mode is put in ON, have the system checked at an authorized Mitsubi-shi Motors dealer or a repair facility of your choice.
 If the engine malfuncti
on indicator comes on
while the engine is running, avoid driving athigh speeds.During vehicle operation
with the indicator
on, the vehicle may not
accelerate when you
depress the accelerator pedal.When the vehicle is stat
ionary with the indi-
cator on, you must depress the brake pedal more firmly than usual since the engineidling speed is higher than usual and a vehi- cle with an automatic transaxle or CVT has a stronger tendency to creep forward.NOTE
 Do not disconnect the ba
ttery cable when the
engine malfunction i
ndicator (“SERVICE
ENGINE SOON” or “Ch
eck engine light”) is
on. The engine electronic
control module stores
critical OBD informati
on (especially exhaust
emission data), which ma
y be lost if the bat-
tery cable is disconne
cted while the engine
malfunction indicator is
on. This will make it
difficult to diagnose th
e cause of future prob-
lems.
Charging system warning light
CAUTION
BK0264300US.book 206 ページ ２０１８年２月２８日　水曜日　午後５時１６分

Warning lights
Features and controls 5-207
5

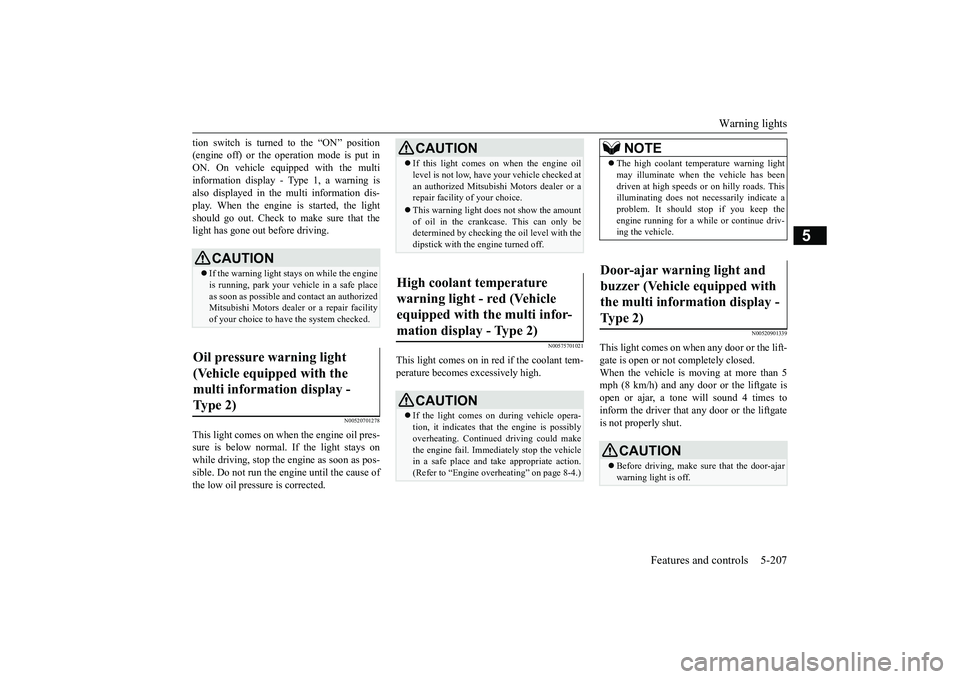

tion switch is turned to the “ON” position (engine off) or the operation mode is put inON. On vehicle equipped with the multi information display - Type 1, a warning is also displayed in the multi information dis-play. When the engine is started, the light should go out. Check to make sure that the light has gone out before driving.
N00520701278
This light comes on when the engine oil pres-sure is below normal. If the light stays on while driving, stop the engine as soon as pos- sible. Do not run the engine until the cause ofthe low oil pressure is corrected.
N00575701021
This light comes on in red if the coolant tem- perature becomes excessively high.
N00520901339
This light comes on when any door or the lift- gate is open or not completely closed. When the vehicle is moving at more than 5 mph (8 km/h) and any door or the liftgate isopen or ajar, a tone will sound 4 times to inform the driver that any door or the liftgate is not properly shut.
CAUTION If the warning light stays on while the engine is running, park your ve
hicle in a safe place
as soon as possible and
contact an authorized
Mitsubishi Motors dealer
or a repair facility
of your choice to have the system checked.
Oil pressure warning light (Vehicle equipped with the multi information display - Type 2)
CAUTION If this light comes on when the engine oil level is not low, have
your vehicle checked at
an authorized Mitsubish
i Motors dealer or a
repair facility
of your choice.
This warning light does not show the amount of oil in the crankcase. This can only be determined by checking the oil level with the dipstick with the engine turned off.
High coolant temperature warning light - red (Vehicle equipped with the multi infor- mation display - Type 2)
CAUTION If the light comes on
during vehicle opera-
tion, it indicates that
the engine is possibly
overheating. Continue
d driving could make
the engine fail. Immedi
ately stop the vehicle
in a safe place and ta
ke appropriate action.
(Refer to “Engine overh
eating” on page 8-4.)
NOTE
The high coolant temp
erature warning light
may illuminate when
the vehicle has been
driven at high speeds or on hilly roads. Thisilluminating does not ne
cessarily indicate a
problem. It should stop if you keep the engine running for a whil
e or continue driv-
ing the vehicle.
Door-ajar warning light and buzzer (Vehicle equipped with the multi information display - Type 2)
CAUTION Before driving, make sure that the door-ajar warning light is off.
BK0264300US.book 207 ページ ２０１８年２月２８日　水曜日　午後５時１６分

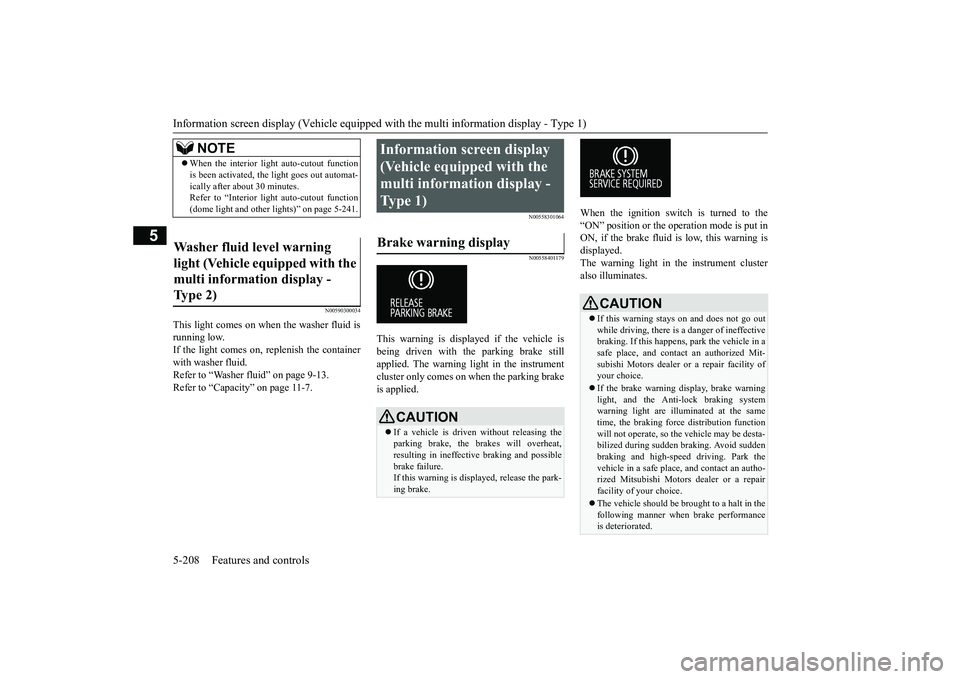

Information screen display (Vehicle equipped with the multi information display - Type 1) 5-208 Features and controls
5
N00590300034
This light comes on when the washer fluid is running low.If the light comes on, replenish the container with washer fluid. Refer to “Washer fl
uid” on page 9-13.
Refer to “Capacity” on page 11-7.
N00558301064 N00558401179
This warning is displayed if the vehicle is being driven with the parking brake stillapplied. The warning light in the instrument cluster only comes on when the parking brake is applied.
When the ignition switch is turned to the “ON” position or the ope
ration mode is put in
ON, if the brake fluid is
low, this warning is
displayed. The warning light in the instrument cluster also illuminates.
NOTE
 When the interior light auto-cutout function is been activated, the light goes out automat-ically after about 30 minutes.Refer to “Interior light
auto-cutout function
(dome light and other
lights)” on page 5-241.
Washer fluid level warning light (Vehicle e
quipped with the
multi information display - Type 2)
Information screen display (Vehicle equipped with the multi information display - Type 1) Brake warning display
CAUTION If a vehicle is driven without releasing the parking brake, the brakes will overheat, resulting in ineffective braking and possiblebrake failure. If this warning is displayed, release the park- ing brake.
CAUTION If this warning stays on and does not go out while driving, there is
a danger of ineffective
braking. If this happens
, park the vehicle in a
safe place, and contac
t an authorized Mit-
subishi Motors dealer or a repair facility ofyour choice. If the brake warning display, brake warning light, and the Anti-lock braking system warning light are illu
minated at the same
time, the braking forc
e distribution function
will not operate, so th
e vehicle may be desta-
bilized during sudden br
aking. Avoid sudden
braking and high-speed driving. Park thevehicle in a safe place,
and contact an autho-
rized Mitsubishi Motors
dealer or a repair
facility of your choice. The vehicle should be brought to a halt in the following manner when
brake performance
is deteriorated.
BK0264300US.book 208 ページ ２０１８年２月２８日　水曜日　午後５時１６分
