MITSUBISHI OUTLANDER 2019 Owner's Manual (in English)

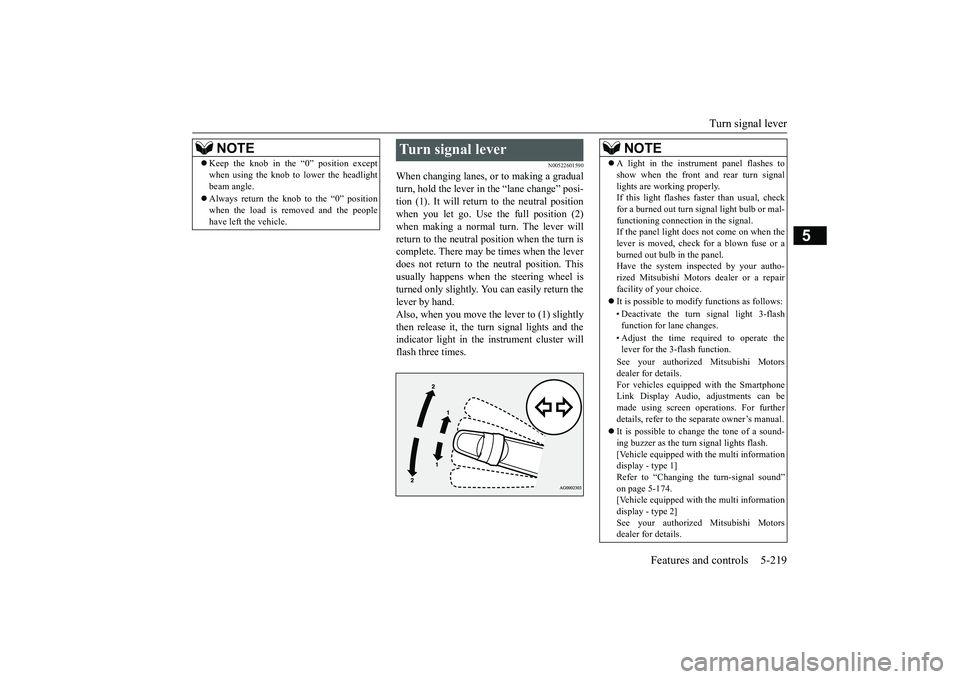

Turn signal lever
Features and controls 5-219
5
N00522601590
When changing lanes, or
to making a gradual
turn, hold the lever in the “lane change” posi- tion (1). It will return
to the neutral position
when you let go. Use the full position (2) when making a normal turn. The lever will return to the neutral position when the turn iscomplete. There may be times when the lever does not return to the neutral position. This usually happens when the steering wheel is turned only slightly. You
can easily return the
lever by hand.Also, when you move the lever to (1) slightly then release it, the turn signal lights and the indicator light in the instrument cluster willflash three times.
 Keep the knob in the “0” position except when using the knob to lower the headlightbeam angle.  Always return the knob to the “0” position when the load is removed and the peoplehave left
the vehicle.
NOTE
Turn signal lever
NOTE
A light in the instrument panel flashes to show when the front and rear turn signallights are working properly.If this light flashes fa
ster than usual, check
for a burned out turn signal light bulb or mal- functioning connection in the signal.If the panel light does not come on when the lever is moved, check for a blown fuse or a burned out bulb in the panel.Have the system inspected by your autho- rized Mitsubishi Motors dealer or a repair facility of your choice.  It is possible to modi
fy functions as follows:
• Deactivate the turn signal light 3-flash function for lane changes. • Adjust the time required to operate the lever for the 3-flash function. See your authorized Mitsubishi Motors dealer for details. For vehicles equipped with the SmartphoneLink Display Audio, adjustments can be made using screen ope
rations. For further
details, refer to the
separate owner’s manual.
 It is possible to change the tone of a sound- ing buzzer as the turn signal lights flash.[Vehicle equipped with the multi information display - type 1] Refer to “Changing the turn-signal sound”on page 5-174. [Vehicle equipped with the multi information display - type 2]See your authorized Mitsubishi Motors dealer for details.
BK0264300US.book 219 ページ ２０１８年２月２８日　水曜日　午後５時１６分

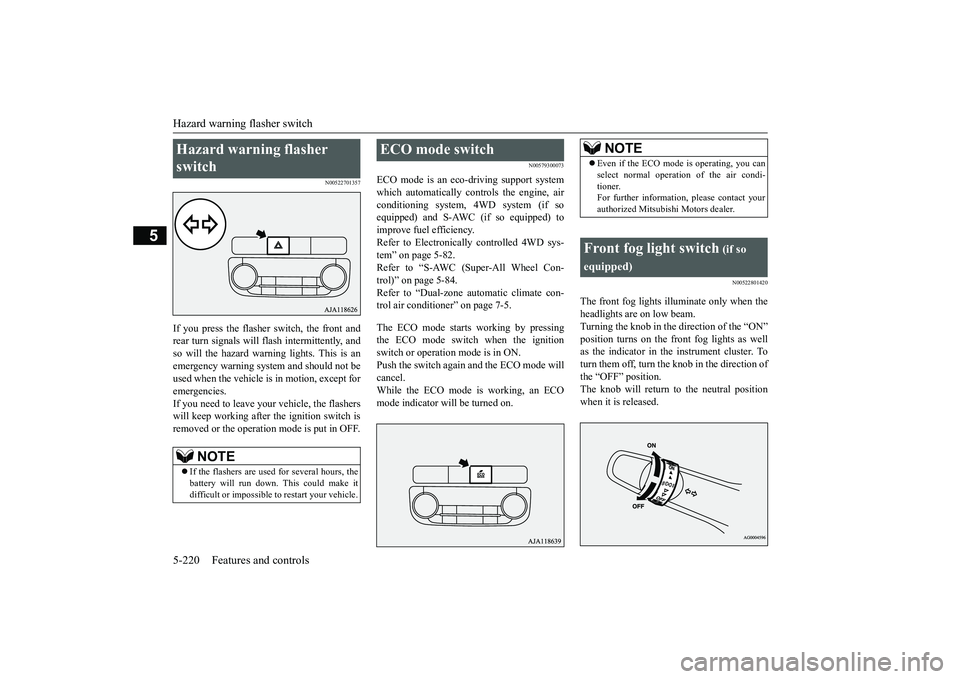

Hazard warning flasher switch 5-220 Features and controls
5
N00522701357
If you press the flasher switch, the front and rear turn signals will flash intermittently, and so will the hazard warn
ing lights. This is an
emergency warning syst
em and should not be
used when the vehicle is in motion, except for emergencies. If you need to leave your vehicle, the flasherswill keep working afte
r the ignition switch is
removed or the operation mode is put in OFF.
N00579300073
ECO mode is an eco-driving support systemwhich automatically cont
rols the engine, air
conditioning system,
4WD system (if so
equipped) and S-AWC (if so equipped) to improve fuel efficiency. Refer to Electronically
controlled 4WD sys-
tem” on page 5-82. Refer to “S-AWC (Super-All Wheel Con- trol)” on page 5-84. Refer to “Dual-zone automatic climate con- trol air conditioner” on page 7-5. The ECO mode starts
working by pressing
the ECO mode switch when the ignition switch or operation mode is in ON. Push the switch again and the ECO mode willcancel. While the ECO mode is working, an ECO mode indicator will be turned on.
N00522801420
The front fog lights illuminate only when theheadlights are on low beam. Turning the knob in the direction of the “ON” position turns on the front fog lights as wellas the indicator in the instrument cluster. To turn them off, turn the knob in the direction of the “OFF” position.The knob will return to the neutral position when it is released.
Hazard warning flasher switch
NOTE
 If the flashers are used for several hours, the battery will run down.
This could make it
difficult or impossible
to restart your vehicle.
ECO mode switch
NOTE
Even if the ECO mode is operating, you can select normal operati
on of the air condi-
tioner.For further information, please contact your authorized Mitsubishi Motors dealer.
Front fog light switch
(if so
equipped)
BK0264300US.book 220 ページ ２０１８年２月２８日　水曜日　午後５時１６分

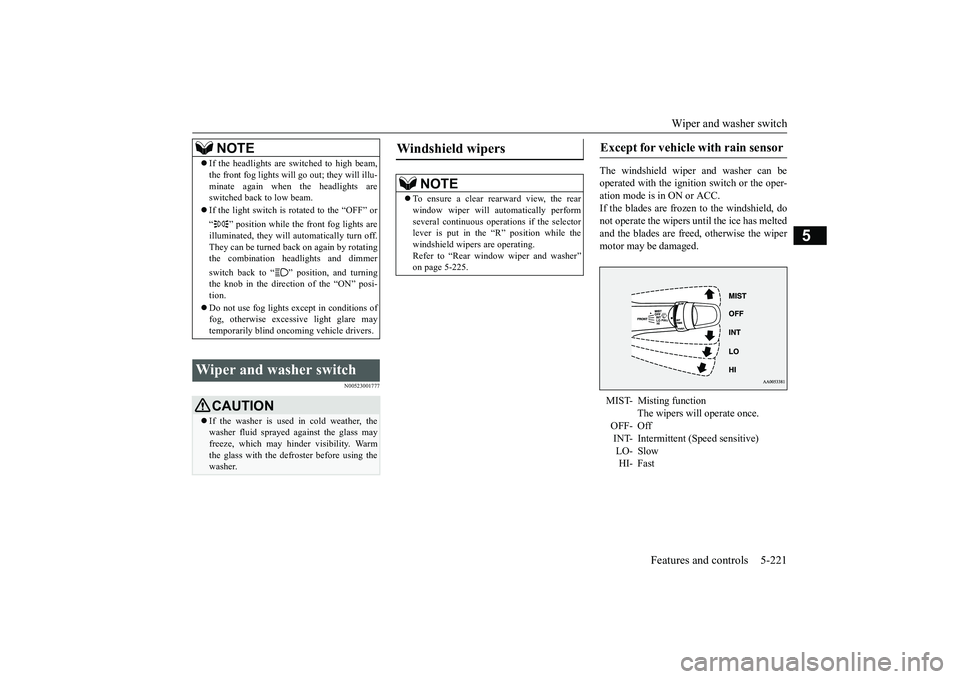

Wiper and washer switch
Features and controls 5-221
5
N00523001777
The windshield wiper
and washer can be
operated with the ignition switch or the oper- ation mode is in ON or ACC. If the blades are frozen to the windshield, donot operate the wipers
until the ice has melted
and the blades are free
d, otherwise the wiper
motor may be damaged.
NOTE
 If the headlights are sw
itched to high beam,
the front fog lights will go out; they will illu-minate again when the headlights areswitched back to low beam.  If the light switch is rotated to the “OFF” or “ ” position while the
front fog lights are
illuminated, they will automatically turn off. They can be turned back on again by rotatingthe combination headlights and dimmer switch back to “ ” position, and turning the knob in the direction of the “ON” posi- tion.  Do not use fog lights ex
cept in conditions of
fog, otherwise excessive light glare maytemporarily blind oncoming vehicle drivers.
Wiper and washer switch
CAUTION If the washer is used
in cold weather, the
washer fluid sprayed against the glass may freeze, which may hinder visibility. Warm the glass with the defroster before using thewasher.
Windshield wipers
NOTE
 To ensure a clear rearward view, the rear window wiper will au
tomatically perform
several continuous opera
tions if the selector
lever is put in the “R” position while the windshield wipers are operating.Refer to “Rear window wiper and washer” on page 5-225.
Except for vehicle with rain sensor MIST- Misting function
The wipers will operate once.
OFF- OffINT- Intermittent (Speed sensitive) LO- Slow HI- Fast
BK0264300US.book 221 ページ ２０１８年２月２８日　水曜日　午後５時１６分

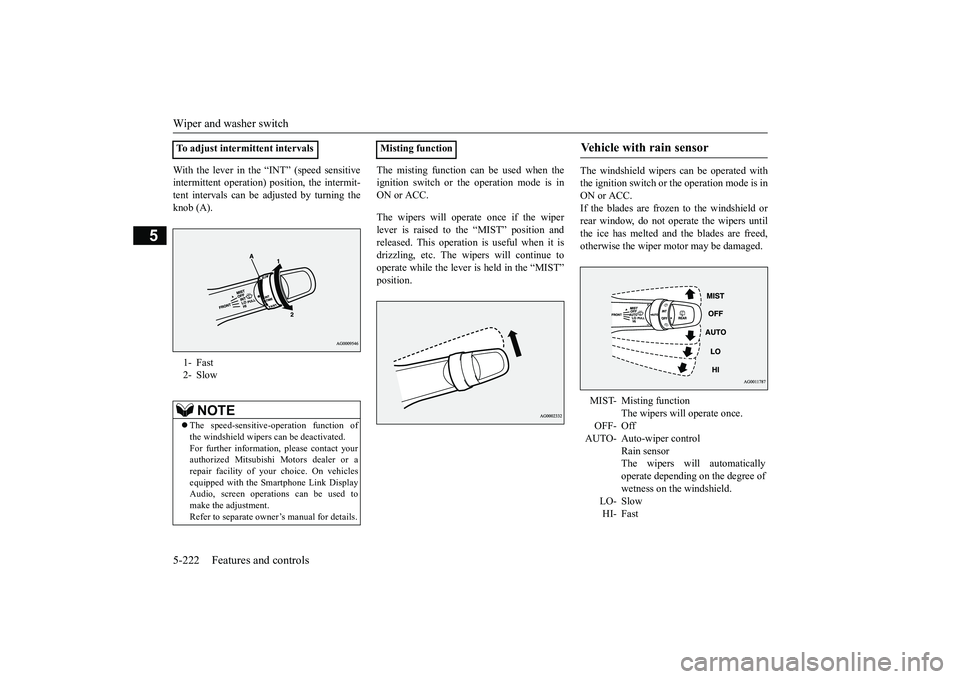

Wiper and washer switch 5-222 Features and controls
5
With the lever in the “INT” (speed sensitive intermittent operation) position, the intermit-tent intervals can be adjusted by turning the knob (A).
The misting function can be used when the ignition switch or th
e operation mode is in
ON or ACC. The wipers will operate once if the wiper lever is raised to the “MIST” position and released. This operation
is useful when it is
drizzling, etc. The wi
pers will continue to
operate while the lever is held in the “MIST” position.
The windshield wipers can be operated with the ignition switch or
the operation mode is in
ON or ACC. If the blades are frozen to the windshield orrear window, do not operate the wipers until the ice has melted and the blades are freed, otherwise the wiper mo
tor may be damaged.
To adjust intermittent intervals 1- Fast 2- Slow
NOTE
 The speed-sensitive-
operation function of
the windshield wipers
can be deactivated.
For further information, please contact your authorized Mitsubishi Motors dealer or a repair facility of your
choice. On vehicles
equipped with the Sm
artphone Link Display
Audio, screen operati
ons can be used to
make the adjustment.Refer to separate owne
r’s manual for details.
Misting function
Vehicle with rain sensor MIST- Misting function
The wipers will operate once.
OFF- OffAUTO- Auto-wiper control
Rain sensor The wipers will automaticallyoperate depending on the degree of wetness on the windshield.
LO- SlowHI- Fast
BK0264300US.book 222 ページ ２０１８年２月２８日　水曜日　午後５時１６分

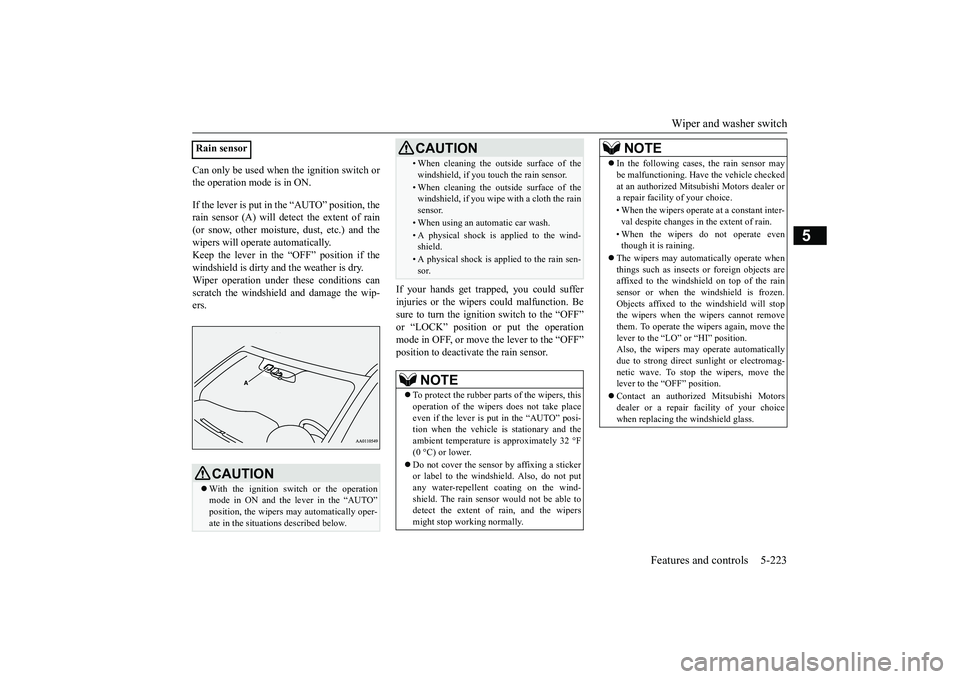

Wiper and washer switch
Features and controls 5-223
5
Can only be used when
the ignition switch or
the operation mode is in ON. If the lever is put in
the “AUTO” position, the
rain sensor (A) will de
tect the extent of rain
(or snow, other moisture
, dust, etc.) and the
wipers will operate automatically.Keep the lever in the “OFF” position if the windshield is dirty a
nd the weather is dry.
Wiper operation under th
ese conditions can
scratch the windshield and damage the wip- ers.
If your hands get trapped, you could suffer injuries or the wipers
could malfunction. Be
sure to turn the ignition switch to the “OFF” or “LOCK” position or put the operationmode in OFF, or move the lever to the “OFF” position to deactivate
the rain sensor.
Rain sensor
CAUTION With the ignition switch or the operation mode in ON and the lever in the “AUTO”position, the wipers ma
y automatically oper-
ate in the situati
ons described below.
• When cleaning the outside surface of the windshield, if you touch the rain sensor.• When cleaning the outside surface of the windshield, if you wipe with a cloth the rain sensor.• When using an automatic car wash.• A physical shock is applied to the wind- shield.• A physical shock is a
pplied to the rain sen-
sor.NOTE
 To protect the rubber parts of the wipers, this operation of the wipers
does not take place
even if the lever is put in the “AUTO” posi- tion when the vehicle is
stationary and the
ambient temperature is approximately 32 °F(0 °C) or lower.  Do not cover the sensor by affixing a sticker or label to the windshield. Also, do not putany water-repellent
coating on the wind-
shield. The rain sensor would not be able to detect the extent of rain, and the wipersmight stop working normally.CAUTION
 In the following cases, the rain sensor may be malfunctioning. Have
the vehicle checked
at an authorized Mitsubishi Motors dealer ora repair facility
of your choice.
• When the wipers operate
at a constant inter-
val despite changes in the extent of rain. • When the wipers do not operate even though it is raining.
 The wipers may automatically operate when things such as insects
or foreign objects are
affixed to the windshield on top of the rain sensor or when the windshield is frozen.Objects affixed to th
e windshield
will stop
the wipers when the wipers cannot remove them. To operate the wipers again, move thelever to the “LO”
or “HI” position.
Also, the wipers may operate automatically due to strong direct s
unlight or electromag-
netic wave. To stop the wipers, move the lever to the “OFF” position.  Contact an authoriz
ed Mitsubishi Motors
dealer or a repair fa
cility of your choice
when replacing th
e windshield glass.
NOTE
BK0264300US.book 223 ページ ２０１８年２月２８日　水曜日　午後５時１６分

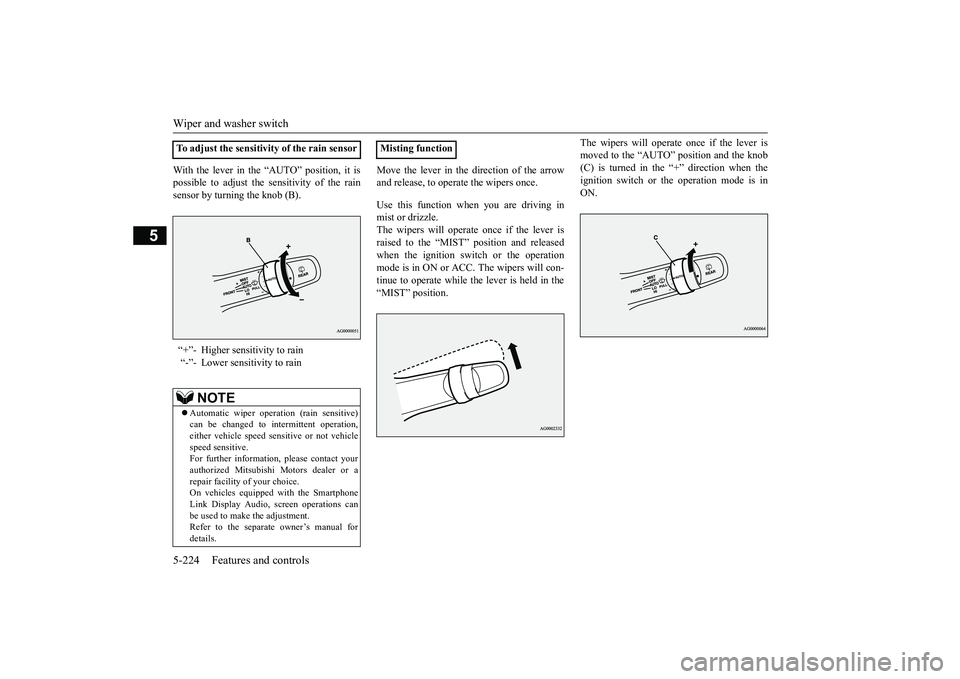

Wiper and washer switch 5-224 Features and controls
5
With the lever in the “AUTO” position, it is possible to adjust the sensitivity of the rainsensor by turning the knob (B).
Move the lever in the direction of the arrow and release, to opera
te the wipers once.
Use this function when you are driving in mist or drizzle. The wipers will operate once if the lever is raised to the “MIST” position and releasedwhen the ignition switch or the operation mode is in ON or ACC.
The wipers will con-
tinue to operate while the lever is held in the “MIST” position.
The wipers will operate once if the lever is moved to the “AUTO” position and the knob(C) is turned in the “+” direction when the ignition switch or the operation mode is in ON.
To adjust the sensitivity of the rain sensor “+”- Higher sensitivity to rain “-”- Lower sensitivity to rain
NOTE
 Automatic wiper operation (rain sensitive) can be changed to in
termittent operation,
either vehicle speed se
nsitive or not vehicle
speed sensitive.For further information, please contact your authorized Mitsubishi Motors dealer or a repair facility of your choice.On vehicles equippe
d with the Smartphone
Link Display Audio, sc
reen operations can
be used to make the adjustment.Refer to the separate
owner’s manual for
details.
Misting function
BK0264300US.book 224 ページ ２０１８年２月２８日　水曜日　午後５時１６分

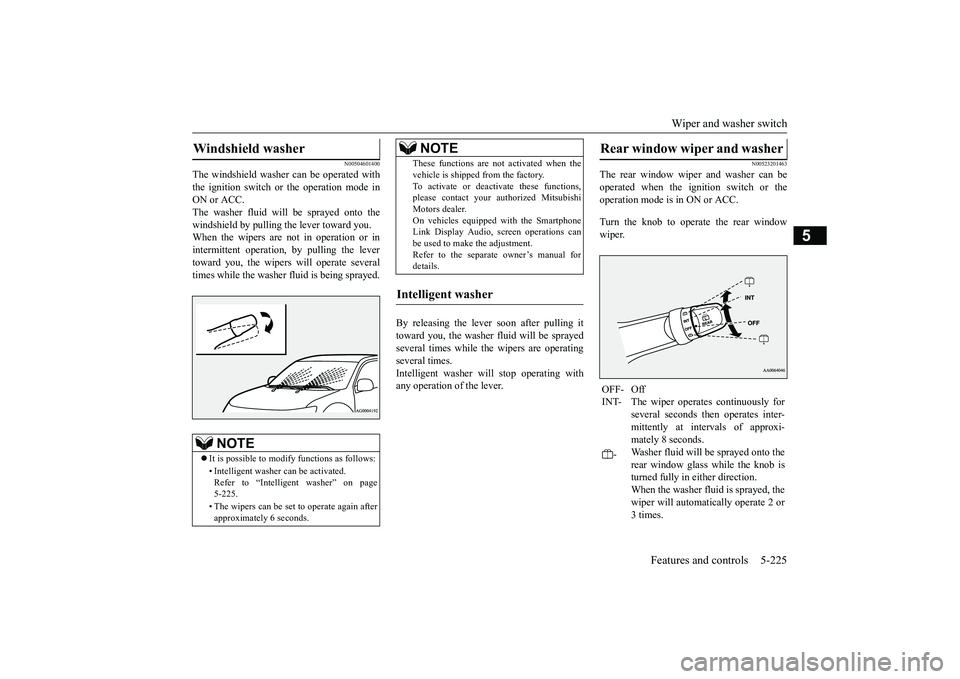

Wiper and washer switch
Features and controls 5-225
5
N00504601400
The windshield washer can be operated with the ignition switch or the operation mode in ON or ACC.The washer fluid will be sprayed onto the windshield by pulling th
e lever toward you.
When the wipers are not in operation or inintermittent operation,
by pulling the lever
toward you, the wipers will operate several times while the washer fluid is being sprayed.
By releasing the lever soon after pulling it toward you, the washer
fluid will be sprayed
several times while the wipers are operating several times. Intelligent washer will stop operating withany operation of the lever.
N00523201463
The rear window wiper and washer can be operated when the ignition switch or the operation mode is in ON or ACC. Turn the knob to operate the rear window wiper.
Windshield washer
NOTE
 It is possible to modify functions as follows: • Intelligent washer
can be activated.
Refer to “Intelligent washer” on page 5-225. • The wipers can be set
to operate again after
approximately 6 seconds.
These functions are not activated when the vehicle is shipped from the factory.To activate or deacti
vate these functions,
please contact your authorized Mitsubishi Motors dealer. On vehicles equippe
d with the Smartphone
Link Display Audio, sc
reen operations can
be used to make the adjustment. Refer to the separate
owner’s manual for
details.
Intelligent washer
NOTE
Rear window wiper and washer OFF- Off INT- The wiper operates continuously for
several seconds then operates inter- mittently at intervals of approxi- mately 8 seconds.
-
Washer fluid will be sprayed onto the rear window glass while the knob is turned fully in either direction.When the washer fluid is sprayed, the wiper will automatically operate 2 or 3 times.
BK0264300US.book 225 ページ ２０１８年２月２８日　水曜日　午後５時１６分

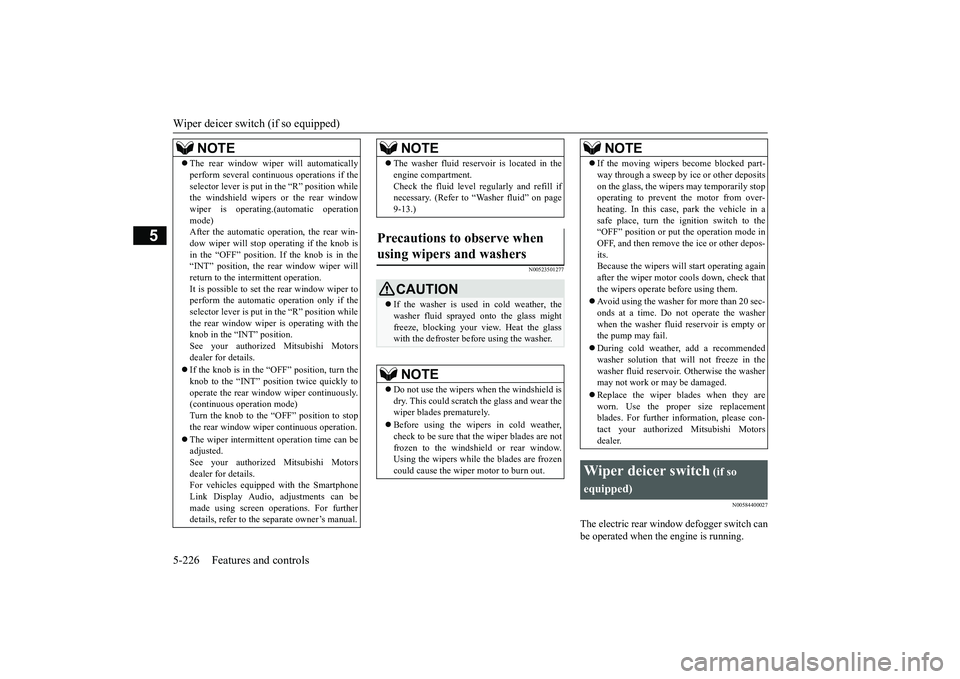

Wiper deicer switch (if so equipped) 5-226 Features and controls
5
N00523501277
N00584400027
The electric rear window defogger switch can be operated when the engine is running.
NOTE
 The rear window wipe
r will automatically
perform several conti
nuous operations if the
selector lever is put in the “R” position whilethe windshield wipers
or the rear window
wiper is operating.(a
utomatic operation
mode)After the automatic operation, the rear win- dow wiper will stop operating if the knob is in the “OFF” position. If the knob is in the“INT” position, the re
ar window wiper will
return to the intermittent operation. It is possible to set the rear window wiper toperform the automatic operation only if the selector lever is put in the “R” position while the rear window wiper
is operating with the
knob in the “INT” position. See your authorized Mitsubishi Motors dealer for details.  If the knob is in the “OFF” position, turn the knob to the “INT” position twice quickly tooperate the rear window
wiper continuously.
(continuous ope
ration mode)
Turn the knob to the “OFF” position to stopthe rear window wipe
r continuous operation.
 The wiper intermittent
operation time can be
adjusted. See your authorized Mitsubishi Motors dealer for details.For vehicles equipped with the Smartphone Link Display Audio, adjustments can be made using screen ope
rations. For further
details, refer to the se
parate owner’s manual.
The washer fluid reservoir is located in the engine compartment.Check the fluid level re
gularly and refill if
necessary. (Refer to
“Washer fluid” on page
9-13.)
Precautions to observe when using wipers and washers
CAUTION If the washer is used
in cold weather, the
washer fluid sprayed onto the glass mightfreeze, blocking your vi
ew. Heat the glass
with the defroster befo
re using the washer.
NOTE
Do not use the wipers when the windshield is dry. This could scratch the glass and wear the wiper blades prematurely.  Before using the wipe
rs in cold weather,
check to be sure that the wiper blades are notfrozen to the windshield or rear window. Using the wipers while the blades are frozen could cause the wiper motor to burn out.NOTE
 If the moving wipers be
come blocked part-
way through a sweep by ic
e or other deposits
on the glass, the wipers may temporarily stopoperating to prevent the motor from over- heating. In this case, park the vehicle in a safe place, turn the ignition switch to the“OFF” position or put the operation mode in OFF, and then remove
the ice or other depos-
its.Because the wipers will start operating again after the wiper motor cools down, check that the wipers operate
before using them.
 Avoid using the washer for more than 20 sec- onds at a time. Do not operate the washerwhen the washer fluid reservoir is empty or the pump may fail.  During cold weather, add a recommended washer solution that will not freeze in the washer fluid reservoir. Otherwise the washermay not work or may be damaged.  Replace the wiper blades when they are worn. Use the proper size replacement blades. For further info
rmation, please con-
tact your authorized
Mitsubishi Motors
dealer.
Wiper deicer switch
(if so
equipped)
NOTE
BK0264300US.book 226 ページ ２０１８年２月２８日　水曜日　午後５時１６分

Electric rear window defogger switch
Features and controls 5-227
5
When the front wipers have frozen to the windshield at the parked
positions, turning on
this switch will heat the windshield to make the wipers operable. Pr
ess the electric rear
window defogger switch and the deicer willoperate.
N00523701497
The rear window defogger can be used when the engine is running. The indicator light (A) will come on whenyou press the electric rear window defogger switch. Electric current will flow through the heating wires on the rear window to helpclear away moisture or frost. After approximately 15 to 20 minutes of operation, the system wi
ll shut off automati-
cally. To switch the defogger OFF before 15 to 20minutes have passed,
press the switch again.
The indicator light will
go out and the defog-
ger will turn off.If you need the defogger for more than 15 to 20 minutes, press the switch again. This will add 15 to 20 more minutes.
NOTE
 The wiper deicer is
activated/de
activated,
depending on the operation of the rear win-dow defogger. Refer to
“Electric rear win-
dow defogger switch
” on page 5-227.
Electric rear window defog- ger switch
CAUTION The rear window defogge
r is not designed to
melt snow. Remove
any snow manually
before using the rear window defogger. Use the rear window de
fogger only after the
engine has started and
is running. Be sure to
turn the defogger swit
ch off immediately
after the window is cl
ear to save on battery
power. Do not place stickers,
tape, or other items
that are attached with adhesive over the gridwires on the rear window. When cleaning the inside
rear window, use a
soft cloth and wipe lightly over the grid wires.NOTE
 If your vehicle is equi
pped with heated out-
side rearview mirror, mist can also beremoved from the outside rearview mirrors when the rear window defogger switch is pressed. (Refer to “H
eated outside rearview
mirror” on page 5-62.)  On vehicles equipped w
ith the wiper deicer,
when the rear window defogger switch ispushed, the windshield
becomes warm and
the wipers become operable. (Refer to “Wiper deicer switch” on page 5-226.)
BK0264300US.book 227 ページ ２０１８年２月２８日　水曜日　午後５時１６分

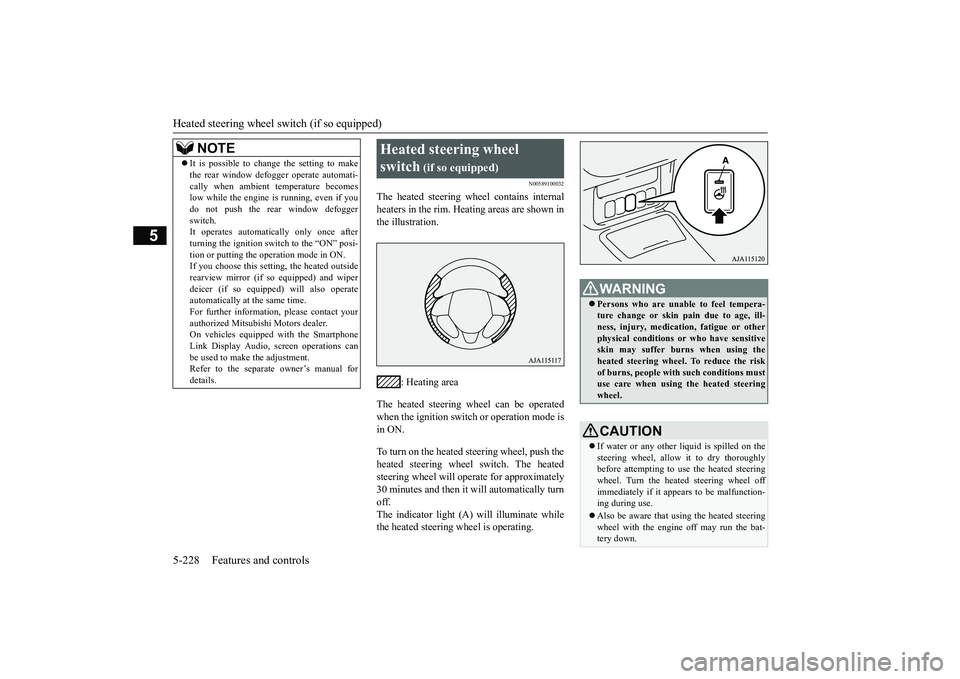

Heated steering wheel sw
itch (if so equipped)
5-228 Features and controls
5
N00589100032
The heated steering wheel contains internal heaters in the rim. Heating areas are shown in the illustration.
: Heating area
The heated steering wheel can be operated when the ignition switch or operation mode is in ON. To turn on the heated steering wheel, push the heated steering wheel switch. The heated steering wheel will ope
rate for approximately
30 minutes and then it
will automatically turn
off. The indicator light (A) will illuminate while the heated steering wheel is operating.
 It is possible to change the setting to make the rear window def
ogger operate automati-
cally when ambient temperature becomeslow while the engine is running, even if you do not push the rear window defogger switch.It operates automatica
lly only once after
turning the ignition switch to the “ON” posi- tion or putting the ope
ration mode in ON.
If you choose this setti
ng, the heated outside
rearview mirror (if so
equipped) and wiper
deicer (if so equippe
d) will also operate
automatically at the same time. For further information, please contact your authorized Mitsubishi Motors dealer.On vehicles equippe
d with the Smartphone
Link Display Audio, sc
reen operations can
be used to make the adjustment.Refer to the separate
owner’s manual for
details.NOTE
Heated steering wheel switch
(if so equipped)
WA R N I N G Persons who are unable
to feel tempera-
ture change or skin
pain due to age, ill-
ness, injury, medicati
on, fatigue or other
physical conditions or
who have sensitive
skin may suffer burns when using theheated steering wheel. To reduce the risk of burns, people with such conditions must use care when using the heated steeringwheel.CAUTION If water or any other li
quid is spilled on the
steering wheel, allow it to dry thoroughly before attempting to use the heated steering wheel. Turn the heated steering wheel offimmediately if it appe
ars to be malfunction-
ing during use. Also be aware that us
ing the heated steering
wheel with the engine off may run the bat- tery down.
BK0264300US.book 228 ページ ２０１８年２月２８日　水曜日　午後５時１６分
