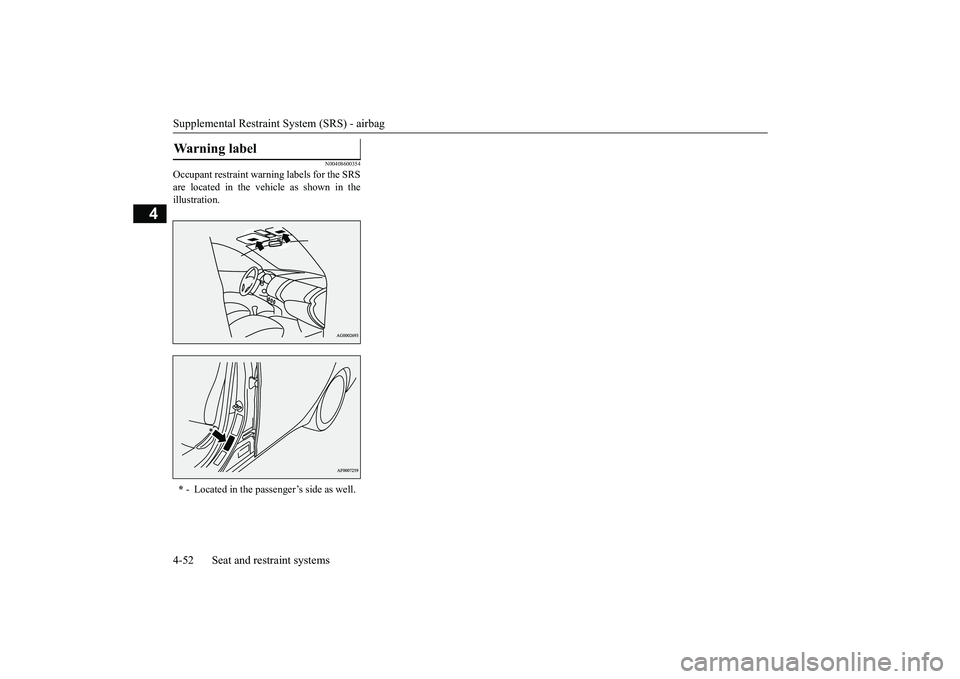

Supplemental Restraint System (SRS) - airbag4-52 Seat and restraint systems
4
N00408600354
Occupant restraint warn
ing labels for the SRS
are located in the vehicle as shown in theillustration.Warning label * - Located in the pass
enger’s side as well.
BK0249100US.book 52 ページ ２０１７年５月１０日　水曜日　午前８時４９分

5

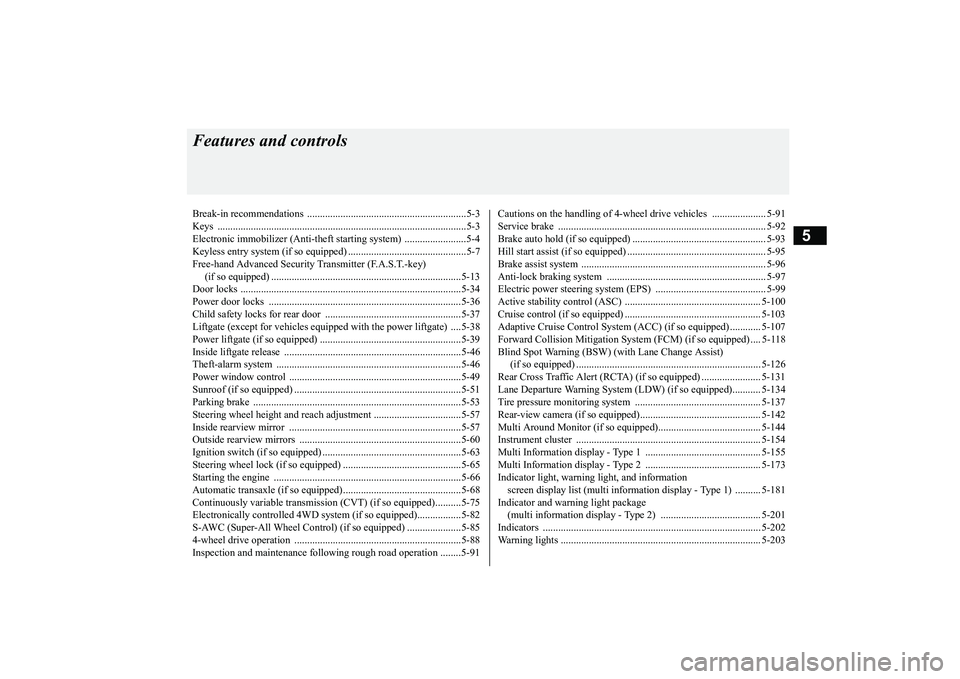

Features and controlsBreak-in recommendations ..............................................................5-3Keys .................................................................................................5-3Electronic immobilizer (Anti-theft starting system) ........................5-4Keyless entry system (if so equipped) ..............................................5-7Free-hand Advanced Security
Transmitter (F.A.S.T.-key)
(if so equipped) ..........................................................................5-13Door locks ......................................................................................5-34Power door locks ......
...........
...........
...........
...........
...........
.........
.....5-36
Child safety locks for rear door ..........
...........
.........
.........
.........
.....5-37
Liftgate (except for vehi
cles equipped with the
power liftgate) ....5-38
Power liftgate (if so equipped) .......................................................5-39Inside liftgate release .....................................................................5-46Theft-alarm system ........................................................................5-46Power window control ...................................................................5-49Sunroof (if so equipped) .................................................................5-51Parking brake .................................................................................5-53Steering wheel height and reach adjustment ..................................5-57Inside rearview mirror ...................................................................5-57Outside rearview mirrors ...............................................................5-60Ignition switch (if so equipped) ......................................................5-63Steering wheel lock (if so equipped) ..............................................5-65Starting the engine .........................................................................5-66Automatic transaxle (if so equipped)..............................................5-68Continuously variable transmission
(CVT) (if so equipped)..........5-75
Electronically controlled
4WD system (if so equipped).................5-82
S-AWC (Super-All Wheel Control) (if
so equipped) .....................5-85
4-wheel drive operation .................................................................5-88Inspection and maintenance followi
ng rough road operation ........5-91
Cautions on the handling of 4-wheel dr
ive vehicles ..................... 5-91
Service brake ................................................................................. 5-92Brake auto hold (if so equipped) .................................................... 5-93Hill start assist (if so equipped) ...................................................... 5-95Brake assist system ........................................................................ 5-96Anti-lock braking system .............................................................. 5-97Electric power steering system (EPS) ........................................... 5-99Active stability control (ASC) ..................................................... 5-100Cruise control (if so equipped) ..................................................... 5-103Adaptive Cruise Control System (ACC)
(if so equipped) ............ 5-107
Forward Collision Mitigation System
(FCM) (if so equipped) .... 5-118
Blind Spot Warning (BSW) (w
ith Lane Change Assist)
(if so equipped) ........................................................................ 5-126Rear Cross Traffic Alert (RCTA) (if so equipped) ....................... 5-131Lane Departure Warning System (LDW
) (if so equipped)........... 5-134
Tire pressure monitoring system ................................................. 5-137Rear-view camera (if so equipped)............................................... 5-142Multi Around Monitor (if so
equipped)..................
...........
........... 5-144
Instrument cluster ........................................................................ 5-154Multi Information display - Type 1 ............................................. 5-155Multi Information display - Type 2 ............................................. 5-173Indicator light, warning light, and information screen display list (multi informati
on display - Type 1) .......... 5-181
Indicator and warning light package (multi information display - Type 2) ....................................... 5-201Indicators ..................................................................................... 5-202Warning lights .............................................................................. 5-203
BK0249100US.book 1 ページ ２０１７年５月１０日　水曜日　午前８時４９分

5

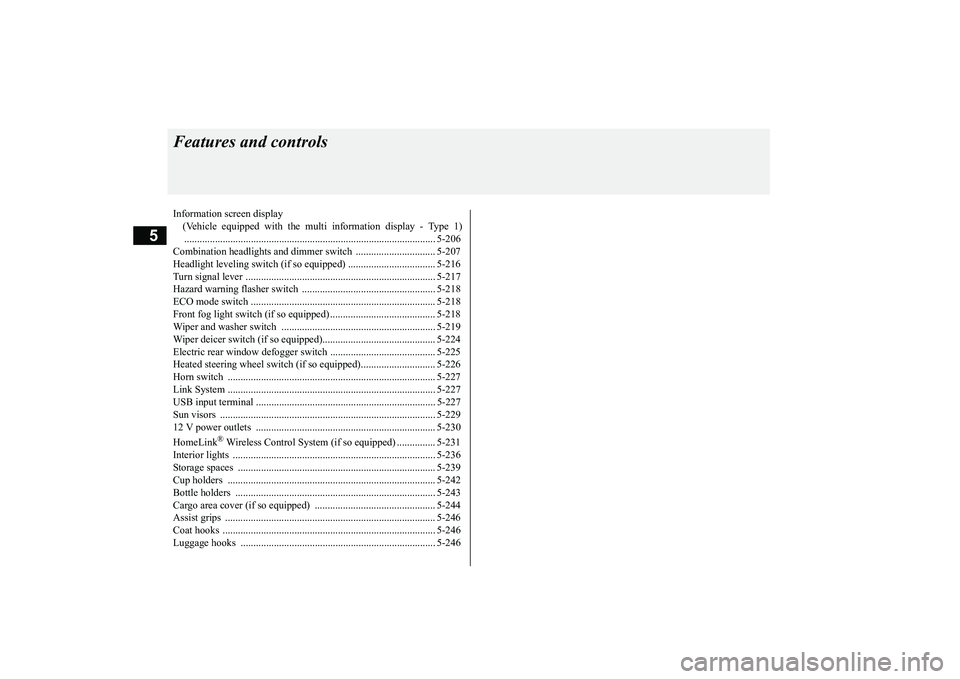

Features and controlsInformation screen display (Vehicle equipped with the mul
ti information display - Type 1)
.................................................................................................. 5-206Combination headlights and dimmer switch ............................... 5-207Headlight leveling switch (if so equipped) .................................. 5-216Turn signal lever .......................................................................... 5-217Hazard warning flasher switch .................................................... 5-218ECO mode switch ........................................................................ 5-218Front fog light switch (if so equipped) ......................................... 5-218Wiper and washer switch ............................................................ 5-219Wiper deicer switch (if so equipped)............................................ 5-224Electric rear window def
ogger switch ......
...........
...........
............. 5-225
Heated steering wheel switch (if so equipped)............................. 5-226Horn switch ................................................................................. 5-227Link System ................................................................................. 5-227USB input terminal ...................................................................... 5-227Sun visors .................................................................................... 5-22912 V power outlets ...................................................................... 5-230HomeLink
® Wireless Control System (if so equipped) ............... 5-231
Interior lights ............................................................................... 5-236Storage spaces ............................................................................. 5-239Cup holders ................................................................................. 5-242Bottle holders .............................................................................. 5-243Cargo area cover (if so equipped) ............................................... 5-244Assist grips .................................................................................. 5-246Coat hooks ................................................................................... 5-246Luggage hooks ............................................................................ 5-246BK0249100US.book 2 ページ ２０１７年５月１０日　水曜日　午前８時４９分

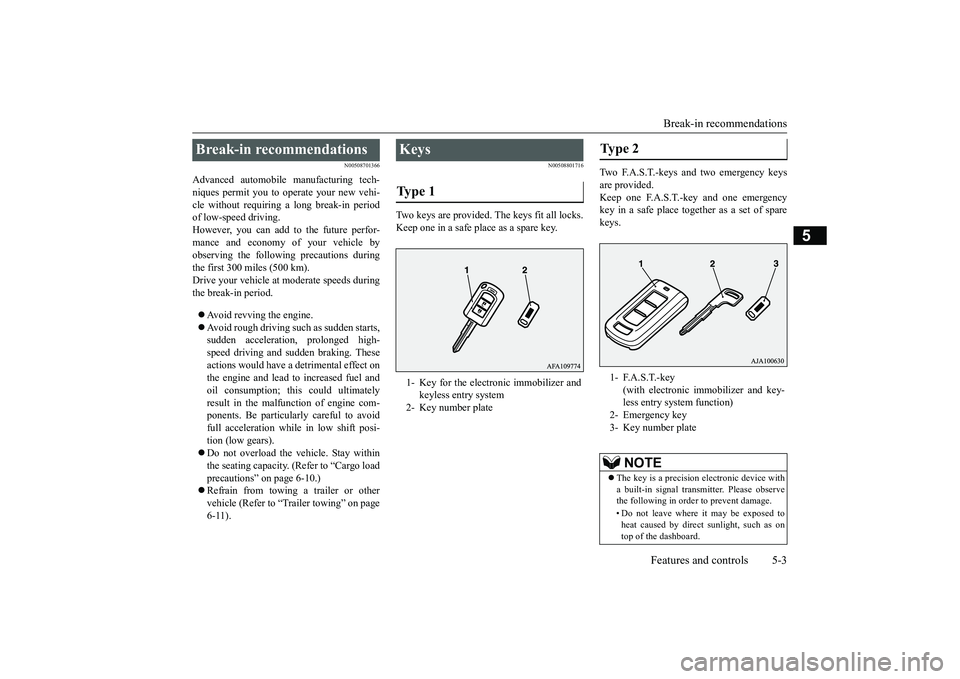

Break-in recommendations
Features and controls 5-3
5
N00508701366
Advanced automobile
manufacturing tech-
niques permit you to operate your new vehi-cle without requiring a long break-in periodof low-speed driving.However, you can add to the future perfor-mance and economy of your vehicle byobserving the following precautions duringthe first 300 miles (500 km).Drive your vehicle at m
oderate speeds during
the break-in period.Avoid revving the engine.Avoid rough driving such as sudden starts,sudden accelerati
on, prolonged high-
speed driving and sudden braking. Theseactions would have a detrimental effect onthe engine and lead to increased fuel andoil consumption; th
is could ultimately
result in the malfunction of engine com-ponents. Be particularly careful to avoidfull acceleration while in low shift posi-tion (low gears).Do not overload the vehicle. Stay withinthe seating capacity. (Refer to “Cargo loadprecautions” on page 6-10.)Refrain from towing a trailer or othervehicle (Refer to “T
railer towing” on page
6-11).
N00508801716
Two keys are provided. The keys fit all locks.Keep one in a safe place as a spare key.
Two F.A.S.T.-keys and two emergency keysare provided.Keep one F.A.S.T.-key and one emergencykey in a safe pl
ace together as a set of spare
keys.
Break-in recommendations
Keys Ty p e 1 1- Key for the electronic immobilizer and
keyless entry system
2- Key number plate
Type 2 1- F.A.S.T.-key
(with electronic im
mobilizer and key-
less entry system function)
3- Key number plate
NOTE
The key is a precision
electronic device with
a built-in signal transm
itter. Please observe
the following in order to prevent damage.• Do not leave where it may be exposed toheat caused by direct
sunlight, such as on
top of the dashboard.
BK0249100US.book 3 ページ ２０１７年５月１０日　水曜日　午前８時４９分

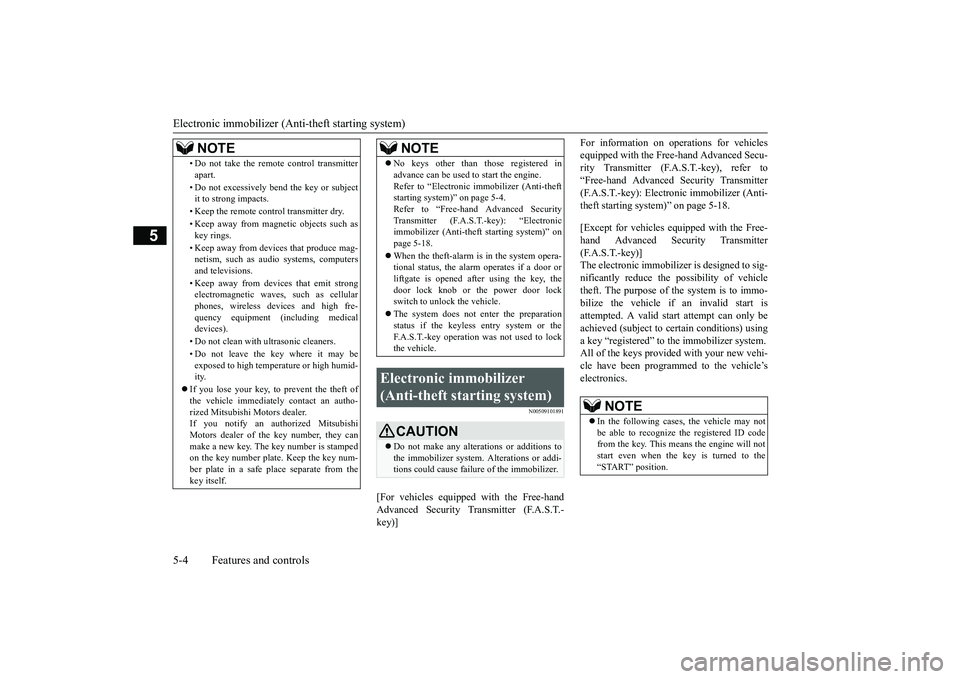

Electronic immobilizer (Anti-theft starting system)
5
N00509101891
[For vehicles equippe
d with the Free-hand
Advanced Security Transmitter (F.A.S.T.-key)]
For information on operations for vehiclesequipped with the Free-hand Advanced Secu-rity Transmitter (F.A.S.T.-key), refer to“Free-hand Advanced Se
curity Transmitter
(F.A.S.T.-key): Electronic immobilizer (Anti-theft starting system)” on page 5-18.[Except for vehicles equipped with the Free-hand Advanced Security Transmitter(F.A.S.T.-key)]The electronic immobilize
r is designed to sig-
nificantly reduce the
possibility of vehicle
theft. The purpose of the system is to immo-bilize the vehicle if
an invalid start is
attempted. A valid st
art attempt can only be
achieved (subject to ce
rtain conditions) using
a key “registered” to the immobilizer system.All of the keys provided with your new vehi-cle have been program
med to the vehicle’s
electronics.
• Do not take the remote control transmitterapart.• Do not excessively be
nd the key or subject
it to strong impacts.• Keep the remote control transmitter dry.• Keep away from magnetic objects such askey rings.• Keep away from devi
ces that produce mag-
netism, such as audio systems, computersand televisions.• Keep away from devices that emit strongelectromagneti
c waves, such as cellular
phones, wireless devices and high fre-quency equipment (i
ncluding medical
devices).• Do not clean with
ultrasonic cleaners.
• Do not leave the key where it may beexposed to high temperature or high humid-ity.
If you lose your key, to prevent the theft ofthe vehicle immediatel
y contact an autho-
rized Mitsubishi Motors dealer.If you notify an authorized MitsubishiMotors dealer of the key number, they canmake a new key. The key number is stampedon the key number plate. Keep the key num-ber plate in a safe pl
ace separate from the
key itself.NOTE
No keys other than those registered inadvance can be used
to start the engine.
Refer to “Electronic immobilizer (Anti-theftstarting system)” on page 5-4.Refer to “Free-hand
Advanced Security
Transmitter (F.A.S.T.-key): “Electronicimmobilizer (Anti-thef
t starting system)” on
page 5-18.When the theft-alarm is in the system opera-tional status, the alarm operates if a door orliftgate is opened after using the key, thedoor lock knob or the power door lockswitch to unlock the vehicle.The system does not enter the preparationstatus if the keyless entry system or theF.A.S.T.-key operation was not used to lockthe vehicle.
Electronic immobilizer (Anti-theft starting system)
CAUTIONDo not make any altera
tions or additions to
the immobilizer system.
Alterations or addi-
tions could cause failur
e of the immobilizer.
NOTE
NOTE
In the following cases, the vehicle may notbe able to recognize
the registered ID code
from the key. This mean
s the engine will not
start even when the key is turned to the“START” position.
BK0249100US.book 4 ページ ２０１７年５月１０日　水曜日　午前８時４９分

Electronic immobilizer (Ant
i-theft starting system)
Features and controls 5-5
5

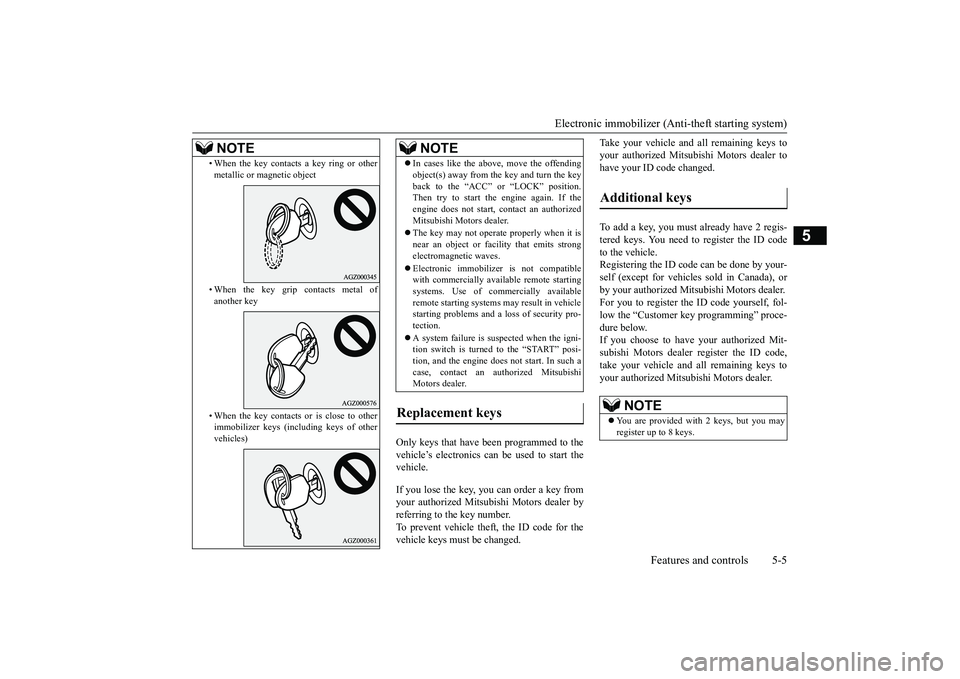

Only keys that have been programmed to thevehicle’s electronics can be used to start thevehicle.If you lose the key, you can order a key fromyour authorized Mitsubi
shi Motors dealer by
referring to the key number.To prevent vehicle theft, the ID code for thevehicle keys must be changed.
Take your vehicle and
all remaining keys to
your authorized Mitsubishi Motors dealer tohave your ID code changed.To add a key, you must already have 2 regis-tered keys. You need to register the ID codeto the vehicle.Registering the ID code can be done by your-self (except for vehicles
sold in Canada), or
by your authorized Mitsubishi Motors dealer.For you to register the ID code yourself, fol-low the “Customer key programming” proce-dure below.If you choose to have
your authorized Mit-
subishi Motors dealer register the ID code,take your vehicle and
all remaini
ng keys to
your authorized Mitsubishi Motors dealer.
• When the key contacts
a key ring or other
metallic or magnetic object• When the key grip
contacts metal of
another key• When the key contacts
or is close to other
immobilizer keys (inc
luding keys of other
vehicles)NOTE
In cases like the above, move the offendingobject(s) away from the key and turn the keyback to the “ACC” or “LOCK” position.Then try to start the engine again. If theengine does not start, contact an authorizedMitsubishi Moto
rs dealer.
The key may not operate
properly when it is
near an object or fac
ility that emits strong
electromagnetic waves.Electronic immobilize
r is not compatible
with commercially available remote startingsystems. Use of commercially availableremote starting systems may result in vehiclestarting problems
and a loss of security pro-
tection.A system failure is suspected when the igni-tion switch is turned to the “START” posi-tion, and the engine does
not start. In such a
case, contact an au
thorized Mitsubishi
Motors dealer.
Replacement keys
NOTE
Additional keys
NOTE
You are provided with 2 keys, but you mayregister up to 8 keys.
BK0249100US.book 5 ページ ２０１７年５月１０日　水曜日　午前８時４９分

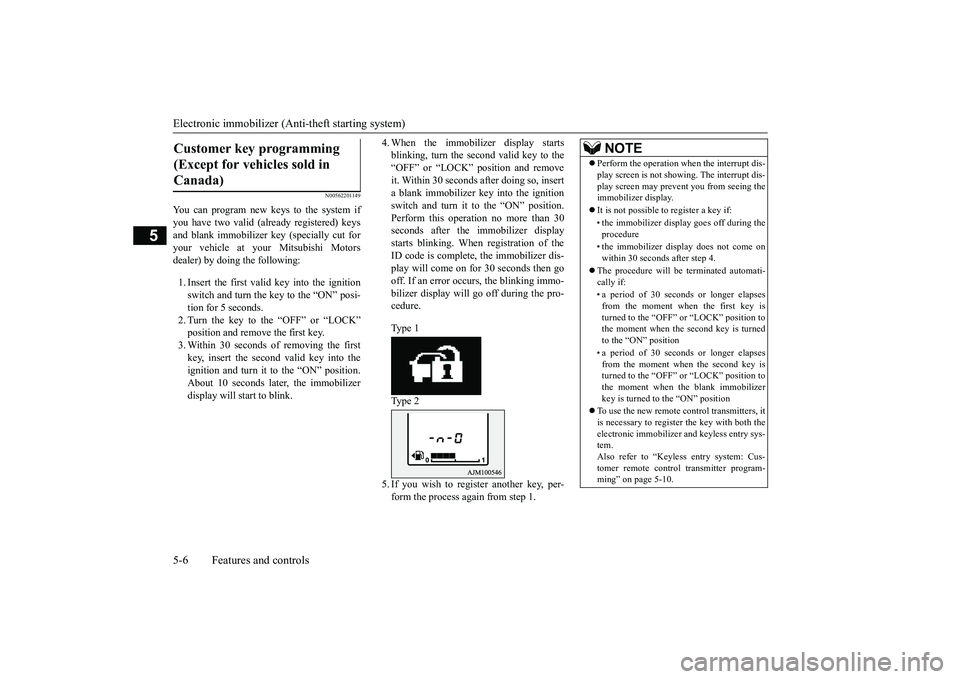

Electronic immobilizer (Anti-theft starting system)
5
N00562201149
You can program new keys to the system ifyou have two valid (alr
eady registered) keys
and blank immobilizer ke
y (specially cut for
your vehicle at your Mitsubishi Motorsdealer) by doing the following:1. Insert the first valid key into the ignitionswitch and turn the key to the “ON” posi-tion for 5 seconds.2. Turn the key to the “OFF” or “LOCK”position and remove the first key.3. Within 30 seconds of removing the firstkey, insert the second valid key into theignition and turn it to the “ON” position.About 10 seconds la
ter, the immobilizer
display will start to blink.
4. When the immobilizer display startsblinking, turn the second valid key to the“OFF” or “LOCK” position and removeit. Within 30 seconds after doing so, inserta blank immobilizer ke
y into the ignition
switch and turn it to the “ON” position.Perform this operation no more than 30seconds after the immobilizer displaystarts blinking. When registration of theID code is complete, the immobilizer dis-play will come on for 30 seconds then gooff. If an error occurs, the blinking immo-bilizer display will
go off during the pro-
cedure.Type 1Type 25. If you wish to register another key, per-form the process again from step 1.
Customer key programming (Except for vehicles sold in Canada)
NOTE
Perform the operation when the interrupt dis-play screen is not show
ing. The interrupt dis-
play screen may prevent you from seeing theimmobilizer display.It is not possible to
register a key if:
• the immobilizer disp
lay goes off during the
procedure• the immobilizer disp
lay does not come on
within 30 seconds after step 4.
The procedure will be terminated automati-cally if:• a period of 30 seconds or longer elapsesfrom the moment when the first key isturned to the “OFF” or “LOCK” position tothe moment when the second key is turnedto the “ON” position• a period of 30 seconds or longer elapsesfrom the moment when the second key isturned to the “OFF” or “LOCK” position tothe moment when the blank immobilizerkey is turned to the “ON” position
To use the new remote control transmitters, itis necessary to register
the key with both the
electronic immobilizer
and keyless entry sys-
tem.Also refer to “Keyless entry system: Cus-tomer remote control transmitter program-ming” on page 5-10.
BK0249100US.book 6 ページ ２０１７年５月１０日　水曜日　午前８時４９分

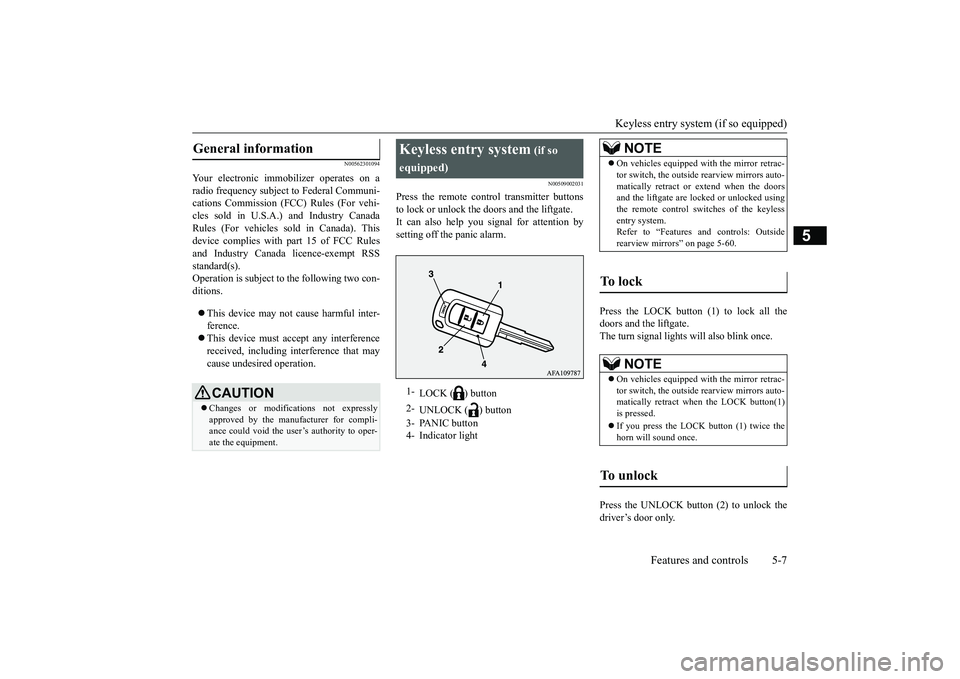

Keyless entry system (if so equipped)
Features and controls 5-7
5
N00562301094
Your electronic immo
bilizer operates on a
radio frequency subject to Federal Communi-cations Commission (FCC)
Rules (For vehi-
cles sold in U.S.A.
) and Industry Canada
Rules (For vehicles so
ld in Canada). This
device complies with part 15 of FCC Rulesand Industry Canada
licence-exempt RSS
standard(s).Operation is subject to the following two con-ditions.This device may not
cause harmful inter-
ference.This device must ac
cept any interference
received, including interference that maycause undesired operation.
N00509002031
Press the remote control transmitter buttonsto lock or unlock the doors and the liftgate.It can also help you signal for attention bysetting off the panic alarm.
Press the LOCK button (1) to lock all thedoors and the liftgate.The turn signal lights
will also blink once.
Press the UNLOCK button (2) to unlock thedriver’s door only.
General information
CAUTIONChanges or modifica
tions not expressly
approved by the manufacturer for compli-ance could void the user’s authority to oper-ate the equipment.
Keyless entry system
(if so
equipped)
LOCK ( ) button
2-
UNLOCK ( ) button
3- PANIC button4- Indicator light
NOTE
On vehicles equipped wi
th the mirror retrac-
tor switch, the outside rearview mirrors auto-matically retract or extend when the doorsand the liftgate are locked or unlocked usingthe remote control swit
ches of the keyless
entry system.Refer to “Features and controls: Outsiderearview mirrors” on page 5-60.
To l o c k

NOTE
On vehicles equipped wi
th the mirror retrac-
tor switch, the outside rearview mirrors auto-matically retract when
the LOCK button(1)
is pressed.If you press the LOCK button (1) twice thehorn will sound once.
To unlock

BK0249100US.book 7 ページ ２０１７年５月１０日　水曜日　午前８時４９分

Keyless entry system (if so equipped)5-8 Features and controls
5

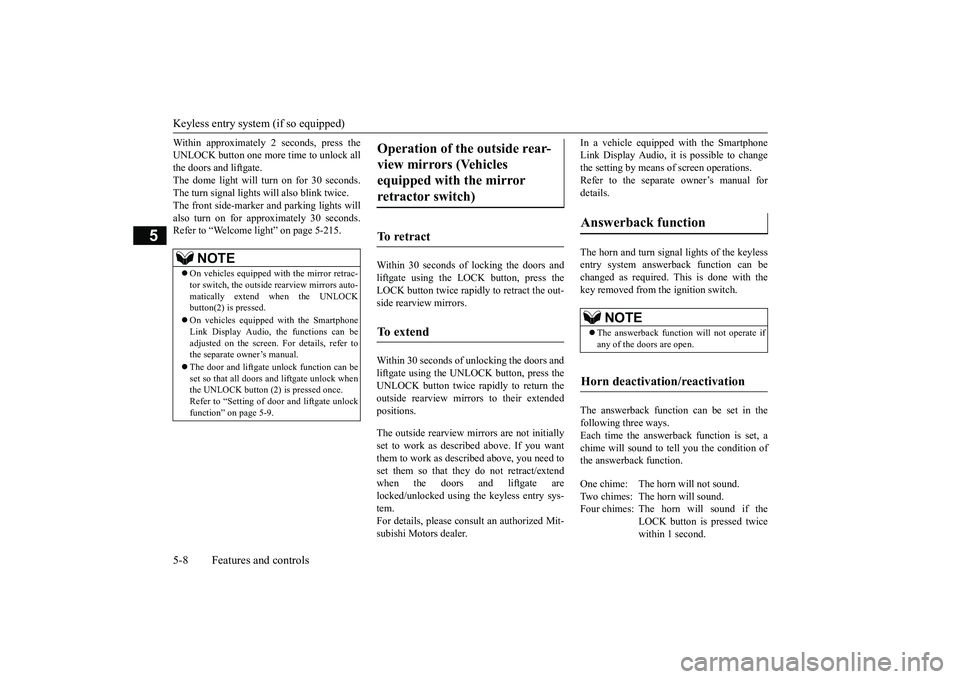

Within approximately 2 seconds, press theUNLOCK button one more time to unlock allthe doors and liftgate.The dome light will turn on for 30 seconds.The turn signal lights will also blink twice.The front side-marker and parking lights willalso turn on for approximately 30 seconds.Refer to “Welcome light” on page 5-215.
Within 30 seconds of locking the doors andliftgate using the LOCK button, press theLOCK button twice rapidly to retract the out-side rearview mirrors.Within 30 seconds of unlocking the doors andliftgate using the UNLOCK button, press theUNLOCK button twice rapidly to return theoutside rearview mirrors to their extendedpositions.The outside rearview mirrors are not initiallyset to work as described above. If you wantthem to work as described above, you need toset them so that they do not retract/extendwhen the doors and liftgate arelocked/unlocked using
the keyless entry sys-
tem.For details, please consult an authorized Mit-subishi Motors dealer.
In a vehicle equipped with the SmartphoneLink Display Audio, it is
possible to change
the setting by means of
screen operations.
Refer to the separate owner’s manual fordetails.The horn and turn signal lights of the keylessentry system answerback function can bechanged as required. This is done with thekey removed from the ignition switch.The answerback function can be set in thefollowing three ways.Each time the answerback function is set, achime will sound to
tell you the condition of
the answerback function.
NOTE
On vehicles equipped wi
th the mirror retrac-
tor switch, the outside rearview mirrors auto-matically extend when the UNLOCKbutton(2) is pressed.On vehicles equippe
d with the Smartphone
Link Display Audio, the functions can beadjusted on the screen. For details, refer tothe separate owner’s manual.The door and liftgate
unlock function can be
set so that all doors a
nd liftgate unlock when
the UNLOCK button (2) is pressed once.Refer to “Setting of door
and liftgate unlock
function” on page 5-9.
Operation of the outside rear-view mirrors (Vehicles equipped with the mirror retractor switch)

To r e t r a c t

To e x t e n d

Answerback function

NOTE
The answerback functi
on will not operate if
any of the doors are open.
Horn deactivation/reactivation

One chime: The horn will not sound.Two chimes: The horn will sound.Four chimes: The hor
n will sound if the
LOCK button is pressed twicewithin 1 second.
BK0249100US.book 8 ページ ２０１７年５月１０日　水曜日　午前８時４９分

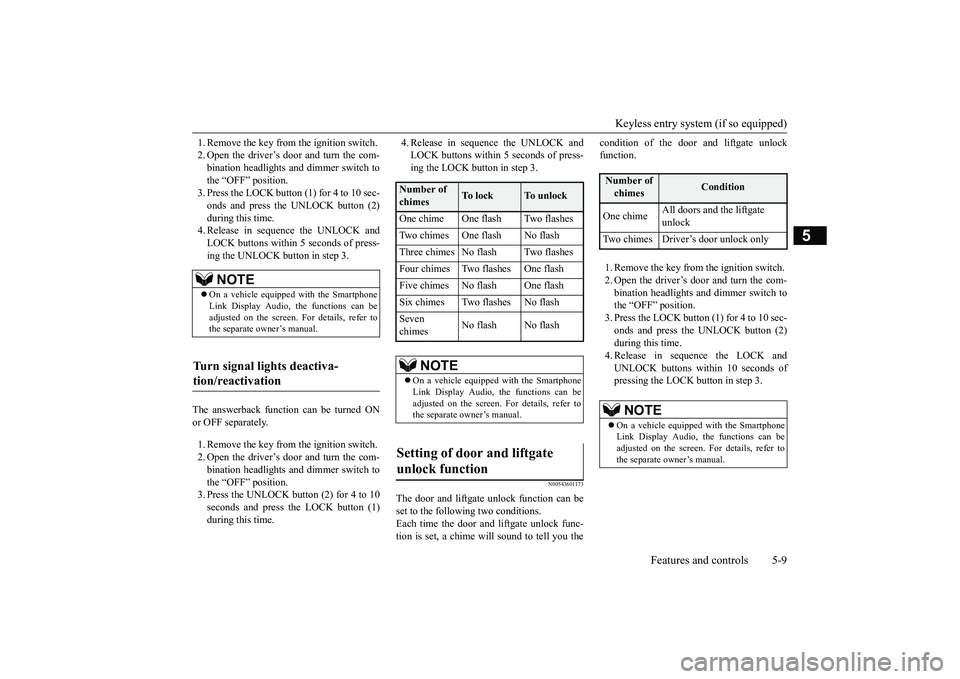

Keyless entry system (if so equipped)
Features and controls 5-9
5
1. Remove the key from the ignition switch.2. Open the driver’s door and turn the com-bination headlights and dimmer switch tothe “OFF” position.3. Press the LOCK button (1) for 4 to 10 sec-onds and press the UNLOCK button (2)during this time.4. Release in sequence the UNLOCK andLOCK buttons within 5 seconds of press-ing the UNLOCK button in step 3.
The answerback function can be turned ONor OFF separately.1. Remove the key from the ignition switch.2. Open the driver’s door and turn the com-bination headlights and dimmer switch tothe “OFF” position.3. Press the UNLOCK button (2) for 4 to 10seconds and press the LOCK button (1)during this time.
4. Release in sequence the UNLOCK andLOCK buttons within 5 seconds of press-ing the LOCK button in step 3.
N00543601173
The door and liftgate
unlock function can be
set to the following two conditions.Each time the door and
liftgate unlock func-
tion is set, a chime wi
ll sound to tell you the
condition of the door and liftgate unlockfunction.1. Remove the key from the ignition switch.2. Open the driver’s door and turn the com-bination headlights and dimmer switch tothe “OFF” position.3. Press the LOCK button (1) for 4 to 10 sec-onds and press the UNLOCK button (2)during this time.4. Release in sequence the LOCK andUNLOCK buttons within 10 seconds ofpressing the LOCK button in step 3.
NOTE
On a vehicle equipped with the SmartphoneLink Display Audio, the functions can beadjusted on the screen. For details, refer tothe separate owner’s manual.
Turn signal lights deactiva-tion/reactivation

Number of chimes
To l o c k
To u n l o c k
One chime One flash Two flashesTwo chimes One flash No flashThree chimes No flash Two flashesFour chimes Two flashes One flashFive chimes No flash One flashSix chimes Two flashes No flashSeven chimes
No flash No flash
NOTE
On a vehicle equipped with the SmartphoneLink Display Audio, the functions can beadjusted on the screen. For details, refer tothe separate owner’s manual.
Setting of door and liftgate unlock function

Number of chimes
Condition
One chime
All doors and the liftgate unlock
Two chimes Driver’s door unlock only
NOTE
On a vehicle equipped with the SmartphoneLink Display Audio, the functions can beadjusted on the screen. For details, refer tothe separate owner’s manual.
BK0249100US.book 9 ページ ２０１７年５月１０日　水曜日　午前８時４９分
