MITSUBISHI OUTLANDER III 2018 Owners Manual

Free-hand Advanced
Security Transmitter (F.A.S
.T.-key) (if so equipped)
5
N00568101065
After approximately 30
minutes has elapsed
with the operation mode
in ACC, the function
automatically cuts out the power for the audiosystem and other electr
ic devices
that can be
operated with that mode.When the engine switch is pressed while theoperation mode is in A
CC, the power is sup-
plied again to those devices.
N00503501213
With the F.A.S.T.-key, warnings are given through buzzers and di
splays on the information screen in the multi information displ
ay in order to pre-
vent mistaken operati
ons or vehicle theft.
When a warning operates, be sure to check the vehicle and the F.
A.S.T.-key. A warning is also di
splayed if there is a problem i
n the F.A.S.T.-key.
Type 1: Color liquid crysta
l display type Type 2:
Mono-color liquid
crystal display type

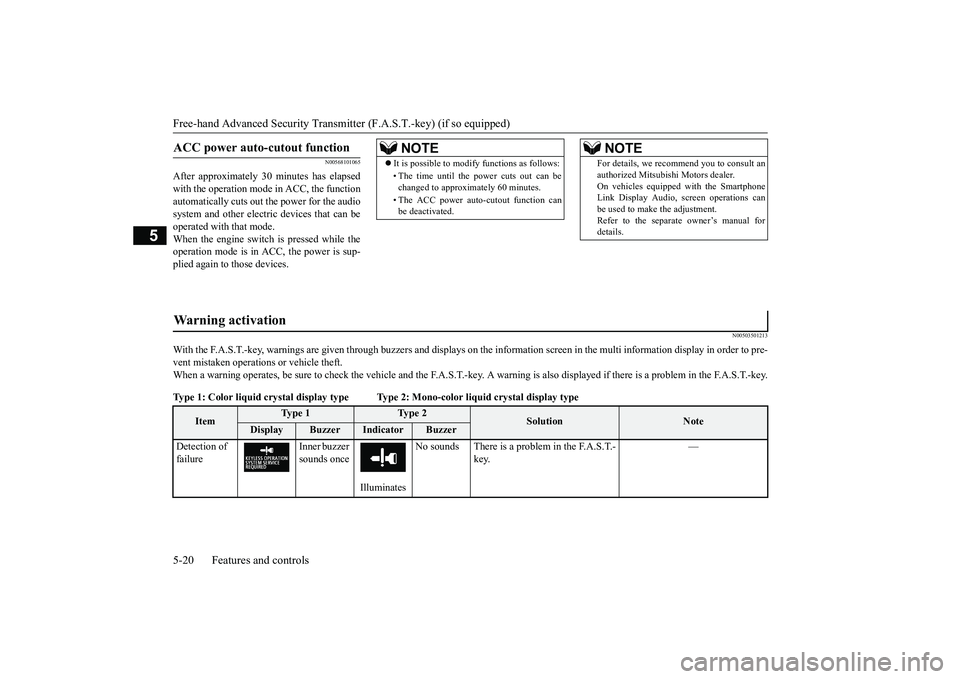

ACC power auto-cutout function

NOTE
It is possible to modify functions as follows:• The time until the power cuts out can bechanged to approxi
mately 60 minutes.
• The ACC power auto
-cutout function can
be deactivated.
For details, we recommend you to consult anauthorized Mitsubishi Motors dealer.On vehicles equippe
d with the Smartphone
Link Display Audio, sc
reen operations can
be used to make the adjustment.Refer to the separate
owner’s manual for
details.NOTE
Warning activation

Item
Ty p e 1
Ty p e 2
Solution
Note
Display
Buzzer
Indicator
Buzzer
Detection of failure
Inner buzzer sounds once
Illuminates
No sounds There is a problem in the F.A.S.T.-
key.
—
BK0249100US.book 20 ページ ２０１７年５月１０日　水曜日　午前８時４９分

Free-hand Advanced Securi
ty Transmitter (F.A.S.T.-key) (if so equipped)
Features and controls 5-21
5

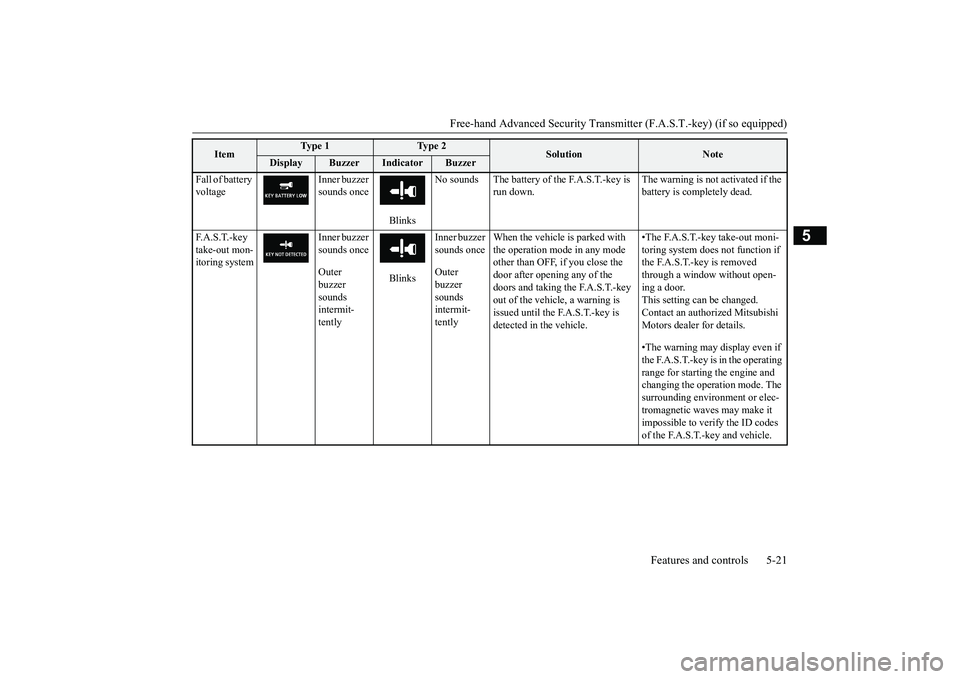

Fall of battery voltage
Inner buzzer sounds once
Blinks
No sounds The battery of the F.A.S.T.-key is
run down.
The warning is not activated if the battery is completely dead.
F. A . S . T. - k e y take-out mon-itoring system
Inner buzzer sounds onceOuter buzzer sounds intermit-tently
Blinks
Inner buzzer sounds onceOuter buzzer sounds intermit-tently
When the vehicle is parked with the operation mode in any mode other than OFF, if you close the door after opening any of the doors and taking the F.A.S.T.-key out of the vehicle, a warning is issued until the F.A.S.T.-key is detected in the vehicle.
•The F.A.S.T.-key take-out moni-toring system does
not function if
the F.A.S.T.-key is removed through a window without open-ing a door.This setting can be changed.Contact an authorized Mitsubishi Motors dealer for details.•The warning may display even if the F.A.S.T.-key is in the operating range for starting the engine and changing the operation mode. The surrounding environment or elec-tromagnetic waves may make it impossible to verify the ID codes of the F.A.S.T.-key and vehicle.
Item
Ty p e 1
Ty p e 2
Solution
Note
Display
Buzzer
Indicator
Buzzer
BK0249100US.book 21 ページ ２０１７年５月１０日　水曜日　午前８時４９分

Free-hand Advanced
Security Transmitter (F.A.S
.T.-key) (if so equipped)
5

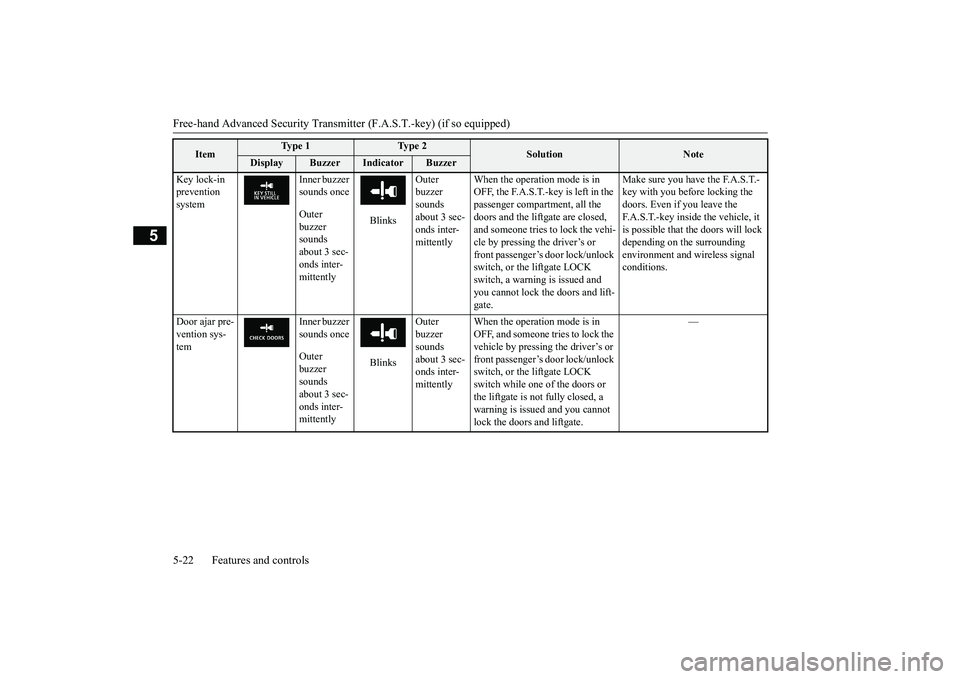

Key lock-in prevention system
Inner buzzer sounds onceOuter buzzer sounds about 3 sec-onds inter-mittently
Blinks
Outer buzzer sounds about 3 sec-onds inter-mittently
When the operation mode is in OFF, the F.A.S.T.-key is left in the passenger compartment, all the doors and the liftgate are closed, and someone tries to lock the vehi-cle by pressing the driver’s or front passenger’s door lock/unlock switch, or the liftgate LOCK switch, a warning is issued and you cannot lock the doors and lift-gate.
Make sure you have the F.A.S.T.-key with you before locking the doors. Even if you leave the F.A.S.T.-key inside the vehicle, it is possible that the doors will lock depending on the surrounding environment and
wireless signal
conditions.
Door ajar pre-vention sys-tem
Inner buzzer sounds onceOuter buzzer sounds about 3 sec-onds inter-mittently
Blinks
Outer buzzer sounds about 3 sec-onds inter-mittently
When the operation mode is in OFF, and someone tries to lock the vehicle by pressing the driver’s or front passenger’s door lock/unlock switch, or the liftgate LOCK switch while one of the doors or the liftgate is not fully closed, a warning is issued and you cannot lock the doors and liftgate.
—
Item
Ty p e 1
Ty p e 2
Solution
Note
Display
Buzzer
Indicator
Buzzer
BK0249100US.book 22 ページ ２０１７年５月１０日　水曜日　午前８時４９分

Free-hand Advanced Securi
ty Transmitter (F.A.S.T.-key) (if so equipped)
Features and controls 5-23
5

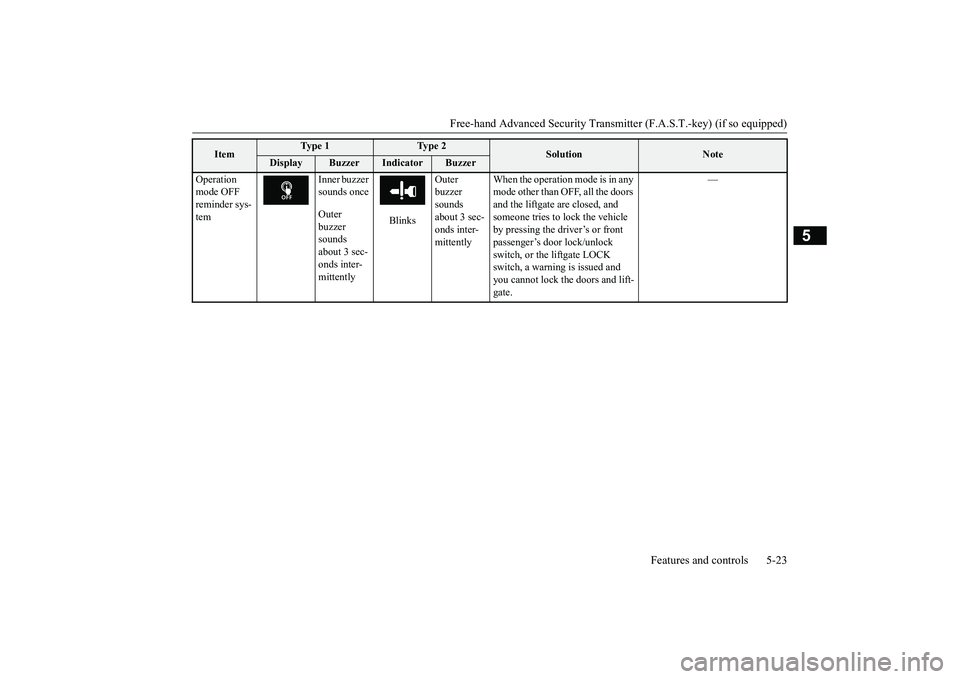

Operation mode OFF reminder sys-tem
Inner buzzer sounds onceOuter buzzer sounds about 3 sec-onds inter-mittently
Blinks
Outer buzzer sounds about 3 sec-onds inter-mittently
When the operation mode is in any mode other than OFF, all the doors and the liftgate
are closed, and
someone tries to lock the vehicle by pressing the driver’s or front passenger’s door lock/unlock switch, or the liftgate LOCK switch, a warning is issued and you cannot lock the doors and lift-gate.
—
Item
Ty p e 1
Ty p e 2
Solution
Note
Display
Buzzer
Indicator
Buzzer
BK0249100US.book 23 ページ ２０１７年５月１０日　水曜日　午前８時４９分

Free-hand Advanced
Security Transmitter (F.A.S
.T.-key) (if so equipped)
5
N00514301080
After pressing the e
ngine switch and opera-
tion mode in OFF, when driver’s door isopened, the steering wheel is locked.Warning display
The following methods ca
n be used to unlock
the steering wheel.Put the operation mode in ACC.Start the engine.

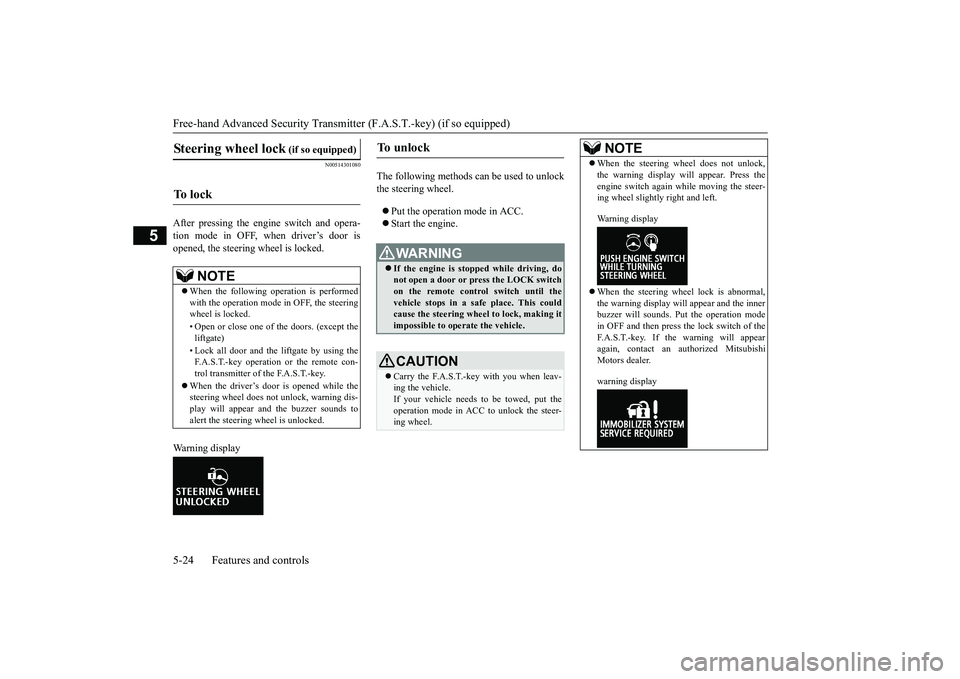

Steering wheel lock
(if so equipped)
To l o c k

NOTE
When the following ope
ration is performed
with the operation mode
in OFF, the steering
wheel is locked.• Open or close one of the doors. (except theliftgate)F.A.S.T.-key operation or the remote con-trol transmitter of the F.A.S.T.-key.
When the driver’s door is opened while thesteering wheel does not
unlock, warning dis-
play will appear and the buzzer sounds toalert the steering wheel is unlocked.
To u n l o c k

WA R N I N GIf the engine is stopped while driving, donot open a door or press the LOCK switchon the remote control switch until thevehicle stops in a safe
place. This could
cause the steering wheel to lock, making itimpossible to operate the vehicle.CAUTIONCarry the F.A.S.T.-key with you when leav-ing the vehicle.If your vehicle needs to
be towed, put the
operation mode in ACC to unlock the steer-ing wheel.
NOTE
When the steering wheel does not unlock,the warning display wi
ll appear. Press the
engine switch again wh
ile moving the steer-
ing wheel slightly right and left.Warning displayWhen the steering wheel lock is abnormal,the warning display will
appear and the inner
buzzer will sounds. Put the operation modein OFF and then press the lock switch of theF.A.S.T.-key. If the warning will appearagain, contact an authorized MitsubishiMotors dealer.warning display
BK0249100US.book 24 ページ ２０１７年５月１０日　水曜日　午前８時４９分

Free-hand Advanced Securi
ty Transmitter (F.A.S.T.-key) (if so equipped)
Features and controls 5-25
5
N00514601399
The operation mode can be in any modeto start the engine.The starter motor will be turning for up toapproximately 15 seconds if the engineswitch is released at once. Pressing theengine switch again while the startermotor is still turning will stop the startermotor.The starter motor will be turning for up toapproximately 30 seconds while theengine switch
is pressed.
If the engine does not start, wait for awhile and then attempt to start the engineagain. Trying repeatedly with the engineor starter motor still turning will damagethe starter mechanism.If the engine will not start because the bat-tery is weak or discharged, refer to“Jump-starting the engine” on page 8-2for instructions.A longer warm up period will only con-sume extra fuel.The engine is warmed up enough for driv-ing when the bar graph of engine coolanttemperature display starts to move or thelow coolant temperature indicator goesout. Refer to “Engine
coolant temperature
display” on page 5-161 or “Low coolanttemperature indica
tor” on page 5-202.
Your vehicle is equipped with an electroni-cally controlled fuel injection system. Thissystem automatically controls fuel injection.There is usually no need
to depress the accel-
erator pedal when starting the engine.To prevent battery drai
n, wait a few seconds
between attempts to restart the engine.1. Make sure all occupants are properlyseated with seat belts fastened.2. Make sure the parking brake is applied.3. Press and hold the brake pedal downfirmly with your right foot.4. Make sure the selector
lever is in the “P”
If there is a fault in the steering wheel lock,the warning display will
appear. Immediately
stop the vehicle in a sa
fe place and contact
an authorized Mitsubishi Motors dealer.Warning display

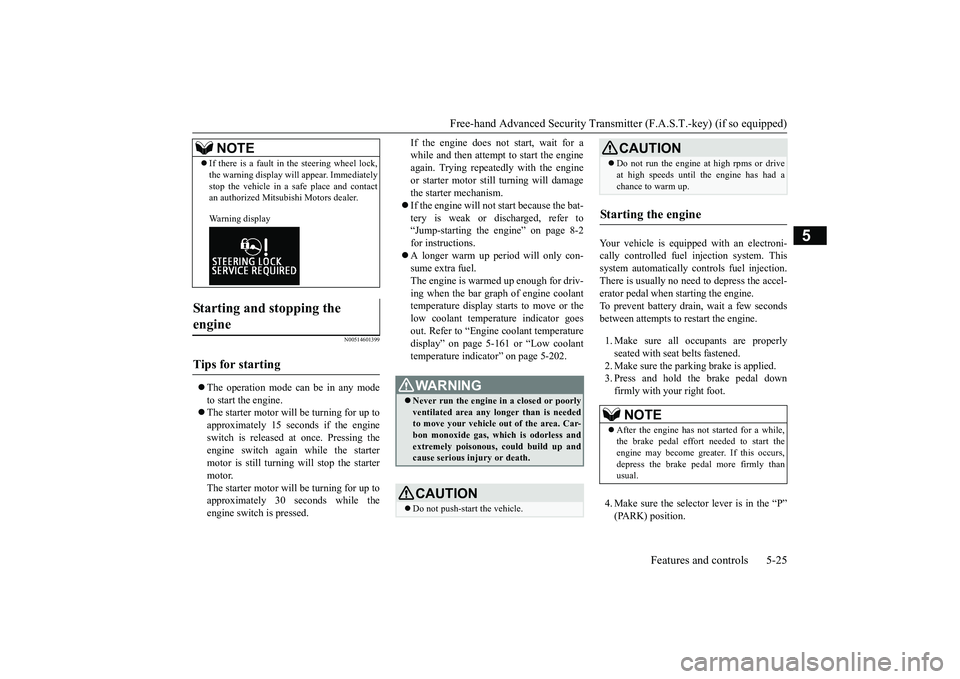

Starting and stopping the engine

Tips for starting

NOTE
WA R N I N GNever run the engine in
a closed or poorly
ventilated area any longer than is neededto move your vehicle
out of the area. Car-
bon monoxide gas, wh
ich is odorless and
extremely poisonous, could build up andcause serious injury or death.CAUTIONDo not push-start the vehicle.
Do not run the engine at high rpms or driveat high speeds until the engine has had achance to warm up.
Starting the engine

NOTE
After the engine has not started for a while,the brake pedal effort needed to start theengine may become grea
ter. If this occurs,
depress the brake pedal more firmly thanusual.CAUTION
BK0249100US.book 25 ページ ２０１７年５月１０日　水曜日　午前８時４９分

Free-hand Advanced
Security Transmitter (F.A.S
.T.-key) (if so equipped)
5

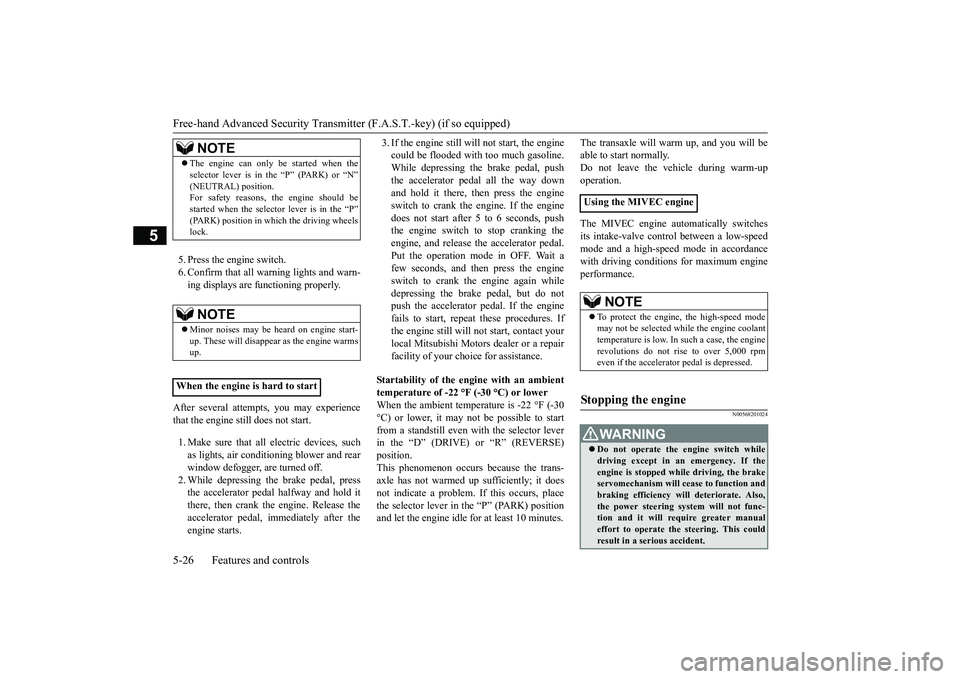

5. Press the engine switch.6. Confirm that all warning lights and warn-ing displays are functioning properly.
After several attempts
, you may experience
that the engine still does not start.1. Make sure that all electric devices, suchas lights, air conditi
oning blower and rear
window defogger, are turned off.2. While depressing the brake pedal, pressthe accelerator peda
l halfway and hold it
there, then crank th
e engine. Release the
accelerator pedal, immediately after theengine starts.
3. If the engine still wi
ll not start, the engine
could be flooded with too much gasoline.While depressing the brake pedal, pushthe accelerator pedal all the way downand hold it there, then press the engineswitch to crank the engine. If the enginedoes not start after 5 to 6 seconds, pushthe engine switch to stop cranking theengine, and release th
e accelerator pedal.
Put the operation mode in OFF. Wait afew seconds, and then press the engineswitch to crank the engine again whiledepressing the brake pedal, but do notpush the accelerator pedal. If the enginefails to start, repeat these procedures. Ifthe engine still will
not start, contact your
local Mitsubishi Motors dealer or a repairfacility of your choi
ce for assistance.
Startability of the en
gine with an ambient
temperature of -22 °F (-30 °C) or lowerWhen the ambient temperature is -22 °F (-30°C) or lower, it may not be possible to startfrom a standstill even wi
th the selector lever
in the

Free-hand Advanced Securi
ty Transmitter (F.A.S.T.-key) (if so equipped)
Features and controls 5-27
5

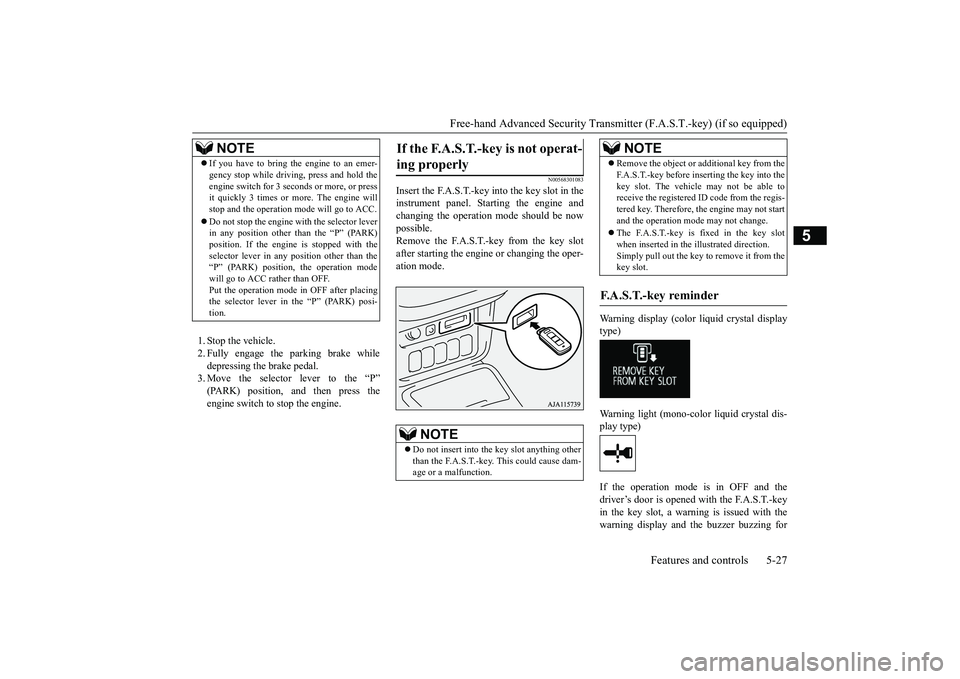

1. Stop the vehicle.2. Fully engage the parking brake whiledepressing the brake pedal.3. Move the selector lever to the “P”(PARK) position, and then press theengine switch to
stop the engine.
N00568301083
Insert the F.A.S.T.-key into the key slot in theinstrument panel. St
arting the engine and
changing the operation mode should be nowpossible.Remove the F.A.S.T.-key from the key slotafter starting the engine or changing the oper-ation mode.
Warning display (color liquid crystal displaytype)Warning light (mono-color liquid crystal dis-play type)If the operation mode is in OFF and thedriver’s door is opened with the F.A.S.T.-keyin the key slot, a warning is issued with thewarning display and the buzzer buzzing for
NOTE
If you have to bring the engine to an emer-gency stop while drivi
ng, press and hold the
engine switch for 3 sec
onds or more, or press
it quickly 3 times or more. The engine willstop and the operation mode will go to ACC.Do not stop the engine wi
th the selector lever
in any position other than the “P” (PARK)position. If the engine
is stopped with the
selector lever in any
position other than the
“P” (PARK) position, the operation modewill go to ACC rather than OFF.Put the operation mode
in OFF after placing
the selector lever in the

Free-hand Advanced
Security Transmitter (F.A.S
.T.-key) (if so equipped)
5
approximately 3 seconds to remind you toremove the key.
N00514800017N00515201158

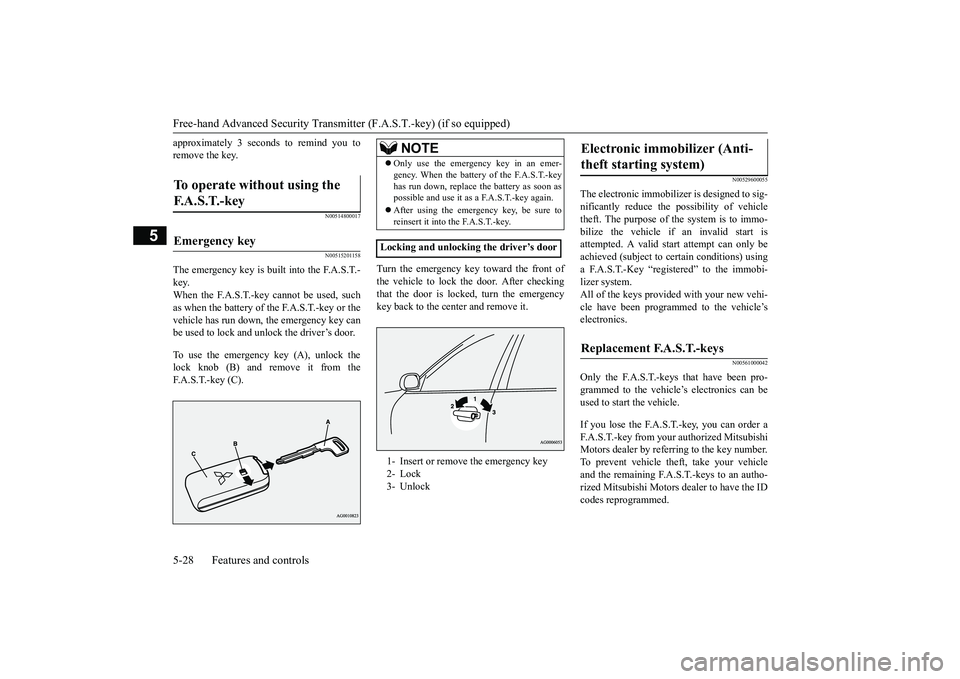

The emergency key is built into the F.A.S.T.-key.When the F.A.S.T.-key cannot be used, suchas when the battery of the F.A.S.T.-key or thevehicle has run down, the emergency key canbe used to lock and unlock the driver’s door.To use the emergency key (A), unlock thelock knob (B) and remove it from theF.A.S.T.-key (C).
Turn the emergency key toward the front ofthe vehicle to lock the door. After checkingthat the door is locked, turn the emergencykey back to the center and remove it.
N00529600055
The electronic immobilize
r is designed to sig-
nificantly reduce the
possibility of vehicle
theft. The purpose of the system is to immo-bilize the vehicle if
an invalid start is
attempted. A valid st
art attempt can only be
achieved (subject to ce
rtain conditions) using
a F.A.S.T.-Key “registered” to the immobi-lizer system.All of the keys provided with your new vehi-cle have been program
med to the vehicle’s
electronics.
N00561000042
Only the F.A.S.T.-keys that have been pro-grammed to the vehicl
e’s electronics can be
used to start the vehicle.If you lose the F.A.S.T.-key, you can order aF.A.S.T.-key from your authorized MitsubishiMotors dealer by refe
rring to the key number.
To prevent vehicle theft, take your vehicleand the remaining F.A.S.T.-keys to an autho-rized Mitsubishi Motors
dealer to have the ID
codes reprogrammed.
To operate without using the F. A . S . T. - k e y

Emergency key

NOTE
Only use the emergency key in an emer-gency. When the battery of the F.A.S.T.-keyhas run down, replace
the battery as soon as
possible and use it as a F.A.S.T.-key again.After using the emergency key, be sure toreinsert it into the F.A.S.T.-key.
Locking and unlocking the driver’s door1- Insert or remove
the emergency key
2- Lock3- Unlock
Electronic immobilizer (Anti-theft starting system)

Replacement F.A.S.T.-keys

BK0249100US.book 28 ページ ２０１７年５月１０日　水曜日　午前８時４９分

Free-hand Advanced Securi
ty Transmitter (F.A.S.T.-key) (if so equipped)
Features and controls 5-29
5

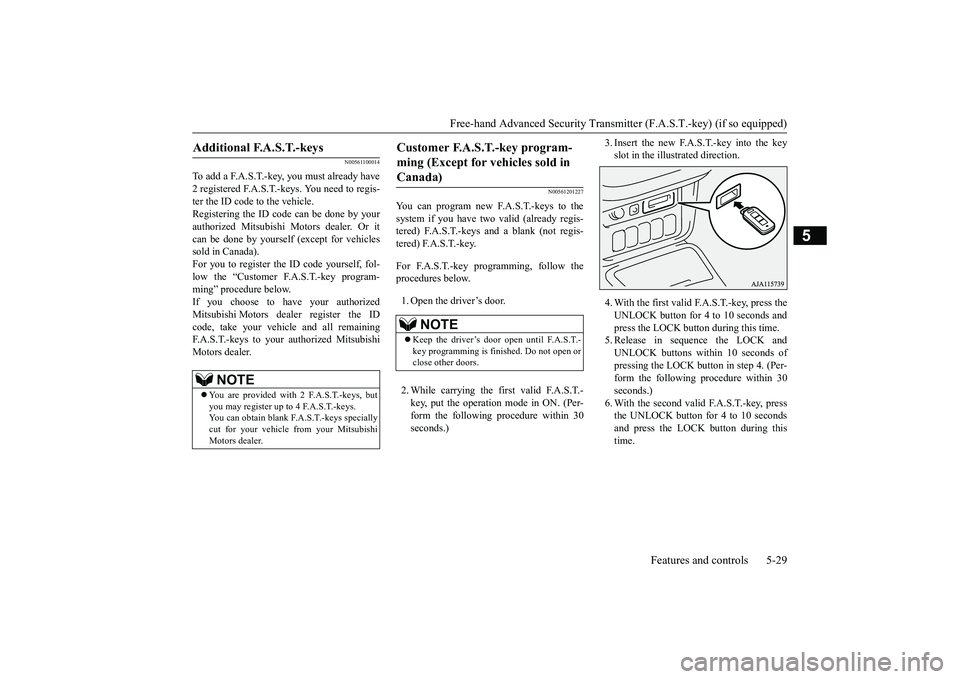

N00561100014
To add a F.A.S.T.-key, you must already have2 registered F.A.S.T.-keys. You need to regis-ter the ID code to the vehicle.Registering the ID code can be done by yourauthorized Mitsubishi Motors dealer. Or itcan be done by yourself (except for vehiclessold in Canada).For you to register the ID code yourself, fol-low the “Customer F.A.S.T.-key program-ming” procedure below.If you choose to have your authorizedMitsubishi Motors dealer register the IDcode, take your vehicle and all remainingF.A.S.T.-keys to your authorized MitsubishiMotors dealer.
N00561201227
You can program new F.A.S.T.-keys to thesystem if you have tw
o valid (already regis-
tered) F.A.S.T.-keys an
d a blank (not regis-
tered) F.A.S.T.-key.For F.A.S.T.-key programming, follow theprocedures below.1. Open the driver’s door.2. While carrying the first valid F.A.S.T.-key, put the operatio
n mode in ON. (Per-
form the following procedure within 30seconds.)
3. Insert the new F.A.S.T.-key into the keyslot in the illustrated direction.4. With the first valid F.A.S.T.-key, press theUNLOCK button for 4 to 10 seconds andpress the LOCK button during this time.5. Release in sequence the LOCK andUNLOCK buttons within 10 seconds ofpressing the LOCK butt
on in step 4. (Per-
form the following procedure within 30seconds.)6. With the second valid F.A.S.T.-key, pressthe UNLOCK button for 4 to 10 secondsand press the LOCK button during thistime.
Additional F.A.S.T.-keys

NOTE
You are provided with 2 F.A.S.T.-keys, butyou may register up to 4 F.A.S.T.-keys.You can obtain blank F.A.S.T.-keys speciallycut for your vehicle from your MitsubishiMotors dealer.
Customer F.A.S.T.-key program-ming (Except for vehicles sold in Canada)

NOTE
Keep the driver’s door open until F.A.S.T.-key programming is finished. Do not open orclose other doors.
