MITSUBISHI OUTLANDER III 2018 Owners Manual

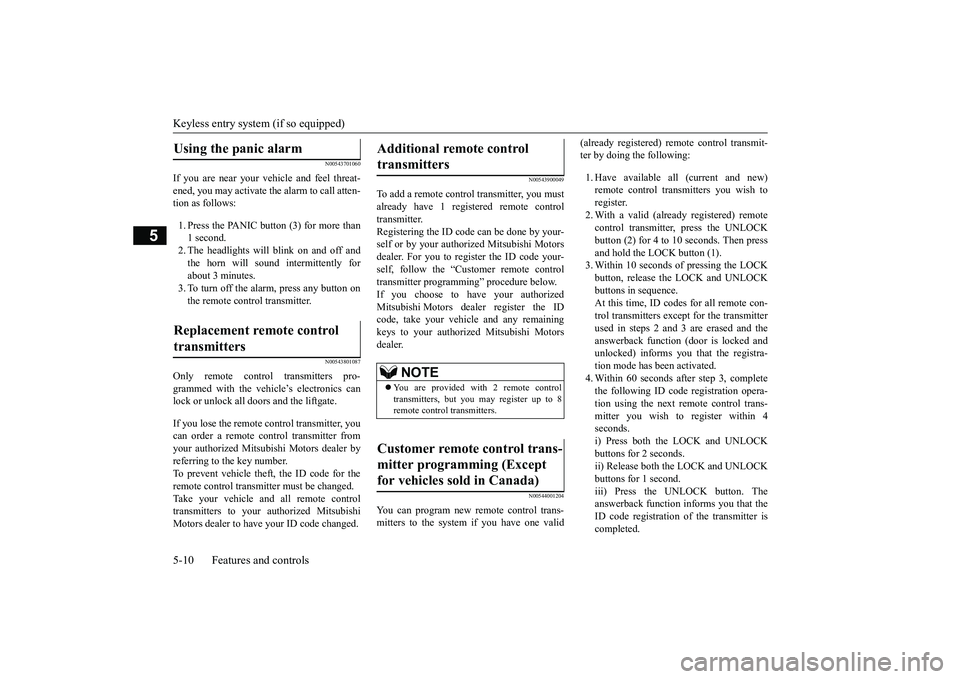

Keyless entry system (if so equipped)5-10 Features and controls
5
N00543701060
If you are near your vehicle and feel threat-ened, you may activate the alarm to call atten-tion as follows:1. Press the PANIC button (3) for more than1 second.2. The headlights will blink on and off andthe horn will sound intermittently forabout 3 minutes.3. To turn off the alarm, press any button onthe remote control transmitter.
N00543801087
Only remote control transmitters pro-grammed with the vehicle’s electronics canlock or unlock all doors and the liftgate.If you lose the remote control transmitter, youcan order a remote control transmitter fromyour authorized Mitsubishi Motors dealer byreferring to the key number.To prevent vehicle theft, the ID code for theremote control transmitter must be changed.Take your vehicle and all remote controltransmitters to your authorized MitsubishiMotors dealer to have your ID code changed.
N00543900049
To add a remote control transmitter, you mustalready have 1 regist
ered remote control
transmitter.Registering the ID code can be done by your-self or by your authorized Mitsubishi Motorsdealer. For you to regist
er the ID code your-
self, follow the “Customer remote controltransmitter programming” procedure below.If you choose to have your authorizedMitsubishi Motors dealer register the IDcode, take your vehi
cle and any remaining
keys to your authorized Mitsubishi Motorsdealer.
N00544001204
You can program new remote control trans-mitters to the system if you have one valid
(already registered) re
mote control transmit-
ter by doing the following:1. Have available al
l (current and new)
remote control transmitters you wish toregister.2. With a valid (already registered) remotecontrol transmitter, press the UNLOCKbutton (2) for 4 to 10 seconds. Then pressand hold the LOCK button (1).3. Within 10 seconds of pressing the LOCKbutton, release the LOCK and UNLOCKbuttons in sequence.At this time, ID codes for all remote con-trol transmitters except for the transmitterused in steps 2 and 3 are erased and theanswerback function (door is locked andunlocked) informs you that the registra-tion mode has been activated.4. Within 60 seconds after step 3, completethe following ID code
registration opera-
tion using the next remote control trans-mitter you wish to register within 4seconds.i) Press both the LOCK and UNLOCKbuttons for 2 seconds.ii) Release both the LOCK and UNLOCKbuttons for 1 second.iii) Press the UNLOCK button. Theanswerback function informs you that theID code registration
of the transmitter is
completed.
Using the panic alarm

Replacement remote control transmitters

Additional remote control transmitters

NOTE
You are provided with
2 remote control
transmitters, but you may register up to 8remote control transmitters.
Customer remote control trans-mitter programming (Except for vehicles sold in Canada)

BK0249100US.book 10 ページ ２０１７年５月１０日　水曜日　午前８時４９分

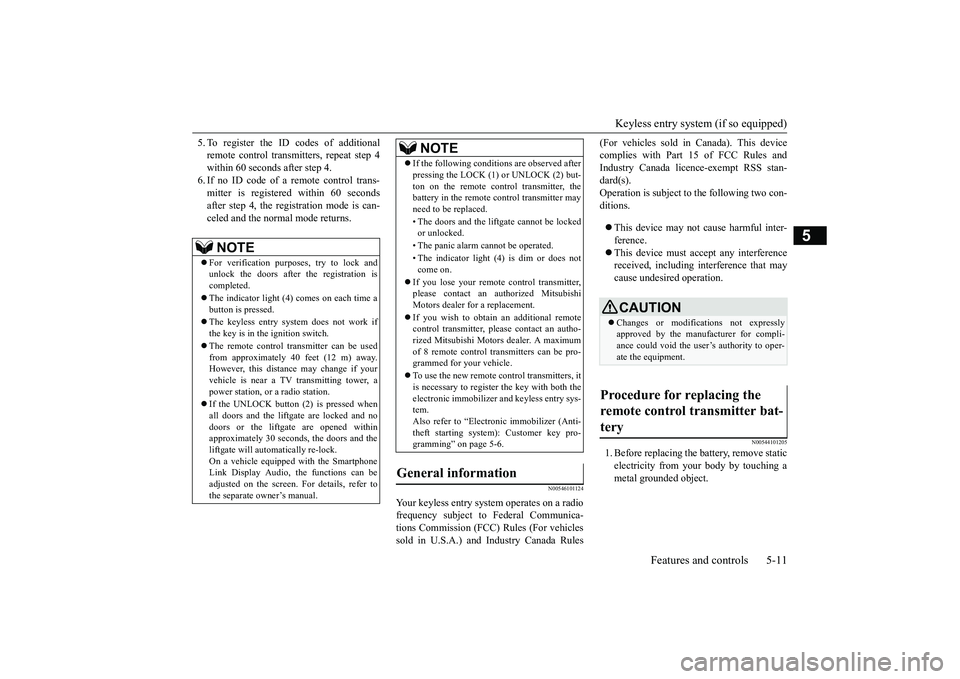

Keyless entry system (if so equipped)
Features and controls 5-11
5
5. To register the ID codes of additionalremote control transmitters, repeat step 4within 60 seconds after step 4.6. If no ID code of a remote control trans-mitter is registered within 60 secondsafter step 4, the regi
stration mode is can-
celed and the normal mode returns.
N00546101124
Your keyless entry system operates on a radiofrequency subject to
Federal Communica-
tions Commission (FCC)
Rules (For vehicles
sold in U.S.A.) and Industry Canada Rules
(For vehicles sold in Canada). This devicecomplies with Part 15 of FCC Rules andIndustry Canada licenc
e-exempt RSS stan-
dard(s).Operation is subject to the following two con-ditions.This device may not
cause harmful inter-
ference.This device must ac
cept any interference
received, including interference that maycause undesired operation.
N00544101205
1. Before replacing the battery, remove staticelectricity from your body by touching ametal grounded object.
NOTE
For verification purposes, try to lock andunlock the doors after the registration iscompleted.The indicator light (4)
comes on each time a
button is pressed.The keyless entry system does not work ifthe key is in the ignition switch.The remote control tr
ansmitter can be used
from approximately 40
feet (12 m) away.
However, this distan
ce may change if your
vehicle is near a TV transmitting tower, apower station, or a radio station.If the UNLOCK button (2) is pressed whenall doors and the liftgate are locked and nodoors or the liftgate are opened withinapproximately 30 seconds, the doors and theliftgate will automatically re-lock.On a vehicle equipped with the SmartphoneLink Display Audio, the functions can beadjusted on the screen. For details, refer tothe separate owner’s manual.
If the following conditi
ons are observed after
pressing the LOCK (1) or UNLOCK (2) but-ton on the remote control transmitter, thebattery in the remote control transmitter mayneed to be replaced.• The doors and the lift
gate cannot be locked
or unlocked.• The panic alarm cannot be operated.• The indicator light
(4) is dim or does not
come on.
If you lose your remote control transmitter,please contact an au
thorized Mitsubishi
Motors dealer for a replacement.If you wish to obtain
an additional remote
control transmitter, please contact an autho-rized Mitsubishi Moto
rs dealer. A maximum
of 8 remote control tr
ansmitters can be pro-
grammed for your vehicle.To use the new remote control transmitters, itis necessary to register
the key with both the
electronic immobilizer and keyless entry sys-tem.Also refer to “Electronic immobilizer (Anti-theft starting system): Customer key pro-gramming” on page 5-6.
General information

NOTE
CAUTIONChanges or modifica
tions not expressly
approved by the manufacturer for compli-ance could void the user
’s authority to oper-
ate the equipment.
Procedure for replacing the remote control transmitter bat-tery

BK0249100US.book 11 ページ ２０１７年５月１０日　水曜日　午前８時４９分

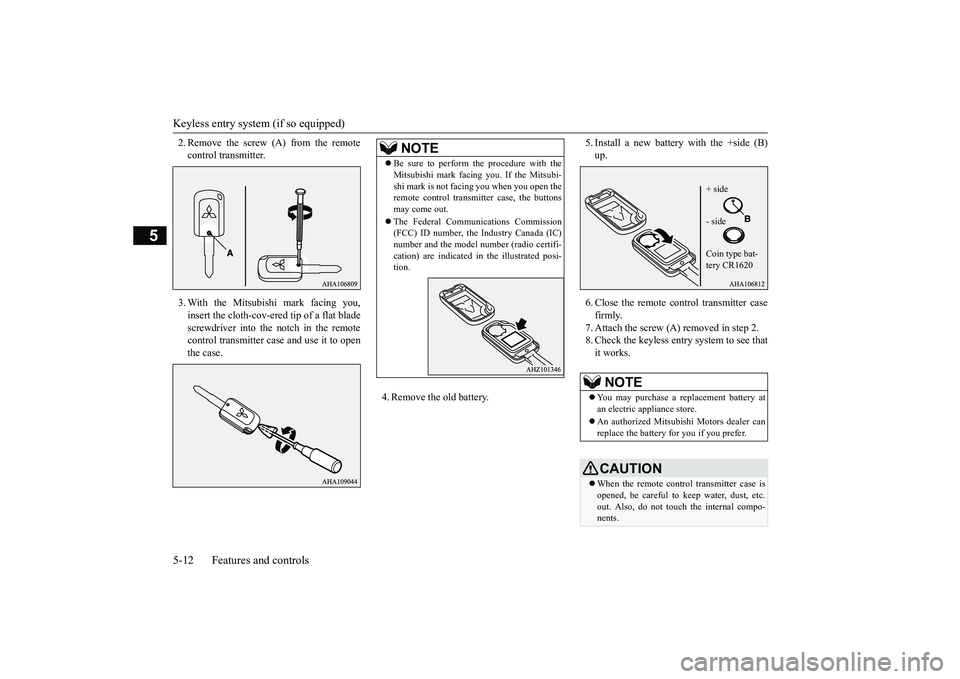

Keyless entry system (if so equipped)5-12 Features and controls
5
2. Remove the screw (A) from the remotecontrol transmitter.3. With the Mitsubishi mark facing you,insert the cloth-cov-ered tip of a flat bladescrewdriver into the notch in the remotecontrol transmitter case and use it to openthe case.
4. Remove the old battery.
5. Install a new battery with the +side (B)up.6. Close the remote control transmitter casefirmly.7. Attach the screw (A) removed in step 2.8. Check the keyless entry system to see thatit works.
NOTE
Be sure to perform the procedure with theMitsubishi mark facing you. If the Mitsubi-shi mark is not facing you when you open theremote control transmitter case, the buttonsmay come out.The Federal Communications Commission(FCC) ID number, the Industry Canada (IC)number and the model
number (radio certifi-
cation) are indicated in
the illustrated posi-
tion.
NOTE
You may purchase a replacement battery atan electric appliance store.An authorized Mitsubishi Motors dealer canreplace the battery for you if you prefer.CAUTIONWhen the remote control transmitter case isopened, be careful to
keep water, dust, etc.
out. Also, do not touch the internal compo-nents.
+ side- sideCoin type bat-tery CR1620
BK0249100US.book 12 ページ ２０１７年５月１０日　水曜日　午前８時４９分

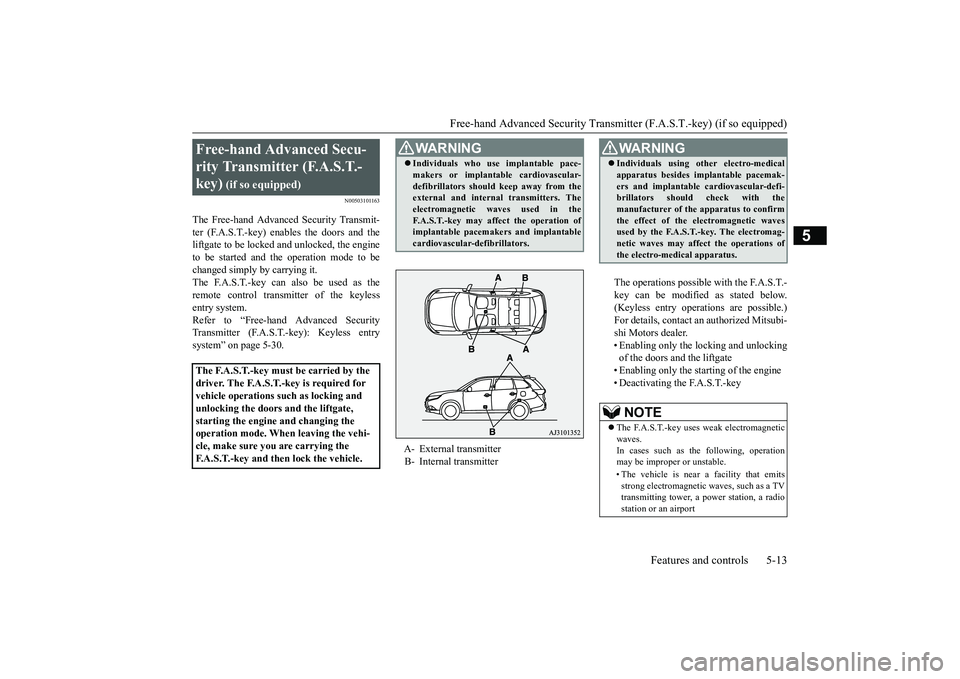

Free-hand Advanced Securi
ty Transmitter (F.A.S.T.-key) (if so equipped)
Features and controls 5-13
5
N00503101163
The Free-hand Advanced Security Transmit-ter (F.A.S.T.-key) enables the doors and theliftgate to be locked
and unlocked, the engine
to be started and the operation mode to bechanged simply by carrying it.The F.A.S.T.-key can also be used as theremote control transmitter of the keylessentry system.Refer to “Free-hand
Advanced Security
Transmitter (F.A.S.T.-key): Keyless entrysystem” on page 5-30.
The operations possible with the F.A.S.T.-key can be modified as stated below.(Keyless entry operations are possible.)For details, contact an
authorized Mitsubi-
shi Motors dealer.• Enabling only the locking and unlockingof the doors and the liftgate• Enabling only the starting of the engine• Deactivating the F.A.S.T.-key
Free-hand Advanced Secu-rity Transmitter (F.A.S.T.-key)
(if so equipped)
The F.A.S.T.-key must be carried by the driver. The F.A.S.T.-key is required for vehicle operations su
ch as locking and
unlocking the doors and the liftgate, starting the engine
and changing the
operation mode. When
leaving the vehi-
cle, make sure you are carrying the F.A.S.T.-key and then lock the vehicle.
WA R N I N GIndividuals who use
implantable pace-
makers or implanta
ble cardiovascular-
defibrillators should keep away from theexternal and internal
transmitters. The
electromagnetic w
aves used in the
F.A.S.T.-key may affe
ct the operation of
implantable pacemakers and implantablecardiovascular-defibrillators.A- External transmitterB- Internal transmitter
WA R N I N GIndividuals using ot
her electro-medical
apparatus besides implantable pacemak-ers and implantable
cardiovascular-defi-
brillators should
check with the
manufacturer of the apparatus to confirmthe effect of the el
ectromagnetic waves
used by the F.A.S.T.-key. The electromag-netic waves may affect
the operations of
the electro-medical apparatus.NOTE
The F.A.S.T.-key uses weak electromagneticwaves.In cases such as the following, operationmay be imprope
r or unstable.
• The vehicle is near a facility that emitsstrong electroma
gnetic waves, such as a TV
transmitting tower, a po
wer station, a radio
station or an airport
BK0249100US.book 13 ページ ２０１７年５月１０日　水曜日　午前８時４９分

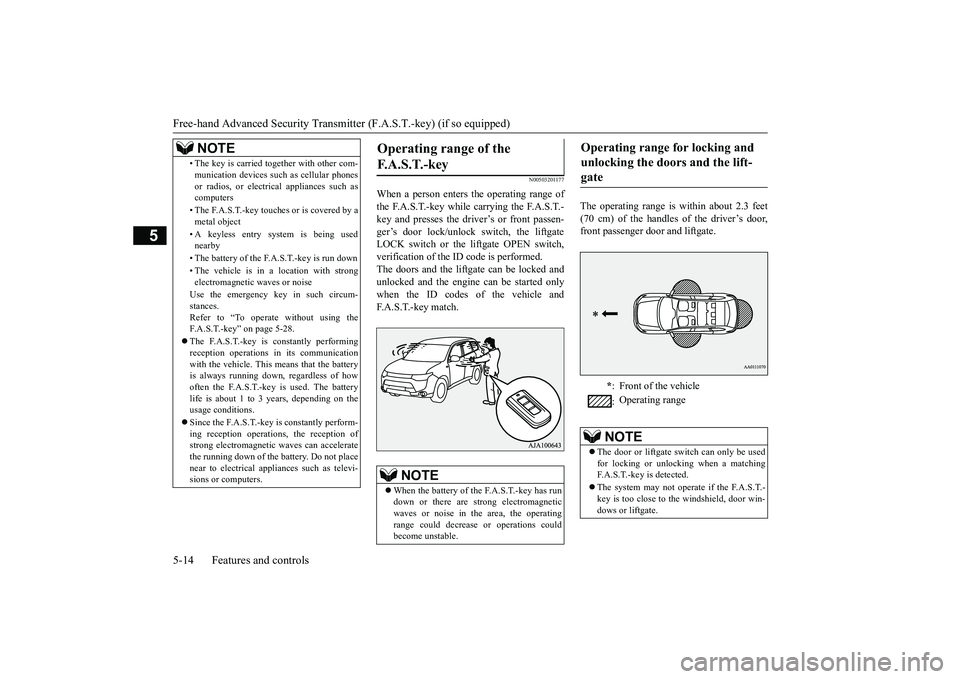

Free-hand Advanced
Security Transmitter (F.A.S
.T.-key) (if so equipped)
5
N00503201177
When a person enters the operating range ofthe F.A.S.T.-key while carrying the F.A.S.T.-key and presses the driver’s or front passen-ger’s door lock/unlock switch, the liftgateLOCK switch or the liftgate OPEN switch,verification of the ID
code is performed.
The doors and the liftgate can be locked andunlocked and the engine
can be started only
when the ID codes of the vehicle andF.A.S.T.-key match.
The operating range is
within about 2.3 feet
(70 cm) of the handles of the driver’s door,front passenger door and liftgate.
• The key is carried together with other com-munication devices such
as cellular phones
or radios, or electrical appliances such ascomputers• The F.A.S.T.-key touches or is covered by ametal object• A keyless entry system is being usednearby• The battery of the F.A.S.T.-key is run down• The vehicle is in
a location with strong
electromagnetic
waves or noise
Use the emergency key in such circum-stances.Refer to “To operate
without using the
F.A.S.T.-key” on page 5-28.The F.A.S.T.-key is constantly performingreception opera
tions in its communication
with the vehicle. This means that the batteryis always running down, regardless of howoften the F.A.S.T.-key is used. The batterylife is about 1 to 3 years, depending on theusage conditions.Since the F.A.S.T.-key is constantly perform-ing reception operati
ons, the reception of
strong electrom
agnetic waves
can accelerate
the running down of the ba
ttery. Do not place
near to electrical appliances such as televi-sions or computers.NOTE
Operating range of the F. A . S . T. - k e y

NOTE
When the battery of the F.A.S.T.-key has rundown or there are st
rong electromagnetic
waves or noise in the area, the operatingrange could decrease
or operations could
become unstable.
Operating range for locking and unlocking the doors and the lift-gate
*: Front of the vehicle:Operating range
NOTE
The door or liftgate switch can only be usedfor locking or unlocking when a matchingF.A.S.T.-key is detected.The system may not operate if the F.A.S.T.-key is too close to the windshield, door win-dows or liftgate.
BK0249100US.book 14 ページ ２０１７年５月１０日　水曜日　午前８時４９分

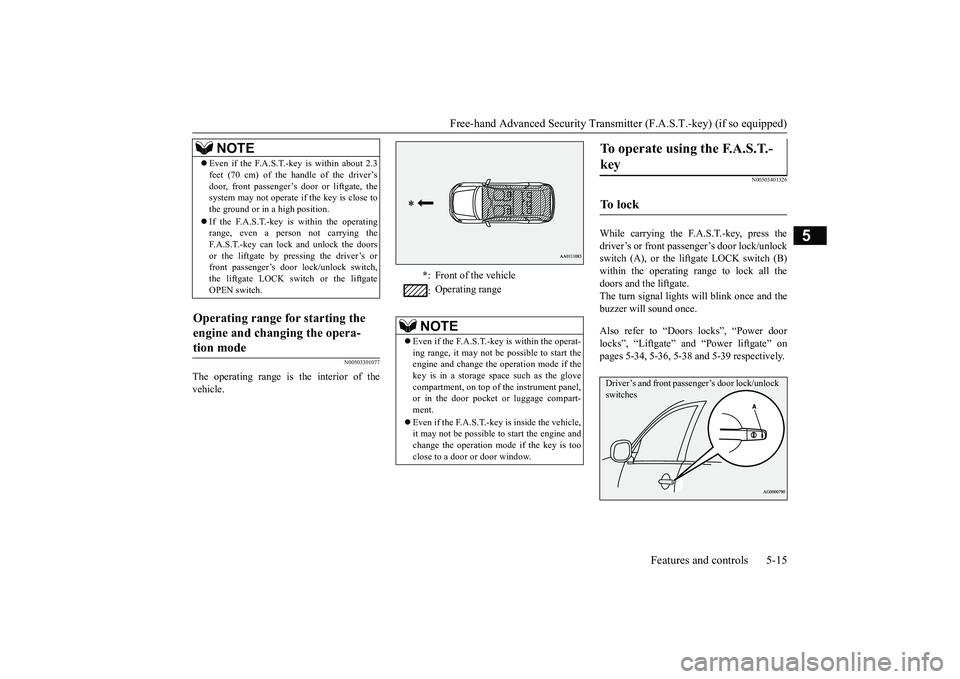

Free-hand Advanced Securi
ty Transmitter (F.A.S.T.-key) (if so equipped)
Features and controls 5-15
5
N00503301077
The operating range is the interior of thevehicle.
N00503401326
While carrying the F.A.S.T.-key, press thedriver’s or front passenger’s door lock/unlockswitch (A), or the liftgate LOCK switch (B)within the operating range to lock all thedoors and the liftgate.The turn signal lights will blink once and thebuzzer will sound once.Also refer to “Doors locks”, “Power doorlocks”, “Liftgate” and “Power liftgate” onpages 5-34, 5-36, 5-38 and 5-39 respectively.
Even if the F.A.S.T.-key is within about 2.3feet (70 cm) of the handle of the driver’sdoor, front passenger’s door or liftgate, thesystem may not operate if the key is close tothe ground or in a high position.If the F.A.S.T.-key is within the operatingrange, even a person not carrying theF.A.S.T.-key can lock and unlock the doorsor the liftgate by pressing the driver’s orfront passenger’s door lock/unlock switch,the liftgate LOCK switch or the liftgateOPEN switch.
Operating range for starting the engine and changing the opera-tion mode

NOTE
*: Front of the vehicle:Operating range
NOTE
Even if the F.A.S.T.-key is within the operat-ing range, it may not be possible to start theengine and change the
operation mode if the
key is in a storage space such as the glovecompartment, on top of the instrument panel,or in the door pocket or luggage compart-ment.Even if the F.A.S.T.-key is inside the vehicle,it may not be possible to
start the engine and
change the operation mode if the key is tooclose to a door or door window.
To operate using the F.A.S.T.-key

To l o c k

Driver’s and front passenger’s door lock/unlock switches
BK0249100US.book 15 ページ ２０１７年５月１０日　水曜日　午前８時４９分

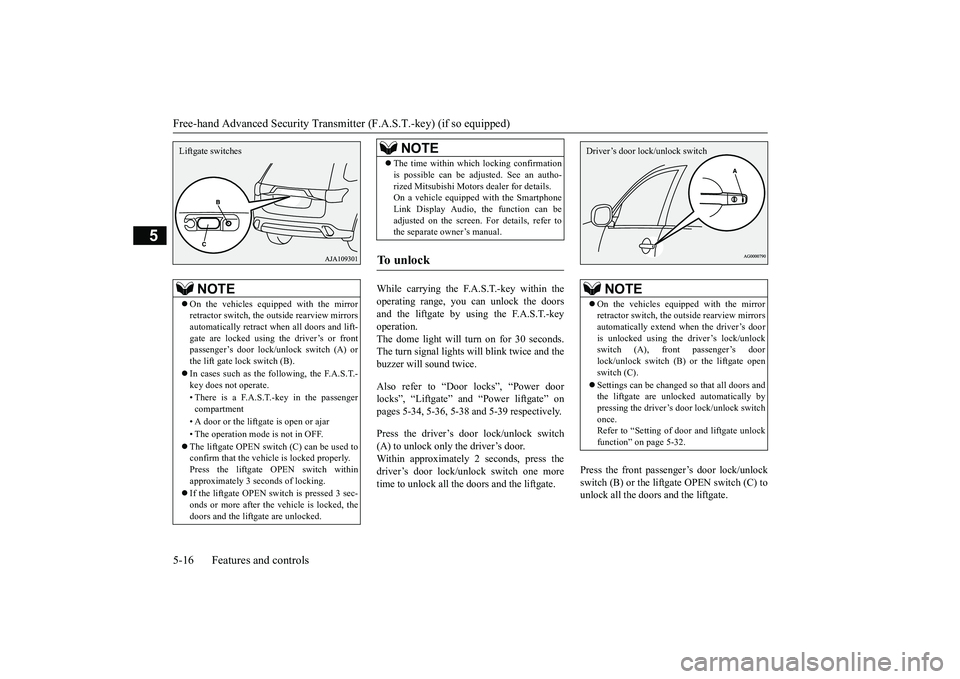

Free-hand Advanced
Security Transmitter (F.A.S
.T.-key) (if so equipped)
5
While carrying the F.A.S.T.-key within theoperating range, you can unlock the doorsand the liftgate by using the F.A.S.T.-keyoperation.The dome light will turn on for 30 seconds.The turn signal lights will blink twice and thebuzzer will
sound twice.
Also refer to “Door locks”, “Power doorlocks”, “Liftgate” and “Power liftgate” onpages 5-34, 5-36, 5-38 and 5-39 respectively.Press the driver’s door lock/unlock switch(A) to unlock only the driver’s door.Within approximately 2 seconds, press thedriver’s door lock/unlock switch one moretime to unlock all the
doors and the liftgate.
Press the front passenger’s door lock/unlockswitch (B) or the liftgate OPEN switch (C) tounlock all the doors and the liftgate.
NOTE
On the vehicles equipped with the mirrorretractor switch, the out
side rearview mirrors
automatically retract when all doors and lift-gate are locked using the driver’s or frontpassenger

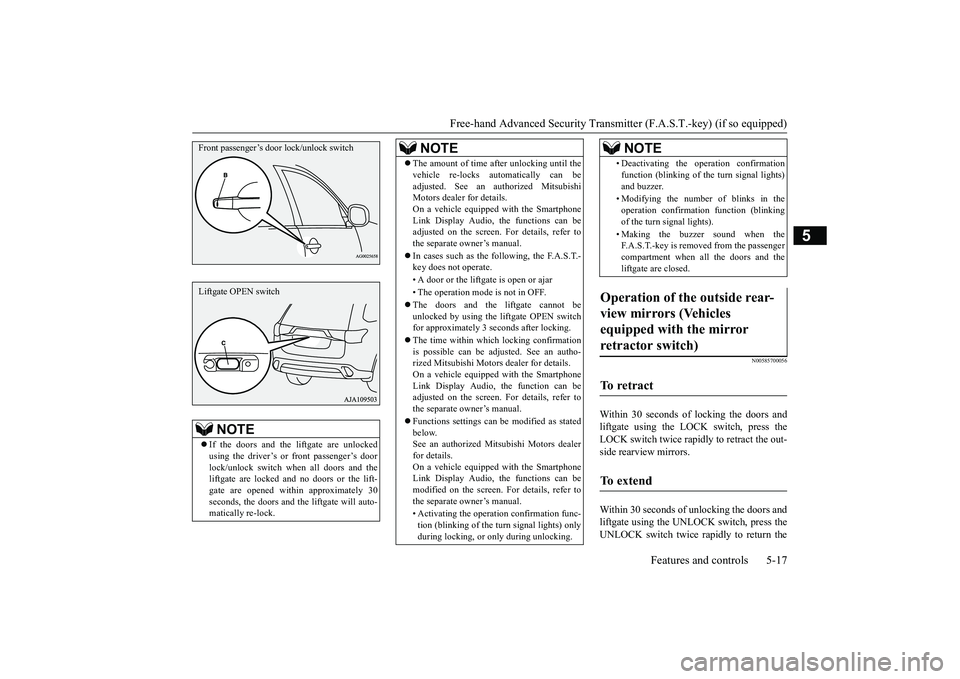

Free-hand Advanced Securi
ty Transmitter (F.A.S.T.-key) (if so equipped)
Features and controls 5-17
5
N00585700056
Within 30 seconds of locking the doors andliftgate using the LOCK switch, press theLOCK switch twice rapidly to retract the out-side rearview mirrors.Within 30 seconds of unlocking the doors andliftgate using the UNLOCK switch, press theUNLOCK switch twice rapidly to return the
NOTE
If the doors and the liftgate are unlockedusing the driver’s or front passenger’s doorlock/unlock switch when all doors and theliftgate are locked and no doors or the lift-gate are opened with
in approximately 30
seconds, the doors and th
e liftgate will auto-
matically re-lock.Front passenger’s door lock/unlock switchLiftgate OPEN switch
The amount of time af
ter unlocking until the
vehicle re-locks au
tomatically can be
adjusted. See an authorized MitsubishiMotors dealer for details.On a vehicle equipped with the SmartphoneLink Display Audio, the functions can beadjusted on the screen. For details, refer tothe separate owner’s manual.In cases such as the following, the F.A.S.T.-key does not operate.• A door or the liftgate is open or ajar• The operation mode
is not in OFF.
The doors and the liftgate cannot beunlocked by using the li
ftgate OPEN switch
for approximately 3 seconds after locking.The time within which locking confirmationis possible can be adjusted. See an autho-rized Mitsubishi Motors
dealer for details.
On a vehicle equipped with the SmartphoneLink Display Audio, the function can beadjusted on the screen. For details, refer tothe separate owner’s manual.Functions settings can
be modified as stated
below.See an authorized Mitsubishi Motors dealerfor details.On a vehicle equipped with the SmartphoneLink Display Audio, the functions can bemodified on the screen. For details, refer tothe separate owner’s manual.• Activating the operati
on confirmation func-
tion (blinking of the turn signal lights) onlyduring locking, or only during unlocking.NOTE
• Deactivating the operation confirmationfunction (blinking of th
e turn signal lights)
and buzzer.• Modifying the number of blinks in theoperation confirmati
on function (blinking
of the turn signal lights).• Making the buzzer sound when theF.A.S.T.-key is removed from the passengercompartment when all the doors and theliftgate are closed.
Operation of the outside rear-view mirrors (Vehicles equipped with the mirror retractor switch)

To r e t r a c t

To e x t e n d

NOTE
BK0249100US.book 17 ページ ２０１７年５月１０日　水曜日　午前８時４９分

Free-hand Advanced
Security Transmitter (F.A.S
.T.-key) (if so equipped)
5

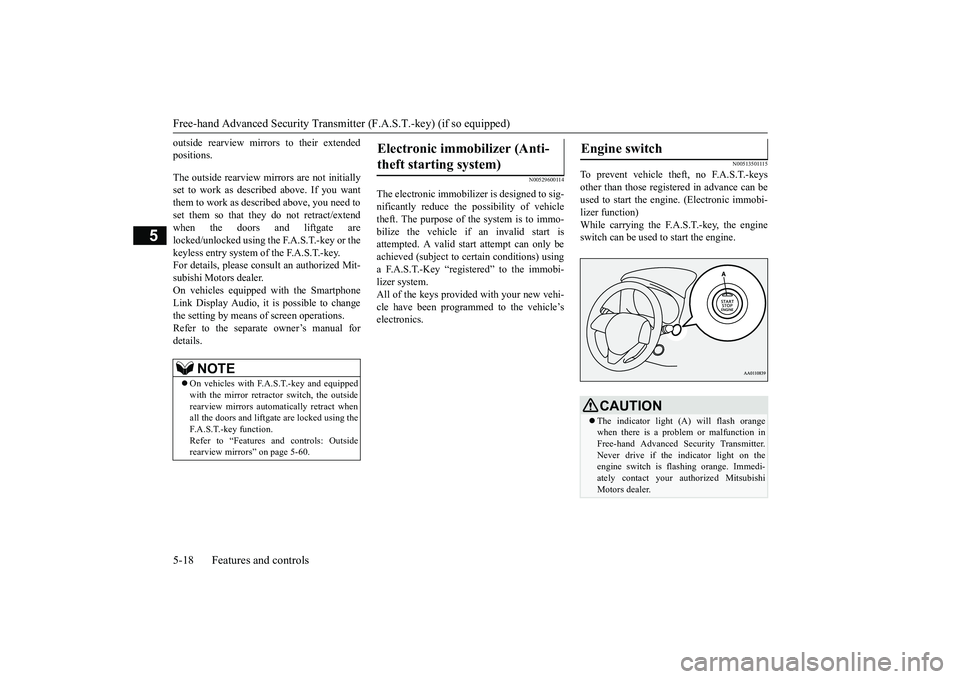

outside rearview mirro
rs to their extended
positions.The outside rearview mirrors are not initiallyset to work as described above. If you wantthem to work as described above, you need toset them so that they do not retract/extendwhen the doors and liftgate arelocked/unlocked using the F.A.S.T.-key or thekeyless entry system of the F.A.S.T.-key.For details, please cons
ult an authorized Mit-
subishi Motors dealer.On vehicles equipped
with the Smartphone
Link Display Audio, it is
possible to change
the setting by means of
screen operations.
Refer to the separate owner’s manual fordetails.
N00529600114
The electronic immobilize
r is designed to sig-
nificantly reduce the
possibility of vehicle
theft. The purpose of the system is to immo-bilize the vehicle if an invalid start isattempted. A valid start attempt can only beachieved (subject to ce
rtain conditions) using
a F.A.S.T.-Key “registered” to the immobi-lizer system.All of the keys provided with your new vehi-cle have been program
med to the vehicle’s
electronics.
N00513501115
To prevent vehicle theft, no F.A.S.T.-keysother than those regist
ered in advance can be
used to start the engine. (Electronic immobi-lizer function)While carrying the F.A.S.T.-key, the engineswitch can be used
to start the engine.
NOTE
On vehicles with F.A.
S.T.-key and equipped
with the mirror retractor switch, the outsiderearview mirrors automatically retract whenall the doors and liftgate are locked using theF.A.S.T.-key function.Refer to “Features a
nd controls: Outside
rearview mirrors” on page 5-60.
Electronic immobilizer (Anti-theft starting system)

Engine switch

CAUTIONThe indicator light (A) will flash orangewhen there is a problem or malfunction inFree-hand Advanced Se
curity Transmitter.
Never drive if the i
ndicator light on the
engine switch is fl
ashing orange. Immedi-
ately contact your authorized MitsubishiMotors dealer.
BK0249100US.book 18 ページ ２０１７年５月１０日　水曜日　午前８時４９分

Free-hand Advanced Securi
ty Transmitter (F.A.S.T.-key) (if so equipped)
Features and controls 5-19
5
The indicator light on the engine switch turnsoff.The operation mode cannot be put in OFFwhen the selector lever is in any positionother than the “P” (PARK) position.Allows operation of el
ectrical accessories.
The indicator light on
the engine switch illu-
minates orange.All electrical accessories can be used.The indicator light on
the engine switch illu-
minates green.The indicator light goes off when the engineis running.
N00568001035
If you press the engine
switch without press-
ing the brake pedal whil
e the vehicle is sta-
tionary, you can change the operation modein the order of OFF, ACC, ON, OFF.
If the engine switch
operation is not smooth
and feels like it is st
icking, do not operate the
switch.Immediately contact an authorized Mitsubi-shi Motors dealer.NOTE
When operating the engi
ne switch, press the
switch all the way in. If the switch is notfully pressed, the engine may not start or theoperation mode may
not change. If the
engine switch is presse
d correctly, there is no
need to hold the e
ngine switch down.

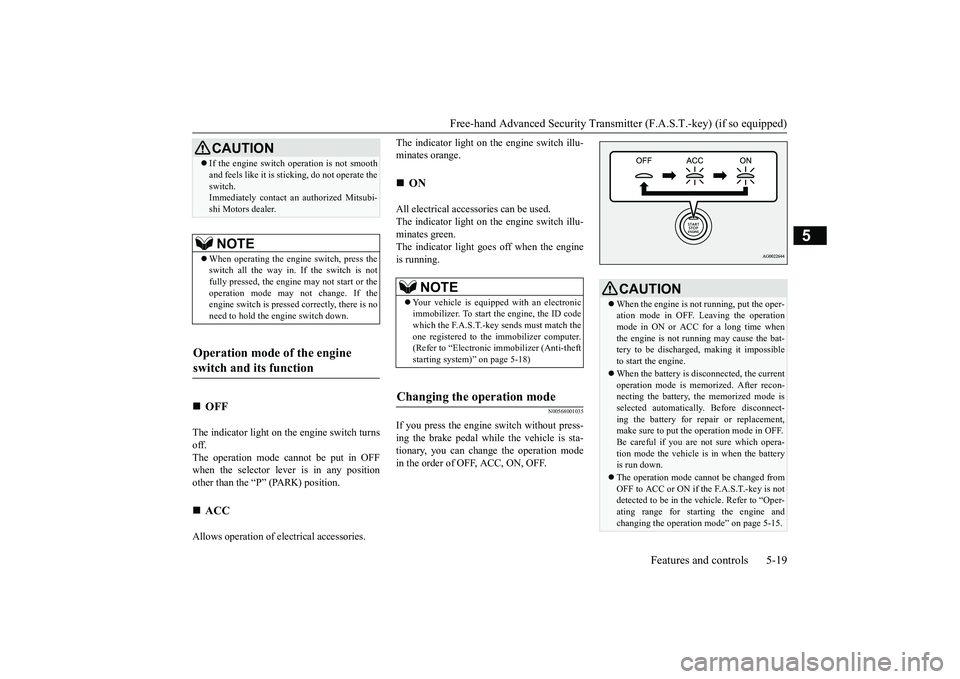

Operation mode of the engine switch and its function


OFF

ACC CAUTION

ON NOTE
Your vehicle is equippe
d with an electronic
immobilizer. To start
the engine, the ID code
which the F.A.S.T.-key sends must match theone registered to the immobilizer computer.(Refer to “Electronic immobilizer (Anti-theftstarting system)” on page 5-18)
Changing the operation mode

CAUTIONWhen the engine is not running, put the oper-ation mode in OFF. Leaving the operationmode in ON or ACC for a long time whenthe engine is not running may cause the bat-tery to be discharged
, making it impossible
to start the engine.When the battery is disconnected, the currentoperation mode is memo
rized. After recon-
necting the battery, the memorized mode isselected automaticall
y. Before disconnect-
ing the battery for re
pair or replacement,
make sure to put the operation mode in OFF.Be careful if you are not sure which opera-tion mode the vehicle is in when the batteryis run down.The operation mode cannot be changed fromOFF to ACC or ON if the F.A.S.T.-key is notdetected to be in the
vehicle. Refer to “Oper-
ating range for star
ting the engine and
changing the operation mode” on page 5-15.
BK0249100US.book 19 ページ ２０１７年５月１０日　水曜日　午前８時４９分
