MITSUBISHI OUTLANDER PHEV 2014 Owner's Manual (in English)

Vehicle identification numberplate (RHD vehicles only)

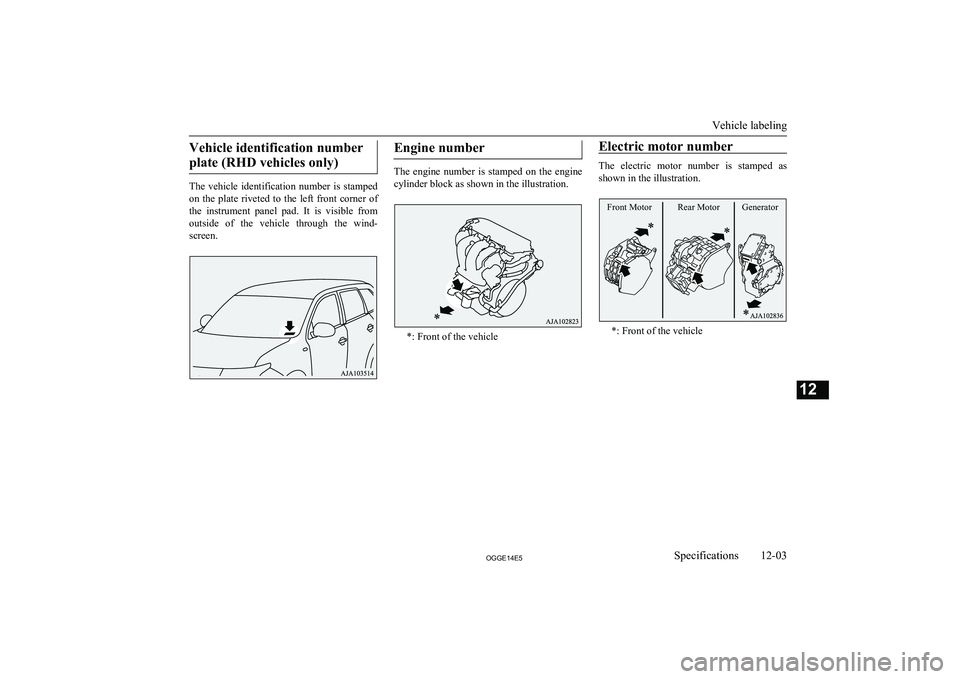

The vehicle identification number is stamped on the plate riveted to the left front corner of the instrument panel pad. It is visible from
outside of the vehicle through the wind- screen.
Engine number
The engine number is stamped on the enginecylinder block as shown in the illustration.
*: Front of the vehicle
Electric motor number
The electric motor number is stamped as shown in the illustration.
*: Front of the vehicle
Vehicle labeling
12-03OGGE14E5Specifications12 Front Motor Rear Motor Generator

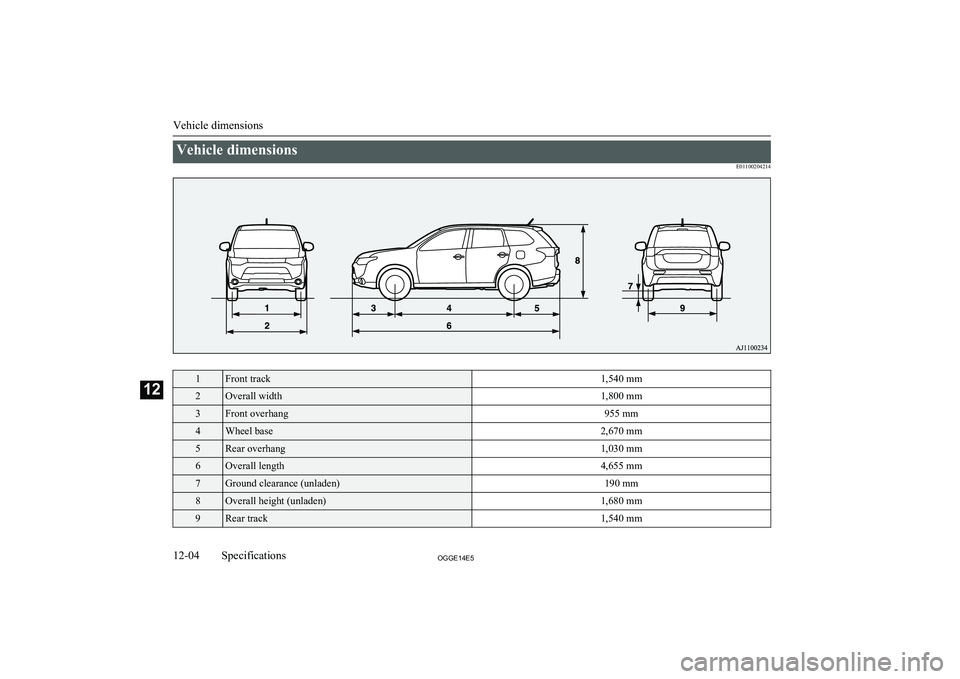

Vehicle dimensionsE011002042141Front track1,540 mm2Overall width1,800 mm3Front overhang955 mm4Wheel base2,670 mm5Rear overhang1,030 mm6Overall length4,655 mm7Ground clearance (unladen)190 mm8Overall height (unladen)1,680 mm9Rear track1,540 mm
Vehicle dimensions
12-04OGGE14E5Specifications12

Minimum turning radiusBody5.73 mWheel5.3 m

Vehicle performanceE01100303553Maximum speed170 km/h

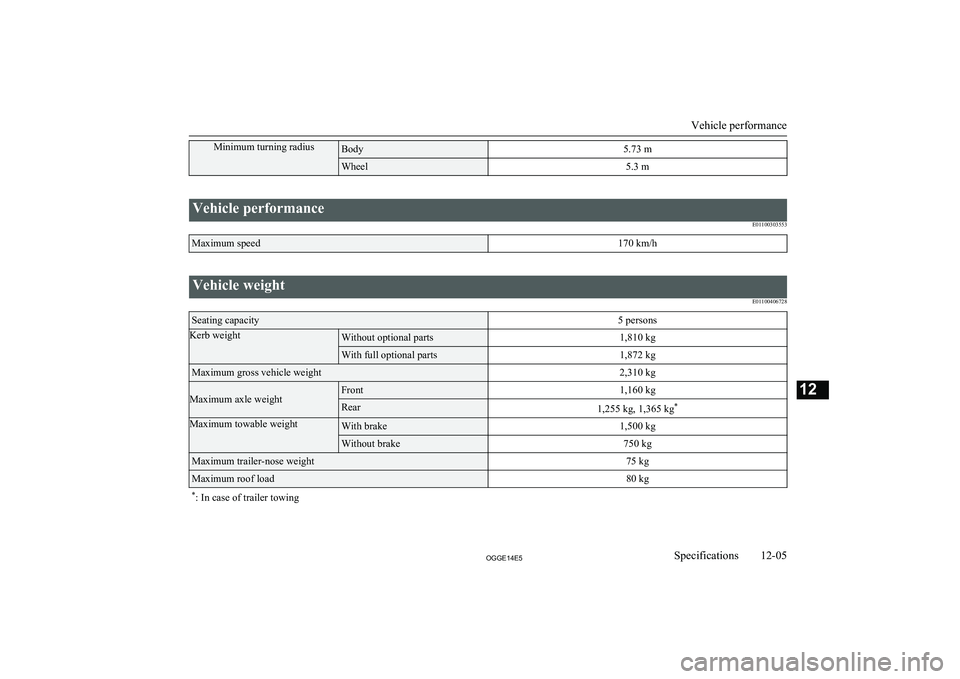

Vehicle weightE01100406728Seating capacity5 personsKerb weightWithout optional parts1,810 kgWith full optional parts1,872 kgMaximum gross vehicle weight2,310 kg
Maximum axle weight
Front1,160 kgRear1,255 kg, 1,365 kg*Maximum towable weightWith brake1,500 kgWithout brake750 kgMaximum trailer-nose weight75 kgMaximum roof load80 kg*
: In case of trailer towing
Vehicle performance
12-05OGGE14E5Specifications12

NOTElTrailer specifications indicate the manufacturer’s recommendation.

Engine specifications

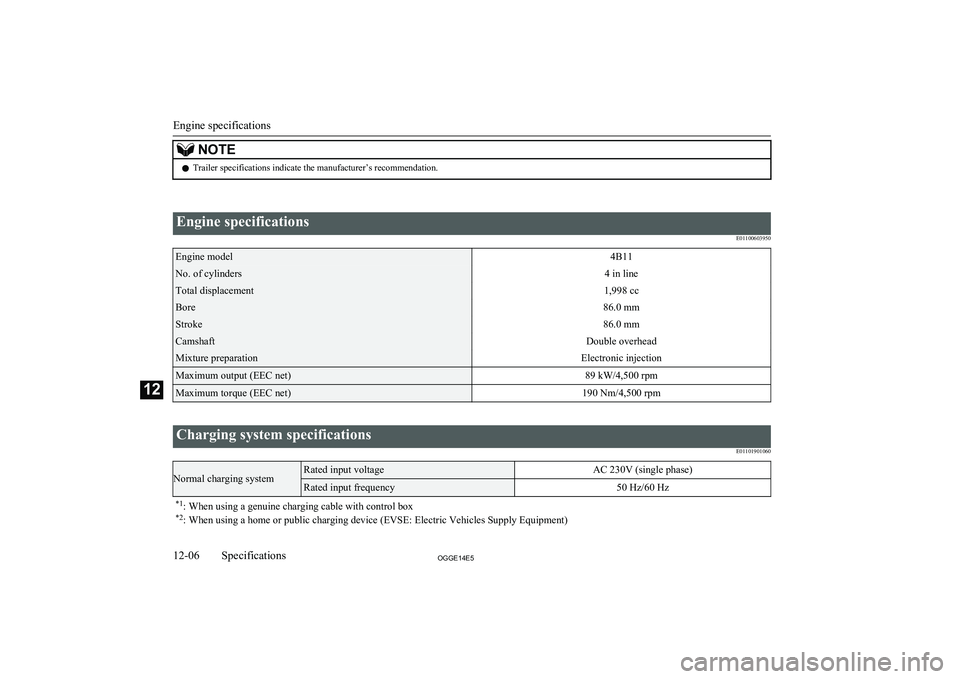

E01100603950Engine model4B11No. of cylinders4 in lineTotal displacement1,998 ccBore86.0 mmStroke86.0 mmCamshaftDouble overheadMixture preparationElectronic injectionMaximum output (EEC net)89 kW/4,500 rpmMaximum torque (EEC net)190 Nm/4,500 rpm

Charging system specifications E01101901060Normal charging systemRated input voltageAC 230V (single phase)Rated input frequency50 Hz/60 Hz*1: When using a genuine charging cable with control box
*2 : When using a home or public charging device (EVSE: Electric Vehicles Supply Equipment)
Engine specifications
12-06OGGE14E5Specifications12

Maximum rated current10 A*1
, 8 A *1Maximum power consumption3.6 kVA *2
Applicable standards
Charging cable
(with connector
and control box)
EN61851-1
EN61851-21 IEC61851-1
IEC61851-21 IEC62196-1
IEC50525-2-51 EN50525-2-51 HD22.4On board chargerEN61851-21
IEC61851-21Leakage current sensitivity in cable control box20 mA
Charging mode
Based on IEC61851-1
Mode 2/Case B *1
Mode 3/Case C *2*1
: When using a genuine charging cable with control box
*2 : When using a home or public charging device (EVSE: Electric Vehicles Supply Equipment)
Quick charging systemApplicable standardsIEC62196-1Maximum input current50 A
Normal charging systemIP degrees
IP44: When a charge connector is connected
IP55: When the charging lid is closed and the vehicle is moving

Charging system specifications
12-07OGGE14E5Specifications12

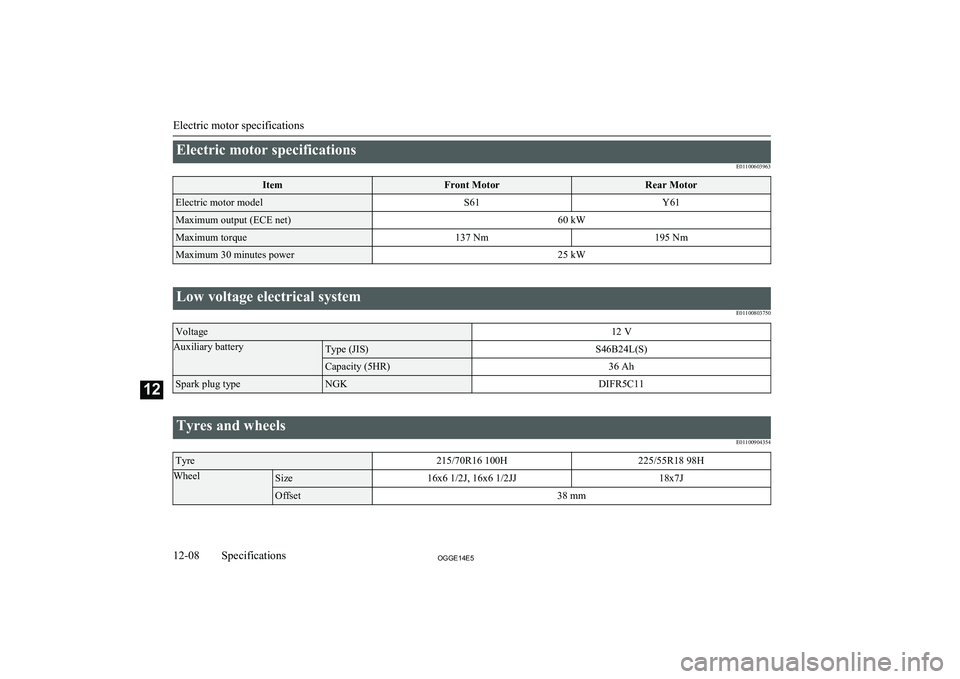

Electric motor specificationsE01100603963ItemFront MotorRear MotorElectric motor modelS61Y61Maximum output (ECE net)60 kWMaximum torque137 Nm195 NmMaximum 30 minutes power25 kW

Low voltage electrical systemE01100803750Voltage12 VAuxiliary batteryType (JIS)S46B24L(S)Capacity (5HR)36 AhSpark plug typeNGKDIFR5C11

Tyres and wheelsE01100904354Tyre215/70R16 100H225/55R18 98HWheelSize16x6 1/2J, 16x6 1/2JJ18x7JOffset38 mm
Electric motor specifications
12-08OGGE14E5Specifications12

NOTElContact your MITSUBISHI MOTORS Authorized Service Point for details on the combination used on your vehicle.

Fuel consumption

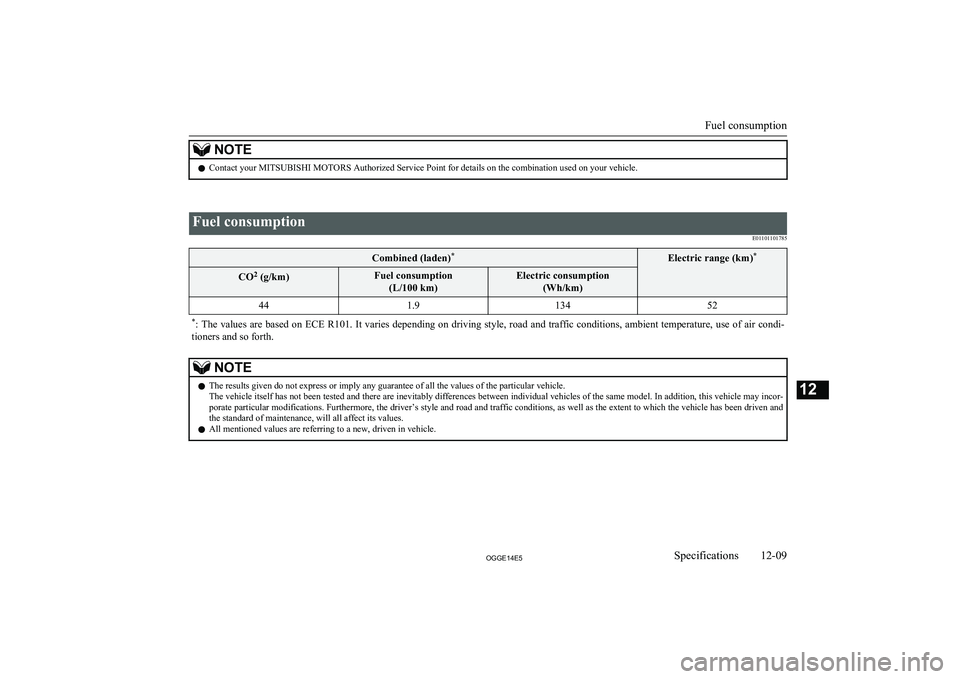

E01101101785Combined (laden)*Electric range (km) *CO2
(g/km)Fuel consumption
(L/100 km)Electric consumption (Wh/km)441.913452*: The values are based on ECE R101. It varies depending on driving style, road and traffic conditions, ambient temperature, use of air condi-
tioners and so forth.NOTEl The results given do not express or imply any guarantee of all the values of the particular vehicle.
The vehicle itself has not been tested and there are inevitably differences between individual vehicles of the same model. In addition, this vehicle may incor- porate particular modifications. Furthermore, the driver’s style and road and traffic conditions, as well as the extent to which the vehicle has been driven and the standard of maintenance, will all affect its values.
l All mentioned values are referring to a new, driven in vehicle.

Fuel consumption
12-09OGGE14E5Specifications12

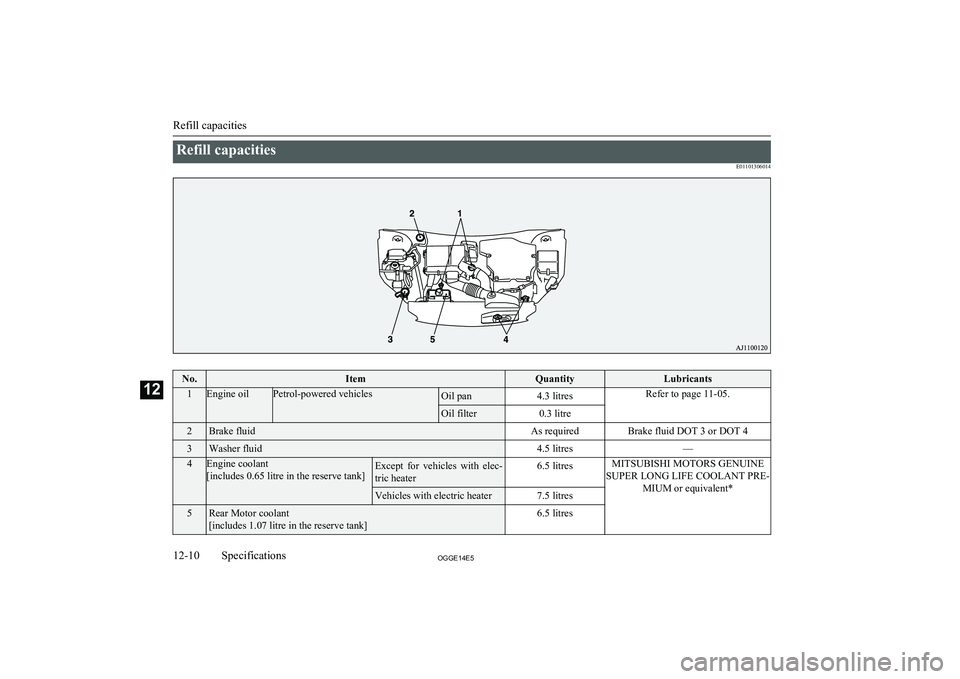

Refill capacitiesE01101306014No.ItemQuantityLubricants1Engine oilPetrol-powered vehiclesOil pan4.3 litresRefer to page 11-05.Oil filter0.3 litre2Brake fluidAs requiredBrake fluid DOT 3 or DOT 43Washer fluid4.5 litres—4Engine coolant
[includes 0.65 litre in the reserve tank]Except for vehicles with elec- tric heater6.5 litresMITSUBISHI MOTORS GENUINE
SUPER LONG LIFE COOLANT PRE- MIUM or equivalent*Vehicles with electric heater7.5 litres5Rear Motor coolant
[includes 1.07 litre in the reserve tank]6.5 litres
Refill capacities
12-10OGGE14E5Specifications12

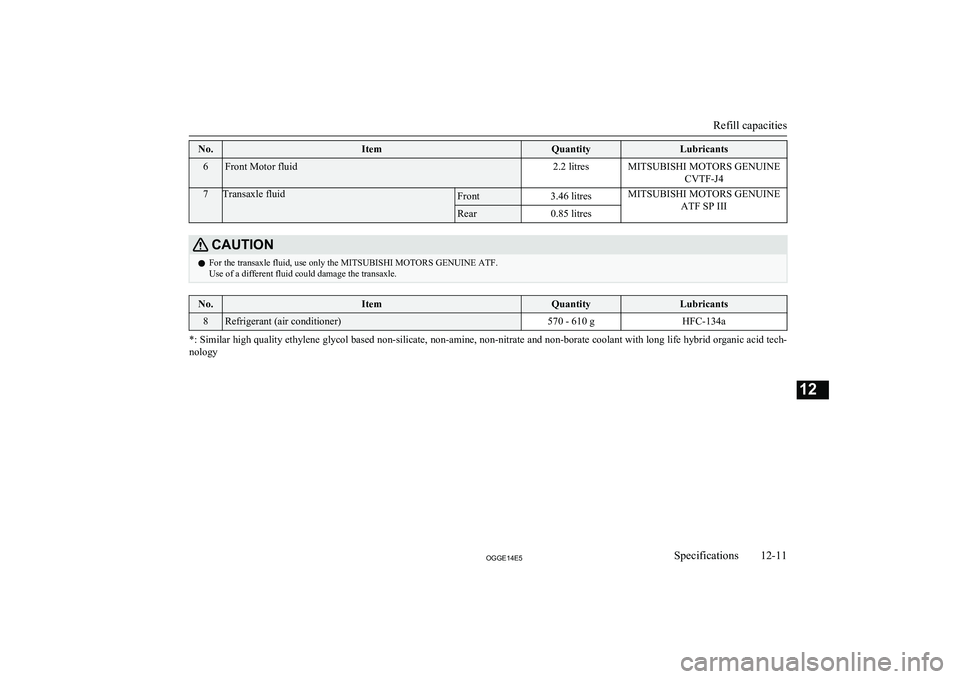

No.ItemQuantityLubricants6Front Motor fluid2.2 litresMITSUBISHI MOTORS GENUINECVTF-J47Transaxle fluidFront3.46 litresMITSUBISHI MOTORS GENUINEATF SP IIIRear0.85 litresCAUTIONlFor the transaxle fluid, use only the MITSUBISHI MOTORS GENUINE ATF.
Use of a different fluid could damage the transaxle.No.ItemQuantityLubricants8Refrigerant (air conditioner)570 - 610 gHFC-134a
*: Similar high quality ethylene glycol based non-silicate, non-amine, non-nitrate and non-borate coolant with long life hybrid organic acid tech-
nology

Refill capacities
12-11OGGE14E5Specifications12
