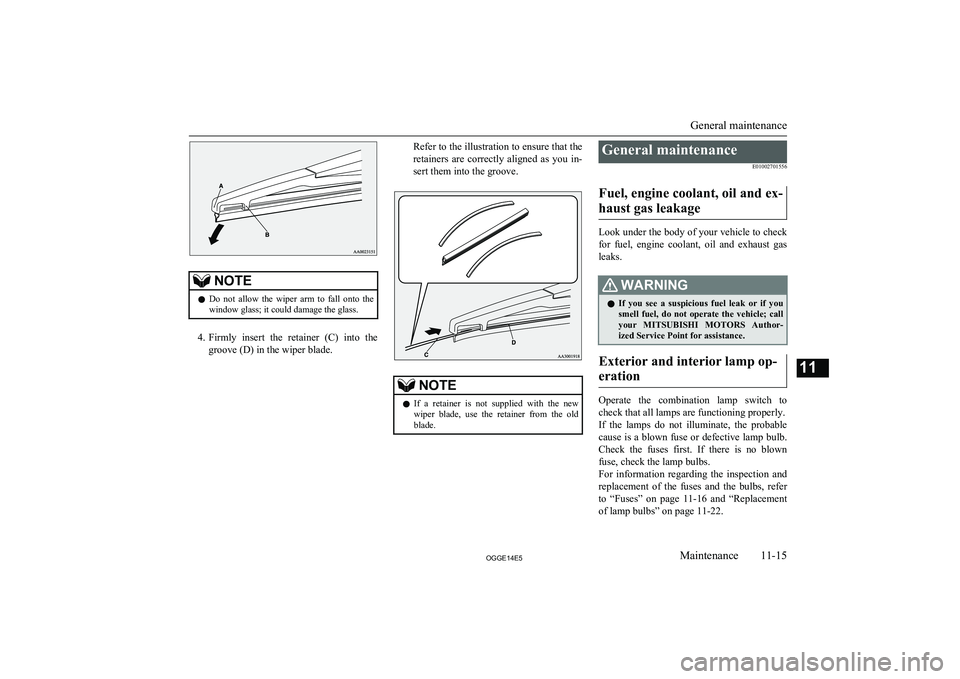

NOTElDo not allow the wiper arm to fall onto the
window glass; it could damage the glass.
4. Firmly insert the retainer (C) into the
groove (D) in the wiper blade.
Refer to the illustration to ensure that the
retainers are correctly aligned as you in-
sert them into the groove.NOTEl If a retainer is not supplied with the new
wiper blade, use the retainer from the old
blade.General maintenance
E01002701556
Fuel, engine coolant, oil and ex- haust gas leakage
Look under the body of your vehicle to check
for fuel, engine coolant, oil and exhaust gas
leaks.
WARNINGl If you see a suspicious fuel leak or if you
smell fuel, do not operate the vehicle; call
your MITSUBISHI MOTORS Author-
ized Service Point for assistance.
Exterior and interior lamp op-
eration
Operate the combination lamp switch to
check that all lamps are functioning properly.
If the lamps do not illuminate, the probable cause is a blown fuse or defective lamp bulb.
Check the fuses first. If there is no blown
fuse, check the lamp bulbs.
For information regarding the inspection and
replacement of the fuses and the bulbs, refer
to “Fuses” on page 11-16 and “Replacement
of lamp bulbs” on page 11-22.
General maintenance
11-15OGGE14E5Maintenance11
Page 392 of 442

If the fuses and bulbs are all OK, we recom-
mend you to have your vehicle checked and repaired.
Meter, gauge and indicator/warning lamps operation
Start the plug-in hybrid EV system and check
the operation of all instruments, gauges and indication and warning lamps.
If there is anything wrong, we recommend
you to have your vehicle inspected.
Hinges and latches lubrication
Check all latches and hinges, and, if necessa- ry, have them lubricated.
Fusible links
E01002901633
The fusible links will melt to prevent a fire if
a large current attempts to flow through cer- tain electrical systems.
In case of a melted fusible link, we recom- mend you to have your vehicle inspected.For the fusible links, please refer to “Passen-
ger compartment fuse location table” on page
11-18 and “Engine compartment fuse location
table” on page 11-19.
WARNINGl Fusible links must not be replaced by any
other device. Failing to fit the correct fusi-
ble link may result in fire in the vehicle,
property destruction and serious or fatal injuries at any time.Fuses

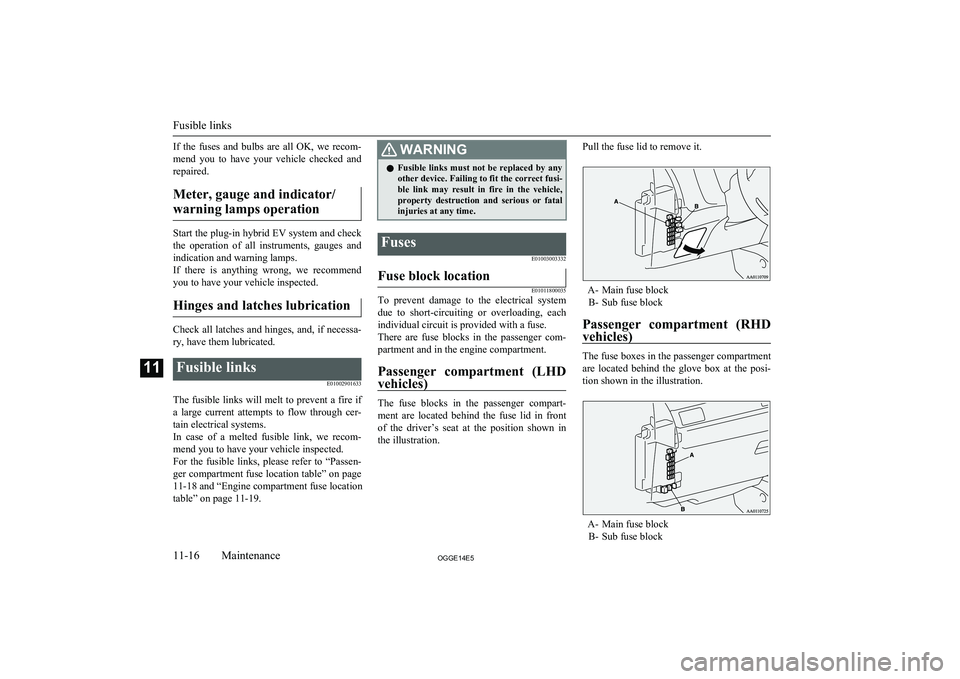

E01003003332Fuse block location
E01011800035
To prevent damage to the electrical systemdue to short-circuiting or overloading, each individual circuit is provided with a fuse.
There are fuse blocks in the passenger com- partment and in the engine compartment.
Passenger compartment (LHD
vehicles)
The fuse blocks in the passenger compart-
ment are located behind the fuse lid in front of the driver’s seat at the position shown in
the illustration.
Pull the fuse lid to remove it.
A- Main fuse block B- Sub fuse block
Passenger compartment (RHD vehicles)
The fuse boxes in the passenger compartment
are located behind the glove box at the posi- tion shown in the illustration.
A- Main fuse block B- Sub fuse block
Fusible links
11-16OGGE14E5Maintenance11
Page 393 of 442

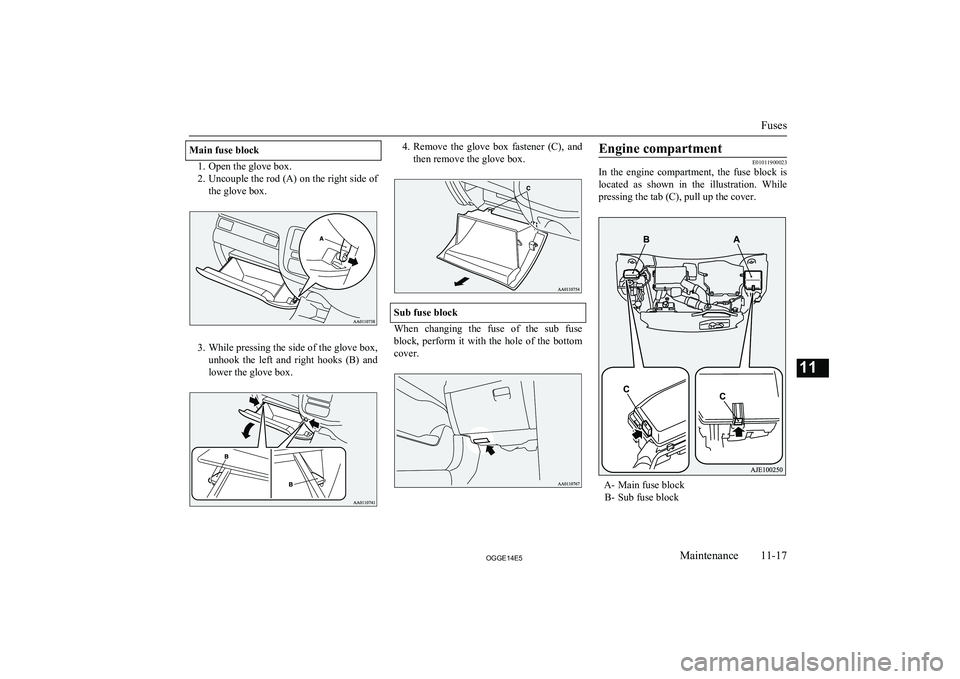

Main fuse block
1. Open the glove box.
2. Uncouple the rod (A) on the right side of
the glove box.
3. While pressing the side of the glove box,
unhook the left and right hooks (B) and lower the glove box.
4. Remove the glove box fastener (C), and
then remove the glove box.
Sub fuse block
When changing the fuse of the sub fuse
block, perform it with the hole of the bottom cover.
Engine compartment
E01011900023
In the engine compartment, the fuse block is
located as shown in the illustration. While pressing the tab (C), pull up the cover.
A- Main fuse block B- Sub fuse block
Fuses
11-17OGGE14E5Maintenance11
Page 394 of 442

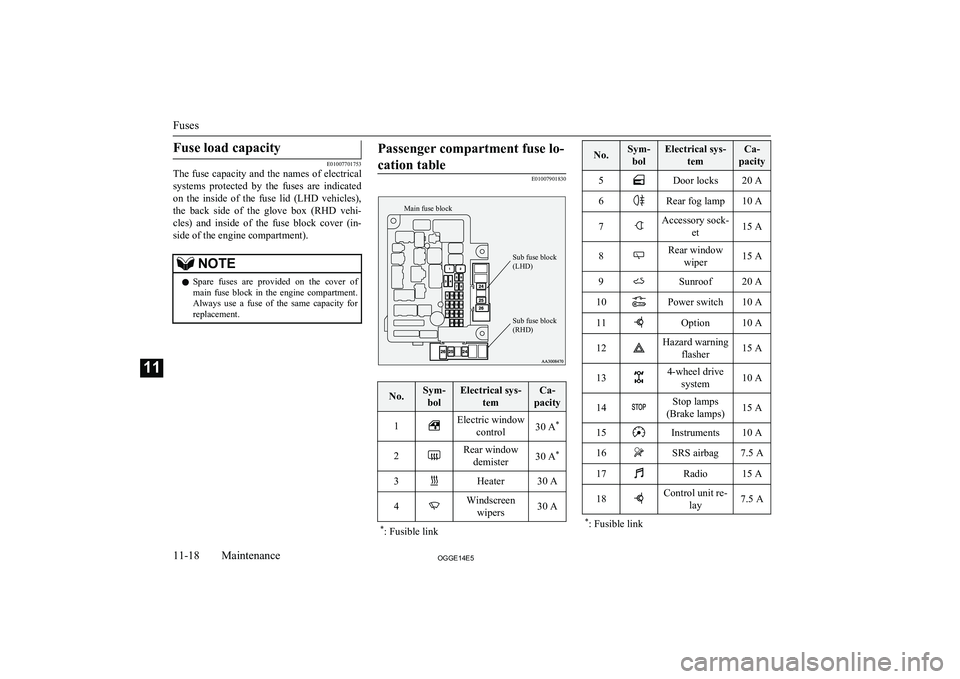

Fuse load capacity
E01007701753
The fuse capacity and the names of electrical
systems protected by the fuses are indicated
on the inside of the fuse lid (LHD vehicles), the back side of the glove box (RHD vehi-cles) and inside of the fuse block cover (in-
side of the engine compartment).
NOTEl Spare fuses are provided on the cover of
main fuse block in the engine compartment.
Always use a fuse of the same capacity for replacement.Passenger compartment fuse lo-
cation table
E01007901830
Main fuse blockSub fuse block
(LHD)Sub fuse block
(RHD)
No.Sym-
bolElectrical sys- temCa-
pacity1Electric window control30 A *2Rear window
demister30 A *3Heater30 A4Windscreen
wipers30 A*: Fusible linkNo.Sym-
bolElectrical sys- temCa-
pacity5Door locks20 A6Rear fog lamp10 A7Accessory sock- et15 A8Rear windowwiper15 A9Sunroof20 A10Power switch10 A11Option10 A12Hazard warning flasher15 A134-wheel drivesystem10 A14Stop lamps
(Brake lamps)15 A15Instruments10 A16SRS airbag7.5 A17Radio15 A18Control unit re- lay7.5 A*: Fusible link
Fuses
11-18OGGE14E5Maintenance11
Page 395 of 442

No.Sym-bolElectrical sys- temCa-
pacity19Interior lamps
(Room lamps)15 A20Reversing lamps (Backup lamps)7.5 A21Heated door mirror7.5 A22Outside rear-view mirrors10 A23
Cigarette lighter/ Accessory sock- et
15 A24Charge7.5 A25Power seat30 A*26Heated seat30 A*
: Fusible link
l Some fuses may not be installed on your
vehicle, depending on the vehicle model
or specifications.
l The table above shows the main equip-
ment corresponding to each fuse.

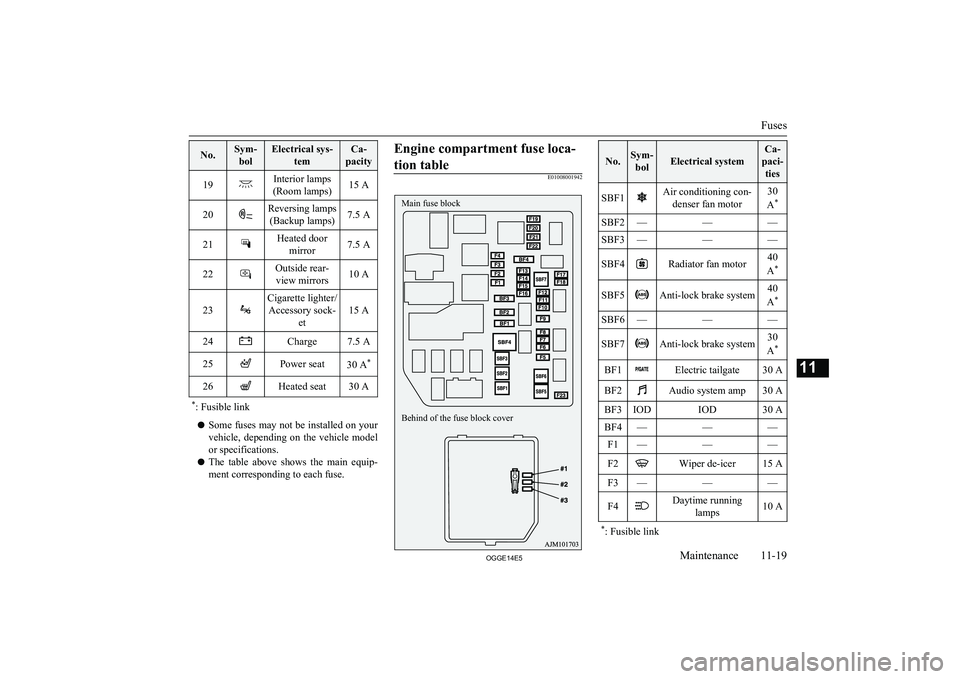

Engine compartment fuse loca-
tion table
E01008001942
No.Sym- bolElectrical system
Ca-
paci- tiesSBF1Air conditioning con- denser fan motor30
A *SBF2———SBF3———SBF4Radiator fan motor40
A *SBF5Anti-lock brake system40
A *SBF6———SBF7Anti-lock brake system30
A *BF1Electric tailgate30 ABF2Audio system amp30 ABF3IODIOD30 ABF4———F1———F2Wiper de-icer15 AF3———F4Daytime running
lamps10 A*: Fusible link
Fuses
11-19OGGE14E5Maintenance11 Main fuse block
Behind of the fuse block cover
Page 396 of 442

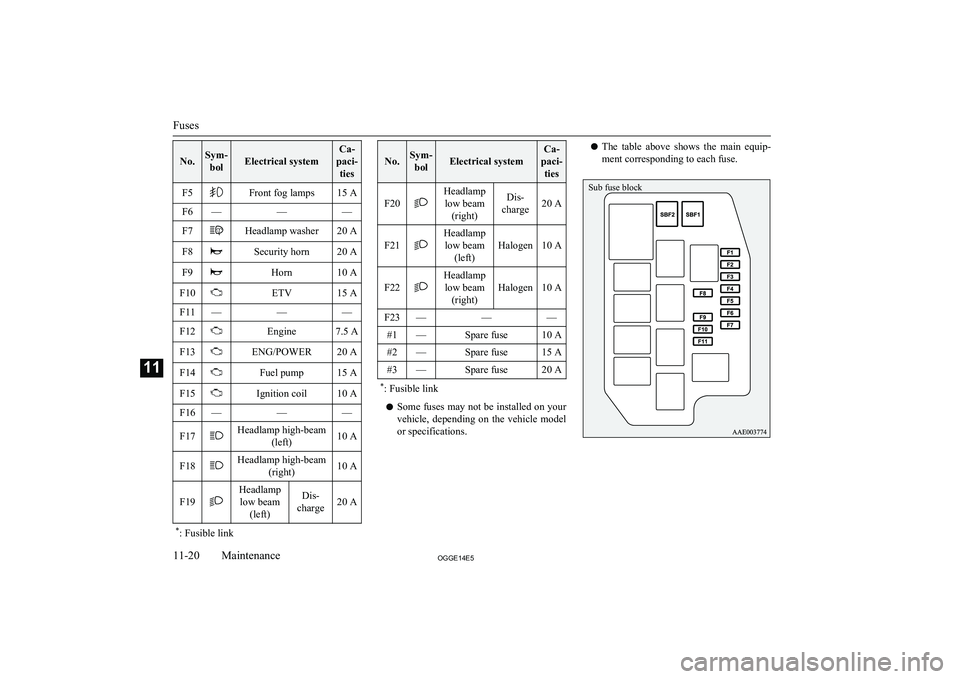

No.Sym-bolElectrical system
Ca-
paci- tiesF5Front fog lamps15 AF6———F7Headlamp washer20 AF8Security horn20 AF9Horn10 AF10ETV15 AF11———F12Engine7.5 AF13ENG/POWER20 AF14Fuel pump15 AF15Ignition coil10 AF16———F17Headlamp high-beam (left)10 AF18Headlamp high-beam(right)10 AF19
Headlamplow beam (left)Dis-
charge20 A
* : Fusible link
No.Sym-
bolElectrical system
Ca-
paci- ties
F20
Headlamplow beam (right)Dis-
charge20 AF21
Headlamp low beam (left)
Halogen10 AF22
Headlamplow beam (right)
Halogen10 A
F23———#1—Spare fuse10 A#2—Spare fuse15 A#3—Spare fuse20 A*: Fusible link
l Some fuses may not be installed on your
vehicle, depending on the vehicle model
or specifications.
l The table above shows the main equip-
ment corresponding to each fuse.
Fuses
11-20OGGE14E5Maintenance11 Sub fuse block
Page 397 of 442

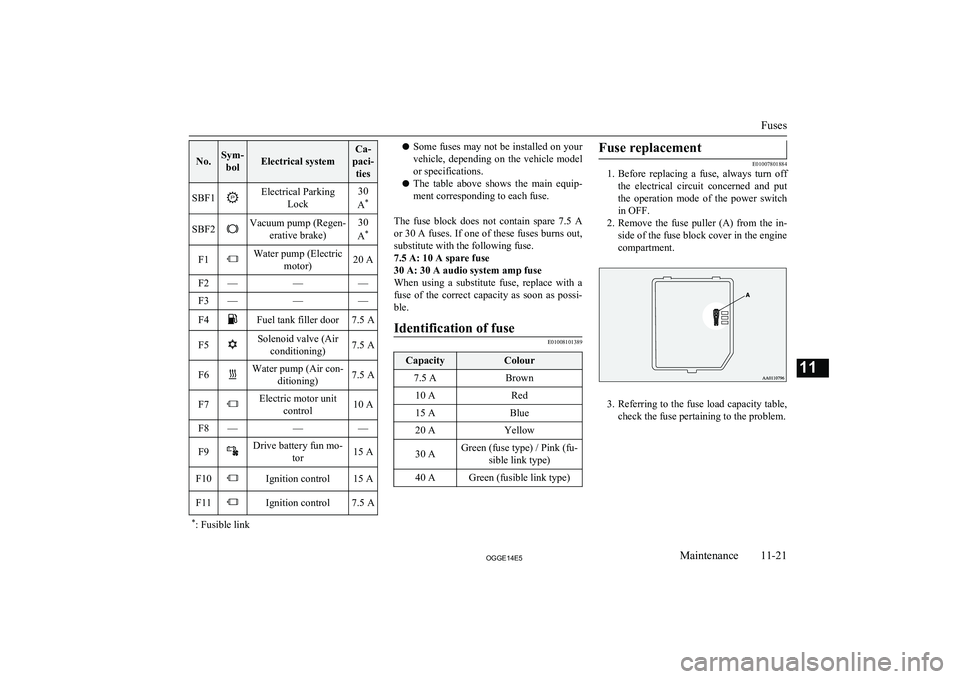

No.Sym-bolElectrical system
Ca-
paci- tiesSBF1Electrical Parking Lock30
A *SBF2Vacuum pump (Regen-
erative brake)30
A *F1Water pump (Electric
motor)20 AF2———F3———F4Fuel tank filler door7.5 AF5Solenoid valve (Airconditioning)7.5 AF6Water pump (Air con- ditioning)7.5 AF7Electric motor unitcontrol10 AF8———F9Drive battery fun mo- tor15 AF10Ignition control15 AF11Ignition control7.5 A*: Fusible linkl Some fuses may not be installed on your
vehicle, depending on the vehicle model
or specifications.
l The table above shows the main equip-
ment corresponding to each fuse.
The fuse block does not contain spare 7.5 A or 30 A fuses. If one of these fuses burns out,
substitute with the following fuse.
7.5 A: 10 A spare fuse
30 A: 30 A audio system amp fuse
When using a substitute fuse, replace with a fuse of the correct capacity as soon as possi-
ble.Identification of fuse
E01008101389
CapacityColour7.5 ABrown10 ARed15 ABlue20 AYellow30 AGreen (fuse type) / Pink (fu-
sible link type)40 AGreen (fusible link type)Fuse replacement
E01007801884
1. Before replacing a fuse, always turn off
the electrical circuit concerned and put
the operation mode of the power switch
in OFF.
2. Remove the fuse puller (A) from the in-
side of the fuse block cover in the engine
compartment.
3. Referring to the fuse load capacity table,
check the fuse pertaining to the problem.
Fuses
11-21OGGE14E5Maintenance11
Page 398 of 442

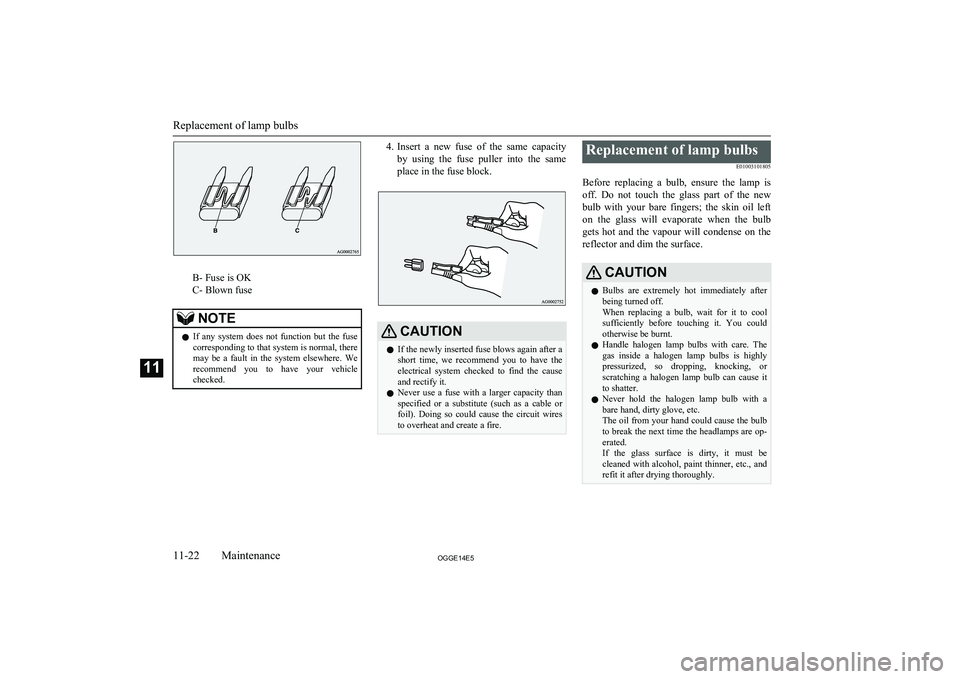

B- Fuse is OK
C- Blown fuse
NOTEl If any system does not function but the fuse
corresponding to that system is normal, theremay be a fault in the system elsewhere. We recommend you to have your vehiclechecked.4. Insert a new fuse of the same capacity
by using the fuse puller into the same
place in the fuse block.CAUTIONl If the newly inserted fuse blows again after a
short time, we recommend you to have the electrical system checked to find the causeand rectify it.
l Never use a fuse with a larger capacity than
specified or a substitute (such as a cable or
foil). Doing so could cause the circuit wires
to overheat and create a fire.Replacement of lamp bulbs
E01003101805
Before replacing a bulb, ensure the lamp is off. Do not touch the glass part of the new
bulb with your bare fingers; the skin oil left
on the glass will evaporate when the bulb gets hot and the vapour will condense on the
reflector and dim the surface.CAUTIONl Bulbs are extremely hot immediately after
being turned off.
When replacing a bulb, wait for it to cool sufficiently before touching it. You couldotherwise be burnt.
l Handle halogen lamp bulbs with care. The
gas inside a halogen lamp bulbs is highly
pressurized, so dropping, knocking, or scratching a halogen lamp bulb can cause it
to shatter.
l Never hold the halogen lamp bulb with a
bare hand, dirty glove, etc.
The oil from your hand could cause the bulb to break the next time the headlamps are op-
erated.
If the glass surface is dirty, it must be cleaned with alcohol, paint thinner, etc., andrefit it after drying thoroughly.
Replacement of lamp bulbs
11-22OGGE14E5Maintenance11
Page 399 of 442

NOTElIf you are unsure of how to carry out the
work as required, we recommend you to consult a specialist.
l Be careful not to scratch the vehicle body
when removing a lamp or lens.
l When it rains or when the vehicle has been
washed, the inside of the lens sometimes be-
comes foggy. This is the same phenomenon as when window glass mists up on a humid
day, and does not indicate a functional prob- lem.
When the lamp is switched on, the heat will
remove the fog. However, if water gathers inside the lamp, we recommend you to havethe lamp checked.Bulb location and capacity
E01003200333

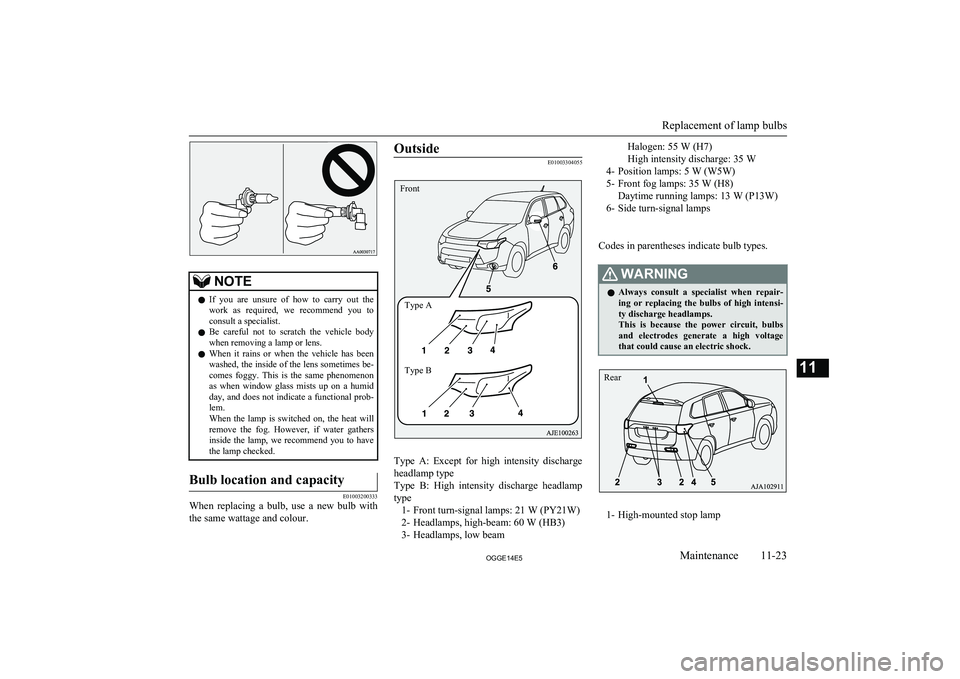

When replacing a bulb, use a new bulb with
the same wattage and colour.
Outside
E01003304055
Type A: Except for high intensity discharge
headlamp type
Type B: High intensity discharge headlamp type 1- Front turn-signal lamps: 21 W (PY21W)
2- Headlamps, high-beam: 60 W (HB3) 3- Headlamps, low beam
Halogen: 55 W (H7)
High intensity discharge: 35 W
4- Position lamps: 5 W (W5W)
5- Front fog lamps: 35 W (H8) Daytime running lamps: 13 W (P13W)
6- Side turn-signal lamps
Codes in parentheses indicate bulb types.WARNINGl Always consult a specialist when repair-
ing or replacing the bulbs of high intensi- ty discharge headlamps.
This is because the power circuit, bulbs and electrodes generate a high voltage
that could cause an electric shock.
1- High-mounted stop lamp
Replacement of lamp bulbs
11-23OGGE14E5Maintenance11 FrontType A
Type B Rear
Page 400 of 442

2-Rear fog lamp (driver’s side): 21 W
(W21W)
Reversing lamp (passenger’s side): 21 W (W21W)
3- Licence plate lamps: 5 W (W5W) 4- Rear turn-signal lamps: 21 W (PY21W)
5- Stop and tail lamps
Codes in parentheses indicate bulb types.NOTEl The following lamps are not possible to re-
pair or replace only the bulb.
If you need to repair or replace these lamp
bulbs, contact a MITSUBISHI MOTORS
Authorized Service Point.
• Side turn-signal lamps
• High-mounted stop lamp
• Stop and tail lampsInside
E01003401912
1- Luggage room lamp: 8 W
2- Room lamp (rear): 8 W
3- Map & room lamps (front): 8 W
4- Downlight
5- Vanity mirror lamps: 2 W
6- Glove box lamp: 1.4 W
NOTEl An LED, not a bulb, is used in the down-
light. Contact a MITSUBISHI MOTORS
Authorized Service Point when there is a
need for repair or replacement.Headlamps (low beam, halogen
bulb)
E01009301421
1. When replacing the bulb on the left side
of the vehicle, remove the bolt (A) hold-ing down the relay box and move the re-
lay box.
*: Front of the vehicle
Replacement of lamp bulbs
11-24OGGE14E5Maintenance11
