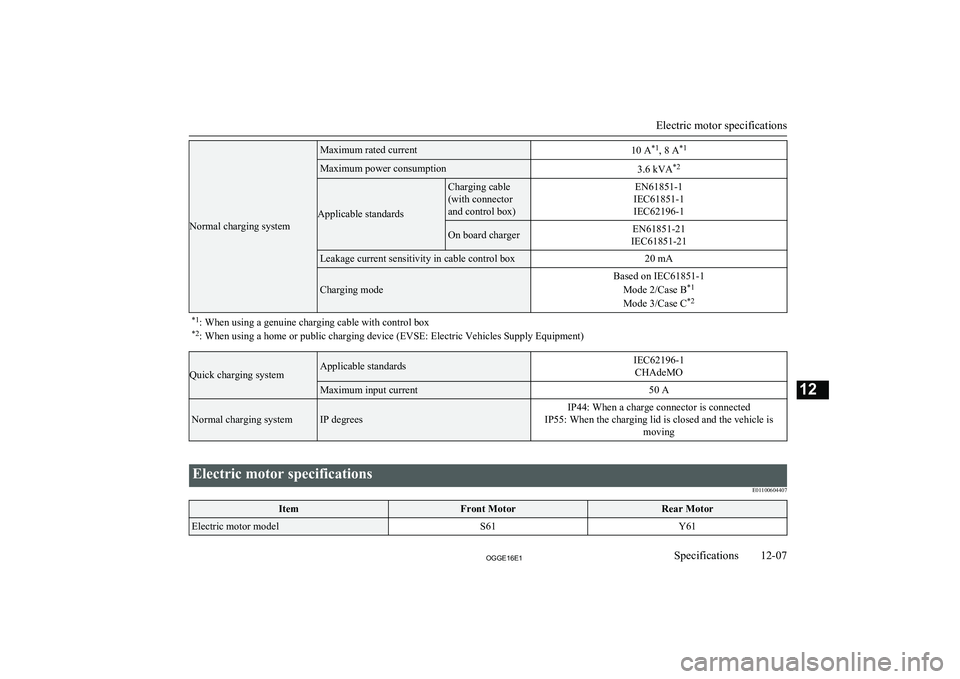

Normal charging system
Maximum rated current10 A*1
, 8 A *1Maximum power consumption3.6 kVA *2
Applicable standards
Charging cable
(with connector
and control box)EN61851-1
IEC61851-1
IEC62196-1On board chargerEN61851-21
IEC61851-21Leakage current sensitivity in cable control box20 mA
Charging mode
Based on IEC61851-1
Mode 2/Case B *1
Mode 3/Case C *2*1
: When using a genuine charging cable with control box
*2 : When using a home or public charging device (EVSE: Electric Vehicles Supply Equipment)
Quick charging systemApplicable standardsIEC62196-1
CHAdeMOMaximum input current50 A
Normal charging systemIP degrees
IP44: When a charge connector is connected
IP55: When the charging lid is closed and the vehicle is moving

Electric motor specifications
E01100604407ItemFront MotorRear MotorElectric motor modelS61Y61
Electric motor specifications
12-07OGGE16E1Specifications12

ItemFront MotorRear MotorMaximum output (ECE net)60 kWMaximum torque137 Nm195 NmMaximum 30 minutes power25 kW

Low voltage electrical systemE01100804151Voltage12 VAuxiliary batteryType (JIS)S46B24L(S)Capacity (5HR)36 AhSpark plug typeNGKDIFR5E11

Tyres and wheelsE01100904354Tyre215/70R16 100H225/55R18 98HWheelSize16x6 1/2J, 16x6 1/2JJ18x7JOffset38 mmNOTElContact your MITSUBISHI MOTORS Authorized Service Point for details on the combination used on your vehicle.

Low voltage electrical system
12-08OGGE16E1Specifications12

Fuel consumptionE01101101916Combined (laden)*Electric range (km) *CO
2 (g/km)Fuel consumption
(L/100 km)Electric consumption (Wh/km)421.813452*: The values are based on ECE R101. It varies depending on driving style, road and traffic conditions, ambient temperature, use of air condi-
tioners and so forth.NOTEl The results given do not express or imply any guarantee of all the values of the particular vehicle.
The vehicle itself has not been tested and there are inevitably differences between individual vehicles of the same model. In addition, this vehicle may incor- porate particular modifications. Furthermore, the driver’s style and road and traffic conditions, as well as the extent to which the vehicle has been driven and the standard of maintenance, will all affect its values.
l All mentioned values are referring to a new, driven in vehicle.

Fuel consumption
12-09OGGE16E1Specifications12

Refill capacitiesE01101306489No.ItemQuantityLubricants1Engine oilOil pan4.3 litresRefer to page 11-05.Oil filter0.3 litre2Brake fluidAs requiredBrake fluid DOT3 or DOT43Washer fluid4.5 litres—4Engine coolant
[includes 0.65 litre in the reserve tank]Except for vehicles with elec- tric heater6.5 litresMITSUBISHI MOTORS GENUINE
SUPER LONG LIFE COOLANT PRE-
MIUM or equivalent *Vehicles with electric heater7.5 litres*
: Similar high quality ethylene glycol based non-silicate, non-amine, non-nitrate and non-borate coolant with long life hybrid organic acid
technology
Refill capacities
12-10OGGE16E1Specifications12

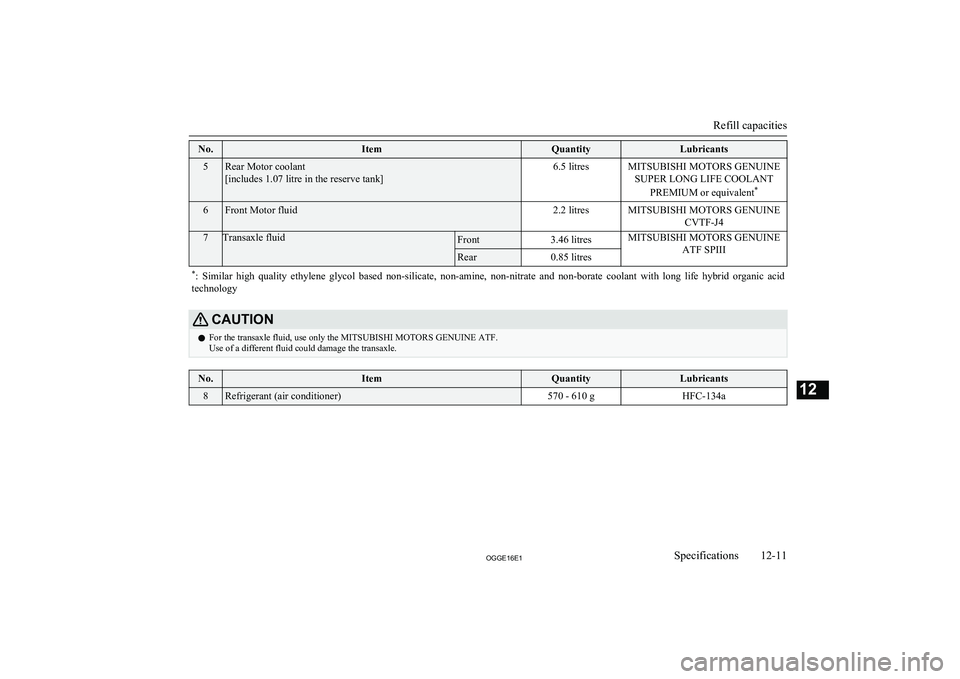

No.ItemQuantityLubricants5Rear Motor coolant
[includes 1.07 litre in the reserve tank]6.5 litresMITSUBISHI MOTORS GENUINE SUPER LONG LIFE COOLANT
PREMIUM or equivalent *6Front Motor fluid2.2 litresMITSUBISHI MOTORS GENUINE
CVTF-J47Transaxle fluidFront3.46 litresMITSUBISHI MOTORS GENUINEATF SPIIIRear0.85 litres*: Similar high quality ethylene glycol based non-silicate, non-amine, non-nitrate and non-borate coolant with long life hybrid organic acid
technologyCAUTIONl For the transaxle fluid, use only the MITSUBISHI MOTORS GENUINE ATF.
Use of a different fluid could damage the transaxle.No.ItemQuantityLubricants8Refrigerant (air conditioner)570 - 610 gHFC-134a

Refill capacities
12-11OGGE16E1Specifications12

OGGE16E1

4
4-wheel drive operation.....................................7-19A
Accessory (Installation).....................................2-15
Accessory socket............................................... 8-75
Acoustic Vehicle Alerting System (AVAS)......2-05
Active stability control (ASC)...........................7-32
Adaptive Cruise Control System (ACC)........... 7-43
Air conditioner Automatic climate control air conditioner.... 8-04
Important operation tips for the air conditioning................................................. 8-13
Air purifier.........................................................8-13
Airbag................................................................ 5-29 Caution for installing the child re-straint on vehicle with front pas-
senger’s airbag.....................................5-15,5-31
Anti-lock brake system (ABS).......................... 7-28
Ashtray.............................................................. 8-74
Assist grips........................................................ 8-82
Audio
CD player...................................................... 8-14
LW/MW/FM radio........................................ 8-14
Troubleshooting............................................ 8-47
Auxiliary battery............................................. 11-09
Auxiliary battery charge warning lamp.............6-45
B
Basic knowledge for charging........................... 3-04
Battery charge switch........................................ 7-22
Battery save switch............................................7-21
Battery Auxiliary battery charge warning lamp........ 6-45
Discharged battery (Emergency starting)..... 9-02
Disposal information for used batteries........ 2-17 Specification............................................... 12-08
Bluetooth® 2.0 interface................................... 8-50
Bonnet............................................................. 11-04
Bottle holder...................................................... 8-81
Brake assist system............................................7-27
Brake warning lamp.......................................... 6-44
Brake Anti-lock brake............................................. 7-28
Braking.......................................................... 7-25
Fluid.................................................. 11-08,12-10
Parking brake................................................ 7-03
Bulb capacity .................................................. 11-23
C
Capacities........................................................ 12-10
Card holder................................................8-74,8-78
Cargo area cover................................................8-81
Cargo loads........................................................7-96
Catalytic converter.......................................... 11-03
Cautions on handling of 4-wheel drive vehicles................................................... 7-21
Central door locks............................................. 4-16
Charging............................................................ 3-02
Charging indicator............................................. 6-44
Charging troubleshooting guide........................ 3-20
Check engine warning lamp.............................. 6-45
Child restraint.................................................... 5-15 Caution for installing the child re-straint on vehicles with a front
passenger airbag.................................. 5-15,5-31
Child-protection rear doors............................... 4-18
Cigarette lighter................................................. 8-74
Cleaning
Exterior of your vehicle.............................. 10-03Interior of your vehicle............................... 10-02
Coat hook.......................................................... 8-83
Combination headlamps and dipper switch...... 6-47
Coolant (engine)....................................11-06,12-10
Coolant (plug-in hybrid EV system................ 11-06
Corner sensor.....................................................7-77
Cruise control.................................................... 7-34
Cup holder......................................................... 8-80
D
Daytime running lamp.......................................6-49
Daytime running lamps Bulb capacity.............................................. 11-23
Demister (rear window).................................... 6-61
Digital clock
Time Setting.................................................. 8-45
Dimensions...................................................... 12-04
Dipper (High/Low beam change)......................6-49
Disposal information for used batteries............ 2-17
Doors Central door locks......................................... 4-16
Child-protection............................................ 4-18
Dead Lock System........................................ 4-16
Lock and unlock............................................ 4-14

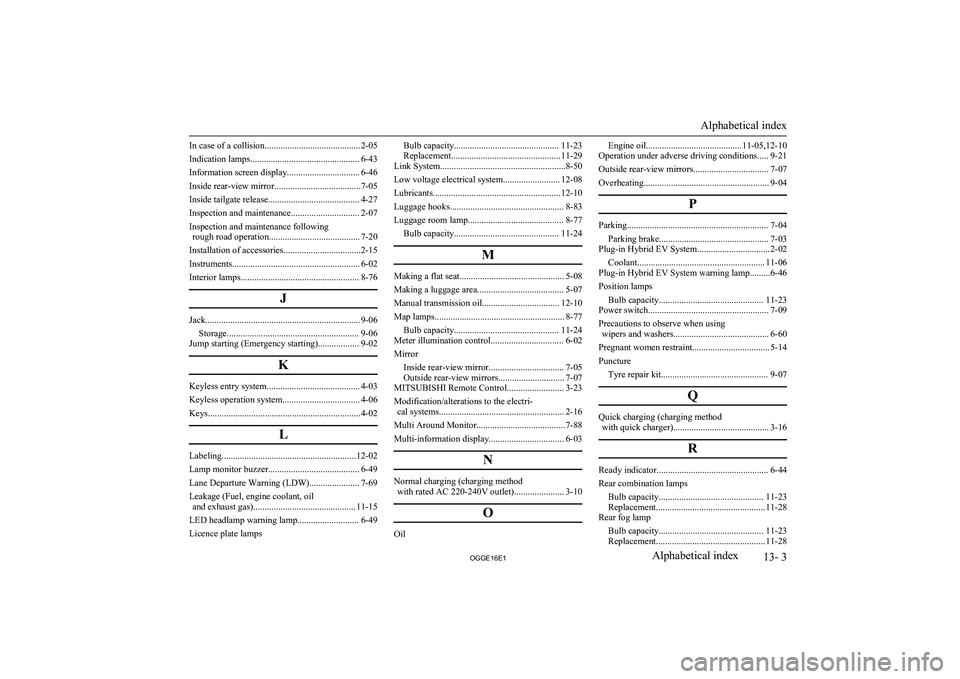

Alphabetical index
13- 1
OGGE16E1Alphabetical index

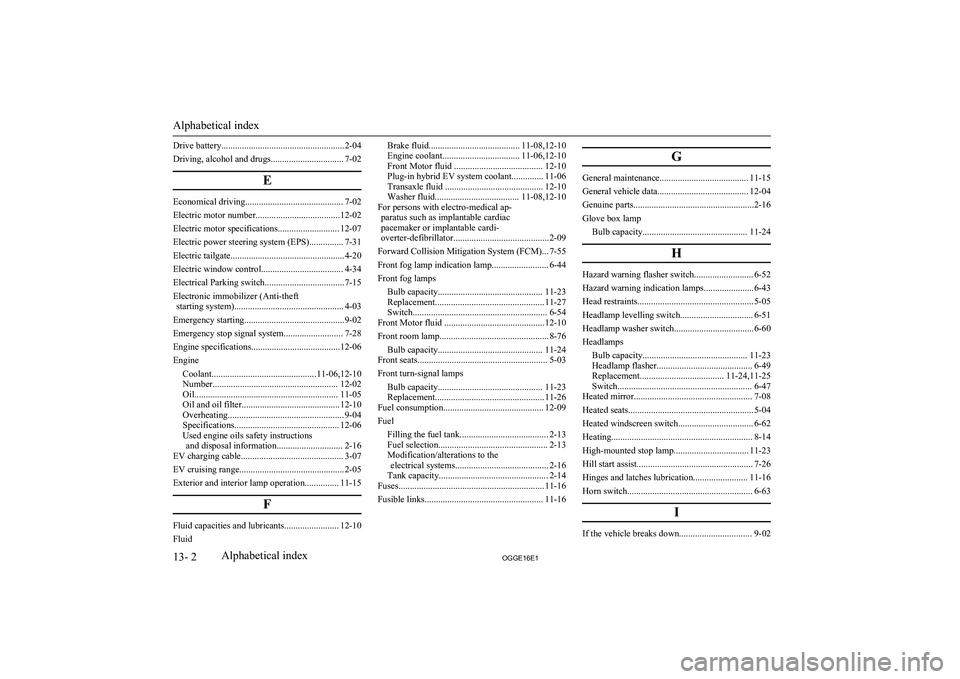

Drive battery......................................................2-04
Driving, alcohol and drugs................................ 7-02
E
Economical driving........................................... 7-02
Electric motor number.....................................12-02
Electric motor specifications........................... 12-07
Electric power steering system (EPS)............... 7-31
Electric tailgate..................................................4-20
Electric window control.................................... 4-34
Electrical Parking switch...................................7-15
Electronic immobilizer (Anti-theft starting system)................................................ 4-03
Emergency starting............................................9-02
Emergency stop signal system.......................... 7-28
Engine specifications.......................................12-06
Engine Coolant..............................................11-06,12-10
Number....................................................... 12-02
Oil............................................................... 11-05
Oil and oil filter........................................... 12-10
Overheating................................................... 9-04
Specifications.............................................. 12-06
Used engine oils safety instructions and disposal information............................. 2-16
EV charging cable............................................. 3-07
EV cruising range.............................................. 2-05
Exterior and interior lamp operation............... 11-15
F
Fluid capacities and lubricants........................ 12-10
Fluid
Brake fluid........................................ 11-08,12-10
Engine coolant.................................. 11-06,12-10
Front Motor fluid ....................................... 12-10
Plug-in hybrid EV system coolant.............. 11-06
Transaxle fluid ........................................... 12-10
Washer fluid..................................... 11-08,12-10
For persons with electro-medical ap- paratus such as implantable cardiac
pacemaker or implantable cardi-
overter-defibrillator..........................................2-09
Forward Collision Mitigation System (FCM)... 7-55
Front fog lamp indication lamp......................... 6-44
Front fog lamps Bulb capacity.............................................. 11-23
Replacement................................................ 11-27
Switch........................................................... 6-54
Front Motor fluid ............................................12-10
Front room lamp................................................ 8-76 Bulb capacity.............................................. 11-24
Front seats......................................................... 5-03
Front turn-signal lamps Bulb capacity.............................................. 11-23
Replacement................................................ 11-26
Fuel consumption............................................ 12-09
Fuel Filling the fuel tank....................................... 2-13Fuel selection................................................ 2-13Modification/alterations to the electrical systems......................................... 2-16
Tank capacity................................................ 2-14
Fuses................................................................ 11-16
Fusible links.................................................... 11-16
G
General maintenance....................................... 11-15
General vehicle data........................................ 12-04
Genuine parts.....................................................2-16
Glove box lamp
Bulb capacity.............................................. 11-24
H
Hazard warning flasher switch.......................... 6-52
Hazard warning indication lamps......................6-43
Head restraints................................................... 5-05
Headlamp levelling switch................................ 6-51
Headlamp washer switch...................................6-60
Headlamps Bulb capacity.............................................. 11-23
Headlamp flasher.......................................... 6-49
Replacement..................................... 11-24,11-25
Switch........................................................... 6-47
Heated mirror.................................................... 7-08
Heated seats....................................................... 5-04
Heated windscreen switch................................. 6-62
Heating.............................................................. 8-14
High-mounted stop lamp................................. 11-23
Hill start assist................................................... 7-26
Hinges and latches lubrication........................ 11-16
Horn switch....................................................... 6-63
I
If the vehicle breaks down................................ 9-02
Alphabetical index
13- 2 OGGE16E1Alphabetical index

In case of a collision.......................................... 2-05
Indication lamps................................................ 6-43
Information screen display................................ 6-46
Inside rear-view mirror......................................7-05
Inside tailgate release........................................ 4-27
Inspection and maintenance.............................. 2-07
Inspection and maintenance following rough road operation........................................ 7-20
Installation of accessories..................................2-15
Instruments........................................................ 6-02
Interior lamps.................................................... 8-76
J
Jack.................................................................... 9-06Storage.......................................................... 9-06
Jump starting (Emergency starting).................. 9-02
K
Keyless entry system......................................... 4-03
Keyless operation system.................................. 4-06
Keys...................................................................4-02
L
Labeling...........................................................12-02
Lamp monitor buzzer........................................ 6-49
Lane Departure Warning (LDW)...................... 7-69
Leakage (Fuel, engine coolant, oil and exhaust gas)............................................. 11-15
LED headlamp warning lamp........................... 6-49
Licence plate lamps
Bulb capacity.............................................. 11-23
Replacement................................................ 11-29
Link System.......................................................8-50
Low voltage electrical system......................... 12-08
Lubricants........................................................ 12-10
Luggage hooks.................................................. 8-83
Luggage room lamp.......................................... 8-77 Bulb capacity.............................................. 11-24
M
Making a flat seat.............................................. 5-08
Making a luggage area...................................... 5-07
Manual transmission oil.................................. 12-10
Map lamps......................................................... 8-77 Bulb capacity.............................................. 11-24
Meter illumination control................................ 6-02
Mirror Inside rear-view mirror................................. 7-05
Outside rear-view mirrors............................. 7-07
MITSUBISHI Remote Control......................... 3-23
Modification/alterations to the electri- cal systems....................................................... 2-16
Multi Around Monitor.......................................7-88
Multi-information display................................. 6-03
N
Normal charging (charging methodwith rated AC 220-240V outlet)...................... 3-10
O
Oil
Engine oil.......................................... 11-05,12-10
Operation under adverse driving conditions..... 9-21
Outside rear-view mirrors................................. 7-07 Overheating....................................................... 9-04
P
Parking.............................................................. 7-04Parking brake................................................ 7-03
Plug-in Hybrid EV System................................2-02
Coolant........................................................ 11-06
Plug-in Hybrid EV System warning lamp.........6-46
Position lamps Bulb capacity.............................................. 11-23
Power switch..................................................... 7-09
Precautions to observe when using wipers and washers.......................................... 6-60
Pregnant women restraint.................................. 5-14
Puncture Tyre repair kit............................................... 9-07
Q
Quick charging (charging methodwith quick charger).......................................... 3-16
R
Ready indicator................................................. 6-44
Rear combination lamps Bulb capacity.............................................. 11-23Replacement................................................ 11-28
Rear fog lamp
Bulb capacity.............................................. 11-23
Replacement................................................ 11-28
Alphabetical index
13- 3
OGGE16E1Alphabetical index

Switch........................................................... 6-54
Rear Motor coolant..........................................12-10
Rear room lamp................................................. 8-76 Bulb capacity.............................................. 11-24
Rear turn-signal lamps
Bulb capacity.............................................. 11-23
Replacement..................................... 11-26,11-28
Rear window demister switch........................... 6-61
Rear-view camera..............................................7-84
Rear-view mirror Inside............................................................. 7-05
Outside.......................................................... 7-07
Refill capacities............................................... 12-10
Regenerative braking level selector (paddle).... 7-16
Replacement of lamp bulbs............................. 11-22
Reversing lamps Bulb capacity.............................................. 11-23
Replacement................................................ 11-28
Reversing sensor system................................... 7-77
Roof carrier precaution......................................7-97
Room lamp........................................................ 8-76
S
S-AWC (Super-All Wheel Control).................. 7-17
Safe driving techniques..................................... 7-02
Safety and disposal information for used engine oil................................................. 2-16
Seat belt Adjustable seat belt anchor........................... 5-12Child restraint................................................5-15Force limiter.................................................. 5-15
Inspection...................................................... 5-28
Pregnant women restraint............................. 5-14
Pretensioner...................................................5-15
Seat belt reminder..............................................5-11
Seat belts........................................................... 5-09
Seat Adjustment.................................................... 5-02Front seats..................................................... 5-03
Head restraints.............................................. 5-05
Heated seats.................................................. 5-04
Making a flat seat.......................................... 5-08
Making a luggage area.................................. 5-07
Rear seat........................................................ 5-05
Security alarm system....................................... 4-27
Select Position indicator.................................... 7-14
Selector Lever (Joystick Type)......................... 7-13
Sensor system.................................................... 7-81
Service precaution........................................... 11-02
Side turn-signal lamps Bulb capacity.............................................. 11-23
Snow traction device (Tyre chains).................11-13
Snow tyres....................................................... 11-12
Spark plug....................................................... 12-08
Specifications.................................................. 12-02
Speed Limiter.................................................... 7-38
Starting and stopping the Plug-in Hy- brid EV System................................................ 7-11
Steering Steering wheel height adjustment................. 7-05
Stop lamps
Bulb capacity.............................................. 11-23
Stopping the Plug-in Hybrid EV System.......... 7-12
Storage spaces................................................... 8-78
Sun visors.......................................................... 8-73
Sunglasses holder.............................................. 8-80Sunroof.............................................................. 4-36
Supplemental restraint system...........................5-29 Caution for installing the child re-straint on vehicles with a front
passenger airbag.................................. 5-15,5-31
Servicing....................................................... 5-39
System check screen..........................................6-13
T
Tail lampsBulb capacity.............................................. 11-23
Tailgate.............................................................. 4-18
Tank capacity.................................................... 2-14
Time Setting...................................................... 8-45
Tools.................................................................. 9-06 Storage.......................................................... 9-06
Towing.............................................................. 9-18
Trailer towing.................................................... 7-97
Transaxle fluid ................................................12-10
Turn-signal indication lamps.............................6-43
Turn/Lane-change signals................................. 6-52
Tyre pressure monitoring system (TPMS)........ 7-72
Tyre repair kit.................................................... 9-07
Tyres................................................................ 11-10 How to change a tyre.................................... 9-13Inflation pressures....................................... 11-10
Rotation....................................................... 11-11
Size (tyre and wheel).................................. 12-08
Snow traction device (Tyre chains)............ 11-13
Snow tyres................................................... 11-12
Tread wear indicators.................................. 11-11
Tyre pressure monitoring system (TPMS).. 11-10
Tyre repair kit............................................... 9-07
Alphabetical index
13- 4 OGGE16E1Alphabetical index
