Page 451 of 610
5-74 Comfort controls
5

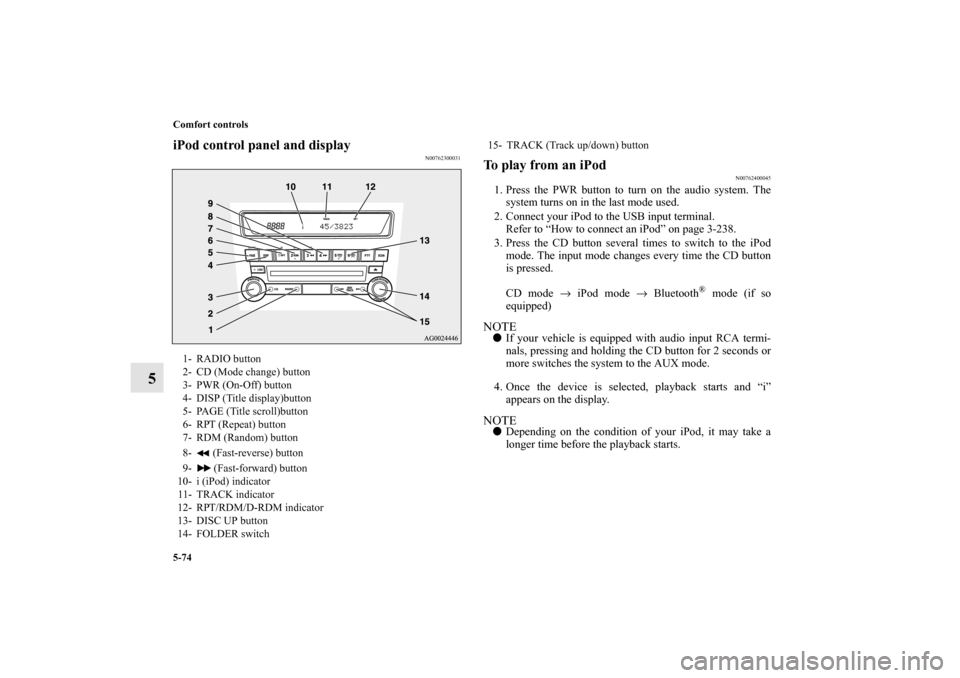

iPod control panel and display
N00762300031
To play from an iPod
N00762400045
1. Press the PWR button to turn on the audio system. The
system turns on in the last mode used.
2. Connect your iPod to the USB input terminal.
Refer to “How to connect an iPod” on page 3-238.
3. Press the CD button several times to switch to the iPod
mode. The input mode changes every time the CD button
is pressed.
CD mode → iPod mode → Bluetooth
® mode (if so
equipped)
NOTEIf your vehicle is equipped with audio input RCA termi-
nals, pressing and holding the CD button for 2 seconds or
more switches the system to the AUX mode.
4. Once the device is selected, playback starts and “i”
appears on the display.NOTEDepending on the condition of your iPod, it may take a
longer time before the playback starts.
1- RADIO button
2- CD (Mode change) button
3- PWR (On-Off) button
4- DISP (Title display)button
5- PAGE (Title scroll)button
6- RPT (Repeat) button
7- RDM (Random) button
8- (Fast-reverse) button
9- (Fast-forward) button
10- i (iPod) indicator
11- TRACK indicator
12- RPT/RDM/D-RDM indicator
13- DISC UP button
14- FOLDER switch
15- TRACK (Track up/down) button
BK0140300US.book 74 ページ ２０１１年６月２８日 火曜日 午後５時１８分
Page 452 of 610
Comfort controls
5-75
5

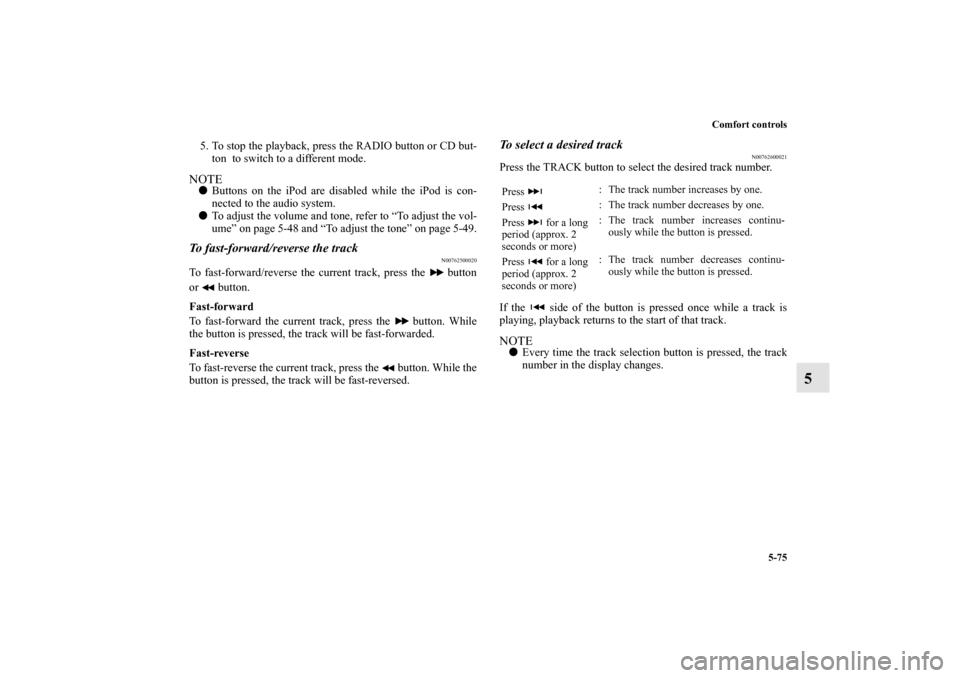

5. To stop the playback, press the RADIO button or CD but-
ton to switch to a different mode.NOTEButtons on the iPod are disabled while the iPod is con-
nected to the audio system.
To adjust the volume and tone, refer to “To adjust the vol-
ume” on page 5-48 and “To adjust the tone” on page 5-49.To fast-forward/reverse the track
N00762500020
To fast-forward/reverse the current track, press the button
or button.
Fast-forward
To fast-forward the current track, press the button. While
the button is pressed, the track will be fast-forwarded.
Fast-reverse
To fast-reverse the current track, press the button. While the
button is pressed, the track will be fast-reversed.
To select a desired track
N00762600021
Press the TRACK button to select the desired track number.
If the side of the button is pressed once while a track is
playing, playback returns to the start of that track.NOTEEvery time the track selection button is pressed, the track
number in the display changes.Press : The track number increases by one.
Press : The track number decreases by one.
Press for a long
period (approx. 2
seconds or more): The track number increases continu-
ously while the button is pressed.
Press for a long
period (approx. 2
seconds or more): The track number decreases continu-
ously while the button is pressed.
BK0140300US.book 75 ページ ２０１１年６月２８日 火曜日 午後５時１８分
Page 453 of 610
5-76 Comfort controls
5

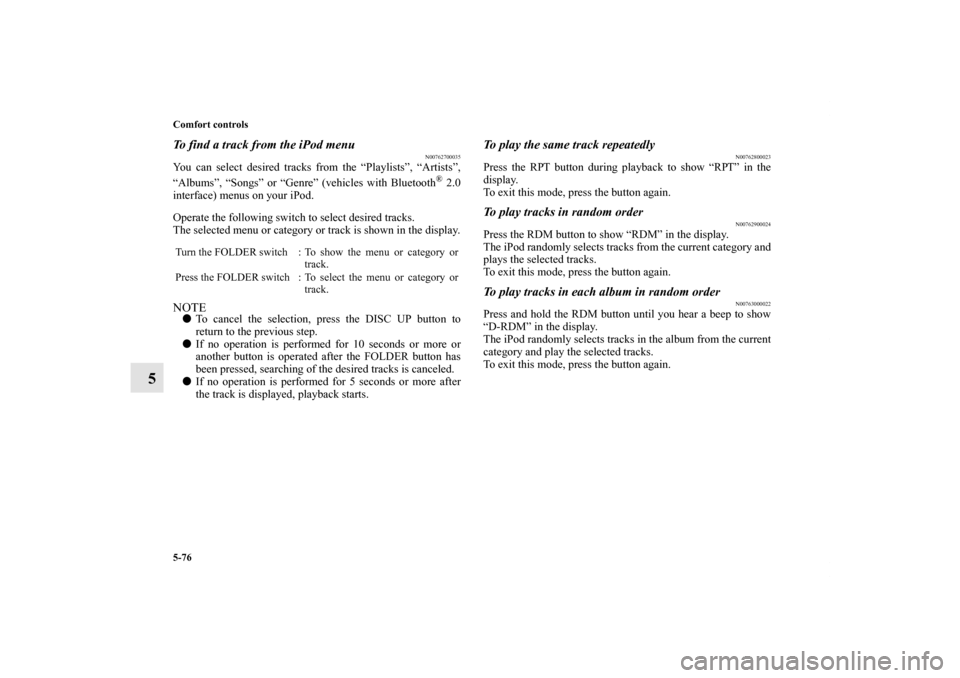

To find a track from the iPod menu
N00762700035
You can select desired tracks from the “Playlists”, “Artists”,
“Albums”, “Songs” or “Genre” (vehicles with Bluetooth
® 2.0
interface) menus on your iPod.
Operate the following switch to select desired tracks.
The selected menu or category or track is shown in the display.
NOTETo cancel the selection, press the DISC UP button to
return to the previous step.
If no operation is performed for 10 seconds or more or
another button is operated after the FOLDER button has
been pressed, searching of the desired tracks is canceled.
If no operation is performed for 5 seconds or more after
the track is displayed, playback starts.
To play the same track repeatedly
N00762800023
Press the RPT button during playback to show “RPT” in the
display.
To exit this mode, press the button again.To play tracks in random order
N00762900024
Press the RDM button to show “RDM” in the display.
The iPod randomly selects tracks from the current category and
plays the selected tracks.
To exit this mode, press the button again.To play tracks in each album in random order
N00763000022
Press and hold the RDM button until you hear a beep to show
“D-RDM” in the display.
The iPod randomly selects tracks in the album from the current
category and play the selected tracks.
To exit this mode, press the button again.
Turn the FOLDER switch : To show the menu or category or
track.
Press the FOLDER switch : To select the menu or category or
track.BK0140300US.book 76 ページ ２０１１年６月２８日 火曜日 午後５時１８分
Page 454 of 610
Comfort controls
5-77
5

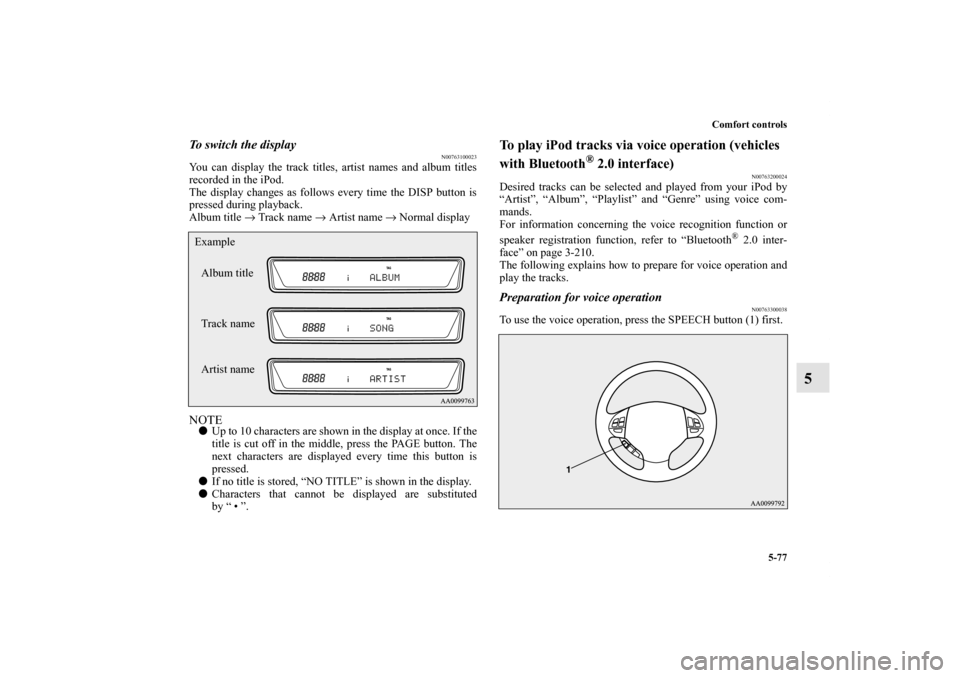

To switch the display
N00763100023
You can display the track titles, artist names and album titles
recorded in the iPod.
The display changes as follows every time the DISP button is
pressed during playback.
Album title → Track name → Artist name → Normal displayNOTEUp to 10 characters are shown in the display at once. If the
title is cut off in the middle, press the PAGE button. The
next characters are displayed every time this button is
pressed.
If no title is stored, “NO TITLE” is shown in the display.
Characters that cannot be displayed are substituted
by “ • ”.
To play iPod tracks via voice operation (vehicles
with Bluetooth
® 2.0 interface)
N00763200024
Desired tracks can be selected and played from your iPod by
“Artist”, “Album”, “Playlist” and “Genre” using voice com-
mands.
For information concerning the voice recognition function or
speaker registration function, refer to “Bluetooth
® 2.0 inter-
face” on page 3-210.
The following explains how to prepare for voice operation and
play the tracks.
Preparation for voice operation
N00763300038
To use the voice operation, press the SPEECH button (1) first.
Album title
Track name
Artist name Example
BK0140300US.book 77 ページ ２０１１年６月２８日 火曜日 午後５時１８分
Page 455 of 610
5-78 Comfort controls
5
To search by artist name
N00763400039
1. Say “Play” on the main menu.NOTEThe Bluetooth
® 2.0 interface starts recognizing the con-
nected device.
If the connected device cannot be recognized or a connec-
tion error occurs, the Bluetooth
® 2.0 interface starts an
appropriate voice guide. Follow the voice guide.
2. After the voice guide says “Would you like to play by Art-
ist, Album, Playlist or Genre?,” say “Artist”.
NOTEIf you say “Artist ,” you can skip step 3.
3. After the voice guide says “What Artist would you like to
play?,” say the artist name.
4. If there is only one match, the system proceeds to step 6.5. If there are two or more matches, the voice guide will say
“More than one match was found, would you like to play
?” If you say “Yes,” the system proceeds to
step 6.
If you say “No,” the next matching artist is uttered by the
system.
NOTEIf you say “No” to three or all artist names uttered by the
system, the voice guide will say “Artist not found, please
try again” and the system returns to step 2.
Search time depends on the number of songs on your con-
nected device. Devices containing a large number of
songs may take longer to return search results.
6. After the voice guide says “Playing ,” the
system creates a playlist index for the artist.NOTEIf the confirmation function is active, the voice guide con-
firms if the artist name is correct. If the artist name is cor-
rect, say “Yes”. If not, say “No”. After the voice guide
says “Artist not found, please try again,” the system
returns to step 2.
7. The system exits the voice recognition mode and starts
playback.
BK0140300US.book 78 ページ ２０１１年６月２８日 火曜日 午後５時１８分
Page 456 of 610
Comfort controls
5-79
5

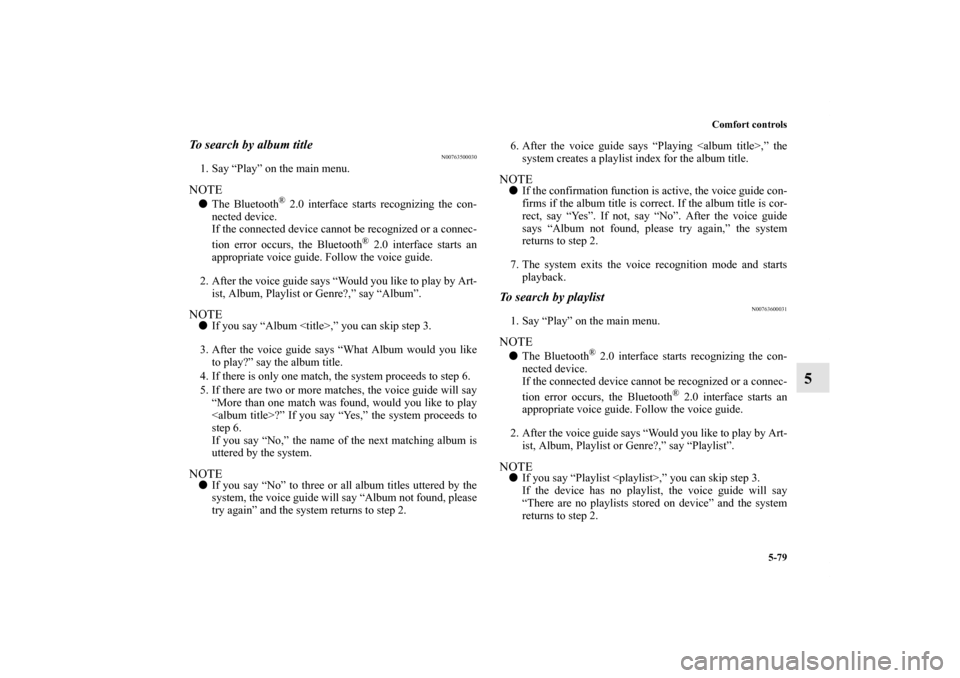

To search by album title
N00763500030
1. Say “Play” on the main menu.NOTEThe Bluetooth
® 2.0 interface starts recognizing the con-
nected device.
If the connected device cannot be recognized or a connec-
tion error occurs, the Bluetooth
® 2.0 interface starts an
appropriate voice guide. Follow the voice guide.
2. After the voice guide says “Would you like to play by Art-
ist, Album, Playlist or Genre?,” say “Album”.
NOTEIf you say “Album
,” you can skip step 3.<br />
3. After the voice guide says “What Album would you like<br />
to play?” say the album title.<br />
4. If there is only one match, the system proceeds to step 6.<br />
5. If there are two or more matches, the voice guide will say<br />
“More than one match was found, would you like to play<br />
<album title>?” If you say “Yes,” the system proceeds to<br />
step 6.<br />
If you say “No,” the name of the next matching album is<br />
uttered by the system.NOTEIf you say “No” to three or all album titles uttered by the<br />
system, the voice guide will say “Album not found, please<br />
try again” and the system returns to step 2.6. After the voice guide says “Playing <album title>,” the<br />
system creates a playlist index for the album title.<br />
NOTEIf the confirmation function is active, the voice guide con-<br />
firms if the album title is correct. If the album title is cor-<br />
rect, say “Yes”. If not, say “No”. After the voice guide<br />
says “Album not found, please try again,” the system<br />
returns to step 2.<br />
7. The system exits the voice recognition mode and starts<br />
playback.To search by playlist<br />
N00763600031<br />
1. Say “Play” on the main menu.NOTEThe Bluetooth<br />
® 2.0 interface starts recognizing the con-<br />
nected device.<br />
If the connected device cannot be recognized or a connec-<br />
tion error occurs, the Bluetooth<br />
® 2.0 interface starts an<br />
appropriate voice guide. Follow the voice guide.<br />
2. After the voice guide says “Would you like to play by Art-<br />
ist, Album, Playlist or Genre?,” say “Playlist”.<br />
NOTEIf you say “Playlist <playlist>,” you can skip step 3.<br />
If the device has no playlist, the voice guide will say<br />
“There are no playlists stored on device” and the system<br />
returns to step 2.<br />
BK0140300US.book 79 ページ ２０１１年６月２８日 火曜日 午後５時１８分 <p></div><script>$(document).on('click', '#a456', function(){
$(this).hide();
$('#b456').height($('#a456').height()-22);
$('#b456').show();
});
$(document).on('click', '#b456', function(){
$(this).hide();
$('#a456').show();
});
$(document).ready(function(){
$('#b456').height($('#a456').height()-22);
});
</script> <div style="height: 250px">
<script async src="//pagead2.googlesyndication.com/pagead/js/adsbygoogle.js"></script>
<ins class="adsbygoogle"
style="display:block; min-height: 280px"
data-ad-client="ca-pub-1094764738794676"
data-ad-slot="8211391741"
data-ad-format="auto"></ins>
<script>
(adsbygoogle = window.adsbygoogle || []).push({});
</script></div>
<a name='457'></a><h3>Page 457 of 610</h3><div id='a457'><img loading='lazy' width='960' height='678' style='border: 1px solid #444444; max-width: 100%; display:block; height: auto;' alt='MITSUBISHI OUTLANDER SPORT 2012 3.G Owners Manual 5-80 Comfort controls
5
3. After the voice guide says “What Playlist would you like
to play?,” say the playlist name.
4. If there is only one match, the system proceeds to step 6.
5. If there are ' title='MITSUBISHI OUTLANDER SPORT 2012 3.G Owners Manual 5-80 Comfort controls
5
3. After the voice guide says “What Playlist would you like
to play?,” say the playlist name.
4. If there is only one match, the system proceeds to step 6.
5. If there are ' src='/img/19/7541/w960_7541-456.png' /></div><div id='b457' style='display: none; overflow: auto; width: 962px; height: 1300px; border: 1px solid #444444; padding: 10px; background-color: #eeeeee; max-width: 100%; height: auto'><p>5-80 Comfort controls<br />
5<br />
3. After the voice guide says “What Playlist would you like<br />
to play?,” say the playlist name.<br />
4. If there is only one match, the system proceeds to step 6.<br />
5. If there are two or more matches, the voice guide will say<br />
“More than one match was found, would you like to play<br />
<playlist>?” If you say “Yes,” the system proceeds to<br />
step 6.<br />
If you say “No,” the next matching playlist name is<br />
uttered by the system.NOTEIf you say “No” to three or all playlist names uttered by<br />
the system, the voice guide will say “Playlist not found,<br />
please try again” and the system returns to step 2.<br />
6. After the voice guide says “Playing <playlist>,” the sys-<br />
tem creates an index for the playlist.NOTEIf the confirmation function is active, the voice guide con-<br />
firms if the playlist name is correct. If the playlist name is<br />
correct, say “Yes”. If not, say “No”. After the voice guide<br />
says “Playlist not found, please try again,” the system<br />
returns to step 2. Refer to “Confirmation function setting”<br />
on page 3-215.<br />
7. The system exits the voice recognition mode and starts<br />
playback.<br />
To search by genre<br />
N00763700032<br />
1. Say “Play” on the main menu.NOTEThe Bluetooth<br />
® 2.0 interface starts recognizing the con-<br />
nected device.<br />
If the connected device cannot be recognized or a connec-<br />
tion error occurs, the Bluetooth<br />
® 2.0 interface starts an<br />
appropriate voice guide. Follow the voice guide.<br />
2. After the voice guide says “Would you like to play by Art-<br />
ist, Album, Playlist or Genre?,” say “Genre”.<br />
NOTEIf you say “Genre <type>,” you can skip step 3.<br />
3. After the voice guide says “What Genre would you like to<br />
play?,” say the music type.<br />
4. If there is only one match, the system proceeds to step 6.<br />
5. If there are two or more matches, the voice guide will say<br />
“More than one match was found, would you like to play<br />
<genre>?” If you say “Yes,” the system proceeds to<br />
step 6.<br />
If you say “No,” the next matching genre is uttered by the<br />
system.NOTEIf you say “No” to three or all genres uttered by the sys-<br />
tem, the voice guide will say “Genre not found, please try<br />
again” and the system returns to step 2.<br />
BK0140300US.book 80 ページ ２０１１年６月２８日 火曜日 午後５時１８分 <p></div><script>$(document).on('click', '#a457', function(){
$(this).hide();
$('#b457').height($('#a457').height()-22);
$('#b457').show();
});
$(document).on('click', '#b457', function(){
$(this).hide();
$('#a457').show();
});
$(document).ready(function(){
$('#b457').height($('#a457').height()-22);
});
</script> <div style="height: 250px">
<script async src="//pagead2.googlesyndication.com/pagead/js/adsbygoogle.js"></script>
<ins class="adsbygoogle"
style="display:block; min-height: 280px"
data-ad-client="ca-pub-1094764738794676"
data-ad-slot="8211391741"
data-ad-format="auto"></ins>
<script>
(adsbygoogle = window.adsbygoogle || []).push({});
</script></div>
<a name='458'></a><h3>Page 458 of 610</h3><div id='a458'><img loading='lazy' width='960' height='678' style='border: 1px solid #444444; max-width: 100%; display:block; height: auto;' alt='MITSUBISHI OUTLANDER SPORT 2012 3.G Owners Manual Comfort controls
5-81
5
6. After the voice guide says “Playing <genre>,” the system
creates an index for the genre.NOTEIf the confirmation function is active, the voice guide con-
firms if the ge' title='MITSUBISHI OUTLANDER SPORT 2012 3.G Owners Manual Comfort controls
5-81
5
6. After the voice guide says “Playing <genre>,” the system
creates an index for the genre.NOTEIf the confirmation function is active, the voice guide con-
firms if the ge' src='/img/19/7541/w960_7541-457.png' /></div><div id='b458' style='display: none; overflow: auto; width: 962px; height: 1300px; border: 1px solid #444444; padding: 10px; background-color: #eeeeee; max-width: 100%; height: auto'><p>Comfort controls<br />
5-81<br />
5<br />
6. After the voice guide says “Playing <genre>,” the system<br />
creates an index for the genre.NOTEIf the confirmation function is active, the voice guide con-<br />
firms if the genre is correct. If the genre is correct, say<br />
“Yes”. If not, say “No”. After the voice guide says “Genre<br />
not found, please try again,” the system returns to step 2.<br />
Refer to “Confirmation function setting” on page 3-215.<br />
7. The system exits the voice recognition mode and starts<br />
playback.USB control panel and display<br />
N00763900034<br />
To play from a USB memory device<br />
N00764000045<br />
1. Press the PWR button to turn on the audio system. The<br />
system turns on in the last mode used.<br />
2. Connect your USB memory device to the USB input ter-<br />
minal.<br />
Refer to “How to connect a USB memory device” on page<br />
3-236.<br />
1- RADIO button<br />
2- CD (Mode change) button<br />
3- PWR (On-Off) button<br />
4- DISP (Title display)button<br />
5- PAGE (Title scroll)button<br />
6- RPT (Repeat) button<br />
7- RDM (Random) button<br />
8- (Fast-reverse) button<br />
9- (Fast-forward) button<br />
10- U (USB) indicator<br />
11- FOLDER indicator<br />
12- TRACK indicator<br />
13- RPT/D-RPT/RDM/D-RDM/SCAN/F-SCAN indicator<br />
14- DISC UP button<br />
15- SCAN button<br />
16- FOLDER switch<br />
17- TRACK (Track up/down) button<br />
BK0140300US.book 81 ページ ２０１１年６月２８日 火曜日 午後５時１８分 <p></div><script>$(document).on('click', '#a458', function(){
$(this).hide();
$('#b458').height($('#a458').height()-22);
$('#b458').show();
});
$(document).on('click', '#b458', function(){
$(this).hide();
$('#a458').show();
});
$(document).ready(function(){
$('#b458').height($('#a458').height()-22);
});
</script> <div style="height: 250px">
<script async src="//pagead2.googlesyndication.com/pagead/js/adsbygoogle.js"></script>
<ins class="adsbygoogle"
style="display:block; min-height: 280px"
data-ad-client="ca-pub-1094764738794676"
data-ad-slot="8211391741"
data-ad-format="auto"></ins>
<script>
(adsbygoogle = window.adsbygoogle || []).push({});
</script></div>
<a name='459'></a><h3>Page 459 of 610</h3><div id='a459'><img loading='lazy' width='960' height='678' style='border: 1px solid #444444; max-width: 100%; display:block; height: auto;' alt='MITSUBISHI OUTLANDER SPORT 2012 3.G Owners Manual 5-82 Comfort controls
5
3. Press the CD button several times to switch to the USB
mode. The input mode changes as follows every time the
CD button is pressed.
CD mode → USB mode → Bluetooth
® mod' title='MITSUBISHI OUTLANDER SPORT 2012 3.G Owners Manual 5-82 Comfort controls
5
3. Press the CD button several times to switch to the USB
mode. The input mode changes as follows every time the
CD button is pressed.
CD mode → USB mode → Bluetooth
® mod' src='/img/19/7541/w960_7541-458.png' /></div><div id='b459' style='display: none; overflow: auto; width: 962px; height: 1300px; border: 1px solid #444444; padding: 10px; background-color: #eeeeee; max-width: 100%; height: auto'><p>5-82 Comfort controls<br />
5<br />
3. Press the CD button several times to switch to the USB<br />
mode. The input mode changes as follows every time the<br />
CD button is pressed.<br />
CD mode → USB mode → Bluetooth<br />
® mode (if so<br />
equipped)<br />
NOTEIf your vehicle is equipped with audio input RCA termi-<br />
nals, pressing and holding the CD button for 2 seconds or<br />
more switches the system to the AUX mode.<br />
4. Once the device is selected, playback starts and “U”<br />
appears on the display.NOTEDepending on the condition of your USB device, it may<br />
take a longer time before the playback starts.<br />
5. To stop the playback, press the RADIO button or CD but-<br />
ton to switch to a different mode.NOTETo adjust the volume and tone, refer to “To adjust the vol-<br />
ume” on page 5-48 and “To adjust the tone” on page 5-49.Supported compressed music files<br />
N00764100091<br />
This audio can play MP3, WMA, AAC and WAV files<br />
recorded in a USB memory device. This audio supports up to<br />
65,535 files in 700 folders on 8 levels.Folder selection order/file playback order (example)<br />
The folder and file hierarchy in the USB memory device is<br />
shown below.<br />
Folder selection <br />
In the order<br />
File selection<br />
In the order<br />
Root folder (Root directory)<br />
Level 1 Level 2 Level 3 Level 4<br />
BK0140300US.book 82 ページ ２０１１年６月２８日 火曜日 午後５時１８分 <p></div><script>$(document).on('click', '#a459', function(){
$(this).hide();
$('#b459').height($('#a459').height()-22);
$('#b459').show();
});
$(document).on('click', '#b459', function(){
$(this).hide();
$('#a459').show();
});
$(document).ready(function(){
$('#b459').height($('#a459').height()-22);
});
</script> <div style="height: 250px">
<script async src="//pagead2.googlesyndication.com/pagead/js/adsbygoogle.js"></script>
<ins class="adsbygoogle"
style="display:block; min-height: 280px"
data-ad-client="ca-pub-1094764738794676"
data-ad-slot="8211391741"
data-ad-format="auto"></ins>
<script>
(adsbygoogle = window.adsbygoogle || []).push({});
</script></div>
<a name='460'></a><h3>Page 460 of 610</h3><div id='a460'><img loading='lazy' width='960' height='678' style='border: 1px solid #444444; max-width: 100%; display:block; height: auto;' alt='MITSUBISHI OUTLANDER SPORT 2012 3.G Owners Manual Comfort controls
5-83
5
NOTEIf a file protected by copyrights is played, the file will be
skipped.To fast-forward/reverse the track
N00764200021
To fast-forward/reverse the current track, press the ' title='MITSUBISHI OUTLANDER SPORT 2012 3.G Owners Manual Comfort controls
5-83
5
NOTEIf a file protected by copyrights is played, the file will be
skipped.To fast-forward/reverse the track
N00764200021
To fast-forward/reverse the current track, press the ' src='/img/19/7541/w960_7541-459.png' /></div><div id='b460' style='display: none; overflow: auto; width: 962px; height: 1300px; border: 1px solid #444444; padding: 10px; background-color: #eeeeee; max-width: 100%; height: auto'><p>Comfort controls<br />
5-83<br />
5<br />
NOTEIf a file protected by copyrights is played, the file will be<br />
skipped.To fast-forward/reverse the track<br />
N00764200021<br />
To fast-forward/reverse the current track, press the button<br />
or button.<br />
Fast-forward<br />
To fast-forward the current track, press the button. While<br />
the button is pressed, the track will be fast-forwarded.<br />
Fast-reverse<br />
To fast-reverse the current track, press the button. While the<br />
button is pressed, the track will be fast-reversed.<br />
To select a file<br />
N00764300022<br />
Press the TRACK button to select the desired file number.<br />
If the side of the button is pressed once after a few seconds,<br />
playback returns to the start of that track.NOTEEvery time the TRACK button is pressed, the file number<br />
in the display changes.Press : The file number increases by one.<br />
Press : The file number decreases by one.<br />
Press for a long <br />
period (approx. 2 <br />
seconds or more): The file number increases continuously<br />
while the button is pressed.<br />
Press for a long <br />
period (approx. 2 <br />
seconds or more): The file number decreases continuously<br />
while the button is pressed.<br />
BK0140300US.book 83 ページ ２０１１年６月２８日 火曜日 午後５時１８分 <p></div><script>$(document).on('click', '#a460', function(){
$(this).hide();
$('#b460').height($('#a460').height()-22);
$('#b460').show();
});
$(document).on('click', '#b460', function(){
$(this).hide();
$('#a460').show();
});
$(document).ready(function(){
$('#b460').height($('#a460').height()-22);
});
</script> <div style="height: 250px">
<script async src="//pagead2.googlesyndication.com/pagead/js/adsbygoogle.js"></script>
<ins class="adsbygoogle"
style="display:block; min-height: 280px"
data-ad-client="ca-pub-1094764738794676"
data-ad-slot="8211391741"
data-ad-format="auto"></ins>
<script>
(adsbygoogle = window.adsbygoogle || []).push({});
</script></div>
<ul class="actions" style="text-align:center;">
<li><a href="/mitsubishi-outlander-sport-2012-3-g-owners-manual/47" class="button">Load next 10 pages</a></li>
</ul>
<div style="text-align: center" class="text-center my-2">
<span class="article-section">
Page:
</span><a href="/mitsubishi-outlander-sport-2012-3-g-owners-manual/45">< prev</a> <a class='text-dark' href="/mitsubishi-outlander-sport-2012-3-g-owners-manual/">1-10</a> ... <a class='text-dark' href="/mitsubishi-outlander-sport-2012-3-g-owners-manual/42">411-420</a> <a class='text-dark' href="/mitsubishi-outlander-sport-2012-3-g-owners-manual/43">421-430</a> <a class='text-dark' href="/mitsubishi-outlander-sport-2012-3-g-owners-manual/44">431-440</a> <a class='text-dark' href="/mitsubishi-outlander-sport-2012-3-g-owners-manual/45">441-450</a> <strong>451-460</strong> <a class='text-dark' href="/mitsubishi-outlander-sport-2012-3-g-owners-manual/47">461-470</a> <a class='text-dark' href="/mitsubishi-outlander-sport-2012-3-g-owners-manual/48">471-480</a> <a class='text-dark' href="/mitsubishi-outlander-sport-2012-3-g-owners-manual/49">481-490</a> <a class='text-dark' href="/mitsubishi-outlander-sport-2012-3-g-owners-manual/50">491-500</a> ... <a class='text-dark' href="/mitsubishi-outlander-sport-2012-3-g-owners-manual/61">610</a> <a class='text-dark' href="/mitsubishi-outlander-sport-2012-3-g-owners-manual/47">next ></a></div><div class="clear"></div><form action="/mitsubishi-outlander-sport-2012-3-g-owners-manual/" method="get"><span class="byline">Search: <input type="text" pattern=".{3,}" required title="3 characters minimum" name="srch" placeholder="search in this manual" /> <input type="submit" value="search" /> (<a href='/mitsubishi-outlander-sport-2012-3-g-owners-manual/?srch=air+conditioning'>air conditioning</a>, <a href='/mitsubishi-outlander-sport-2012-3-g-owners-manual/?srch=airbag+disable'>airbag disable</a>, <a href='/mitsubishi-outlander-sport-2012-3-g-owners-manual/?srch=center+console'>center console</a>, <a href='/mitsubishi-outlander-sport-2012-3-g-owners-manual/?srch=lane+assist'>lane assist</a>, <a href='/mitsubishi-outlander-sport-2012-3-g-owners-manual/?srch=mirror'>mirror</a>, <a href='/mitsubishi-outlander-sport-2012-3-g-owners-manual/?srch=fuse+box+diagram'>fuse box diagram</a>)</span></form>
<span>Trending: <a href='/mitsubishi-outlander-sport-2012-3-g-owners-manual/?srch=alarm'>alarm</a>, <a href='/mitsubishi-outlander-sport-2012-3-g-owners-manual/?srch=change+key+battery'>change key battery</a>, <a href='/mitsubishi-outlander-sport-2012-3-g-owners-manual/?srch=pairing+phone'>pairing phone</a>, <a href='/mitsubishi-outlander-sport-2012-3-g-owners-manual/?srch=oil+temperature'>oil temperature</a>, <a href='/mitsubishi-outlander-sport-2012-3-g-owners-manual/?srch=service+reset'>service reset</a>, <a href='/mitsubishi-outlander-sport-2012-3-g-owners-manual/?srch=spare+tire'>spare tire</a>, <a href='/mitsubishi-outlander-sport-2012-3-g-owners-manual/?srch=wiper+fluid'>wiper fluid</a></span>
<form action="/mitsubishi-outlander-sport-2012-3-g-owners-manual" method="post"><span class="byline">Jump to page (1-610): <input type="text" value="451" size="4" name="jumpto" /> <input type="submit" value="go" /></span></form> <script>
ga('send', 'event', 'view', 'MITSUBISHI', 'mitsubishi-outlander-sport-2012-3-g-owners-manual', {
nonInteraction: true
});</script>
<div style="height: 250px">
<script async src="//pagead2.googlesyndication.com/pagead/js/adsbygoogle.js"></script>
<ins class="adsbygoogle"
style="display:block"
data-ad-client="ca-pub-1094764738794676"
data-ad-slot="8211391741"
data-ad-format="auto"></ins>
<script>
(adsbygoogle = window.adsbygoogle || []).push({});
</script></div>
</section>
</div>
</div>
</div>
</div>
<!-- Footer -->
<div id="footer">
<div class="container">
<br/>
<h2>Other <a href='/b/mitsubishi/mitsubishi-outlander-sport-2012-3-g'>2012 MITSUBISHI OUTLANDER SPORT 3.G Manuals</a></h2> <div class='row'><section>
<ul class='default'>
<li><a href='/mitsubishi-outlander-sport-2012-3-g-owners-handbook'>MITSUBISHI OUTLANDER SPORT 2012 3.G Owners Handbook</a></li> </ul></section></div> <br/>
<h2><a href='/b/mitsubishi'>MITSUBISHI Owners Manuals</a></h2>
<div class="row">
<div class="4u">
<section>
<ul class="default">
<li><a href="/b/mitsubishi/mitsubishi-lancer-2016-8-g">2016 MITSUBISHI LANCER 8.G Owners Manual</a></li>
<li><a href="/b/mitsubishi/mitsubishi-diamante-1900">1900 MITSUBISHI DIAMANTE Owners Manual</a></li>
<li><a href="/b/mitsubishi/mitsubishi-outlander-xl-2013">2013 MITSUBISHI OUTLANDER XL Owners Manual</a></li>
<li><a href="/b/mitsubishi/mitsubishi-space-runner-1991">1991 MITSUBISHI SPACE RUNNER Owners Manual</a></li>
</ul>
</section>
</div>
<div class="4u">
<section>
<ul class="default">
<li><a href="/b/mitsubishi/mitsubishi-lancer-ralliart-2011-8-g">2011 MITSUBISHI LANCER RALLIART 8.G Owners Manual</a></li>
<li><a href="/b/mitsubishi/mitsubishi-lancer-sportback-2014-8-g">2014 MITSUBISHI LANCER SPORTBACK 8.G Owners Manual</a></li>
<li><a href="/b/mitsubishi/mitsubishi-eclipse-2011-4-g">2011 MITSUBISHI ECLIPSE 4.G Owners Manual</a></li>
<li><a href="/b/mitsubishi/mitsubishi-3000gt-1992-2-g">1992 MITSUBISHI 3000GT 2.G Owners Manual</a></li>
</ul>
</section>
</div>
<div class="4u">
<section>
<ul class="default">
<li><a href="/b/mitsubishi/mitsubishi-pajero-2017">2017 MITSUBISHI PAJERO Owners Manual</a></li>
<li><a href="/b/mitsubishi/mitsubishi-grandis-2008">2008 MITSUBISHI GRANDIS Owners Manual</a></li>
<li><a href="/b/mitsubishi/mitsubishi-colt-2008">2008 MITSUBISHI COLT Owners Manual</a></li>
<li><a href="/b/mitsubishi/mitsubishi-lancer-se-awc-2014-8-g">2014 MITSUBISHI LANCER SE AWC 8.G Owners Manual</a></li>
</ul>
</section>
</div>
</div>
</div>
</div>
<!-- Copyright -->
<div id="copyright">
<div class="container">
<p>View, print and download for free: MITSUBISHI OUTLANDER SPORT 2012 3.G Owners Manual, 610 Pages, PDF Size: 18.39 MB. Search in MITSUBISHI OUTLANDER SPORT 2012 3.G Owners Manual online. CarManualsOnline.info is the largest online database of car user manuals. MITSUBISHI OUTLANDER SPORT 2012 3.G Owners Manual PDF Download. 5-74 Comfort controls
5
iPod control panel and display
N00762300031
To play from an iPod
N00762400045
1. Press the PWR button to turn on the audio system. The
s</p>
<p>All product names, logos, and brands are property of their respective owners.</p>
<p><a href='/privacy-policy'>Privacy Policy</a> | <a href='/about-us-contact'>About Us & Contact</a></p>
</div>
</div>
<script type="text/javascript">
function chooserbrand() {
$('#brand').prop('disabled', true);
if($('#year')) {
$('#year').prop('disabled', true);
}
if($('#vehicle')) {
$('#vehicle').prop('disabled', true);
}
$.ajax({
url: 'https://www.carmanualsonline.info/chooser.php',
type: 'POST',
data: {
brand: $('#brand').val()
},
success: function(responseText) {
$('#chooser').html(responseText);
}
});
}
function chooser() {
$('#brand').prop('disabled', true);
if($('#year')) {
$('#year').prop('disabled', true);
}
if($('#vehicle')) {
$('#vehicle').prop('disabled', true);
}
$.ajax({
url: 'https://www.carmanualsonline.info/chooser.php',
type: 'POST',
data: {
brand: $('#brand').val(),
year: $('#year').val(),
vehicle: $('#vehicle').val()
},
success: function(responseText) {
$('#chooser').html(responseText);
}
});
}
</script>
<script>
// var style = document.createElement('style');
// style.innerHTML = '#content div,img{'
// +'max-width: 100%;'
// +'display:block;'
// +'height: auto;'
// +'}'
// +'.logotop {'
// +'font-size: 80%;'
// +'display:block;'
// +'height: auto;'
// +'}';
// var ref = document.querySelector('script');
// ref.parentNode.insertBefore(style,ref);
var meta = document.createElement('meta');
meta.name = "viewport";
meta.content = "width=device-width, maximum-scale=5.0, minimum-scale=.25, user-scalable=yes";
document.getElementsByTagName('head')[0].appendChild(meta);
</script>
</body>
</html>
