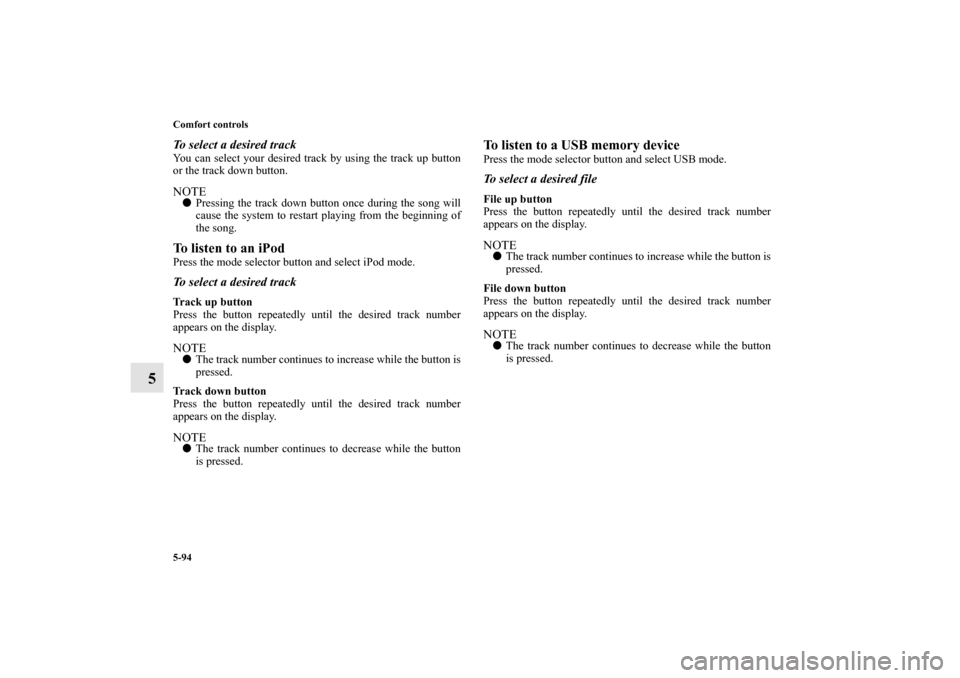

5-94 Comfort controls
5
To select a desired trackYou can select your desired track by using the track up button
or the track down button.NOTE
Pressing the track down button once during the song will
cause the system to restart playing from the beginning of
the song.To listen to an iPodPress the mode selector button and select iPod mode.To select a desired trackTrack up button
Press the button repeatedly until the desired track number
appears on the display.NOTE
The track number continues to increase while the button is
pressed.
Track down button
Press the button repeatedly until the desired track number
appears on the display.NOTE
The track number continues to decrease while the button
is pressed.
To listen to a USB memory devicePress the mode selector button and select USB mode.To select a desired fileFile up button
Press the button repeatedly until the desired track number
appears on the display.NOTE
The track number continues to increase while the button is
pressed.
File down button
Press the button repeatedly until the desired track number
appears on the display.NOTE
The track number continues to decrease while the button
is pressed.
BK0140300US.book 94 ページ ２０１１年６月２８日　火曜日　午後５時１８分

Comfort controls
5-95

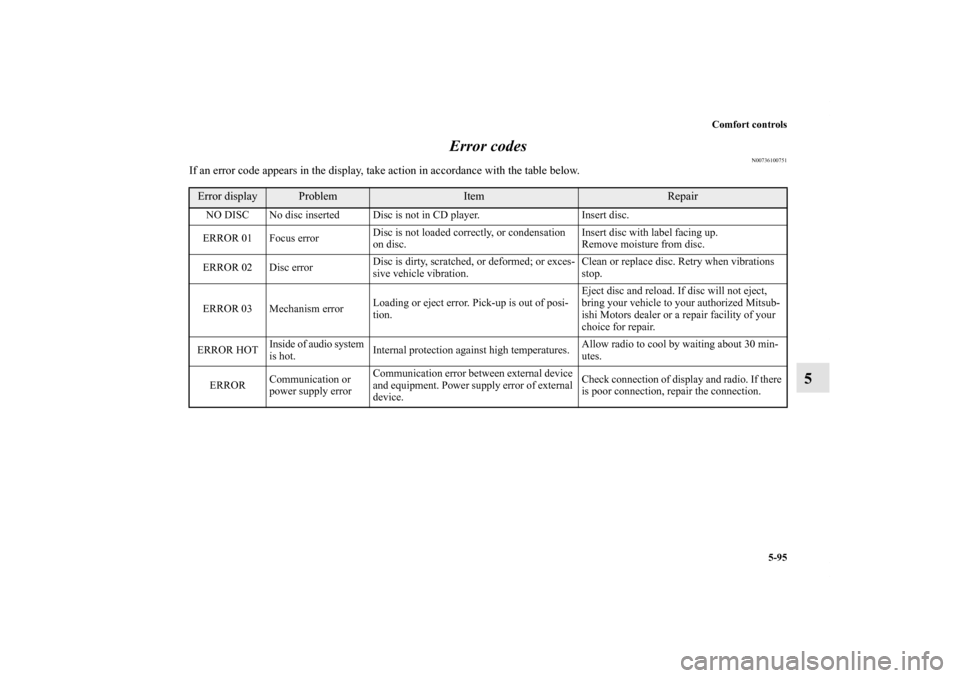

5 Error codes
N00736100751
If an error code appears in the display, take action in accordance with the table below.Error display
Problem
Item
Repair
NO DISC No disc inserted Disc is not in CD player. Insert disc.
ERROR 01 Focus errorDisc is not loaded correctly, or condensation
on disc.Insert disc with label facing up.
Remove moisture from disc.
ERROR 02 Disc errorDisc is dirty, scratched, or deformed; or exces-
sive vehicle vibration.Clean or replace disc. Retry when vibrations
stop.
ERROR 03 Mechanism errorLoading or eject error. Pick-up is out of posi-
tion.Eject disc and reload. If disc will not eject,
bring your vehicle to your authorized Mitsub-
ishi Motors dealer or a repair facility of your
choice for repair.
ERROR HOTInside of audio system
is hot.Internal protection against high temperatures.Allow radio to cool by waiting about 30 min-
utes.
ERRORCommunication or
power supply errorCommunication error between external device
and equipment. Power supply error of external
device.Check connection of display and radio. If there
is poor connection, repair the connection.
BK0140300US.book 95 ページ ２０１１年６月２８日　火曜日　午後５時１８分

5-96 Comfort controls

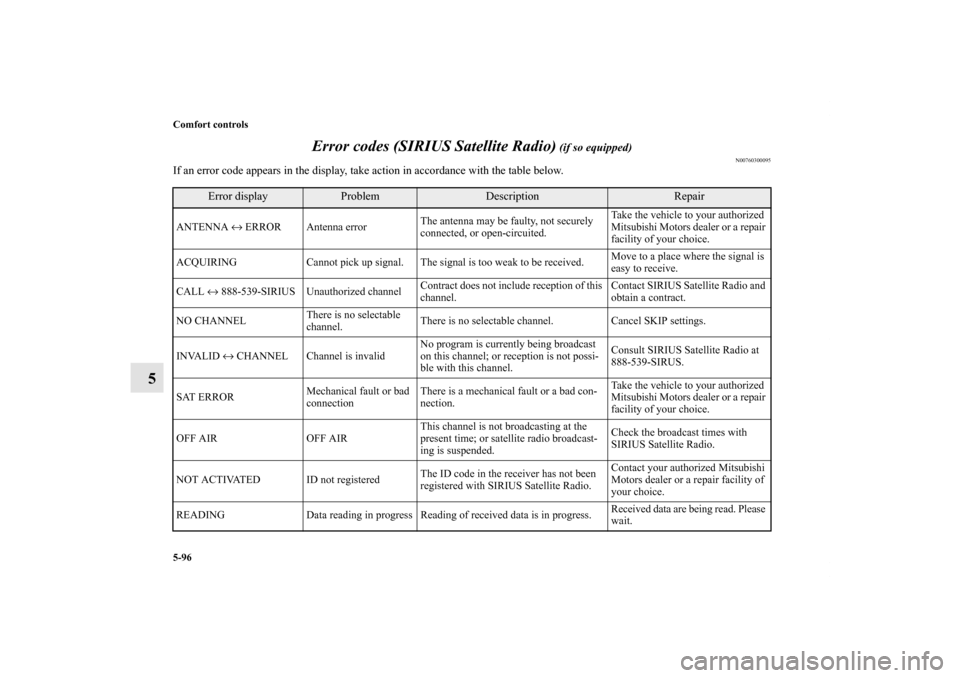

5Error codes (SIRIUS Satellite Radio)
(if so equipped)
N00760300095
If an error code appears in the display, take action in accordance with the table below.
Error display
Problem
Description
Repair
ANTENNA ↔ ERROR Antenna errorThe antenna may be faulty, not securely
connected, or open-circuited.Take the vehicle to your authorized
Mitsubishi Motors dealer or a repair
facility of your choice.
ACQUIRING Cannot pick up signal. The signal is too weak to be received.Move to a place where the signal is
easy to receive.
CALL ↔ 888-539-SIRIUS Unauthorized channelContract does not include reception of this
channel.Contact SIRIUS Satellite Radio and
obtain a contract.
NO CHANNELThere is no selectable
channel.There is no selectable channel. Cancel SKIP settings.
INVALID ↔ CHANNEL Channel is invalidNo program is currently being broadcast
on this channel; or reception is not possi-
ble with this channel.Consult SIRIUS Satellite Radio at
888-539-SIRUS.
SAT ERRORMechanical fault or bad
connectionThere is a mechanical fault or a bad con-
nection.Take the vehicle to your authorized
Mitsubishi Motors dealer or a repair
facility of your choice.
OFF AIR OFF AIRThis channel is not broadcasting at the
present time; or satellite radio broadcast-
ing is suspended.Check the broadcast times with
SIRIUS Satellite Radio.
NOT ACTIVATED ID not registeredThe ID code in the receiver has not been
registered with SIRIUS Satellite Radio.Contact your authorized Mitsubishi
Motors dealer or a repair facility of
your choice.
READING Data reading in progress Reading of received data is in progress.Received data are being read. Please
wait.BK0140300US.book 96 ページ ２０１１年６月２８日　火曜日　午後５時１８分

Comfort controls
5-97
5

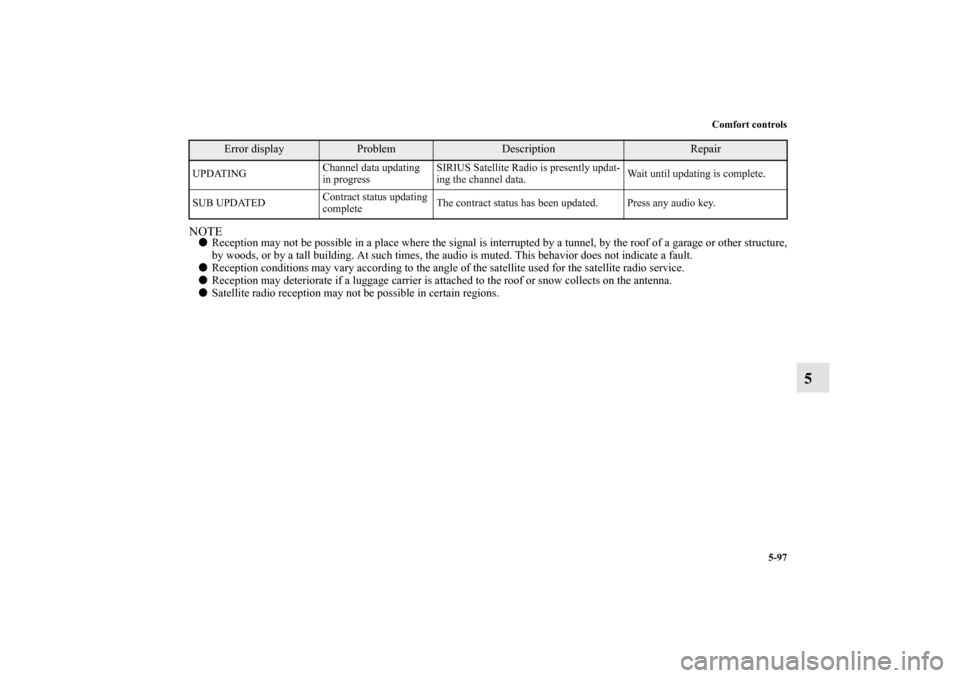

NOTE
Reception may not be possible in a place where the signal is interrupted by a tunnel, by the roof of a garage or other structure,
by woods, or by a tall building. At such times, the audio is muted. This behavior does not indicate a fault.

Reception conditions may vary according to the angle of the satellite used for the satellite radio service.

Reception may deteriorate if a luggage carrier is attached to the roof or snow collects on the antenna.

Satellite radio reception may not be possible in certain regions.UPDATINGChannel data updating
in progressSIRIUS Satellite Radio is presently updat-
ing the channel data.Wait until updating is complete.
SUB UPDATEDContract status updating
completeThe contract status has been updated. Press any audio key.
Error display
Problem
Description
Repair
BK0140300US.book 97 ページ ２０１１年６月２８日　火曜日　午後５時１８分

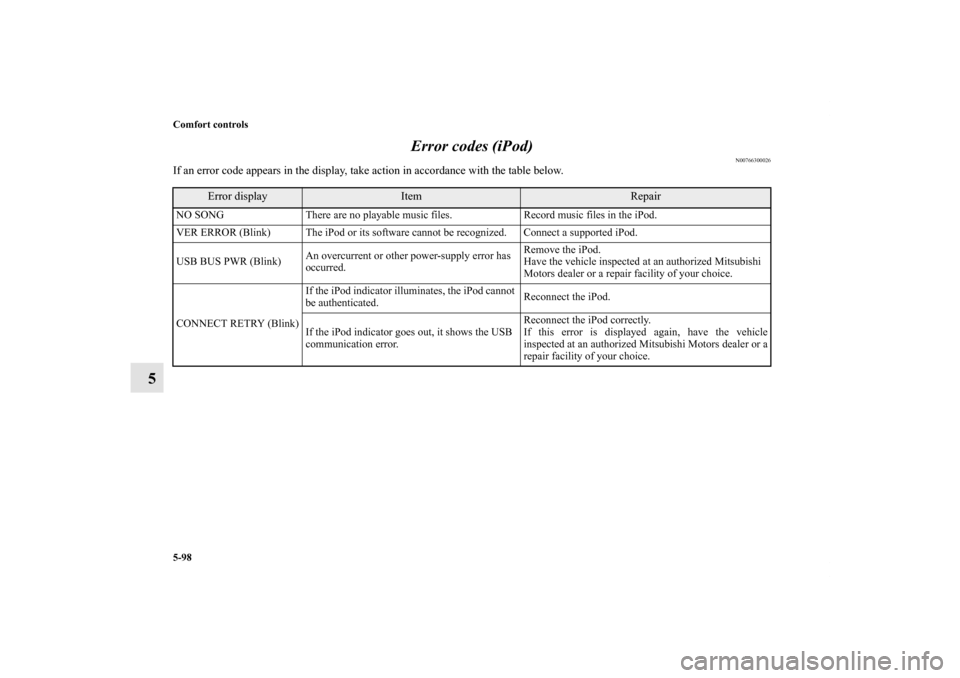

5-98 Comfort controls
5Error codes (iPod)
N00766300026
If an error code appears in the display, take action in accordance with the table below.
Error display
Item
Repair
NO SONG There are no playable music files. Record music files in the iPod.
VER ERROR (Blink) The iPod or its software cannot be recognized. Connect a supported iPod.
USB BUS PWR (Blink)An overcurrent or other power-supply error has
occurred.Remove the iPod.
Have the vehicle inspected at an authorized Mitsubishi
Motors dealer or a repair facility of your choice.
CONNECT RETRY (Blink)If the iPod indicator illuminates, the iPod cannot
be authenticated.Reconnect the iPod.
If the iPod indicator goes out, it shows the USB
communication error.Reconnect the iPod correctly.
If this error is displayed again, have the vehicle
inspected at an authorized Mitsubishi Motors dealer or a
repair facility of your choice.BK0140300US.book 98 ページ ２０１１年６月２８日　火曜日　午後５時１８分

Comfort controls
5-99

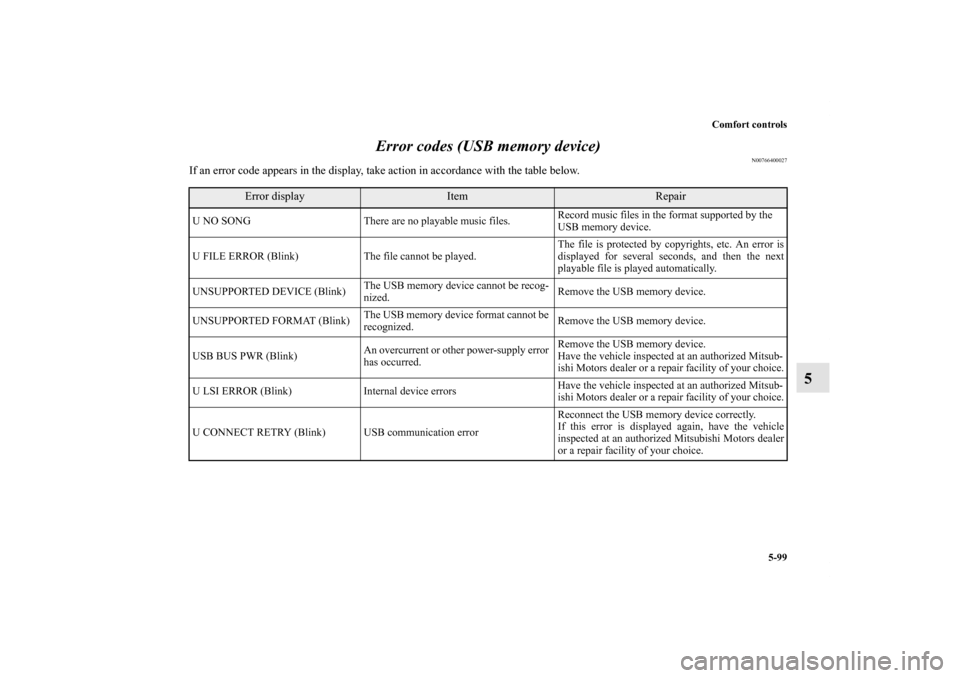

5 Error codes (USB memory device)
N00766400027
If an error code appears in the display, take action in accordance with the table below.
Error display
Item
Repair
U NO SONG There are no playable music files. Record music files in the format supported by the
USB memory device.
U FILE ERROR (Blink) The file cannot be played. The file is protected by copyrights, etc. An error is
displayed for several seconds, and then the next
playable file is played automatically.
UNSUPPORTED DEVICE (Blink)The USB memory device cannot be recog-
nized. Remove the USB memory device.
UNSUPPORTED FORMAT (Blink)The USB memory device format cannot be
recognized. Remove the USB memory device.
USB BUS PWR (Blink)An overcurrent or other power-supply error
has occurred.Remove the USB memory device.
Have the vehicle inspected at an authorized Mitsub-
ishi Motors dealer or a repair facility of your choice.
U LSI ERROR (Blink) Internal device errors Have the vehicle inspected at an authorized Mitsub-
ishi Motors dealer or a repair facility of your choice.
U CONNECT RETRY (Blink) USB communication error Reconnect the USB memory device correctly.
If this error is displayed again, have the vehicle
inspected at an authorized Mitsubishi Motors dealer
or a repair facility of your choice.
BK0140300US.book 99 ページ ２０１１年６月２８日　火曜日　午後５時１８分

5-100 Comfort controls

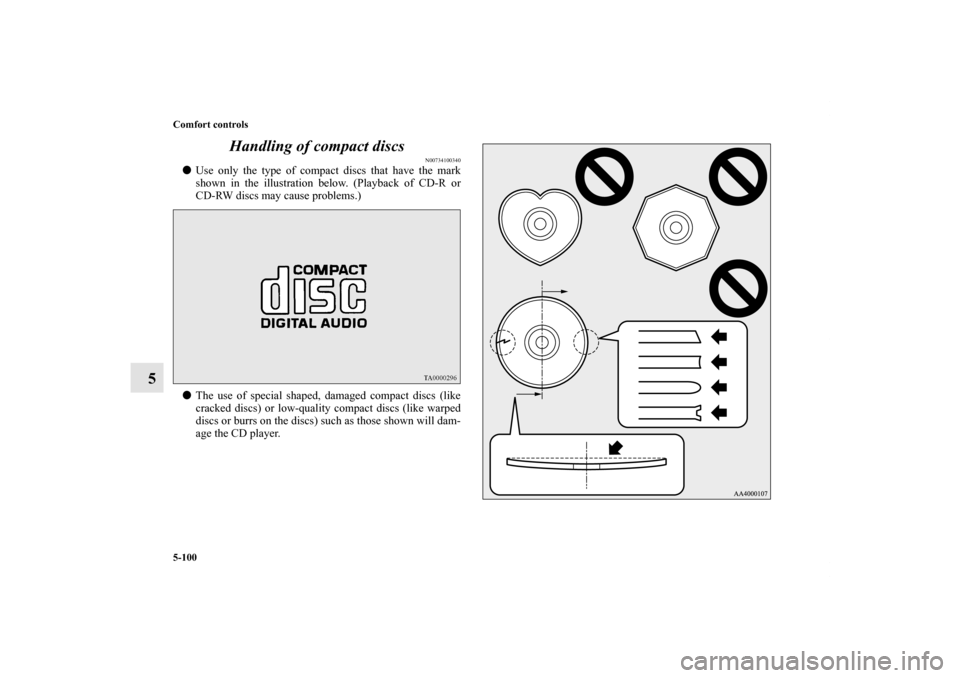

5Handling of compact discs
N00734100340

Use only the type of compact discs that have the mark
shown in the illustration below. (Playback of CD-R or
CD-RW discs may cause problems.)

The use of special shaped, damaged compact discs (like
cracked discs) or low-quality compact discs (like warped
discs or burrs on the discs) such as those shown will dam-
age the CD player.
BK0140300US.book 100 ページ ２０１１年６月２８日　火曜日　午後５時１８分

Comfort controls
5-101
5

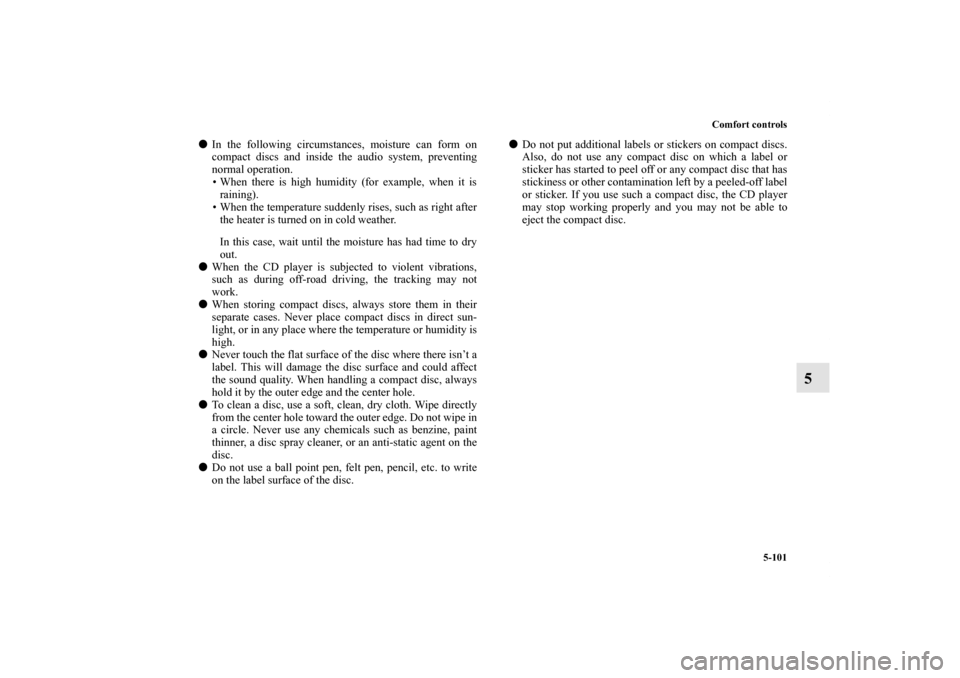

In the following circumstances, moisture can form on
compact discs and inside the audio system, preventing
normal operation.
• When there is high humidity (for example, when it is
raining).
• When the temperature suddenly rises, such as right after
the heater is turned on in cold weather.
In this case, wait until the moisture has had time to dry
out.

When the CD player is subjected to violent vibrations,
such as during off-road driving, the tracking may not
work.

When storing compact discs, always store them in their
separate cases. Never place compact discs in direct sun-
light, or in any place where the temperature or humidity is
high.

Never touch the flat surface of the disc where there isn’t a
label. This will damage the disc surface and could affect
the sound quality. When handling a compact disc, always
hold it by the outer edge and the center hole.

To clean a disc, use a soft, clean, dry cloth. Wipe directly
from the center hole toward the outer edge. Do not wipe in
a circle. Never use any chemicals such as benzine, paint
thinner, a disc spray cleaner, or an anti-static agent on the
disc.

Do not use a ball point pen, felt pen, pencil, etc. to write
on the label surface of the disc.
Do not put additional labels or stickers on compact discs.
Also, do not use any compact disc on which a label or
sticker has started to peel off or any compact disc that has
stickiness or other contamination left by a peeled-off label
or sticker. If you use such a compact disc, the CD player
may stop working properly and you may not be able to
eject the compact disc.
BK0140300US.book 101 ページ ２０１１年６月２８日　火曜日　午後５時１８分

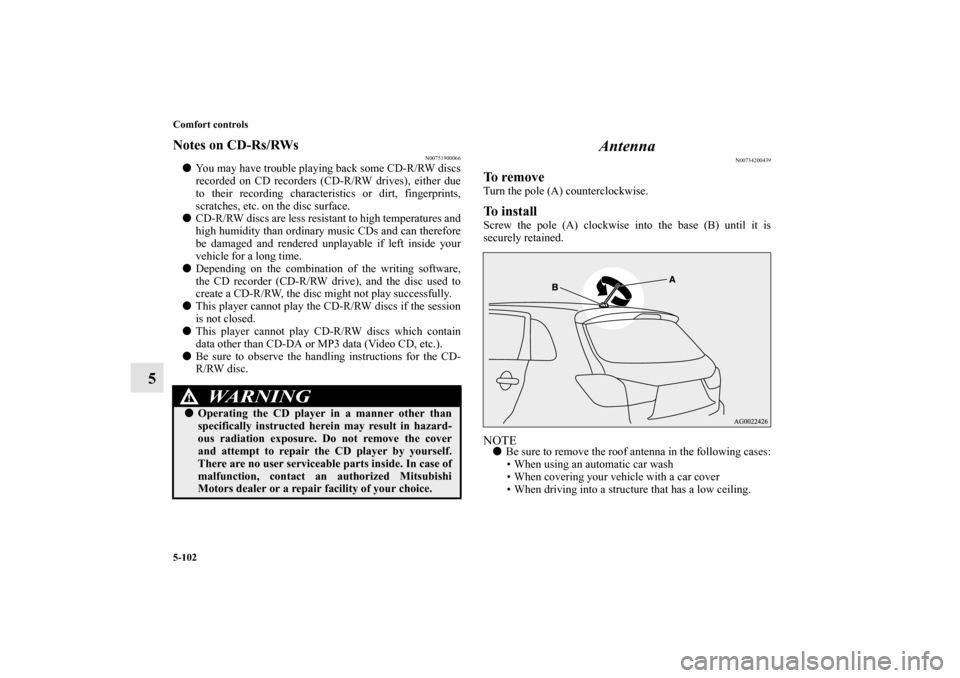

5-102 Comfort controls
5
Notes on CD-Rs/RWs
N00751900066

You may have trouble playing back some CD-R/RW discs
recorded on CD recorders (CD-R/RW drives), either due
to their recording characteristics or dirt, fingerprints,
scratches, etc. on the disc surface.

CD-R/RW discs are less resistant to high temperatures and
high humidity than ordinary music CDs and can therefore
be damaged and rendered unplayable if left inside your
vehicle for a long time.

Depending on the combination of the writing software,
the CD recorder (CD-R/RW drive), and the disc used to
create a CD-R/RW, the disc might not play successfully.

This player cannot play the CD-R/RW discs if the session
is not closed.

This player cannot play CD-R/RW discs which contain
data other than CD-DA or MP3 data (Video CD, etc.).

Be sure to observe the handling instructions for the CD-
R/RW disc.
Antenna
N00734200439
To removeTurn the pole (A) counterclockwise.To installScrew the pole (A) clockwise into the base (B) until it is
securely retained.NOTE
Be sure to remove the roof antenna in the following cases:
• When using an automatic car wash
• When covering your vehicle with a car cover
• When driving into a structure that has a low ceiling.
WA R N I N G
!
Operating the CD player in a manner other than
specifically instructed herein may result in hazard-
ous radiation exposure. Do not remove the cover
and attempt to repair the CD player by yourself.
There are no user serviceable parts inside. In case of
malfunction, contact an authorized Mitsubishi
Motors dealer or a repair facility of your choice.
BK0140300US.book 102 ページ ２０１１年６月２８日　火曜日　午後５時１８分

Comfort controls
5-103

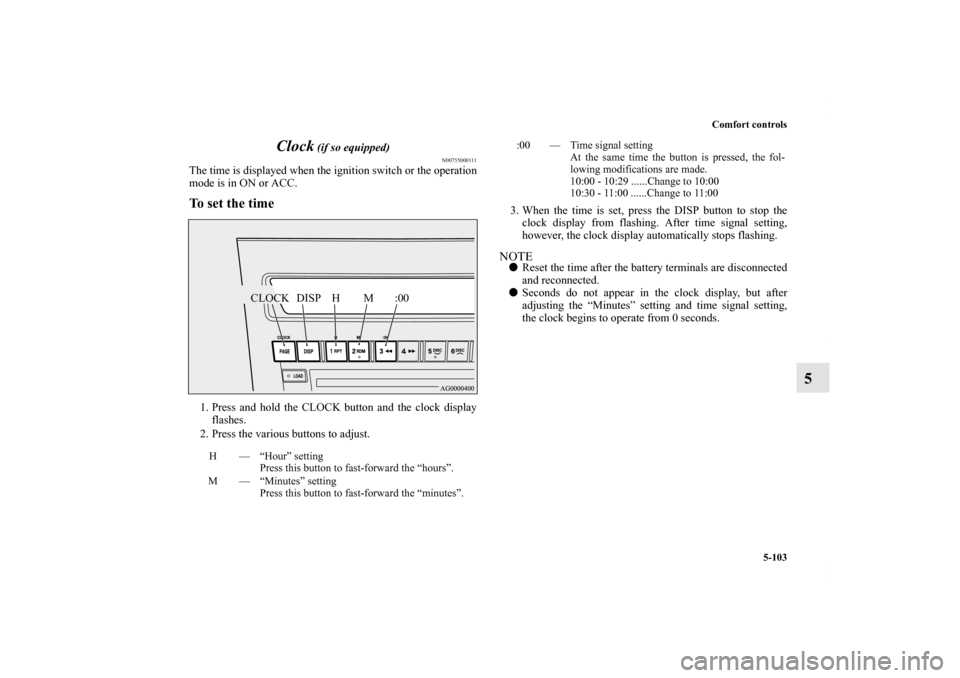

5 Clock
(if so equipped)
N00755000111
The time is displayed when the ignition switch or the operation
mode is in ON or ACC.To set the time1. Press and hold the CLOCK button and the clock display
flashes.
2. Press the various buttons to adjust.3. When the time is set, press the DISP button to stop the
clock display from flashing. After time signal setting,
however, the clock display automatically stops flashing.
NOTE
Reset the time after the battery terminals are disconnected
and reconnected.

Seconds do not appear in the clock display, but after
adjusting the “Minutes” setting and time signal setting,
the clock begins to operate from 0 seconds.
H — “Hour” setting
Press this button to fast-forward the “hours”.
M — “Minutes” setting
Press this button to fast-forward the “minutes”.
CLOCK DISP H M :00
:00 — Time signal setting
At the same time the button is pressed, the fol-
lowing modifications are made.
10:00 - 10:29 ......Change to 10:00
10:30 - 11:00 ......Change to 11:00
BK0140300US.book 103 ページ ２０１１年６月２８日　火曜日　午後５時１８分
