6-8 For emergencies
6

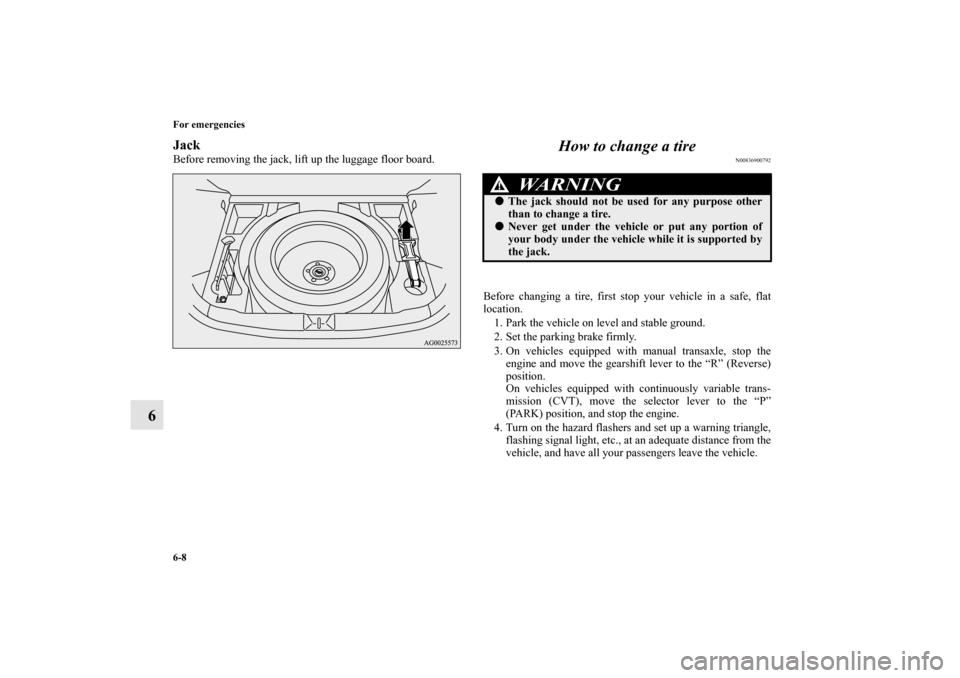

JackBefore removing the jack, lift up the luggage floor board.
How to change a tire
N00836900792
Before changing a tire, first stop your vehicle in a safe, flat
location.
1. Park the vehicle on level and stable ground.
2. Set the parking brake firmly.
3. On vehicles equipped with manual transaxle, stop the
engine and move the gearshift lever to the “R” (Reverse)
position.
On vehicles equipped with continuously variable trans-
mission (CVT), move the selector lever to the “P”
(PARK) position, and stop the engine.
4. Turn on the hazard flashers and set up a warning triangle,
flashing signal light, etc., at an adequate distance from the
vehicle, and have all your passengers leave the vehicle.
WA R N I N G
!
The jack should not be used for any purpose other
than to change a tire.
Never get under the vehicle or put any portion of
your body under the vehicle while it is supported by
the jack.
BK0140300US.book 8 ページ ２０１１年６月２８日　火曜日　午後５時１８分

For emergencies
6-9
6

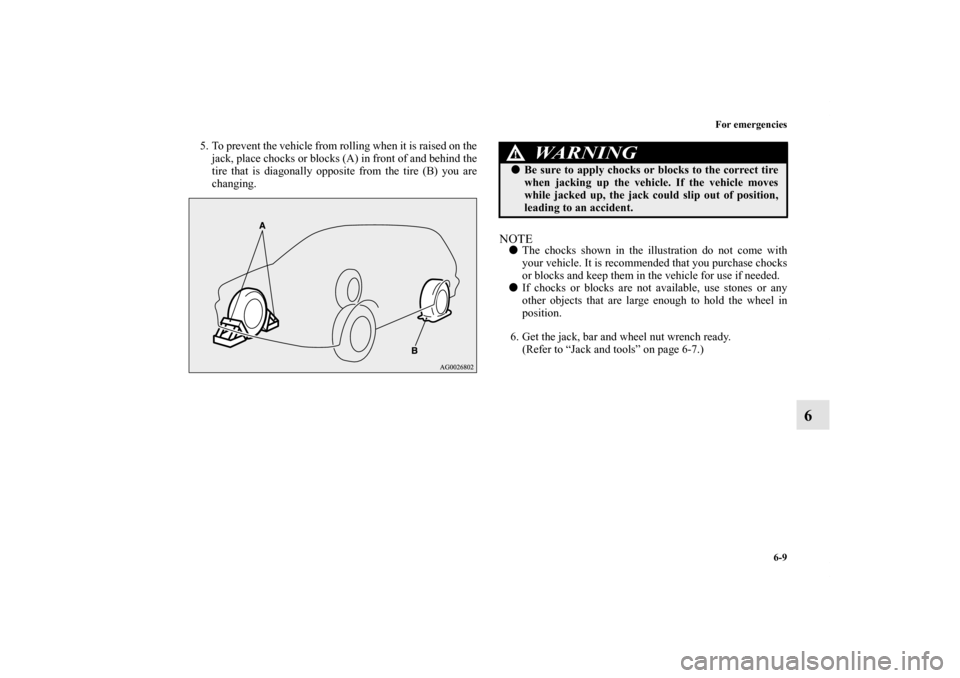

5. To prevent the vehicle from rolling when it is raised on the
jack, place chocks or blocks (A) in front of and behind the
tire that is diagonally opposite from the tire (B) you are
changing.
NOTE
The chocks shown in the illustration do not come with
your vehicle. It is recommended that you purchase chocks
or blocks and keep them in the vehicle for use if needed.

If chocks or blocks are not available, use stones or any
other objects that are large enough to hold the wheel in
position.
6. Get the jack, bar and wheel nut wrench ready.
(Refer to “Jack and tools” on page 6-7.)
WA R N I N G
!
Be sure to apply chocks or blocks to the correct tire
when jacking up the vehicle. If the vehicle moves
while jacked up, the jack could slip out of position,
leading to an accident.
BK0140300US.book 9 ページ ２０１１年６月２８日　火曜日　午後５時１８分

6-10 For emergencies
6

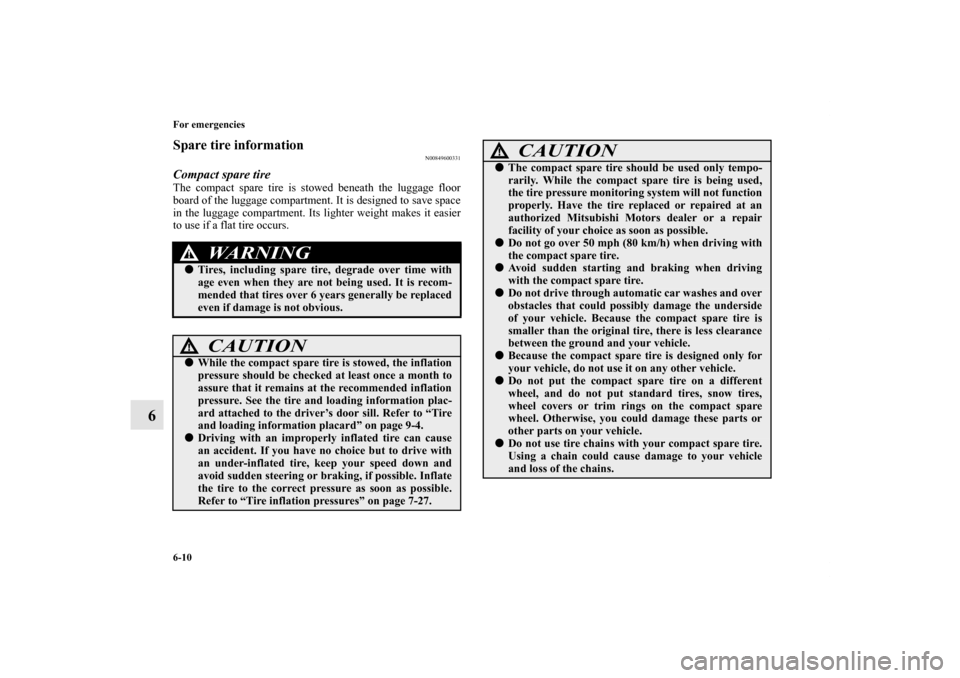

Spare tire information
N00849600331
Compact spare tireThe compact spare tire is stowed beneath the luggage floor
board of the luggage compartment. It is designed to save space
in the luggage compartment. Its lighter weight makes it easier
to use if a flat tire occurs.
WA R N I N G
!
Tires, including spare tire, degrade over time with
age even when they are not being used. It is recom-
mended that tires over 6 years generally be replaced
even if damage is not obvious.
CAUTION
!
While the compact spare tire is stowed, the inflation
pressure should be checked at least once a month to
assure that it remains at the recommended inflation
pressure. See the tire and loading information plac-
ard attached to the driver’s door sill. Refer to “Tire
and loading information placard” on page 9-4.
Driving with an improperly inflated tire can cause
an accident. If you have no choice but to drive with
an under-inflated tire, keep your speed down and
avoid sudden steering or braking, if possible. Inflate
the tire to the correct pressure as soon as possible.
Refer to “Tire inflation pressures” on page 7-27.

The compact spare tire should be used only tempo-
rarily. While the compact spare tire is being used,
the tire pressure monitoring system will not function
properly. Have the tire replaced or repaired at an
authorized Mitsubishi Motors dealer or a repair
facility of your choice as soon as possible.
Do not go over 50 mph (80 km/h) when driving with
the compact spare tire.
Avoid sudden starting and braking when driving
with the compact spare tire.
Do not drive through automatic car washes and over
obstacles that could possibly damage the underside
of your vehicle. Because the compact spare tire is
smaller than the original tire, there is less clearance
between the ground and your vehicle.
Because the compact spare tire is designed only for
your vehicle, do not use it on any other vehicle.
Do not put the compact spare tire on a different
wheel, and do not put standard tires, snow tires,
wheel covers or trim rings on the compact spare
wheel. Otherwise, you could damage these parts or
other parts on your vehicle.
Do not use tire chains with your compact spare tire.
Using a chain could cause damage to your vehicle
and loss of the chains.
CAUTION
!
BK0140300US.book 10 ページ ２０１１年６月２８日　火曜日　午後５時１８分

For emergencies
6-11
6

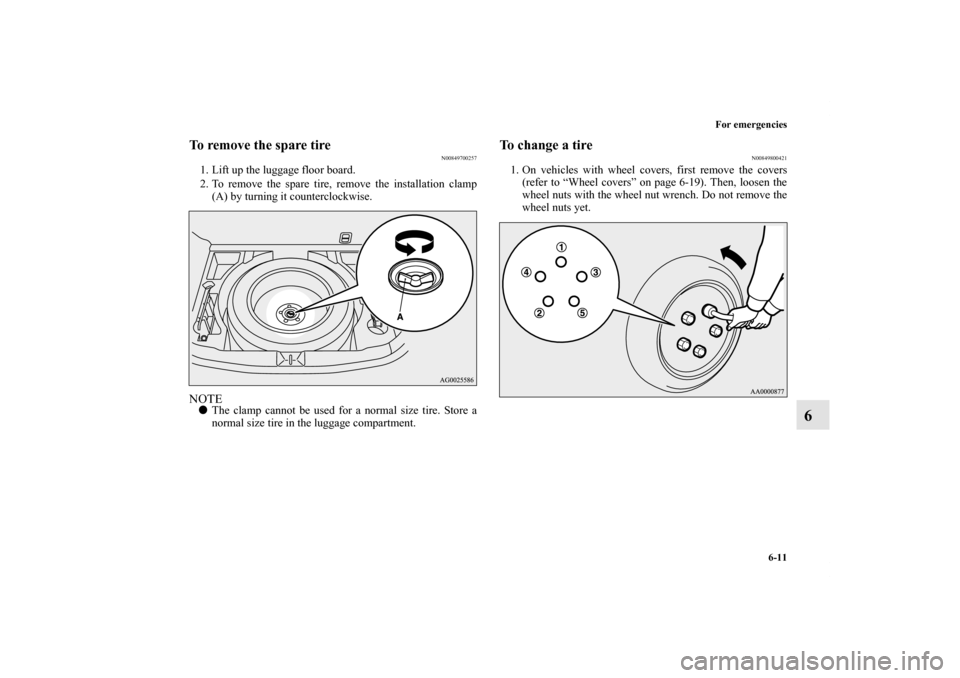

To remove the spare tire
N00849700257
1. Lift up the luggage floor board.
2. To remove the spare tire, remove the installation clamp
(A) by turning it counterclockwise.NOTE
The clamp cannot be used for a normal size tire. Store a
normal size tire in the luggage compartment.
To change a tire
N00849800421
1. On vehicles with wheel covers, first remove the covers
(refer to “Wheel covers” on page 6-19). Then, loosen the
wheel nuts with the wheel nut wrench. Do not remove the
wheel nuts yet.
BK0140300US.book 11 ページ ２０１１年６月２８日　火曜日　午後５時１８分

6-12 For emergencies
6

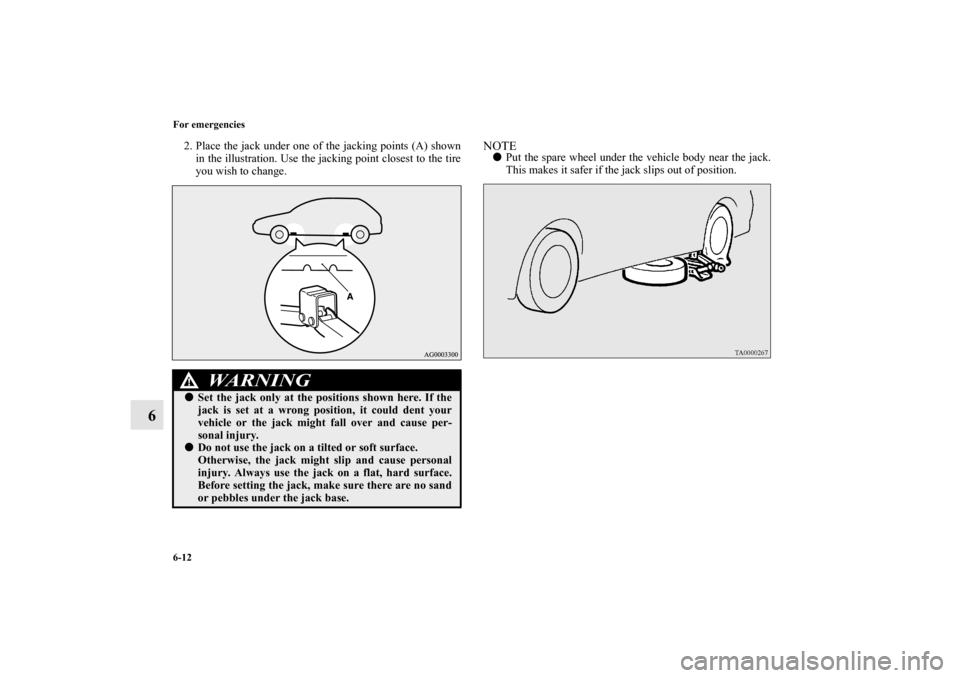

2. Place the jack under one of the jacking points (A) shown
in the illustration. Use the jacking point closest to the tire
you wish to change.
NOTE
Put the spare wheel under the vehicle body near the jack.
This makes it safer if the jack slips out of position.
WA R N I N G
!
Set the jack only at the positions shown here. If the
jack is set at a wrong position, it could dent your
vehicle or the jack might fall over and cause per-
sonal injury.
Do not use the jack on a tilted or soft surface.
Otherwise, the jack might slip and cause personal
injury. Always use the jack on a flat, hard surface.
Before setting the jack, make sure there are no sand
or pebbles under the jack base.
BK0140300US.book 12 ページ ２０１１年６月２８日　火曜日　午後５時１８分

For emergencies
6-13
6

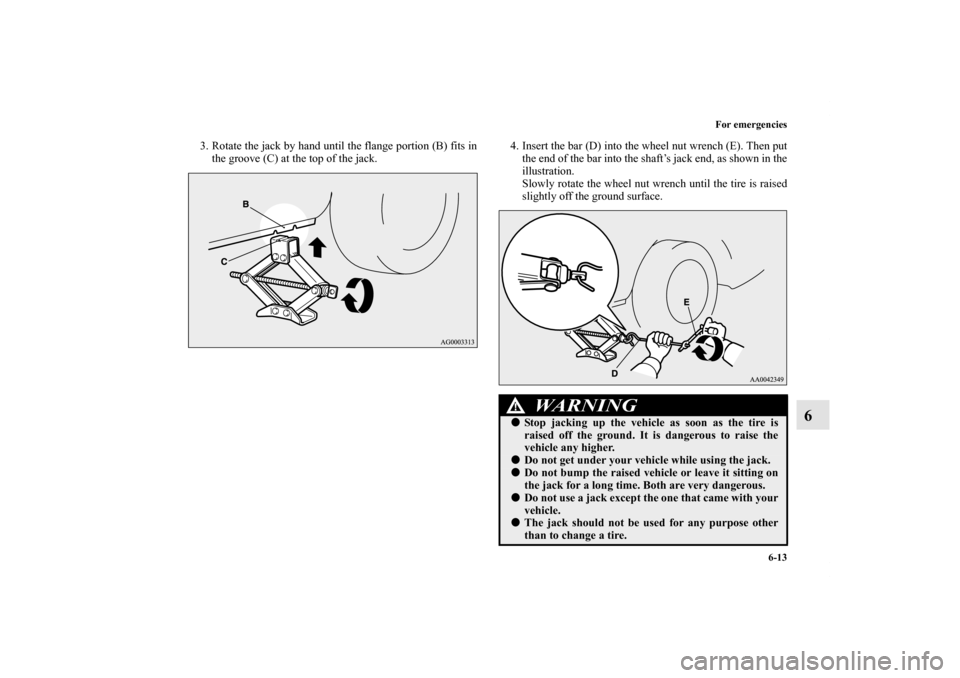

3. Rotate the jack by hand until the flange portion (B) fits in
the groove (C) at the top of the jack.4. Insert the bar (D) into the wheel nut wrench (E). Then put
the end of the bar into the shaft’s jack end, as shown in the
illustration.
Slowly rotate the wheel nut wrench until the tire is raised
slightly off the ground surface.
WA R N I N G
!
Stop jacking up the vehicle as soon as the tire is
raised off the ground. It is dangerous to raise the
vehicle any higher.
Do not get under your vehicle while using the jack.
Do not bump the raised vehicle or leave it sitting on
the jack for a long time. Both are very dangerous.
Do not use a jack except the one that came with your
vehicle.
The jack should not be used for any purpose other
than to change a tire.
BK0140300US.book 13 ページ ２０１１年６月２８日　火曜日　午後５時１８分

6-14 For emergencies
6

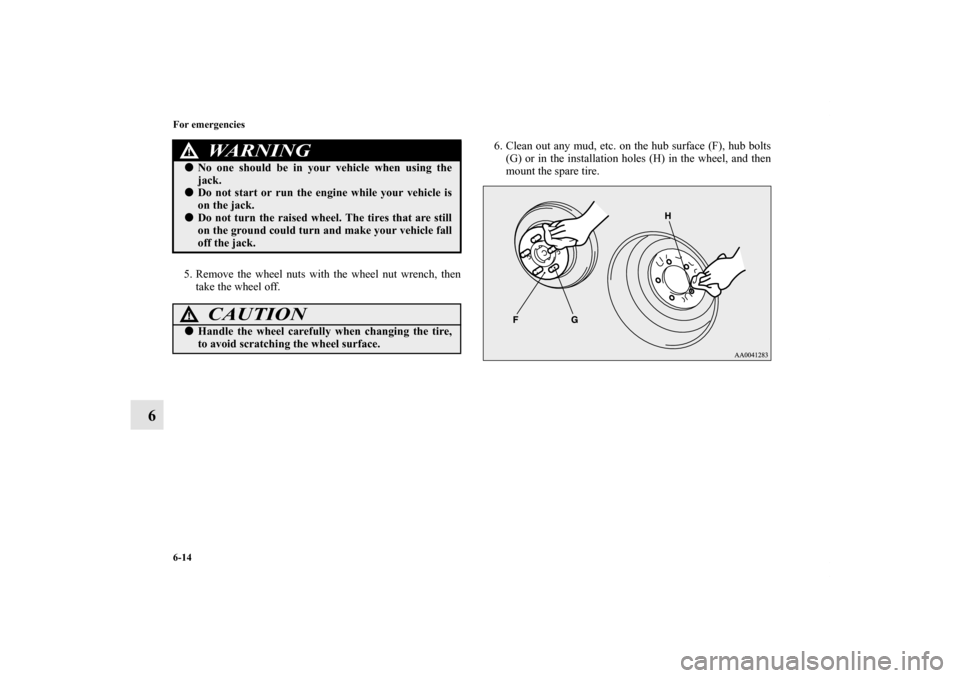

5. Remove the wheel nuts with the wheel nut wrench, then
take the wheel off.6. Clean out any mud, etc. on the hub surface (F), hub bolts
(G) or in the installation holes (H) in the wheel, and then
mount the spare tire.
No one should be in your vehicle when using the
jack.
Do not start or run the engine while your vehicle is
on the jack.
Do not turn the raised wheel. The tires that are still
on the ground could turn and make your vehicle fall
off the jack.
CAUTION
!
Handle the wheel carefully when changing the tire,
to avoid scratching the wheel surface.
WA R N I N G
!
BK0140300US.book 14 ページ ２０１１年６月２８日　火曜日　午後５時１８分

For emergencies
6-15
6

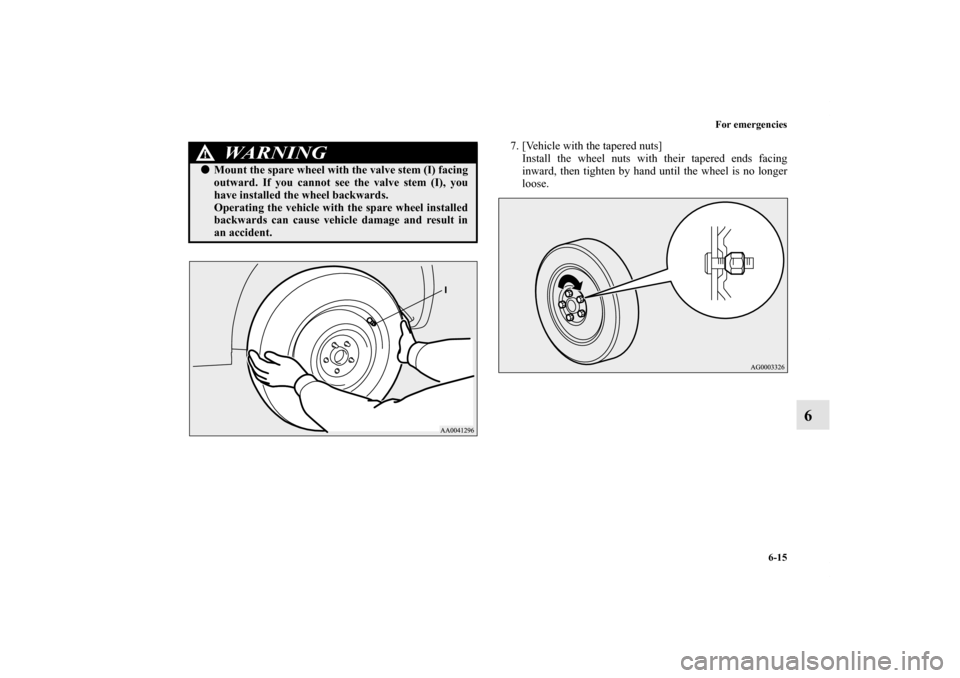

7. [Vehicle with the tapered nuts]
Install the wheel nuts with their tapered ends facing
inward, then tighten by hand until the wheel is no longer
loose.
WA R N I N G
!
Mount the spare wheel with the valve stem (I) facing
outward. If you cannot see the valve stem (I), you
have installed the wheel backwards.
Operating the vehicle with the spare wheel installed
backwards can cause vehicle damage and result in
an accident.
BK0140300US.book 15 ページ ２０１１年６月２８日　火曜日　午後５時１８分

6-16 For emergencies
6

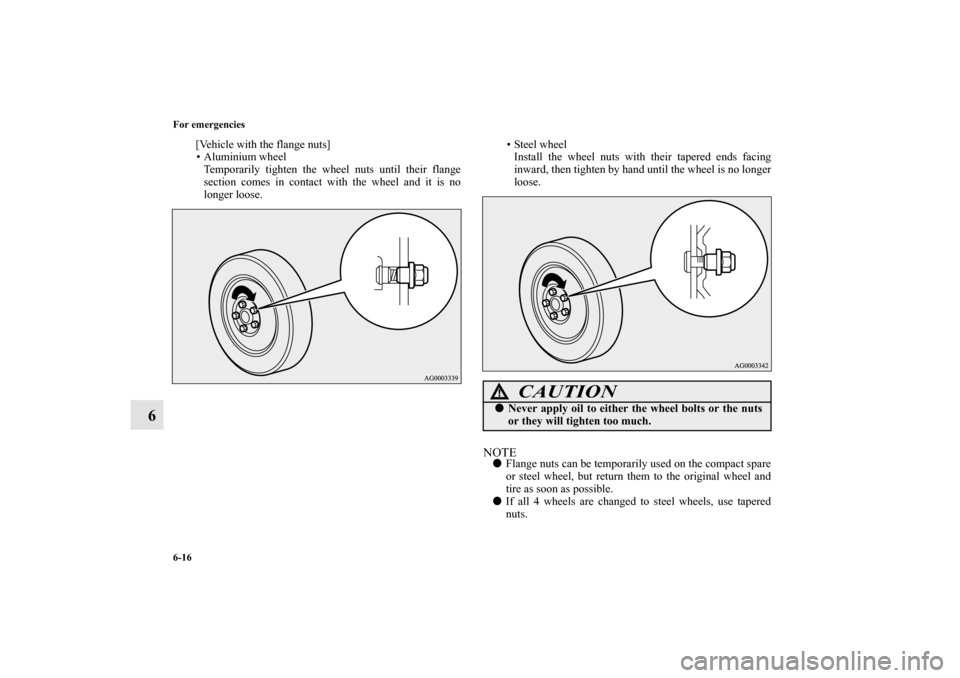

[Vehicle with the flange nuts]
• Aluminium wheel
Temporarily tighten the wheel nuts until their flange
section comes in contact with the wheel and it is no
longer loose.• Steel wheel
Install the wheel nuts with their tapered ends facing
inward, then tighten by hand until the wheel is no longer
loose.
NOTE
Flange nuts can be temporarily used on the compact spare
or steel wheel, but return them to the original wheel and
tire as soon as possible.

If all 4 wheels are changed to steel wheels, use tapered
nuts.
CAUTION
!
Never apply oil to either the wheel bolts or the nuts
or they will tighten too much.
BK0140300US.book 16 ページ ２０１１年６月２８日　火曜日　午後５時１８分

For emergencies
6-17
6

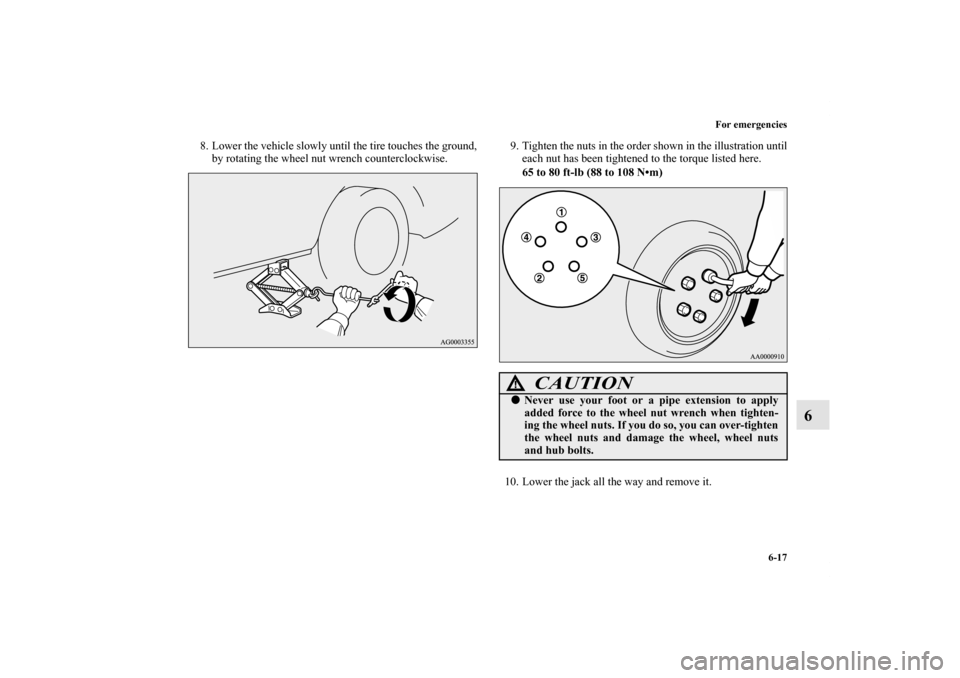

8. Lower the vehicle slowly until the tire touches the ground,
by rotating the wheel nut wrench counterclockwise.9. Tighten the nuts in the order shown in the illustration until
each nut has been tightened to the torque listed here.
65 to 80 ft-lb (88 to 108 N•m)
10. Lower the jack all the way and remove it.
CAUTION
!
Never use your foot or a pipe extension to apply
added force to the wheel nut wrench when tighten-
ing the wheel nuts. If you do so, you can over-tighten
the wheel nuts and damage the wheel, wheel nuts
and hub bolts.
