MITSUBISHI OUTLANDER SPORT 2012 3.G Owners Manual

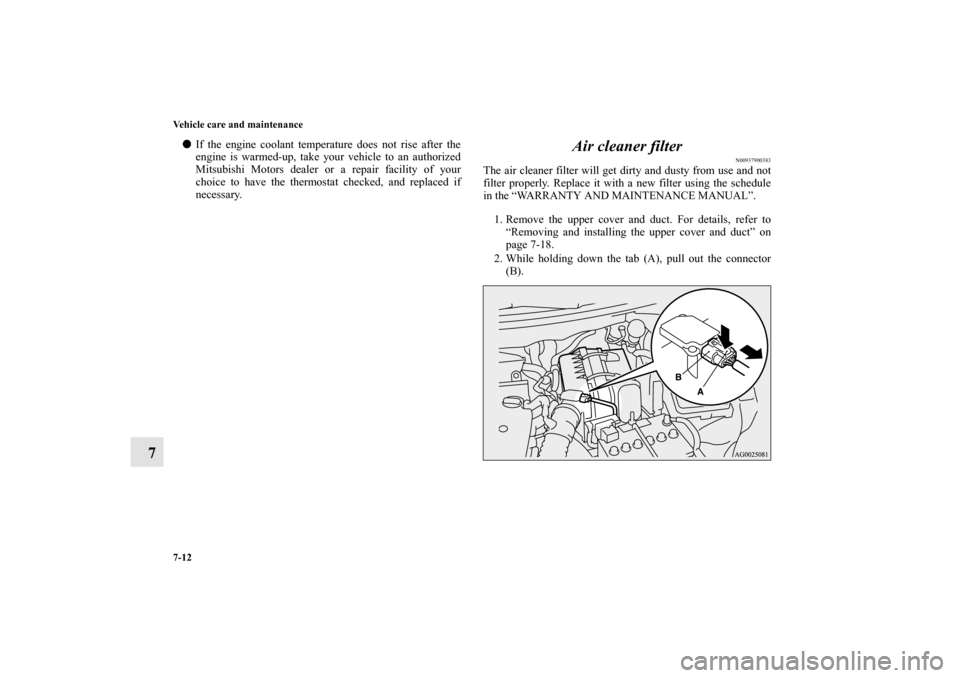

7-12 Vehicle care and maintenance
7

If the engine coolant temperature does not rise after the
engine is warmed-up, take your vehicle to an authorized
Mitsubishi Motors dealer or a repair facility of your
choice to have the thermostat checked, and replaced if
necessary.
Air cleaner filter
N00937900383
The air cleaner filter will get dirty and dusty from use and not
filter properly. Replace it with a new filter using the schedule
in the “WARRANTY AND MAINTENANCE MANUAL”.
1. Remove the upper cover and duct. For details, refer to
“Removing and installing the upper cover and duct” on
page 7-18.
2. While holding down the tab (A), pull out the connector
(B).
BK0140300US.book 12 ページ ２０１１年６月２８日　火曜日　午後５時１８分

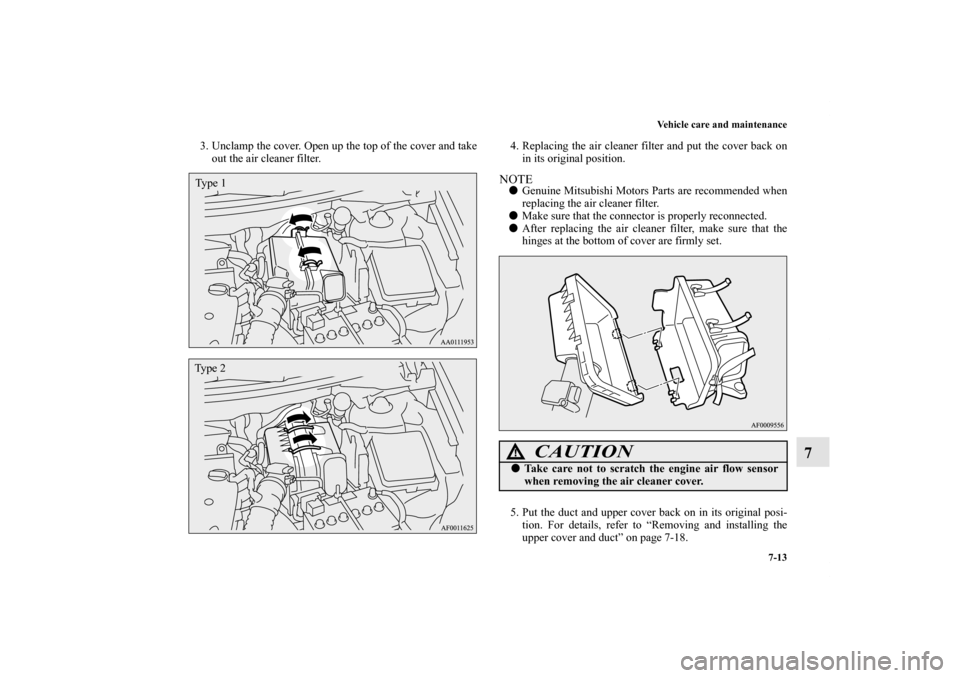

Vehicle care and maintenance
7-13
7
3. Unclamp the cover. Open up the top of the cover and take
out the air cleaner filter.4. Replacing the air cleaner filter and put the cover back on
in its original position.
NOTE
Genuine Mitsubishi Motors Parts are recommended when
replacing the air cleaner filter.

Make sure that the connector is properly reconnected.

After replacing the air cleaner filter, make sure that the
hinges at the bottom of cover are firmly set.
5. Put the duct and upper cover back on in its original posi-
tion. For details, refer to “Removing and installing the
upper cover and duct” on page 7-18.
Ty p e 1Ty p e 2
CAUTION
!
Take care not to scratch the engine air flow sensor
when removing the air cleaner cover.
SC00000901-7.fm 13 ページ ２０１２年１月５日　木曜日　午後１時４５分

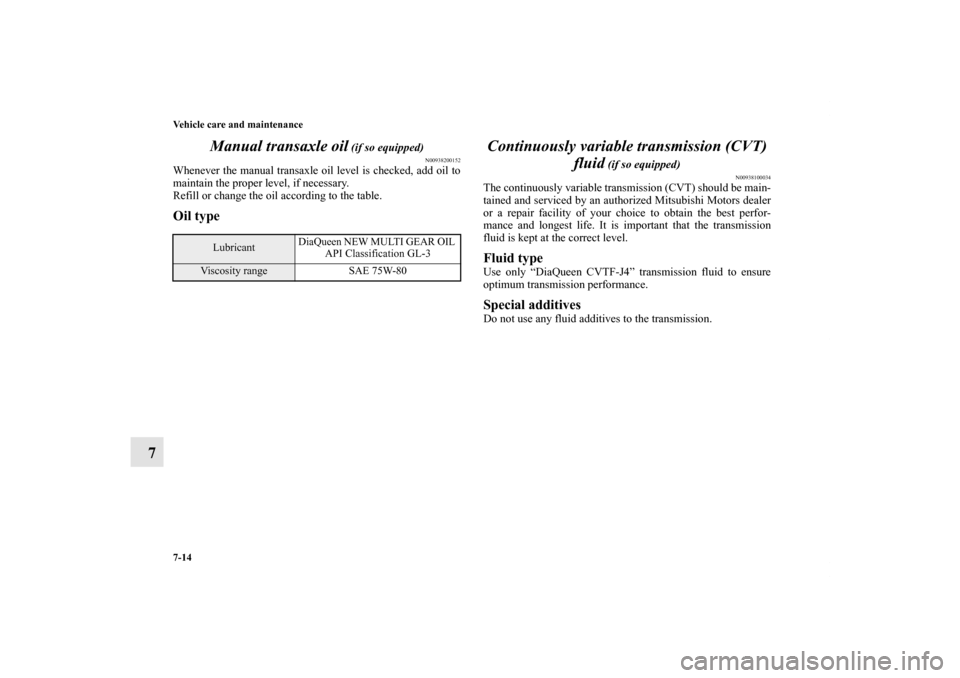

7-14 Vehicle care and maintenance
7Manual transaxle oil
(if so equipped)
N00938200152
Whenever the manual transaxle oil level is checked, add oil to
maintain the proper level, if necessary.
Refill or change the oil according to the table.Oil type
Continuously variable transmission (CVT)
fluid
(if so equipped)
N00938100034
The continuously variable transmission (CVT) should be main-
tained and serviced by an authorized Mitsubishi Motors dealer
or a repair facility of your choice to obtain the best perfor-
mance and longest life. It is important that the transmission
fluid is kept at the correct level.Fluid typeUse only “DiaQueen CVTF-J4” transmission fluid to ensure
optimum transmission performance.Special additivesDo not use any fluid additives to the transmission.
LubricantDiaQueen NEW MULTI GEAR OIL
API Classification GL-3
Viscosity range SAE 75W-80
BK0140300US.book 14 ページ ２０１１年６月２８日　火曜日　午後５時１８分

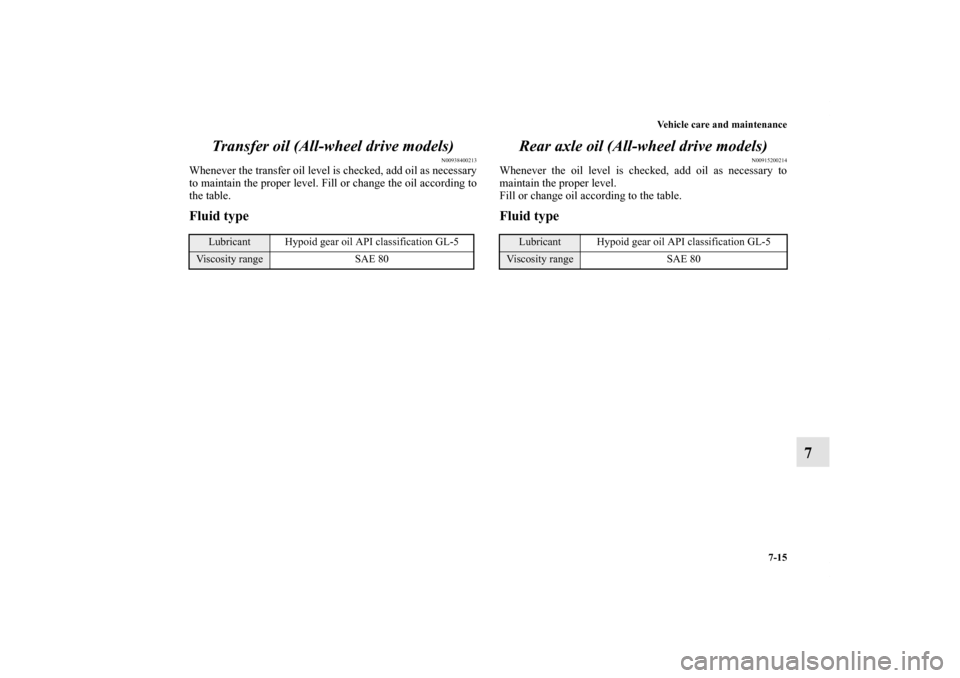

Vehicle care and maintenance
7-15
7 Transfer oil (All-wheel drive models)
N00938400213
Whenever the transfer oil level is checked, add oil as necessary
to maintain the proper level. Fill or change the oil according to
the table.Fluid type
Rear axle oil (All-wheel drive models)
N00915200214
Whenever the oil level is checked, add oil as necessary to
maintain the proper level.
Fill or change oil according to the table.Fluid type
Lubricant Hypoid gear oil API classification GL-5
Viscosity range SAE 80
Lubricant Hypoid gear oil API classification GL-5
Viscosity range SAE 80
BK0140300US.book 15 ページ ２０１１年６月２８日　火曜日　午後５時１８分

7-16 Vehicle care and maintenance
7Wa s h e r f l u i d
N00938600299
The windshield and rear window washer fluid reservoir is in
the engine compartment.
Check the washer fluid level at regular intervals and add
washer fluid to reservoir if necessary.
Open the reservoir cap and check the fluid level with the dip-
stick.
When freezing weather is anticipated, flush out the water in the
reservoir by operating the pump. Fill the reservoir with wind-
shield antifreeze (not radiator antifreeze), and operate the sys-
tem for a few seconds to flush out the residual water.
Brake fluid/Clutch fluid
(if so equipped)
N00938700245
The brake fluid and the clutch fluid share the reservoir tank.To check the fluid levelThe fluid level must be between the “MAX” and “MIN” marks
on the reservoir.
The fluid level falls slightly with wear of the brake pads, but
this does not indicate any abnormality.
The fluid in the master cylinder should be checked when doing
other work under the engine hood. The brake system should
also be checked for leaks at the same time.
If the fluid level falls markedly in a short length of time, it indi-
cates leaks from the brake system.
If this occurs, have the vehicle checked by an authorized Mit-
subishi Motors dealer or a repair facility of your choice.
FULL
EMPTY
MAX
MIN
BK0140300US.book 16 ページ ２０１１年６月２８日　火曜日　午後５時１８分

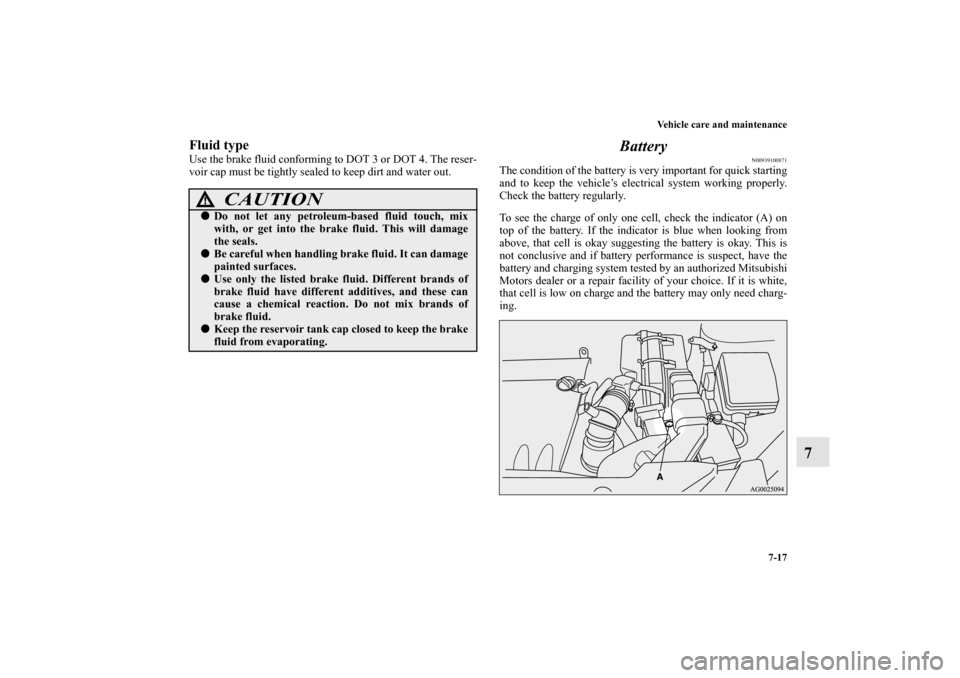

Vehicle care and maintenance
7-17
7
Fluid typeUse the brake fluid conforming to DOT 3 or DOT 4. The reser-
voir cap must be tightly sealed to keep dirt and water out.
Battery
N00939100871
The condition of the battery is very important for quick starting
and to keep the vehicle’s electrical system working properly.
Check the battery regularly.
To see the charge of only one cell, check the indicator (A) on
top of the battery. If the indicator is blue when looking from
above, that cell is okay suggesting the battery is okay. This is
not conclusive and if battery performance is suspect, have the
battery and charging system tested by an authorized Mitsubishi
Motors dealer or a repair facility of your choice. If it is white,
that cell is low on charge and the battery may only need charg-
ing.
CAUTION
!
Do not let any petroleum-based fluid touch, mix
with, or get into the brake fluid. This will damage
the seals.
Be careful when handling brake fluid. It can damage
painted surfaces.
Use only the listed brake fluid. Different brands of
brake fluid have different additives, and these can
cause a chemical reaction. Do not mix brands of
brake fluid.
Keep the reservoir tank cap closed to keep the brake
fluid from evaporating.
BK0140300US.book 17 ページ ２０１１年６月２８日　火曜日　午後５時１８分

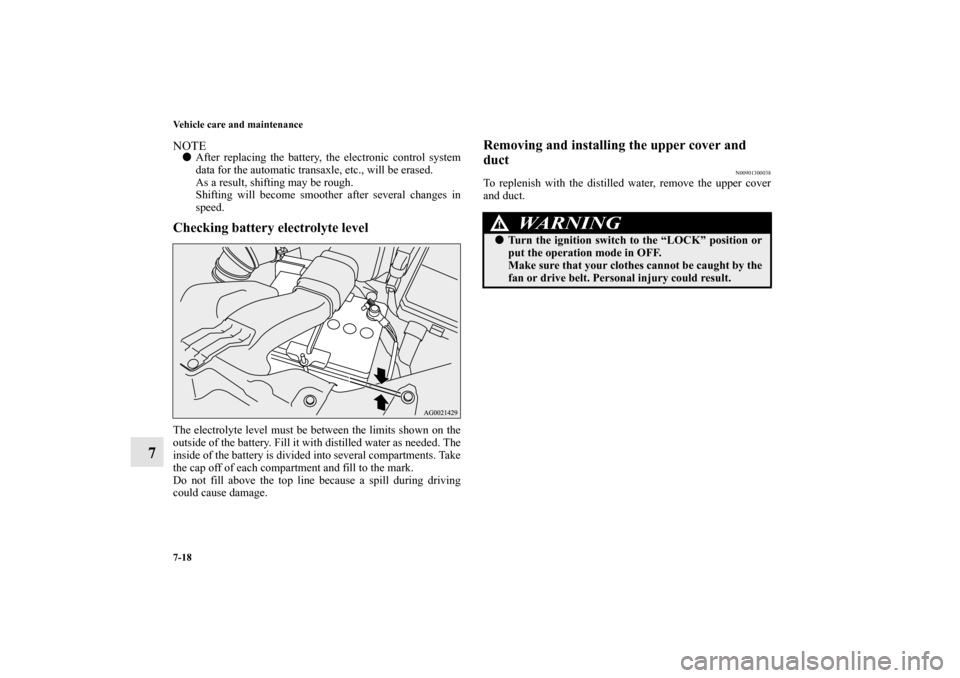

7-18 Vehicle care and maintenance
7
NOTE
After replacing the battery, the electronic control system
data for the automatic transaxle, etc., will be erased.
As a result, shifting may be rough.
Shifting will become smoother after several changes in
speed.Checking battery electrolyte levelThe electrolyte level must be between the limits shown on the
outside of the battery. Fill it with distilled water as needed. The
inside of the battery is divided into several compartments. Take
the cap off of each compartment and fill to the mark.
Do not fill above the top line because a spill during driving
could cause damage.
Removing and installing the upper cover and
duct
N00901300038
To replenish with the distilled water, remove the upper cover
and duct.
WA R N I N G
!
Turn the ignition switch to the “LOCK” position or
put the operation mode in OFF.
Make sure that your clothes cannot be caught by the
fan or drive belt. Personal injury could result.
BK0140300US.book 18 ページ ２０１１年６月２８日　火曜日　午後５時１８分

Vehicle care and maintenance

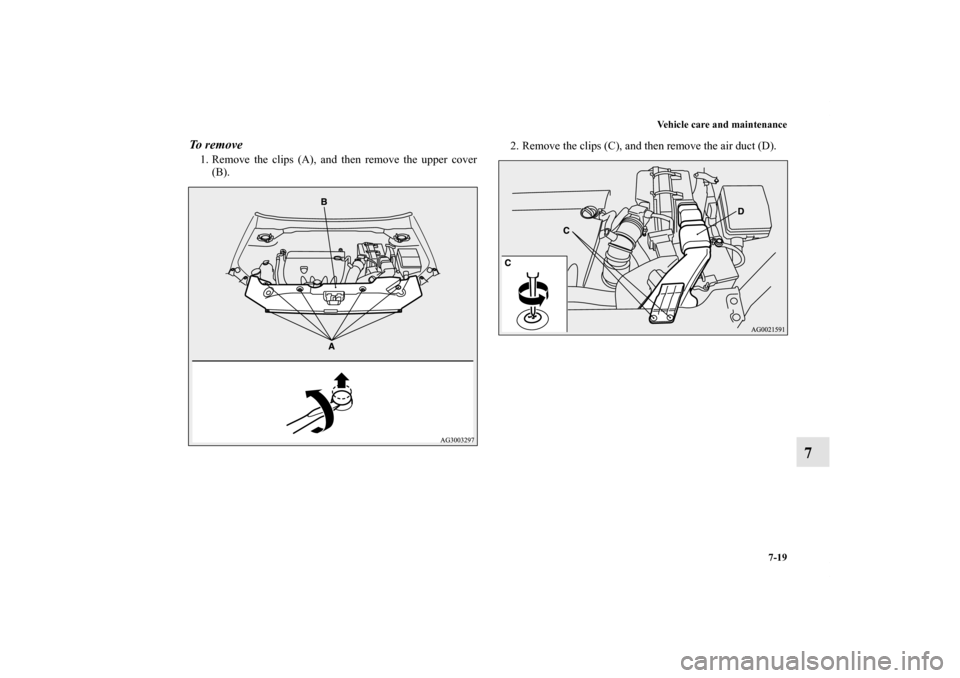

7-19
7
To r e m o v e1. Remove the clips (A), and then remove the upper cover
(B).2. Remove the clips (C), and then remove the air duct (D).
BK0140300US.book 19 ページ ２０１１年６月２８日　火曜日　午後５時１８分

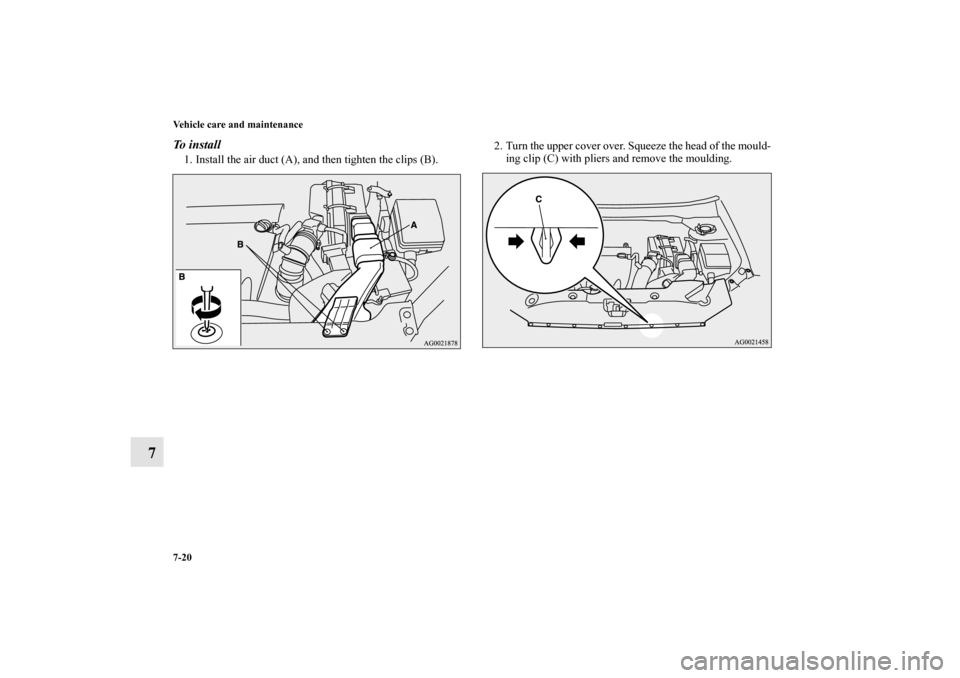

7-20 Vehicle care and maintenance
7
To i n s t a l l1. Install the air duct (A), and then tighten the clips (B).2. Turn the upper cover over. Squeeze the head of the mould-
ing clip (C) with pliers and remove the moulding.
BK0140300US.book 20 ページ ２０１１年６月２８日　火曜日　午後５時１８分

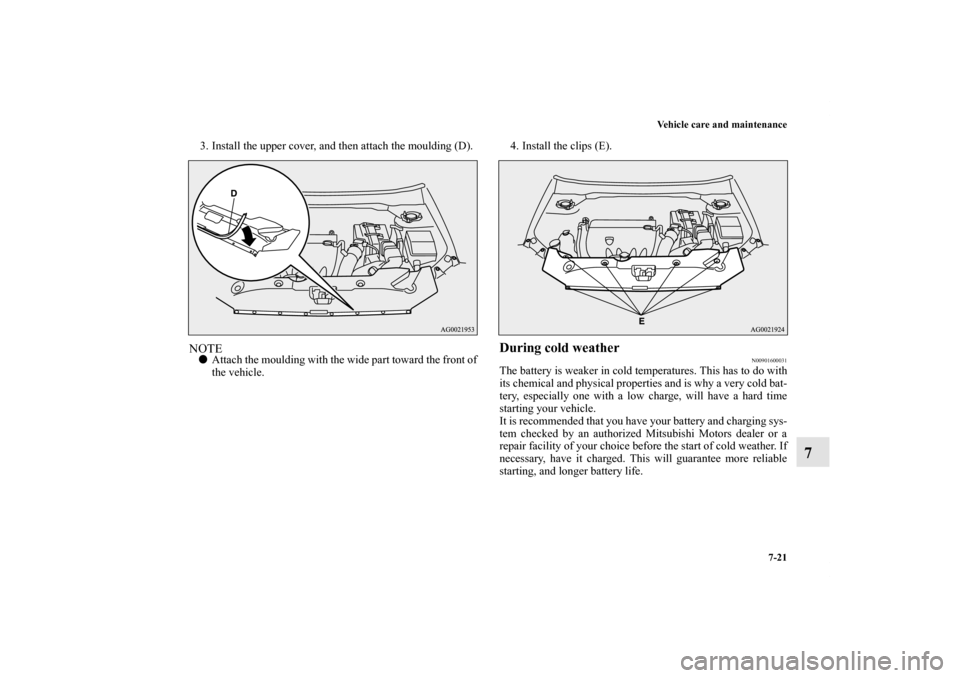

Vehicle care and maintenance
7-21
7
3. Install the upper cover, and then attach the moulding (D).NOTE
Attach the moulding with the wide part toward the front of
the vehicle.4. Install the clips (E).
During cold weather
N00901600031
The battery is weaker in cold temperatures. This has to do with
its chemical and physical properties and is why a very cold bat-
tery, especially one with a low charge, will have a hard time
starting your vehicle.
It is recommended that you have your battery and charging sys-
tem checked by an authorized Mitsubishi Motors dealer or a
repair facility of your choice before the start of cold weather. If
necessary, have it charged. This will guarantee more reliable
starting, and longer battery life.
