MITSUBISHI OUTLANDER SPORT 2013 3.G Owners Manual

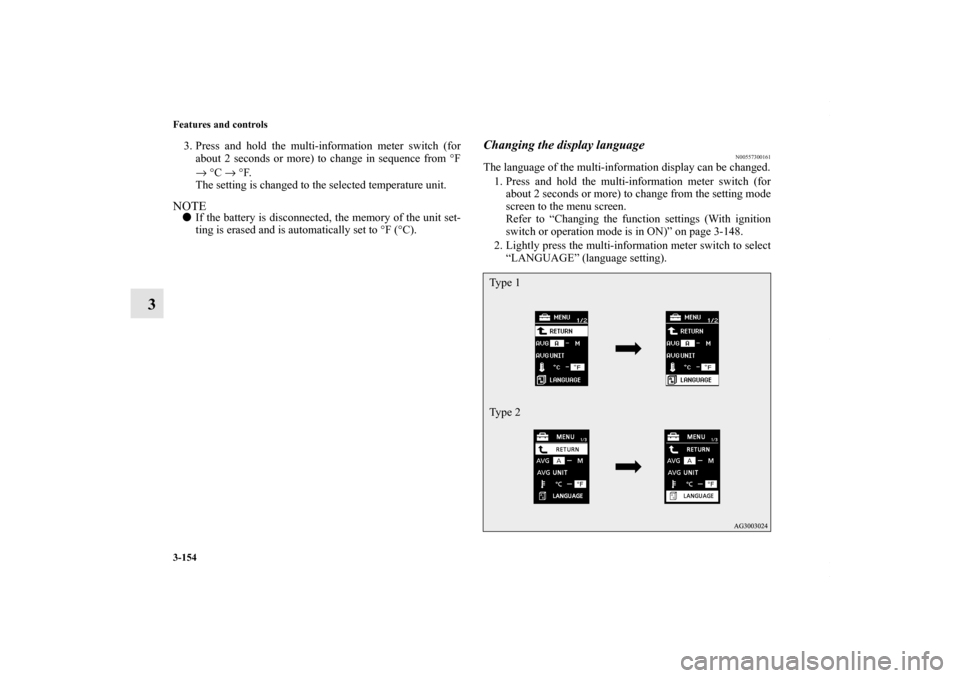

3-154 Features and controls
3
3. Press and hold the multi-information meter switch (forabout 2 seconds or more) to change in sequence from °F
→ ° C → ° F.
The setting is changed to the selected temperature unit.NOTE
If the battery is disconnected, the memory of the unit set-
ting is erased and is automatically set to °F (° C).
Changing the display language
N00557300161
The language of the multi-information display can be changed.
1. Press and hold the multi-information meter switch (for about 2 seconds or more) to change from the setting mode
screen to the menu screen.
Refer to “Changing the function settings (With ignition
switch or operation mode is in ON)” on page 3-148.
2. Lightly press the multi-information meter switch to select “LANGUAGE” (language setting).Type 1
Type 2
BK0150700US.book 154 ページ ２０１２年３月２２日　木曜日　午後６時４６分

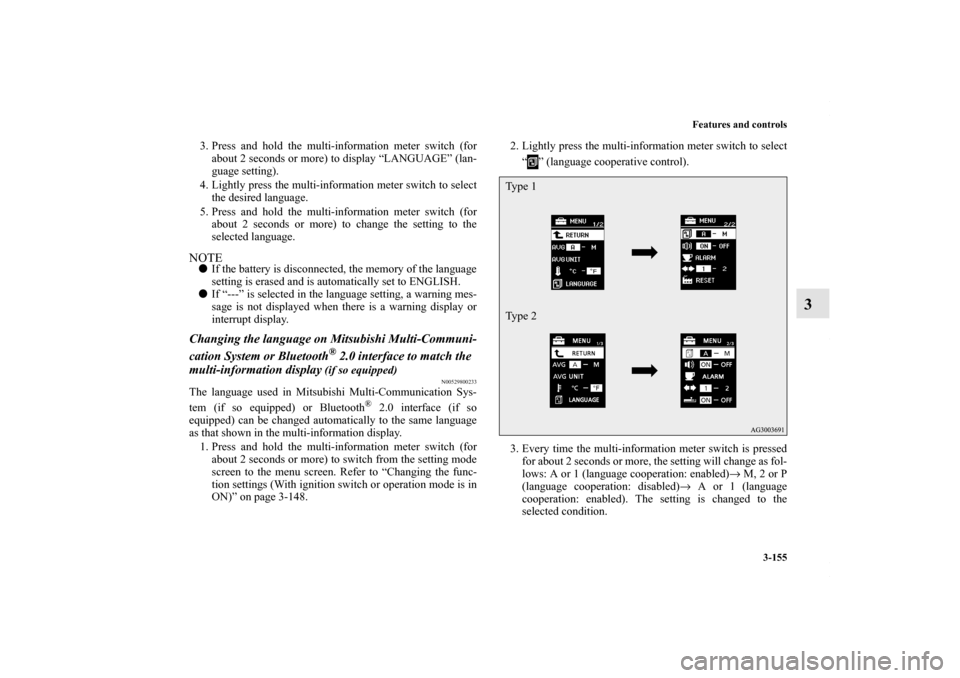

Features and controls3-155
3
3. Press and hold the multi-information meter switch (forabout 2 seconds or more) to display “LANGUAGE” (lan-
guage setting).
4. Lightly press the multi-information meter switch to select the desired language.
5. Press and hold the multi-information meter switch (for about 2 seconds or more) to change the setting to the
selected language.NOTE
If the battery is disconnected, the memory of the language
setting is erased and is automatically set to ENGLISH.

If “---” is selected in the language setting, a warning mes-
sage is not displayed when there is a warning display or
interrupt display.Changing the language on Mitsubishi Multi-Communi-
cation System or Bluetooth
® 2.0 interface to match the
multi-information display
(if so equipped)
N00529800233
The language used in Mitsubishi Multi-Communication Sys-
tem (if so equipped) or Bluetooth
® 2.0 interface (if so
equipped) can be changed automatically to the same language
as that shown in the multi-information display.
1. Press and hold the multi-information meter switch (for about 2 seconds or more) to switch from the setting mode
screen to the menu screen. Refer to “Changing the func-
tion settings (With ignition switch or operation mode is in
ON)” on page 3-148. 2. Lightly press the multi-information meter switch to select
“ ” (language cooperative control).
3. Every time the multi-information meter switch is pressed for about 2 seconds or more, the setting will change as fol-
lows: A or 1 (language cooperation: enabled) → M, 2 or P
(language cooperation: disabled) → A or 1 (language
cooperation: enabled). The setting is changed to the
selected condition.
Type 1
Type 2
BK0150700US.book 155 ページ ２０１２年３月２２日　木曜日　午後６時４６分

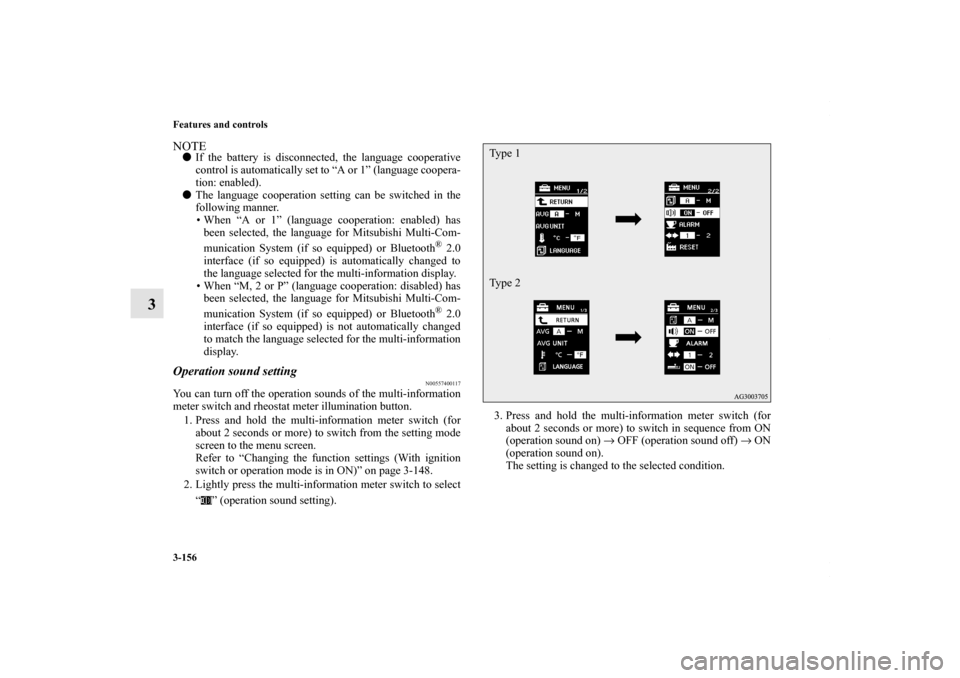

3-156 Features and controls
3
NOTE
If the battery is disconnected, the language cooperative
control is automatically set to “A or 1” (language coopera-
tion: enabled).

The language cooperation setting can be switched in the
following manner.
• When “A or 1” (language cooperation: enabled) has been selected, the language for Mitsubishi Multi-Com-
munication System (if so equipped) or Bluetooth
® 2.0
interface (if so equipped) is automatically changed to
the language selected for the multi-information display.
• When “M, 2 or P” (language cooperation: disabled) has been selected, the language for Mitsubishi Multi-Com-
munication System (if so equipped) or Bluetooth® 2.0
interface (if so equipped) is not automatically changed
to match the language selected for the multi-information
display.
Operation sound setting
N00557400117
You can turn off the operation sounds of the multi-information
meter switch and rheostat meter illumination button.
1. Press and hold the multi-information meter switch (for about 2 seconds or more) to switch from the setting mode
screen to the menu screen.
Refer to “Changing the function settings (With ignition
switch or operation mode is in ON)” on page 3-148.
2. Lightly press the multi-information meter switch to select
“ ” (operation sound setting). 3. Press and hold the multi-information meter switch (for
about 2 seconds or more) to switch in sequence from ON
(operation sound on) → OFF (operation sound off) → ON
(operation sound on).
The setting is changed to the selected condition.
Type 1
Type 2
BK0150700US.book 156 ページ ２０１２年３月２２日　木曜日　午後６時４６分

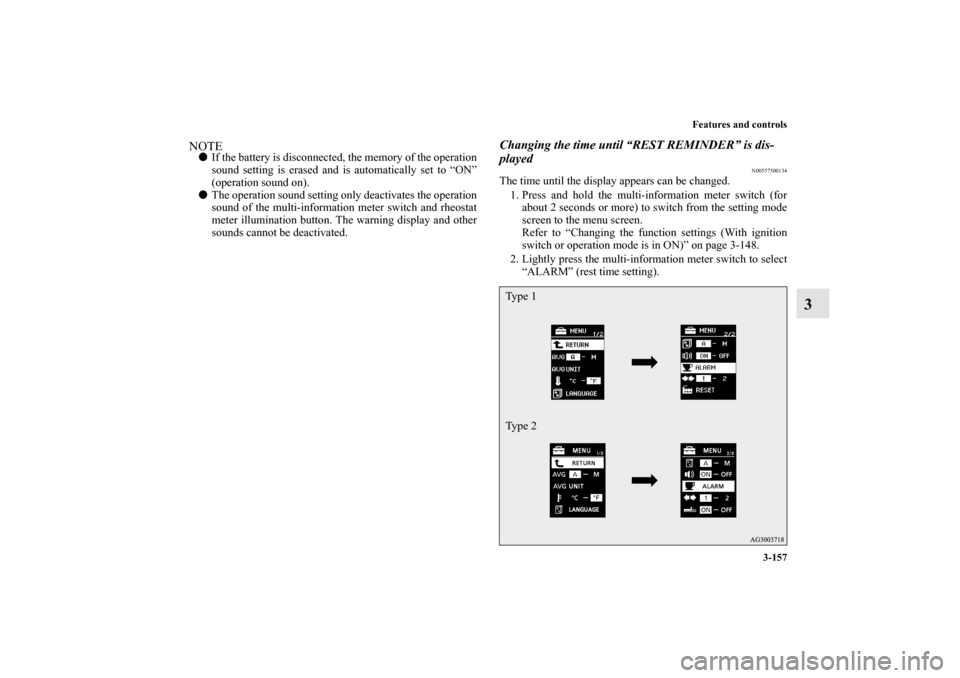

Features and controls3-157
3
NOTE
If the battery is disconnected, the memory of the operation
sound setting is erased and is automatically set to “ON”
(operation sound on).

The operation sound setting only deactivates the operation
sound of the multi-information meter switch and rheostat
meter illumination button. The warning display and other
sounds cannot be deactivated.
Changing the time until “REST REMINDER” is dis-
played
N00557500134
The time until the display appears can be changed.
1. Press and hold the multi-information meter switch (for about 2 seconds or more) to switch from the setting mode
screen to the menu screen.
Refer to “Changing the function settings (With ignition
switch or operation mode is in ON)” on page 3-148.
2. Lightly press the multi-information meter switch to select “ALARM” (rest time setting).Type 1
Type 2
BK0150700US.book 157 ページ ２０１２年３月２２日　木曜日　午後６時４６分

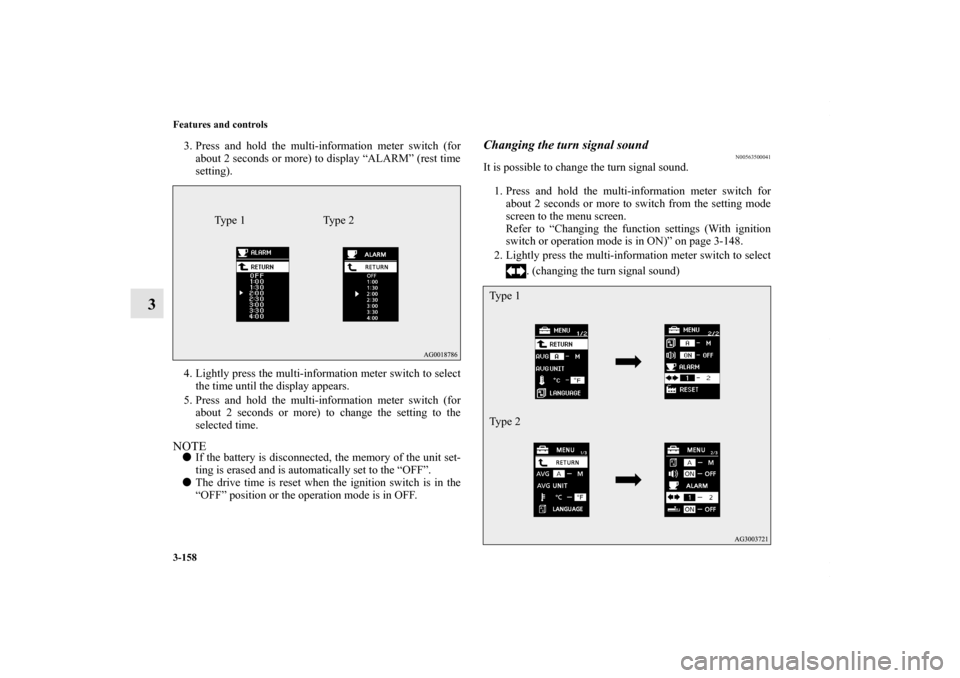

3-158 Features and controls
3
3. Press and hold the multi-information meter switch (forabout 2 seconds or more) to display “ALARM” (rest time
setting).
4. Lightly press the multi-information meter switch to select the time until the display appears.
5. Press and hold the multi-information meter switch (for about 2 seconds or more) to change the setting to the
selected time.NOTE
If the battery is disconnected, the memory of the unit set-
ting is erased and is automatically set to the “OFF”.

The drive time is reset when the ignition switch is in the
“OFF” position or the operation mode is in OFF.
Changing the turn signal sound
N00563500041
It is possible to change the turn signal sound.
1. Press and hold the multi-information meter switch for about 2 seconds or more to switch from the setting mode
screen to the menu screen.
Refer to “Changing the function settings (With ignition
switch or operation mode is in ON)” on page 3-148.
2. Lightly press the multi-information meter switch to select
. (changing the turn signal sound)
Type 1 Type 2
Type 1
Type 2
BK0150700US.book 158 ページ ２０１２年３月２２日　木曜日　午後６時４６分

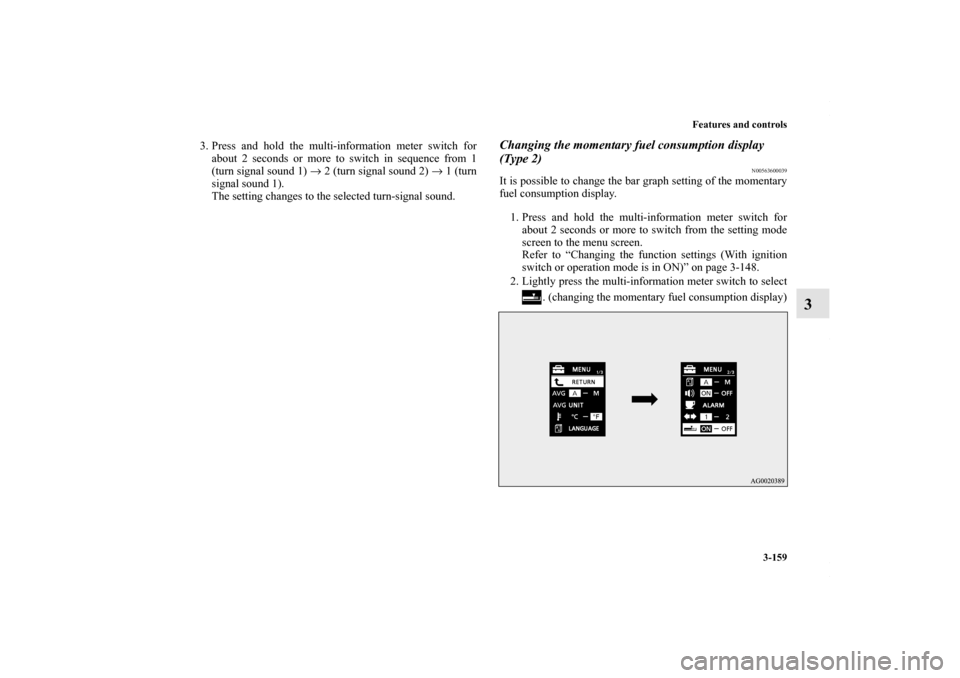

Features and controls3-159
3
3. Press and hold the multi-information meter switch forabout 2 seconds or more to switch in sequence from 1
(turn signal sound 1) → 2 (turn signal sound 2) → 1 (turn
signal sound 1).
The setting changes to the selected turn-signal sound.
Changing the momentary fuel consumption display
(Type 2)
N00563600039
It is possible to change the bar graph setting of the momentary
fuel consumption display.
1. Press and hold the multi-information meter switch for about 2 seconds or more to switch from the setting mode
screen to the menu screen.
Refer to “Changing the function settings (With ignition
switch or operation mode is in ON)” on page 3-148.
2. Lightly press the multi-information meter switch to select
. (changing the momentary fuel consumption display)
BK0150700US.book 159 ページ ２０１２年３月２２日　木曜日　午後６時４６分

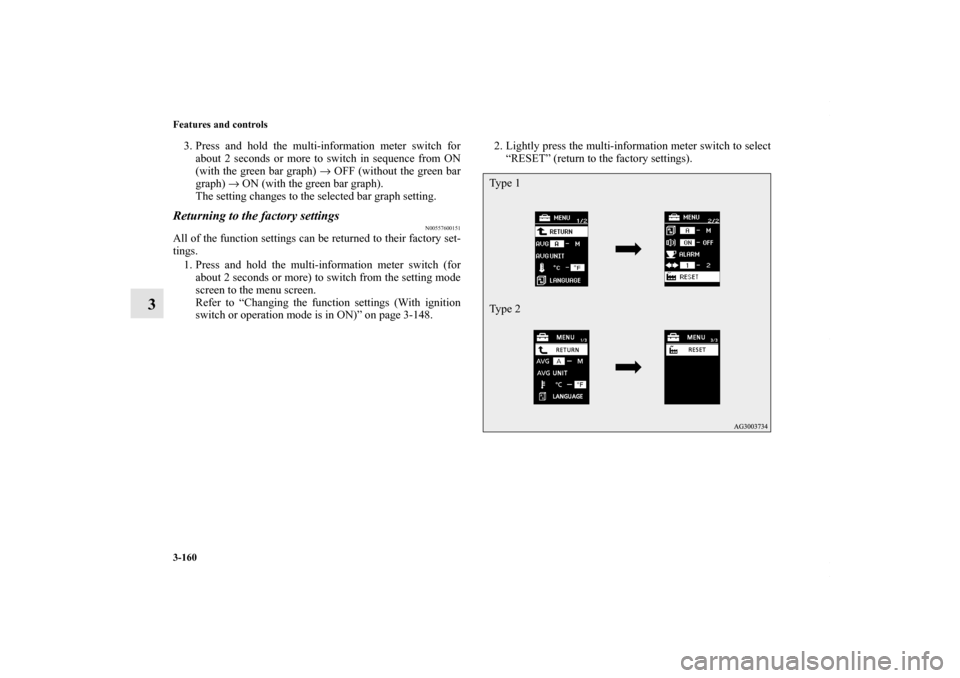

3-160 Features and controls
3
3. Press and hold the multi-information meter switch forabout 2 seconds or more to switch in sequence from ON
(with the green bar graph) → OFF (without the green bar
graph) → ON (with the green bar graph).
The setting changes to the selected bar graph setting.Returning to the factory settings
N00557600151
All of the function settings can be returned to their factory set-
tings.
1. Press and hold the multi-information meter switch (for about 2 seconds or more) to switch from the setting mode
screen to the menu screen.
Refer to “Changing the function settings (With ignition
switch or operation mode is in ON)” on page 3-148. 2. Lightly press the multi-information meter switch to select
“RESET” (return to the factory settings).
Type 1
Type 2
BK0150700US.book 160 ページ ２０１２年３月２２日　木曜日　午後６時４６分

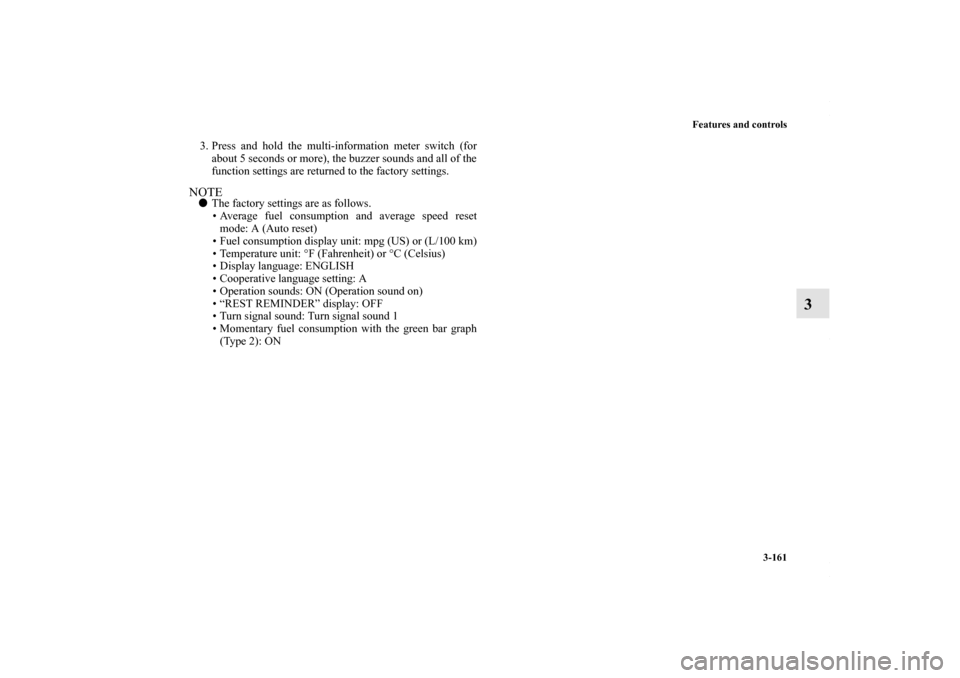

Features and controls3-161
3
3. Press and hold the multi-information meter switch (forabout 5 seconds or more), the buzzer sounds and all of the
function settings are returned to the factory settings.NOTE
The factory settings are as follows.
• Average fuel consumption and average speed reset
mode: A (Auto reset)
• Fuel consumption display unit: mpg (US) or (L/100 km)
• Temperature unit: °F (Fahrenheit) or °C (Celsius)
• Display language: ENGLISH
• Cooperative language setting: A
• Operation sounds: ON (Operation sound on)
• “REST REMINDER” display: OFF
• Turn signal sound: Turn signal sound 1
• Momentary fuel consumption with the green bar graph (Type 2): ON
BK0150700US.book 161 ページ ２０１２年３月２２日　木曜日　午後６時４６分

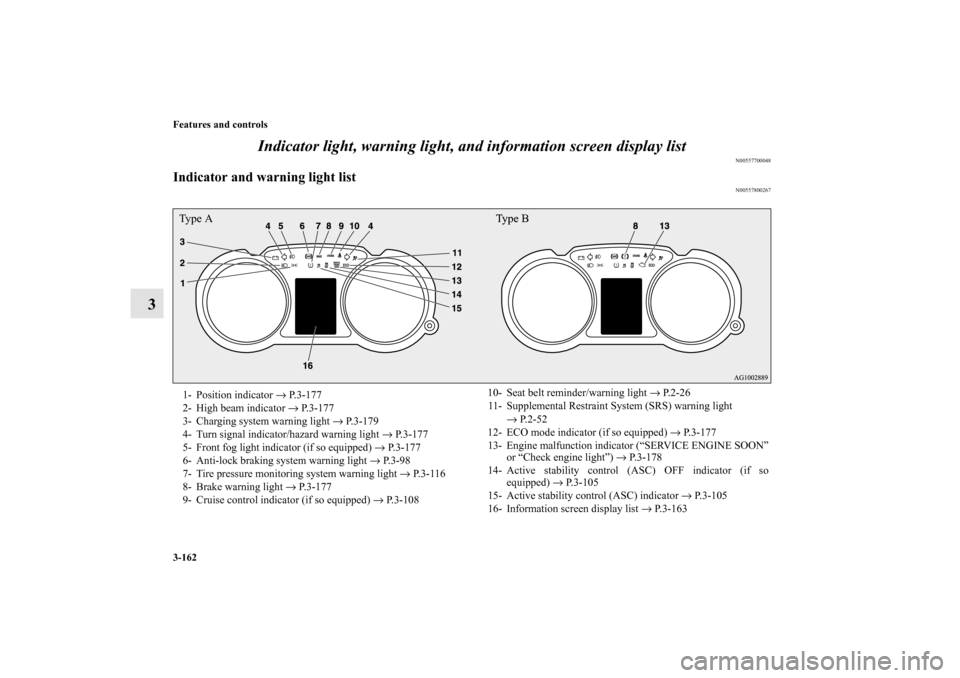

3-162 Features and controls
3Indicator light, warning light, and information screen display list
N00557700048
Indicator and warning light list
N00557800267
Type A
Type B
Type B1- Position indicator → P.3-177
2- High beam indicator → P.3-177
3- Charging system warning light → P.3-179
4- Turn signal indicator/hazard warning light → P.3-177
5- Front fog light indicator (if so equipped) → P.3-177
6- Anti-lock braking system warning light → P. 3 - 9 8
7- Tire pressure monitoring system warning light → P.3-116
8- Brake warning light → P.3-177
9- Cruise control indicator (if so equipped) → P.3-10810- Seat belt reminder/warning light
→ P.2-26
11- Supplemental Restraint System (SRS) warning light
→ P.2-52
12- ECO mode indicator (if so equipped) → P.3-177
13- Engine malfunction indicator (“SERVICE ENGINE SOON” or “Check engine light”) → P.3-178
14- Active stability control (ASC) OFF indicator (if so equipped) → P.3-105
15- Active stability control (ASC) indicator → P.3-105
16- Information screen display list → P.3-163
BK0150700US.book 162 ページ ２０１２年３月２２日　木曜日　午後６時４６分

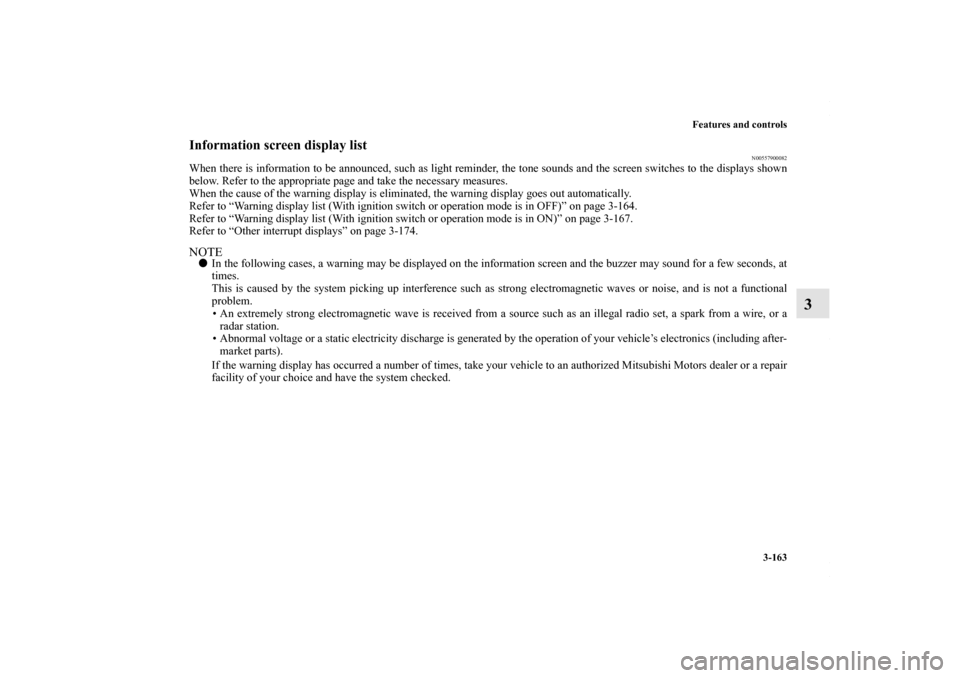

Features and controls3-163
3
Information screen display list
N00557900082
When there is information to be announced, such as light reminder, the tone sounds and the screen switches to the displays show n
below. Refer to the appropriate page and take the necessary measures.
When the cause of the warning display is eliminated, the warning display goes out automatically.
Refer to “Warning display list (With ignition switch or operation mode is in OFF)” on page 3-164.
Refer to “Warning display list (With ignition switch or operation mode is in ON)” on page 3-167.
Refer to “Other interrupt displays” on page 3-174.NOTE
In the following cases, a warning may be displayed on the information screen and the buzzer may sound for a few seconds, at
times.
This is caused by the system picking up interference such as strong electromagnetic waves or noise, and is not a functional
problem.
• An extremely strong electromagnetic wave is received from a source such as an illegal radio set, a spark from a wire, or a
radar station.
• Abnormal voltage or a static electricity discharge is generated by the operation of your vehicle’s electronics (including afte r-
market parts).
If the warning display has occurred a number of times, take your vehicle to an authorized Mitsubishi Motors dealer or a repair
facility of your choice and have the system checked.
