5-52 Comfort controls
5

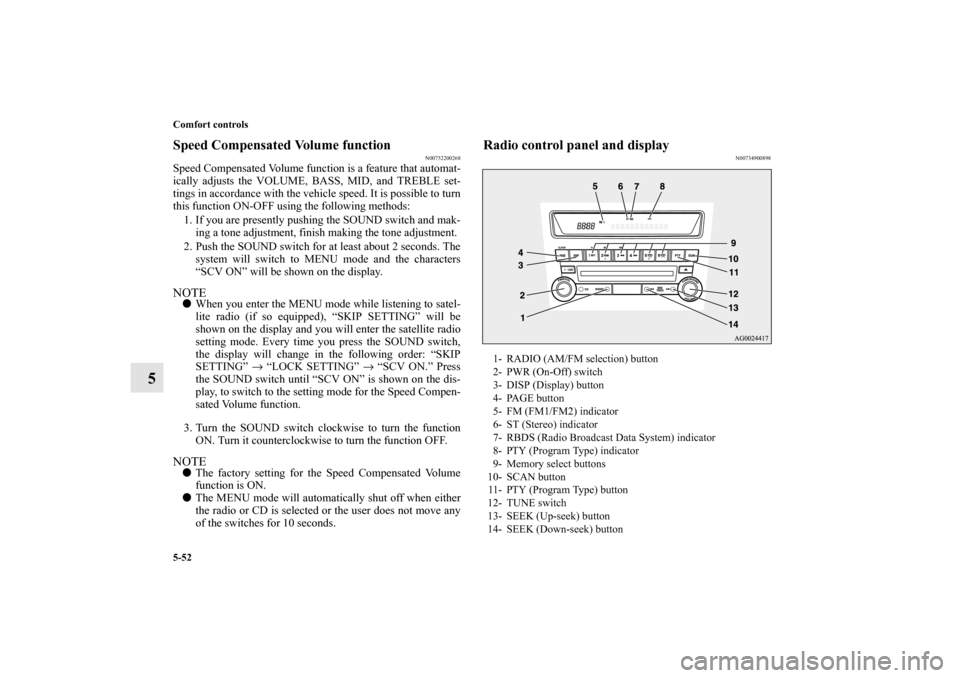

Speed Compensated Volume function
N00752200268
Speed Compensated Volume function is a feature that automat-
ically adjusts the VOLUME, BASS, MID, and TREBLE set-
tings in accordance with the vehicle speed. It is possible to turn
this function ON-OFF using the following methods:1. If you are presently pushing the SOUND switch and mak- ing a tone adjustment, finish making the tone adjustment.
2. Push the SOUND switch for at least about 2 seconds. The system will switch to MENU mode and the characters
“SCV ON” will be shown on the display.NOTE When you enter the MENU mode while listening to satel-
lite radio (if so equipped), “SKIP SETTING” will be
shown on the display and you will enter the satellite radio
setting mode. Every time you press the SOUND switch,
the display will change in the following order: “SKIP
SETTING” → “LOCK SETTING” → “SCV ON.” Press
the SOUND switch until “SCV ON” is shown on the dis-
play, to switch to the setting mode for the Speed Compen-
sated Volume function.
3. Turn the SOUND switch clockwise to turn the function ON. Turn it counterclockwise to turn the function OFF.NOTE The factory setting for the Speed Compensated Volume
function is ON.
The MENU mode will automatically shut off when either
the radio or CD is selected or the user does not move any
of the switches for 10 seconds.
Radio control panel and display
N00734900898
1- RADIO (AM/FM selection) button
2- PWR (On-Off) switch
3- DISP (Display) button
4- PAGE button
5- FM (FM1/FM2) indicator
6- ST (Stereo) indicator
7- RBDS (Radio Broadcast Data System) indicator
8- PTY (Program Type) indicator
9- Memory select buttons
10- SCAN button 11- PTY (Program Type) button
12- TUNE switch
13- SEEK (Up-seek) button
14- SEEK (Down-seek) button
BK0150700US.book 52 ページ ２０１２年３月２２日 木曜日 午後６時４６分
Page 422 of 602
Comfort controls5-53
5

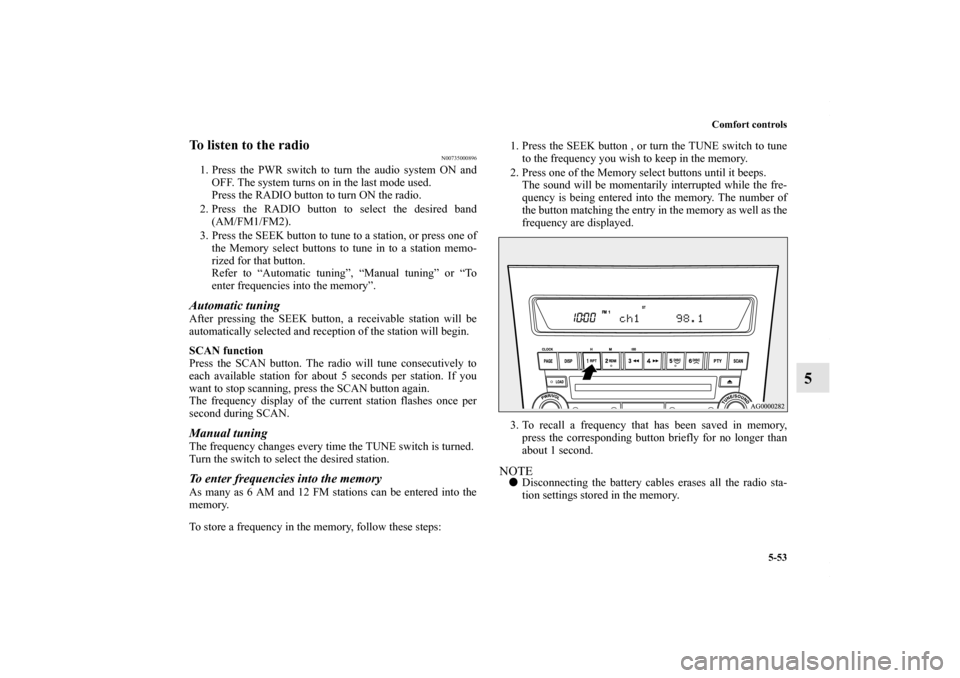

To listen to the radio
N00735000896
1. Press the PWR switch to turn the audio system ON andOFF. The system turns on in the last mode used.
Press the RADIO button to turn ON the radio.
2. Press the RADIO button to select the desired band (AM/FM1/FM2).
3. Press the SEEK button to tune to a station, or press one of the Memory select buttons to tune in to a station memo-
rized for that button.
Refer to “Automatic tuning”, “Manual tuning” or “To
enter frequencies into the memory”.Automatic tuningAfter pressing the SEEK button, a receivable station will be
automatically selected and reception of the station will begin.
SCAN function
Press the SCAN button. The radio will tune consecutively to
each available station for about 5 seconds per station. If you
want to stop scanning, press the SCAN button again.
The frequency display of the current station flashes once per
second during SCAN.Manual tuningThe frequency changes every time the TUNE switch is turned.
Turn the switch to select the desired station.To enter frequencies into the memoryAs many as 6 AM and 12 FM stations can be entered into the
memory.
To store a frequency in the memory, follow these steps: 1. Press the SEEK button , or turn the TUNE switch to tune
to the frequency you wish to keep in the memory.
2. Press one of the Memory select buttons until it beeps. The sound will be momentarily interrupted while the fre-
quency is being entered into the memory. The number of
the button matching the entry in the memory as well as the
frequency are displayed.
3. To recall a frequency that has been saved in memory, press the corresponding button briefly for no longer than
about 1 second.
NOTE Disconnecting the battery cables erases all the radio sta-
tion settings stored in the memory.
BK0150700US.book 53 ページ ２０１２年３月２２日 木曜日 午後６時４６分
Page 423 of 602
5-54 Comfort controls
5

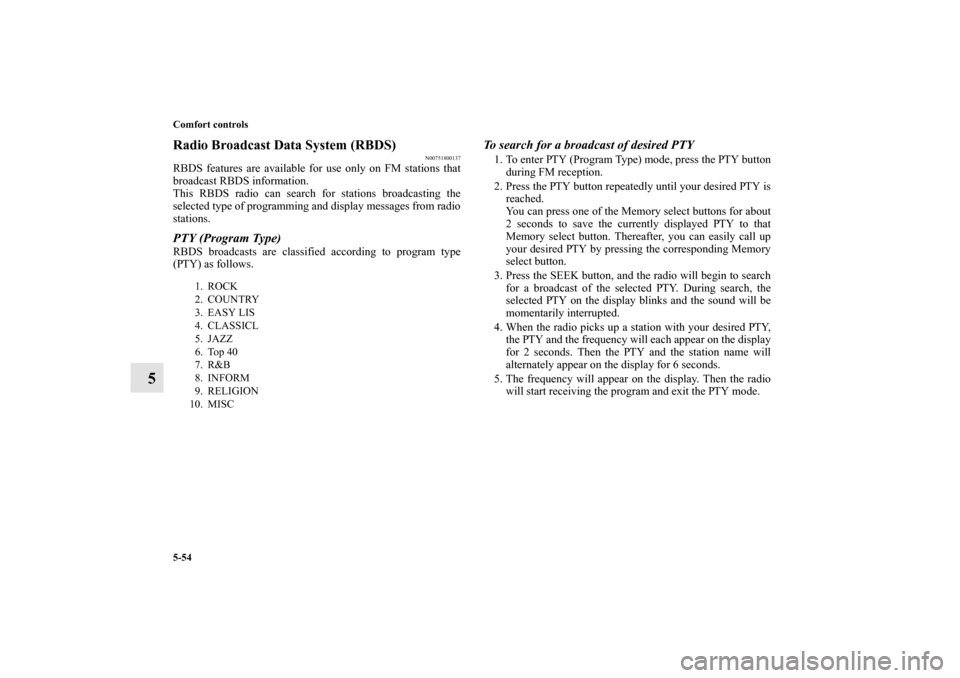

Radio Broadcast Data System (RBDS)
N00751800137
RBDS features are available for use only on FM stations that
broadcast RBDS information.
This RBDS radio can search for stations broadcasting the
selected type of programming and display messages from radio
stations.PTY (Program Type)RBDS broadcasts are classified according to program type
(PTY) as follows.
To search for a broadcast of desired PTY1. To enter PTY (Program Type) mode, press the PTY buttonduring FM reception.
2. Press the PTY button repeatedly until your desired PTY is reached.
You can press one of the Memory select buttons for about
2 seconds to save the currently displayed PTY to that
Memory select button. Thereafter, you can easily call up
your desired PTY by pressing the corresponding Memory
select button.
3. Press the SEEK button, and the radio will begin to search for a broadcast of the selected PTY. During search, the
selected PTY on the display blinks and the sound will be
momentarily interrupted.
4. When the radio picks up a station with your desired PTY, the PTY and the frequency will each appear on the display
for 2 seconds. Then the PTY and the station name will
alternately appear on the display for 6 seconds.
5. The frequency will appear on the display. Then the radio will start receiving the program and exit the PTY mode.
1. ROCK
2. COUNTRY
3. EASY LIS
4. CLASSICL
5. JAZZ
6. Top 40
7. R&B
8. INFORM
9. RELIGION
10. MISC
BK0150700US.book 54 ページ ２０１２年３月２２日 木曜日 午後６時４６分
Page 424 of 602
Comfort controls5-55
5

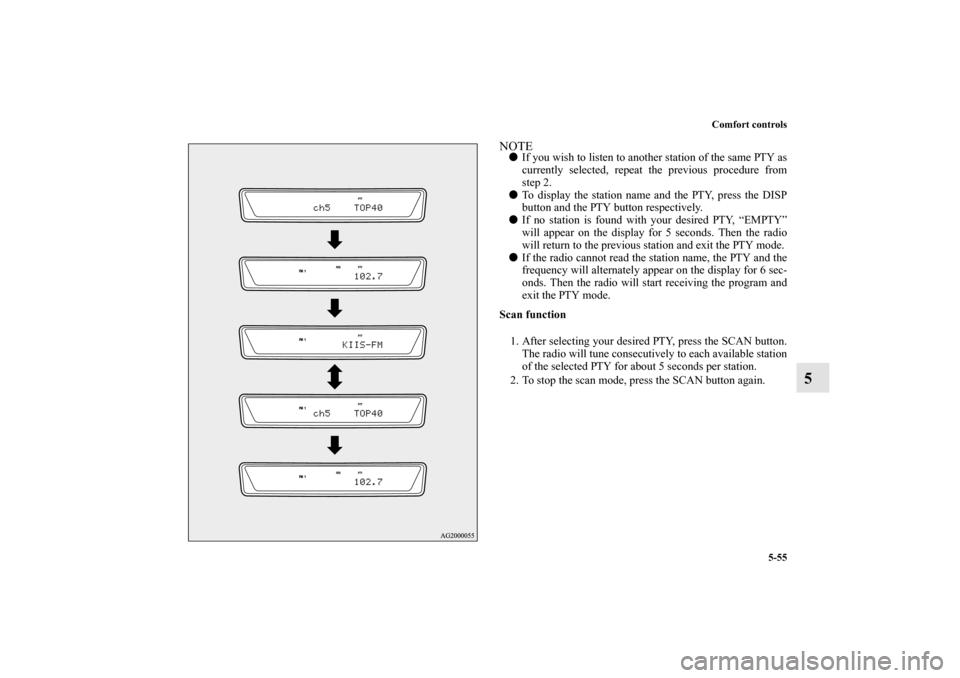

NOTEIf you wish to listen to another station of the same PTY as
currently selected, repeat the previous procedure from
step 2.
To display the station name and the PTY, press the DISP
button and the PTY button respectively.
If no station is found with your desired PTY, “EMPTY”
will appear on the display for 5 seconds. Then the radio
will return to the previous station and exit the PTY mode.
If the radio cannot read the station name, the PTY and the
frequency will alternately appear on the display for 6 sec-
onds. Then the radio will start receiving the program and
exit the PTY mode.
Scan function
1. After selecting your desired PTY, press the SCAN button. The radio will tune consecutively to each available station
of the selected PTY for about 5 seconds per station.
2. To stop the scan mode, press the SCAN button again.
BK0150700US.book 55 ページ ２０１２年３月２２日 木曜日 午後６時４６分
Page 425 of 602
5-56 Comfort controls
5

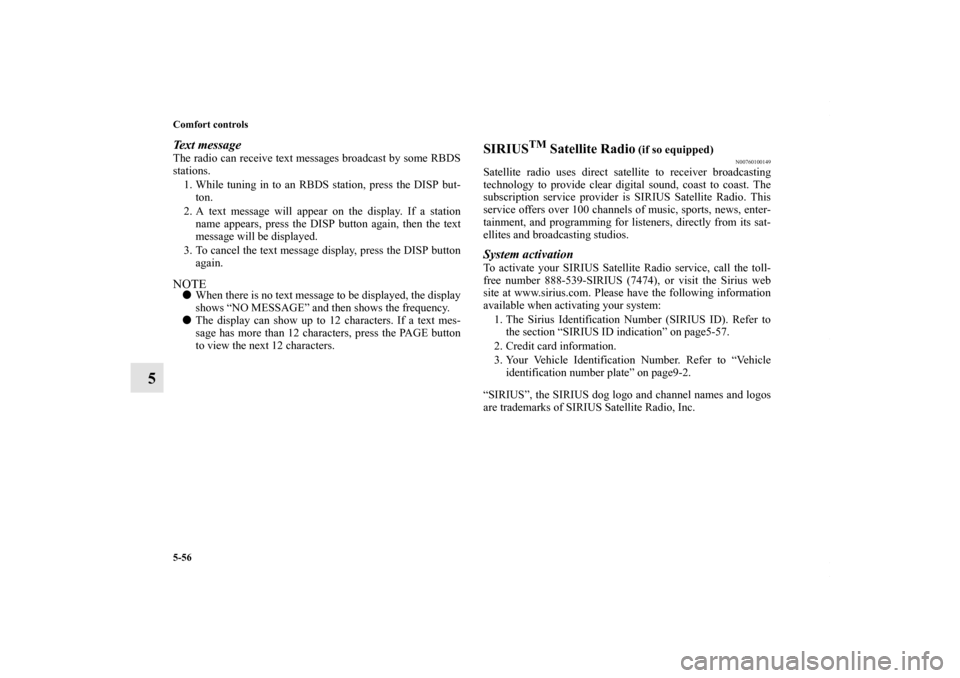

Text messageThe radio can receive text messages broadcast by some RBDS
stations.1. While tuning in to an RBDS station, press the DISP but- ton.
2. A text message will appear on the display. If a station name appears, press the DISP button again, then the text
message will be displayed.
3. To cancel the text message display, press the DISP button again.NOTE When there is no text message to be displayed, the display
shows “NO MESSAGE” and then shows the frequency.
The display can show up to 12 characters. If a text mes-
sage has more than 12 characters, press the PAGE button
to view the next 12 characters.
SIRIUS
TM
Satellite Radio
(if so equipped)
N00760100149
Satellite radio uses direct satellite to receiver broadcasting
technology to provide clear digital sound, coast to coast. The
subscription service provider is SIRIUS Satellite Radio. This
service offers over 100 channels of music, sports, news, enter-
tainment, and programming for listeners, directly from its sat-
ellites and broadcasting studios.System activationTo activate your SIRIUS Satellite Radio service, call the toll-
free number 888-539-SIRIUS (7474), or visit the Sirius web
site at www.sirius.com. Please have the following information
available when activating your system:
1. The Sirius Identification Number (SIRIUS ID). Refer to the section “SIRIUS ID indication” on page5-57.
2. Credit card information.
3. Your Vehicle Identification Number. Refer to “Vehicle identification number plate” on page9-2.
“SIRIUS”, the SIRIUS dog logo and channel names and logos
are trademarks of SIRIUS Satellite Radio, Inc.
BK0150700US.book 56 ページ ２０１２年３月２２日 木曜日 午後６時４６分
Page 426 of 602
Comfort controls5-57
5

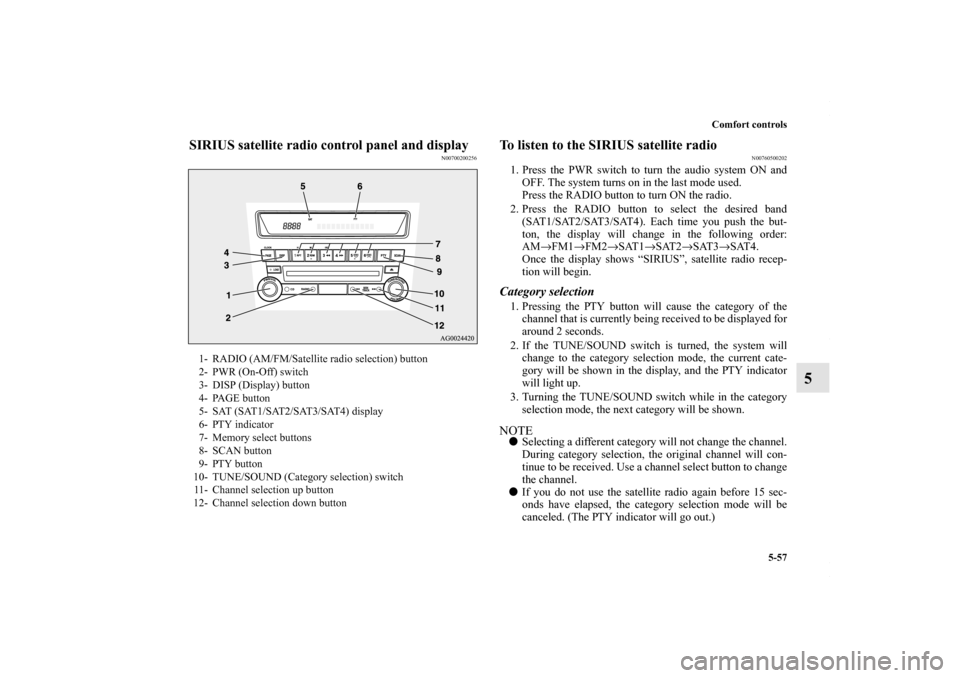

SIRIUS satellite radio control panel and display
N00700200256
To listen to the SIRIUS satellite radio
N00760500202
1. Press the PWR switch to turn the audio system ON andOFF. The system turns on in the last mode used.
Press the RADIO button to turn ON the radio.
2. Press the RADIO button to select the desired band (SAT1/SAT2/SAT3/SAT4). Each time you push the but-
ton, the display will change in the following order:
AM →FM1 →FM2 →SAT1 →SAT2 →SAT3 →SAT4.
Once the display shows “SIRIUS”, satellite radio recep-
tion will begin.Category selection1. Pressing the PTY button will cause the category of the channel that is currently being received to be displayed for
around 2 seconds.
2. If the TUNE/SOUND switch is turned, the system will change to the category selection mode, the current cate-
gory will be shown in the display, and the PTY indicator
will light up.
3. Turning the TUNE/SOUND switch while in the category selection mode, the next category will be shown.NOTE Selecting a different category will not change the channel.
During category selection, the original channel will con-
tinue to be received. Use a channel select button to change
the channel.
If you do not use the satellite radio again before 15 sec-
onds have elapsed, the category selection mode will be
canceled. (The PTY indicator will go out.)
1- RADIO (AM/FM/Satellite radio selection) button
2- PWR (On-Off) switch
3- DISP (Display) button
4- PAGE button
5- SAT (SAT1/SAT2/SAT3/SAT4) display
6- PTY indicator
7- Memory select buttons
8- SCAN button
9- PTY button
10- TUNE/SOUND (Category selection) switch 11- Channel selection up button
12- Channel selection down button
BK0150700US.book 57 ページ ２０１２年３月２２日 木曜日 午後６時４６分
Page 427 of 602
5-58 Comfort controls
5

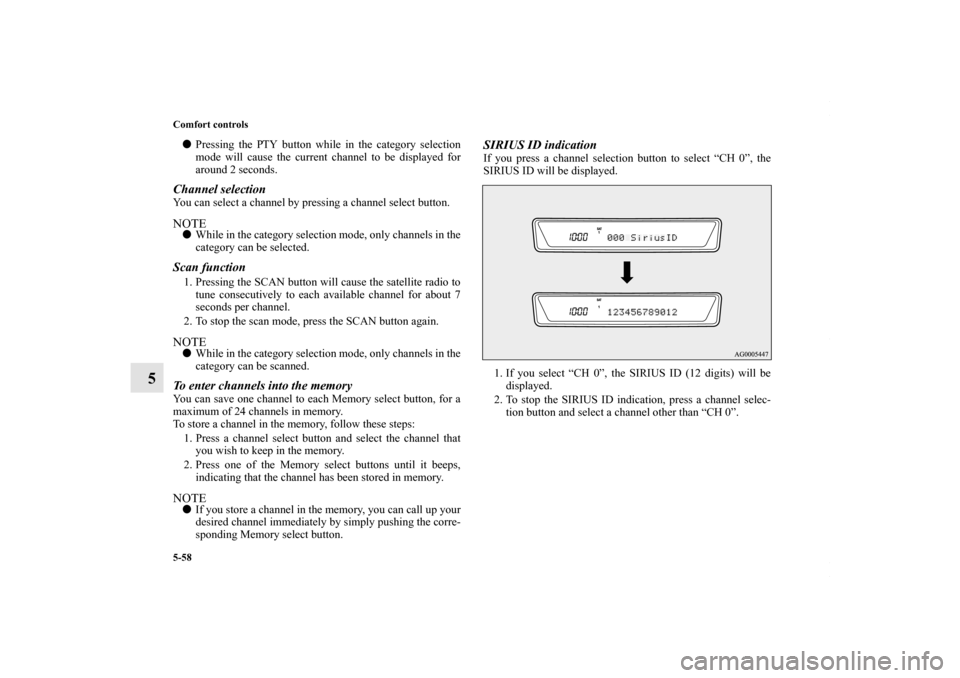

Pressing the PTY button while in the category selection
mode will cause the current channel to be displayed for
around 2 seconds.Channel selectionYou can select a channel by pressing a channel select button. NOTEWhile in the category selection mode, only channels in the
category can be selected.Scan function1. Pressing the SCAN button will cause the satellite radio to
tune consecutively to each available channel for about 7
seconds per channel.
2. To stop the scan mode, press the SCAN button again.NOTE While in the category selection mode, only channels in the
category can be scanned.To enter channels into the memoryYou can save one channel to each Memory select button, for a
maximum of 24 channels in memory.
To store a channel in the memory, follow these steps:
1. Press a channel select button and select the channel that you wish to keep in the memory.
2. Press one of the Memory select buttons until it beeps, indicating that the channel has been stored in memory.NOTE If you store a channel in the memory, you can call up your
desired channel immediately by simply pushing the corre-
sponding Memory select button.
SIRIUS ID indication If you press a channel selection button to select “CH 0”, the
SIRIUS ID will be displayed.
1. If you select “CH 0”, the SIRIUS ID (12 digits) will be displayed.
2. To stop the SIRIUS ID indication, press a channel selec- tion button and select a channel other than “CH 0”.
BK0150700US.book 58 ページ ２０１２年３月２２日 木曜日 午後６時４６分
Page 428 of 602
Comfort controls5-59
5

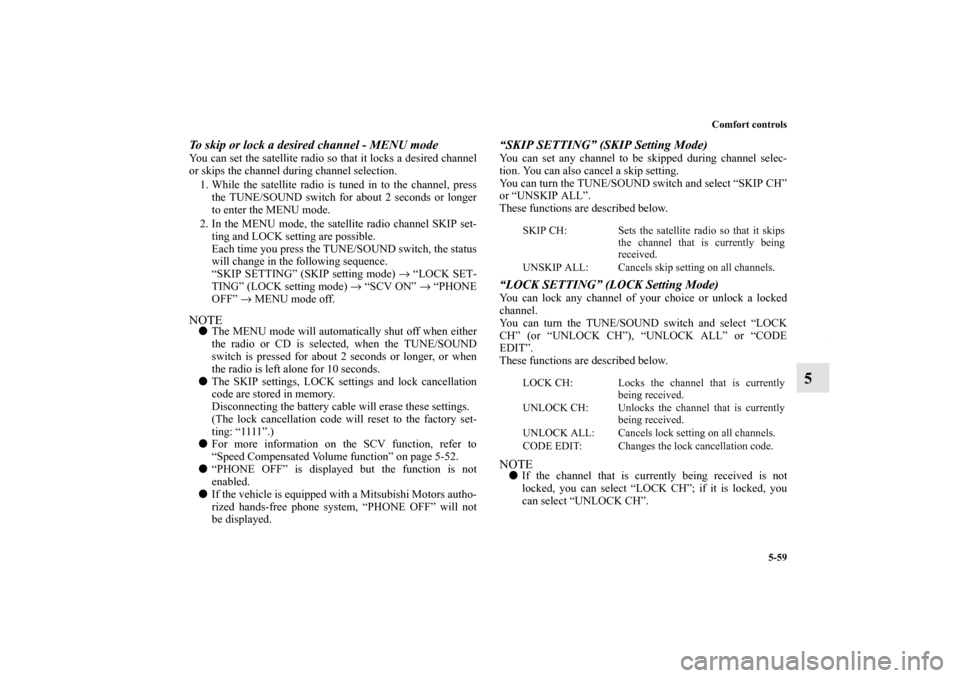

To skip or lock a desired channel - MENU modeYou can set the satellite radio so that it locks a desired channel
or skips the channel during channel selection. 1. While the satellite radio is tuned in to the channel, press the TUNE/SOUND switch for about 2 seconds or longer
to enter the MENU mode.
2. In the MENU mode, the satellite radio channel SKIP set- ting and LOCK setting are possible.
Each time you press the TUNE/SOUND switch, the status
will change in the following sequence.
“SKIP SETTING” (SKIP setting mode) → “LOCK SET-
TING” (LOCK setting mode) → “SCV ON” → “PHONE
OFF” → MENU mode off.NOTE The MENU mode will automatically shut off when either
the radio or CD is selected, when the TUNE/SOUND
switch is pressed for about 2 seconds or longer, or when
the radio is left alone for 10 seconds.
The SKIP settings, LOCK settings and lock cancellation
code are stored in memory.
Disconnecting the battery cable will erase these settings.
(The lock cancellation code will reset to the factory set-
ting: “1111”.)
For more information on the SCV function, refer to
“Speed Compensated Volume function” on page 5-52.
“PHONE OFF” is displayed but the function is not
enabled.
If the vehicle is equipped with a Mitsubishi Motors autho-
rized hands-free phone system, “PHONE OFF” will not
be displayed.
“SKIP SETTING” (SKIP Setting Mode)You can set any channel to be skipped during channel selec-
tion. You can also cancel a skip setting.
You can turn the TUNE/SOUND switch and select “SKIP CH”
or “UNSKIP ALL”.
These functions are described below.“LOCK SETTING” (LOCK Setting Mode)You can lock any channel of your choice or unlock a locked
channel.
You can turn the TUNE/SOUND switch and select “LOCK
CH” (or “UNLOCK CH”), “UNLOCK ALL” or “CODE
EDIT”.
These functions are described below.NOTEIf the channel that is currently being received is not
locked, you can select “LOCK CH”; if it is locked, you
can select “UNLOCK CH”.
SKIP CH: Sets the satellite radio so that it skips
the channel that is currently being
received.
UNSKIP ALL: Cancels skip setting on all channels.
LOCK CH: Locks the channel that is currently being received.
UNLOCK CH: Unlocks the channel that is currently being received.
UNLOCK ALL: Cancels lock setting on all channels.
CODE EDIT: Changes the lock cancellation code.
BK0150700US.book 59 ページ ２０１２年３月２２日 木曜日 午後６時４６分
Page 429 of 602
5-60 Comfort controls
5
To skip a desired channelYou can set any channel to be skipped during channel selec-
tion.1. Select the channel that you want to skip.
2. Press the TUNE/SOUND switch for about 2 seconds or longer to enter the MENU mode. Then select the SKIP
setting mode.
3. In the SKIP setting mode, turn the TUNE/SOUND switch and select “SKIP CH”.
4. Press the TUNE/SOUND switch. “STORED” will be shown for 2 seconds and then the channel that is currently
being received will be set to be skipped.
5. After the skip setting is made, the radio will tune into the next channel after the channel that was set to be skipped.
If you want to this channel to be skipped as well, press the
TUNE/SOUND switch again. NOTE The channel that was set to be skipped will be skipped
automatically during channel selection.
Channels that are stored in the preset memory can also be
set to be skipped. When the corresponding memory select
button is pushed to call up the channel, “SKIP CHAN-
NEL” will appear on the display and the audio will be
muted.
To cancel skip settingsYou can cancel skip settings on channels.
1. Press the TUNE/SOUND switch for about 2 seconds or longer to enter the MENU mode. Then select the SKIP
setting mode.
2. In the SKIP setting mode, turn the TUNE/SOUND switch and select “UNSKIP ALL”.
3. Press the TUNE/SOUND switch. “STORED” will be shown for 2 seconds and then skip settings on all channels
will be cancelled. After you cancel the setting, the satellite
radio will return to the SKIP setting mode. (The display
will show “SKIP SETTING”.)To lock a desired channelYou can lock any channel of your choice.
1. Select the channel that you want to lock.
2. Press the TUNE/SOUND switch for about 2 seconds or longer to enter the MENU mode. Then select the LOCK
setting mode.
3. In the LOCK setting mode, turn the TUNE/SOUND switch and select “LOCK CH”.
4. Press the TUNE/SOUND switch. “LOCKED” will be dis- played for 2 seconds and then the channel that is currently
being received will be locked. The satellite radio then
returns to the LOCK setting mode.NOTE If you attempt to select a locked channel, the display will
show “LOCKED” or “PARENTAL LOCK”.
Channels that are stored in the preset memory can also be
locked.
BK0150700US.book 60 ページ ２０１２年３月２２日 木曜日 午後６時４６分
Page 430 of 602

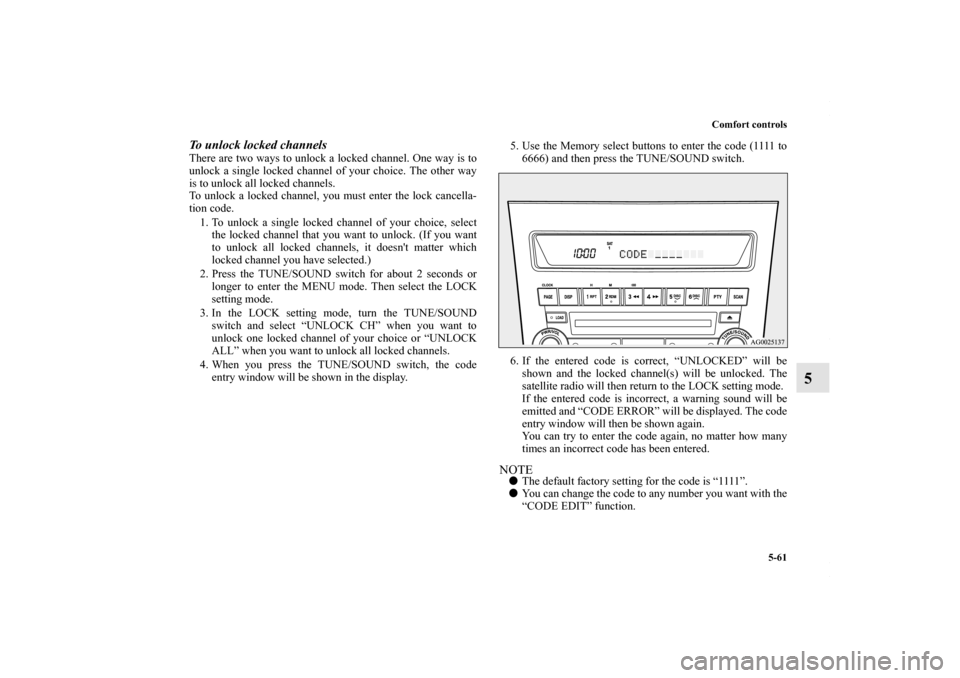

Comfort controls5-61
5
To unlock locked channelsThere are two ways to unlock a locked channel. One way is to
unlock a single locked channel of your choice. The other way
is to unlock all locked channels.
To unlock a locked channel, you must enter the lock cancella-
tion code.1. To unlock a single locked channel of your choice, select the locked channel that you want to unlock. (If you want
to unlock all locked channels, it doesn't matter which
locked channel you have selected.)
2. Press the TUNE/SOUND switch for about 2 seconds or longer to enter the MENU mode. Then select the LOCK
setting mode.
3. In the LOCK setting mode, turn the TUNE/SOUND switch and select “UNLOCK CH” when you want to
unlock one locked channel of your choice or “UNLOCK
ALL” when you want to unlock all locked channels.
4. When you press the TUNE/SOUND switch, the code entry window will be shown in the display. 5. Use the Memory select buttons to enter the code (1111 to
6666) and then press the TUNE/SOUND switch.
6. If the entered code is correct, “UNLOCKED” will be shown and the locked channel(s) will be unlocked. The
satellite radio will then return to the LOCK setting mode.
If the entered code is incorrect, a warning sound will be
emitted and “CODE ERROR” will be displayed. The code
entry window will then be shown again.
You can try to enter the code again, no matter how many
times an incorrect code has been entered.
NOTE The default factory setting for the code is “1111”.
You can change the code to any number you want with the
“CODE EDIT” function.
BK0150700US.book 61 ページ ２０１２年３月２２日 木曜日 午後６時４６分
