MITSUBISHI OUTLANDER SPORT 2013 3.G Owners Manual

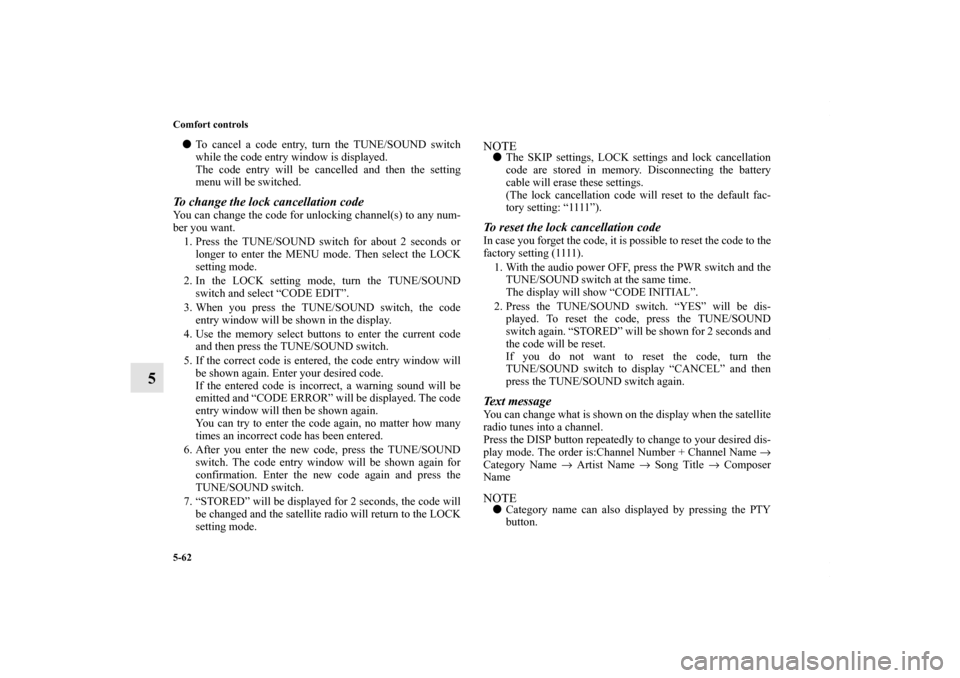

5-62 Comfort controls
5

To cancel a code entry, turn the TUNE/SOUND switch
while the code entry window is displayed.
The code entry will be cancelled and then the setting
menu will be switched. To change the lock cancellation codeYou can change the code for unlocking channel(s) to any num-
ber you want.
1. Press the TUNE/SOUND switch for about 2 seconds or longer to enter the MENU mode. Then select the LOCK
setting mode.
2. In the LOCK setting mode, turn the TUNE/SOUND switch and select “CODE EDIT”.
3. When you press the TUNE/SOUND switch, the code entry window will be shown in the display.
4. Use the memory select buttons to enter the current code and then press the TUNE/SOUND switch.
5. If the correct code is entered, the code entry window will be shown again. Enter your desired code.
If the entered code is incorrect, a warning sound will be
emitted and “CODE ERROR” will be displayed. The code
entry window will then be shown again.
You can try to enter the code again, no matter how many
times an incorrect code has been entered.
6. After you enter the new code, press the TUNE/SOUND switch. The code entry window will be shown again for
confirmation. Enter the new code again and press the
TUNE/SOUND switch.
7. “STORED” will be displayed for 2 seconds, the code will be changed and the satellite radio will return to the LOCK
setting mode.
NOTE
The SKIP settings, LOCK settings and lock cancellation
code are stored in memory. Disconnecting the battery
cable will erase these settings.
(The lock cancellation code will reset to the default fac-
tory setting: “1111”).To reset the lock cancellation codeIn case you forget the code, it is possible to reset the code to the
factory setting (1111).
1. With the audio power OFF, press the PWR switch and the TUNE/SOUND switch at the same time.
The display will show “CODE INITIAL”.
2. Press the TUNE/SOUND switch. “YES” will be dis- played. To reset the code, press the TUNE/SOUND
switch again. “STORED” will be shown for 2 seconds and
the code will be reset.
If you do not want to reset the code, turn the
TUNE/SOUND switch to display “CANCEL” and then
press the TUNE/SOUND switch again. Text messageYou can change what is shown on the display when the satellite
radio tunes into a channel.
Press the DISP button repeatedly to change to your desired dis-
play mode. The order is:Channel Number + Channel Name →
Category Name → Artist Name → Song Title → Composer
NameNOTE
Category name can also displayed by pressing the PTY
button.
BK0150700US.book 62 ページ ２０１２年３月２２日　木曜日　午後６時４６分

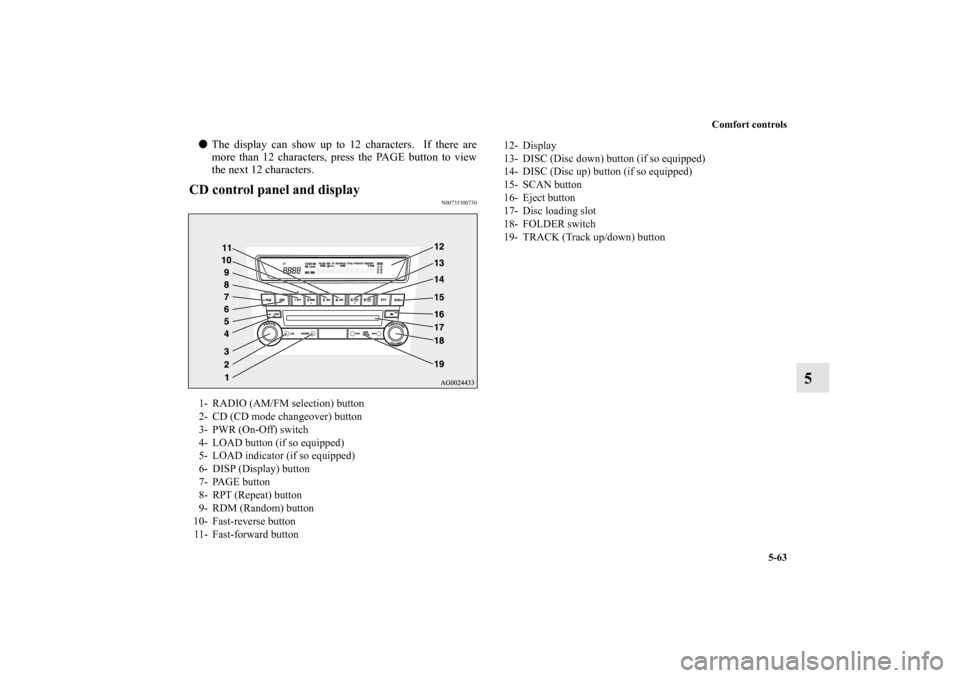

Comfort controls5-63
5

The display can show up to 12 characters. If there are
more than 12 characters, press the PAGE button to view
the next 12 characters.CD control panel and display
N00735300730
1- RADIO (AM/FM selection) button
2- CD (CD mode changeover) button
3- PWR (On-Off) switch
4- LOAD button (if so equipped)
5- LOAD indicator (if so equipped)
6- DISP (Display) button
7- PAGE button
8- RPT (Repeat) button
9- RDM (Random) button
10- Fast-reverse button 11- Fast-forward button
12- Display
13- DISC (Disc down) button (if so equipped)
14- DISC (Disc up) button (if so equipped)
15- SCAN button
16- Eject button
17- Disc loading slot
18- FOLDER switch
19- TRACK (Track up/down) button
BK0150700US.book 63 ページ ２０１２年３月２２日　木曜日　午後６時４６分

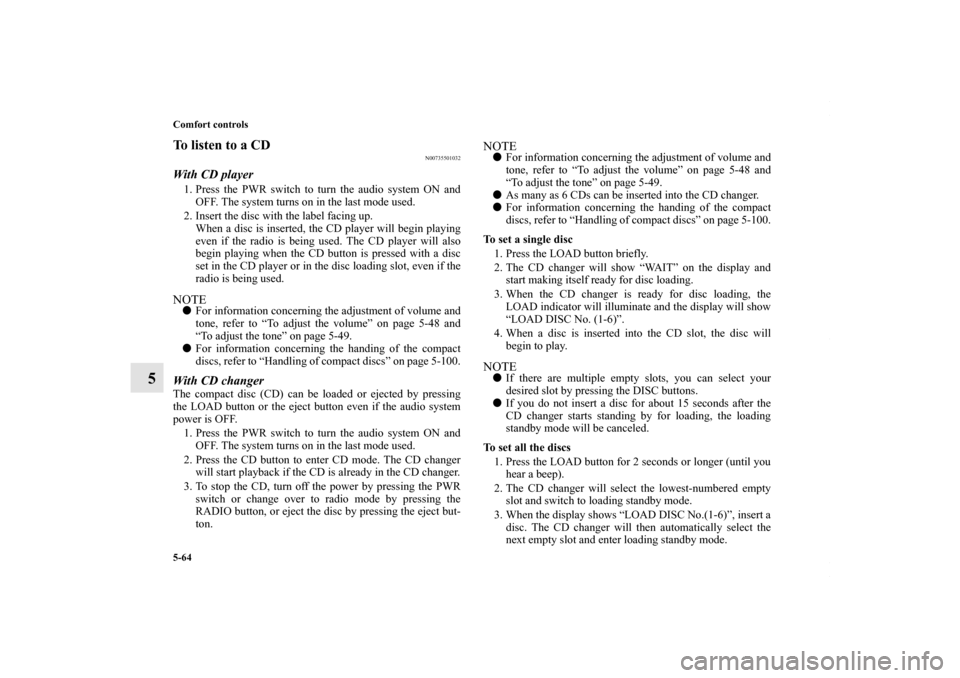

5-64 Comfort controls
5
To listen to a CD
N00735501032
With CD player1. Press the PWR switch to turn the audio system ON andOFF. The system turns on in the last mode used.
2. Insert the disc with the label facing up. When a disc is inserted, the CD player will begin playing
even if the radio is being used. The CD player will also
begin playing when the CD button is pressed with a disc
set in the CD player or in the disc loading slot, even if the
radio is being used.NOTE
For information concerning the adjustment of volume and
tone, refer to “To adjust the volume” on page 5-48 and
“To adjust the tone” on page 5-49.

For information concerning the handing of the compact
discs, refer to “Handling of compact discs” on page 5-100.With CD changerThe compact disc (CD) can be loaded or ejected by pressing
the LOAD button or the eject button even if the audio system
power is OFF.
1. Press the PWR switch to turn the audio system ON and OFF. The system turns on in the last mode used.
2. Press the CD button to enter CD mode. The CD changer will start playback if the CD is already in the CD changer.
3. To stop the CD, turn off the power by pressing the PWR switch or change over to radio mode by pressing the
RADIO button, or eject the disc by pressing the eject but-
ton.
NOTE
For information concerning the adjustment of volume and
tone, refer to “To adjust the volume” on page 5-48 and
“To adjust the tone” on page 5-49.

As many as 6 CDs can be inserted into the CD changer.

For information concerning the handing of the compact
discs, refer to “Handling of compact discs” on page 5-100.
To set a single disc 1. Press the LOAD button briefly.
2. The CD changer will show “WAIT” on the display and start making itself ready for disc loading.
3. When the CD changer is ready for disc loading, the LOAD indicator will illuminate and the display will show
“LOAD DISC No. (1-6)”.
4. When a disc is inserted into the CD slot, the disc will begin to play.NOTE
If there are multiple empty slots, you can select your
desired slot by pressing the DISC buttons.

If you do not insert a disc for about 15 seconds after the
CD changer starts standing by for loading, the loading
standby mode will be canceled.
To set all the discs 1. Press the LOAD button for 2 seconds or longer (until you hear a beep).
2. The CD changer will select the lowest-numbered empty slot and switch to loading standby mode.
3. When the display shows “LOAD DISC No.(1-6)”, insert a disc. The CD changer will then automatically select the
next empty slot and enter loading standby mode.
BK0150700US.book 64 ページ ２０１２年３月２２日　木曜日　午後６時４６分

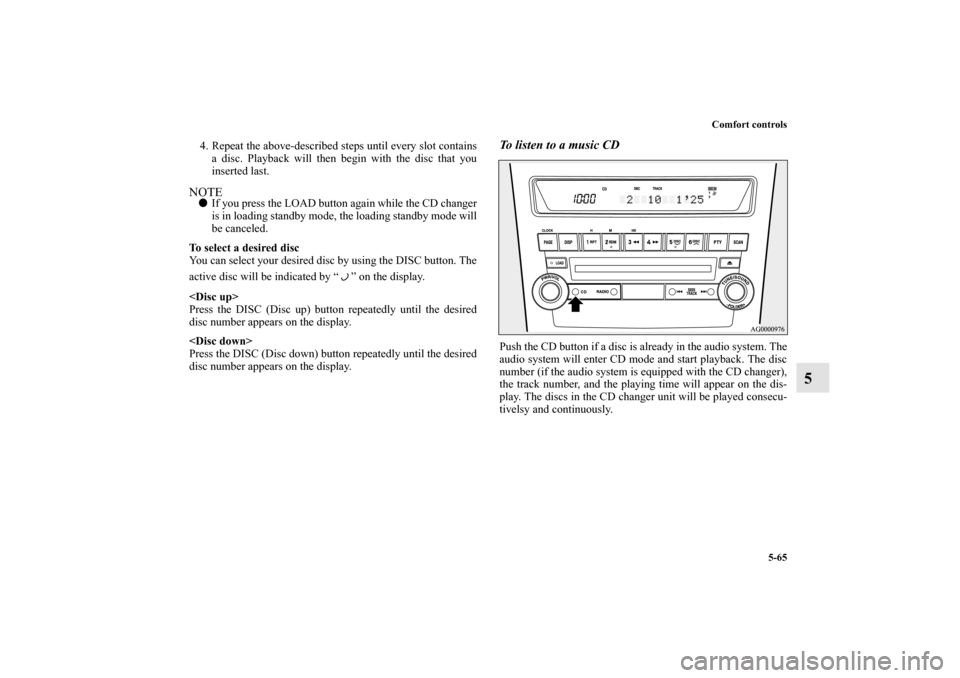

Comfort controls5-65
5
4. Repeat the above-described steps until every slot containsa disc. Playback will then begin with the disc that you
inserted last.NOTE
If you press the LOAD button again while the CD changer
is in loading standby mode, the loading standby mode will
be canceled.
To select a desired disc
You can select your desired disc by using the DISC button. The
active disc will be indicated by “ ” on the display.

Press the DISC (Disc up) button repeatedly until the desired
disc number appears on the display.

Press the DISC (Disc down) button repeatedly until the desired
disc number appears on the display.
To listen to a music CDPush the CD button if a disc is already in the audio system. The
audio system will enter CD mode and start playback. The disc
number (if the audio system is equipped with the CD changer),
the track number, and the playing time will appear on the dis-
play. The discs in the CD changer unit will be played consecu-
tivelsy and continuously.
BK0150700US.book 65 ページ ２０１２年３月２２日　木曜日　午後６時４６分

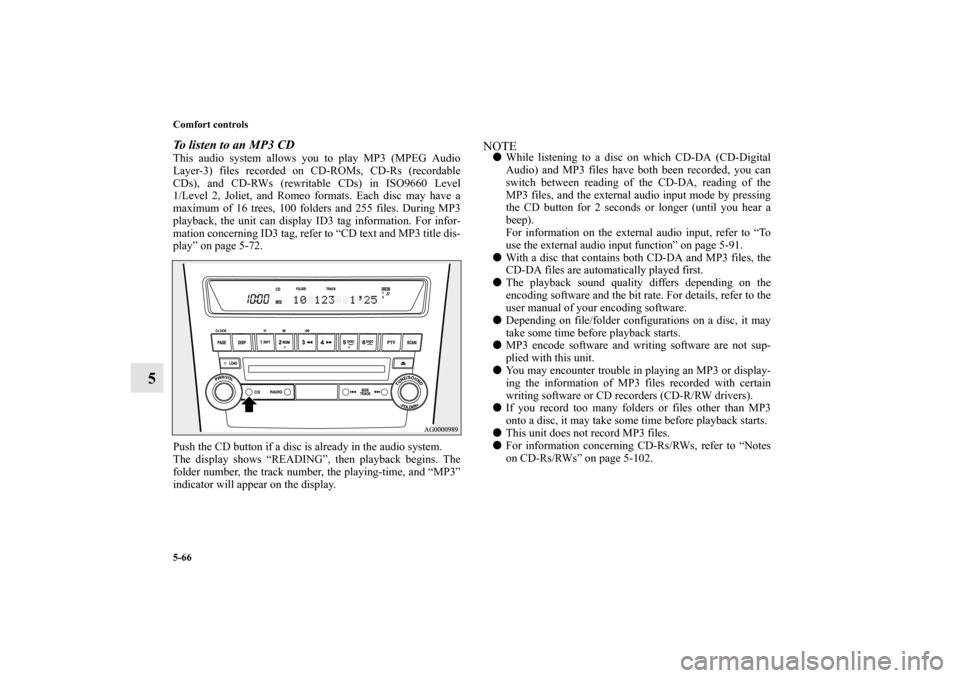

5-66 Comfort controls
5
To listen to an MP3 CDThis audio system allows you to play MP3 (MPEG Audio
Layer-3) files recorded on CD-ROMs, CD-Rs (recordable
CDs), and CD-RWs (rewritable CDs) in ISO9660 Level
1/Level 2, Joliet, and Romeo formats. Each disc may have a
maximum of 16 trees, 100 folders and 255 files. During MP3
playback, the unit can display ID3 tag information. For infor-
mation concerning ID3 tag, refer to “CD text and MP3 title dis-
play” on page 5-72.
Push the CD button if a disc is already in the audio system.
The display shows “READING”, then playback begins. The
folder number, the track number, the playing-time, and “MP3”
indicator will appear on the display.
NOTE
While listening to a disc on which CD-DA (CD-Digital
Audio) and MP3 files have both been recorded, you can
switch between reading of the CD-DA, reading of the
MP3 files, and the external audio input mode by pressing
the CD button for 2 seconds or longer (until you hear a
beep).
For information on the external audio input, refer to “To
use the external audio input function” on page 5-91.

With a disc that contains both CD-DA and MP3 files, the
CD-DA files are automatically played first.

The playback sound quality differs depending on the
encoding software and the bit rate. For details, refer to the
user manual of your encoding software.

Depending on file/folder configurations on a disc, it may
take some time before playback starts.

MP3 encode software and writing software are not sup-
plied with this unit.

You may encounter trouble in playing an MP3 or display-
ing the information of MP3 files recorded with certain
writing software or CD recorders (CD-R/RW drivers).

If you record too many folders or files other than MP3
onto a disc, it may take some time before playback starts.

This unit does not record MP3 files.

For information concerning CD-Rs/RWs, refer to “Notes
on CD-Rs/RWs” on page 5-102.
BK0150700US.book 66 ページ ２０１２年３月２２日　木曜日　午後６時４６分

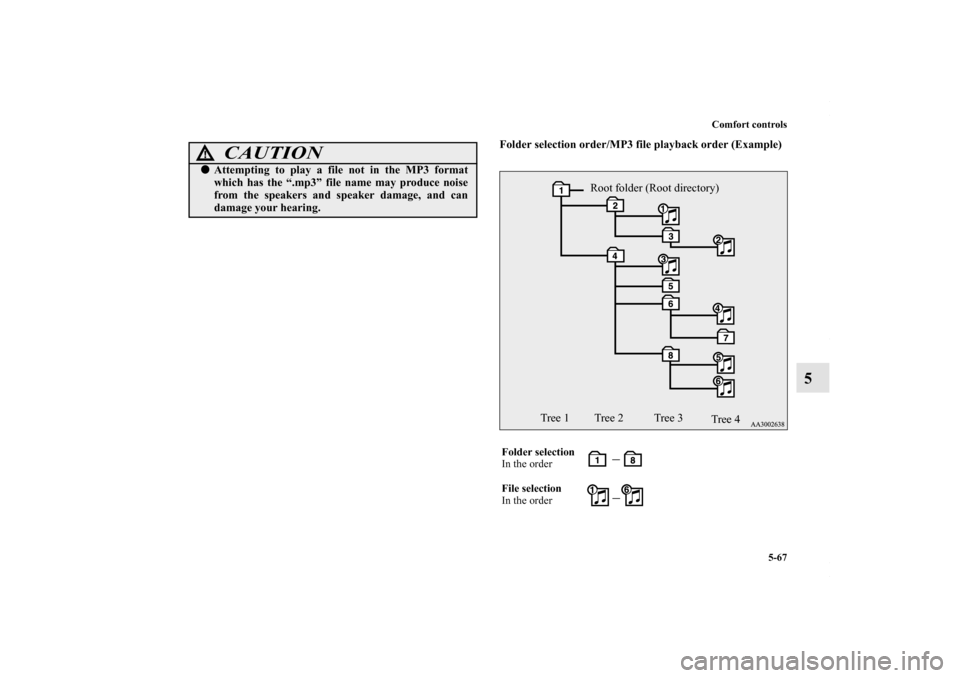

Comfort controls5-67
5
Folder selection order/MP3 file playback order (Example)
CAUTION
!
Attempting to play a file not in the MP3 format
which has the “.mp3” file name may produce noise
from the speakers and speaker damage, and can
damage your hearing.
Folder selection
In the order
File selection
In the order
Root folder (Root directory)
Tree 1 Tree 2 Tree 3 Tree 4
BK0150700US.book 67 ページ ２０１２年３月２２日　木曜日　午後６時４６分

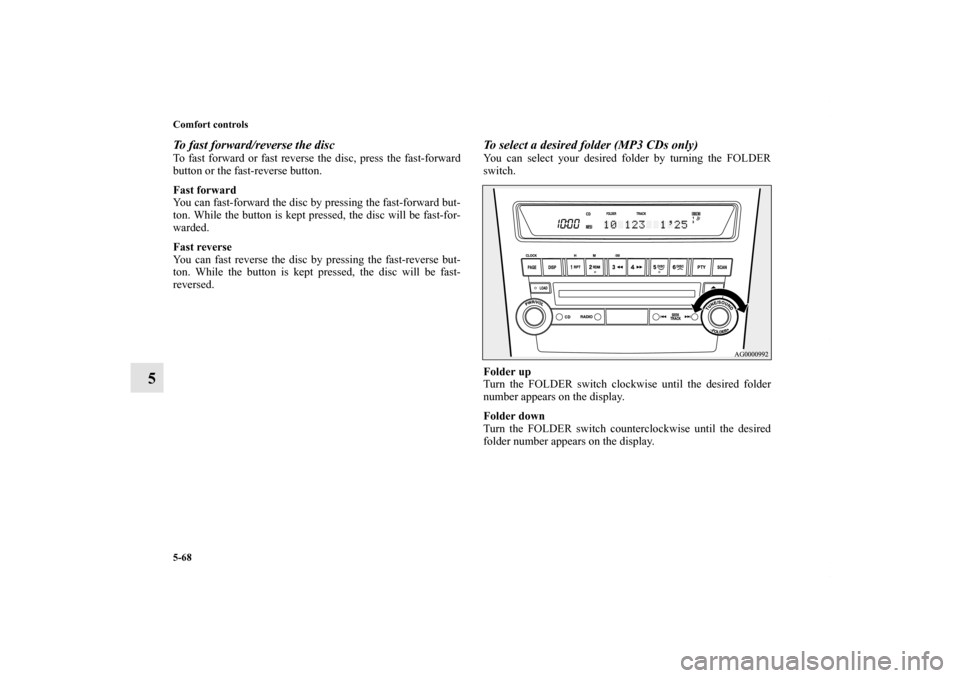

5-68 Comfort controls
5
To fast forward/reverse the discTo fast forward or fast reverse the disc, press the fast-forward
button or the fast-reverse button.
Fast forward
You can fast-forward the disc by pressing the fast-forward but-
ton. While the button is kept pressed, the disc will be fast-for-
warded.
Fast reverse
You can fast reverse the disc by pressing the fast-reverse but-
ton. While the button is kept pressed, the disc will be fast-
reversed.
To select a desired folder (MP3 CDs only)You can select your desired folder by turning the FOLDER
switch.
Folder up
Turn the FOLDER switch clockwise until the desired folder
number appears on the display.
Folder down
Turn the FOLDER switch counterclockwise until the desired
folder number appears on the display.
BK0150700US.book 68 ページ ２０１２年３月２２日　木曜日　午後６時４６分

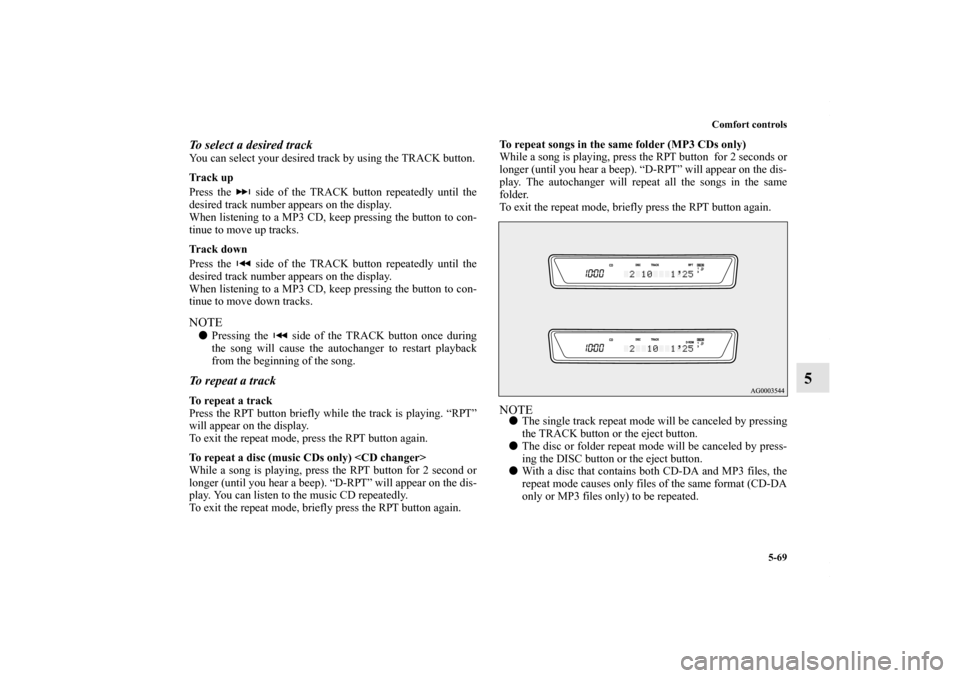

Comfort controls5-69
5
To select a desired trackYou can select your desired track by using the TRACK button.
Tr a c k u p
Press the side of the TRACK button repeatedly until the
desired track number appears on the display.
When listening to a MP3 CD, keep pressing the button to con-
tinue to move up tracks.
Tr a c k d o w n
Press the side of the TRACK button repeatedly until the
desired track number appears on the display.
When listening to a MP3 CD, keep pressing the button to con-
tinue to move down tracks.NOTE
Pressing the side of the TRACK button once during
the song will cause the autochanger to restart playback
from the beginning of the song.To repeat a trackTo repeat a track
Press the RPT button briefly while the track is playing. “RPT”
will appear on the display.
To exit the repeat mode, press the RPT button again.
To repeat a disc (music CDs only)
While a song is playing, press the RPT button for 2 second or
longer (until you hear a beep). “D-RPT” will appear on the dis-
play. You can listen to the music CD repeatedly.
To exit the repeat mode, briefly press the RPT button again. To repeat songs in the same folder (MP3 CDs only)
While a song is playing, press the RPT button for 2 seconds or
longer (until you hear a beep). “D-RPT” will appear on the dis-
play. The autochanger will repeat all the songs in the same
folder.
To exit the repeat mode, briefly press the RPT button again.
NOTE

The single track repeat mode will be canceled by pressing
the TRACK button or the eject button.

The disc or folder repeat mode will be canceled by press-
ing the DISC button or the eject button.

With a disc that contains both CD-DA and MP3 files, the
repeat mode causes only files of the same format (CD-DA
only or MP3 files only) to be repeated.
BK0150700US.book 69 ページ ２０１２年３月２２日　木曜日　午後６時４６分

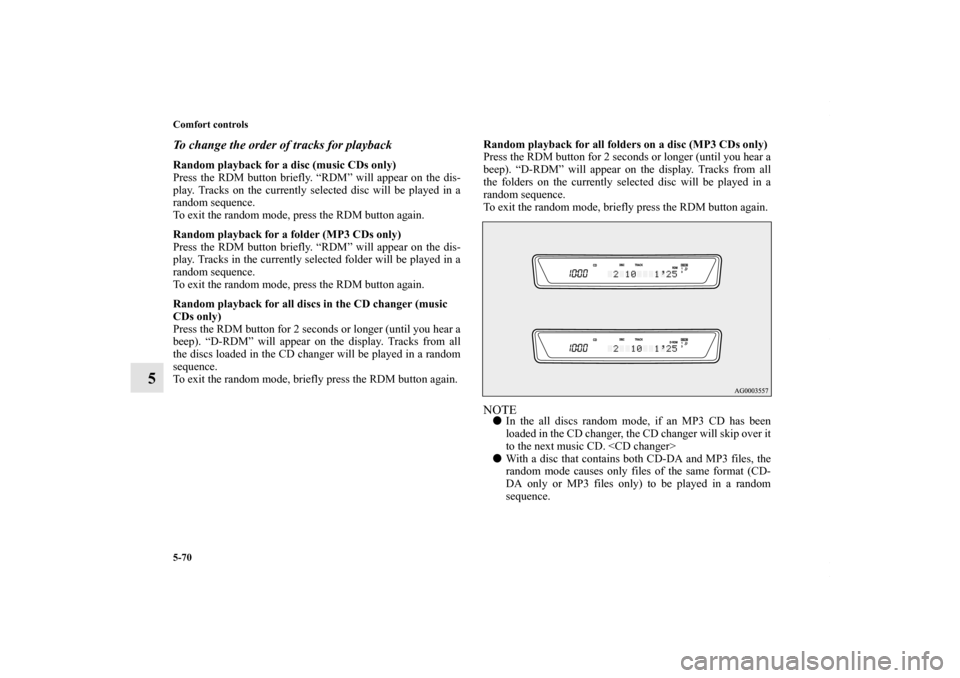

5-70 Comfort controls
5
To change the order of tracks for playbackRandom playback for a disc (music CDs only)
Press the RDM button briefly. “RDM” will appear on the dis-
play. Tracks on the currently selected disc will be played in a
random sequence.
To exit the random mode, press the RDM button again.
Random playback for a folder (MP3 CDs only)
Press the RDM button briefly. “RDM” will appear on the dis-
play. Tracks in the currently selected folder will be played in a
random sequence.
To exit the random mode, press the RDM button again.
Random playback for all discs in the CD changer (music
CDs only)
Press the RDM button for 2 seconds or longer (until you hear a
beep). “D-RDM” will appear on the display. Tracks from all
the discs loaded in the CD changer will be played in a random
sequence.
To exit the random mode, briefly press the RDM button again.Random playback for all folders on a disc (MP3 CDs only)
Press the RDM button for 2 seconds or longer (until you hear a
beep). “D-RDM” will appear on the display. Tracks from all
the folders on the currently selected disc will be played in a
random sequence.
To exit the random mode, briefly press the RDM button again.
NOTE

In the all discs random mode, if an MP3 CD has been
loaded in the CD changer, the CD changer will skip over it
to the next music CD.

With a disc that contains both CD-DA and MP3 files, the
random mode causes only files of the same format (CD-
DA only or MP3 files only) to be played in a random
sequence.
BK0150700US.book 70 ページ ２０１２年３月２２日　木曜日　午後６時４６分

Comfort controls5-71
5
To find the start of each track on a disc for playbackPress the SCAN button. “SCAN” will appear on the display
and the audio system will play back the first 10 seconds of each
track on the selected disc.
The track number will blink while the scan mode is selected.
To stop the scan mode, press the SCAN button again.NOTE
Once all tracks on the disc have been scanned, playback
of the disc will restart from the beginning of the track that
was playing when scanning started.

The scan mode will be canceled when radio or CD opera-
tion is selected.

With a disc that contains both CD-DA and MP3 files, the
scan mode causes only files of the same format (CD-DA
only or MP3 files only) to be played.To eject discs When the eject button is pressed, the disc automatically stops
and is ejected. The system automatically switches to radio
mode.NOTE
If you do not remove an ejected disc before 15 seconds
have elapsed, the disc will be reloaded.To eject discs To eject a single disc
Press the eject button briefly to eject the currently selected
disc.
NOTE
If you press the eject button while the display is showing
“LOAD DISC No.(1-6)”, the loading standby mode will
be canceled and the next disc will be ejected.

If you do not remove an ejected disc before 15 seconds
have elapsed, the disc will be reloaded and the eject mode
will be canceled. The reloaded disc will not be played.
To eject all the discs 1. Press the eject button for 2 seconds or longer (until you hear a beep).
2. The currently selected disc will be ejected. When you remove the ejected disc, the next disc will automatically
be ejected.
3. Repeat the above-described steps until all of the discs have been ejected. The CD changer will then enter load-
ing standby mode.NOTE
If you do not remove an ejected disc before 15 seconds
have elapsed, the disc will be reloaded and the eject mode
will be canceled. The reloaded disc will not be played.
BK0150700US.book 71 ページ ２０１２年３月２２日　木曜日　午後６時４６分
