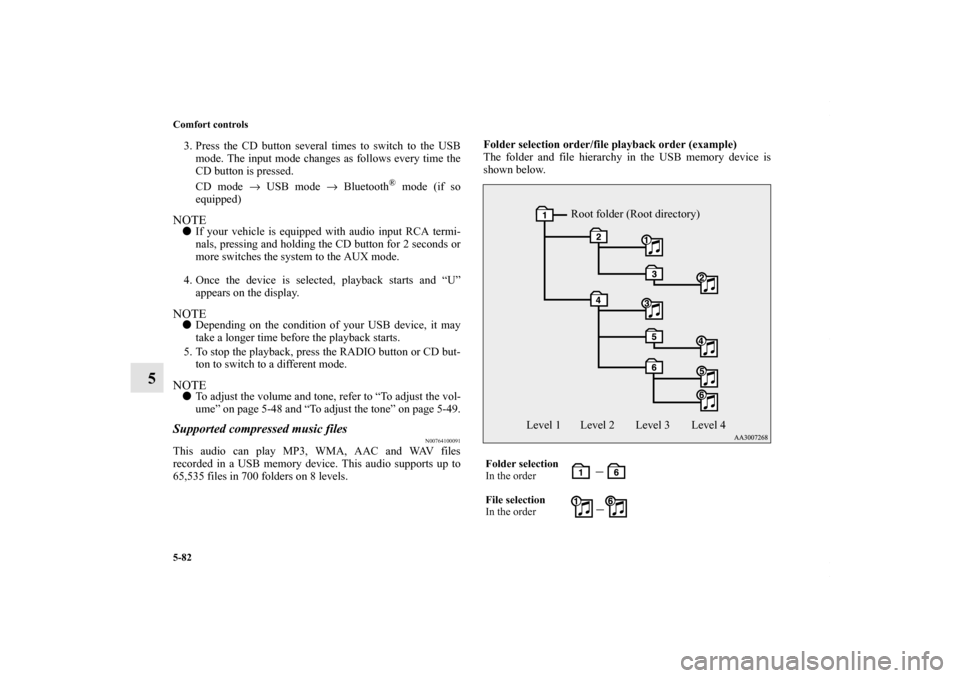

Page 451 of 602
5-82 Comfort controls
5
3. Press the CD button several times to switch to the USBmode. The input mode changes as follows every time the
CD button is pressed.
CD mode → USB mode → Bluetooth
® mode (if so
equipped)
NOTE If your vehicle is equipped with audio input RCA termi-
nals, pressing and holding the CD button for 2 seconds or
more switches the system to the AUX mode.
4. Once the device is selected, playback starts and “U” appears on the display.NOTE Depending on the condition of your USB device, it may
take a longer time before the playback starts.
5. To stop the playback, press the RADIO button or CD but- ton to switch to a different mode.NOTE To adjust the volume and tone, refer to “To adjust the vol-
ume” on page 5-48 and “To adjust the tone” on page 5-49.Supported compressed music files
N00764100091
This audio can play MP3, WMA, AAC and WAV files
recorded in a USB memory device. This audio supports up to
65,535 files in 700 folders on 8 levels. Folder selection order/file playback order (example)
The folder and file hierarchy in the USB memory device is
shown below.
Folder selection
In the order
File selection
In the order
Root folder (Root directory)
Level 1 Level 2 Level 3 Level 4
BK0150700US.book 82 ページ ２０１２年３月２２日 木曜日 午後６時４６分
Page 452 of 602

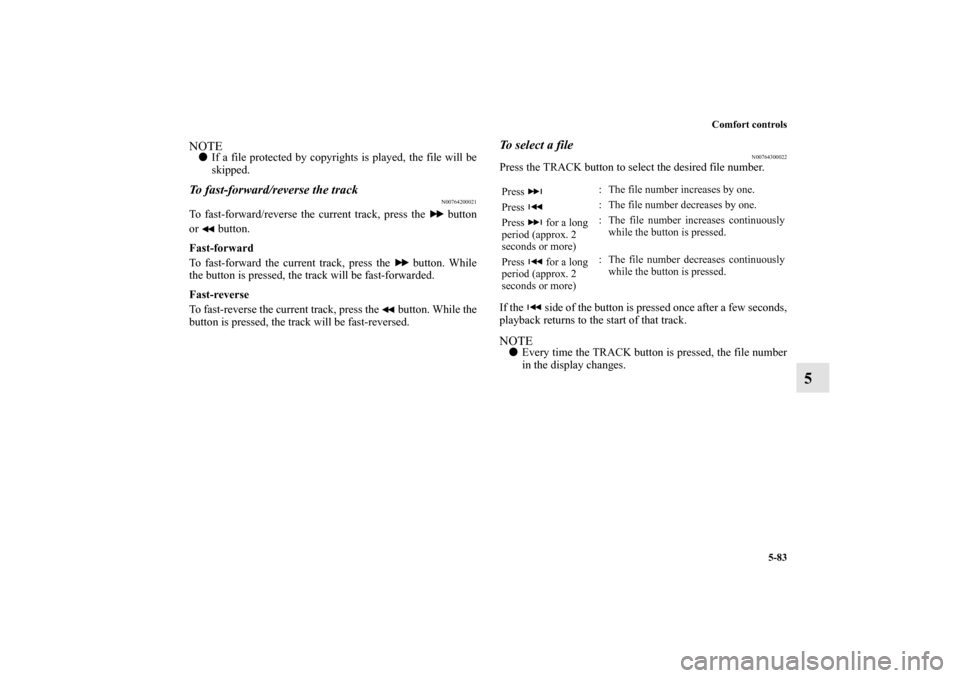

Comfort controls5-83
5
NOTEIf a file protected by copyrights is played, the file will be
skipped.To fast-forward/reverse the track
N00764200021
To fast-forward/reverse the current track, press the button
or button.
Fast-forward
To fast-forward the current track, press the button. While
the button is pressed, the track will be fast-forwarded.
Fast-reverse
To fast-reverse the current track, press the button. While the
button is pressed, the track will be fast-reversed.
To select a file
N00764300022
Press the TRACK button to select the desired file number.
If the side of the button is pressed once after a few seconds,
playback returns to the start of that track.NOTEEvery time the TRACK button is pressed, the file number
in the display changes.Press : The file number increases by one.
Press : The file number decreases by one.
Press for a long
period (approx. 2
seconds or more) : The file number increases continuously
while the button is pressed.
Press for a long
period (approx. 2
seconds or more) : The file number decreases continuously
while the button is pressed.
BK0150700US.book 83 ページ ２０１２年３月２２日 木曜日 午後６時４６分
Page 453 of 602

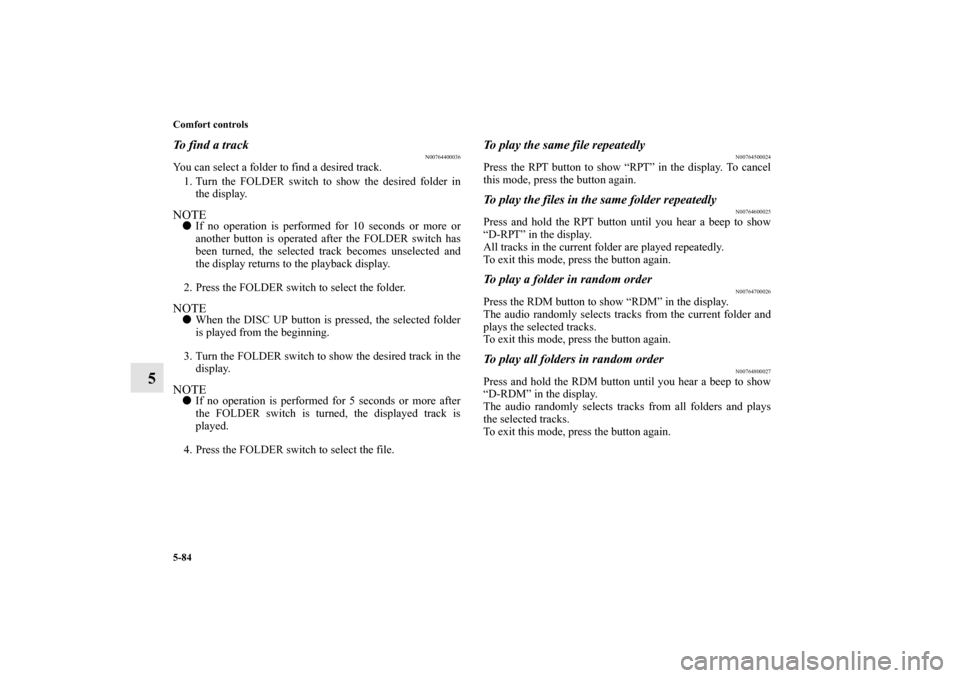

5-84 Comfort controls
5
To f i n d a t r a c k
N00764400036
You can select a folder to find a desired track.1. Turn the FOLDER switch to show the desired folder in the display.NOTE If no operation is performed for 10 seconds or more or
another button is operated after the FOLDER switch has
been turned, the selected track becomes unselected and
the display returns to the playback display.
2. Press the FOLDER switch to select the folder.NOTE When the DISC UP button is pressed, the selected folder
is played from the beginning.
3. Turn the FOLDER switch to show the desired track in the display.NOTE If no operation is performed for 5 seconds or more after
the FOLDER switch is turned, the displayed track is
played.
4. Press the FOLDER switch to select the file.
To play the same file repeatedly
N00764500024
Press the RPT button to show “RPT” in the display. To cancel
this mode, press the button again.To play the files in the same folder repeatedly
N00764600025
Press and hold the RPT button until you hear a beep to show
“D-RPT” in the display.
All tracks in the current folder are played repeatedly.
To exit this mode, press the button again.To play a folder in random order
N00764700026
Press the RDM button to show “RDM” in the display.
The audio randomly selects tracks from the current folder and
plays the selected tracks.
To exit this mode, press the button again.To play all folders in random order
N00764800027
Press and hold the RDM button until you hear a beep to show
“D-RDM” in the display.
The audio randomly selects tracks from all folders and plays
the selected tracks.
To exit this mode, press the button again.
BK0150700US.book 84 ページ ２０１２年３月２２日 木曜日 午後６時４６分
Page 454 of 602

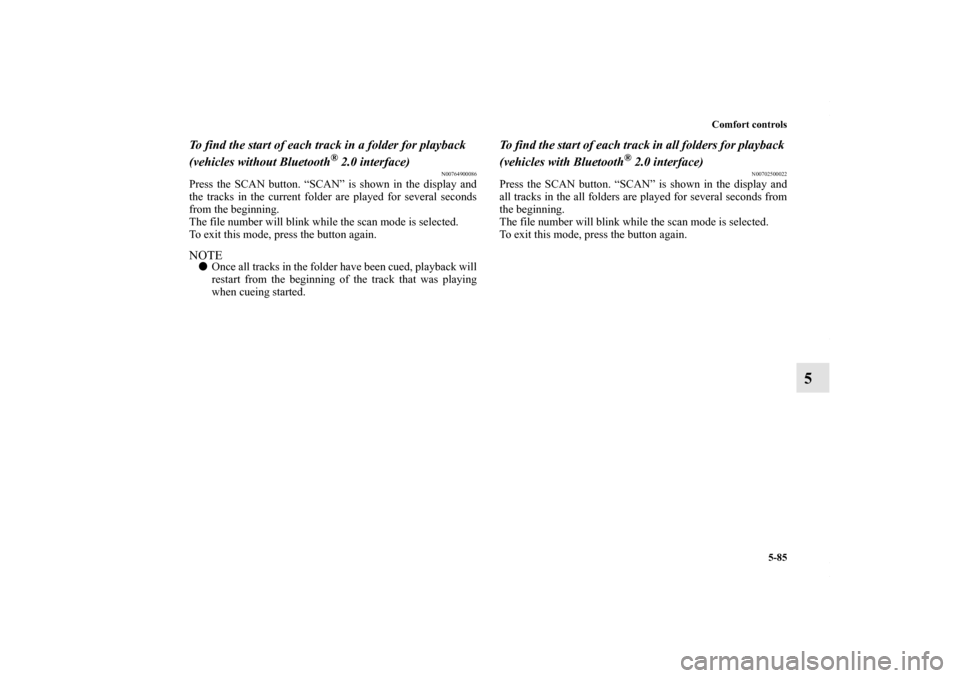

Comfort controls5-85
5
To find the start of each track in a folder for playback
(vehicles without Bluetooth
® 2.0 interface)
N00764900086
Press the SCAN button. “SCAN” is shown in the display and
the tracks in the current folder are played for several seconds
from the beginning.
The file number will blink while the scan mode is selected.
To exit this mode, press the button again.NOTEOnce all tracks in the folder have been cued, playback will
restart from the beginning of the track that was playing
when cueing started.
To find the start of each track in all folders for playback
(vehicles with Bluetooth
® 2.0 interface)
N00702500022
Press the SCAN button. “SCAN” is shown in the display and
all tracks in the all folders are played for several seconds from
the beginning.
The file number will blink while the scan mode is selected.
To exit this mode, press the button again.
BK0150700US.book 85 ページ ２０１２年３月２２日 木曜日 午後６時４６分

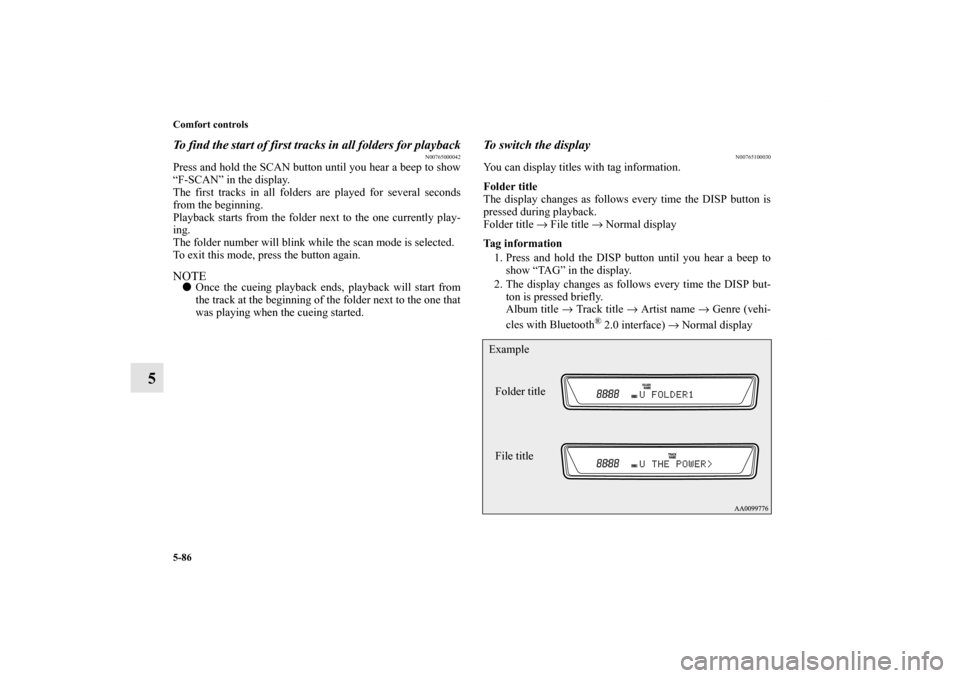

Page 455 of 602
5-86 Comfort controls
5
To find the start of first tracks in all folders for playback
N00765000042
Press and hold the SCAN button until you hear a beep to show
“F-SCAN” in the display.
The first tracks in all folders are played for several seconds
from the beginning.
Playback starts from the folder next to the one currently play-
ing.
The folder number will blink while the scan mode is selected.
To exit this mode, press the button again.NOTEOnce the cueing playback ends, playback will start from
the track at the beginning of the folder next to the one that
was playing when the cueing started.
To switch the display
N00765100030
You can display titles with tag information.
Folder title
The display changes as follows every time the DISP button is
pressed during playback.
Folder title → File title → Normal display
Tag information 1. Press and hold the DISP button until you hear a beep to show “TAG” in the display.
2. The display changes as follows every time the DISP but- ton is pressed briefly.
Album title → Track title → Artist name → Genre (vehi-
cles with Bluetooth
® 2.0 interface) → Normal display
Folder title
File title
Example
BK0150700US.book 86 ページ
２０１２年３月２２日 木曜日 午後６時４６分
Page 456 of 602

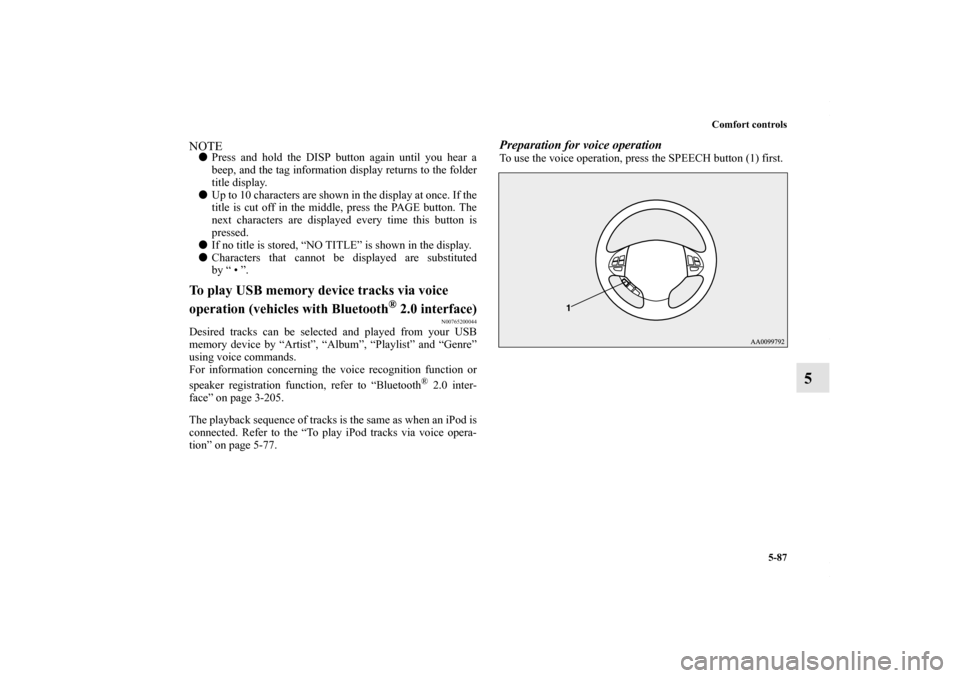

Comfort controls5-87
5
NOTEPress and hold the DISP button again until you hear a
beep, and the tag information display returns to the folder
title display.
Up to 10 characters are shown in the display at once. If the
title is cut off in the middle, press the PAGE button. The
next characters are displayed every time this button is
pressed.
If no title is stored, “NO TITLE” is shown in the display.
Characters that cannot be displayed are substituted
by “ • ”.To play USB memory device tracks via voice
operation (vehicles with Bluetooth
® 2.0 interface)
N00765200044
Desired tracks can be selected and played from your USB
memory device by “Artist”, “Album”, “Playlist” and “Genre”
using voice commands.
For information concerning the voice recognition function or
speaker registration function, refer to “Bluetooth
® 2.0 inter-
face” on page 3-205.
The playback sequence of tracks is the same as when an iPod is
connected. Refer to the “To play iPod tracks via voice opera-
tion” on page 5-77.
Preparation for voice operationTo use the voice operation, press the SPEECH button (1) first.
BK0150700US.book 87 ページ ２０１２年３月２２日 木曜日 午後６時４６分
Page 457 of 602

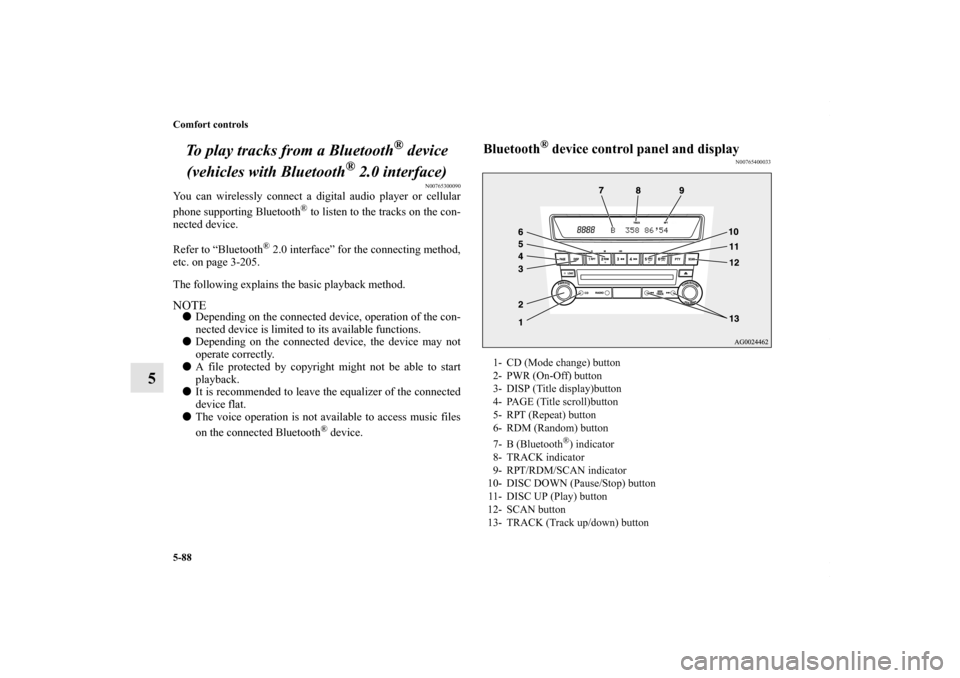

5-88 Comfort controls
5To play tracks from a Bluetooth
® device
(vehicles with Bluetooth
® 2.0 interface)
N00765300090
You can wirelessly connect a digital audio player or cellular
phone supporting Bluetooth
® to listen to the tracks on the con-
nected device.
Refer to “Bluetooth
® 2.0 interface” for the connecting method,
etc. on page 3-205.
The following explains the basic playback method.
NOTE Depending on the connected device, operation of the con-
nected device is limited to its available functions.
Depending on the connected device, the device may not
operate correctly.
A file protected by copyright might not be able to start
playback.
It is recommended to leave the equalizer of the connected
device flat.
The voice operation is not available to access music files
on the connected Bluetooth
® device.
Bluetooth
® device control panel and display
N00765400033
1- CD (Mode change) button
2- PWR (On-Off) button
3- DISP (Title display)button
4- PAGE (Title scroll)button
5- RPT (Repeat) button
6- RDM (Random) button
7- B (Bluetooth
®) indicator
8- TRACK indicator
9- RPT/RDM/SCAN indicator
10- DISC DOWN (Pause/Stop) button
11- DISC UP (Play) button
12- SCAN button
13- TRACK (Track up/down) button
BK0150700US.book 88 ページ ２０１２年３月２２日 木曜日 午後６時４６分
Page 458 of 602

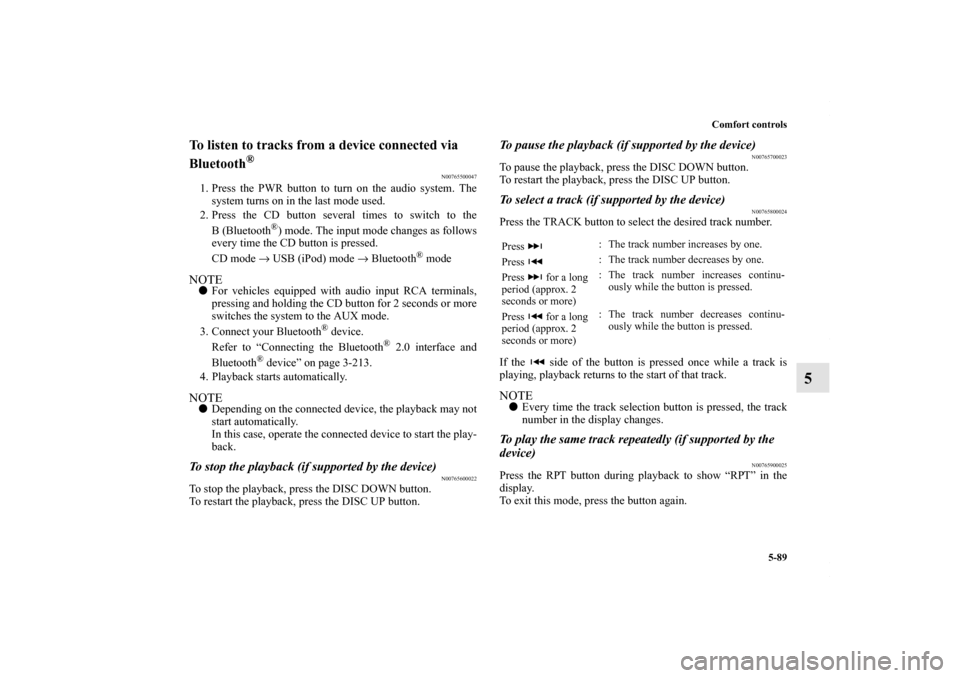

Comfort controls5-89
5
To listen to tracks from a device connected via
Bluetooth
®
N00765500047
1. Press the PWR button to turn on the audio system. Thesystem turns on in the last mode used.
2. Press the CD button several times to switch to the
B (Bluetooth
®) mode. The input mode changes as follows
every time the CD button is pressed.
CD mode → USB (iPod) mode → Bluetooth
® mode
NOTE For vehicles equipped with audio input RCA terminals,
pressing and holding the CD button for 2 seconds or more
switches the system to the AUX mode.
3. Connect your Bluetooth
® device.
Refer to “Connecting the Bluetooth
® 2.0 interface and
Bluetooth
® device” on page 3-213.
4. Playback starts automatically.
NOTE Depending on the connected device, the playback may not
start automatically.
In this case, operate the connected device to start the play-
back.To stop the playback (if supported by the device)
N00765600022
To stop the playback, press the DISC DOWN button.
To restart the playback, press the DISC UP button.
To pause the playback (if supported by the device)
N00765700023
To pause the playback, press the DISC DOWN button.
To restart the playback, press the DISC UP button.To select a track (if supported by the device)
N00765800024
Press the TRACK button to select the desired track number.
If the side of the button is pressed once while a track is
playing, playback returns to the start of that track.NOTEEvery time the track selection button is pressed, the track
number in the display changes.To play the same track repeatedly (if supported by the
device)
N00765900025
Press the RPT button during playback to show “RPT” in the
display.
To exit this mode, press the button again.Press : The track number increases by one.
Press : The track number decreases by one.
Press for a long
period (approx. 2
seconds or more) : The track number increases continu-
ously while the button is pressed.
Press for a long
period (approx. 2
seconds or more) : The track number decreases continu-
ously while the button is pressed.
BK0150700US.book 89 ページ ２０１２年３月２２日 木曜日 午後６時４６分
Page 459 of 602

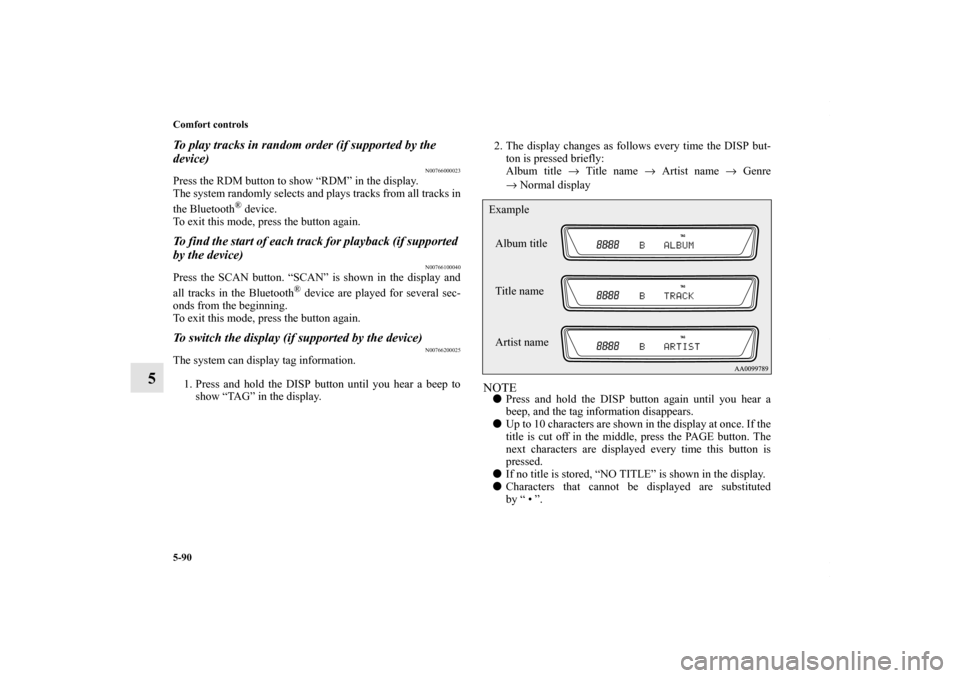

5-90 Comfort controls
5
To play tracks in random order (if supported by the
device)
N00766000023
Press the RDM button to show “RDM” in the display.
The system randomly selects and plays tracks from all tracks in
the Bluetooth
® device.
To exit this mode, press the button again.
To find the start of each track for playback (if supported
by the device)
N00766100040
Press the SCAN button. “SCAN” is shown in the display and
all tracks in the Bluetooth
® device are played for several sec-
onds from the beginning.
To exit this mode, press the button again.
To switch the display (if supported by the device)
N00766200025
The system can display tag information.
1. Press and hold the DISP button until you hear a beep to show “TAG” in the display. 2. The display changes as follows every time the DISP but-
ton is pressed briefly:
Album title → Title name → Artist name → Genre
→ Normal display
NOTEPress and hold the DISP button again until you hear a
beep, and the tag information disappears.
Up to 10 characters are shown in the display at once. If the
title is cut off in the middle, press the PAGE button. The
next characters are displayed every time this button is
pressed.
If no title is stored, “NO TITLE” is shown in the display.
Characters that cannot be displayed are substituted
by “ • ”.Album title
Title name
Example
Artist name
BK0150700US.book 90 ページ ２０１２年３月２２日 木曜日 午後６時４６分
Page 460 of 602

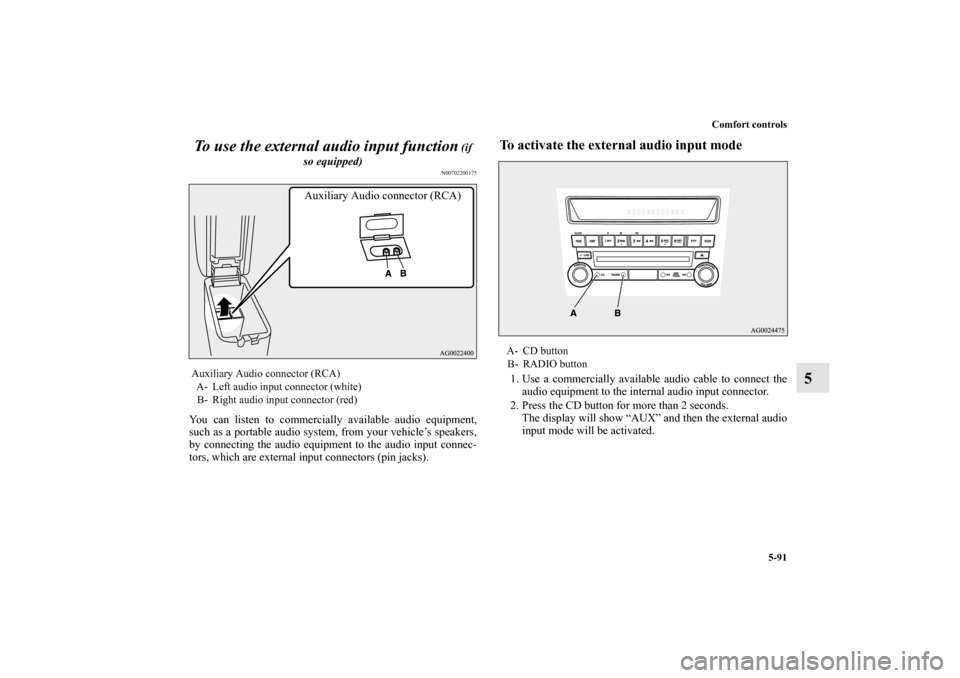

Comfort controls5-91
5
To use the external audio input function
(if
so equipped)
N00702200175
You can listen to commercially available audio equipment,
such as a portable audio system, from your vehicle’s speakers,
by connecting the audio equipment to the audio input connec-
tors, which are external input connectors (pin jacks).
To activate the external audio input mode1. Use a commercially available audio cable to connect the audio equipment to the internal audio input connector.
2. Press the CD button for more than 2 seconds. The display will show “AUX” and then the external audio
input mode will be activated.
Auxiliary Audio connector (RCA)
A- Left audio input connector (white)B- Right audio input connector (red)
Auxiliary Audio connector (RCA)
A- CD buttonB- RADIO button
BK0150700US.book 91 ページ ２０１２年３月２２日 木曜日 午後６時４６分
