Fuses 9-26 Vehicle care and maintenance
9
* : Fusible link  Some fuses may not be installed on your vehicle, depending on the vehicle model or specifications.  The table above shows the main equip- ment corresponding to each fuse.
4 Windshield wiper 30 A 5 Optional 10 A 6 Door locks 20 A 7 Radio 15 A8 Control unit relay 7.5 A 9
Interior lights (Dome lights)
15 A
10
Hazard warning
flasher
15 A
11 Rear window wiper 15 A 12 Gauges 7.5 A 13
Cigarette lighter /Accessory socket
15 A
14
Ignition Switch
10 A
15 Sunroof 20 A16
Outside rearview
mirrors
10 A
17
All-wheel drive sys-
tem
10 A
18 Back-up lights 7.5 A 19 Accessory socket 15 ANo.
Sym- bol
Electrical system
Capac-ity
20
Power window con-
trol
30 A
*
21 Defogger 30 A
*
22 Heated door mirror 7.5 A 23
Passenger’s power
seat
25 (20) A
24 Driver’s power seat
25 (20) A
25 Heated seats 30 ANo.
Sym- bol
Electrical system
Capac-ity

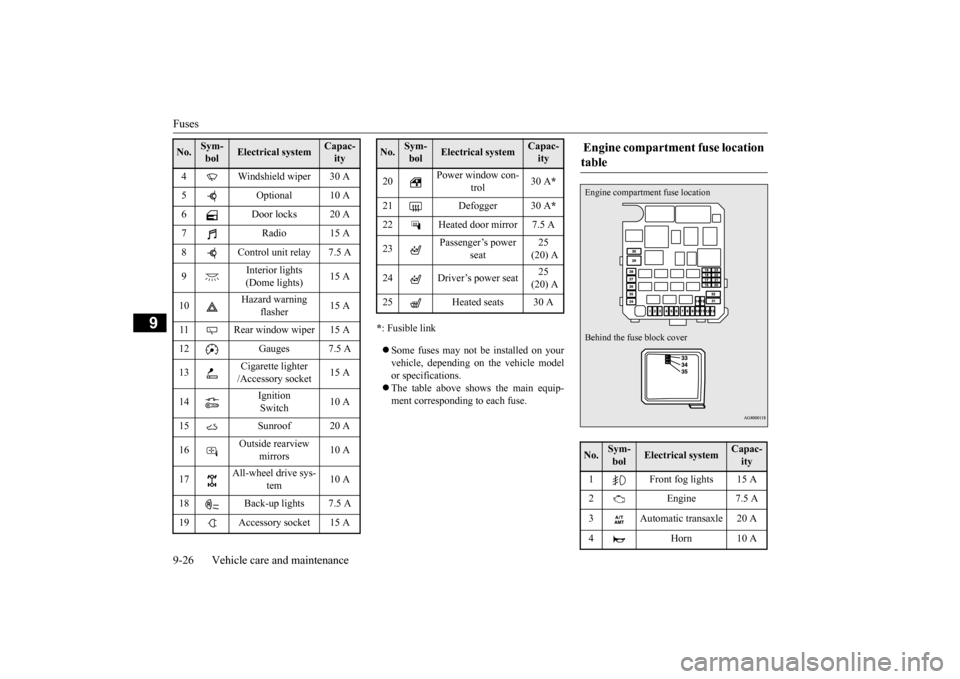

Engine compartment fuse location table No.
Sym- bol
Electrical system
Capac-ity
1 Front fog lights 15 A 2 Engine 7.5 A 3 Automatic transaxle 20 A 4 Horn 10 AEngine compartment fuse location Behind the fuse block cover
BK0202700US.bo
ok 26 ページ ２０１３年３月２８日　木曜日　午前１１時５４分

Fuses
Vehicle care and maintenance 9-27
9
* : Fusible link  Some fuses may not be installed on your vehicle, depending on the vehicle modelor specifications.  The table above shows the main equip- ment corresponding to each fuse.
There are no 7.5 A, 25 A or 30 A spare fuses. If a fuse of one of these capacities blows,replace it temporarily by borrowing one of the fuses indicated below. 7.5 A: 10 A spare fuse25 A: 20 A spare fuse 30 A: 30 A audio amplifier fuse
5 Alternator 7.5 A 6 Headlight washer 20 A 7 Air conditioning 10 A 8
ETV/Oil cooler fan (Twin Clutch SST)
15 A
9 Security horn 20 A 10 Wiper deicer 15 A 11 — — — 12 Power gate 30 A 13
Daytime running
lights
10 A
14
Headlight
(high beam) (left)
10 A
15
Headlight
(high beam) (right)
10 A
16
Head- light (low beam) (left)
Dis- charge
20 A
No.
Sym- bol
Electrical system
Capac-ity
17
Head- light (low beam) (right)
Dis- charge
20 A
18
Head- light (low beam) (left)
Halogen 10 A
19
Head- light (low beam) (right)
Halogen 10 A
20 ENG/POWER 10 A 21 Ignition coil 10 A 22
ENG/POWER 20 A Fuel line heater 25 A
23 Fuel pump 15 A 24 Starter 30 A
*
25 — — — 26
Anti-lock braking
system
40 A
*
No.
Sym- bol
Electrical system
Capac-ity
27
Anti-lock braking
system
30 A
*
28
Air conditioning condenser fan motor
30 A
*
29 Radiator fan 40 A
*
30 IOD IOD 30 A31 Audio amplifier 30 A 32 Diesel 30 A 33 — Spare fuse 10 A 34 — Spare fuse 15 A35 — Spare fuse 20 ANo.
Sym- bol
Electrical system
Capac-ity
BK0202700US.bo
ok 27 ページ ２０１３年３月２８日　木曜日　午前１１時５４分

Fuses 9-28 Vehicle care and maintenance
9
Replace the borrowed fuse with a fuse that has the correct capacity as soon as possible.
N00954900128
1. Before replacing a fuse, always turn offthe electrical item concerned to the fuseand turn the ignition switch to the “OFF”position or put the operation mode in OFF.
2. There is a fuse remover (A) in the engine compartment fuse block. 3. Clamp it on the fuse you wish to remove, and pull the fuse straight out from the fuse block.
4. Use the fuse location diagrams and the matching tables, to check the fuse that is related to the problem. If the fuse is not blown, something else must be causingthe problem. Have the system inspected by your authorized Mitsubishi Motors dealer or a repair facility of your choice. 5. Insert a new fuse of the same capacity securely into the appropriate slot.
Identification of fuse Capacity
Color
7.5 A Brown10 A Red15 A Blue20 A Yellow25 A Natural (white) 30 A
Green (fuse type) /Pink (fusible
link type)
40 A Green (fusible link type)

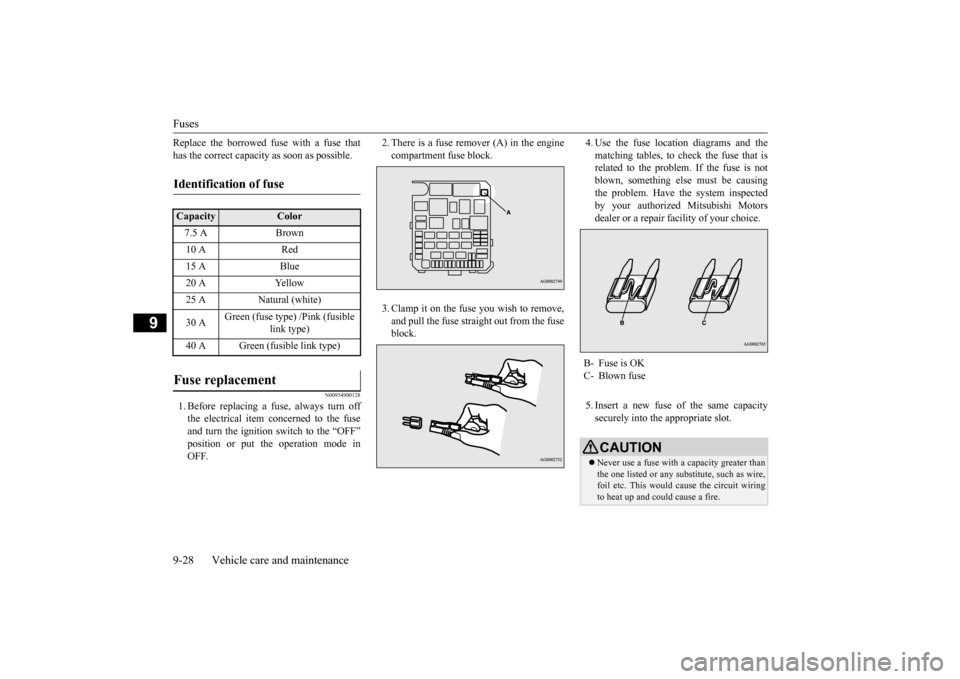

Fuse replacement
B- Fuse is OK C- Blown fuse
CAUTION Never use a fuse with a capacity greater than the one listed or any substitute, such as wire,foil etc. This would cause the circuit wiring to heat up and could cause a fire.
BK0202700US.bo
ok 28 ページ ２０１３年３月２８日　木曜日　午前１１時５４分

Replacement of light bulbs
Vehicle care and maintenance 9-29
9
N00942900310
Before replacing the bulb, be sure the light is
off. Do not touch the glass part of the new
bulb with your bare fingers; the oil from your
skin will stay on the glass and dim or destroy
the bulb when it gets hot.
N00943000132
The bulb should only be replaced with a new
bulb with the same rating and type. The type
and rating are listed on the base of the bulb.
N00950301899
 If the replacement fuse blows again after a
short time, have the electrical system
checked by an authorized Mitsubishi Motors
dealer or a repair faci lity of your choice to
find and correct the cause.Replacement of light bulbs
CAUTION Bulbs are extremely hot immediately after
being turned off.
When replacing the bulb, wait for it to cool
sufficiently before touching it. You could
otherwise be burned.
NOTE
If you are unsure of how to carry out the
work as required, it is recommended that
these procedures be carried out by an autho-
rized Mitsubishi Motors dealer or a repair
facility of your choice.
 Be careful not to scratch the vehicle body
when removing a light and lens.CAUTION
When it rains, or when the vehicle has been
washed, the inside of the lens sometimes
becomes temporarily foggy. This is the same
phenomenon as when window glass mists up
on a humid day, and does not indicate a func-
tional problem.
When the light is switched on, the heat will
remove the fog. However, if water gathers
inside the light, please have it checked by an
authorized Mitsubishi Motors dealer or a
repair facility of your choice.Bulb capacity Outside
NOTE
Front
Description
Watt-
age
ANSI
Tr a d e
No. or Bulb type
1 Front turn signal light 21 W WY21W
2 Headlight, high beam 60 W HB3
3 Daytime running light / Front fog light
(Type 1)
Front fog light 35 W H8
Daytime run-
ning light 13 W P13W
Front fog light (Type 2) Front fog light 55 W H11
4 Headlight, low beam
Halogen bulb 55 W H11
Discharge bulb 35 W —
5 Front side-marker and
parking light 5 W WY5W
6 Side turn signal light 5 W —
BK0202700US.bo ok 29 ページ ２０１３年４月４日　木曜日　午後６時８分

Replacement of light bulbs 9-30 Vehicle care and maintenance
9
N00950401669
WA R N I N G Check with an authorized Mitsubishi Motors dealer or a repair facility of your choice when it is necessary to repair a high intensity discharge headlight or to replace the bulb.The power circuit, bulb and electrodes generate high voltages that may cause a severe shock.NOTE
 It is not possible to re
pair or replace only the
bulb for the side turn signal light. Check with an authorized Mitsubishi Motorsdealer or a repair facility of your choice when the light needs to be repaired or replaced.
Item
Wattage
ANSI trade No. or bulb type
7 High-mounted
stop light
——
8
License plate light
5 W W5W
9 Back-up light 16 W W16W 10
Rear turn signal light
21 W W21W
11
Rear side- marker light, and tail and stop light
——
Rear
NOTE
 The rear side-marker light, the tail and stop light and the high-mounted stop light use an LED instead of the bulb. Check with an authorized Mitsubishi Motors dealer or repair facility of your choice when eitherlight needs to be repaired or replaced.
Compartment
Item
Wattage
1
Dome light (rear) (if so equipped)
8 W
2
Vanity mirror lights (if so equipped)
3 W
3
Dome light (front)/Reading light
8 W
4 Cargo room light 5 W
BK0202700US.bo
ok 30 ページ ２０１３年３月２８日　木曜日　午前１１時５４分

Replacement of light bulbs
Vehicle care and maintenance 9-31
9
N00901801144
1. Turn the cap (A) counterclockwise to remove it.
2. Turn the bulb (B) counterclockwise to remove it. 3. While holding down the tab (C), pull out the socket (D). 4. To install the bulb, perform the removal steps in reverse.
5 Glove compartment light 1.4 WHeadlights (low beam, except for vehicles equipped with high intensity discharge headlights) * - Front of the vehicle
Item
Wattage
*- Front of the vehicle
CAUTIONHandle halogen light bulb with care. The gas inside a halogen light bulb is highly pressur- ized, so dropping, knocking, or scratching a halogen light bulb can cause it to shatter. Never hold the halogen light bulb with a bare hand, dirty glove, etc. The oil from your hand could cause the bulbto break the next time the headlights are used. If the glass surface is dirty, clean it withalcohol and let it dry completely before installing the bulb.
BK0202700US.bo
ok 31 ページ ２０１３年３月２８日　木曜日　午前１１時５４分

Replacement of light bulbs 9-32 Vehicle care and maintenance
9
N00901901103
1. Turn the cap (A) counterclockwise to remove it. 2. Turn the bulb (B) counterclockwise to remove it.
3. While holding down the tab (C), pull out the socket (D). 4. To install the bulb, perform the removal steps in reverse.
N00900300099
Do not attempt to disassemble or repair head-lights, and do not attempt to replace their bulbs.
Headlights (high beam) * - Front of the vehicle * - Front of the vehicle
CAUTIONHandle halogen light bulb with care. The gas inside a halogen light bulb is highly pressur- ized, so dropping, knocking, or scratching a halogen light bulb can cause it to shatter.
 Never hold the halogen light bulb with a bare hand, dirty glove, etc. The oil from your hand could cause the bulb to break the next time the headlights are used.If the glass surface is dirty, clean it with alcohol and let it dry completely before installing the bulb.
Headlights (low beam, for vehi- cles equipped with high inten- sity discharge headlights)
CAUTION
BK0202700US.bo
ok 32 ページ ２０１３年３月２８日　木曜日　午前１１時５４分

Replacement of light bulbs
Vehicle care and maintenance 9-33
9
N00943200121
The alignment of the headlights should be checked by an authorized Mitsubishi Motorsdealer or a repair facility of your choice.
N00917300479
1. Turn the socket (A) counterclockwise toremove it. 2. Pull the bulb out of the socket.
3. To install the bulb, perform the removal steps in reverse.
N00943400367
1. Remove the upper cover.For information regarding how to removethe upper cover, refer to “Removing andinstalling the upper cover and duct” on page 9-9. 2. Turn the socket (A) counterclockwise toremove it.
WA R N I N G A high voltage is present in the power cir- cuit and in the bulbs and bulb terminals. To avoid the risk of an electric shock, con- tact an authorized Mitsubishi dealer whenever repair or replacement is neces-sary.
Adjustment of headlight aim
Front side-marker and parking lights * - Front of the vehicle
Front turn signal lights To r e m o v e * - Front of the vehicle
BK0202700US.bo
ok 33 ページ ２０１３年３月２８日　木曜日　午前１１時５４分

Replacement of light bulbs 9-34 Vehicle care and maintenance
9
3. Pull the bulb out of the socket. 1. To install the bulb, perform the removal steps in reverse. 2. Install the upper cover. For information regarding how to installthe upper cover, refer to “Removing andinstalling the upper cover and duct” on page 9-9.
N00943500137
N00943601803
1. Insert a straight blade (or minus) screw- driver with a cloth over its tip info thelight cover (A) and pry gently to remove it. 2. Remove the screws (B) and remove the light unit.
3. While holding down
the tab (D), pull out
the socket (E).
To installSide turn signal lights
NOTE
 It is not possible to re
pair or replace only the
bulb for the side turn signal light. Check with an authorized Mitsubishi Motors dealer or a repair facility of your choicewhen the light needs to be repaired or replaced.
Front fog lights
(if so equipped)
NOTE
 Except for vehicles equipped with daytime running lights, when unfastening the screws, be careful not to move the beam position adjustment screw (C).
BK0202700US.bo
ok 34 ページ ２０１３年３月２８日　木曜日　午前１１時５４分

Replacement of light bulbs
Vehicle care and maintenance 9-35
9
4. Turn the bulb (F) counterclockwise to remove it. 5. To install the bulb, perform the removal steps in reverse.
N00902000061
1. Insert a straight blade (or minus) screw-driver with a cloth over its tip info the light cover (A) and pry gently to remove it. 2. Remove the screws (B) and remove the light unit.
CAUTION Handle halogen light bulb with care. The gas inside a halogen light bulb is highly pressur-ized, so dropping, knocking, or scratching a halogen light bulb can cause it to shatter.
 Never hold the halogen light bulb with a bare hand, dirty glove, etc. The oil from your hand could cause the bulb to break the next time the fog lights are used. If the glass surface is dirty, clean it withalcohol and let it dry completely before installing the bulb.CAUTION
Daytime running lights
(if so
equipped)
BK0202700US.bo
