Free-hand Advanced Security Transmitt
er (F.A.S.T.-key) (if so equipped)
Features and controls 5-19
5
 A door or the liftgate cannot be locked even when the driver’s or front passen- ger’s door lock/unlock switch, or the lift- gate LOCK switch is pressed.
N00559801183
When the operation mode in any mode other than OFF, if the door(s) are opened, the F.A.S.T.-key is removed from the passengercompartment, and then th
e door(s) are closed,
the warning display is displayed and the buzzer sounds 4 times as a warning since it’simpossible to verify the ID codes of the F.A.S.T.-key and vehicle.
N00559900116
When the operation mode is in OFF, theF.A.S.T.-key is left in the passenger compart- ment, all the doors and th
e liftgate are closed,
and someone tries to lock the vehicle by pressing the driver’s or front passenger’s door lock/unlock switch, or the liftgateLOCK switch, the warning display is dis- played and the buzzer
sounds for about 3 sec-
onds as a warning, and the doors and theliftgate cannot be locked.
Someone may be carrying a F.A.S.T.-key with a different ID code, or the F.A.S.T.-key may not be within the operat- ing range Refer to “F.A.S.T.-key take-out monitoring system” on page 5-19. The battery of the F.A.S.T.-key is run down Refer to “Key lock-in preven- tion system” on page 5-19. Refer to “Door ajar prevention system” on page 5-20. Refer to “Operation mode OFF reminder system” on page 5-20.
F.A.S.T.-key take-out monitoring system

NOTE
 The F.A.S.T.-key take-out monitoring system does not function if the F.A.S.T.-key is removed through a window without opening a door.This setting can be changed. See an authorized Mitsubishi Motors dealer for details.
 The warning may display even if the F.A.S.T.-key is in the operating range for starting the engine and changing the opera- tion mode. The surrounding environment or electromagnetic waves may make it impossi-ble to verify the ID codes of the F.A.S.T.-key and vehicle.
Key lock-in prevention system

NOTE
BK0229600US.bo
ok 19 ページ ２０１５年１０月１日　木曜日　午後２時２９分

Free-hand Advanced Security Transmitte
r (F.A.S.T.-key) (if so equipped)
5-20 Features and controls
5
N00560000117
When the operation mode is in OFF, and someone tries to lock the vehicle by pressingthe driver’s or front passenger’s door lock/unlock switch, or the liftgate LOCK switch while one of the doors or the liftgate isnot fully closed, the warning display is dis- played and the buzzer
sounds for about 3 sec-
onds as a warning, and the doors and theliftgate cannot be locked.
N00560100118
When the operation mode is in any modeother than OFF, all the doors and the liftgateare closed, and someone tries to lock the vehicle by pressing the driver’s or front pas- senger’s door lock/unlock switch, or the lift-
gate LOCK switch, the warning display is displayed and the buzzer sounds for about 3 seconds as a warning, and the doors and the liftgate cannot be locked.
N00514601360
 The operation mode can be in any mode to start the engine.  The starter motor will be turning for up to approximately 15 seconds if the engine switch is released at once. Pressing the engine switch again while the startermotor is still turning will stop the starter motor. The starter motor will be turning for up to approximately 30 seconds whilethe engine switch is pressed. If the engine does not start, wait for a while and then attempt to start the engineagain. Trying repeatedly with the starter motor still turning will damage the starter mechanism. If the engine will not start because the bat- tery is weak or discharged, refer to “Jump-starting the engine” on page 8-2for instructions.  A longer warm up period will only con- sume extra fuel.
The engine is warmed up enough for driv- ing when the bar graph of engine coolant temperature display starts to move. Refer to “Interrupt display screen (With ignitionswitch or operation mode in ON)” on page 5-95.
Your vehicle is equipped with an electroni- cally controlled fuel injection system. This isa system that automatically controls fuel injection. There is usually no need to depress the accelerator pedal when starting theengine.
Door ajar prevention system

Operation mode OFF reminder system

Starting and stopping the engine

Tips for starting

WA R N I N G Never run the engine in a closed or poorly ventilated area any longer than is needed to move your vehicle out of the area. Car- bon monoxide gas, which is odorless andextremely poisonous, could build up and cause serious injury or death.CAUTION Do not push-start the vehicle.Do not run the engine
at high rpms or drive
at high speeds until the engine has had achance to warm up.
Starting the engine

BK0229600US.bo
ok 20 ページ ２０１５年１０月１日　木曜日　午後２時２９分

Free-hand Advanced Security Transmitt
er (F.A.S.T.-key) (if so equipped)
Features and controls 5-21
5
To prevent battery drain, wait a few seconds between attempts to restart the engine. 1. Make sure all occupants are properly seated with seat belts fastened. 2. Make sure the parking brake is applied.3. Press and hold the brake pedal down firmly with your right foot. 4. Press and hold the clutch pedal all the way down (manual transaxle). 5. On vehicles equipped with manual trans- axle, place the gearshift lever in the “N”(Neutral) position. On vehicles equipped with continuously variable transmission (CVT), make surethe selector lever is in the “P” (PARK) position.
6. Press the engine switch. 7. Confirm that all warning lights and warn- ing displays are functioning properly.
After several attempts, you may experience that the engine still does not start. 1. Make sure that all electric devices, such as lights, air conditioning blower and rear window defogger, are turned off.
2. While depressing the brake pedal {contin- uously variable transmission (CVT)} or the clutch pedal (manual transaxle), press the accelerator pedal halfway and hold itthere, then crank the engine. Release the accelerator pedal, immediately after the engine starts.3. If the engine still will not start, the engine could be flooded with too much gasoline. While depressing the brake pedal (CVT)or the clutch pedal (manual transaxle),push the accelerator pedal all the way down and hold it there, then press the engine switch to crank the engine. If theengine does not start after 5 to 6 seconds, push the engine switch to stop cranking the engine, and release the acceleratorpedal. Put the operation mode in OFF. Wait a few seconds, and then press the engine switch to crank the engine againwhile depressing the brake pedal (CVT) or the clutch pedal (manual transaxle), but do not push the accelerator pedal. If theengine fails to start, repeat these proce- dures. If the engine still will not start, con- tact your local Mitsubishi Motors dealeror a repair facility of your choice for assistance.
Startability of continuously variable trans- mission (CVT) vehicles with an ambienttemperature of
-22 °F (-30 °C) or lower
NOTE
After the engine has not started for a while, the brake pedal effort needed to start the engine may become greater. If this occurs,depress the brake pedal more firmly than usual.
NOTE
 On vehicles equipped with continuously variable transmission (CVT), the engine can only be started when the selector lever is in the “P” (PARK) or “N” (NEUTRAL) posi- tion.For safety reasons, the engine should be started when the selector lever is in the “P” (PARK) position in which the driving wheelslock.NOTE
 Minor noises may be heard on engine start- up. These will disappear as the engine warmsup.
When the engine is hard to start
BK0229600US.bo
ok 21 ページ ２０１５年１０月１日　木曜日　午後２時２９分

Free-hand Advanced Security Transmitte
r (F.A.S.T.-key) (if so equipped)
5-22 Features and controls
5
When the ambient temperature is -22 °F (-30 °C) or lower, it may not be possible to start from a standstill even with the selector lever in the “D” (DRIVE) or “R” (REVERSE)position. This phenomenon occurs because the trans- axle has not warmed up sufficiently; it doesnot indicate a problem. If this occurs, place the selector lever in the “P” (PARK) position and let the engine idle for at least 10 minutes.The transaxle will warm up, and you will beable to start normally. Do not leave the vehicle during warm-up operation.
N00568200014
1. Stop the vehicle. 2. Fully engage the parking brake while depressing the brake pedal.3. On vehicles with a manual transaxle, press the engine switch to stop the engine, and then move the gearshift lever to the1st (on a uphill) or
“R” (Reverse) (on a
downhill) position. On vehicles equipped with continuouslyvariable transmission (CVT), move the selector lever to the “P” (PARK) position, and then press the engine switch to stopthe engine.
N00568301067
Insert the F.A.S.T.-key into the key slot in theglove box. Starting the engine and changing the operation mode should be now possible. Remove the F.A.S.T.-key from the key slotafter starting the engine or changing the oper- ation mode.
Stopping the engine

WA R N I N G Do not operate the engine switch while driving except in an emergency. If theengine is stopped while
driving, the brake
servomechanism will cease to function and braking efficiency will deteriorate. Also,the power steering system will not func- tion and it will require greater manual effort to operate the steering. This could result in a serious accident.
NOTE
 If you have to bring the engine to an emer- gency stop while driving, press and hold the engine switch for 3 seco
nds or more, or press
it quickly 3 times or more. The engine will stop and the operation mode will go to ACC.  On vehicles equipped with continuously variable transmission (CVT), do not stop theengine with the selector lever in any position other than the “P” (PARK) position. If the engine is stopped with the selector lever inany position other than
the “P” (PARK) posi-
tion, the operation mode will go to ACC rather than OFF.Put the operation mode in OFF after placing the selector lever in the “P” (PARK) posi- tion.
If the F.A.S.T.-key is not operat- ing properly

NOTE
 Do not insert into the key slot anything other than the F.A.S.T.-key. This could cause dam-age or a malfunction.  Remove the object or additional key from the F.A.S.T.-key before inserting the key into the key slot. The vehicle may not be able to receive the registered ID code from the regis-tered key. Therefore, the engine may not start and the operation mode may not change.
BK0229600US.bo
ok 22 ページ ２０１５年１０月１日　木曜日　午後２時２９分

Free-hand Advanced Security Transmitt
er (F.A.S.T.-key) (if so equipped)
Features and controls 5-23
5
If the operation mode is in OFF and the driver’s door is opened with the F.A.S.T.-key in the key slot, a warning is issued with thewarning display and the buzzer buzzing for approximately 3 seconds to remind you to remove the key.
N00514800017 N00515200106
The emergency key is built into the F.A.S.T.- key.When the F.A.S.T.-key cannot be used, such as when the battery of the F.A.S.T.-key or the
vehicle has run down, the emergency key can be used to lock and unlock the driver’s door. To use the emergency key (A), unlock the lock knob (B) and remove it from the F.A.S.T.-key (C). Turn the emergency key toward the front of the vehicle to lock the door. After checkingthat the door is locked, turn the emergency key back to the center and remove it.
N00529600055
The electronic immobilizer is designed to sig- nificantly reduce the possibility of vehicletheft. The purpose of the system is to immo- bilize the vehicle if an invalid start is attempted. A valid start attempt can only beachieved (subject to certain conditions) using a F.A.S.T.-Key “registered” to the immobi- lizer system.All of the keys provided with your new vehi- cle have been programmed to the vehicle’s electronics.
 The F.A.S.T.-key is fixed in the key slot when inserted in the illustrated direction. Simply pull out the key to remove it from the key slot.
F.A.S.T.-key reminder

To operate without using the F. A . S . T. - k e y

Emergency key

NOTE
NOTE
 Only use the emergency key in an emer- gency. When the battery of the F.A.S.T.-key has run down, replace the battery as soon aspossible and use it as a F.A.S.T.-key again.  After using the emergency key, be sure to reinsert it into the F.A.S.T.-key.
Locking and unlocking the driver’s door
1- Insert or remove the emergency key 2- Lock3- UnlockElectronic immobilizer (Anti- theft starting system)

BK0229600US.bo
ok 23 ページ ２０１５年１０月１日　木曜日　午後２時２９分

Free-hand Advanced Security Transmitte
r (F.A.S.T.-key) (if so equipped)
5-24 Features and controls
5
N00561000042
Only the F.A.S.T.-keys that have been pro- grammed to the vehicle’s electronics can beused to start the vehicle. If you lose the F.A.S.T.-key, you can order a F.A.S.T.-key from your authorized Mitsubishi Motors dealer by referring to the key number.To prevent vehicle theft, take your vehicle and the remaining F.A.S.T.-keys to an autho- rized Mitsubishi Motors dealer to have the IDcodes reprogrammed.
N00561100014
To add a F.A.S.T.-key, you must already have2 registered F.A.S.T.-keys. You need to regis-ter the ID code to the vehicle. Registering the ID code can be done by your authorized Mitsubishi Motors dealer. Or itcan be done by yourself (except for vehicles sold in Canada). For you to register the ID code yourself, fol-low the “Customer F.A.S.T.-key program- ming” procedure below. If you choose to have your authorizedMitsubishi Motors dealer register the ID code, take your vehicle and all remaining F.A.S.T.-keys to your authorized MitsubishiMotors dealer.
N00561201184
You can program new F.A.S.T.-keys to the system if you have two valid (already regis- tered) F.A.S.T.-keys and blank (not regis-tered) F.A.S.T.-key. For F.A.S.T.-key programming, follow the procedures below. 1. Open the driver’s door. 2. While carrying the first valid F.A.S.T.- key, put the operation mode in ON. (Per-form the following procedure within 30 seconds.)
3. Insert the new F.A.S.T.-key into the key slot. 4. With the first valid F.A.S.T.-key, press and hold the UNLOCK button for 4 to 10 seconds and then press and hold the LOCK button during this time.5. Within 10 seconds of pressing the LOCKbutton in step 4, release the LOCK button first, and then release the UNLOCK but- ton. (Perform the following procedurewithin 30 seconds.) 6. With the second valid F.A.S.T.-key, press and hold the UNLOCK button for 4 to 10seconds and then press and hold the LOCK button during this time. 7. Within 10 seconds of pressing the LOCKbutton in step 6, release the LOCK button first, and then release the UNLOCK but- ton. The immobilizer display on the infor-mation screen in the multi-information display will blink.
Replacement F.A.S.T.-keys

Additional F.A.S.T.-keys

NOTE
 You are provided with 2 F.A.S.T.-keys, but you may register up to 4 F.A.S.T.-keys. You can obtain blank F.A.S.T.-keys specially cut for your vehicle from your Mitsubishi Motors dealer.
Customer F.A.S.T.-key program- ming (Except for vehicles sold in Canada)

NOTE
 Keep the driver’s door open until F.A.S.T.- key programming is finished. Do not open or close other doors.
BK0229600US.bo
ok 24 ページ ２０１５年１０月１日　木曜日　午後２時２９分

Free-hand Advanced Security Transmitt
er (F.A.S.T.-key) (if so equipped)
Features and controls 5-25
5
When registration of ID code is complete, the buzzer will sound 3 times and the immobilizer display will come on for 30 seconds.If an error occurs, F.A.S.T.-key program-ming will be terminated and the buzzer will sound for 3 seconds. 8. If you wish to register another F.A.S.T.- key, repeat the process from step 1 after the operation mode is put in OFF.
N00515501252
Press the remote control transmitter buttonsto lock or unlock the doors and the liftgate.It can also help you signal for attention bysetting off the panic alarm.
Press the LOCK button (1) to lock all the doors and the liftgate. The turn signal lights will also blink once. Press the UNLOCK button (2) to unlock the driver’s door only.To unlock all doors and the liftgate, press the UNLOCK button two times within a 2 second time period.
NOTE
 F.A.S.T.-key programming will be termi- nated if the operation mode is put in OFF before the immobilizer display starts blink- ing.NOTE
 The immobilizer display will go off immedi- ately if the operation mode is put in OFF.  Perform the operation when the interrupt dis- play screen is not showing. The interrupt dis- play screen may prevent you from seeing the immobilizer display.
 It is not possible to register a F.A.S.T.-key if the immobilizer display goes off during the procedure.
Keyless entry system

1-
LOCK ( ) button
2-
UNLOCK ( ) button
3- PANIC button 4- Operation indicator light
NOTE
NOTE
 On vehicles equipped with the mirror retrac- tor switch, the outside rearview mirrors will automatically retract or extend when the doors and the liftgate are locked or unlocked using the remote control transmitter buttons.Refer to “Features and controls: Outside rearview mirrors” on page 5-44.
To l o c k

NOTE
 On vehicles equipped with the mirror retrac- tor switch, the outside rearview mirrors will automatically retract when the LOCK button(1) is pressed.  If you press the LOCK
button (1) twice, the
horn will sound once.
To u n l o c k

BK0229600US.bo
ok 25 ページ ２０１５年１０月１日　木曜日　午後２時２９分

Free-hand Advanced Security Transmitte
r (F.A.S.T.-key) (if so equipped)
5-26 Features and controls
5
The dome light will turn on for 30 seconds. The turn signal lights will also blink twice. The front side-marker and parking lights will also turn on for about 30 seconds. Refer to“Welcome light” on page 5-127. The horn and turn signal lights of the keyless entry system answerback function can be changed as required. The answerback function can be set in the following three ways.
1. Put the operation mode in OFF. 2. Open the driver’s door and turn the com- bination headlights and dimmer switch tothe “OFF” position. 3. Press and hold the LOCK button (1) for 4 to 10 seconds and then press and hold theUNLOCK button (2) during this time.4. Within 10 seconds of pressing the UNLOCK button in step 3, release the UNLOCK button first, and then releasethe LOCK button.
The answerback function from the turn signal lights can be turned ON or OFF separately. 1. Put the operation mode in OFF. 2. Open the driver’s door and turn the com- bination headlights and dimmer switch to the “OFF” position.3. Press and hold the UNLOCK button (2) for 4 to 10 seconds and then press and hold the LOCK button (1) during thistime.
4. Within 10 seconds of pressing the LOCK button in step 3, release the UNLOCK button first, and then release the LOCK button.
The buzzer answerback function can be turned ON or OFF as required.
N00544601109
The door and liftgate unlock function can be set to the following two conditions. Each time the door and liftgate unlock func-tion is set, a chime will sound to tell you the
NOTE
 On vehicles equipped with the mirror retrac- tor switch, the outside rearview mirrors will automatically extend when the UNLOCKbutton (2) is pressed.  The door and liftgate unlock function can be set so that all doors and the liftgate unlock when the UNLOCK button (2) is pressed once.Refer to “Setting the door and liftgate unlock function” on page 5-26.
Answerback function

Horn deactivation/reactivation One chime:
The horn will not sound.
Tw o chimes:
The horn will sound.
Four chimes:
The horn will sound if the LOCK button is pressed twice within 1 sec- ond.
Turn signal light deactivation/reactiva- tion
Number of chimes
To l o c k
To u n l o c k
One chime One flash Two flashes Two chimes One flash No flashThree chimes No flash Two flashesFour chimes Two flashes One flashFive chimes No flash One flashSix chimes Two flashes No flashSeven chimes
No flash No flash
Buzzer deactivation/reactivationSetting the door and liftgate unlock function

BK0229600US.bo
ok 26 ページ ２０１５年１０月１日　木曜日　午後２時２９分

Free-hand Advanced Security Transmitt
er (F.A.S.T.-key) (if so equipped)
Features and controls 5-27
5
condition of the door and liftgate unlock function. 1. Put the operation mode in OFF. 2. Open the driver’s door and turn the com- bination headlights and dimmer switch to the “OFF” position.3. Press and hold the LOCK button (1) for 4to 10 seconds and then press and hold the UNLOCK button (2) during this time. 4. Within 10 seconds of pressing theUNLOCK button in step 3, release the LOCK button first, and then release the UNLOCK button.
N00544701083
If you are near your vehicle and feel threat-ened, you can activate the alarm to call atten-tion as follows: 1. Press the PANIC button (3) for more than 1 second.
2. The headlights will blink on and off and the horn will sound intermittently for about 3 minutes. 3. To turn off the alarm, press any button onthe remote control transmitter.
N00562001088
Number of chimes
Condition
One chime
All doors and the liftgate unlock
Tw o chimes
Driver’s door unlock only
Using the panic alarm

NOTE
 The indicator light (4) comes on each time a button is pressed.  The F.A.S.T.-key can be used from about 40 feet (12 m) away. However, this distance may change if your vehicle is near a TVtransmitting tower, a power station, or a radio station.  If the UNLOCK button (2) is pressed when all doors and the liftgate are locked and no doors or the liftgate are opened within about30 seconds, the doors and the liftgate will automatically re-lock.  If the following conditions are observed after pressing the LOCK (1) or UNLOCK (2) but- ton on the remote control transmitter, thebuttery in the F.A.S.T.-key may need to be replaced. • The doors and the liftgate cannot be locked or unlocked. • The panic alarm cannot be operated. • The indicator light (4) is dim or does not come on.
 If you lose your F.A.S.T.-key, please contact an authorized Mitsubishi Motors dealer for a replacement.
 If you wish to obtain
an additional F.A.S.T.-
key, please contact an authorized Mitsubishi Motors dealer. A maximum of four F.A.S.T.- key can be programmed for your vehicle.  To use the new remote control transmitters, it is necessary to register the key with the electronic immobilizer and keyless entry sys-tem. Refer to “Electronic immobilizer (Anti-theft starting system): Customer F.A.S.T.-key pro-gramming” on page 5-24.
General information

Your F.A.S.T.-key operates on a radio fre- quency subject to Federal Communications Commission (FCC) Rules (For vehicles sold in U.S.A.) and Industry Canada Rules (Forvehicles sold in Canada). This device com- plies with part 15 of FCC Rules and Industry Canada licence-exempt RSS standard(s).Operation is subject to the following two con- ditions. •This device may not cause harmful inter-ference. •This device must accept any interference received, including interference that maycause undesired operation.NOTE
BK0229600US.bo
ok 27 ページ ２０１５年１０月１日　木曜日　午後２時２９分

Door locks 5-28 Features and controls
5
N00562100066
1. Before replacing the battery, remove static electricity from your body by touching a metal grounded object. 2. With the Mitsubishi mark facing you,insert the cloth-cov-ered tip of a flat blade screwdriver into the notch in the case and use it to open the case.
3. Remove the old battery. 4. Install a new battery with the + side (A) up. 5. Close the case firmly. 6. Check the keyless entry system to see that it works.
N00509200488
CAUTION Changes or modifications not expressly approved by the manufacturer for compli- ance could void the user’s authority to oper- ate the equipment.

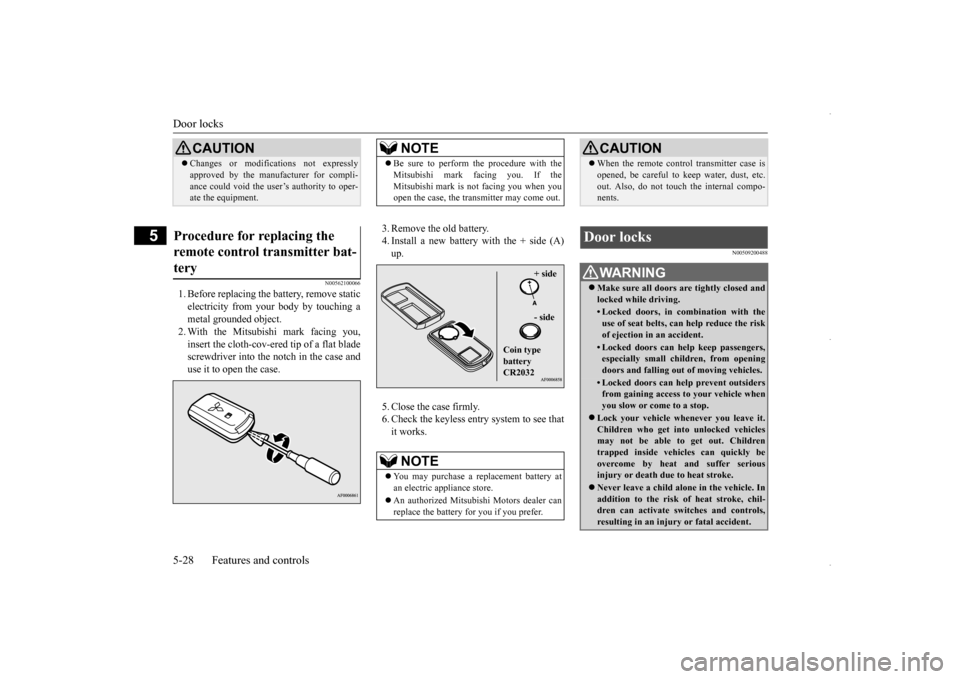

Procedure for replacing the remote control transmitter bat-tery

NOTE
 Be sure to perform the procedure with the Mitsubishi mark facing you. If the Mitsubishi mark is not facing you when you open the case, the transmitter may come out.NOTE
 You may purchase a replacement battery at an electric appliance store.  An authorized Mitsubishi Motors dealer can replace the battery for you if you prefer.
+ side - side
Coin type battery CR2032
CAUTION When the remote control transmitter case is opened, be careful to keep water, dust, etc. out. Also, do not touch the internal compo- nents.
Door locks
WA R N I N G Make sure all doors are tightly closed and locked while driving.• Locked doors, in combination with theuse of seat belts, can help reduce the risk of ejection in an accident.• Locked doors can help keep passengers,especially small children, from opening doors and falling out of moving vehicles.• Locked doors can help prevent outsidersfrom gaining access to your vehicle whenyou slow or come to a stop.
 Lock your vehicle whenever you leave it. Children who get into unlocked vehicles may not be able to get out. Children trapped inside vehicles can quickly be overcome by heat and suffer serious injury or death due to heat stroke. Never leave a child alone in the vehicle. In addition to the risk of heat stroke, chil-dren can activate switches and controls, resulting in an injury or fatal accident.
