Multi-information display 5-88 Features and controls
5
N00555400113
Each time you lightly press the multi-infor- mation meter switch, the display screenswitches. Odometer/trip odometer
 Odome-
ter/trip odometer
 Service reminder

Redisplay of a warning display screen

Odometer/trip odometer . Shows the total distance traveled. Shows the distance traveled between two points. To return the display to 0, hold down the multi-information meter switch for about 2
seconds or more. Only the currently dis- played value will be reset. Example If trip odometer is displayed, only tripodometer will be reset.
1-
Odometer (Type1)/Trip odometer
2-
Odometer (Type1)/Trip odometer
3- Service reminder4- Redisplay of a warning display screenType 1 Type 2
When there is no warning display When there is a warning display When there is no warning display When there is a warning display
Odometer/Trip odometer Odometer Trip odometer Usage examples for trip odometer , trip odometer
It is possible to measure two currently traveled distances, from home using trip odometer and from a particular pointon the way using trip odometer . To reset the trip odometer
Ty p e 1 Ty p e 2
BK0239500US.bo
ok 88 ページ ２０１６年５月１３日　金曜日　午前８時５３分

Multi-information display
Features and controls 5-89
5
N00555500042
Shows the distance and number of months until the next periodic inspection. Refer to “Service reminder” on page 5-97.
N00559600201
When there is information to be announced, such as a key reminder, the buzzer sounds andswitches to the warning display screen. Refer
to the appropriate page and take the necessary measures. When the cause of the warning display is eliminated, the warning display goes outautomatically. Refer to “Warning display list (With ignition switch or operation mode in OFF)” on page5-107. Even if the cause of the warning display is not eliminated, you can return to the screen that was displayed before the warning dis- play.If you press the multi-information meter switch, the display screen switches to the
screen display from before the warning and the warning (A) is displayed. When the warning is displayed, if you lightly press the multi-information meter
NOTE
 If there is no warning display, the switching sequence is: odometer/trip odometer

odometer/trip odometer
 service
reminder
 odometer/trip odometer .
 Both trip odometers and can count up to 9999.9 miles/kilometers. When a trip odometer goes past 9999.9 miles/kilometers, it returns to 0.0 miles/kilo-meters.  When disconnecting the battery terminal, the memories of trip odometer displays and
are cleared, and their displays return to
“0.0 miles/kilometers”.
Service reminder Interrupt display screen (With ignition switch or operation mode in OFF)

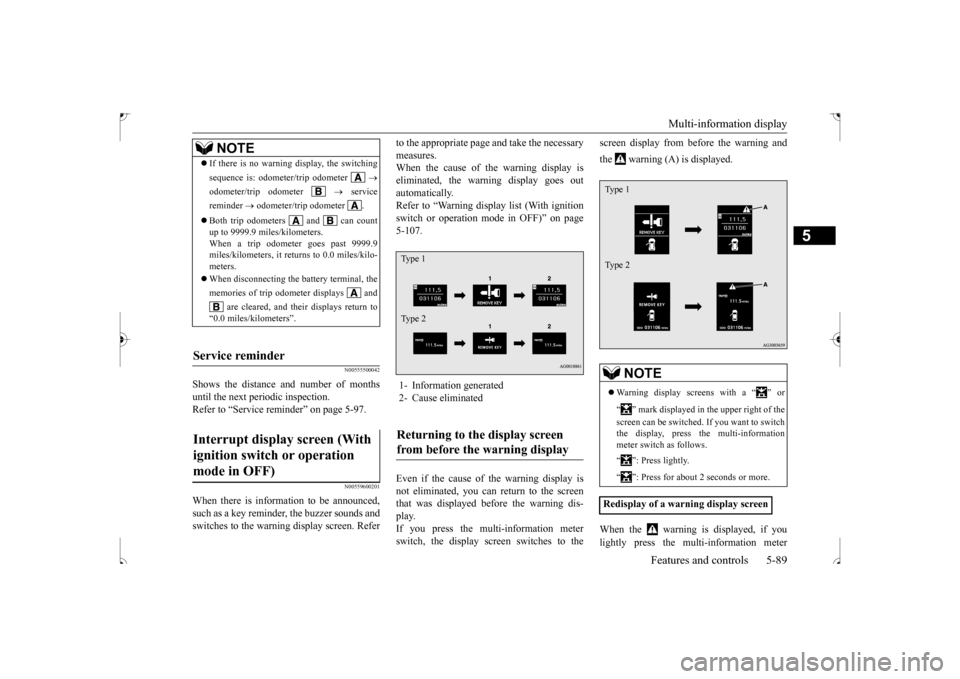

1- Information generated 2- Cause eliminatedReturning to the display screen from before the warning display Ty p e 1 Ty p e 2
NOTE
 Warning display screens with a “ ” or “ ” mark displayed in the upper right of the screen can be switched. If you want to switch the display, press the multi-information meter switch as follows. “ ”: Press lightly. “ ”: Press for about 2 seconds or more.
Redisplay of a warning display screenType 1 Type 2
BK0239500US.bo
ok 89 ページ ２０１６年５月１３日　金曜日　午前８時５３分

Multi-information display 5-90 Features and controls
5
switch a few times, the warning display screen you switched from is redisplayed. Refer to “Information screen (With ignition switch or operation mode in OFF)” on page5-87.
N00559700156
If any of the doors or the liftgate is not com- pletely closed, this displays the open door or liftgate.
N00555800191
When the ignition switch is turned to the“ON” position or the operation mode changed to ON, the display screen switches in the fol- lowing order.
When the ignition switch is turned to the “ON” position or the operation mode ischanged to ON, the system check screen is displayed for about 4 seconds. If there in no fault, the information screen is displayed.If there is a fault, the screen changes to warn- ing display. Refer to “Warning display list (With ignitionswitch or operation mode in ON)” on page5-110.
Door ajar warning display screen (With ignition switch or operation mode in OFF) 1- Doors and liftgate are closed 2- Doors or liftgate is openTy p e 1 Ty p e 2
Information screen (With the ignition switch is turned from the “OFF” position to the “ON” position or the operation mode is changed from OFF to ON) 1- Screen when the ignition switch or oper-
ation mode is OFF)
2- System check screen3- Screen when the ignition switch or oper-
ation mode is ON)Ty p e 1 Ty p e 2
System check screen
NOTE
 The system check screen display varies depending on your equipment.
Type 1 Type 2
BK0239500US.bo
ok 90 ページ ２０１６年５月１３日　金曜日　午前８時５３分

Multi-information display
Features and controls 5-91
5
When the time for periodic inspection arrives, the warning display is displayed for a fewseconds after the screen
that is initially dis-
played when the ignition switch is turned “ON” or the operation mode is changed toON. Refer to “Service reminder” on page 5-97. Type 1 Type 2
N00555900020
Shows the 4WD drive status. Refer to “Drive mode-selector” on page 5-58.
N00555200182
This is displayed when you press the multi- information meter switch and switch the warning display screen.This mark is also displayed if there is another warning other than the one displayed. When the cause of the warning display is eliminated, the warning goes out automat- ically.
N00556100117
This is displayed when the Active stability control (ASC) is turned “OFF” with the“ASC OFF” switch. Also, if an abnormal condition is occurred in the ASC while driving, the “ASC OFF” dis-play illuminates.Refer to “ASC OFF switch” on page 5-71.
N00556201245
Each time you lightly press the multi-infor-mation meter switch, the display screenswitches in the following order.
Service reminder Drive mode indicator display screen
(if so equipped)
Warning display screen (With ignition switch or opera- tion mode in ON)
NOTE
 When the warning is displayed, the warn- ing display screen can be redisplayed on the information screen. Refer to “Information screen (With ignition switch or operation mode in OFF)” on page5-87. Refer to “Information screen (With ignition switch or operation mode in ON)” on page 5-91.
“Active stability control (ASC) OFF” display screen
(if so
equipped)Information screen (With igni- tion switch or operation mode in ON)
BK0239500US.bo
ok 91 ページ ２０１６年５月１３日　金曜日　午前８時５３分

Multi-information display 5-92 Features and controls
5
The operation method is the same as when the ignition switch or the operation mode is in OFF.For further details, refer to “Odometer/Trip odometer” on page 5-88. Shows the distance and number of months until the next periodic inspection. Refer to “Service reminder” on page 5-97. Shows the engine coolant temperature. If the coolant becomes hot, “ ” will blink. Pay careful attention to the engine coolant temperature display while you are driving.
Type 1
When there is no warning display
When there is a warning display
Type 2
When there is no warning display
When there is a warning display
1-
Odometer (Type1)/Trip odometer
2-
Odometer (Type1)/Trip odometer
3- Service reminder 4-
Engine coolant temperature display (Type 1)
5- Driving range display (Type 1)6- Average speed display, average fuel
consumption display, momentary fuel consumption display (Type 1)
7- Driving range display, momentary fuel
consumption display (Type 2)
8- Average fuel consumption display,
momentary fuel consumption display(Type 2)
9- Average speed display, momentary fuel
consumption display (Type 2)
10- Function setting screen 11- Redisplay of a warning display screen
NOTE
 While driving, the function setting screen is not displayed even if you operate the multi- information meter switch. Always park the vehicle in a safe place before operating. Refer to “Changing the function settings(With ignition switch or operation mode in ON)” on page 5-99.
 When there is information to be announced, such as a system fault, the tone sounds and the screen display is switched. Refer to “Interrupt display screen (With igni- tion switch or operation mode in ON)” onpage 5-95.
Odometer/Trip odometer Service reminder Engine coolant temperature dis- play
NOTE
BK0239500US.bo
ok 92 ページ ２０１６年５月１３日　金曜日　午前８時５３分

Multi-information display
Features and controls 5-93
5
Shows the approximate driving range (how many more miles or kilometers you candrive). When this driving range falls below 30 miles (50 km), “---” is displayed. Refuel as soon as possible.
This displays the average speed from the last reset to the present.There are 2 types of mode settings as follows. For details on how to change the average speed display setting, refer to “Changing thefunction settings (With ignition switch or operation mode in ON)” on page 5-99.  When the average speed is being dis- played, if you hold down the multi-infor-mation meter switch, these calculations will be reset to zero.  When the following operation is per- formed, the mode setting changes auto- matically from manual to auto. [Except for vehicles equipped with the F. A . S . T. - k e y ]Turn the ignition switch to the “ON” posi- tion from the “ACC” or “OFF” position.
[For vehicles equipped with the F.A.S.T.- key] Change the operation mode to ON from ACC or OFF.  When the average speed is being dis- played, if you hold down the multi-infor- mation meter switch, these calculations will be reset to zero. When the engine switch or the operation mode is in the following conditions, the average speed display will automatically reset. [Except for vehicles equipped with the F. A . S . T. - k e y ] The ignition switch has been set to the “ACC” or “OFF” position for about 4hours or more. [For vehicles equipped with the F.A.S.T.- key] The operation mode has been set to ACCor OFF for about 4 hours or more.
CAUTION If the engine is overheating, “ ” will blink. In this case, the bar graph is on the red zone. Immediately park the vehicle in a safe place and take the required measures. Refer to“Engine overheating” on page 8-4.
Driving range display
NOTE
 The driving range is determined based on the fuel consumption data. This may vary depending on the driving conditions and hab-its. Treat the distance displayed as just a rough guideline.  When you refuel, the driving range display is updated. However, if you only add a small amount of fuel, the correct value will not be displayed. Fill to a full tank whenever possible.  When your vehicle is stopped on an extremely steep hill, the driving range valuemay, change. This is due to the movement of fuel in the tank and does not indicate any breakdown.
 The display setting can be changed to the preferred units (miles or km). Refer to “Changing the function settings (With ignition switch or operation mode in ON)” on page 5-99.
Average speed display Manual reset mode
NOTE
Auto reset mode
NOTE
 The average speed display and the average fuel consumption display can be reset sepa- rately in both auto reset mode and manualreset mode.
BK0239500US.bo
ok 93 ページ ２０１６年５月１３日　金曜日　午前８時５３分

Multi-information display 5-94 Features and controls
5
This displays the average fuel consumption from the last reset to the present. There are 2 types of mode settings as follows. For details on how to change the average fuelconsumption display setting, refer to “Chang- ing the function settings (With ignition switch or operation mode in ON)” on page 5-99. The “ ” mark in the momentary fuel gauge shows the average fuel consumption. (Type 2)
 When the average fuel consumption is being displayed, if you hold down the multi-information meter switch, these cal- culations will be reset to zero. When the following operation is per- formed, the mode setting changes auto- matically from manual to auto. [Except for vehicles equipped with the F.A.S.T.-key] Turn the ignition switch to the “ON” posi- tion from the “ACC” or “OFF” position. [For vehicles equipped with the F.A.S.T.- key]Change the operation mode to ON from ACC or OFF.  When the average fuel consumption is being displayed, if you hold down themulti-information meter switch, these cal- culations will be reset to zero.  When the engine switch or the operation mode is in the following conditions, the average fuel consumption display will automatically reset. [Except for vehicles equipped with the F.A.S.T.-key]
The ignition switch has been set to the “ACC” or “OFF” position for about 4 hours or more. [For vehicles equipped with the F.A.S.T.- key]The operation mode has been set to ACC or OFF for about 4 hours or more.
 “---” is displayed when the average speed cannot be measured.  The initial (default) setting is “Auto reset mode”.  The display setting can be changed to the preferred units (mph or km/h).Refer to “Changing the function settings (With ignition switch or operation mode in ON)” on page 5-99.  Disconnecting the battery cable will erase from memory the manual reset mode or autoreset mode setting for the average speed dis- play.
Average fuel consumption display
NOTE
Manual reset mode Auto reset mode
NOTE
 The average speed display and the average fuel consumption display can be reset sepa- rately in both auto reset mode and manual reset mode.  “---” is displayed when the average fuel con- sumption cannot be measured.  The initial (default) setting is “Auto reset mode”.  Average fuel consumption may vary depend on the driving conditions (road conditions,how you drive, etc.) The actual fuel con- sumption may differ from the fuel consump- tion displayed, so treat the fuel consumptiondisplayed as just a rough guideline.  Disconnecting the battery cable will erase from memory the manual reset mode or auto reset mode setting for the average fuel con- sumption display.  The display setting can be changed to the preferred units {mpg(US), mpg(UK), L/100km or km/L}. Refer to “Changing the function settings(With ignition switch or operation mode in ON)” on page 5-99.
BK0239500US.bo
ok 94 ページ ２０１６年５月１３日　金曜日　午前８時５３分

Multi-information display
Features and controls 5-95
5
While driving, the momentary fuel consump- tion is shown with a bar graph. When the momentary fuel consumption sur-passes the average fuel consumption, the momentary fuel consumption is displayed with a green bar graph. (Type 2)Be conscious of maintaining the momentaryfuel consumption above the average fuel con- sumption, it can help you drive with the better fuel consumption.
The “Display language”, “Temperature unit”, “Fuel consumption unit”, and “Average fuelconsumption and speed reset method” set- tings can be modified as desired. For further details, refer to “Changing thefunction settings (With ignition switch or operation mode in ON)” on page 5-99.
N00556300180
When there is information to be announced, such as a system fault, a tone sounds and theinformation screen is switched to the warning display screen. Refer to the warning list and take the neces-sary measures. Refer to “Warning display list (With ignition switch or operation mode in ON)” on page 5-110.When the cause of the warning display is eliminated, the warning display goes out automatically.
Even if the cause of the warning display is not eliminated, you can return to the screen that was displayed before the warning dis-play. If you press the multi-information meter switch, the display screen switches to the screen display from before the warning and the warning (A) is displayed.
Momentary fuel consumption dis- play
NOTE
 When the momentary fuel consumption can- not be measured, a bar graph is not shown.  The display setting can be changed to the preferred units {mpg(US), mpg(UK), L/100km or km/L}.Refer to “Changing the function settings (With ignition switch or operation mode in ON)” on page 5-99.  It is possible to cancel the green bar graph. Refer to “Changing the function settings (With ignition switch or operation mode in ON)” on page 5-99.
Function setting screen Interrupt display screen (With ignition switch or operation mode in ON) Warning display
Returning to the display screen from before the warning displayType 1 Type 2
BK0239500US.bo
ok 95 ページ ２０１６年５月１３日　金曜日　午前８時５３分

Multi-information display 5-96 Features and controls
5
When the warning is displayed, if you lightly press the multi-information meter switch a few times, the warning displayscreen you switched from is redisplayed. The operation status of each system is dis- played on the information screen. For further details, refer to the appropriate page in the warning display list.Refer to “Other interrupt displays” on page 5-117.
N00556400064
Shows the position of the selector lever.Refer to “Selector lever operation” on page 5-51.
N00556500065
Shows the temperature outside the vehicle.
N00568700019
This indicator will be displayed when fuel- efficient driving is achieved.
N00556600170
Shows the amount of fuel remaining.
NOTE
 Warning display screens with a “ ” or “ ” mark displayed in the upper right of the screen can be switched. If you want to switch the display, press the multi-information meter switch as follows. “ ”: Press lightly. “ ”: Press for about 2 seconds or more.
Redisplay of a warning display screen Other interrupt displays
Selector lever position display screen
(if so equipped)
Outside temperature display screen
NOTE
 The display setting can be changed to the preferred units (°F or °C).Refer to “Changing the function settings (With ignition switch or operation mode in ON)” on page 5-99.  Depending on factors such as the driving conditions, the displayed temperature mayvary from the actual outside temperature.
ECO mode indicator
(if so
equipped)
Fuel remaining display screen
CAUTION Running out of gas could damage the cata- lytic converter. If the warning displayappears, refuel as soon as possible.NOTE
 It may take several seconds to stabilize the display after refilling the tank.  If fuel is added with the ignition switch or operation mode in ON, the remaining fueldisplay may incorrectly indicate the fuel level.Type 1 Type 2
BK0239500US.bo
ok 96 ページ ２０１６年５月１３日　金曜日　午前８時５３分

Multi-information display
Features and controls 5-97
5
The arrow (A) indicates that the fuel tank filler door is located on the left side of thevehicle. (Refer to “Filling the fuel tank” on page 3-3.) When the fuel level runs low, the information screen switches to the interrupt display of the fuel remaining warning display and the mark (B) on the fuel remaining display flashes. Ifthe warning display appears, refuel as soon as possible.
N00556700214
Displays the approximate time until the nextrecommended periodic inspection. “---” is displayed when the inspection time hasarrived.
1. Shows the time until the next periodic inspection. 2. This informs you that a periodic inspec- tion is due. Contact an authorized Mitsubishi Motors dealer or a repair facil- ity of your choice to have the systemchecked. At that time, when the ignition switch is switched from the “OFF” position to the“ON” position or the operation mode is changed from OFF to ON, the warning display is displayed for a few seconds onthe information screen. Ty p e 1 Ty p e 2
Fuel tank filler door mark Fuel remaining warning display Type 1 Type 2
NOTE
 On hills or curves, the display may be incor- rect due to the movement of fuel in the tank.
Service reminder
NOTE
 The service reminder time can be modified by an authorized Mitsubishi Motors dealer, to adjust for severe usage, etc. Refer to“Severe maintenance schedule” in your vehi- cle’s Warranty and Maintenance Manual. For further information, please contact yourauthorized Mitsubishi Motors dealer.Type 1 Type 2
NOTE
 Shows the distance in units of 100 miles (100 km) and the time in units of 1 month.
BK0239500US.bo
