MITSUBISHI OUTLANDER XL 2010 Owners Manual

3-220 Features and controls
3

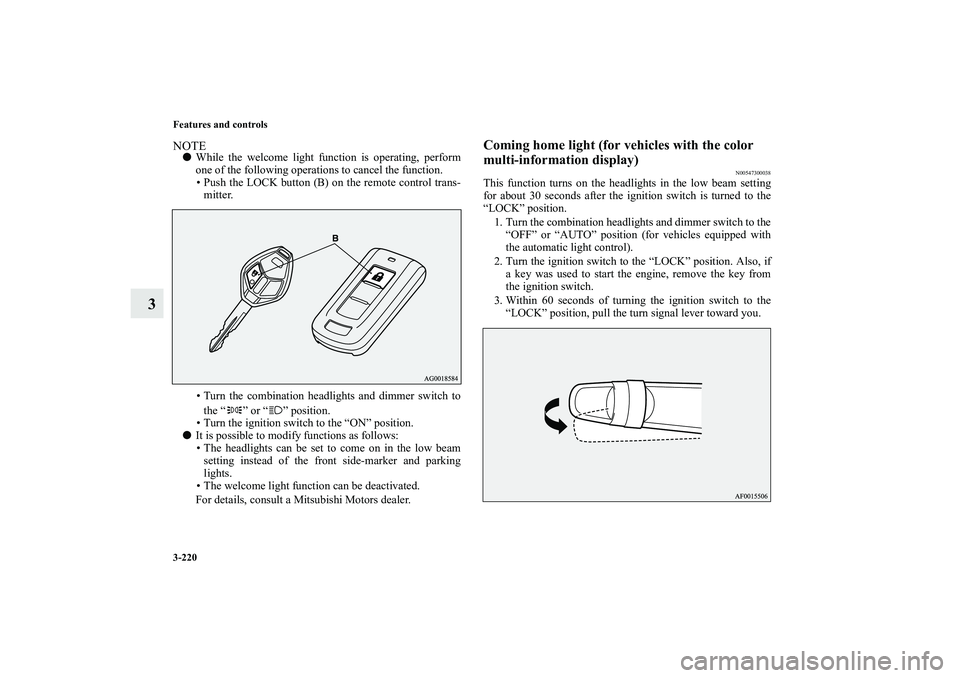

NOTE

While the welcome light function is operating, perform
one of the following operations to cancel the function.
 Push the LOCK button (B) on the remote control trans-
mitter.
 Turn the combination headlights and dimmer switch to
the “ ” or “ ” position.
 Turn the ignition switch to the “ON” position.


It is possible to modify functions as follows:
 The headlights can be set to come on in the low beam
setting instead of the front side-marker and parking
lights.
 The welcome light function can be deactivated.
For details, consult a Mitsubishi Motors dealer.
Coming home light (for vehicles with the color
multi-information display)
N00547300038
This function turns on the headlights in the low beam setting
for about 30 seconds after the ignition switch is turned to the
“LOCK” position.
1. Turn the combination headlights and dimmer switch to the
“OFF” or “AUTO” position (for vehicles equipped with
the automatic light control).
2. Turn the ignition switch to the “LOCK” position. Also, if
a key was used to start the engine, remove the key from
the ignition switch.
3. Within 60 seconds of turning the ignition switch to the
“LOCK” position, pull the turn signal lever toward you.
BK0115300US.book 220 ページ ２００９年７月１６日　木曜日　午前９時１３分

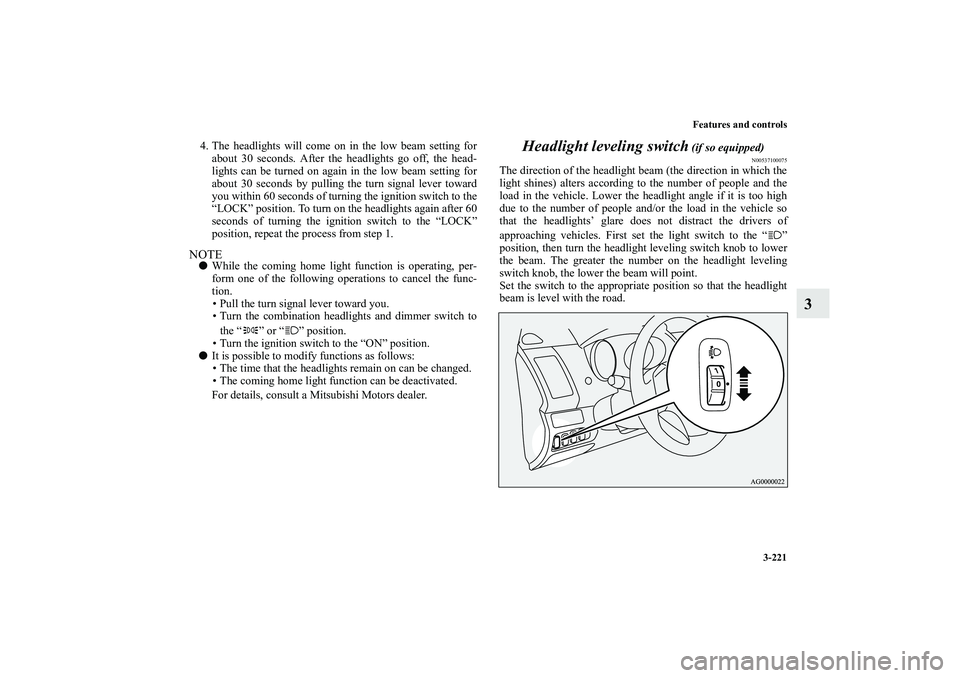

Features and controls
3-221
3
4. The headlights will come on in the low beam setting for
about 30 seconds. After the headlights go off, the head-
lights can be turned on again in the low beam setting for
about 30 seconds by pulling the turn signal lever toward
you within 60 seconds of turning the ignition switch to the
“LOCK” position. To turn on the headlights again after 60
seconds of turning the ignition switch to the “LOCK”
position, repeat the process from step 1.NOTE

While the coming home light function is operating, per-
form one of the following operations to cancel the func-
tion.
 Pull the turn signal lever toward you.
 Turn the combination headlights and dimmer switch to
the “ ” or “ ” position.
 Turn the ignition switch to the “ON” position.


It is possible to modify functions as follows:
 The time that the headlights remain on can be changed.
 The coming home light function can be deactivated.
For details, consult a Mitsubishi Motors dealer.
Headlight leveling switch
(if so equipped)
N00537100075
The direction of the headlight beam (the direction in which the
light shines) alters according to the number of people and the
load in the vehicle. Lower the headlight angle if it is too high
due to the number of people and/or the load in the vehicle so
that the headlights’ glare does not distract the drivers of
approaching vehicles. First set the light switch to the “ ”
position, then turn the headlight leveling switch knob to lower
the beam. The greater the number on the headlight leveling
switch knob, the lower the beam will point.
Set the switch to the appropriate position so that the headlight
beam is level with the road.
BK0115300US.book 221 ページ ２００９年７月１６日　木曜日　午前９時１３分

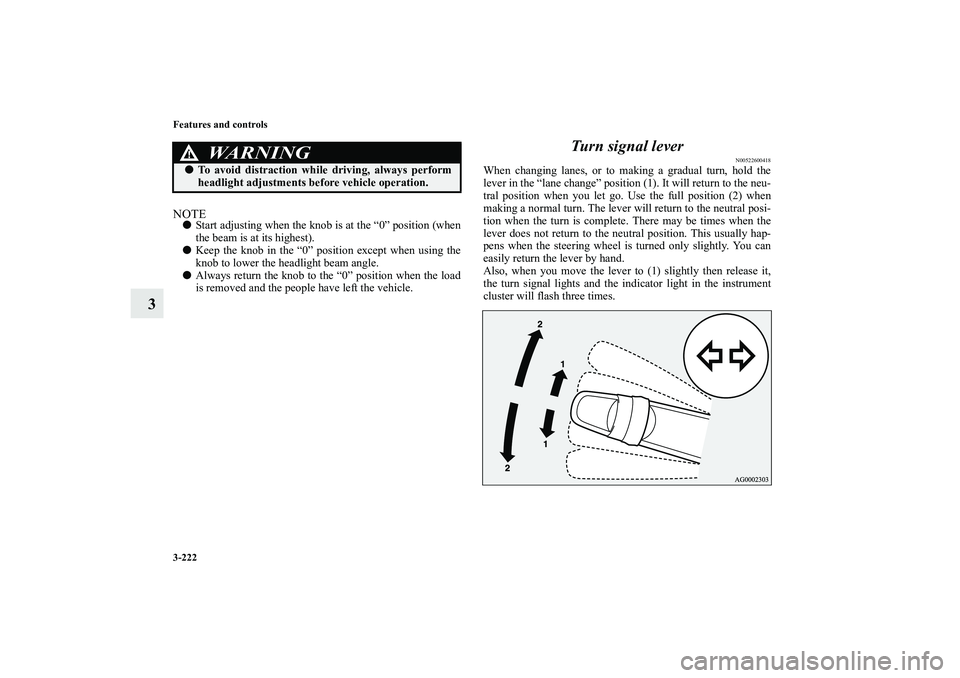

3-222 Features and controls
3
NOTE

Start adjusting when the knob is at the “0” position (when
the beam is at its highest).


Keep the knob in the “0” position except when using the
knob to lower the headlight beam angle.


Always return the knob to the “0” position when the load
is removed and the people have left the vehicle.
Turn signal lever
N00522600418
When changing lanes, or to making a gradual turn, hold the
lever in the “lane change” position (1). It will return to the neu-
tral position when you let go. Use the full position (2) when
making a normal turn. The lever will return to the neutral posi-
tion when the turn is complete. There may be times when the
lever does not return to the neutral position. This usually hap-
pens when the steering wheel is turned only slightly. You can
easily return the lever by hand.
Also, when you move the lever to (1) slightly then release it,
the turn signal lights and the indicator light in the instrument
cluster will flash three times.
WA R N I N G
!

To avoid distraction while driving, always perform
headlight adjustments before vehicle operation.
BK0115300US.book 222 ページ ２００９年７月１６日　木曜日　午前９時１３分

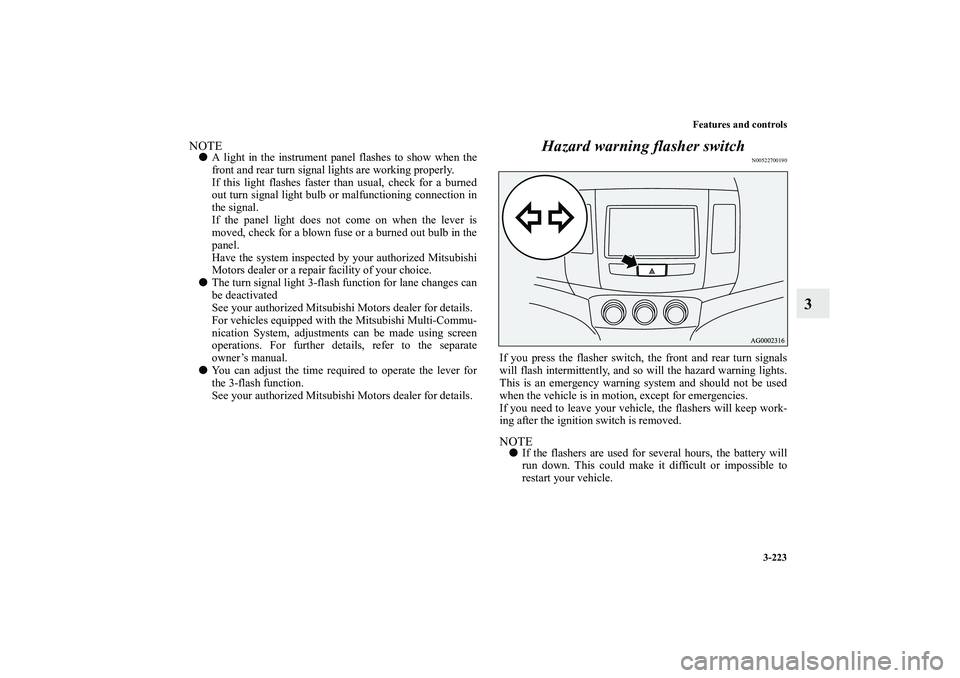

Features and controls
3-223
3
NOTE

A light in the instrument panel flashes to show when the
front and rear turn signal lights are working properly.
If this light flashes faster than usual, check for a burned
out turn signal light bulb or malfunctioning connection in
the signal.
If the panel light does not come on when the lever is
moved, check for a blown fuse or a burned out bulb in the
panel.
Have the system inspected by your authorized Mitsubishi
Motors dealer or a repair facility of your choice.


The turn signal light 3-flash function for lane changes can
be deactivated
See your authorized Mitsubishi Motors dealer for details.
For vehicles equipped with the Mitsubishi Multi-Commu-
nication System, adjustments can be made using screen
operations. For further details, refer to the separate
owner’s manual.


You can adjust the time required to operate the lever for
the 3-flash function.
See your authorized Mitsubishi Motors dealer for details.
Hazard warning flasher switch
N00522700190
If you press the flasher switch, the front and rear turn signals
will flash intermittently, and so will the hazard warning lights.
This is an emergency warning system and should not be used
when the vehicle is in motion, except for emergencies.
If you need to leave your vehicle, the flashers will keep work-
ing after the ignition switch is removed.NOTE

If the flashers are used for several hours, the battery will
run down. This could make it difficult or impossible to
restart your vehicle.
BK0115300US.book 223 ページ ２００９年７月１６日　木曜日　午前９時１３分

3-224 Features and controls

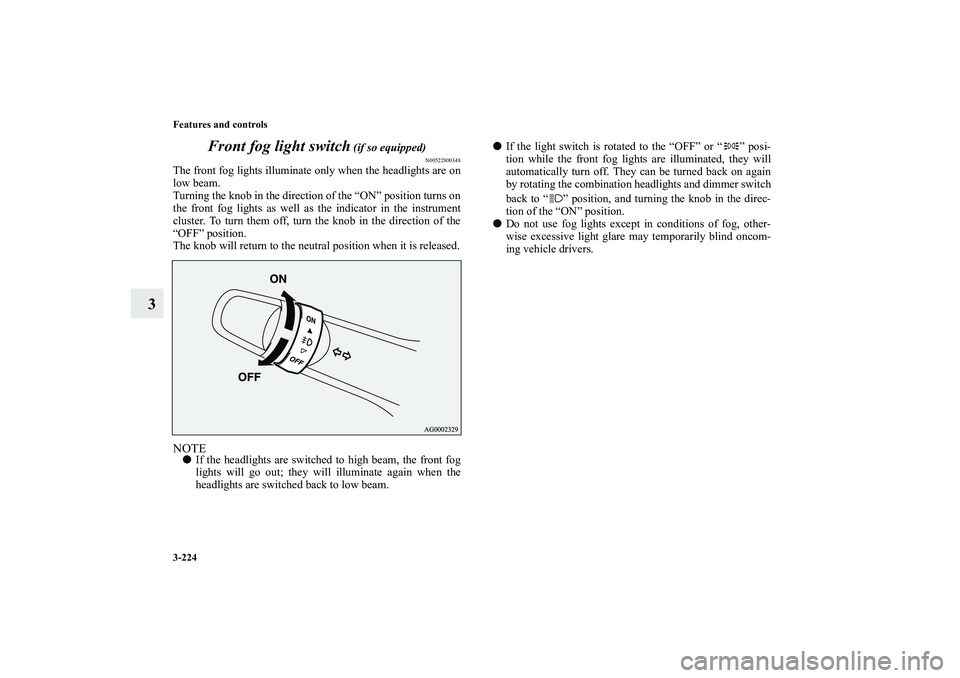

3Front fog light switch
(if so equipped)
N00522800348
The front fog lights illuminate only when the headlights are on
low beam.
Turning the knob in the direction of the “ON” position turns on
the front fog lights as well as the indicator in the instrument
cluster. To turn them off, turn the knob in the direction of the
“OFF” position.
The knob will return to the neutral position when it is released.NOTE

If the headlights are switched to high beam, the front fog
lights will go out; they will illuminate again when the
headlights are switched back to low beam.


If the light switch is rotated to the “OFF” or “ ” posi-
tion while the front fog lights are illuminated, they will
automatically turn off. They can be turned back on again
by rotating the combination headlights and dimmer switch
back to “ ” position, and turning the knob in the direc-
tion of the “ON” position.


Do not use fog lights except in conditions of fog, other-
wise excessive light glare may temporarily blind oncom-
ing vehicle drivers.
BK0115300US.book 224 ページ ２００９年７月１６日　木曜日　午前９時１３分

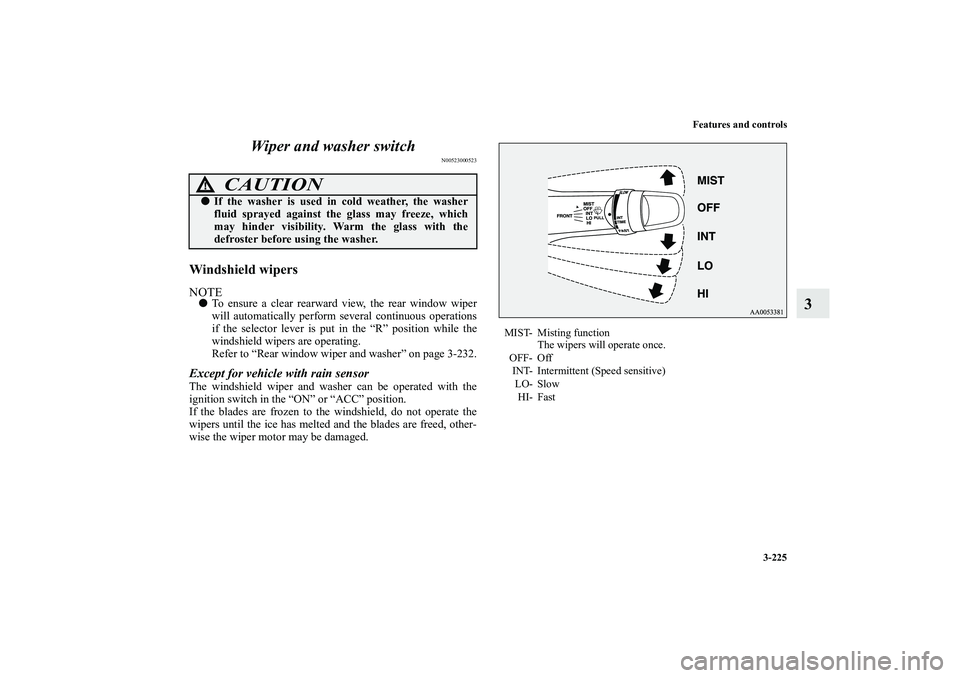

Features and controls
3-225
3 Wiper and washer switch
N00523000523
Windshield wipersNOTE

To ensure a clear rearward view, the rear window wiper
will automatically perform several continuous operations
if the selector lever is put in the “R” position while the
windshield wipers are operating.
Refer to “Rear window wiper and washer” on page 3-232.
Except for vehicle with rain sensorThe windshield wiper and washer can be operated with the
ignition switch in the “ON” or “ACC” position.
If the blades are frozen to the windshield, do not operate the
wipers until the ice has melted and the blades are freed, other-
wise the wiper motor may be damaged.
CAUTION
!

If the washer is used in cold weather, the washer
fluid sprayed against the glass may freeze, which
may hinder visibility. Warm the glass with the
defroster before using the washer.
MIST- Misting function
The wipers will operate once.
OFF- Off
INT- Intermittent (Speed sensitive)
LO- Slow
HI- Fast
BK0115300US.book 225 ページ ２００９年７月１６日　木曜日　午前９時１３分

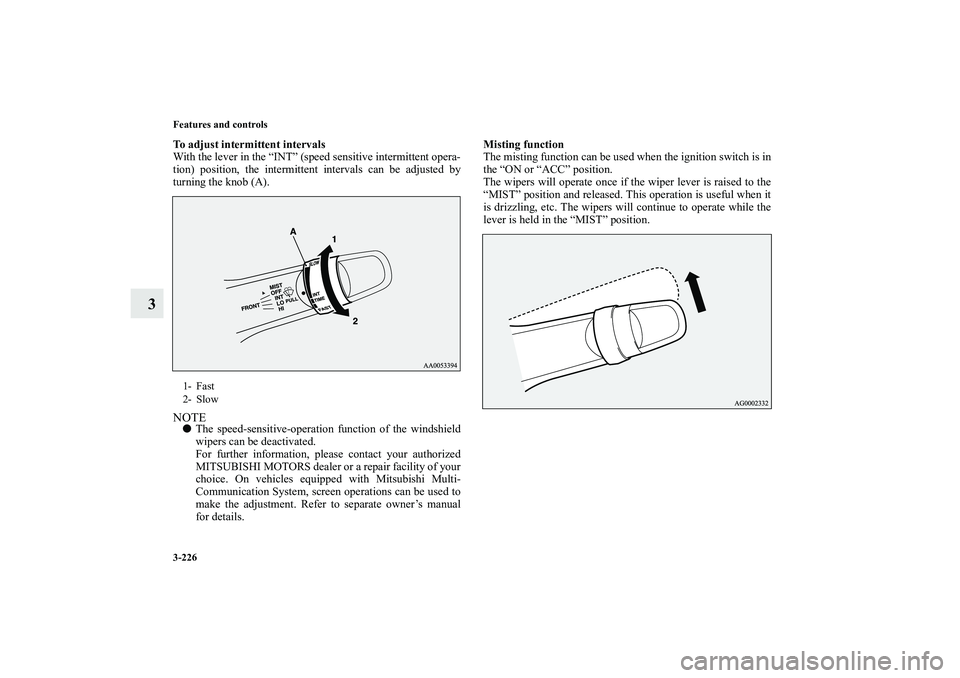

3-226 Features and controls
3
To adjust intermittent intervals
With the lever in the “INT” (speed sensitive intermittent opera-
tion) position, the intermittent intervals can be adjusted by
turning the knob (A). NOTE

The speed-sensitive-operation function of the windshield
wipers can be deactivated.
For further information, please contact your authorized
MITSUBISHI MOTORS dealer or a repair facility of your
choice. On vehicles equipped with Mitsubishi Multi-
Communication System, screen operations can be used to
make the adjustment. Refer to separate owner’s manual
for details.Misting function
The misting function can be used when the ignition switch is in
the “ON or “ACC” position.
The wipers will operate once if the wiper lever is raised to the
“MIST” position and released. This operation is useful when it
is drizzling, etc. The wipers will continue to operate while the
lever is held in the “MIST” position.
1- Fast
2- Slow
BK0115300US.book 226 ページ ２００９年７月１６日　木曜日　午前９時１３分

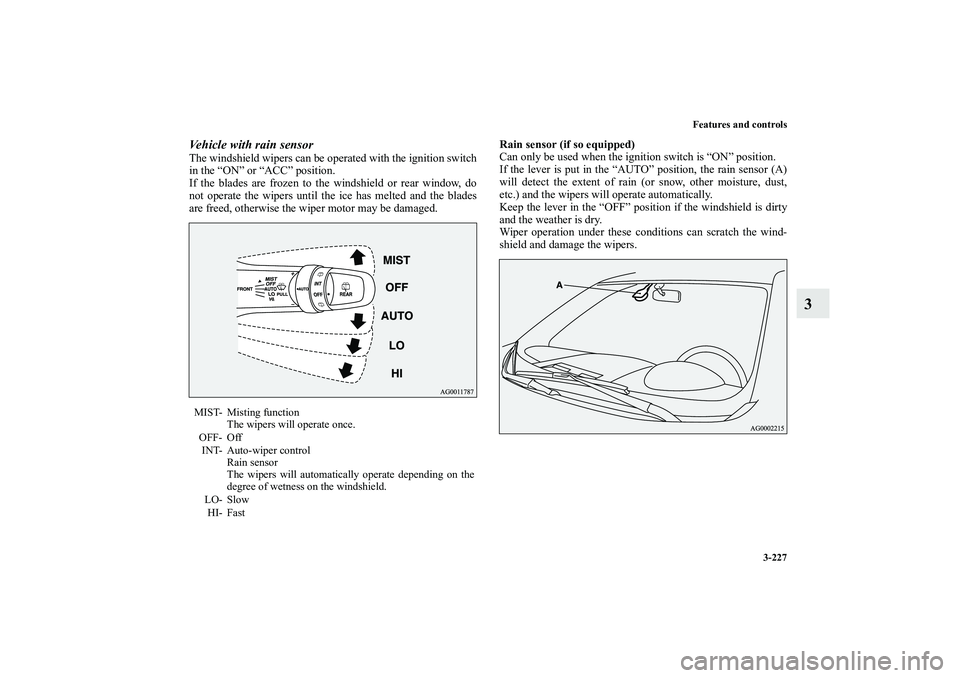

Features and controls
3-227
3
Vehicle with rain sensorThe windshield wipers can be operated with the ignition switch
in the “ON” or “ACC” position.
If the blades are frozen to the windshield or rear window, do
not operate the wipers until the ice has melted and the blades
are freed, otherwise the wiper motor may be damaged.Rain sensor (if so equipped)
Can only be used when the ignition switch is “ON” position.
If the lever is put in the “AUTO” position, the rain sensor (A)
will detect the extent of rain (or snow, other moisture, dust,
etc.) and the wipers will operate automatically.
Keep the lever in the “OFF” position if the windshield is dirty
and the weather is dry.
Wiper operation under these conditions can scratch the wind-
shield and damage the wipers.MIST- Misting function
The wipers will operate once.
OFF- Off
INT- Auto-wiper control
Rain sensor
The wipers will automatically operate depending on the
degree of wetness on the windshield.
LO- Slow
HI- Fast
BK0115300US.book 227 ページ ２００９年７月１６日　木曜日　午前９時１３分

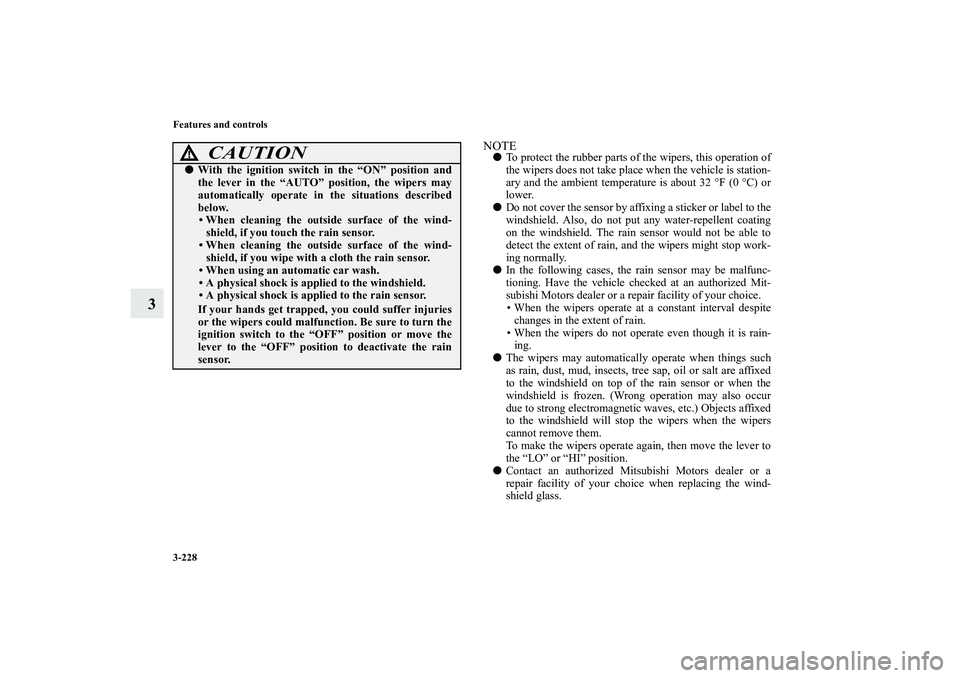

3-228 Features and controls
3
NOTE

To protect the rubber parts of the wipers, this operation of
the wipers does not take place when the vehicle is station-
ary and the ambient temperature is about 32 °F (0 °C) or
lower.


Do not cover the sensor by affixing a sticker or label to the
windshield. Also, do not put any water-repellent coating
on the windshield. The rain sensor would not be able to
detect the extent of rain, and the wipers might stop work-
ing normally.


In the following cases, the rain sensor may be malfunc-
tioning. Have the vehicle checked at an authorized Mit-
subishi Motors dealer or a repair facility of your choice.
 When the wipers operate at a constant interval despite
changes in the extent of rain.
 When the wipers do not operate even though it is rain-
ing.


The wipers may automatically operate when things such
as rain, dust, mud, insects, tree sap, oil or salt are affixed
to the windshield on top of the rain sensor or when the
windshield is frozen. (Wrong operation may also occur
due to strong electromagnetic waves, etc.) Objects affixed
to the windshield will stop the wipers when the wipers
cannot remove them.
To make the wipers operate again, then move the lever to
the “LO” or “HI” position.


Contact an authorized Mitsubishi Motors dealer or a
repair facility of your choice when replacing the wind-
shield glass.
CAUTION
!

With the ignition switch in the “ON” position and
the lever in the “AUTO” position, the wipers may
automatically operate in the situations described
below. When cleaning the outside surface of the wind-
shield, if you touch the rain sensor.
 When cleaning the outside surface of the wind-
shield, if you wipe with a cloth the rain sensor.
 When using an automatic car wash.
 A physical shock is applied to the windshield.
 A physical shock is applied to the rain sensor.If your hands get trapped, you could suffer injuries
or the wipers could malfunction. Be sure to turn the
ignition switch to the “OFF” position or move the
lever to the “OFF” position to deactivate the rain
sensor.
BK0115300US.book 228 ページ ２００９年７月１６日　木曜日　午前９時１３分

Features and controls
3-229
3

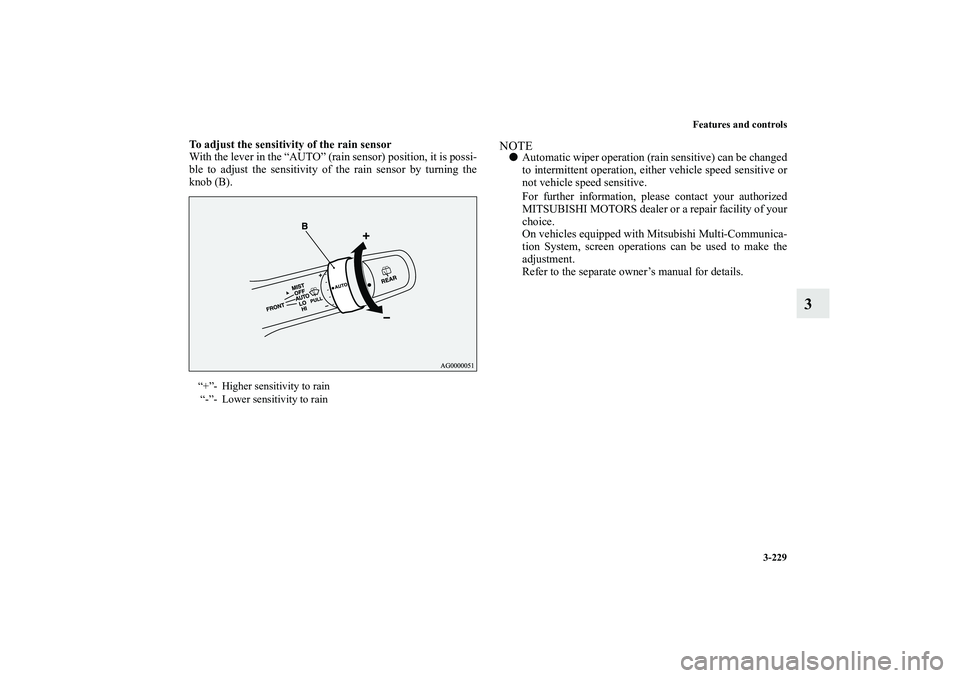

To adjust the sensitivity of the rain sensor
With the lever in the “AUTO” (rain sensor) position, it is possi-
ble to adjust the sensitivity of the rain sensor by turning the
knob (B).
NOTE

Automatic wiper operation (rain sensitive) can be changed
to intermittent operation, either vehicle speed sensitive or
not vehicle speed sensitive.
For further information, please contact your authorized
MITSUBISHI MOTORS dealer or a repair facility of your
choice.
On vehicles equipped with Mitsubishi Multi-Communica-
tion System, screen operations can be used to make the
adjustment.
Refer to the separate owner’s manual for details.
“+”- Higher sensitivity to rain
“-”- Lower sensitivity to rain
BK0115300US.book 229 ページ ２００９年７月１６日　木曜日　午前９時１３分
