3-180 Features and controls
3

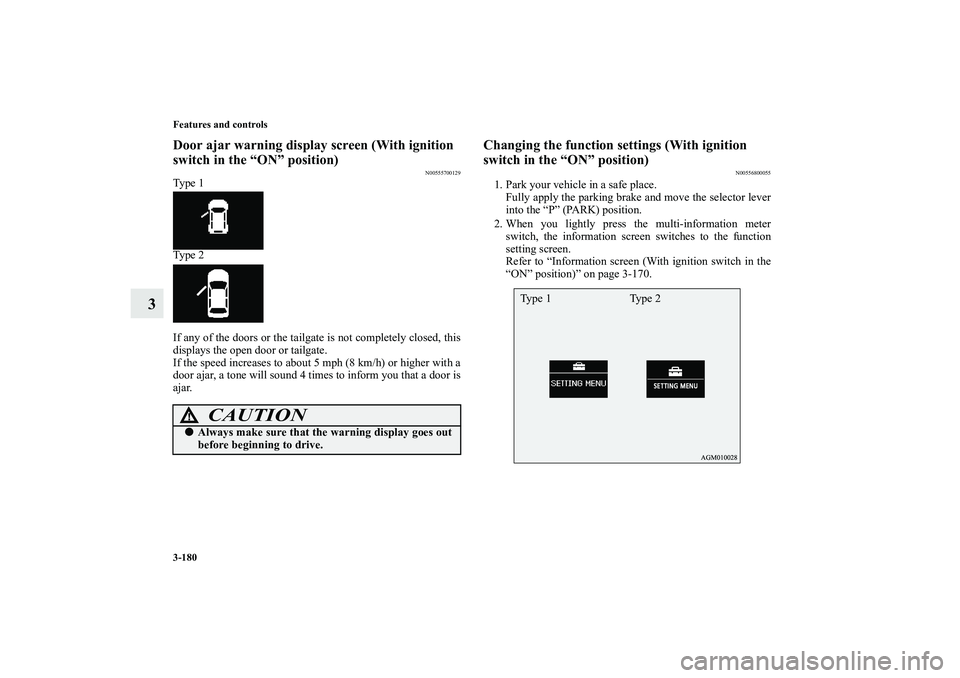

Door ajar warning display screen (With ignition
switch in the “ON” position)
N00555700129
Ty p e 1
Ty p e 2
If any of the doors or the tailgate is not completely closed, this
displays the open door or tailgate.
If the speed increases to about 5 mph (8 km/h) or higher with a
door ajar, a tone will sound 4 times to inform you that a door is
ajar.
Changing the function settings (With ignition
switch in the “ON” position)
N00556800055
1. Park your vehicle in a safe place.
Fully apply the parking brake and move the selector lever
into the “P” (PARK) position.
2. When you lightly press the multi-information meter
switch, the information screen switches to the function
setting screen.
Refer to “Information screen (With ignition switch in the
“ON” position)” on page 3-170.
CAUTION
!

Always make sure that the warning display goes out
before beginning to drive.
Ty p e 1 Ty p e 2
BK0115300US.book 180 ページ ２００９年７月１６日　木曜日　午前９時１３分

Features and controls
3-181
3

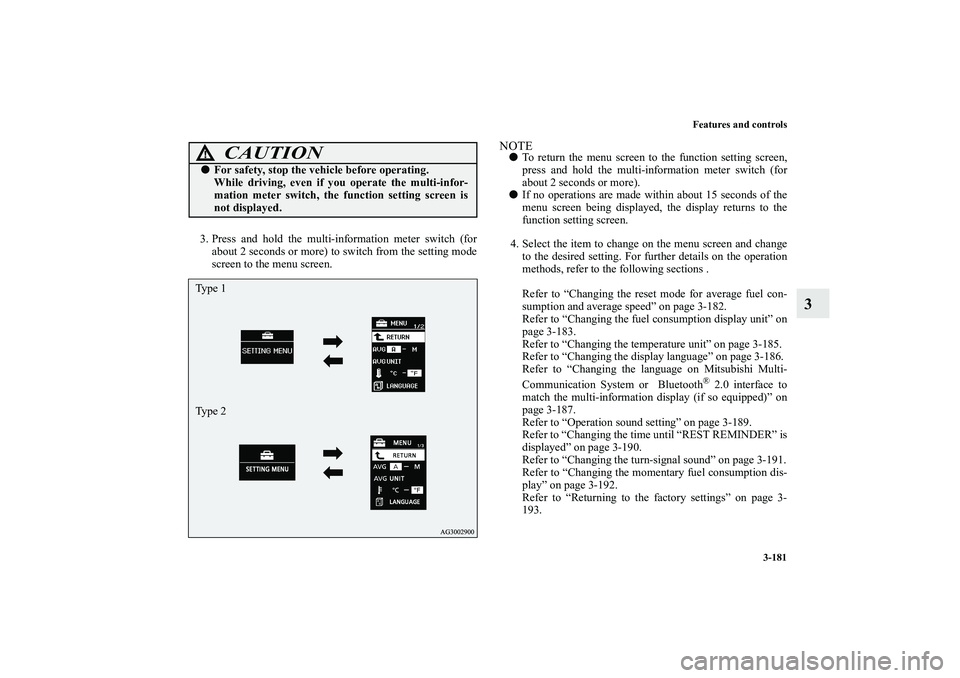

3. Press and hold the multi-information meter switch (for
about 2 seconds or more) to switch from the setting mode
screen to the menu screen.
NOTE

To return the menu screen to the function setting screen,
press and hold the multi-information meter switch (for
about 2 seconds or more).


If no operations are made within about 15 seconds of the
menu screen being displayed, the display returns to the
function setting screen.
4. Select the item to change on the menu screen and change
to the desired setting. For further details on the operation
methods, refer to the following sections .
Refer to “Changing the reset mode for average fuel con-
sumption and average speed” on page 3-182.
Refer to “Changing the fuel consumption display unit” on
page 3-183.
Refer to “Changing the temperature unit” on page 3-185.
Refer to “Changing the display language” on page 3-186.
Refer to “Changing the language on Mitsubishi Multi-
Communication System or Bluetooth
® 2.0 interface to
match the multi-information display (if so equipped)” on
page 3-187.
Refer to “Operation sound setting” on page 3-189.
Refer to “Changing the time until “REST REMINDER” is
displayed” on page 3-190.
Refer to “Changing the turn-signal sound” on page 3-191.
Refer to “Changing the momentary fuel consumption dis-
play” on page 3-192.
Refer to “Returning to the factory settings” on page 3-
193.
CAUTION
!

For safety, stop the vehicle before operating.
While driving, even if you operate the multi-infor-
mation meter switch, the function setting screen is
not displayed.
Type 1
Type 2
BK0115300US.book 181 ページ ２００９年７月１６日　木曜日　午前９時１３分

3-182 Features and controls
3

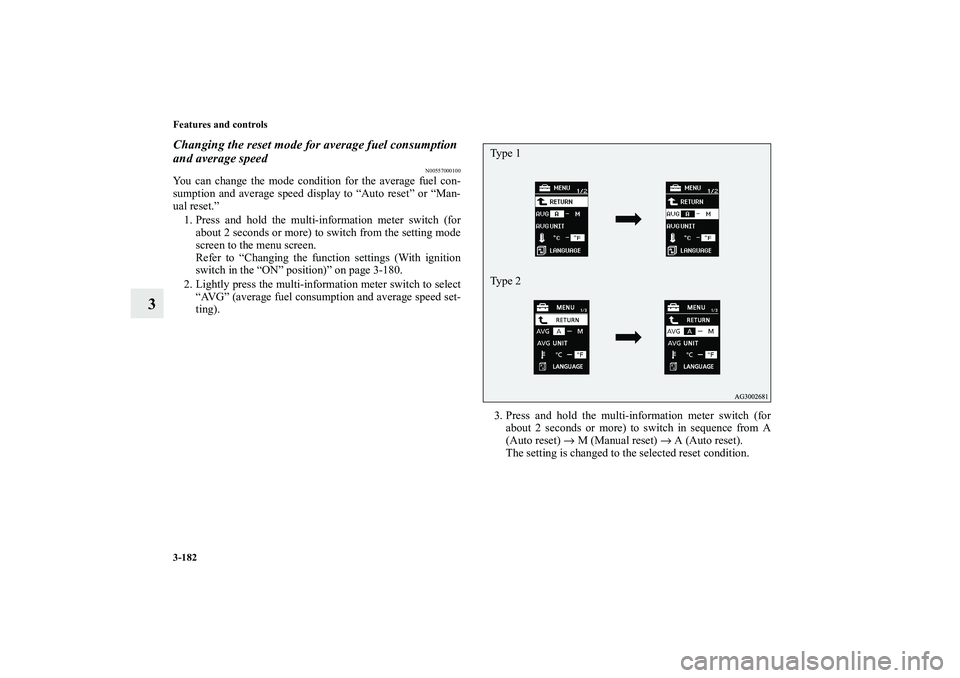

Changing the reset mode for average fuel consumption
and average speed
N00557000100
You can change the mode condition for the average fuel con-
sumption and average speed display to “Auto reset” or “Man-
ual reset.”
1. Press and hold the multi-information meter switch (for
about 2 seconds or more) to switch from the setting mode
screen to the menu screen.
Refer to “Changing the function settings (With ignition
switch in the “ON” position)” on page 3-180.
2. Lightly press the multi-information meter switch to select
“AVG” (average fuel consumption and average speed set-
ting).
3. Press and hold the multi-information meter switch (for
about 2 seconds or more) to switch in sequence from A
(Auto reset) → M (Manual reset) → A (Auto reset).
The setting is changed to the selected reset condition.
Type 1
Type 2
BK0115300US.book 182 ページ ２００９年９月３日　木曜日　午後１２時５３分

Features and controls
3-183
3

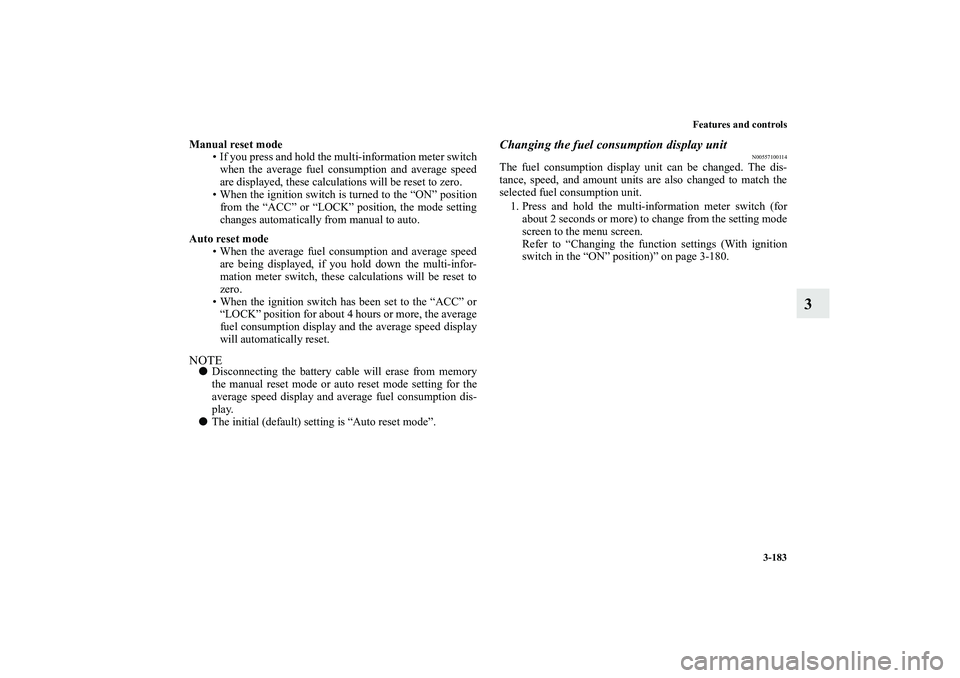

Manual reset mode
 If you press and hold the multi-information meter switch
when the average fuel consumption and average speed
are displayed, these calculations will be reset to zero.
 When the ignition switch is turned to the “ON” position
from the “ACC” or “LOCK” position, the mode setting
changes automatically from manual to auto.
Auto reset mode
 When the average fuel consumption and average speed
are being displayed, if you hold down the multi-infor-
mation meter switch, these calculations will be reset to
zero.
 When the ignition switch has been set to the “ACC” or
“LOCK” position for about 4 hours or more, the average
fuel consumption display and the average speed display
will automatically reset.NOTE

Disconnecting the battery cable will erase from memory
the manual reset mode or auto reset mode setting for the
average speed display and average fuel consumption dis-
play.


The initial (default) setting is “Auto reset mode”.
Changing the fuel consumption display unit
N00557100114
The fuel consumption display unit can be changed. The dis-
tance, speed, and amount units are also changed to match the
selected fuel consumption unit.
1. Press and hold the multi-information meter switch (for
about 2 seconds or more) to change from the setting mode
screen to the menu screen.
Refer to “Changing the function settings (With ignition
switch in the “ON” position)” on page 3-180.
BK0115300US.book 183 ページ ２００９年７月１６日　木曜日　午前９時１３分

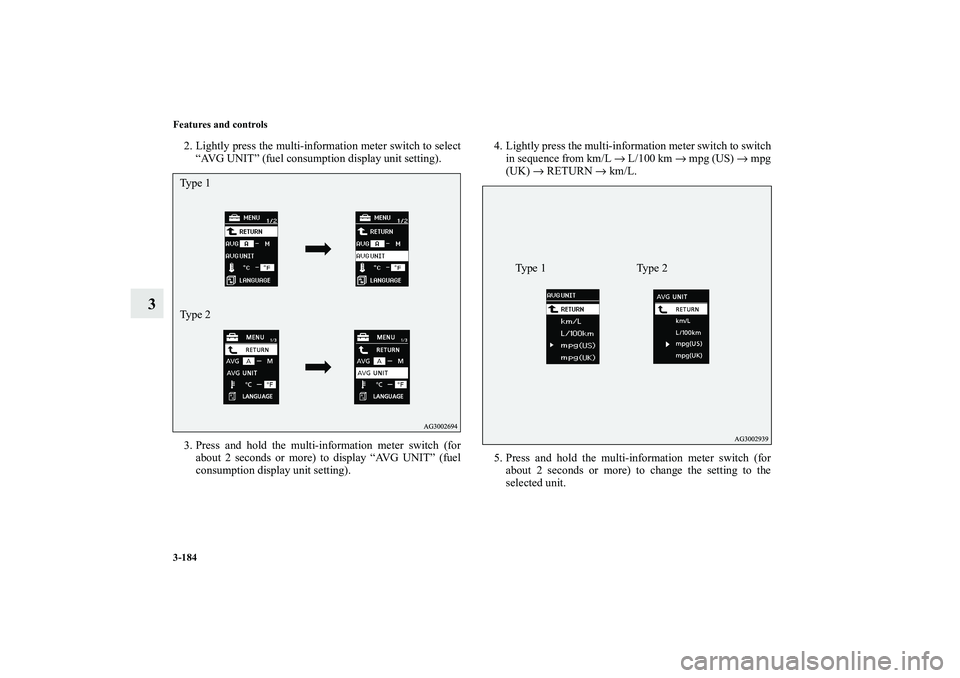

3-184 Features and controls
3
2. Lightly press the multi-information meter switch to select
“AVG UNIT” (fuel consumption display unit setting).
3. Press and hold the multi-information meter switch (for
about 2 seconds or more) to display “AVG UNIT” (fuel
consumption display unit setting).4. Lightly press the multi-information meter switch to switch
in sequence from km/L → L/100 km → mpg (US) → mpg
(UK) → RETURN → km/L.
5. Press and hold the multi-information meter switch (for
about 2 seconds or more) to change the setting to the
selected unit.Type 1
Type 2
Type 1 Type 2
BK0115300US.book 184 ページ ２００９年９月３日　木曜日　午後１２時５３分

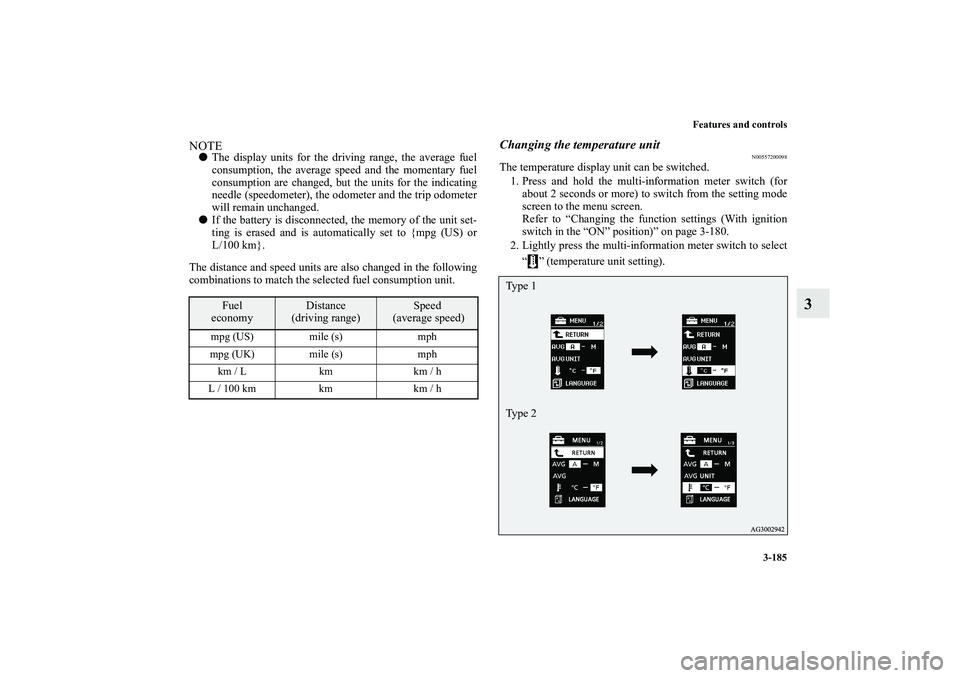

Features and controls
3-185
3
NOTE

The display units for the driving range, the average fuel
consumption, the average speed and the momentary fuel
consumption are changed, but the units for the indicating
needle (speedometer), the odometer and the trip odometer
will remain unchanged.


If the battery is disconnected, the memory of the unit set-
ting is erased and is automatically set to {mpg (US) or
L/100 km}.
The distance and speed units are also changed in the following
combinations to match the selected fuel consumption unit.
Changing the temperature unit
N00557200098
The temperature display unit can be switched.
1. Press and hold the multi-information meter switch (for
about 2 seconds or more) to switch from the setting mode
screen to the menu screen.
Refer to “Changing the function settings (With ignition
switch in the “ON” position)” on page 3-180.
2. Lightly press the multi-information meter switch to select
“ ” (temperature unit setting).
Fuel
economy
Distance
(driving range)
Speed
(average speed)
mpg (US) mile (s) mph
mpg (UK) mile (s) mph
km / L km km / h
L / 100 km km km / h
Type 1
Type 2
BK0115300US.book 185 ページ ２００９年７月１６日　木曜日　午前９時１３分

3-186 Features and controls
3

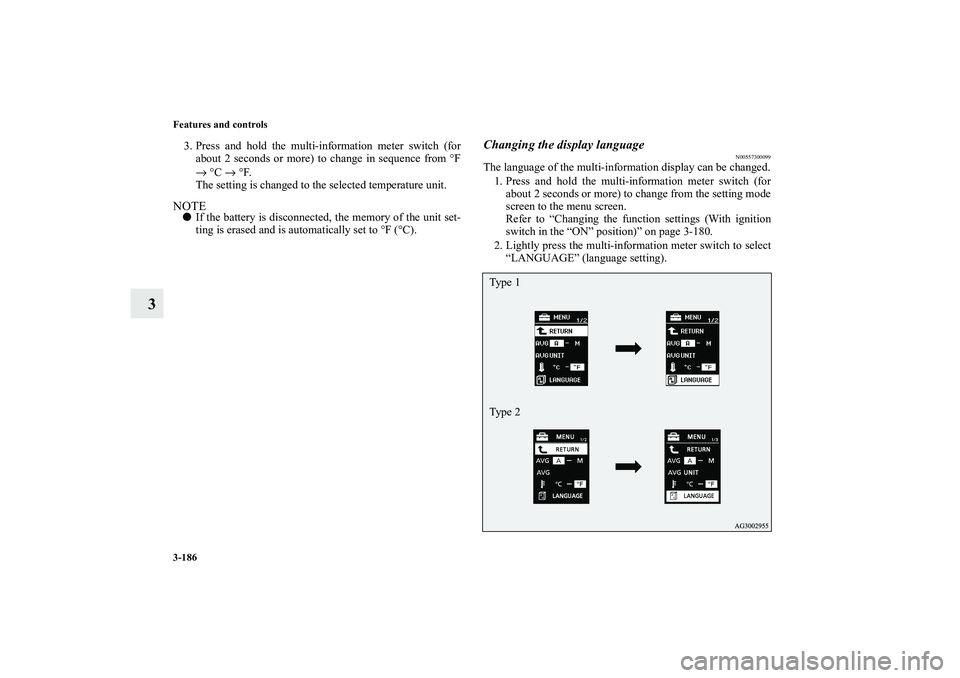

3. Press and hold the multi-information meter switch (for
about 2 seconds or more) to change in sequence from °F
→ °C → °F.
The setting is changed to the selected temperature unit.NOTE

If the battery is disconnected, the memory of the unit set-
ting is erased and is automatically set to °F (°C).
Changing the display language
N00557300099
The language of the multi-information display can be changed.
1. Press and hold the multi-information meter switch (for
about 2 seconds or more) to change from the setting mode
screen to the menu screen.
Refer to “Changing the function settings (With ignition
switch in the “ON” position)” on page 3-180.
2. Lightly press the multi-information meter switch to select
“LANGUAGE” (language setting).Type 1
Type 2
BK0115300US.book 186 ページ ２００９年７月１６日　木曜日　午前９時１３分

Features and controls
3-187
3

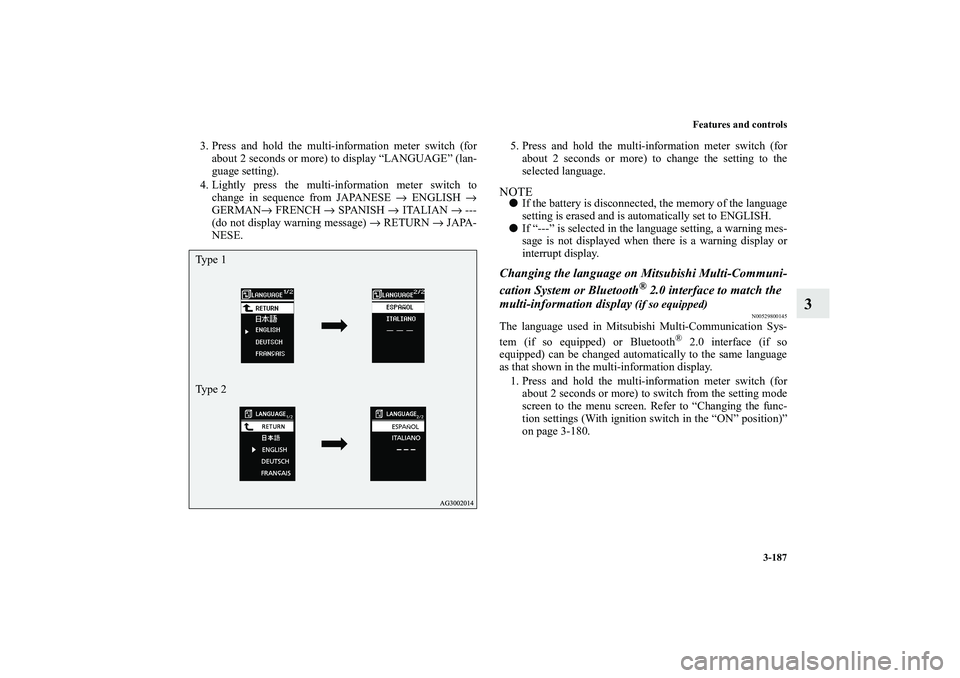

3. Press and hold the multi-information meter switch (for
about 2 seconds or more) to display “LANGUAGE” (lan-
guage setting).
4. Lightly press the multi-information meter switch to
change in sequence from JAPANESE → ENGLISH →
GERMAN→ FRENCH → SPANISH → ITALIAN → ---
(do not display warning message) → RETURN → JAPA-
NESE.5. Press and hold the multi-information meter switch (for
about 2 seconds or more) to change the setting to the
selected language.
NOTE

If the battery is disconnected, the memory of the language
setting is erased and is automatically set to ENGLISH.


If “---” is selected in the language setting, a warning mes-
sage is not displayed when there is a warning display or
interrupt display.
Changing the language on Mitsubishi Multi-Communi-
cation System or Bluetooth
® 2.0 interface to match the
multi-information display
(if so equipped)
N00529800145
The language used in Mitsubishi Multi-Communication Sys-
tem (if so equipped) or Bluetooth
® 2.0 interface (if so
equipped) can be changed automatically to the same language
as that shown in the multi-information display.
1. Press and hold the multi-information meter switch (for
about 2 seconds or more) to switch from the setting mode
screen to the menu screen. Refer to “Changing the func-
tion settings (With ignition switch in the “ON” position)”
on page 3-180.
Ty p e 1
Ty p e 2
BK0115300US.book 187 ページ ２００９年７月１６日　木曜日　午前９時１３分

3-188 Features and controls
3

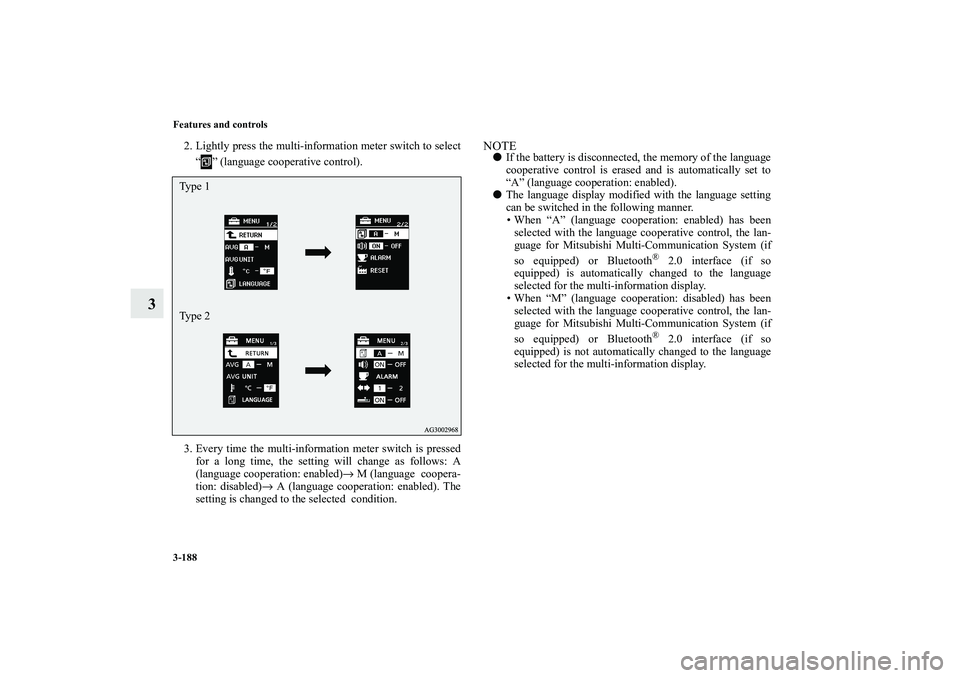

2. Lightly press the multi-information meter switch to select
“ ” (language cooperative control).
3. Every time the multi-information meter switch is pressed
for a long time, the setting will change as follows: A
(language cooperation: enabled)→ M (language coopera-
tion: disabled)→ A (language cooperation: enabled). The
setting is changed to the selected condition.
NOTE

If the battery is disconnected, the memory of the language
cooperative control is erased and is automatically set to
“A” (language cooperation: enabled).


The language display modified with the language setting
can be switched in the following manner.
 When “A” (language cooperation: enabled) has been
selected with the language cooperative control, the lan-
guage for Mitsubishi Multi-Communication System (if
so equipped) or Bluetooth
® 2.0 interface (if so
equipped) is automatically changed to the language
selected for the multi-information display.
 When “M” (language cooperation: disabled) has been
selected with the language cooperative control, the lan-
guage for Mitsubishi Multi-Communication System (if
so equipped) or Bluetooth® 2.0 interface (if so
equipped) is not automatically changed to the language
selected for the multi-information display.
Type 1
Type 2BK0115300US.book 188 ページ ２００９年７月１６日　木曜日　午前９時１３分

Features and controls
3-189
3

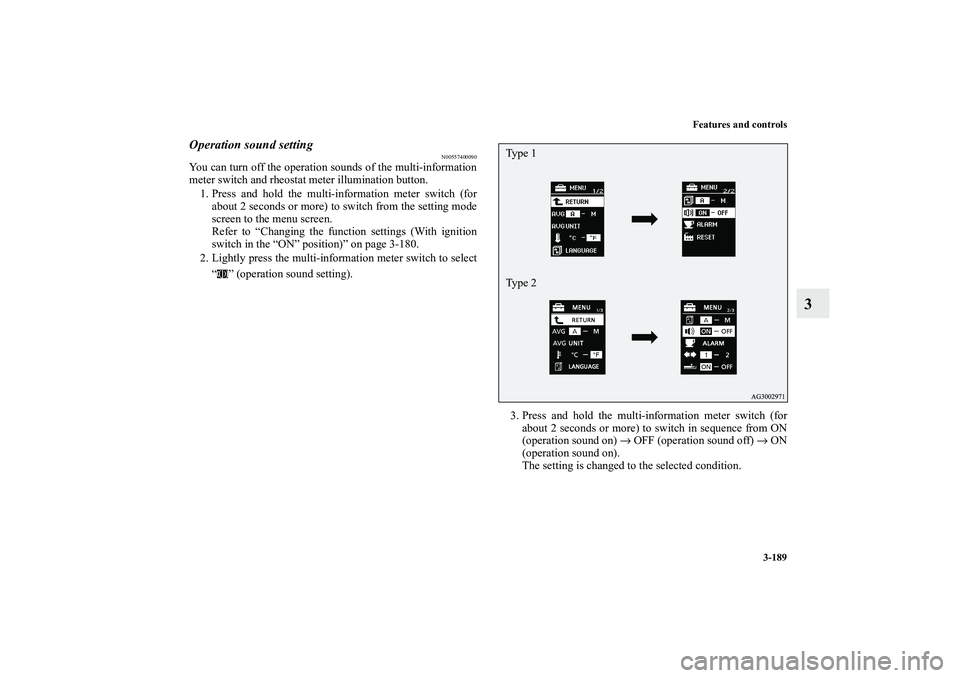

Operation sound setting
N00557400090
You can turn off the operation sounds of the multi-information
meter switch and rheostat meter illumination button.
1. Press and hold the multi-information meter switch (for
about 2 seconds or more) to switch from the setting mode
screen to the menu screen.
Refer to “Changing the function settings (With ignition
switch in the “ON” position)” on page 3-180.
2. Lightly press the multi-information meter switch to select
“ ” (operation sound setting).
3. Press and hold the multi-information meter switch (for
about 2 seconds or more) to switch in sequence from ON
(operation sound on) → OFF (operation sound off) → ON
(operation sound on).
The setting is changed to the selected condition.
Type 1
Type 2
BK0115300US.book 189 ページ ２００９年７月１６日　木曜日　午前９時１３分
