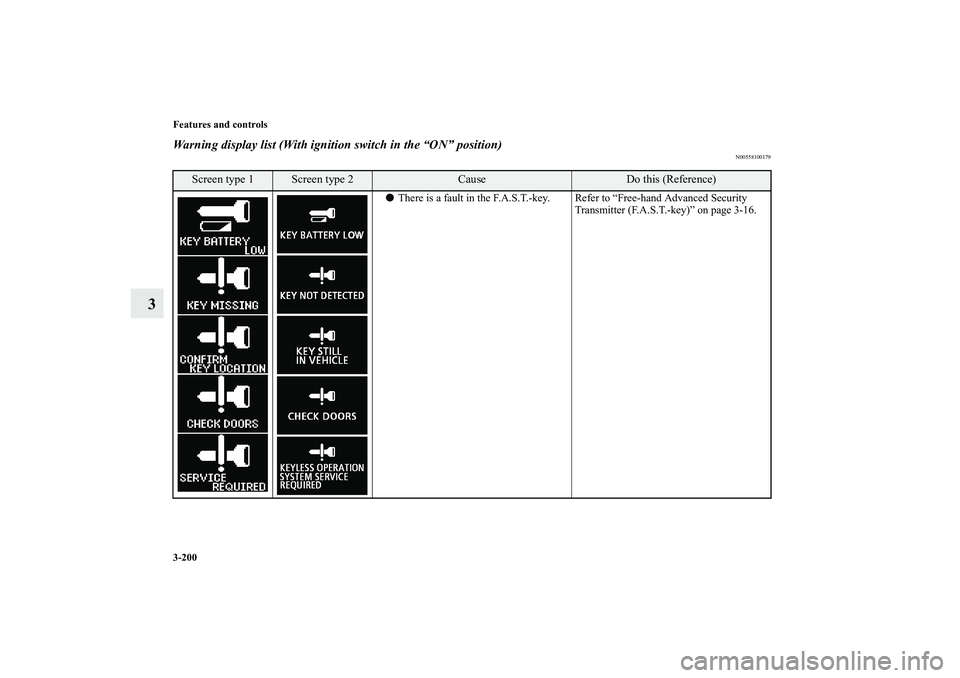

Page 311 of 714

MITSUBISHI OUTLANDER XL 2010  Owners Manual 3-200 Features and controls
3
Warning display list (With ignition switch in the “ON” position)
N00558100179
Screen type 1
Screen type 2
Cause
Do this (Reference)
There is a fault in the F.A.S.T.-

Page 312 of 714

MITSUBISHI OUTLANDER XL 2010  Owners Manual Features and controls
3-201
3
Immobilizer is registered. Refer to “Electronic immobilizer (Anti-theft
starting system)” on page 3-24.
Refer to “Emergency key” on page 3-35.
The brake fluid

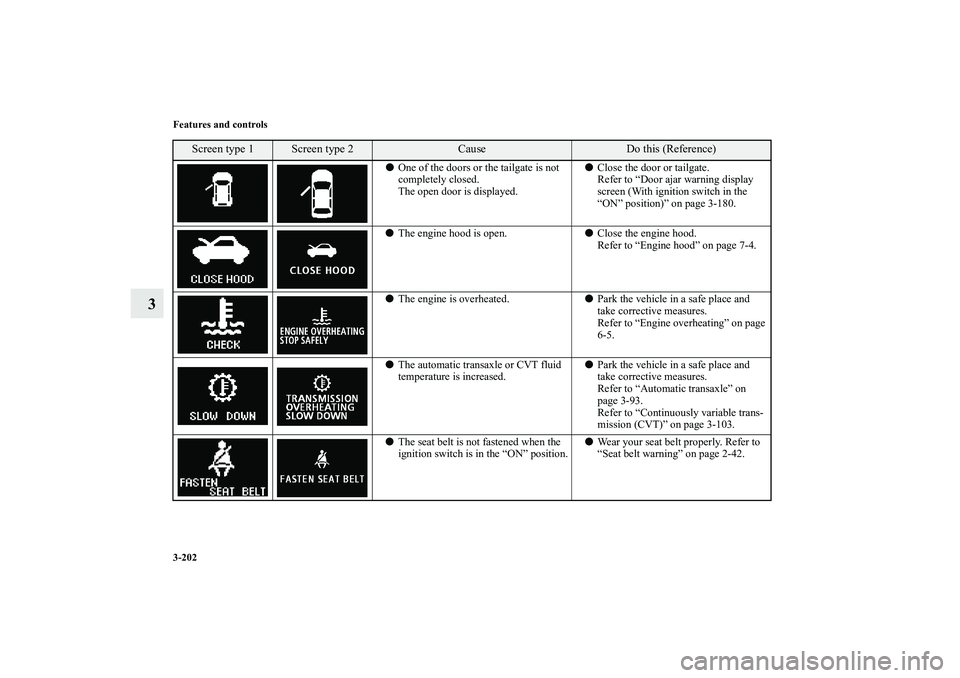

Page 313 of 714

MITSUBISHI OUTLANDER XL 2010  Owners Manual 3-202 Features and controls
3
One of the doors or the tailgate is not
completely closed.
The open door is displayed.Close the door or tailgate.
Refer to “Door ajar warning display
screen (With i

Page 314 of 714

MITSUBISHI OUTLANDER XL 2010  Owners Manual Features and controls
3-203
3
There is a fault in the fuel system.Contact an authorized Mitsubishi
Motors dealer or a repair facility of
your choice to have the system
checked.
The vehicle is be

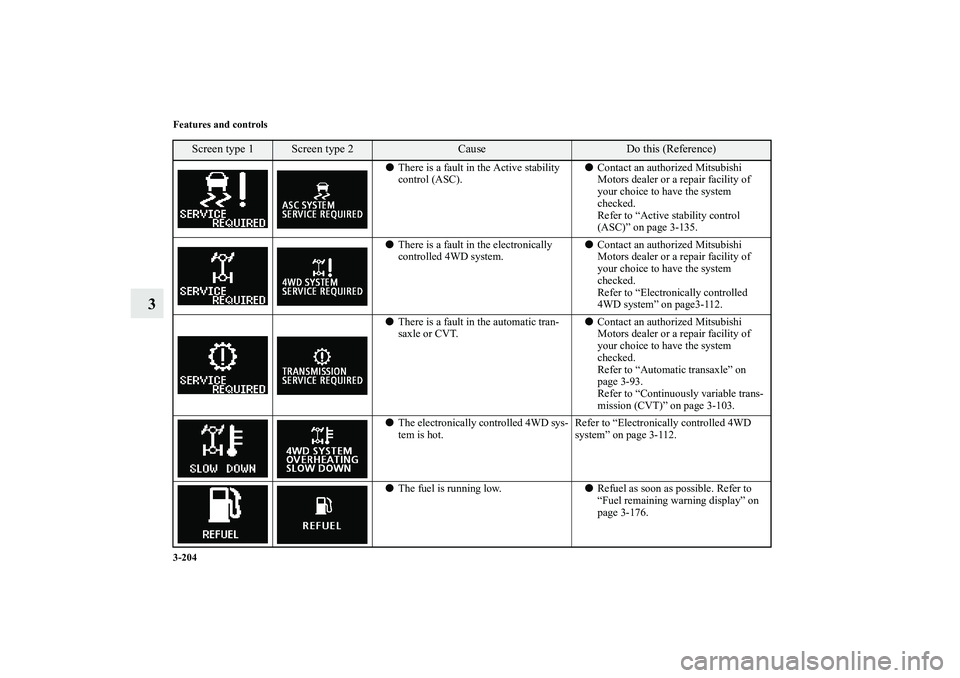

Page 315 of 714

MITSUBISHI OUTLANDER XL 2010  Owners Manual 3-204 Features and controls
3
There is a fault in the Active stability
control (ASC).Contact an authorized Mitsubishi
Motors dealer or a repair facility of
your choice to have the system
checked

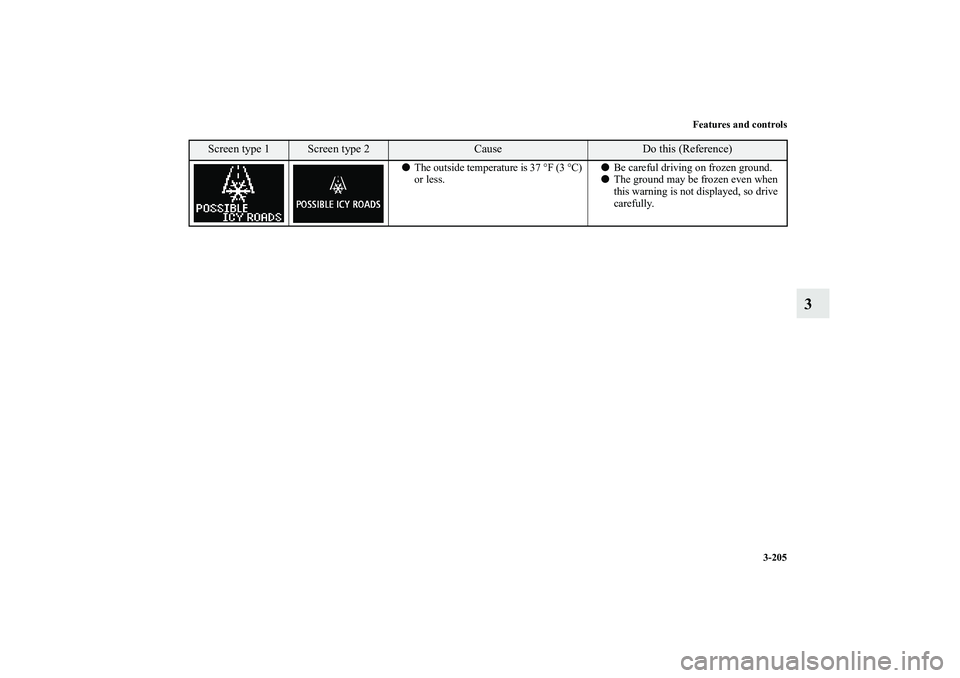

Page 316 of 714

MITSUBISHI OUTLANDER XL 2010  Owners Manual Features and controls
3-205
3
The outside temperature is 37 °F (3 °C)
or less.Be careful driving on frozen ground.
The ground may be frozen even when
this warning is not displayed, so drive
ca

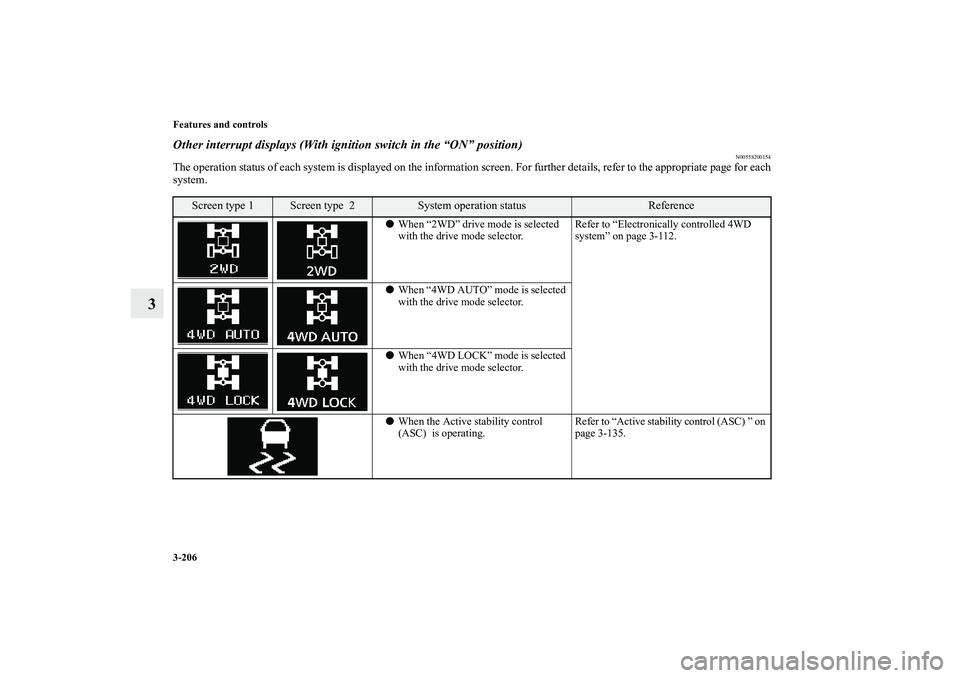

Page 317 of 714

MITSUBISHI OUTLANDER XL 2010  Owners Manual 3-206 Features and controls
3
Other interrupt displays (With ignition switch in the “ON” position)
N00558200154
The operation status of each system is displayed on the information screen. For furt

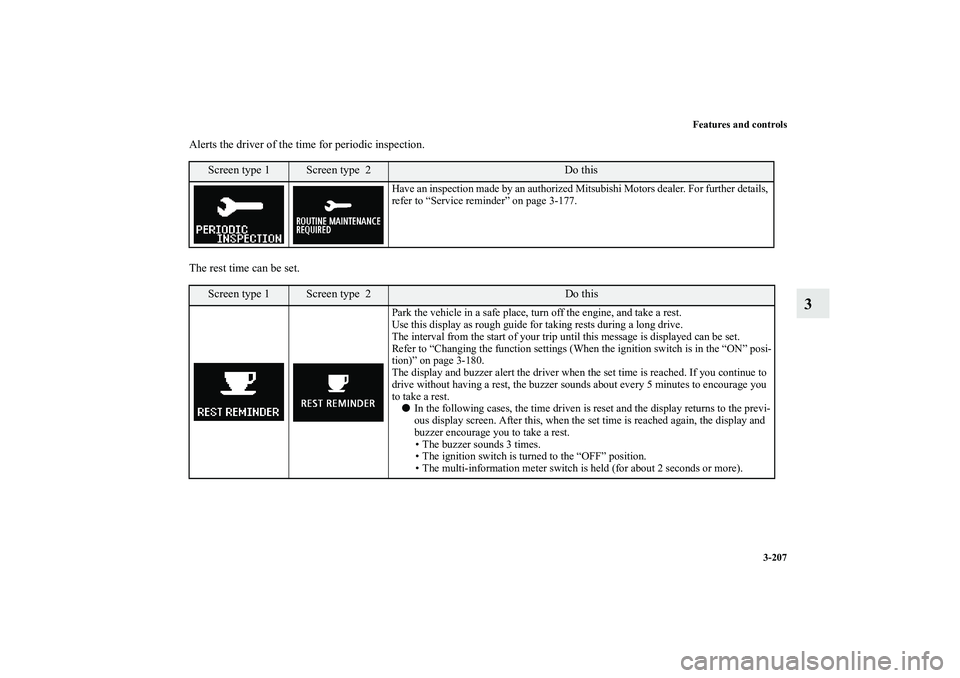

Page 318 of 714

MITSUBISHI OUTLANDER XL 2010  Owners Manual Features and controls
3-207
3
Alerts the driver of the time for periodic inspection.
The rest time can be set.
Screen type 1
Screen type  2
Do this
Have an inspection made by an authorized Mitsubishi

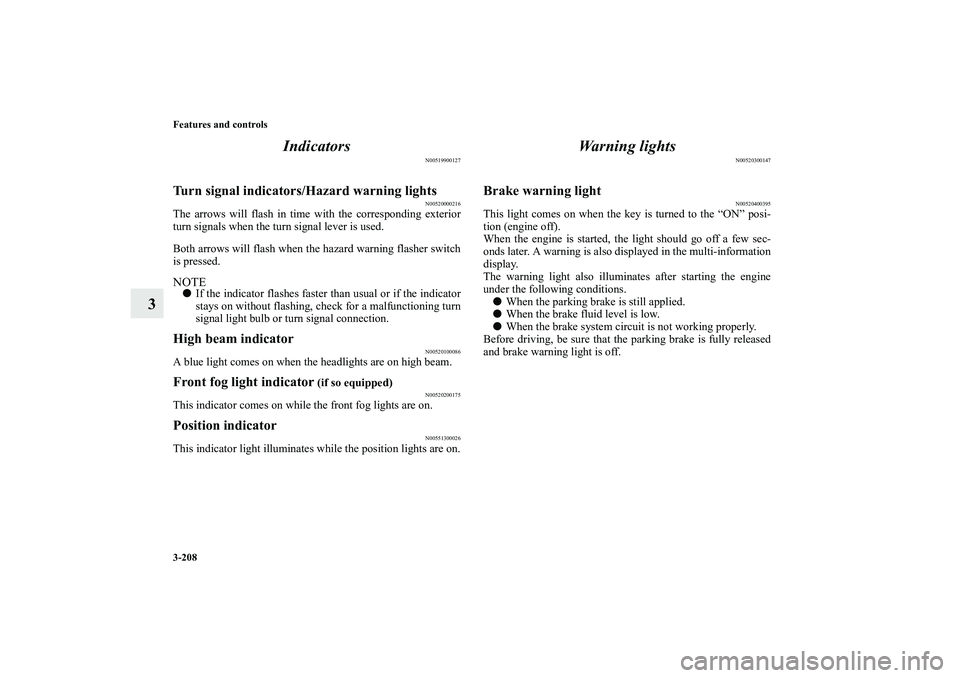

Page 319 of 714

MITSUBISHI OUTLANDER XL 2010  Owners Manual 3-208 Features and controls
3Indicators
N00519900127
Turn signal indicators/Hazard warning lights
N00520000216
The arrows will flash in time with the corresponding exterior
turn signals when the turn

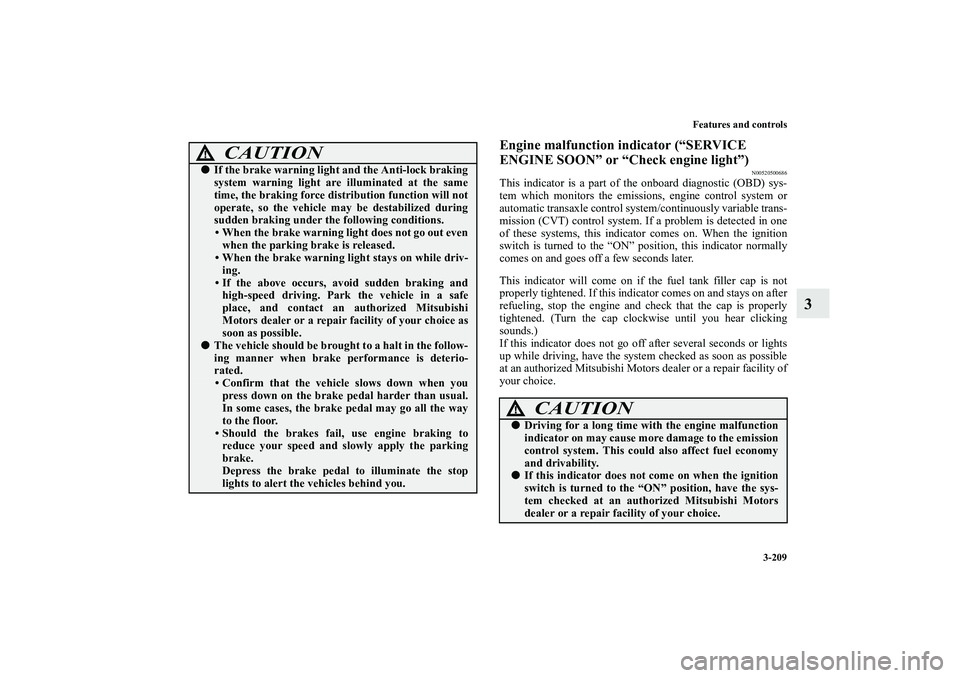

Page 320 of 714

MITSUBISHI OUTLANDER XL 2010  Owners Manual Features and controls
3-209
3
Engine malfunction indicator (“SERVICE
ENGINE SOON” or “Check engine light”)
N00520500686
This indicator is a part of the onboard diagnostic (OBD) sys-
tem which
