OBKE12E1

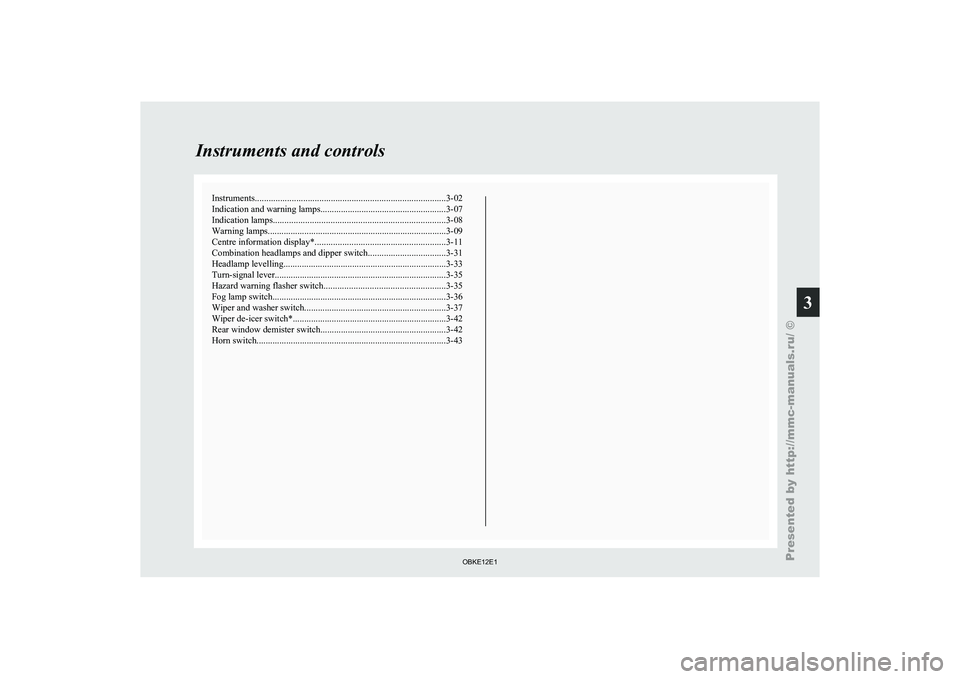

Instruments...................................................................................
3-02
Indication and warning lamps....................................................... 3-07
Indication lamps ........................................................................... 3-08
Warning lamps .............................................................................. 3-09
Centre information display* ......................................................... 3-11
Combination headlamps and dipper switch ..................................3-31
Headlamp levelling ....................................................................... 3-33
Turn-signal lever........................................................................... 3-35
Hazard warning flasher switch ..................................................... 3-35
Fog lamp switch............................................................................
3-36
Wiper and washer switch .............................................................. 3-37
Wiper de-icer switch* ................................................................... 3-42
Rear window demister switch....................................................... 3-42
Horn switch................................................................................... 3-43Instruments and controls
3

OBKE12E1

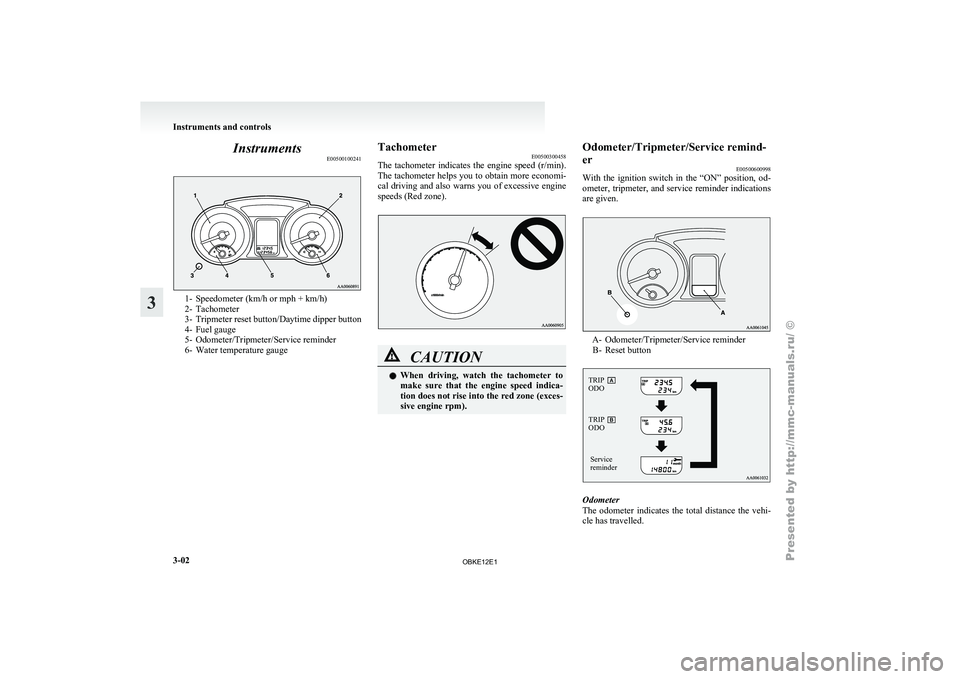

Instruments
E005001002411- Speedometer (km/h or mph + km/h)
2- Tachometer
3-
Tripmeter
reset button/Daytime dipper button
4- Fuel gauge
5- Odometer/Tripmeter/Service reminder
6- Water temperature gauge Tachometer
E00500300458
The tachometer indicates

the engine speed (r/min).
The tachometer helps you to obtain more economi-
cal driving and also warns you of excessive engine
speeds (Red zone). CAUTION
l
When driving, watch
the tachometer to
make sure that the engine speed indica-
tion does not rise into the red zone (exces-
sive engine rpm). Odometer/Tripmeter/Service remind-
er
E00500600998
With the ignition

switch in the “ON” position, od-
ometer, tripmeter, and service reminder indications
are given. A- Odometer/Tripmeter/Service reminder
B- Reset button
TRIP
ODO
Service
reminder
TRIP
ODO Odometer
The
odometer indicates

the total distance the vehi-
cle has travelled. Instruments and controls
3-02
3

OBKE12E1

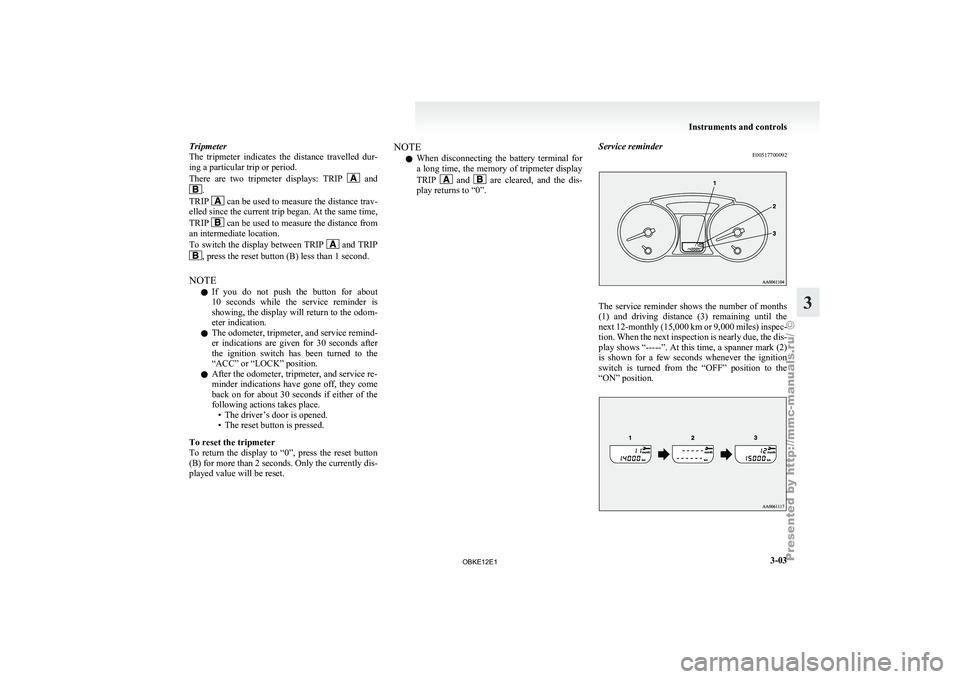

Tripmeter
The tripmeter indicates
the distance travelled dur-
ing a particular trip or period.
There are two tripmeter displays: TRIP and
.
TRIP can be used to measure the distance trav-
elled since the
current trip began. At the same time,
TRIP can be used to measure the distance from
an intermediate location.
To switch the

display between TRIP and TRIP
, press the reset button (B) less than 1 second.
NOTE l If
you do

not push the button for about
10 seconds while the service reminder is
showing, the display will return to the odom-
eter indication.
l The odometer, tripmeter, and service remind-
er indications are given for 30 seconds after
the ignition switch has been turned to the
“ACC” or “LOCK” position.
l After the odometer, tripmeter, and service re-
minder indications have gone off, they come
back on for about 30 seconds if either of the
following actions takes place.
• The driver’s door is opened.
• The reset button is pressed.
To reset the tripmeter
To return the display to “0”, press the reset button
(B) for more than 2 seconds. Only the currently dis-
played value will be reset. NOTE
l When disconnecting
the

battery terminal for
a long time, the memory of tripmeter display
TRIP and are cleared, and the dis-
play returns to “0”. Service reminder
E00517700092 The service reminder shows the number of months
(1) and
driving

distance (3) remaining until the
next 12-monthly (15,000 km or 9,000 miles) inspec-
tion. When the next inspection is nearly due, the dis-
play shows “-----”. At this time, a spanner mark (2)
is shown for a few seconds whenever the ignition
switch is turned from the “OFF” position to the
“ON” position. Instruments and controls
3-03 3

OBKE12E1

1. The display shows the number of months
and driving distance remaining until the next
inspection.
2. When the next inspection is nearly due, the display shows “-----”.
For further information, we recommend you
to consult a MITSUBISHI MOTORS Author-
ized Service Point. At this time, a spanner
mark is shown for a few seconds whenever
the ignition switch is turned from the “OFF”
position to the “ON” position. 3. When the vehicle is inspected at a
MITSUBISHI MOTORS

Authorized Service
Point, the number of months and driving dis-
tance remaining until the next inspection will
be shown.
NOTE l The indicated distance decreases in steps of
100 km or (100 miles). The indicated num-
ber of months decreases in steps of one month.
l It is possible to change the settings for the
service reminder. For further information, we recommend you to con-
sult a
MITSUBISHI

MOTORS Authorized Service
Point.
Resetting the service reminder
With the ignition switch in the “OFF” position, it is
possible to reset the spanner mark (A) and “-----”
indication (B). When they have been reset, the num-
ber of months and driving distance remaining until
the next inspection are shown and the spanner
mark (A) is no longer shown every time the igni-
tion switch is turned from the “OFF” position to
the “ON” position. 1. Push the reset button (D) to view the number
of months and driving distance remaining un-
til the next inspection.
2. Give the reset button (D) a long push (at least two seconds to make the spanner mark
(A) start flashing. (If you do not touch the re-
set button for 10 seconds while the spanner
mark is flashing, the display will revert to its
original indication.)
3. Give the reset button (D) a gentle push while the spanner mark is flashing. The “-----” indi-
cation (B) will change to “cLEAr” (C).
4. The number of months and driving distance remaining until the next inspection will be
shown. CAUTION
l
Daily and
periodic
inspections and main-
tenance are your responsibility. Be sure
to perform them to help prevent acci-
dents and breakdowns.
NOTE l It
is not

possible to reset the “-----” indica-
tion (B) with the ignition switch in the “ON”
position.
l When a certain distance has been driven and
a certain period has elapsed after appearance
of the “-----” indication (B), the indication is
automatically reset and the number of
months until the next periodic inspection is
shown.
l If you accidentally reset the display, consult
a MITSUBISHI MOTORS Authorized Serv-
ice Point. Instruments and controls
3-04
3

OBKE12E1

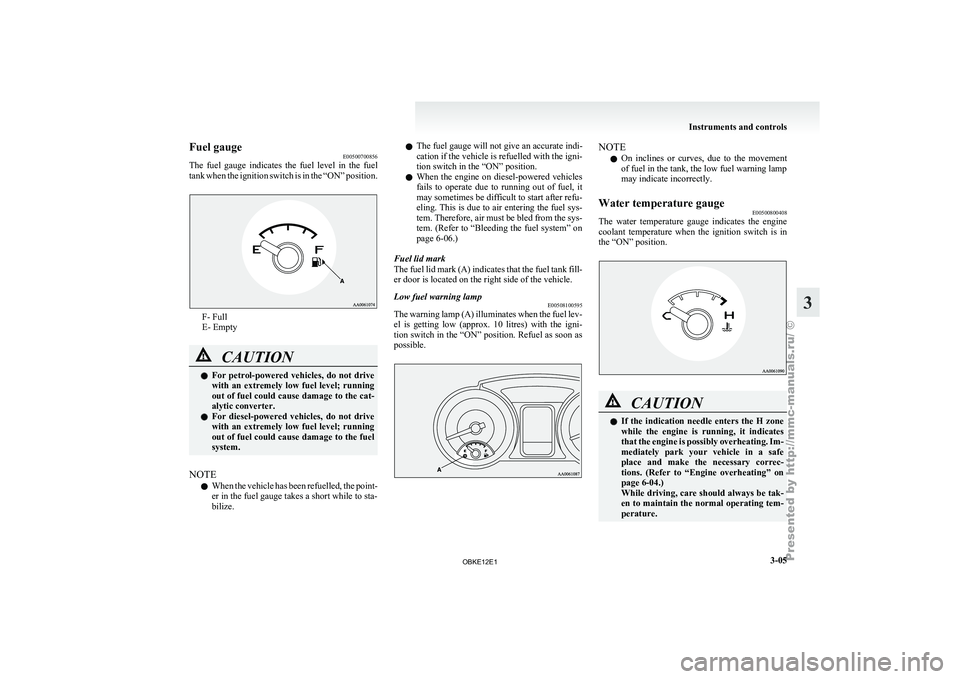

Fuel gauge
E00500700856
The fuel gauge
indicates the fuel level in the fuel
tank when the ignition switch is in the “ON” position. F- Full
E- Empty
CAUTION
l
For petrol-powered
vehicles,
do not drive
with an extremely low fuel level; running
out of fuel could cause damage to the cat-
alytic converter.
l For diesel-powered vehicles, do not drive
with an extremely low fuel level; running
out of fuel could cause damage to the fuel
system.
NOTE l When
the vehicle

has been refuelled, the point-
er in the fuel gauge takes a short while to sta-
bilize. l
The fuel gauge will not give an accurate indi-
cation
if
the

vehicle is refuelled with the igni-
tion switch in the “ON” position.
l When the engine on diesel-powered vehicles
fails to operate due to running out of fuel, it
may sometimes be difficult to start after refu-
eling. This is due to air entering the fuel sys-
tem. Therefore, air must be bled from the sys-
tem. (Refer to “Bleeding the fuel system” on
page 6-06.)
Fuel lid mark
The fuel lid mark (A) indicates that the fuel tank fill-
er door is located on the right side of the vehicle.
Low fuel warning lamp E00508100595
The warning lamp (A) illuminates when the fuel lev-
el is getting

low (approx. 10 litres) with the igni-
tion switch in the “ON” position. Refuel as soon as
possible. NOTE
l On
inclines or

curves, due to the movement
of fuel in the tank, the low fuel warning lamp
may indicate incorrectly.
Water temperature gauge E00500800408
The water temperature gauge indicates the engine
coolant temperature when

the ignition switch is in
the “ON” position. CAUTION
l
If the indication
needle enters the H zone
while the engine is running, it indicates
that the engine is possibly overheating. Im-
mediately park your vehicle in a safe
place and make the necessary correc-
tions. (Refer to “Engine overheating” on
page 6-04.)
While driving, care should always be tak-
en to maintain the normal operating tem-
perature. Instruments and controls
3-05 3

OBKE12E1

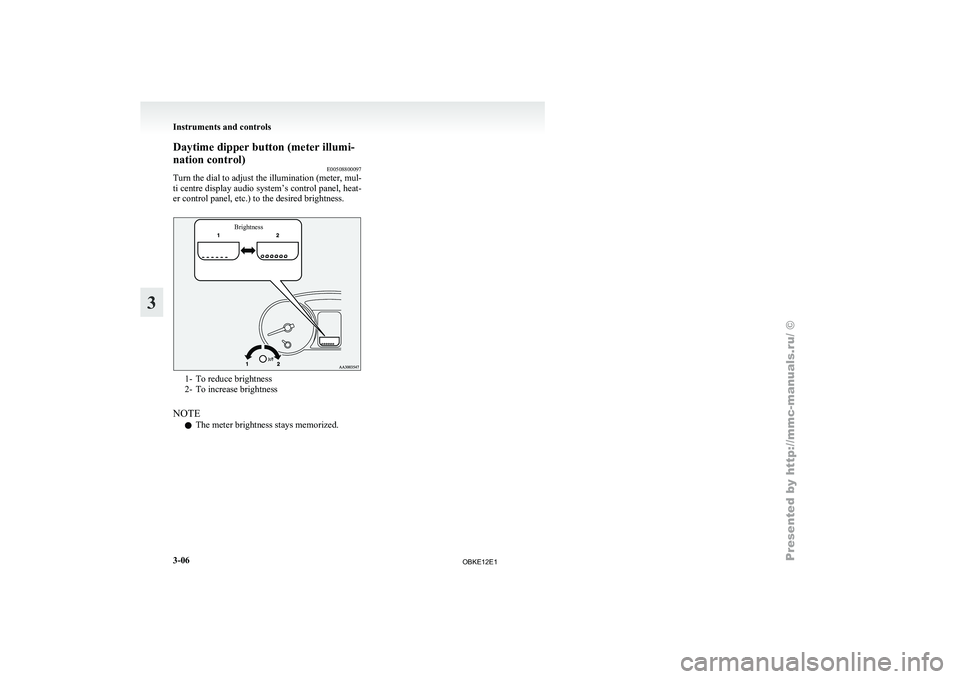

Daytime dipper button (meter illumi-
nation control)
E00508800097
Turn the dial to adjust the illumination (meter, mul-
ti centre display
audio system’s control panel, heat-
er control panel, etc.) to the desired brightness.
Brightness 1- To reduce brightness
2-
To increase brightness
NOTE l The meter brightness stays memorized. Instruments and controls
3-06
3

OBKE12E1

Indication and warning lamps
E005015020861-
Turn-signal indication lamps/Hazard warning indication lamps ® p. 3-08
2- Rear fog lamp indication lamp
® p. 3-08
3- Position lamp indication lamp ® p. 3-08
4- Front fog lamp indication lamp* ® p. 3-08
5- Automatic headlamp levelling warning lamp* ® p. 3-34
6- High-beam indication lamp ® p. 3-08
7- Active stability control function OFF indication lamp ® p. 4-43
8- Active stability control function indication lamp/Active traction control func-
tion indication lamp ® p. 4-43, 4-44
9- Anti-lock brake system (ABS) warning lamp ® p. 4-40
10- Brake warning lamp ® p. 3-09
11- Supplement Restraint System (SRS) warning lamp ® p. 2-43
12- Seat belt warning lamp ® p. 2-21
13- A/T fluid temperature warning lamp (vehicles with A/T) ® p. 4-22
14- CRUISE indication lamp* ® p. 4-45 15-
“SONAR OFF” indication lamp* ® p. 4-52
16- Diesel particulate filter (DPF) warning lamp* ®
p. 4-15
17- Diesel preheat indication lamp (diesel-powered vehicles) ® p. 3-08
18- Fuel filter indication lamp (diesel-powered vehicles) ® p. 3-08
19- Check engine warning lamp ® p. 3-10
20- Charge warning lamp ® p. 3-10
21- Oil pressure warning lamp ® p. 3-10
22- Low fuel warning lamp ® p. 3-05
23- 2WD/4WD operation indication lamp ® p. 4-26
24- The rear differential lock indication lamp* ® p. 4-29
25- Door ajar warning lamp ® p. 3-11
26- Service reminder ® p. 3-03
27- Sports mode indicator (vehicles with A/T) ® p. 4-21
28- Selector lever position indication lamps (vehicles with A/T, “N” indication
lamp is used also as A/T warning lamp) ® p. 4-20 Instruments and controls
3-07 3

OBKE12E1

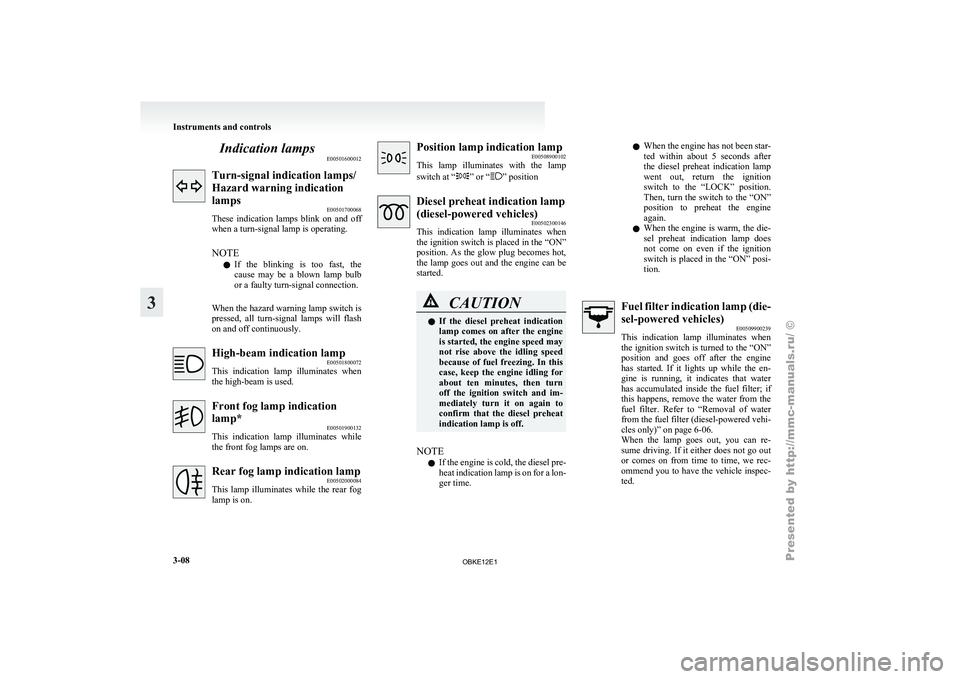

Indication lamps
E00501600012Turn-signal indication lamps/
Hazard warning indication
lamps
E00501700068
These indication lamps
blink on and off
when a turn-signal lamp is operating.
NOTE
l If the blinking is too fast, the
cause may be a blown lamp bulb
or a faulty turn-signal connection.
When the hazard warning lamp switch is
pressed, all turn-signal lamps will flash
on and off continuously. High-beam indication lamp
E00501800072
This indication lamp

illuminates when
the high-beam is used. Front fog lamp indication
lamp*
E00501900132
This indication lamp

illuminates while
the front fog lamps are on. Rear fog lamp indication lamp
E00502000084
This lamp illuminates

while the rear fog
lamp is on. Position lamp indication lamp
E00508900102
This lamp illuminates

with the lamp
switch at “ ” or “ ” position
Diesel preheat indication lamp
(diesel-powered vehicles)
E00502300146
This indication lamp

illuminates when
the ignition switch is placed in the “ON”
position. As the glow plug becomes hot,
the lamp goes out and the engine can be
started. CAUTION
l
If the
diesel
preheat indication
lamp comes on after the engine
is started, the engine speed may
not rise above the idling speed
because of fuel freezing. In this
case, keep the engine idling for
about ten minutes, then turn
off the ignition switch and im-
mediately turn it on again to
confirm that the diesel preheat
indication lamp is off.
NOTE l If
the engine

is cold, the diesel pre-
heat indication lamp is on for a lon-
ger time. l
When the
engine
has not been star-
ted within about 5 seconds after
the diesel preheat indication lamp
went out, return the ignition
switch to the “LOCK” position.
Then, turn the switch to the “ON”
position to preheat the engine
again.
l When the engine is warm, the die-
sel preheat indication lamp does
not come on even if the ignition
switch is placed in the “ON” posi-
tion. Fuel filter indication lamp (die-
sel-powered vehicles)
E00509900239
This indication lamp

illuminates when
the ignition switch is turned to the “ON”
position and goes off after the engine
has started. If it lights up while the en-
gine is running, it indicates that water
has accumulated inside the fuel filter; if
this happens, remove the water from the
fuel filter. Refer to “Removal of water
from the fuel filter (diesel-powered vehi-
cles only)” on page 6-06.
When the lamp goes out, you can re-
sume driving. If it either does not go out
or comes on from time to time, we rec-
ommend you to have the vehicle inspec-
ted. Instruments and controls
3-08
3

OBKE12E1

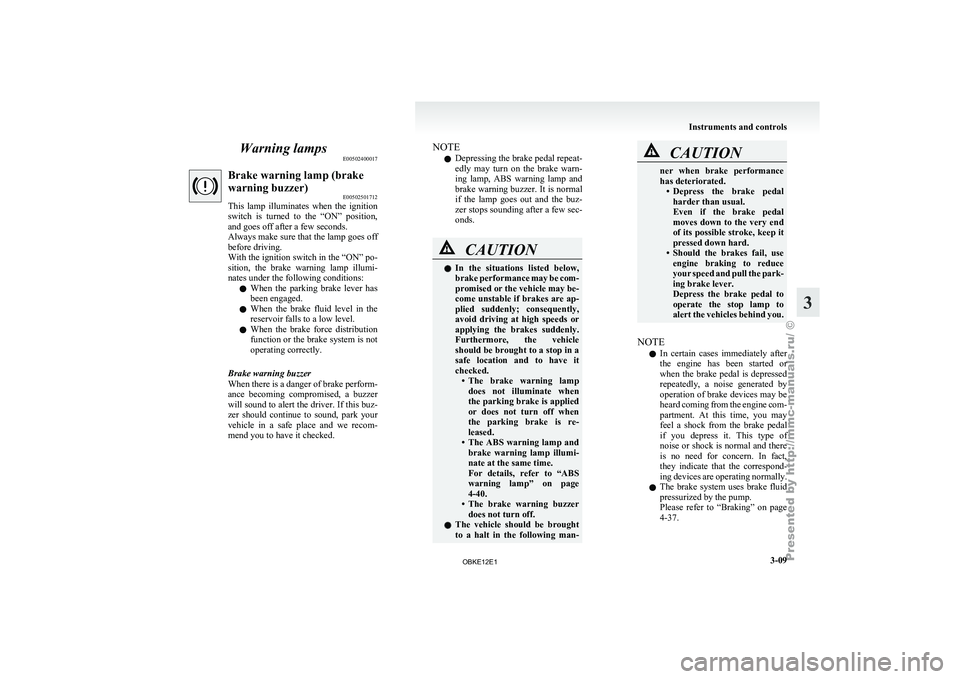

Warning lamps
E00502400017Brake warning lamp (brake
warning buzzer)
E00502501712
This lamp illuminates
when the ignition
switch is turned to the “ON” position,
and goes off after a few seconds.
Always make sure that the lamp goes off
before driving.
With the ignition switch in the “ON” po-
sition, the brake warning lamp illumi-
nates under the following conditions:
l When the parking brake lever has
been engaged.
l When the brake fluid level in the
reservoir falls to a low level.
l When the brake force distribution
function or the brake system is not
operating correctly.
Brake warning buzzer
When there is a danger of brake perform-
ance becoming compromised,

a buzzer
will sound to alert the driver. If this buz-
zer should continue to sound, park your
vehicle in a safe place and we recom-
mend you to have it checked. NOTE
l Depressing
the brake

pedal repeat-
edly may turn on the brake warn-
ing lamp, ABS warning lamp and
brake warning buzzer. It is normal
if the lamp goes out and the buz-
zer stops sounding after a few sec-
onds. CAUTION
l
In the
situations
listed below,
brake performance may be com-
promised or the vehicle may be-
come unstable if brakes are ap-
plied suddenly; consequently,
avoid driving at high speeds or
applying the brakes suddenly.
Furthermore, the vehicle
should be brought to a stop in a
safe location and to have it
checked. • The brake warning lampdoes not illuminate when
the parking brake is applied
or does not turn off when
the parking brake is re-
leased.
• The ABS warning lamp and brake warning lamp illumi-
nate at the same time.
For details, refer to “ABS
warning lamp” on page
4-40.
• The brake warning buzzer does not turn off.
l The vehicle should be brought
to a halt in the following man- CAUTION
ner when brake performance
has deteriorated.
• Depress the brake

pedal
harder than usual.
Even if the brake pedal
moves down to the very end
of its possible stroke, keep it
pressed down hard.
• Should the brakes fail, use engine braking to reduce
your speed and pull the park-
ing brake lever.
Depress the brake pedal to
operate the stop lamp to
alert the vehicles behind you.
NOTE l In
certain cases

immediately after
the engine has been started or
when the brake pedal is depressed
repeatedly, a noise generated by
operation of brake devices may be
heard coming from the engine com-
partment. At this time, you may
feel a shock from the brake pedal
if you depress it. This type of
noise or shock is normal and there
is no need for concern. In fact,
they indicate that the correspond-
ing devices are operating normally.
l The brake system uses brake fluid
pressurized by the pump.
Please refer to “Braking” on page
4-37. Instruments and controls
3-09 3

OBKE12E1
