D92I003A

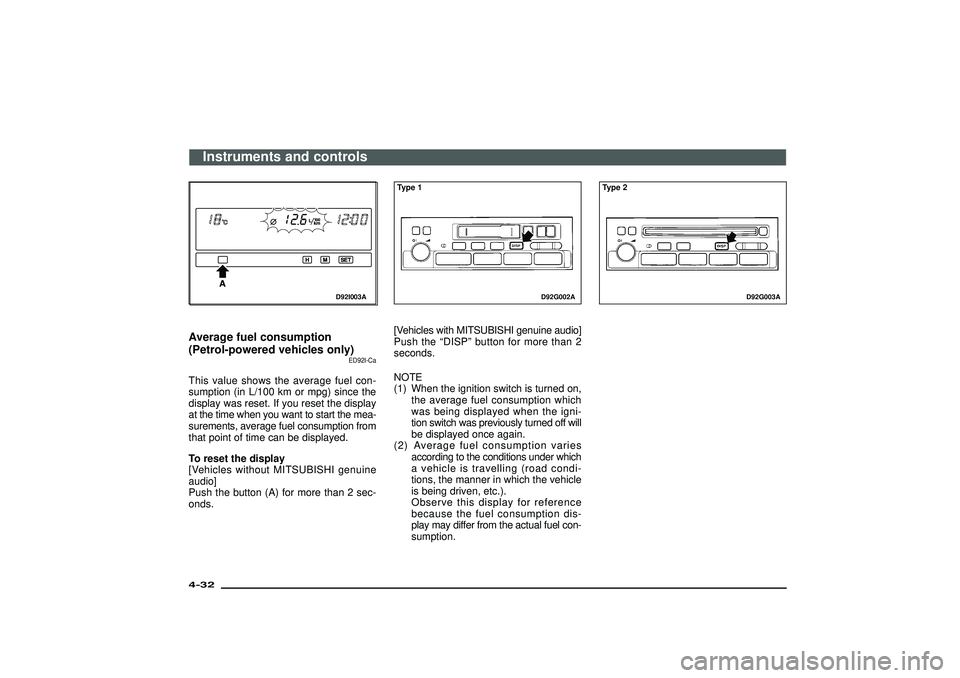

Average fuel consumption
(Petrol-powered vehicles only)
ED92I-Ca
This value shows the average fuel con-
sumption (in L/100 km or mpg) since the
display was reset. If you reset the display
at the time when you want to start the mea-
surements, average fuel consumption from
that point of time can be displayed.
To reset the display
[Vehicles without MITSUBISHI genuine
audio]
Push the button (A) for more than 2 sec-
onds.
D92G002A
Type 1[Vehicles with MITSUBISHI genuine audio]
Push the“DISP”button for more than 2
seconds.
NOTE
(1) When the ignition switch is turned on,
the average fuel consumption which
was being displayed when the igni-
tion switch was previously turned off will
be displayed once again.
(2) Average fuel consumption varies
according to the conditions under which
a vehicle is travelling (road condi-
tions, the manner in which the vehicle
is being driven, etc.).
Observe this display for reference
because the fuel consumption dis-
play may differ from the actual fuel con-
sumption.
D92G003A
Type 2
Instruments and controls
4-32Div:
Out put date:

D92C045A

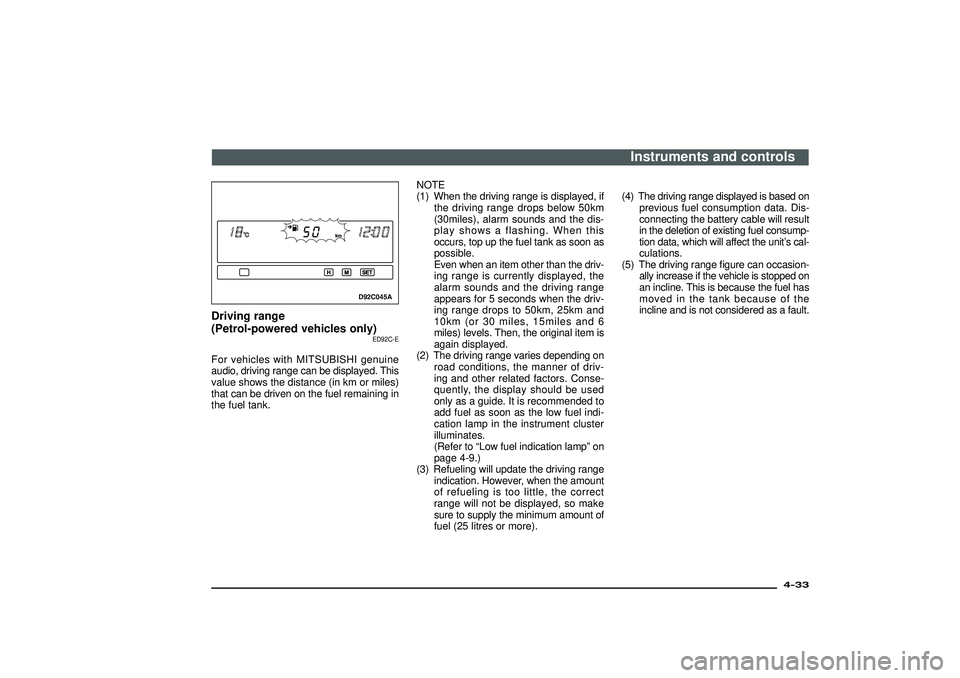

Driving range
(Petrol-powered vehicles only)
ED92C-E
For vehicles with MITSUBISHI genuine
audio, driving range can be displayed. This
value shows the distance (in km or miles)
that can be driven on the fuel remaining in
the fuel tank.NOTE
(1) When the driving range is displayed, if
the driving range drops below 50km
(30miles), alarm sounds and the dis-
play shows a flashing. When this
occurs, top up the fuel tank as soon as
possible.
Even when an item other than the driv-
ing range is currently displayed, the
alarm sounds and the driving range
appears for 5 seconds when the driv-
ing range drops to 50km, 25km and
10km (or 30 miles, 15miles and 6
miles) levels. Then, the original item is
again displayed.
(2) The driving range varies depending on
road conditions, the manner of driv-
ing and other related factors. Conse-
quently, the display should be used
only as a guide. It is recommended to
add fuel as soon as the low fuel indi-
cation lamp in the instrument cluster
illuminates.
(Refer to“Low fuel indication lamp”on
page 4-9.)
(3) Refueling will update the driving range
indication. However, when the amount
of refueling is too little, the correct
range will not be displayed, so make
sure to supply the minimum amount of
fuel (25 litres or more).(4) The driving range displayed is based on
previous fuel consumption data. Dis-
connecting the battery cable will result
in the deletion of existing fuel consump-
tion data, which will affect the unit’s cal-
culations.
(5) The driving range figure can occasion-
ally increase if the vehicle is stopped on
an incline. This is because the fuel has
moved in the tank because of the
incline and is not considered as a fault.
Instruments and controls
4-33
Div:
Out put date:

D92F003A

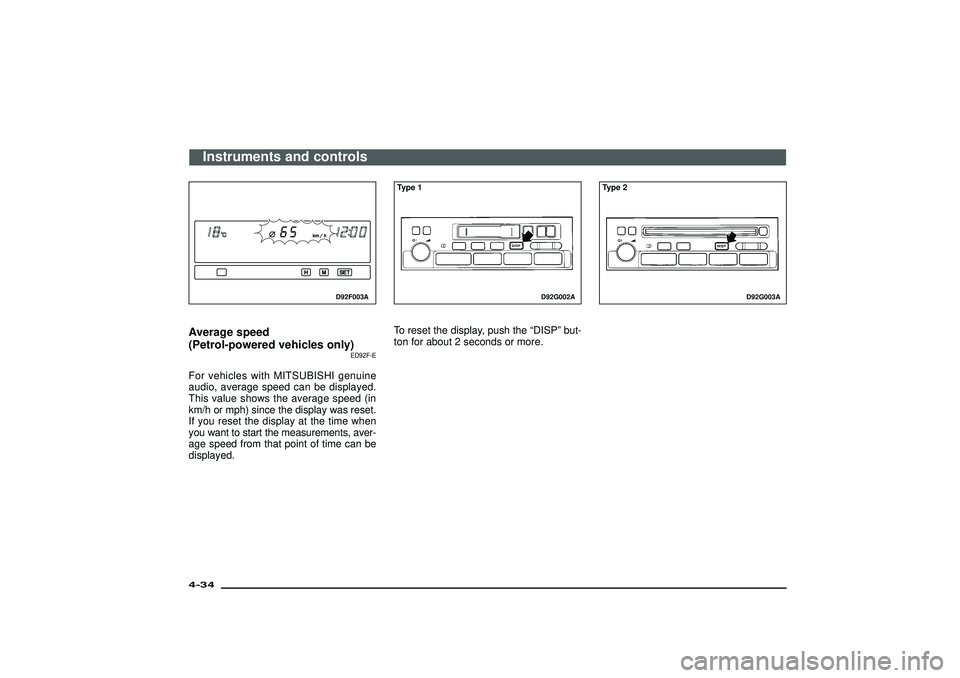

Average speed
(Petrol-powered vehicles only)
ED92F-E
For vehicles with MITSUBISHI genuine
audio, average speed can be displayed.
This value shows the average speed (in
km/h or mph) since the display was reset.
If you reset the display at the time when
you want to start the measurements, aver-
age speed from that point of time can be
displayed.
D92G002A
Type 1To reset the display, push the“DISP”but-
ton for about 2 seconds or more.
D92G003A
Type 2
Instruments and controls
4-34Div:
Out put date:

D92N009A

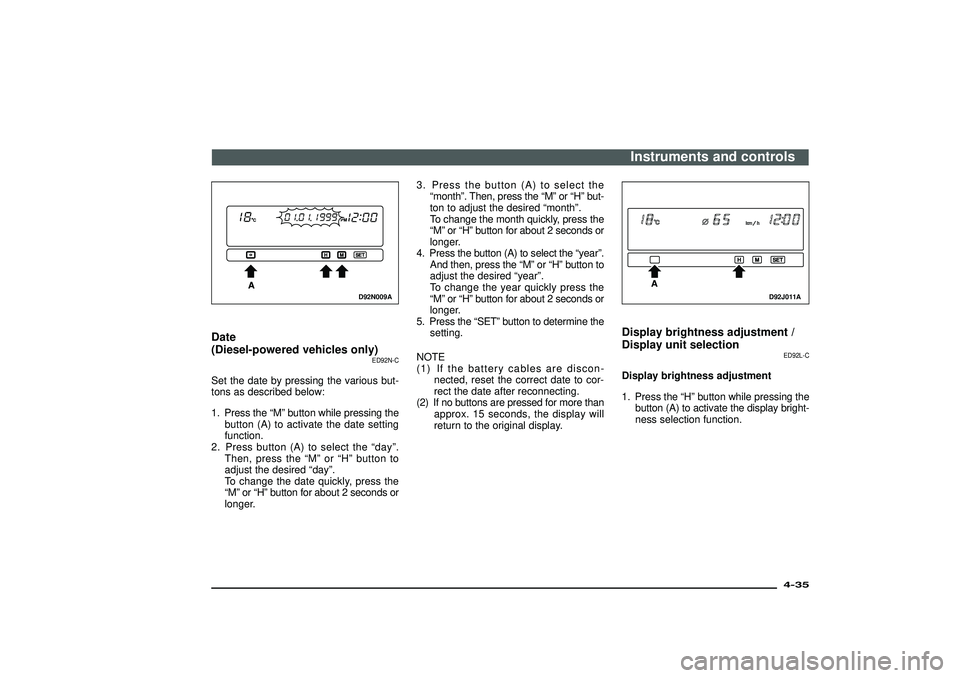

Date
(Diesel-powered vehicles only)
ED92N-C
Set the date by pressing the various but-
tons as described below:
1. Press the“M”button while pressing the
button (A) to activate the date setting
function.
2. Press button (A) to select the“day”.
Then, press the“M”or“H”button to
adjust the desired“day”.
To change the date quickly, press the
“M”or“H”button for about 2 seconds or
longer.3. Press the button (A) to select the
“month”. Then, press the“M”or“H”but-
ton to adjust the desired“month”.
To change the month quickly, press the
“M”or“H”button for about 2 seconds or
longer.
4. Press the button (A) to select the“year”.
And then, press the“M”or“H”button to
adjust the desired“year”.
To change the year quickly press the
“M”or“H”button for about 2 seconds or
longer.
5. Press the“SET”button to determine the
setting.
NOTE
(1) If the battery cables are discon-
nected, reset the correct date to cor-
rect the date after reconnecting.
(2) If no buttons are pressed for more than
approx. 15 seconds, the display will
return to the original display.
D92J011A
Display brightness adjustment /
Display unit selection
ED92L-C
Display brightness adjustment
1. Press the“H”button while pressing the
button (A) to activate the display bright-
ness selection function.Instruments and controls
4-35
Div:
Out put date:

D92J006A

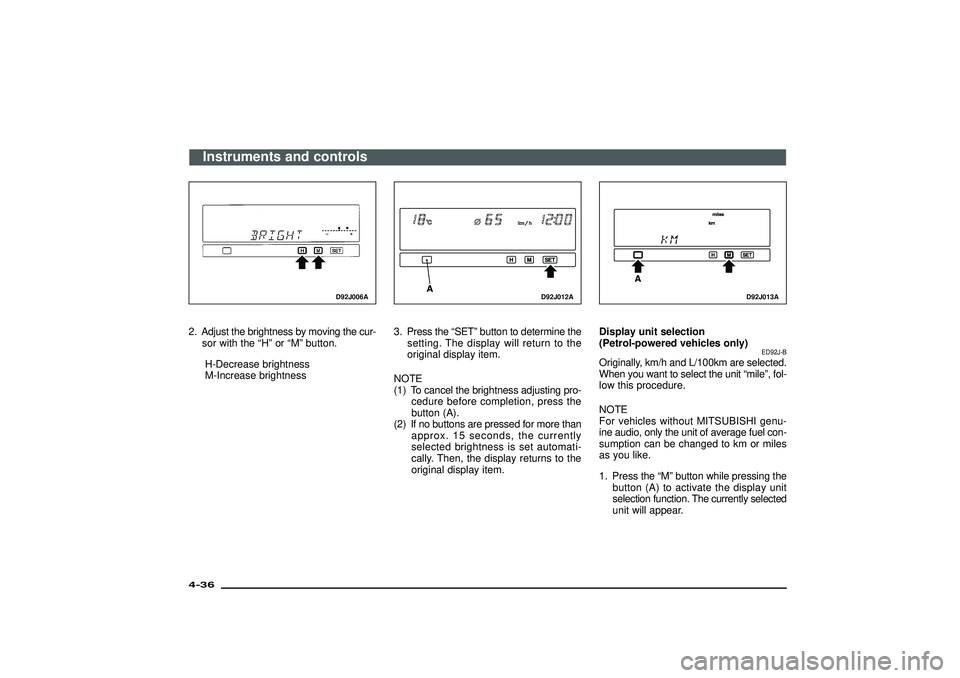

2. Adjust the brightness by moving the cur-
sor with the“H”or“M”button.
H-Decrease brightness
M-Increase brightness
D92J012A
3. Press the“SET”button to determine the
setting. The display will return to the
original display item.
NOTE
(1) To cancel the brightness adjusting pro-
cedure before completion, press the
button (A).
(2) If no buttons are pressed for more than
approx. 15 seconds, the currently
selected brightness is set automati-
cally. Then, the display returns to the
original display item.
D92J013A
Display unit selection
(Petrol-powered vehicles only)
ED92J-B
Originally, km/h and L/100km are selected.
When you want to select the unit“mile”, fol-
low this procedure.
NOTE
For vehicles without MITSUBISHI genu-
ine audio, only the unit of average fuel con-
sumption can be changed to km or miles
as you like.
1. Press the“M”button while pressing the
button (A) to activate the display unit
selection function. The currently selected
unit will appear.
Instruments and controls
4-36Div:
Out put date:

D92J014A

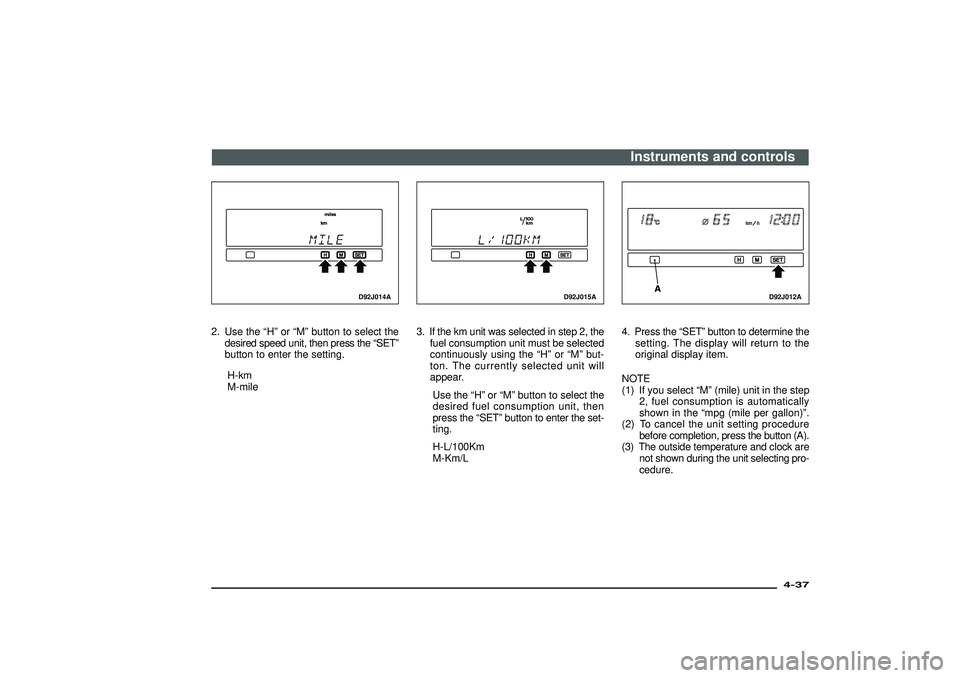

2. Use the“H”or“M”button to select the
desired speed unit, then press the“SET”
button to enter the setting.
H-km
M-mile
D92J015A
3. If the km unit was selected in step 2, the
fuel consumption unit must be selected
continuously using the“H”or“M”but-
ton. The currently selected unit will
appear.
Use the“H”or“M”button to select the
desired fuel consumption unit, then
press the“SET”button to enter the set-
ting.
H-L/100Km
M-Km/L
D92J012A
4. Press the“SET”button to determine the
setting. The display will return to the
original display item.
NOTE
(1) If you select“M”(mile) unit in the step
2, fuel consumption is automatically
shown in the“mpg (mile per gallon)”.
(2) To cancel the unit setting procedure
before completion, press the button (A).
(3) The outside temperature and clock are
not shown during the unit selecting pro-
cedure.Instruments and controls
4-37
Div:
Out put date:

(5) If no buttons are pressed for more than
approx. 15 seconds, the currently
selected unit is set automatically. Then,
the display returns to the original dis-
play item.
D92M001A

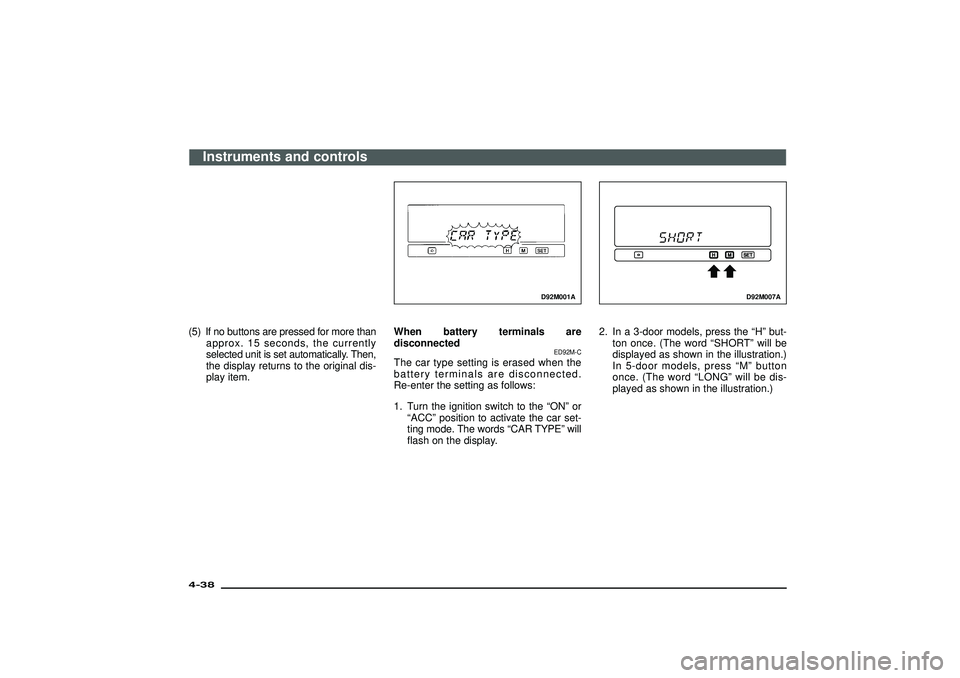

When battery terminals are
disconnected
ED92M-C
The car type setting is erased when the
battery terminals are disconnected.
Re-enter the setting as follows:
1. Turn the ignition switch to the“ON”or
“ACC”position to activate the car set-
ting mode. The words“CAR TYPE”will
flash on the display.
D92M007A
2. In a 3-door models, press the“H”but-
ton once. (The word“SHORT”will be
displayed as shown in the illustration.)
In 5-door models, press“M”button
once. (The word“LONG”will be dis-
played as shown in the illustration.)
Instruments and controls
4-38Div:
Out put date:

D92A051D

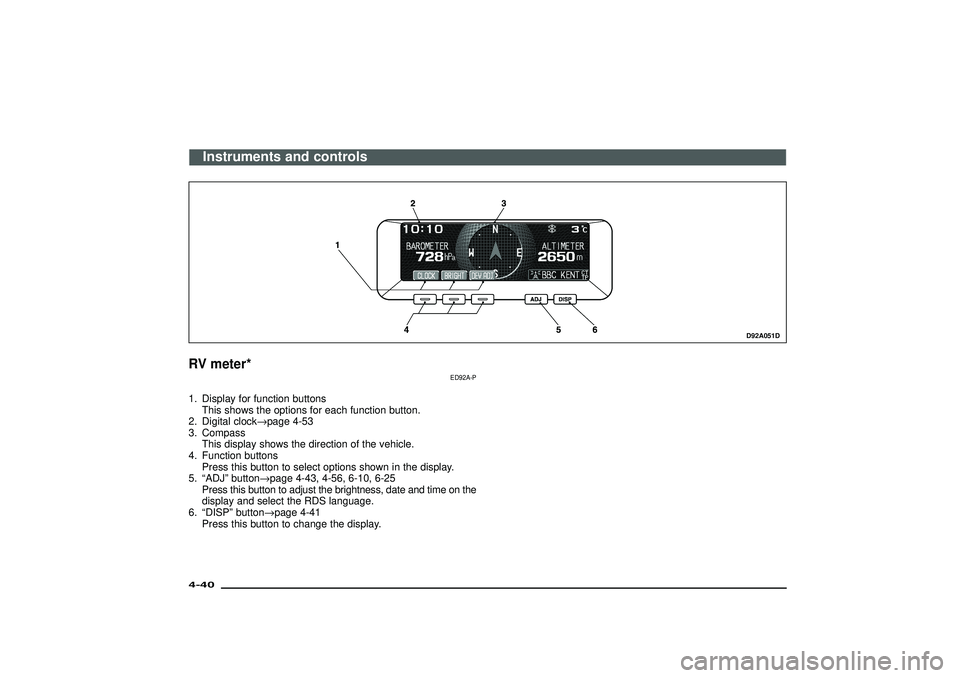

RV meter*
ED92A-P
1. Display for function buttons
This shows the options for each function button.
2. Digital clock→page 4-53
3. Compass
This display shows the direction of the vehicle.
4. Function buttons
Press this button to select options shown in the display.
5.“ADJ”button→page 4-43, 4-56, 6-10, 6-25
Press this button to adjust the brightness, date and time on the
display and select the RDS language.
6.“DISP”button→page 4-41
Press this button to change the display.
Instruments and controls
4-40Div:
Out put date:

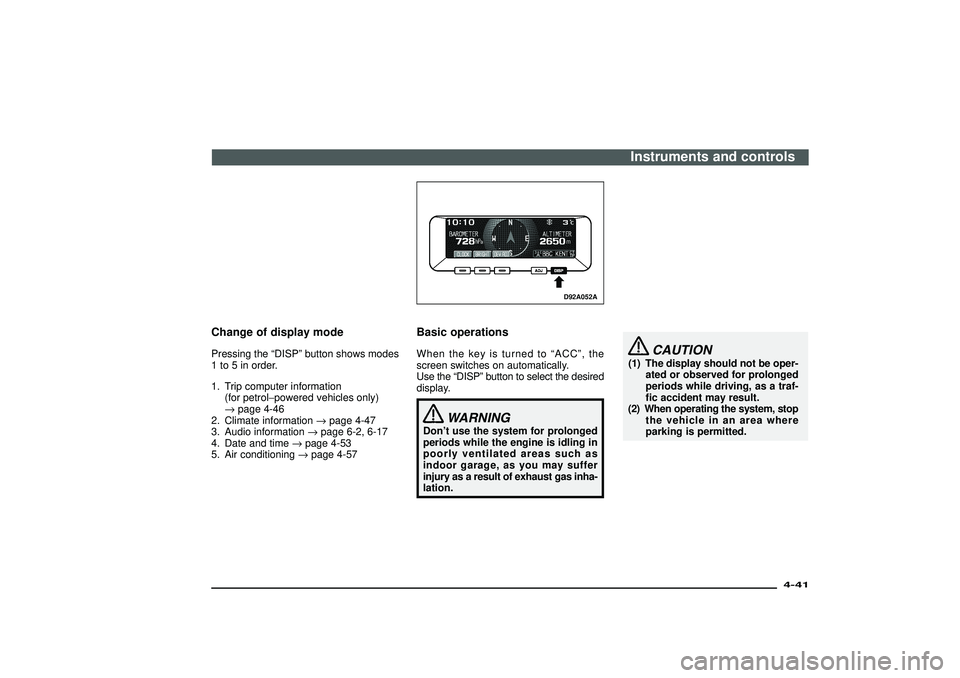

Change of display modePressing the“DISP”button shows modes
1 to 5 in order.
1. Trip computer information
(for petrol−powered vehicles only)
→page 4-46
2. Climate information→page 4-47
3. Audio information→page 6-2, 6-17
4. Date and time→page 4-53
5. Air conditioning→page 4-57
D92A052A
Basic operationsWhen the key is turned to“ACC”, the
screen switches on automatically.
Use the“DISP”button to select the desired
display.
WARNING
Don’t use the system for prolonged
periods while the engine is idling in
poorly ventilated areas such as
indoor garage, as you may suffer
injury as a result of exhaust gas inha-
lation.
CAUTION
(1) The display should not be oper-
ated or observed for prolonged
periods while driving, as a traf-
fic accident may result.
(2) When operating the system, stop
the vehicle in an area where
parking is permitted.Instruments and controls
4-41
Div:
Out put date:

NOTE
(1) Placing a cellular phone in the moni-
tor’s small storage compartment may
weaken the phone’s reception. This
does not indicate a fault with the sys-
tem.
(2) Use of wireless devices such as trans-
ceivers or a cellular phone near the
monitor may make the following con-
dition on the display. This does not indi-
cate a fault with the system.

The screen goes dark temporarily.

The compass may not show the cor-
rect direction.
(3) The following characteristics of the liq-
uid crystal display may be evident
under some circumstances and this
does not indicate a fault with the sys-
tem.

The appearance of small black
patches and spots of red, blue and
green lights.

The display goes dark, turns red or
moves slowly during cold weather.

The colour and brightness of the dis-
play change according to angle of
view.
Care of the monitorIf the monitor (the liquid crystal display)
becomes covered in fingerprints or other-
wise dirty, clean it with a soft and dry cloth.
NOTE
Don’t use a wet cloth or abrasive cleaner
as this may cause damage.
D92A053A

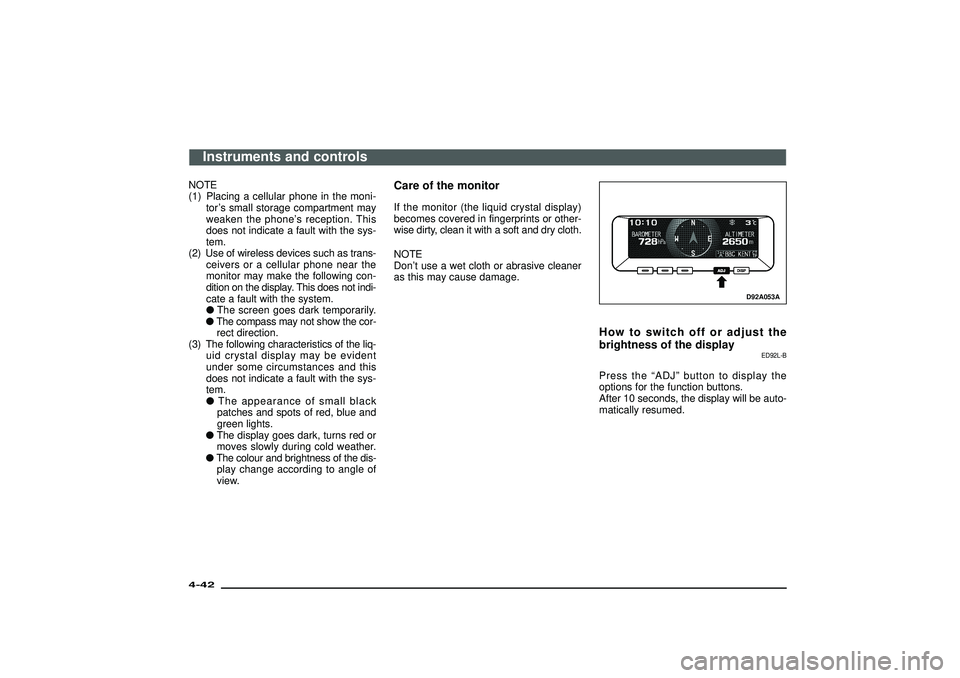

How to switch off or adjust the
brightness of the display
ED92L-B
Press the“ADJ”button to display the
options for the function buttons.
After 10 seconds, the display will be auto-
matically resumed.
