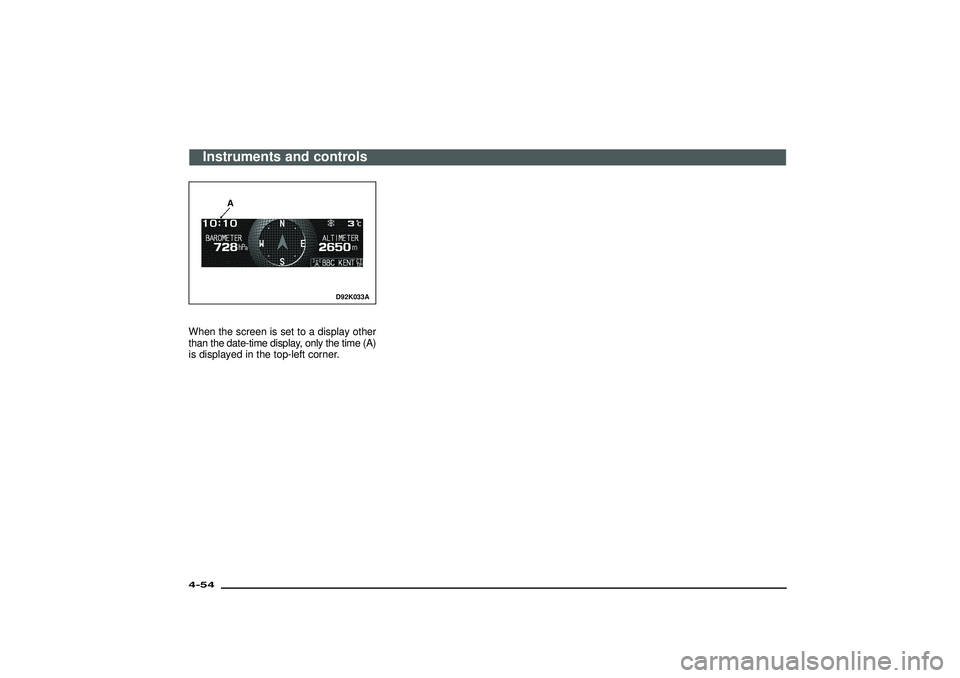

When the screen is set to a display other
than the date-time display, only the time (A)
is displayed in the top-left corner.
Instruments and controls
4-54Div:
Out put date:

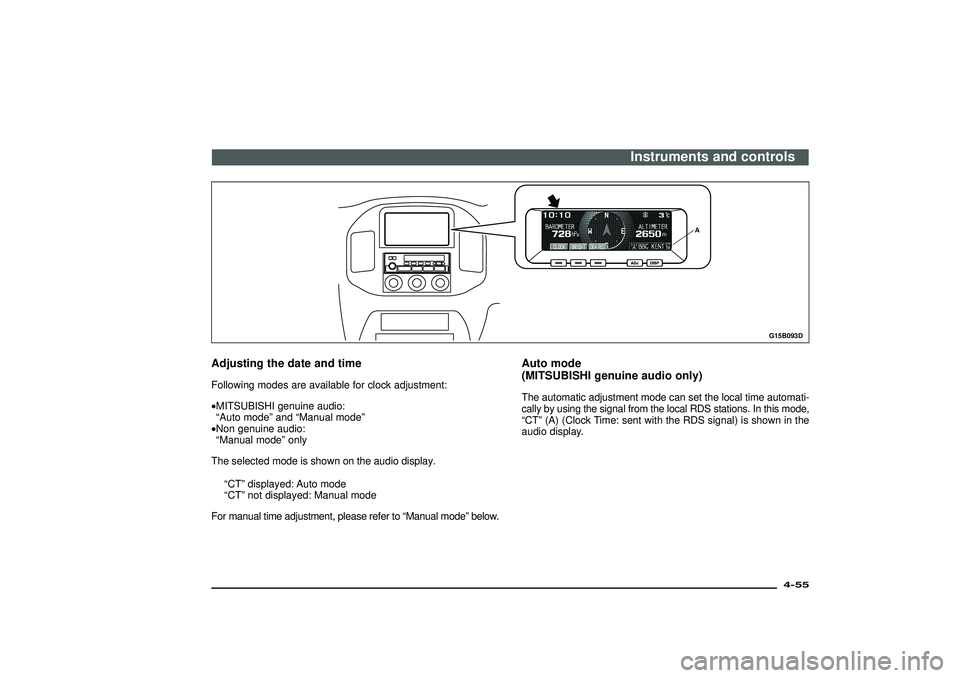

Adjusting the date and timeFollowing modes are available for clock adjustment:
•MITSUBISHI genuine audio:
“Auto mode” and “Manual mode”
• Non genuine audio:
“Manual mode” only
The selected mode is shown on the audio display.
“CT” displayed: Auto mode
“CT” not displayed: Manual mode
For manual time adjustment, please refer to “Manual mode ”below.
Auto mode
(MITSUBISHI genuine audio only)The automatic adjustment mode can set the local time automati-
cally by using the signal from the local RDS stations. In this mode,
“CT” (A) (Clock Time: sent with the RDS signal) is shown in the
audio display.
Instruments and controls
4-55
Div:
Out put date:
G15B093D

D92A053A

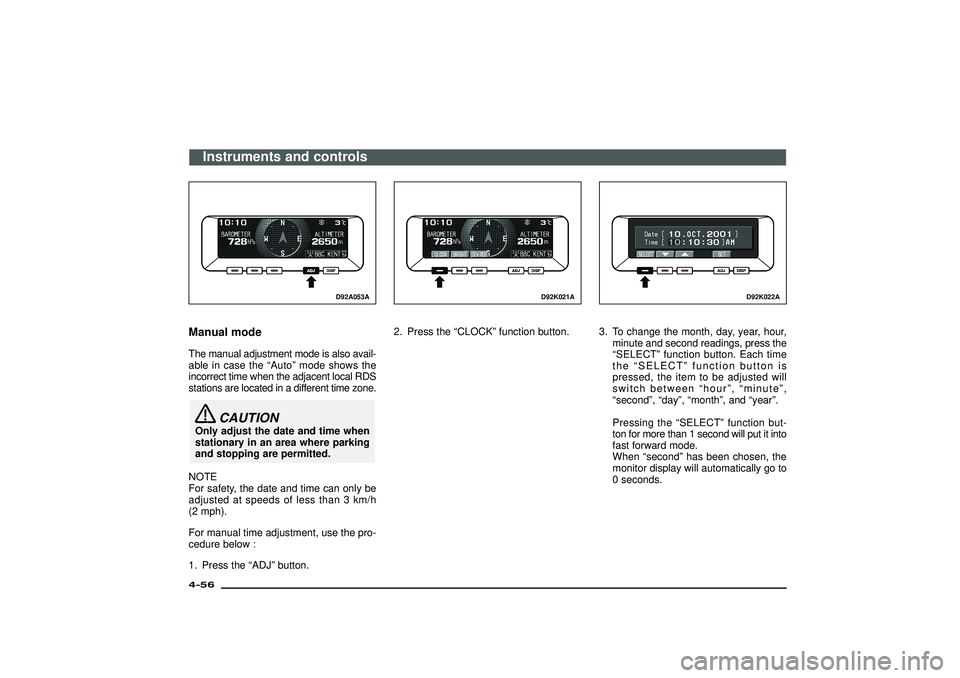

Manual modeThe manual adjustment mode is also avail-
able in case the“Auto”mode shows the
incorrect time when the adjacent local RDS
stations are located in a different time zone.
CAUTION
Only adjust the date and time when
stationary in an area where parking
and stopping are permitted.
NOTE
For safety, the date and time can only be
adjusted at speeds of less than 3 km/h
(2 mph).
For manual time adjustment, use the pro-
cedure below :
1. Press the“ADJ”button.
D92K021A
2. Press the“CLOCK”function button.
D92K022A
3. To change the month, day, year, hour,
minute and second readings, press the
“SELECT”function button. Each time
the“SELECT”function button is
pressed, the item to be adjusted will
switch between“hour”,“minute”,
“second”,“day”,“month”, and“year”.
Pressing the“SELECT”function but-
ton for more than 1 second will put it into
fast forward mode.
When“second”has been chosen, the
monitor display will automatically go to
0 seconds.
Instruments and controls
4-56Div:
Out put date:

D92K023A

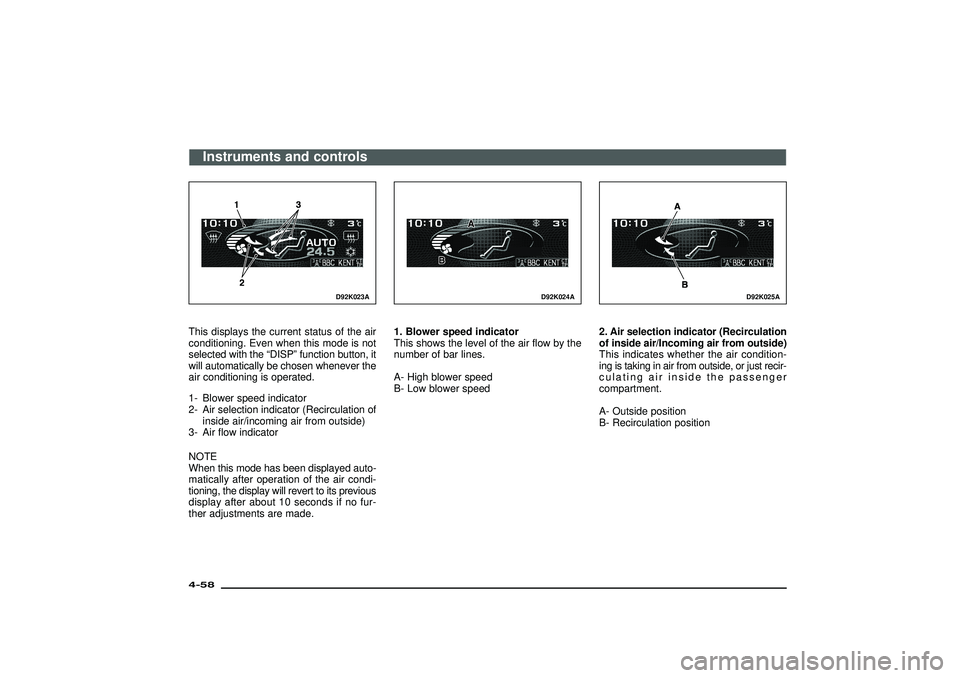

This displays the current status of the air
conditioning. Even when this mode is not
selected with the“DISP”function button, it
will automatically be chosen whenever the
air conditioning is operated.
1- Blower speed indicator
2- Air selection indicator (Recirculation of
inside air/incoming air from outside)
3- Air flow indicator
NOTE
When this mode has been displayed auto-
matically after operation of the air condi-
tioning, the display will revert to its previous
display after about 10 seconds if no fur-
ther adjustments are made.
D92K024A
1. Blower speed indicator
This shows the level of the air flow by the
number of bar lines.
A- High blower speed
B- Low blower speed
D92K025A
2. Air selection indicator (Recirculation
of inside air/Incoming air from outside)
This indicates whether the air condition-
ing is taking in air from outside, or just recir-
culating air inside the passenger
compartment.
A- Outside position
B- Recirculation position
Instruments and controls
4-58Div:
Out put date:

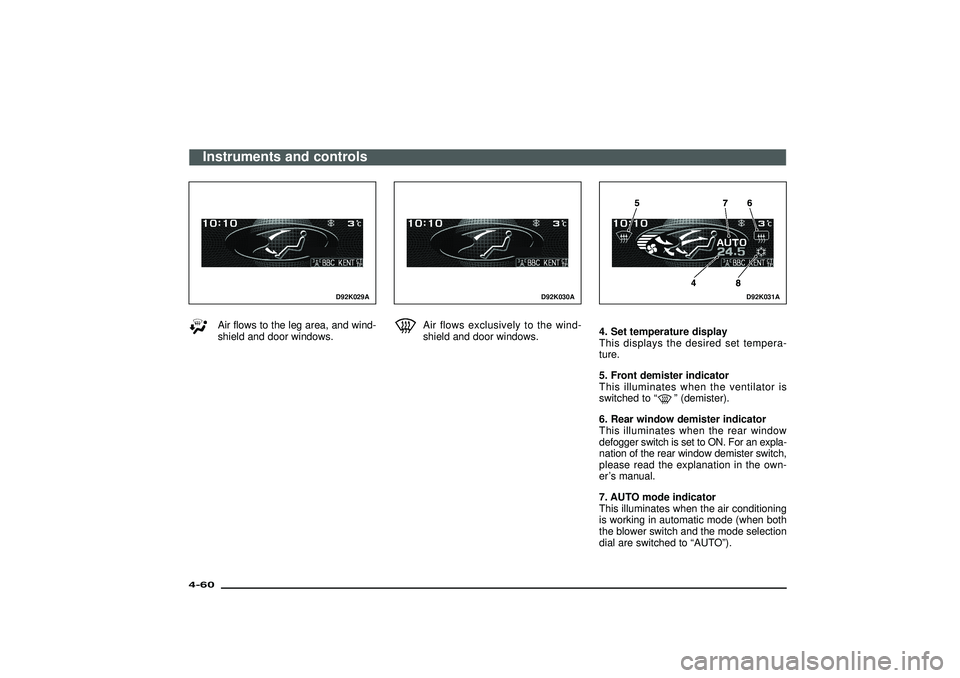

D92K029A
Air flows to the leg area, and wind-
shield and door windows.
D92K030A
Air flows exclusively to the wind-
shield and door windows.
D92K031A
4. Set temperature display
This displays the desired set tempera-
ture.
5. Front demister indicator
This illuminates when the ventilator is
switched to“
”(demister).
6. Rear window demister indicator
This illuminates when the rear window
defogger switch is set to ON. For an expla-
nation of the rear window demister switch,
please read the explanation in the own-
er’s manual.
7. AUTO mode indicator
This illuminates when the air conditioning
is working in automatic mode (when both
the blower switch and the mode selection
dial are switched to“AUTO”).
Instruments and controls
4-60Div:
Out put date:

D92M010A

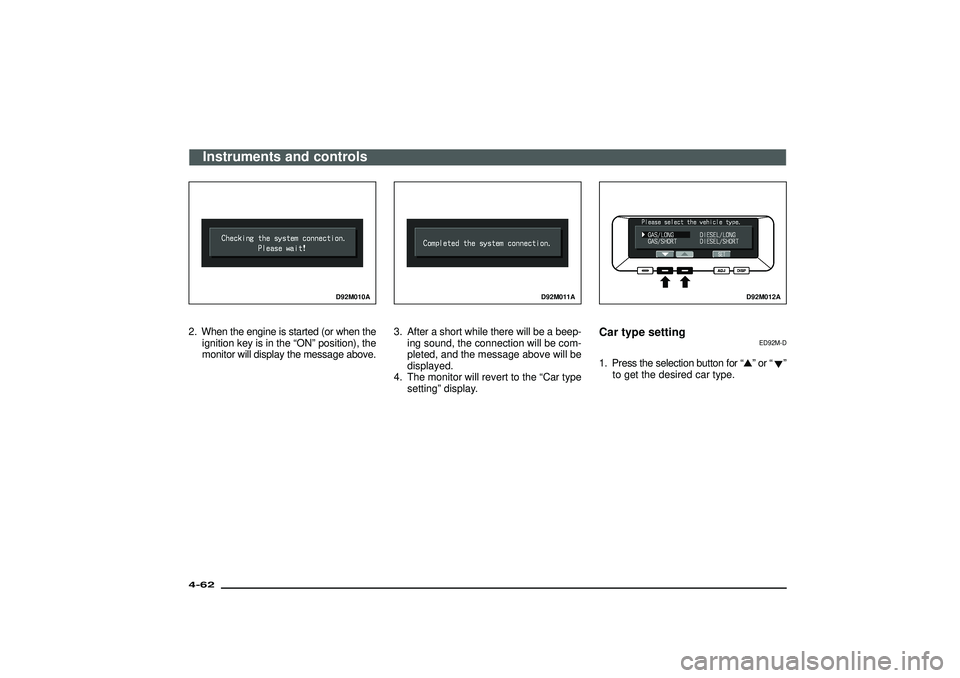

2. When the engine is started (or when the
ignition key is in the“ON”position), the
monitor will display the message above.
D92M011A
3. After a short while there will be a beep-
ing sound, the connection will be com-
pleted, and the message above will be
displayed.
4. The monitor will revert to the“Car type
setting”display.
D92M012A
Car type setting
ED92M-D
1. Press the selection button for“”or“
”
to get the desired car type.
Instruments and controls
4-62Div:
Out put date:

D92M013A

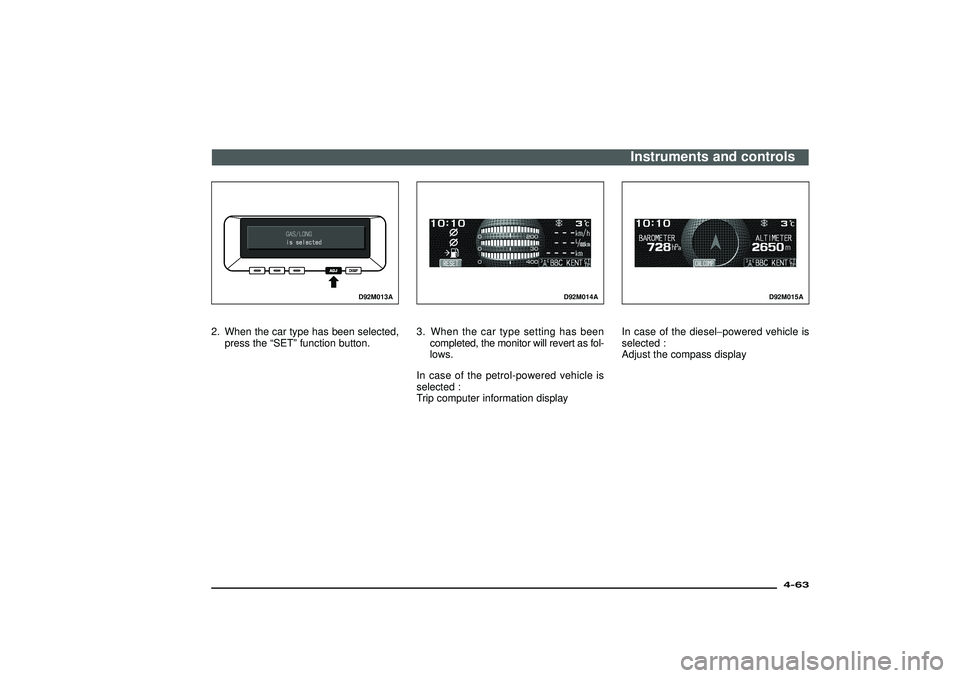

2. When the car type has been selected,
press the“SET”function button.
D92M014A
3. When the car type setting has been
completed, the monitor will revert as fol-
lows.
In case of the petrol-powered vehicle is
selected :
Trip computer information display
D92M015A
In case of the diesel−powered vehicle is
selected :
Adjust the compass displayInstruments and controls
4-63
Div:
Out put date:

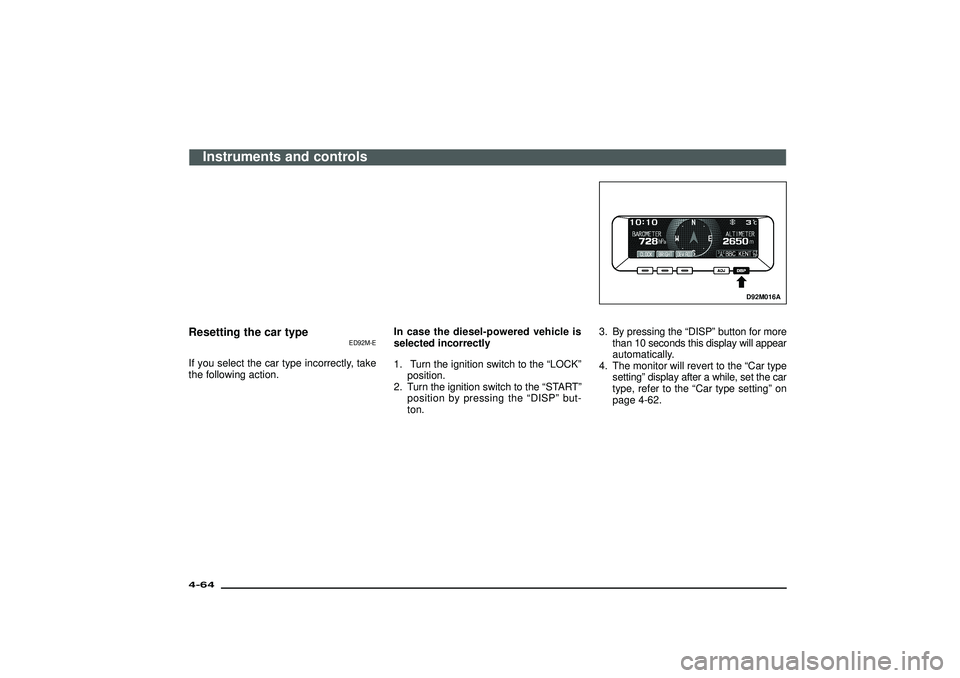

Resetting the car type
ED92M-E
If you select the car type incorrectly, take
the following action.In case the diesel-powered vehicle is
selected incorrectly
1. Turn the ignition switch to the“LOCK”
position.
2. Turn the ignition switch to the“START”
position by pressing the“DISP”but-
ton.
D92M016A
3. By pressing the“DISP”button for more
than 10 seconds this display will appear
automatically.
4. The monitor will revert to the“Car type
setting”display after a while, set the car
type, refer to the“Car type setting”on
page 4-62.
Instruments and controls
4-64Div:
Out put date:

D92M016A
In case the petrol-powered vehicle is
selected incorrectly

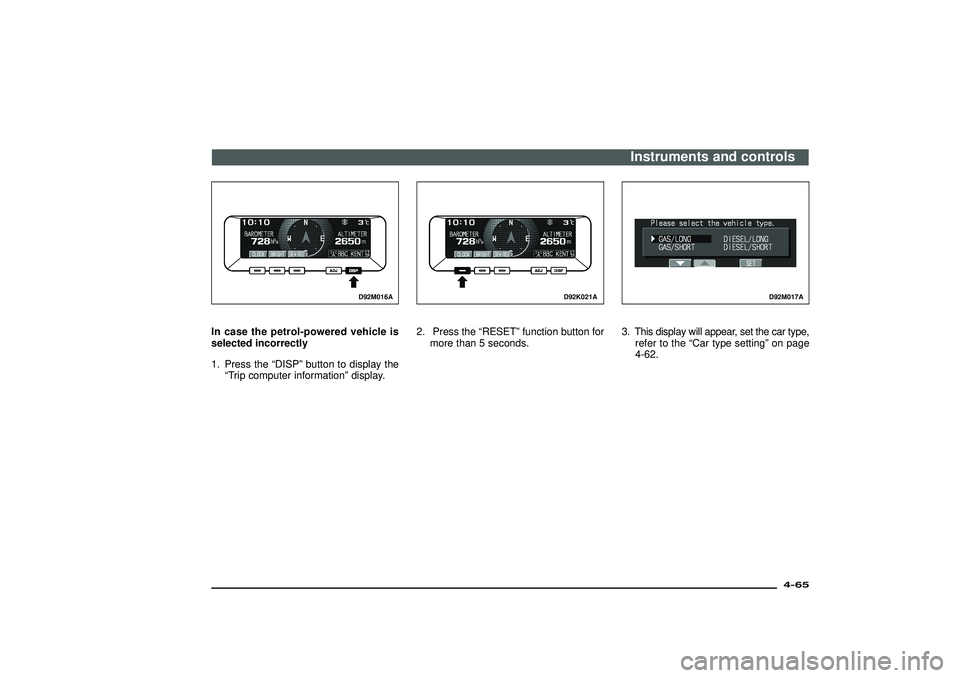

1. Press the“DISP”button to display the
“Trip computer information”display.
D92K021A
2. Press the“RESET”function button for
more than 5 seconds.
D92M017A
3. This display will appear, set the car type,
refer to the“Car type setting”on page
4-62.Instruments and controls
4-65
Div:
Out put date:

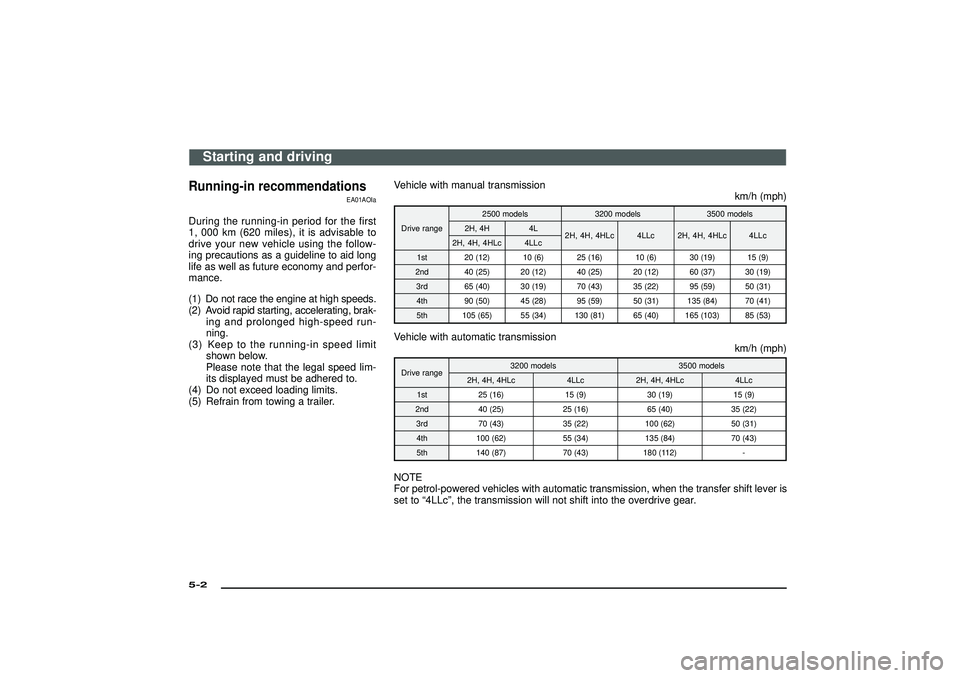

Running-in recommendations
EA01AOIa
During the running-in period for the first
1, 000 km (620 miles), it is advisable to
drive your new vehicle using the follow-
ing precautions as a guideline to aid long
life as well as future economy and perfor-
mance.
(1) Do not race the engine at high speeds.
(2) Avoid rapid starting, accelerating, brak-
ing and prolonged high-speed run-
ning.
(3) Keep to the running-in speed limit
shown below.
Please note that the legal speed lim-
its displayed must be adhered to.
(4) Do not exceed loading limits.
(5) Refrain from towing a trailer.Vehicle with manual transmission
km/h (mph)
Drive range2500 models 3200 models 3500 models
2H, 4H 4L
2H, 4H, 4HLc 4LLc 2H, 4H, 4HLc 4LLc
2H, 4H, 4HLc 4LLc
1st 20 (12) 10 (6) 25 (16) 10 (6) 30 (19) 15 (9)
2nd 40 (25) 20 (12) 40 (25) 20 (12) 60 (37) 30 (19)
3rd 65 (40) 30 (19) 70 (43) 35 (22) 95 (59) 50 (31)
4th 90 (50) 45 (28) 95 (59) 50 (31) 135 (84) 70 (41)
5th 105 (65) 55 (34) 130 (81) 65 (40) 165 (103) 85 (53)Vehicle with automatic transmission
km/h (mph)Drive range3200 models 3500 models
2H, 4H, 4HLc 4LLc 2H, 4H, 4HLc 4LLc
1st 25 (16) 15 (9) 30 (19) 15 (9)
2nd 40 (25) 25 (16) 65 (40) 35 (22)
3rd 70 (43) 35 (22) 100 (62) 50 (31)
4th 100 (62) 55 (34) 135 (84) 70 (43)
5th 140 (87) 70 (43) 180 (112) -NOTE
For petrol-powered vehicles with automatic transmission, when the transfer shift lever is
set to “4LLc”, the transmission will not shift into the overdrive gear.
