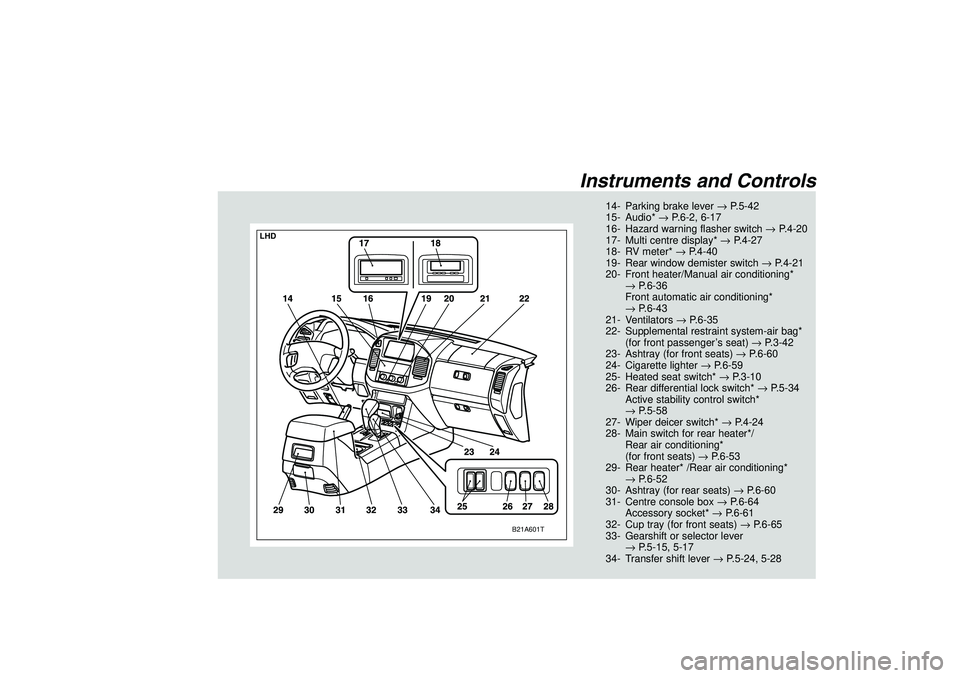

Instruments and Controls
B21A601T
LHD
14- Parking brake lever→P.5-42
15- Audio*→P.6-2, 6-17
16- Hazard warning flasher switch→P.4-20
17- Multi centre display*→P.4-27
18- RV meter*→P.4-40
19- Rear window demister switch→P.4-21
20- Front heater/Manual air conditioning*
→P.6-36
Front automatic air conditioning*
→P.6-43
21- Ventilators→P.6-35
22- Supplemental restraint system-air bag*
(for front passenger’s seat)→P.3-42
23- Ashtray (for front seats)→P.6-60
24- Cigarette lighter→P.6-59
25- Heated seat switch*→P.3-10
26- Rear differential lock switch*→P.5-34
Active stability control switch*
→P.5-58
27- Wiper deicer switch*→P.4-24
28- Main switch for rear heater*/
Rear air conditioning*
(for front seats)→P.6-53
29- Rear heater* /Rear air conditioning*
→P.6-52
30- Ashtray (for rear seats)→P.6-60
31- Centre console box→P.6-64
Accessory socket*→P.6-61
32- Cup tray (for front seats)→P.6-65
33- Gearshift or selector lever
→P.5-15, 5-17
34- Transfer shift lever→P.5-24, 5-28
Div:
Out put date:

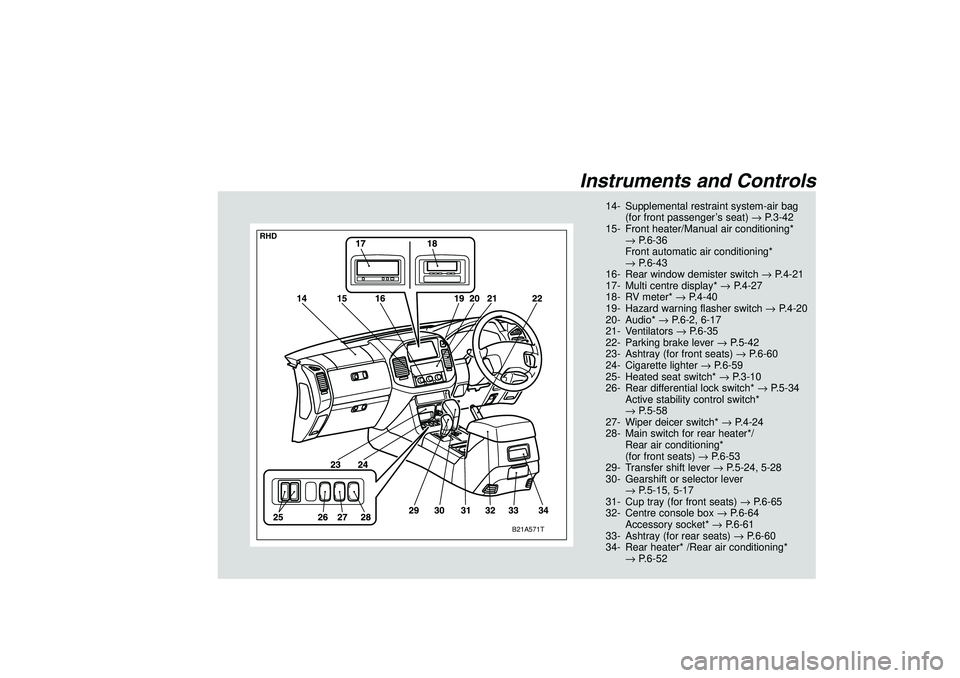

Instruments and Controls
B21A571T
RHD
14- Supplemental restraint system-air bag
(for front passenger’s seat)→P.3-42
15- Front heater/Manual air conditioning*
→P.6-36
Front automatic air conditioning*
→P.6-43
16- Rear window demister switch→P.4-21
17- Multi centre display*→P.4-27
18- RV meter*→P.4-40
19- Hazard warning flasher switch→P.4-20
20- Audio*→P.6-2, 6-17
21- Ventilators→P.6-35
22- Parking brake lever→P.5-42
23- Ashtray (for front seats)→P.6-60
24- Cigarette lighter→P.6-59
25- Heated seat switch*→P.3-10
26- Rear differential lock switch*→P.5-34
Active stability control switch*
→P.5-58
27- Wiper deicer switch*→P.4-24
28- Main switch for rear heater*/
Rear air conditioning*
(for front seats)→P.6-53
29- Transfer shift lever→P.5-24, 5-28
30- Gearshift or selector lever
→P.5-15, 5-17
31- Cup tray (for front seats)→P.6-65
32- Centre console box→P.6-64
Accessory socket*→P.6-61
33- Ashtray (for rear seats)→P.6-60
34- Rear heater* /Rear air conditioning*
→P.6-52
Div:
Out put date:

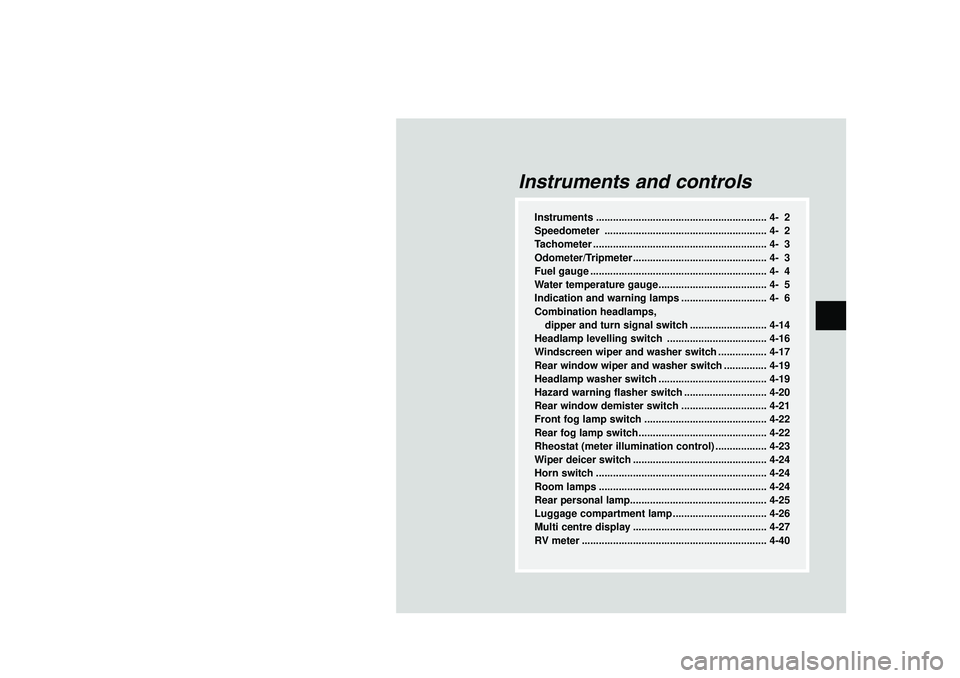

Instruments and controls
Instruments ............................................................ 4- 2
Speedometer ......................................................... 4- 2
Tachometer ............................................................. 4- 3
Odometer/Tripmeter............................................... 4- 3
Fuel gauge .............................................................. 4- 4
Water temperature gauge...................................... 4- 5
Indication and warning lamps .............................. 4- 6
Combination headlamps,
dipper and turn signal switch ........................... 4-14
Headlamp levelling switch ................................... 4-16
Windscreen wiper and washer switch ................. 4-17
Rear window wiper and washer switch ............... 4-19
Headlamp washer switch ...................................... 4-19
Hazard warning flasher switch ............................. 4-20
Rear window demister switch .............................. 4-21
Front fog lamp switch ........................................... 4-22
Rear fog lamp switch............................................. 4-22
Rheostat (meter illumination control) .................. 4-23
Wiper deicer switch ............................................... 4-24
Horn switch ............................................................ 4-24
Room lamps ........................................................... 4-24
Rear personal lamp................................................ 4-25
Luggage compartment lamp ................................. 4-26
Multi centre display ............................................... 4-27
RV meter ................................................................. 4-40
Div:
Out put date:

D04A056A

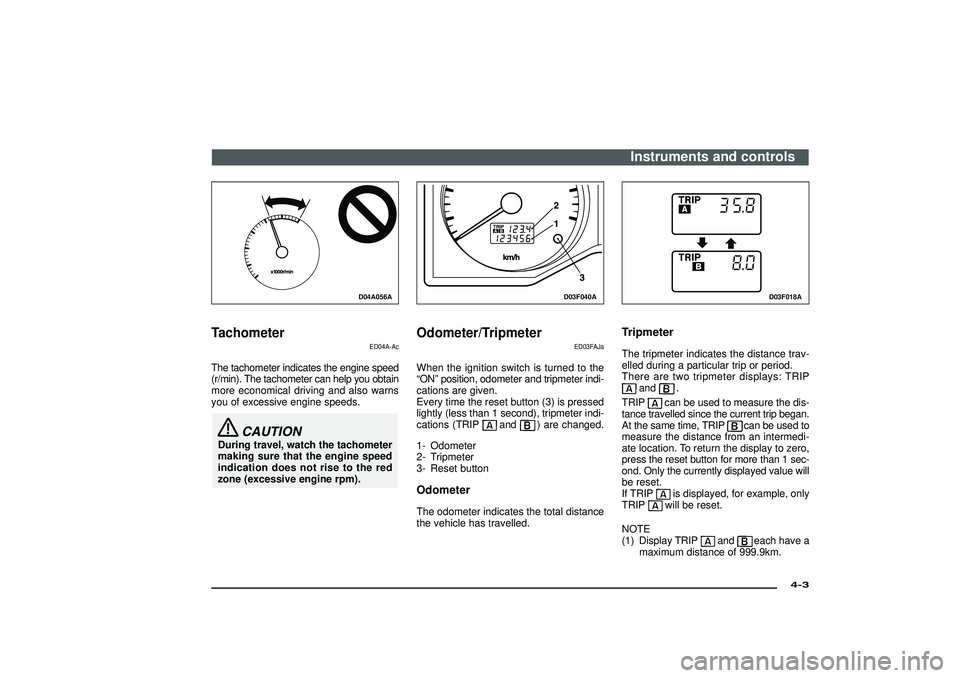

Tachometer
ED04A-Ac
The tachometer indicates the engine speed
(r/min). The tachometer can help you obtain
more economical driving and also warns
you of excessive engine speeds.
CAUTION
During travel, watch the tachometer
making sure that the engine speed
indication does not rise to the red
zone (excessive engine rpm).
D03F040A
Odometer/Tripmeter
ED03FAJa
When the ignition switch is turned to the
“ON”position, odometer and tripmeter indi-
cations are given.
Every time the reset button (3) is pressed
lightly (less than 1 second), tripmeter indi-
cations (TRIP
and
) are changed.
1- Odometer
2- Tripmeter
3- Reset button
OdometerThe odometer indicates the total distance
the vehicle has travelled.
D03F018A
TripmeterThe tripmeter indicates the distance trav-
elled during a particular trip or period.
There are two tripmeter displays: TRIP
and
.
TRIP
can be used to measure the dis-
tance travelled since the current trip began.
At the same time, TRIP
can be used to
measure the distance from an intermedi-
ate location. To return the display to zero,
press the reset button for more than 1 sec-
ond. Only the currently displayed value will
be reset.
If TRIP
is displayed, for example, only
TRIPwill be reset.
NOTE
(1) Display TRIP
and
each have a
maximum distance of 999.9km.
Instruments and controls
4-3
Div:
Out put date:

(2) When disconnecting the battery termi-
nal for a long time, the memory of trip-
meter display TRIP
and
are
cleared, and the display returns to“0”.
D05A052A

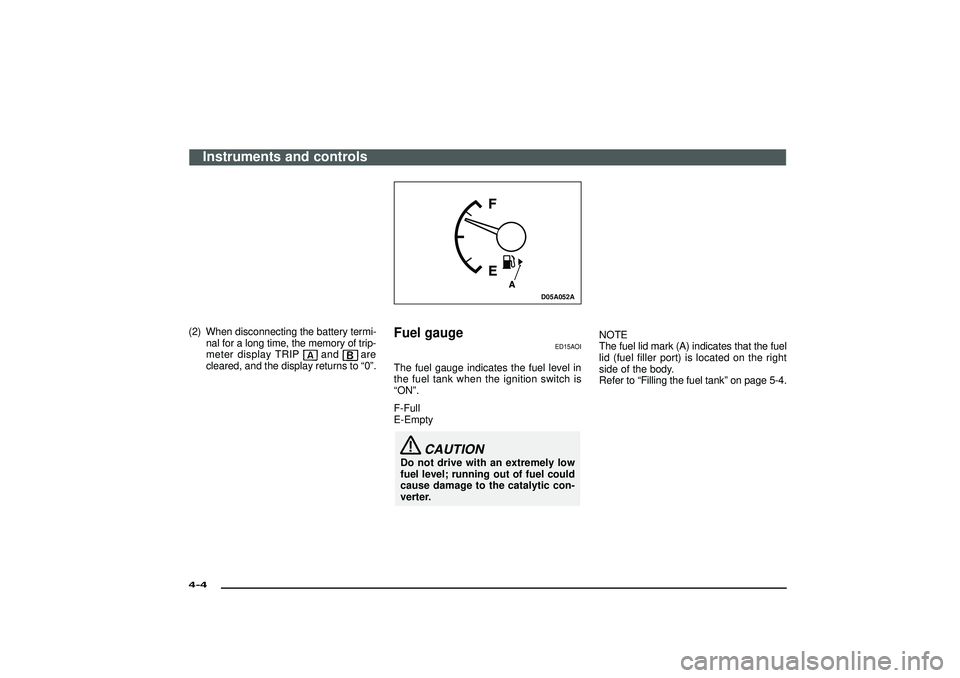

Fuel gauge
ED15AOI
The fuel gauge indicates the fuel level in
the fuel tank when the ignition switch is
“ON”.
F-Full
E-Empty
CAUTION
Do not drive with an extremely low
fuel level; running out of fuel could
cause damage to the catalytic con-
verter.NOTE
The fuel lid mark (A) indicates that the fuel
lid (fuel filler port) is located on the right
side of the body.
Refer to“Filling the fuel tank”on page 5-4.
Instruments and controls
4-4Div:
Out put date:

D92A013D

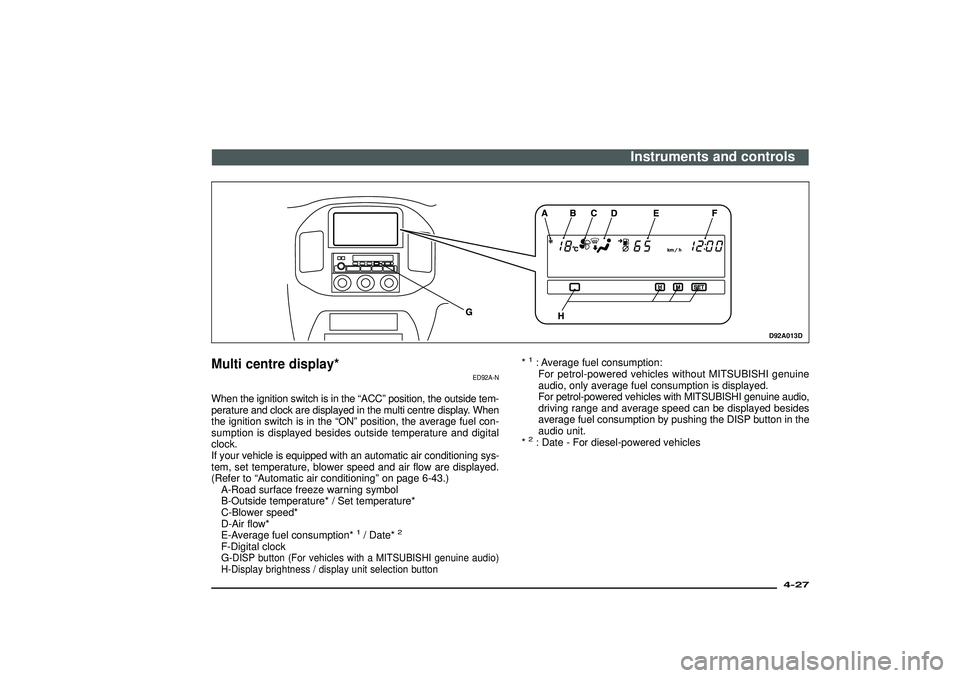

Multi centre display*
ED92A-N
When the ignition switch is in the“ACC”position, the outside tem-
perature and clock are displayed in the multi centre display. When
the ignition switch is in the“ON”position, the average fuel con-
sumption is displayed besides outside temperature and digital
clock.
If your vehicle is equipped with an automatic air conditioning sys-
tem, set temperature, blower speed and air flow are displayed.
(Refer to“Automatic air conditioning”on page 6-43.)
A-Road surface freeze warning symbol
B-Outside temperature* / Set temperature*
C-Blower speed*
D-Air flow*
E-Average fuel consumption*
1/ Date*
2
F-Digital clock
G-DISP button (For vehicles with a MITSUBISHI genuine audio)
H-Display brightness / display unit selection button
*1: Average fuel consumption:
For petrol-powered vehicles without MITSUBISHI genuine
audio, only average fuel consumption is displayed.
For petrol-powered vehicles with MITSUBISHI genuine audio,
driving range and average speed can be displayed besides
average fuel consumption by pushing the DISP button in the
audio unit.
*2: Date - For diesel-powered vehicles
Instruments and controls
4-27
Div:
Out put date:

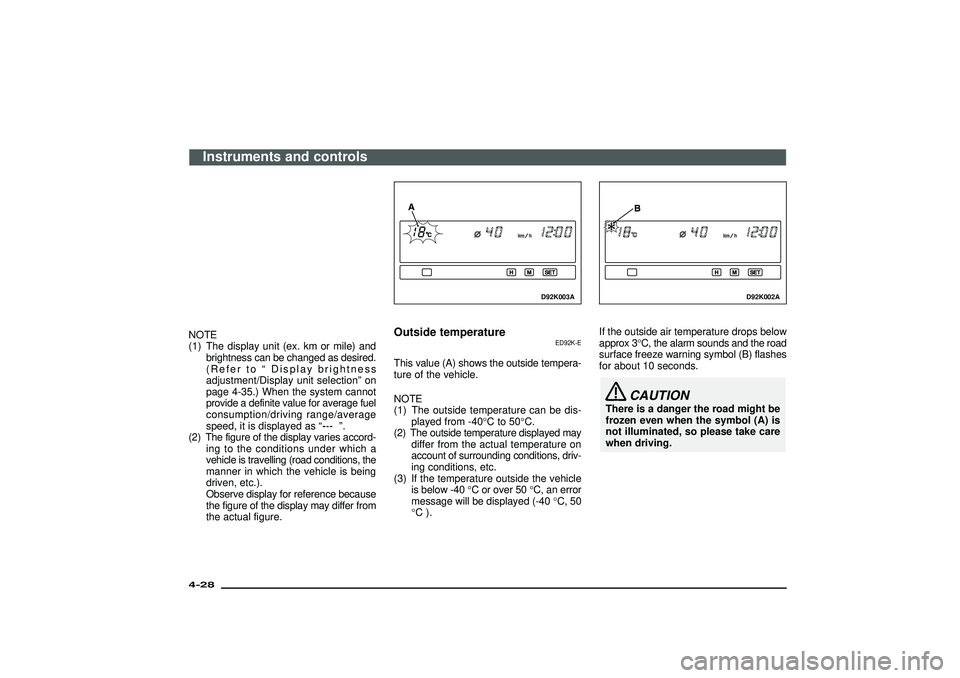

NOTE
(1) The display unit (ex. km or mile) and
brightness can be changed as desired.
(Refer to“Display brightness
adjustment/Display unit selection”on
page 4-35.) When the system cannot
provide a definite value for average fuel
consumption/driving range/average
speed, it is displayed as“
”.
(2) The figure of the display varies accord-
ing to the conditions under which a
vehicle is travelling (road conditions, the
manner in which the vehicle is being
driven, etc.).
Observe display for reference because
the figure of the display may differ from
the actual figure.
D92K003A
Outside temperature
ED92K-E
This value (A) shows the outside tempera-
ture of the vehicle.
NOTE
(1) The outside temperature can be dis-
played from -40°Cto50°C.
(2) The outside temperature displayed may
differ from the actual temperature on
account of surrounding conditions, driv-
ing conditions, etc.
(3) If the temperature outside the vehicle
is below -40°C or over 50°C, an error
message will be displayed (-40°C, 50
°C).
D92K002A
If the outside air temperature drops below
approx 3°C, the alarm sounds and the road
surface freeze warning symbol (B) flashes
for about 10 seconds.
CAUTION
There is a danger the road might be
frozen even when the symbol (A) is
not illuminated, so please take care
when driving.
Instruments and controls
4-28Div:
Out put date:

G15B093D

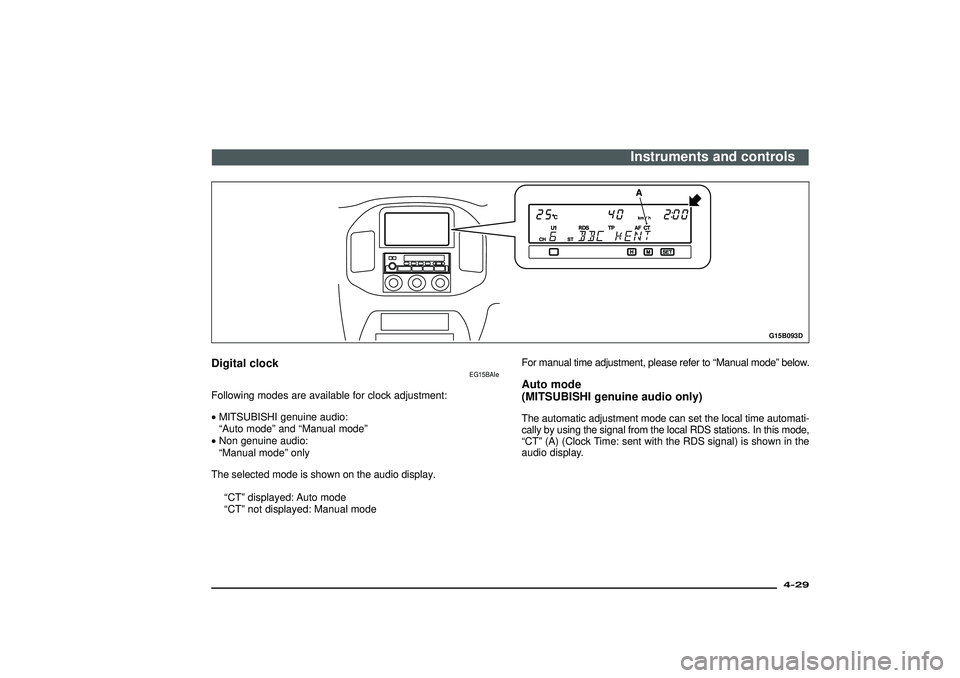

Digital clock
EG15BAIe
Following modes are available for clock adjustment:
•MITSUBISHI genuine audio:
“Auto mode” and “Manual mode”
• Non genuine audio:
“Manual mode” only
The selected mode is shown on the audio display.
“CT” displayed: Auto mode
“CT” not displayed: Manual mode For manual time adjustment, please refer to
“Manual mode ”below.
Auto mode
(MITSUBISHI genuine audio only)The automatic adjustment mode can set the local time automati-
cally by using the signal from the local RDS stations. In this mode,
“CT” (A) (Clock Time: sent with the RDS signal) is shown in the
audio display.
Instruments and controls
4-29
Div:
Out put date:

G15B094D

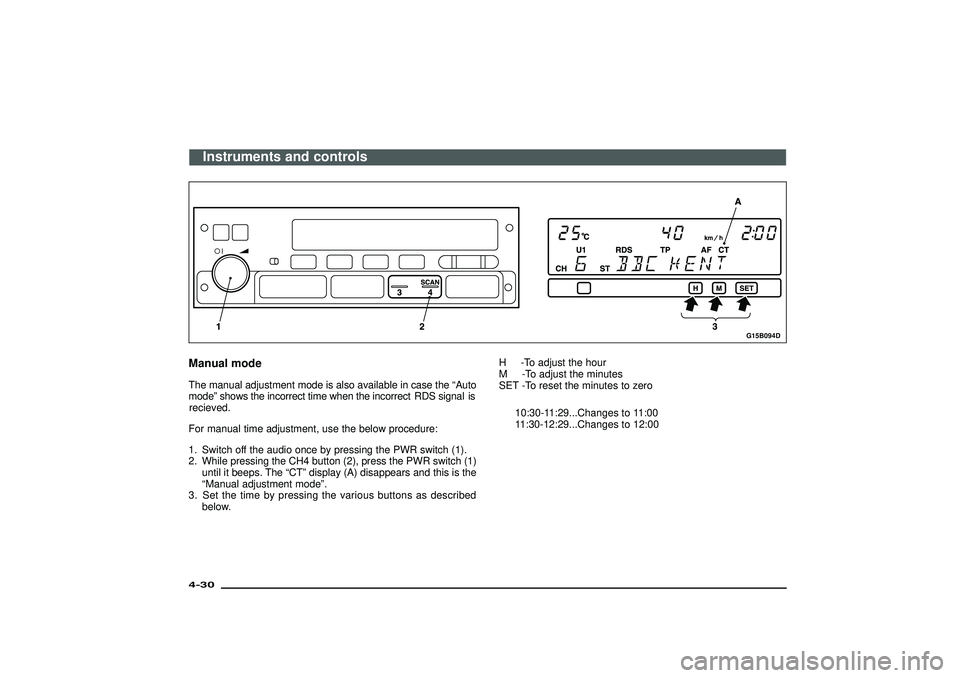

Manual modeThe manual adjustment mode is also available in case the“Auto
mode ”show sth e incorrec ttim ewhe nthe incorrect
RDS signal
is
recieved .
For manual time adjustment, use the below procedure:
1. Switch off the audio once by pressing the PWR switch (1).
2. While pressing the CH4 button (2), press the PWR switch (1) until it beeps. The “CT” display (A) disappears and this is the“Manual adjustment mode”.
3. Set the time by pressing the various buttons as described below. H -To adjust the hour
M -To adjust the minutes
SET -To reset the minutes to zero
10:30-11:29...Changes to 11:00
11:30-12:29...Changes to 12:00
Instruments and controls
4-30Div:
Out put date:

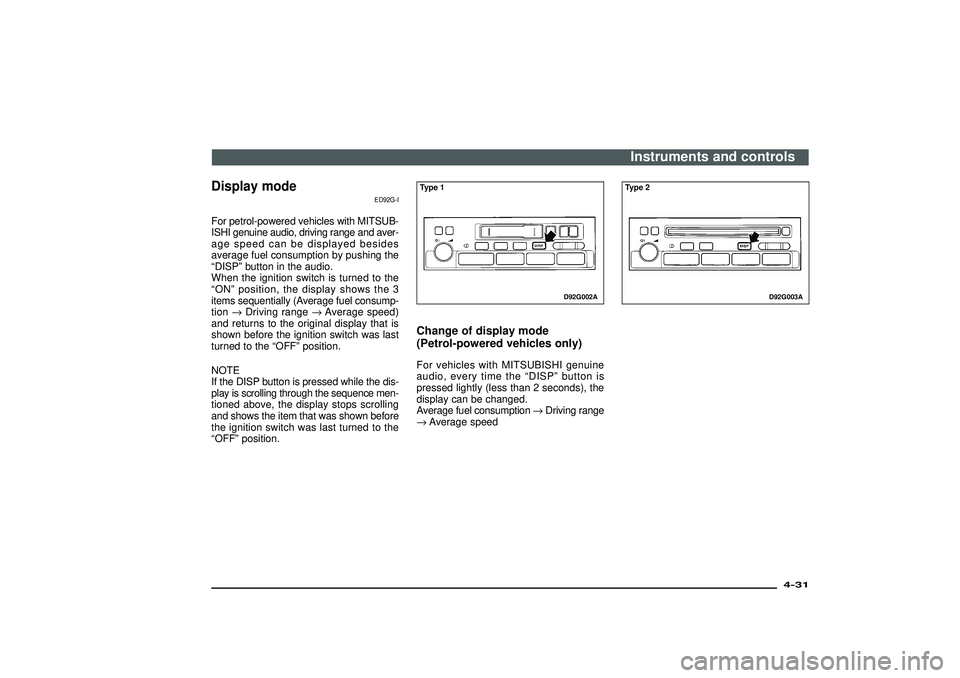

Display mode
ED92G-I
For petrol-powered vehicles with MITSUB-
ISHI genuine audio, driving range and aver-
age speed can be displayed besides
average fuel consumption by pushing the
“DISP”button in the audio.
When the ignition switch is turned to the
“ON”position, the display shows the 3
items sequentially (Average fuel consump-
tion→Driving range→Average speed)
and returns to the original display that is
shown before the ignition switch was last
turned to the“OFF”position.
NOTE
If the DISP button is pressed while the dis-
play is scrolling through the sequence men-
tioned above, the display stops scrolling
and shows the item that was shown before
the ignition switch was last turned to the
“OFF”position.
D92G002A
Type 1Change of display mode
(Petrol-powered vehicles only)For vehicles with MITSUBISHI genuine
audio, every time the“DISP”button is
pressed lightly (less than 2 seconds), the
display can be changed.
Average fuel consumption→Driving range
→Average speed
D92G003A
Type 2Instruments and controls
4-31
