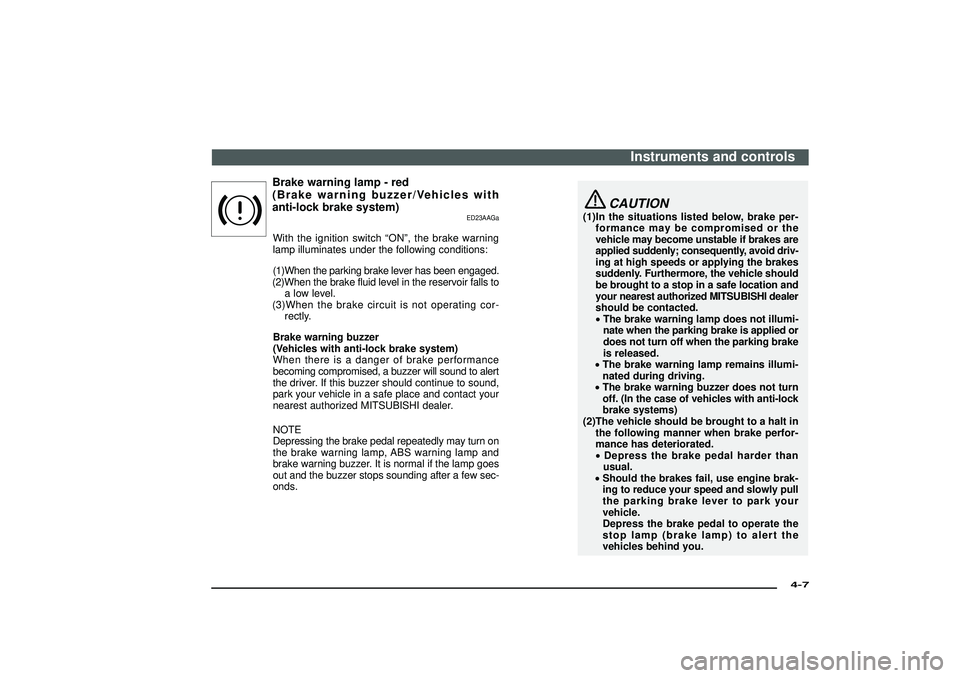

Brake warning lamp - red
(Brake warning buzzer/Vehicles with
anti-lock brake system)
ED23AAGa
With the ignition switch“ON ”, the brake warning
lamp illuminates under the following conditions:
(1)When the parking brake lever has been engaged.
(2)When the brake fluid level in the reservoir falls to a low level.
(3)When the brake circuit is not operating cor- rectly.
Brake warning buzzer
(Vehicles with anti-lock brake system)
When there is a danger of brake performance
becoming compromised, a buzzer will sound to alert
the driver. If this buzzer should continue to sound,
park your vehicle in a safe place and contact your
nearest authorized MITSUBISHI dealer.
NOTE
Depressing the brake pedal repeatedly may turn on
the brake warning lamp, ABS warning lamp and
brake warning buzzer. It is normal if the lamp goes
out and the buzzer stops sounding after a few sec-
onds.
CAUTION
(1)In the situations listed below, brake per- formance may be compromised or the
vehicle may become unstable if brakes are
applied suddenly; consequently, avoid driv-
ing at high speeds or applying the brakes
suddenly. Furthermore, the vehicle should
be brought to a stop in a safe location and
your nearest authorized MITSUBISHI dealer
should be contacted.
•The brake warning lamp does not illumi-
nate when the parking brake is applied or
does not turn off when the parking brake
is released.
• The brake warning lamp remains illumi-
nated during driving.
• The brake warning buzzer does not turn
off. (In the case of vehicles with anti-lock
brake systems)
(2)The vehicle should be brought to a halt in the following manner when brake perfor-
mance has deteriorated.
•Depress the brake pedal harder than
usual.
• Should the brakes fail, use engine brak-
ing to reduce your speed and slowly pull
the parking brake lever to park your
vehicle.
Depress the brake pedal to operate the
stop lamp (brake lamp) to alert the
vehicles behind you.
Instruments and controls
4-7
Div:
Out put date:

NOTE
(1) In certain cases immediately after the engine hasbeen started or when the brake pedal is
depressed repeatedly, a noise generated by
operation of brake devices may be heard com-
ing from the engine compartment. This type of
noise is normal and is no need for concern in
fact, it indicates that the corresponding devices
are operating normally. (This applies to vehicles
fitted with anti-lock brake system)
(2) On vehicles equipped with anti-lock brake sys-
tem, the brake system uses brake fluid pres-
surized by the pump.
Please refer to the “Brake system ”on page 5-44.Oil pressure warning lamp - red
ED25A-Ah
This lamp illuminates when the ignition switch is
turned “ON ”, and goes off after the engine has
started. If it illuminates while the engine is run-
ning, the oil pressure is too low.
If the warning lamp illuminates while the engine is
running, turn the engine off and contact your near-
est authorized MITSUBISHI dealer for inspection.
CAUTION
(1)If this lamp illuminates when the engine oil level is not low, contact your nearest autho-
rized MITSUBISHI dealer for inspection.
(2)This warning lamp does not indicate the amount of oil in the crankcase. This must
be determined by checking the oil level on
the dipstick, while the engine is switched
off.
(3)If you continue driving with low engine oil level or with this warning lamp illumi-
nated, engine seizure may occur.
NOTE
The oil pressure warning lamp should not be treated
as an indication of the engine ’s oil level. The oil level
must be checked using the dipstick.
Instruments and controls
4-8Div:
Out put date:

Turn-signal indication lamps - green
ED52A-BB
These indication lamps blink on and off when a
turn-signal lamp is operating.NOTE
If the blinking is too fast, the cause may be a faulty
turn-signal connection or a blown lamp bulb.Hazard warning indication lamps - green
ED30A-A
When the hazard warning lamp switch is pressed,
all turn-signal lamps will flash on and off continu-
ously.Engine oil level warning lamp-amber
ED26A-D
This lamp illuminates when the ignition switch is
turned to the “ON” position, and goes off after theengine has started. If it lights up while the engine is
running, the oil level is too low.
If the warning lamp lights while the engine is run-
ning, stop the engine and add engine oil to speci-
fied level. (Refer to “Engine oil” on page 9-2.)
Low fuel indication lamp - amber
ED63ABD
The indication lamp comes on when the fuel tank is
getting low. Refuel as soon as possible.
CAUTION
On petrol-powered vehicles, do not drive with
an extremely low fuel level; running out of fuel
could cause damage to the catalytic con-
verter.
NOTE
On inclines or curves, due to the movement of fuel
in the tank, the low fuel indication lamp may come
on earlier than usual.
Instruments and controls
4-9
Div:
Out put date:

Check engine indication lamp - amber
ED85AAMa
This lamp is a part of an onboard diagnostic sys-
tem which monitors the emissions and engine.
If a problem is detected in one of these systems, this
lamp flashes or illuminates. Although your vehicle
will usually be drivable and not need towing, have
the system checked as soon as possible at an
authorized MITSUBISHI dealer.
This lamp will also illuminate for a few seconds when
the ignition key is turned to the “ON” position. If it
does not go off after a few seconds, take the vehicle
to an authorized MITSUBISHI dealer.
CAUTION
(1) Prolonged driving with this lamp on maycause further damage to the emission con-
trol system. It could also affect fuel
economy and drivability.
(2) If the lamp does not illuminate when the ignition key is turned to the “ON ”posi-
tion, have the system checked at an autho-
rized MITSUBISHI dealer.
CAUTION
(3) If the lamp illuminates or flashes while the engine is running, avoid driving at high
speeds and have the system checked at an
authorized MITSUBISHI dealer.
During vehicle operation with the lamp illu-
minated or flashing, the vehicle may not
accelerate when you depress the accel-
erator pedal. When the vehicle is station-
ary with the lamp illuminated or flashing,
you must depress the brake pedal more
firmly than usual since the engine idling
speed is higher than usual and the vehicle
with an automatic transmission has a
stronger tendency to creep forward.
NOTE
The engine electronic control module accommo-
dating the onboard diagnostic system has various
fault data (especially about the exhaust emission)
stored.
This data will be erased if a battery cable is discon-
nected, which will make a rapid diagnosis difficult.
Do not disconnect a battery cable when the check
engine indication lamp is ON.High-beam indication lamp - blue
ED51A-Aa
This indication lamp illuminates when the high beam
is used.
Instruments and controls
4-10Div:
Out put date:

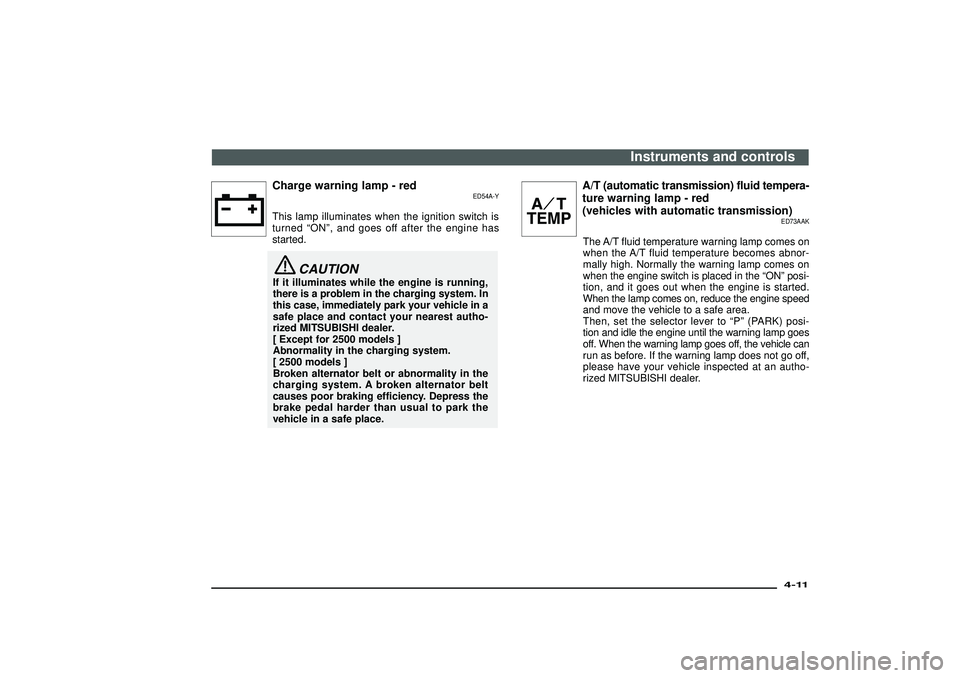

Charge warning lamp - red
ED54A-Y
This lamp illuminates when the ignition switch is
turned“ON ”, and goes off after the engine has
started.
CAUTION
If it illuminates while the engine is running,
there is a problem in the charging system. In
this case, immediately park your vehicle in a
safe place and contact your nearest autho-
rized MITSUBISHI dealer.
[ Except for 2500 models ]
Abnormality in the charging system.
[ 2500 models ]
Broken alternator belt or abnormality in the
charging system. A broken alternator belt
causes poor braking efficiency. Depress the
brake pedal harder than usual to park the
vehicle in a safe place.
A/T (automatic transmission) fluid tempera-
ture warning lamp - red
(vehicles with automatic transmission)
ED73AAK
The A/T fluid temperature warning lamp comes on
when the A/T fluid temperature becomes abnor-
mally high. Normally the warning lamp comes on
when the engine switch is placed in the “ON ”posi-
tion, and it goes out when the engine is started.
When the lamp comes on, reduce the engine speed
and move the vehicle to a safe area.
Then, set the selector lever to “P”(PARK) posi-
tion and idle the engine until the warning lamp goes
off. When the warning lamp goes off, the vehicle can
run as before. If the warning lamp does not go off,
please have your vehicle inspected at an autho-
rized MITSUBISHI dealer.
Instruments and controls
4-11
Div:
Out put date:

Low washer fluid indication lamp* - amber
ED79A-Q
This lamp illuminates when the washer fluid in the
tank falls to a low level (approx. 0.8 lit.). If it illumi-
nates, fill the washer tank at the earliest opportu-
nity.Diesel preheat indication lamp - amber
(diesel-powered vehicles only)
ED58A-M
The indication lamp illuminates when the ignition
switch is placed in the“ON ”position. As the glow
plug becomes hot, the lamp goes out and the engine
can be started.
NOTE
(1)If the engine is cold, the diesel preheat indica- tion lamp is on for a longer time.
(2)When the engine has not been started within about 5 seconds after the diesel preheat indica-
tion lamp went out, return the ignition key to the
“LOCK” position. Then, turn the key to the “ON”
position to preheat the engine again.
(3)When the engine is warm, the diesel preheat indi- cation lamp does not come on even if the igni-
tion key is placed in the “ON” position.
Fuel filter indication lamp - amber
(diesel-powered vehicles only)
ED59A-BC
This lamp illuminates when the ignition switch is
turned to the “ON ”position and goes off after the
engine has started. If it lights up while the engine is
running, it indicates that water has accumulated in
side the fuel filter; if this happens, remove the water
from the fuel filter.
When the lamp goes out, you can resume driving.
If it either does not go out or comes on from time to
time, have the vehicle inspected at an authorized
MITSUBISHI dealer.Front fog lamp indication lamp*- green
ED74B-A
This lamp illuminates while the front fog lamps are
on.Rear fog lamp indication lamp - amber
ED74A-B
This lamp illuminates while the rear fog lamp is on.
Instruments and controls
4-12Div:
Out put date:

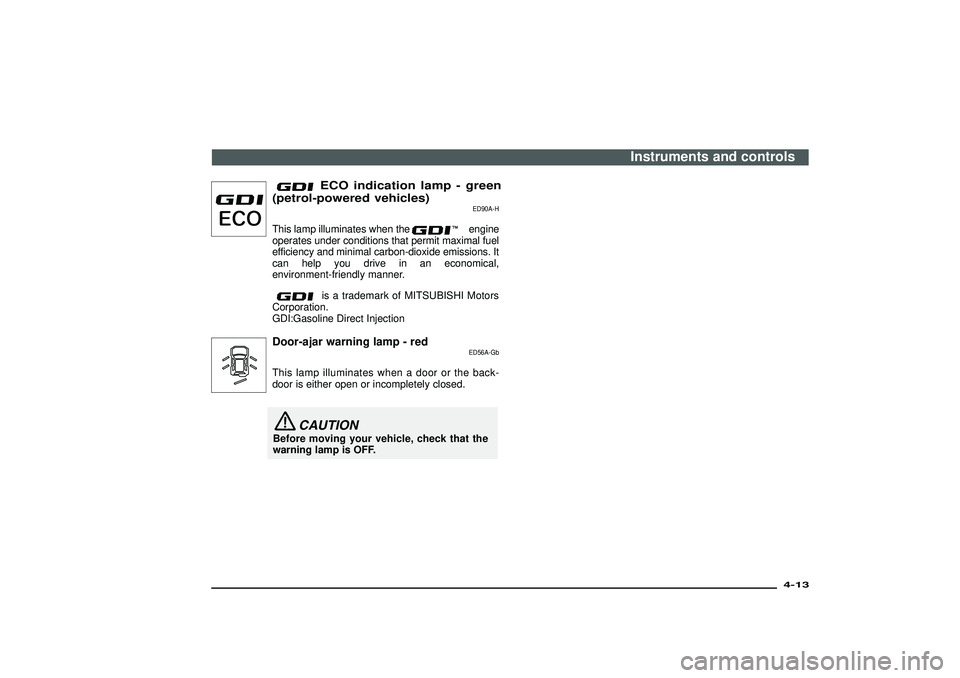

ECO indication lamp - green
(petrol-powered vehicles)
ED90A-H
This lamp illuminates when the
engine
operates under conditions that permit maximal fuel
efficiency and minimal carbon-dioxide emissions. It
can help you drive in an economical,
environment-friendly manner.
is a trademark of MITSUBISHI Motors
Corporation.
GDI:Gasoline Direct Injection
Door-ajar warning lamp - red
ED56A-Gb
This lamp illuminates when a door or the back-
door is either open or incompletely closed.
CAUTION
Before moving your vehicle, check that the
warning lamp is OFF.
Instruments and controls
4-13
Div:
Out put date:

E11A039A
Combination headlamps, dip-
per and turn signal switch
EE11AHEe
HeadlampsRotate the switch to turn on the lamps.
All lamps offPosition, tail, number plate and
instrument panel lamps onHeadlamps and other lamps go
on
NOTE
(1) Do not leave the headlamps and other
lamps on for too long while the engine
is stationary. A run-down battery could
result.(2) When it rains, or when the vehicle has
been washed, the inside of the lens
sometimes becomes foggy. This is the
same phenomenon as when window
glass mists up on a humid day, and
does not indicate a functional prob-
lem. When the lamp is switched on, the
heat will remove the fog. However, if
water gathers inside the lamp, please
go to an authorized MITSUBISHI
dealer for a check.
[Vehicles with Daytime Running Lamp]
When the ignition switch is in the“ON”
position and the lamp switch is set to the
“
”(OFF) position, the low beam of the
headlamps, tail lamps, etc., will illumi-
nate.
Lamps (headlamps, fog lamps, etc.)
auto-cutout function
(1) If the key is turned to the“LOCK”or
“ACC”position and the lamps stay on
for about 3 minutes without opening the
driver’s door while the lamp switch is in
the“
”position, the lamps automati-
cally turn off.
(2) If the key is turned to the“LOCK”or
“ACC”position or removed from the
ignition switch and the driver’s door is
opened within 3 minutes while the lamp
switch is in the“
”position, a buzzer
will sound to warn the driver that the
lamps have not been turned off, and
these lamps will automatically turn off.NOTE
(1) The lamp auto-cutout will not function
when the lamp switch is in the“
”
position.
(2) When the ignition switch has been
turned to either the“LOCK”or“ACC”
position with the lamp switch in the
“
”position, and the lamp switch is
returned to the“
”(OFF) within
approximately 3 minutes, the
auto-cutout function will not be acti-
vated.
When you want to keep the lamps on:
1. Turn the switch in the“
”(OFF) posi-
tion to switch off all lamps while the key
is in the“LOCK”or“ACC”position or
remove it from the ignition switch.
2. Turn on the lamps with the switch in the
“
”position again, then the lamps will
remain on.
Lamp monitor buzzer
If the driver’s door is opened when the key
is in the“LOCK”or“ACC”position or
removed from the ignition switch while the
lamps are on, a buzzer will sound to remind
the driver to turn off the lamps. When the
lamp auto-cutout function acts, the buzzer
will stop automatically. When this func-
tion does not act, turn off the lamp switch
to stop the buzzer.
Instruments and controls
4-14Div:
Out put date:

Precautions to observe when using
wipers and washers
EE13C-I
(1) If the moving wipers become blocked
by ice or other deposits on the glass,
the motor may burn out even if the
wiper switch is turned to OFF. If
obstruction occurs, park your vehicle in
a safe place, turn off the ignition, and
clean the deposits from the glass so
that the wipers operate smoothly.
(2) Do not use the wipers when the glass
is dry. They may scratch the glass sur-
face or the blades may prematurely
wear out.
(3) Before using the wipers in cold weather,
check that the wiper blades are not fro-
zen onto the glass. The motor may
burn out if the wipers are used with the
blades frozen onto the glass.
(4) Avoid using the washer continuously for
more than 20 seconds. Do not oper-
ate the washer when the fluid reser-
voir is empty.
Otherwise, the motor may burn out.
(5) Periodically check the level of washer
fluid in the reservoir and refill if
required.
During cold weather, add a recom-
mended washer solution that will not
freeze in the washer reservoir. Fail-
ure to do so could result in loss of
washer function and frost damage to
the system components.
E16A058A
Hazard warning flasher switch
EE16A-Dd
Use the hazard warning flasher switch
when the vehicle has to be parked on the
road for any emergency.
The hazard warning flashers can always be
operated, regardless of the position of the
ignition key.
Push the switch to turn on the hazard warn-
ing flashers; push the switch again to turn
them off.
When this switch is operated, all turn-signal
lamps flash continuously, as do the
turn-signal indication lamps in the instru-
ment cluster.
CAUTION
If the lamps are kept flashing for a
long time, the battery will be dis-
charged, making it difficult or impos-
sible to start the engine.
Instruments and controls
4-20Div:
Out put date:

I08B119A
Type 1Rear window demister switch
EE17AARa
The rear window demister switch can be
operated with the ignition switch in the“ON”
position.
Push the switch to turn on the rear win-
dow demister. It will be turned off automati-
cally in about 11 minutes. To turn off the
demister within 11 minutes, push the switch
again.
The indication lamp (A) will illuminate while
the demister is on.
If your vehicle is equipped with heated mir-
rors, these operate in conjunction with the
demister. Refer to“Electric
remote-controlled outside rear-view mirrors”
on page 5-51.
E17A047A
Type 2
A
CAUTION
(1) The demister switch is not to
melt snow but to clear mist.
Remove snow before use of the
demister switch.
(2) To avoid unnecessary dis-
charge of the battery, do not use
the rear window demister dur-
ing starting of the engine or
when the engine is not run-
ning. Turn the demister off
immediately after the window is
clear.
(3) When cleaning the inside of the
rear window, use a soft cloth
and wipe gently along the heater
wires, being careful not to dam-
age the wires.
CAUTION
(4) Do not allow objects to touch the
inside of the rear window glass,
damaged or broken wires may
result.Instruments and controls
4-21
Div:
Out put date:
