Vehicle dimensionsE01100204487

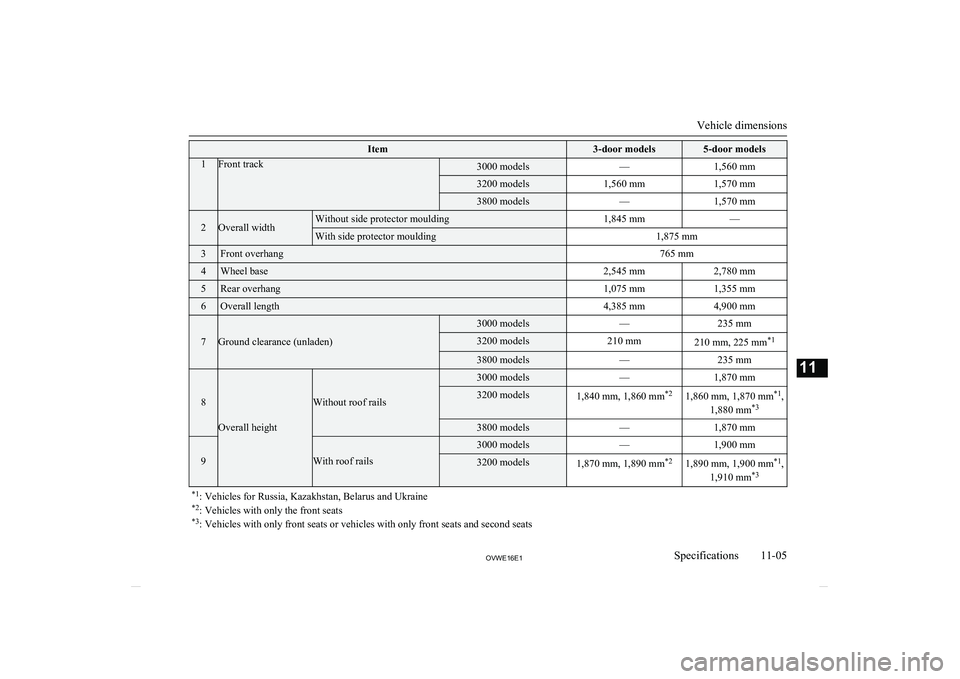

Vehicle dimensions
11-04OVWE16E1Specifications115-door models
3-door models

Item3-door models5-door models1Front track3000 models—1,560 mm3200 models1,560 mm1,570 mm3800 models—1,570 mm2Overall widthWithout side protector moulding1,845 mm—With side protector moulding1,875 mm3Front overhang765 mm4Wheel base2,545 mm2,780 mm5Rear overhang1,075 mm1,355 mm6Overall length4,385 mm4,900 mm
7Ground clearance (unladen)
3000 models—235 mm3200 models210 mm210 mm, 225 mm*13800 models—235 mm
8
Overall height
Without roof rails
3000 models—1,870 mm3200 models1,840 mm, 1,860 mm *21,860 mm, 1,870 mm*1
,
1,880 mm *33800 models—1,870 mm
9With roof rails
3000 models—1,900 mm3200 models1,870 mm, 1,890 mm *21,890 mm, 1,900 mm*1
,
1,910 mm *3*1
: Vehicles for Russia, Kazakhstan, Belarus and Ukraine
*2 : Vehicles with only the front seats
*3 : Vehicles with only front seats or vehicles with only front seats and second seats
Vehicle dimensions
11-05OVWE16E1Specifications11

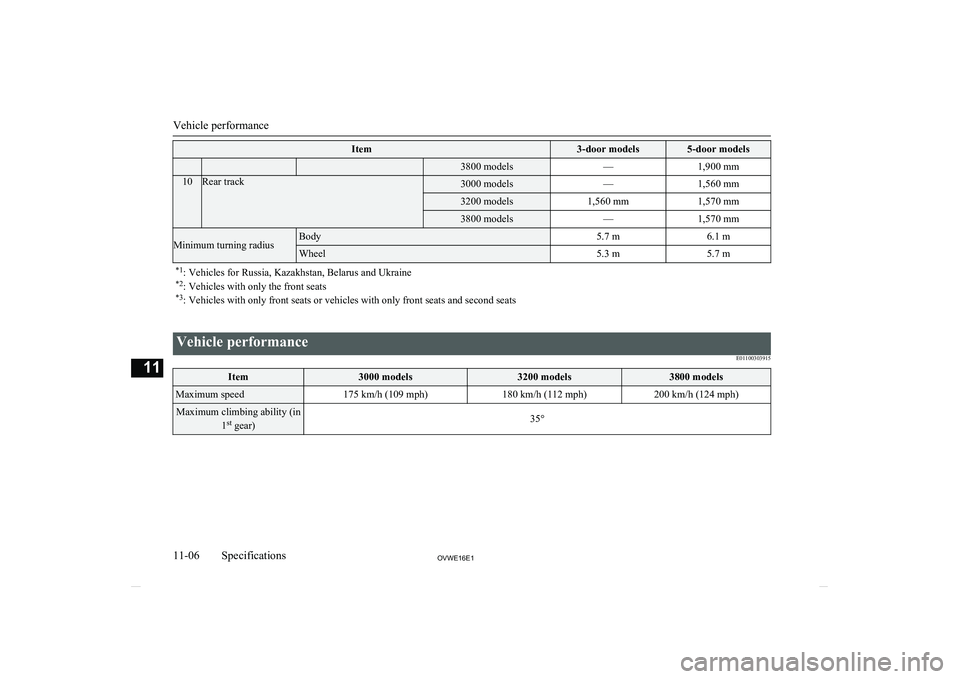

Item3-door models5-door models3800 models—1,900 mm10Rear track3000 models—1,560 mm3200 models1,560 mm1,570 mm3800 models—1,570 mmMinimum turning radiusBody5.7 m6.1 mWheel5.3 m5.7 m*1: Vehicles for Russia, Kazakhstan, Belarus and Ukraine
*2 : Vehicles with only the front seats
*3 : Vehicles with only front seats or vehicles with only front seats and second seats

Vehicle performance
E01100303915Item3000 models3200 models3800 modelsMaximum speed175 km/h (109 mph)180 km/h (112 mph)200 km/h (124 mph)Maximum climbing ability (in1st
gear)35°

Vehicle performance
11-06OVWE16E1Specifications11

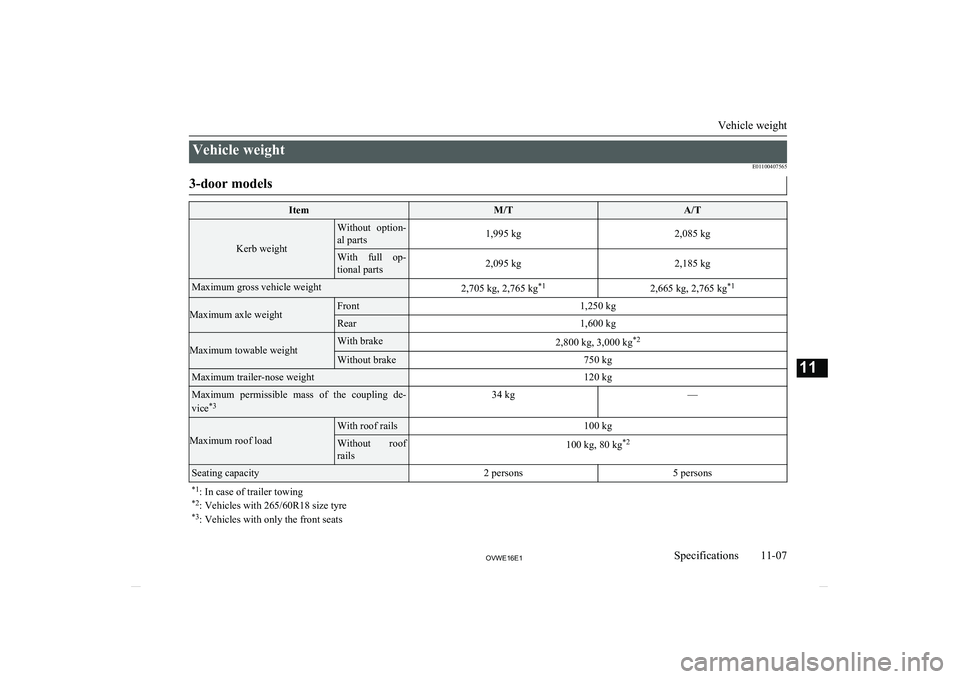

Vehicle weightE011004075653-door modelsItemM/TA/T
Kerb weight
Without option-al parts1,995 kg2,085 kgWith full op-
tional parts2,095 kg2,185 kgMaximum gross vehicle weight2,705 kg, 2,765 kg *12,665 kg, 2,765 kg *1Maximum axle weightFront1,250 kgRear1,600 kg
Maximum towable weight
With brake2,800 kg, 3,000 kg*2Without brake750 kgMaximum trailer-nose weight120 kgMaximum permissible mass of the coupling de-
vice *334 kg—
Maximum roof load
With roof rails100 kgWithout roof
rails100 kg, 80 kg *2Seating capacity2 persons5 persons*1
: In case of trailer towing
*2 : Vehicles with 265/60R18 size tyre
*3 : Vehicles with only the front seats
Vehicle weight
11-07OVWE16E1Specifications11

NOTElTrailer specifications indicate the manufacturer’s recommendation.5-door models
Item3000 models
3200 models
3800 models
Vehicles except for Russia, Ka-
zakhstan, Belarus and UkraineVehicles for Russia, Ka-
zakhstan, Bela- rus and Uk- raineM/TA/T
Kerb weight
Without option-al parts2,110 kg2,185 kg *1
,
2,245 kg *22,265 kg,
2,170 kg *1
,
2,230 kg *2
2,265 kg2,160 kgWith full op-
tional parts2,205 kg2,295 kg *1
,
2,355 kg *22,375 kg,
2,280 kg *1
,
2,340 kg *2
2,380 kg2,265 kg
Maximum gross vehicle weight2,810 kg, 2,835 kg *33,030 kg, 3,130 kg *33,030 kg,
3,120 kg *32,910 kg,
3,010 kg *3Maximum axle
weightFront1,250 kg1,330 kg1,300 kgRear1,650 kg, 1,765 kg *31,780 kg, 1,925 kg *3*1
: Vehicles with only the front seats
*2 : Vehicles with only front seats and second seats
*3 : In case of trailer towing
*4 : Vehicles with 265/65R17 size tyre
*5 : Vehicles with 265/60R18 size tyre
Vehicle weight
11-08OVWE16E1Specifications11

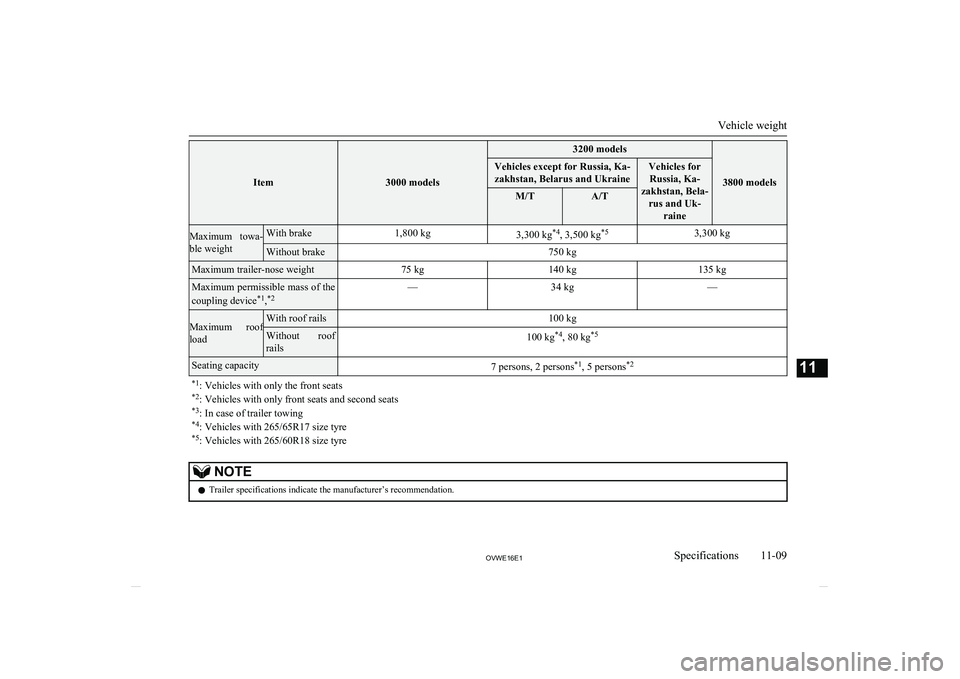

Item3000 models
3200 models
3800 models
Vehicles except for Russia, Ka-zakhstan, Belarus and UkraineVehicles for Russia, Ka-
zakhstan, Bela- rus and Uk- raineM/TA/TMaximum towa-ble weightWith brake1,800 kg3,300 kg *4
, 3,500 kg *53,300 kgWithout brake750 kgMaximum trailer-nose weight75 kg140 kg135 kgMaximum permissible mass of the
coupling device *1
,*2—34 kg—Maximum roof
loadWith roof rails100 kgWithout roof
rails100 kg *4
, 80 kg *5Seating capacity7 persons, 2 persons *1
, 5 persons *2*1
: Vehicles with only the front seats
*2 : Vehicles with only front seats and second seats
*3 : In case of trailer towing
*4 : Vehicles with 265/65R17 size tyre
*5 : Vehicles with 265/60R18 size tyreNOTEl Trailer specifications indicate the manufacturer’s recommendation.

Vehicle weight
11-09OVWE16E1Specifications11

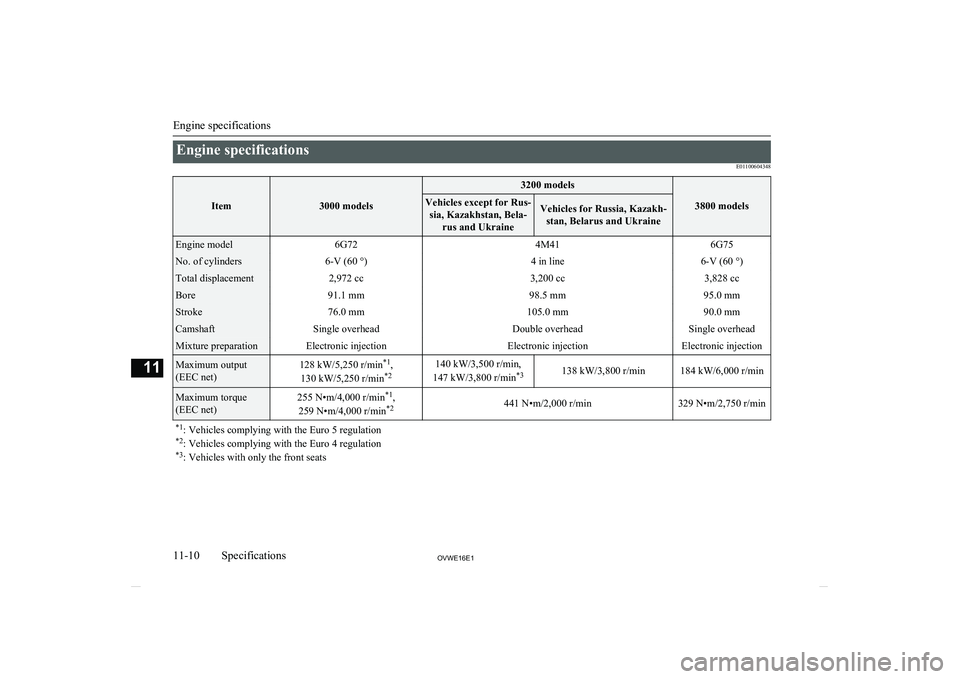

Engine specificationsE01100604348
Item3000 models
3200 models
3800 models
Vehicles except for Rus-sia, Kazakhstan, Bela- rus and UkraineVehicles for Russia, Kazakh-stan, Belarus and UkraineEngine model6G724M416G75No. of cylinders6-V (60 °)4 in line6-V (60 °)Total displacement2,972 cc3,200 cc3,828 ccBore91.1 mm98.5 mm95.0 mmStroke76.0 mm105.0 mm90.0 mmCamshaftSingle overheadDouble overheadSingle overheadMixture preparationElectronic injectionElectronic injectionElectronic injectionMaximum output
(EEC net)128 kW/5,250 r/min *1
,
130 kW/5,250 r/min *2140 kW/3,500 r/min,
147 kW/3,800 r/min *3138 kW/3,800 r/min184 kW/6,000 r/minMaximum torque
(EEC net)255 N•m/4,000 r/min *1
,
259 N•m/4,000 r/min *2441 N•m/2,000 r/min329 N•m/2,750 r/min*1
: Vehicles complying with the Euro 5 regulation
*2 : Vehicles complying with the Euro 4 regulation
*3 : Vehicles with only the front seats

Engine specifications
11-10OVWE16E1Specifications11

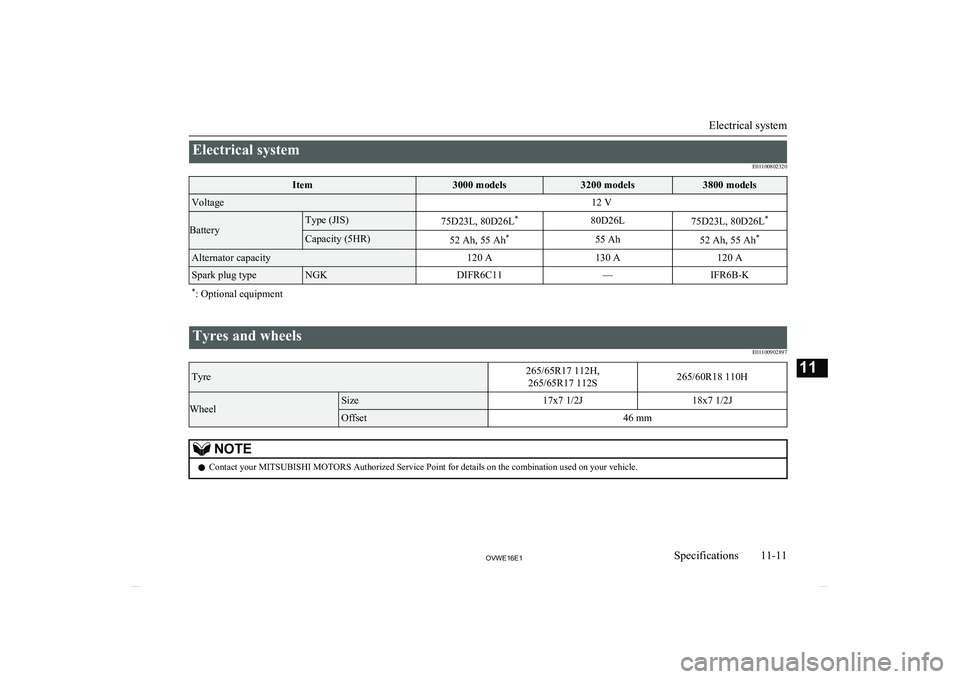

Electrical systemE01100802320Item3000 models3200 models3800 modelsVoltage12 V
Battery
Type (JIS)75D23L, 80D26L*80D26L75D23L, 80D26L*Capacity (5HR)52 Ah, 55 Ah*55 Ah52 Ah, 55 Ah *Alternator capacity120 A130 A120 ASpark plug typeNGKDIFR6C11—IFR6B-K*
: Optional equipment

Tyres and wheels
E01100902897Tyre265/65R17 112H,265/65R17 112S265/60R18 110HWheelSize17x7 1/2J18x7 1/2JOffset46 mmNOTEl Contact your MITSUBISHI MOTORS Authorized Service Point for details on the combination used on your vehicle.

Electrical system
11-11OVWE16E1Specifications11

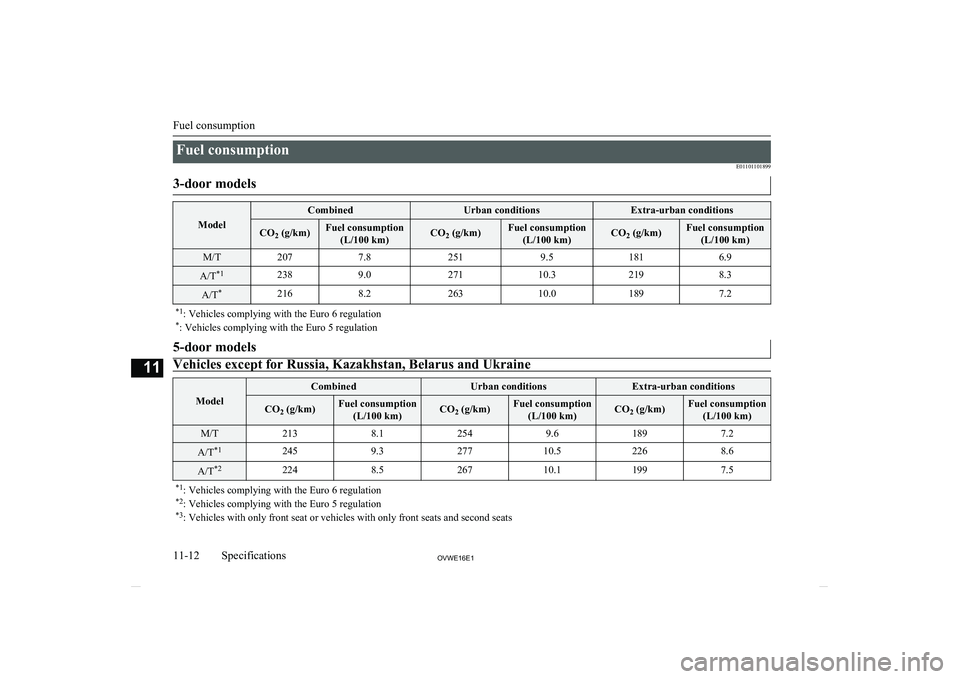

Fuel consumptionE011011018993-door models
Model
CombinedUrban conditionsExtra-urban conditionsCO2 (g/km)Fuel consumption
(L/100 km)CO 2 (g/km)Fuel consumption
(L/100 km)CO 2 (g/km)Fuel consumption
(L/100 km)M/T2077.82519.51816.9A/T *12389.027110.32198.3A/T*2168.226310.01897.2*1
: Vehicles complying with the Euro 6 regulation
* : Vehicles complying with the Euro 5 regulation5-door modelsVehicles except for Russia, Kazakhstan, Belarus and Ukraine
Model
CombinedUrban conditionsExtra-urban conditionsCO 2 (g/km)Fuel consumption
(L/100 km)CO 2 (g/km)Fuel consumption
(L/100 km)CO 2 (g/km)Fuel consumption
(L/100 km)M/T2138.12549.61897.2A/T *12459.327710.52268.6A/T*22248.526710.11997.5*1
: Vehicles complying with the Euro 6 regulation
*2 : Vehicles complying with the Euro 5 regulation
*3 : Vehicles with only front seat or vehicles with only front seats and second seats
Fuel consumption
11-12OVWE16E1Specifications11

Model
CombinedUrban conditionsExtra-urban conditionsCO2 (g/km)Fuel consumption
(L/100 km)CO 2 (g/km)Fuel consumption
(L/100 km)CO 2 (g/km)Fuel consumption
(L/100 km)A/T *32248.626410.02047.7*1
: Vehicles complying with the Euro 6 regulation
*2 : Vehicles complying with the Euro 5 regulation
*3 : Vehicles with only front seat or vehicles with only front seats and second seatsVehicles except for Russia, Kazakhstan, Belarus and Ukraine
Model
CombinedUrban conditionsExtra-urban conditionsCO 2 (g/km)Fuel consumption
(L/100 km)CO 2 (g/km)Fuel consumption
(L/100 km)CO 2 (g/km)Fuel consumption
(L/100 km)3000 models29312.739117.023610.23200 models2318.827310.42067.83800 models32413.542317.726811.2NOTElThe values shown above apply to a vehicle on which optional equipment has not been fitted.
l The results given do not express or imply any guarantee of the fuel consumption of the particular vehicle.
The vehicle itself has not been tested and there are inevitably differences between individual vehicles of the same model. In addition, this vehicle may incor- porate particular modifications. Furthermore, the driver’s style and road and traffic conditions, as well as the extent to which the vehicle has been driven and the standard of maintenance, will all affect its fuel consumption.
