MITSUBISHI SHOGUN 2016 Owner's Manual (in English)

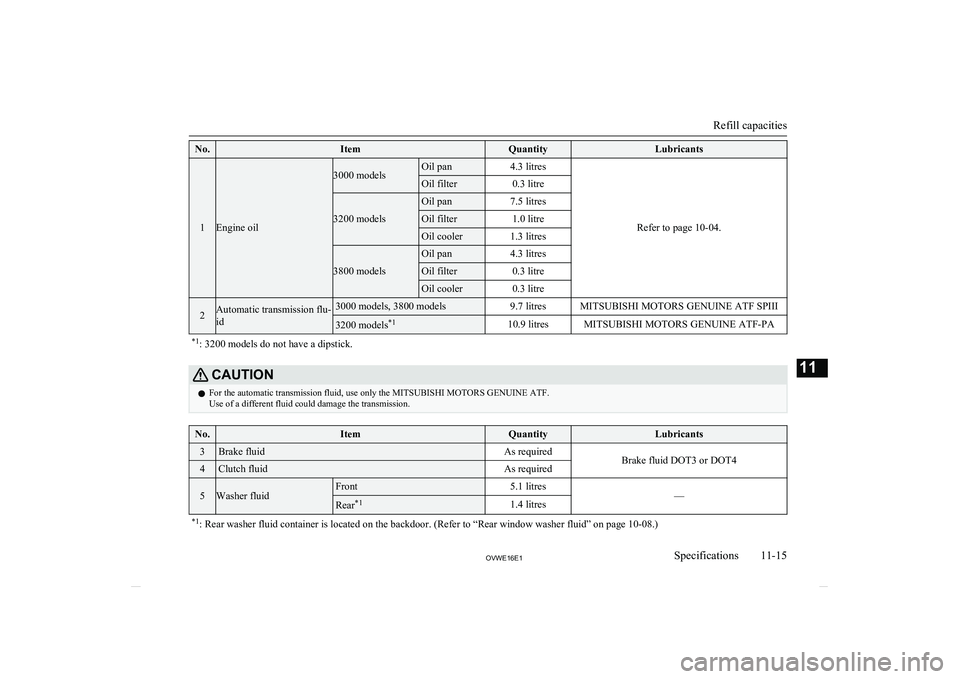

Refill capacitiesE01101306447
Refill capacities
11-14OVWE16E1Specifications11LHD
RHD3000 models
3200 models 3200 models
3800 models

No.ItemQuantityLubricants
1Engine oil
3000 modelsOil pan4.3 litres
Refer to page 10-04.
Oil filter0.3 litre
3200 models
Oil pan7.5 litresOil filter1.0 litreOil cooler1.3 litres
3800 models
Oil pan4.3 litresOil filter0.3 litreOil cooler0.3 litre
2Automatic transmission flu-
id3000 models, 3800 models9.7 litresMITSUBISHI MOTORS GENUINE ATF SPIII3200 models *110.9 litresMITSUBISHI MOTORS GENUINE ATF-PA*1
: 3200 models do not have a dipstick.CAUTIONl For the automatic transmission fluid, use only the MITSUBISHI MOTORS GENUINE ATF.
Use of a different fluid could damage the transmission.No.ItemQuantityLubricants3Brake fluidAs requiredBrake fluid DOT3 or DOT44Clutch fluidAs required
5Washer fluid
Front5.1 litres
—Rear *11.4 litres*1
: Rear washer fluid container is located on the backdoor. (Refer to “Rear window washer fluid” on page 10-08.)

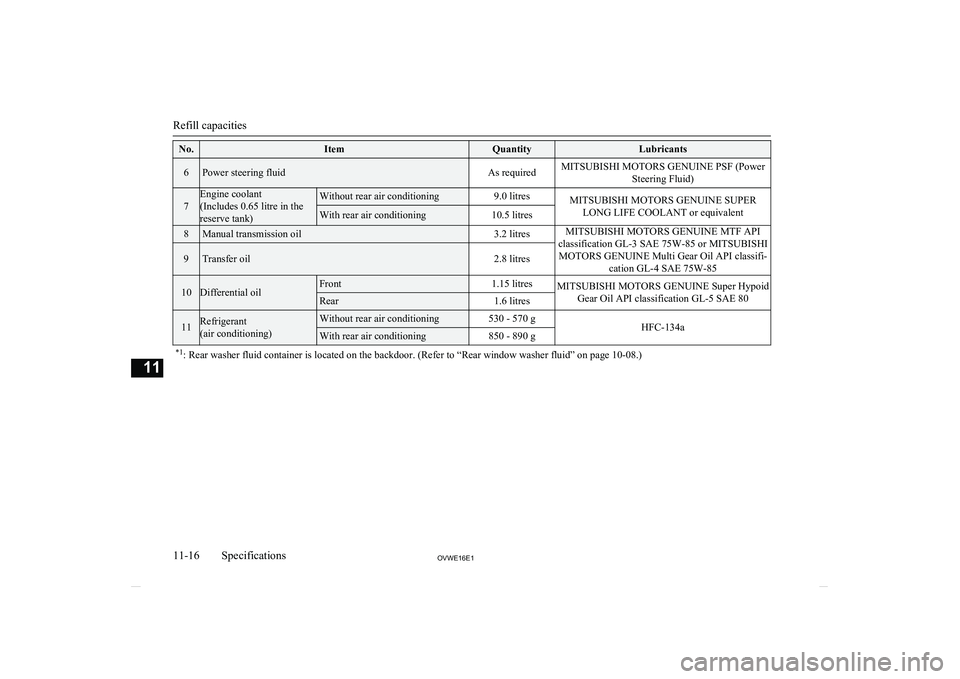

Refill capacities
11-15OVWE16E1Specifications11

No.ItemQuantityLubricants6Power steering fluidAs requiredMITSUBISHI MOTORS GENUINE PSF (PowerSteering Fluid)
7
Engine coolant
(Includes 0.65 litre in the
reserve tank)Without rear air conditioning9.0 litresMITSUBISHI MOTORS GENUINE SUPER LONG LIFE COOLANT or equivalentWith rear air conditioning10.5 litres8Manual transmission oil3.2 litresMITSUBISHI MOTORS GENUINE MTF API
classification GL-3 SAE 75W-85 or MITSUBISHI MOTORS GENUINE Multi Gear Oil API classifi- cation GL-4 SAE 75W-859Transfer oil2.8 litres10Differential oilFront1.15 litresMITSUBISHI MOTORS GENUINE Super HypoidGear Oil API classification GL-5 SAE 80Rear1.6 litres11Refrigerant
(air conditioning)Without rear air conditioning530 - 570 gHFC-134aWith rear air conditioning850 - 890 g*1 : Rear washer fluid container is located on the backdoor. (Refer to “Rear window washer fluid” on page 10-08.)

Refill capacities
11-16OVWE16E1Specifications11

A
Accessory (Installation).....................................2-04
Accessory socket............................................... 7-77
Active stability & traction control (ASTC)....... 6-44
Additional equipment...................................... 10-19
Air conditioning Front automatic air conditioning................... 7-03
Important operation tips for the air conditioning................................................. 7-11
Rear air conditioning.....................................7-09
Air purifier (with deodorizing function)........... 7-11
Airbag................................................................ 4-36 Caution for installing the child re-straint on vehicle with a front pas-
senger’s airbag............................................. 4-39
Antenna............................................................. 7-50
Anti-lock brake system (ABS).......................... 6-41 Warning lamp................................................6-43
Approach lamps.................................................3-08
Armrest..................................................... 4-08,4-10
Ashtray.............................................................. 7-76
Audio LW/MW/FM radio/CD player...................... 7-12
To listen to a disc in the Video En- tertainment System...................................... 7-39
Troubleshooting............................................ 7-47
Auto-cutout function......................................... 7-82
Automatic headlamp levelling.......................... 5-42
Automatic high-beam system............................ 5-36 Automatic high-beam system warning lamp 5-39
Automatic transmission
Fluid............................................................ 11-14
Selector lever operation................................ 6-19
Selector lever position...................................6-21
Sports mode.................................................. 6-21
B
Backdoor........................................................... 3-08
Battery............................................................. 10-11 Charge warning display................................ 5-12
Discharged battery (Emergency starting)..... 8-02
Specification............................................... 11-11
Bleeding the fuel system................................... 8-06
Bluetooth® 2.0 interface................................... 7-50
Bonnet............................................................. 10-03
Brake Anti-lock brake............................................. 6-41
Brake assist system....................................... 6-41
Braking.......................................................... 6-39
Fluid.................................................. 10-09,11-14
Parking brake................................................ 6-05
Power brakes................................................. 6-40
Warning lamp................................................5-10
Bulb capacity........................................ 10-25,10-26
C
Card holder................................................7-75,7-84
Cargo loads........................................................6-64
Catalytic converter.......................................... 10-02 Cautions on handling of 4-wheel drive vehicles................................................... 6-38
Central door locks............................................. 3-07
Centre console box............................................ 7-83
Centre information display................................ 5-12
Changing a fuse............................................... 10-23 Charge warning display.....................................5-12Check engine warning lamp.............................. 5-11Child restraint.................................................... 4-26 Caution for installing the child re-straint on vehicle with a front pas-
senger’s airbag............................................. 4-39
Child-protection rear doors............................... 3-08
Cigarette lighter................................................. 7-76
Cleaning Aluminium wheels........................................ 9-05Chrome parts................................................. 9-05
Exterior of your vehicle................................ 9-03
Genuine leather............................................. 9-03
Interior of your vehicle................................. 9-02
Plastic, vinyl leather, etc............................... 9-02
Polishing....................................................... 9-04
Sunroof.......................................................... 9-06
Washing........................................................ 9-03
Waxing.......................................................... 9-04
Clutch
Fluid.................................................. 10-10,11-14
Coat hooks......................................................... 7-88
Combination headlamps and dipper switch...... 5-34
Convenient hook............................................... 7-87
Coolant (engine)....................................10-06,11-14
Cruise control.................................................... 6-48
Cup holder......................................................... 7-85
Curtain airbag system........................................ 4-44
D
Daytime dipper button.......................................5-07
Daytime running lamps..................................... 5-35
Alphabetical index
12- 1
OVWE16E1Alphabetical index

Demister (rear window).................................... 5-50
Diesel particulate filter (DPF)........................... 6-16
Diesel preheat indication lamp.......................... 5-09
Digital clock Time Setting.................................................. 7-44
Dimensions...................................................... 11-04
Dipper (High/Low beam change)......................5-36
Door ajar warning lamp.....................................5-12
Door courtesy lamps............................... 7-82,10-26 Bulb capacity.............................................. 10-26
Replacement................................................ 10-33
Doors
Central door locks......................................... 3-07
Child-protection............................................ 3-08
Lock and unlock............................................ 3-06
Driving, alcohol and drugs................................ 6-02
E
Economical driving........................................... 6-02
Electric window control.................................... 3-16 Switch........................................................... 3-16
Timer function.............................................. 3-17
Electrical system............................................. 11-11
Electronic immobilizer (Anti-theft starting system)................................................ 3-03
Emergency starting............................................8-02
Engine Coolant..............................................10-06,11-14MIVEC.......................................................... 6-15
Number....................................................... 11-03
Oil..................................................... 10-04,11-14
Overheating................................................... 8-04
Specifications.............................................. 11-10
Used engine oils safety instructions and disposal information............................. 2-05
Water temperature gauge.............................. 5-06
Exterior and interior lamp operation............... 10-19
F
FluidAutomatic transmission fluid...................... 11-14
Brake fluid........................................ 10-09,11-14
Clutch fluid....................................... 10-10,11-14
Engine coolant.................................. 10-06,11-14
Power steering fluid.......................... 10-10,11-14
Washer fluid..................................... 10-08,11-14
Fog lamp switch................................................ 5-43
Foot lamps and ceiling lamp............................. 7-81
For cold and snowy weather............................10-19
Front automatic air conditioning....................... 7-03
Front fog lamps Bulb capacity.............................................. 10-25
Indication lamp............................................. 5-09
Replacement................................................ 10-28
Switch........................................................... 5-43
Front passenger’s airbag OFF indication lamp. 4-40
Front seats......................................................... 4-05
Front turn-signal lamps
Bulb capacity.............................................. 10-25
Replacement................................................ 10-28
Fuel consumption............................................ 11-12
Fuel Filling the fuel tank....................................... 2-03Fuel filter indication lamp............................. 5-10
Fuel gauge..................................................... 5-05 Fuel selection................................................ 2-02
Low fuel warning lamp................................. 5-06
Modification/alterations to the electrical or fuel systems............................. 2-05
Tank capacity................................................ 2-03
Fuses................................................................ 10-20
Fusible links.................................................... 10-19
G
Gauges.......................................................5-02,5-08
General maintenance....................................... 10-19
General vehicle data........................................ 11-04
Genuine parts.....................................................2-05
Glove box.......................................................... 7-83
Glove box lamp Bulb capacity.............................................. 10-26
Replacement................................................ 10-33
H
Hazard warning flasher switch.......................... 5-42
Hazard warning indication lamps......................5-09
HDMI port......................................................... 7-74
Head restraints................................................... 4-12
Headlamp levelling........................................... 5-40
Headlamp washer switch...................................5-48
Headlamps Bulb capacity.............................................. 10-25
Headlamp flasher.......................................... 5-39 Replacement................................................ 10-26
Switch........................................................... 5-34
Heated mirror.................................................... 6-11
Heated seats....................................................... 4-09
High-beam indication lamp............................... 5-09
Alphabetical index
12- 2 OVWE16E1Alphabetical index

High-mounted stop lamp (bulb type)Bulb capacity.............................................. 10-25
Replacement................................................ 10-30
Hinges and latches lubrication........................ 10-19
Horn switch....................................................... 5-50
I
If the vehicle breaks down................................ 8-02
Ignition switch................................................... 6-11
Indication and warning lamps........................... 5-08
Indication lamps................................................ 5-09
Inside rear-view mirror......................................6-08
Inspection and maintenance following rough road operation........................................ 6-37
Installation of accessories..................................2-04
Installation position for warning triangle.......... 7-89
Instruments........................................................ 5-02
Interior lamp switch.......................................... 7-78
Interior lamps.................................................... 7-78
J
Jack handle........................................................ 8-09Storage.......................................................... 8-09
Jack.................................................................... 8-07
Storage.......................................................... 8-07
Jump starting (Emergency starting).................. 8-02
K
Keyless entry system......................................... 3-03
Keys...................................................................3-02
L
Labeling...........................................................11-02
Lamp monitor buzzer........................................ 5-36
Lamps (headlamps, fog lamp, etc.) auto-cutout function......................................... 5-35
Leakage (Fuel, engine coolant, oil and exhaust gas)............................................. 10-19
Licence plate lamps Bulb capacity.............................................. 10-25
Replacement................................................ 10-31
Link System.......................................................7-50
Low fuel warning lamp..................................... 5-06
Lubricants........................................................ 11-14
Luggage compartment lamp.............................. 7-80 Bulb capacity.............................................. 10-26
Replacement................................................ 10-32
Luggage floor box............................................. 7-84
Luggage hooks.................................................. 7-88
M
Making a flat seat.............................................. 4-20
Making a luggage area...................................... 4-13
Manual transmission......................................... 6-17 Oil............................................................... 11-14
Mirror
Inside rear-view mirror................................. 6-08
Outside rear-view mirrors............................. 6-09
MIVEC engine.................................................. 6-15
Modification/alterations to the electri- cal or fuel systems............................................2-05
N
NOx trap catalyst...............................................6-16
O
Odometer........................................................... 5-02
Oil pressure warning lamp................................ 5-12
Oil Differential oil............................................. 11-14
Engine oil.................................................... 10-04
Manual transmission oil.............................. 11-14
Transfer oil.................................................. 11-14
Operation under adverse driving conditions..... 8-19
Outside rear-view mirrors................................. 6-09
Overheating....................................................... 8-04
P
Parking.............................................................. 6-06Parking brake................................................ 6-05
Position lamps
Bulb capacity.............................................. 10-25
Indication lamp............................................. 5-09
Replacement................................................ 10-27
Power brakes..................................................... 6-40
Power steering Fluid.................................................. 10-10,11-14
System........................................................... 6-44
Precautions to observe when using wipers and washers.......................................... 5-49
Pregnant women restraint.................................. 4-25
Puncture (Tyre changing).................................. 8-09
Alphabetical index
12- 3
OVWE16E1Alphabetical index

R
Rear air conditioning......................................... 7-09
Rear combination lamps Bulb capacity.............................................. 10-25
Replacement................................................ 10-29
Rear differential lock.........................................6-30
Rear fog lamp Bulb capacity.............................................. 10-25
Indication lamp............................................. 5-09
Replacement................................................ 10-30
Switch........................................................... 5-43
Rear personal lamp
Bulb capacity.............................................. 10-26Replacement................................................ 10-32
Rear personal lamps.......................................... 7-80
Rear shelf (3-door models)................................7-86
Rear side/quarter window..................................3-18
Rear turn-signal lamps Bulb capacity.............................................. 10-25
Replacement................................................ 10-29
Rear window demister switch........................... 5-50
Rear-view camera..............................................6-61
Rear-view mirror
Inside............................................................. 6-08
Outside.......................................................... 6-09
Refill capacities............................................... 11-14
Removal of water from the fuel filter................8-06
Replacement of lamp bulbs............................. 10-24
Reversing lamps Bulb capacity.............................................. 10-25
Replacement................................................ 10-29
Reversing sensor system................................... 6-57
Roof carrier precaution......................................6-64
Room & map lamps...........................................7-79 Bulb capacity.............................................. 10-26
Replacement................................................ 10-31
Running-in recommendations........................... 6-04
S
Safe driving techniques..................................... 6-03
Seat belt............................................................. 4-21 Adjustable seat belt anchor........................... 4-23
Child restraint................................................4-26
Force limiter system...................................... 4-26
Inspection...................................................... 4-36
Pregnant women restraint............................. 4-25
Pretensioner system...................................... 4-25
Rear/second, third seat belt storage...............4-24
Seat belt reminder/warning lamp.................. 4-23
Seats
Adjustment.................................................... 4-05
Armrest................................................. 4-08,4-10
Front seats..................................................... 4-05
Head restraints.............................................. 4-12
Heated seats.................................................. 4-09
Lumbar support............................................. 4-08
Making a flat seat.......................................... 4-20
Making a luggage area.................................. 4-13
Rear seats...................................................... 4-09
Seat arrangement........................................... 4-03
Second seats.................................................. 4-09
Third seat...................................................... 4-11
Security alarm system....................................... 3-10
Service precaution........................................... 10-02
Service reminder....................................... 5-02,5-03
Side airbag system.............................................4-43
Side box............................................................. 7-84
Snow tyres....................................................... 10-16
Spark plug....................................................... 11-11
Specifications.................................................. 11-02
Starting.............................................................. 6-13
Steering Power steering fluid.......................... 10-10,11-14
Power steering system...................................6-44
Steering wheel height adjustment................. 6-07 Steering wheel lock....................................... 6-13
Stop lamps
Bulb capacity.............................................. 10-25
Replacement................................................ 10-29
Storage spaces................................................... 7-82
Sun visors.......................................................... 7-74
Sunglasses holder.............................................. 7-85
Sunroof.............................................................. 3-19 Lock switch................................................... 3-19
Safety mechanism......................................... 3-19 Sunshade....................................................... 3-21
Super select 4WD II.......................................... 6-25
Supplemental restraint system...........................4-36 Caution for installing the child re-straint on vehicle with a front pas-
senger’s airbag............................................. 4-39
How the Supplemental Restraint System works...............................................4-37
Servicing....................................................... 4-47
Warning lamp................................................4-47
T
Tachometer........................................................ 5-02
Tail lamps Bulb capacity.............................................. 10-25
Replacement................................................ 10-29
Alphabetical index

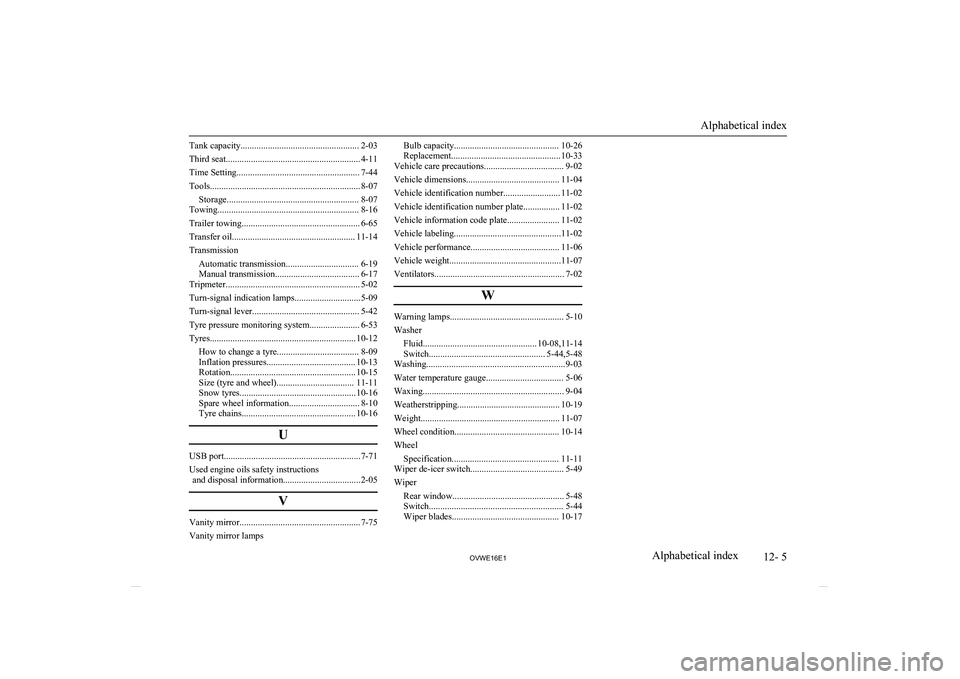

12- 4 OVWE16E1Alphabetical index

Tank capacity.................................................... 2-03
Third seat........................................................... 4-11
Time Setting...................................................... 7-44
Tools.................................................................. 8-07 Storage.......................................................... 8-07
Towing.............................................................. 8-16
Trailer towing.................................................... 6-65
Transfer oil...................................................... 11-14
Transmission Automatic transmission................................ 6-19
Manual transmission..................................... 6-17
Tripmeter........................................................... 5-02
Turn-signal indication lamps.............................5-09
Turn-signal lever............................................... 5-42
Tyre pressure monitoring system...................... 6-53
Tyres................................................................ 10-12 How to change a tyre.................................... 8-09
Inflation pressures....................................... 10-13
Rotation....................................................... 10-15
Size (tyre and wheel).................................. 11-11
Snow tyres................................................... 10-16
Spare wheel information............................... 8-10
Tyre chains.................................................. 10-16
U
USB port............................................................7-71
Used engine oils safety instructions and disposal information..................................2-05
V
Vanity mirror..................................................... 7-75
Vanity mirror lamps
Bulb capacity.............................................. 10-26
Replacement................................................ 10-33
Vehicle care precautions................................... 9-02
Vehicle dimensions......................................... 11-04
Vehicle identification number......................... 11-02
Vehicle identification number plate................ 11-02
Vehicle information code plate....................... 11-02
Vehicle labeling...............................................11-02
Vehicle performance....................................... 11-06
Vehicle weight.................................................11-07
Ventilators......................................................... 7-02
W
Warning lamps.................................................. 5-10
Washer Fluid.................................................. 10-08,11-14
Switch................................................... 5-44,5-48
Washing.............................................................9-03
Water temperature gauge.................................. 5-06
Waxing.............................................................. 9-04
Weatherstripping............................................. 10-19
Weight............................................................. 11-07
Wheel condition.............................................. 10-14
Wheel Specification............................................... 11-11
Wiper de-icer switch......................................... 5-49
Wiper Rear window................................................. 5-48Switch........................................................... 5-44 Wiper blades............................................... 10-17
Alphabetical index
12- 5
OVWE16E1Alphabetical index

OVWE16E1

13- 1
OVWE16E1Declaration of Conformity
