MITSUBISHI SHOGUN 2017 (in English) User Guide

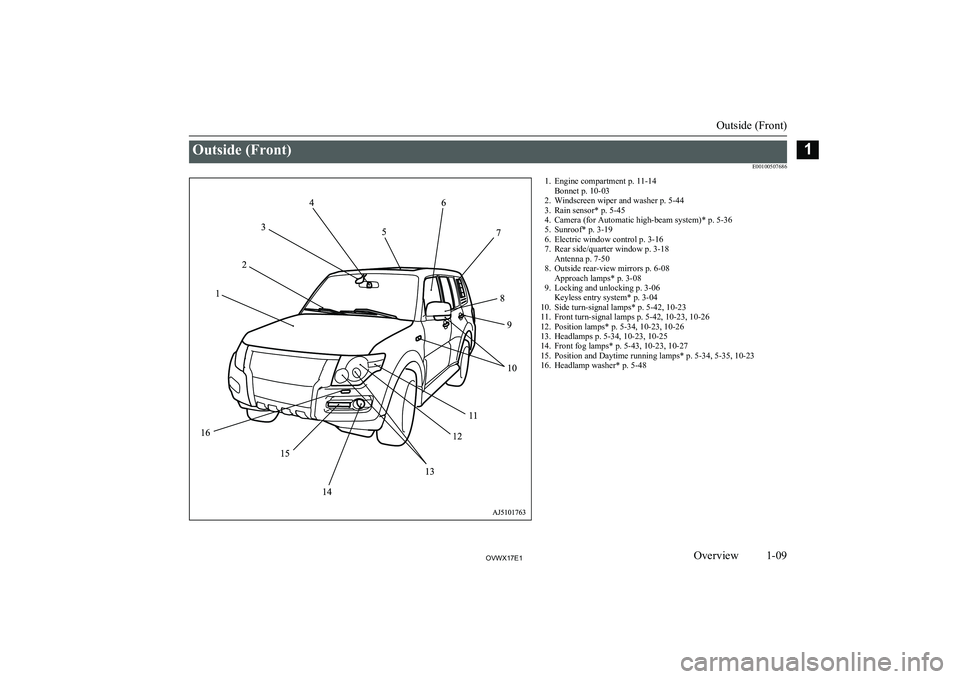

Outside (Front)E001005076861. Engine compartment p. 11-14Bonnet p. 10-03
2. Windscreen wiper and washer p. 5-44
3. Rain sensor* p. 5-45
4. Camera (for Automatic high-beam system)* p. 5-36
5. Sunroof* p. 3-19
6. Electric window control p. 3-16
7. Rear side/quarter window p. 3-18 Antenna p. 7-50
8. Outside rear-view mirrors p. 6-08 Approach lamps* p. 3-08
9. Locking and unlocking p. 3-06 Keyless entry system* p. 3-04
10. Side turn-signal lamps* p. 5-42, 10-23
11. Front turn-signal lamps p. 5-42, 10-23, 10-26
12. Position lamps* p. 5-34, 10-23, 10-26
13. Headlamps p. 5-34, 10-23, 10-25
14. Front fog lamps* p. 5-43, 10-23, 10-27
15. Position and Daytime running lamps* p. 5-34, 5-35, 10-23
16. Headlamp washer* p. 5-48
Outside (Front)
1-09OVWX17E1Overview1

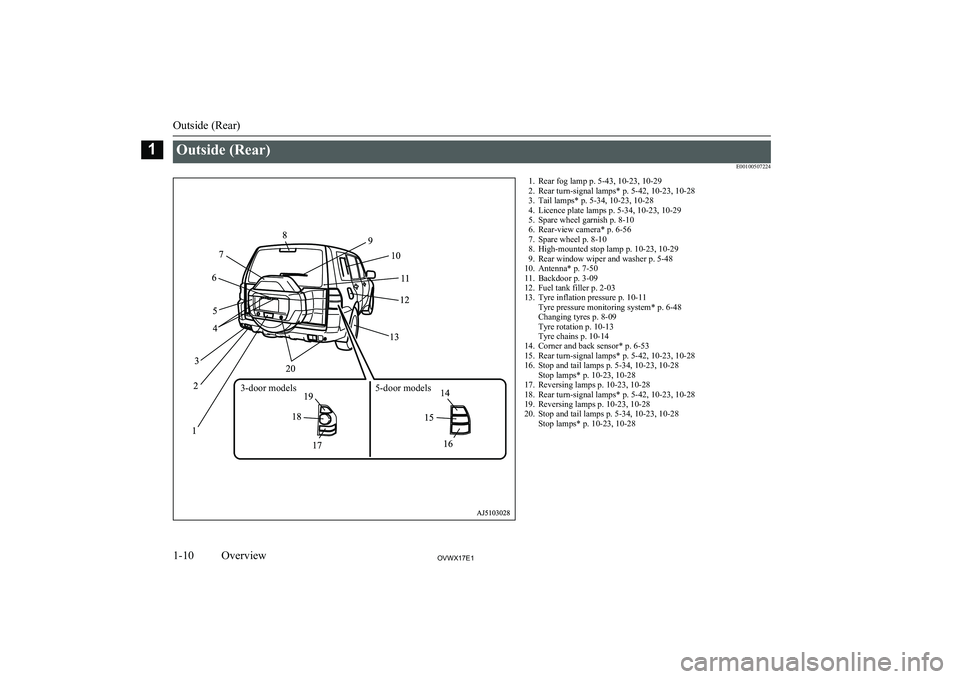

Outside (Rear)E001005072241. Rear fog lamp p. 5-43, 10-23, 10-29
2. Rear turn-signal lamps* p. 5-42, 10-23, 10-28
3. Tail lamps* p. 5-34, 10-23, 10-28
4. Licence plate lamps p. 5-34, 10-23, 10-29
5. Spare wheel garnish p. 8-10
6. Rear-view camera* p. 6-56
7. Spare wheel p. 8-10
8. High-mounted stop lamp p. 10-23, 10-29
9. Rear window wiper and washer p. 5-48
10. Antenna* p. 7-50
11. Backdoor p. 3-09
12. Fuel tank filler p. 2-03
13. Tyre inflation pressure p. 10-11 Tyre pressure monitoring system* p. 6-48
Changing tyres p. 8-09
Tyre rotation p. 10-13
Tyre chains p. 10-14
14. Corner and back sensor* p. 6-53
15. Rear turn-signal lamps* p. 5-42, 10-23, 10-28
16. Stop and tail lamps p. 5-34, 10-23, 10-28 Stop lamps* p. 10-23, 10-28
17. Reversing lamps p. 10-23, 10-28
18. Rear turn-signal lamps* p. 5-42, 10-23, 10-28
19. Reversing lamps p. 10-23, 10-28
20. Stop and tail lamps p. 5-34, 10-23, 10-28 Stop lamps* p. 10-23, 10-28
Outside (Rear)
1-10OVWX17E1Overview13-door models 5-door models

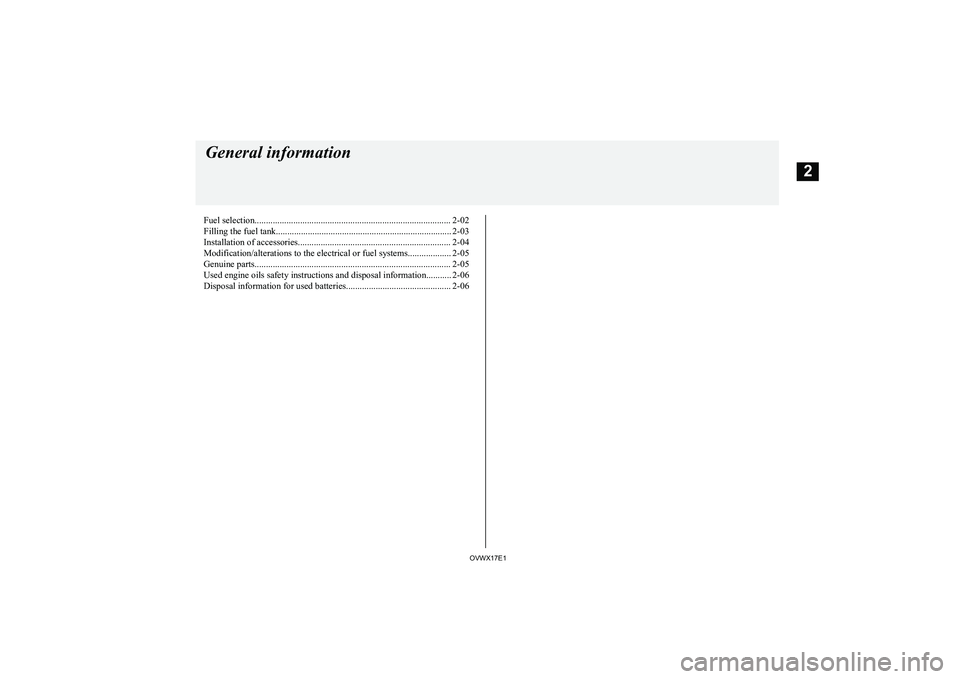

Fuel selection...................................................................................... 2-02Filling the fuel tank............................................................................. 2-03Installation of accessories................................................................... 2-04
Modification/alterations to the electrical or fuel systems................... 2-05
Genuine parts...................................................................................... 2-05 Used engine oils safety instructions and disposal information........... 2-06

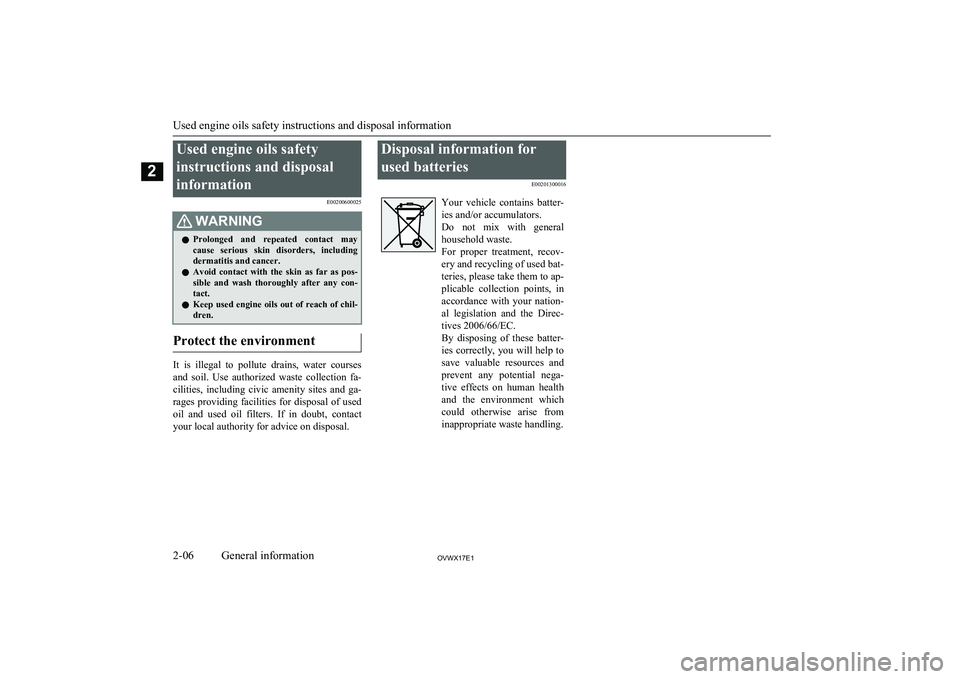

Disposal information for used batteries.............................................. 2-06General information
OVWX17E12

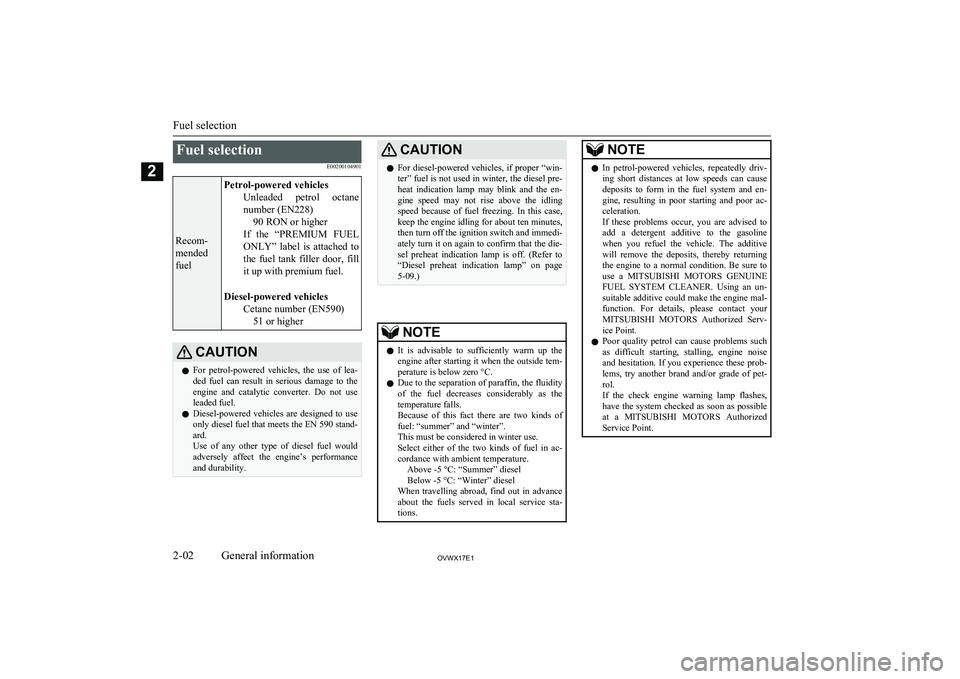

Fuel selectionE00200104901
Recom-
mended
fuel
Petrol-powered vehicles Unleaded petrol octanenumber (EN228) 90 RON or higher
If the “PREMIUM FUEL
ONLY” label is attached to the fuel tank filler door, fill
it up with premium fuel.
Diesel-powered vehicles Cetane number (EN590)51 or higherCAUTIONl For petrol-powered vehicles, the use of lea-
ded fuel can result in serious damage to the engine and catalytic converter. Do not use leaded fuel.
l Diesel-powered vehicles are designed to use
only diesel fuel that meets the EN 590 stand-
ard.
Use of any other type of diesel fuel would adversely affect the engine’s performance
and durability.CAUTIONl For diesel-powered vehicles, if proper “win-
ter” fuel is not used in winter, the diesel pre-
heat indication lamp may blink and the en- gine speed may not rise above the idling speed because of fuel freezing. In this case,
keep the engine idling for about ten minutes,
then turn off the ignition switch and immedi- ately turn it on again to confirm that the die-
sel preheat indication lamp is off. (Refer to “Diesel preheat indication lamp” on page
5-09.)

NOTEl It is advisable to sufficiently warm up the
engine after starting it when the outside tem-
perature is below zero °C.
l Due to the separation of paraffin, the fluidity
of the fuel decreases considerably as the
temperature falls.
Because of this fact there are two kinds of
fuel: “summer” and “winter”.
This must be considered in winter use. Select either of the two kinds of fuel in ac- cordance with ambient temperature. Above -5 °C: “Summer” diesel
Below -5 °C: “Winter” diesel
When travelling abroad, find out in advance
about the fuels served in local service sta- tions.NOTEl In petrol-powered vehicles, repeatedly driv-
ing short distances at low speeds can cause deposits to form in the fuel system and en-
gine, resulting in poor starting and poor ac-
celeration.
If these problems occur, you are advised to
add a detergent additive to the gasoline when you refuel the vehicle. The additive
will remove the deposits, thereby returning the engine to a normal condition. Be sure to
use a MITSUBISHI MOTORS GENUINE
FUEL SYSTEM CLEANER. Using an un-
suitable additive could make the engine mal-
function. For details, please contact your MITSUBISHI MOTORS Authorized Serv-
ice Point.
l Poor quality petrol can cause problems such
as difficult starting, stalling, engine noise and hesitation. If you experience these prob-lems, try another brand and/or grade of pet-
rol.
If the check engine warning lamp flashes,
have the system checked as soon as possible
at a MITSUBISHI MOTORS Authorized
Service Point.
Fuel selection
2-02OVWX17E1General information2

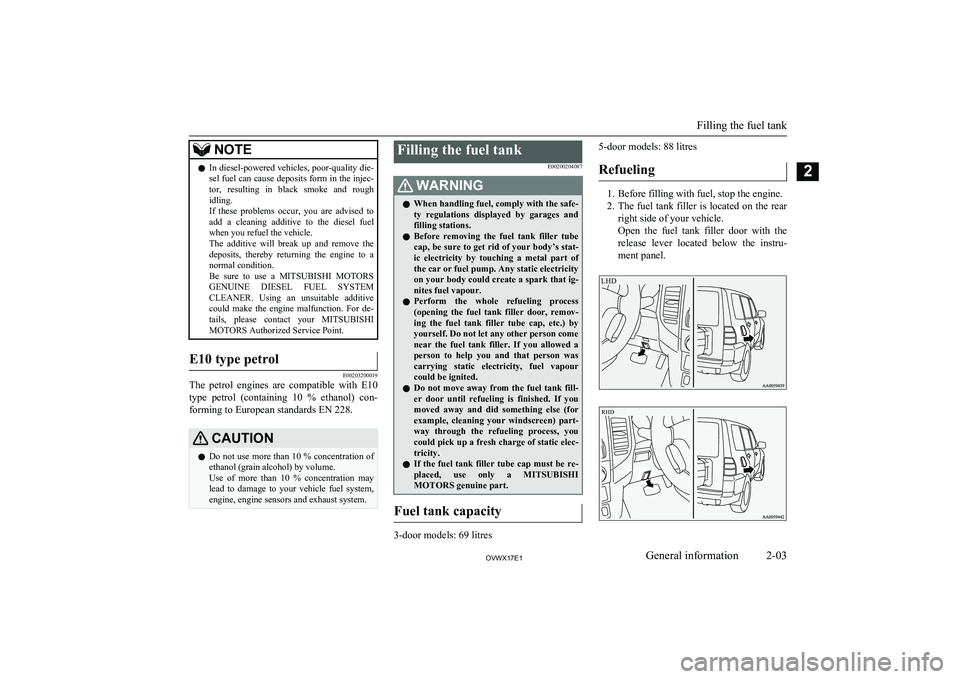

NOTElIn diesel-powered vehicles, poor-quality die-
sel fuel can cause deposits form in the injec- tor, resulting in black smoke and rough
idling.
If these problems occur, you are advised to add a cleaning additive to the diesel fuel
when you refuel the vehicle.
The additive will break up and remove the deposits, thereby returning the engine to anormal condition.
Be sure to use a MITSUBISHI MOTORS
GENUINE DIESEL FUEL SYSTEM CLEANER. Using an unsuitable additive
could make the engine malfunction. For de- tails, please contact your MITSUBISHI
MOTORS Authorized Service Point.E10 type petrol
E00203200019
The petrol engines are compatible with E10
type petrol (containing 10 % ethanol) con- forming to European standards EN 228.
CAUTIONl Do not use more than 10 % concentration of
ethanol (grain alcohol) by volume.
Use of more than 10 % concentration may lead to damage to your vehicle fuel system,
engine, engine sensors and exhaust system.Filling the fuel tank
E00200204087WARNINGlWhen handling fuel, comply with the safe-
ty regulations displayed by garages and filling stations.
l Before removing the fuel tank filler tube
cap, be sure to get rid of your body’s stat-
ic electricity by touching a metal part of the car or fuel pump. Any static electricity
on your body could create a spark that ig-
nites fuel vapour.
l Perform the whole refueling process
(opening the fuel tank filler door, remov-
ing the fuel tank filler tube cap, etc.) by yourself. Do not let any other person come
near the fuel tank filler. If you allowed a
person to help you and that person was carrying static electricity, fuel vapour
could be ignited.
l Do not move away from the fuel tank fill-
er door until refueling is finished. If you moved away and did something else (for
example, cleaning your windscreen) part- way through the refueling process, you
could pick up a fresh charge of static elec-
tricity.
l If the fuel tank filler tube cap must be re-
placed, use only a MITSUBISHI
MOTORS genuine part.
Fuel tank capacity
3-door models: 69 litres
5-door models: 88 litres
Refueling
1. Before filling with fuel, stop the engine.
2. The fuel tank filler is located on the rear
right side of your vehicle.
Open the fuel tank filler door with the
release lever located below the instru- ment panel.
LHD
Filling the fuel tank
2-03OVWX17E1General information2 RHD

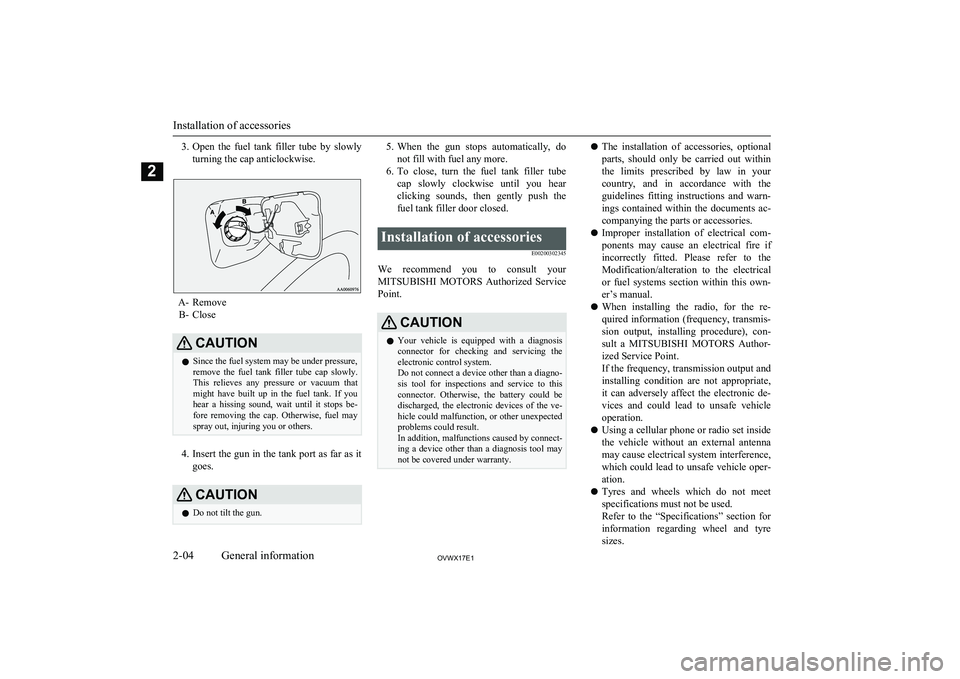

3.Open the fuel tank filler tube by slowly
turning the cap anticlockwise.
A- Remove B- Close
CAUTIONl Since the fuel system may be under pressure,
remove the fuel tank filler tube cap slowly. This relieves any pressure or vacuum that
might have built up in the fuel tank. If you
hear a hissing sound, wait until it stops be- fore removing the cap. Otherwise, fuel may
spray out, injuring you or others.
4. Insert the gun in the tank port as far as it
goes.
CAUTIONl Do not tilt the gun.5.
When the gun stops automatically, do
not fill with fuel any more.
6. To close, turn the fuel tank filler tube
cap slowly clockwise until you hear clicking sounds, then gently push the
fuel tank filler door closed.Installation of accessories
E00200302345
We recommend you to consult yourMITSUBISHI MOTORS Authorized Service
Point.
CAUTIONl Your vehicle is equipped with a diagnosis
connector for checking and servicing theelectronic control system.
Do not connect a device other than a diagno-
sis tool for inspections and service to this connector. Otherwise, the battery could be
discharged, the electronic devices of the ve- hicle could malfunction, or other unexpected
problems could result.
In addition, malfunctions caused by connect-
ing a device other than a diagnosis tool may not be covered under warranty.l The installation of accessories, optional
parts, should only be carried out within
the limits prescribed by law in your
country, and in accordance with the guidelines fitting instructions and warn-
ings contained within the documents ac-
companying the parts or accessories.
l Improper installation of electrical com-
ponents may cause an electrical fire if
incorrectly fitted. Please refer to the Modification/alteration to the electrical
or fuel systems section within this own-
er’s manual.
l When installing the radio, for the re-
quired information (frequency, transmis-
sion output, installing procedure), con- sult a MITSUBISHI MOTORS Author-
ized Service Point.
If the frequency, transmission output and installing condition are not appropriate,
it can adversely affect the electronic de- vices and could lead to unsafe vehicle operation.
l Using a cellular phone or radio set inside
the vehicle without an external antenna
may cause electrical system interference, which could lead to unsafe vehicle oper-ation.
l Tyres and wheels which do not meet
specifications must not be used.
Refer to the “Specifications” section for
information regarding wheel and tyre
sizes.
Installation of accessories
2-04OVWX17E1General information2

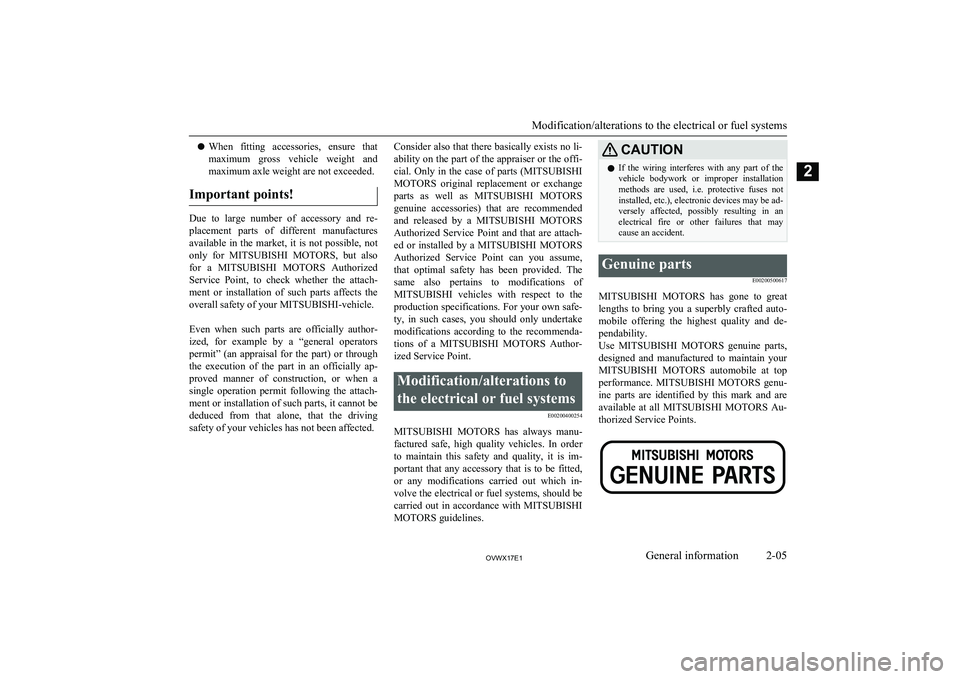

lWhen fitting accessories, ensure that
maximum gross vehicle weight and maximum axle weight are not exceeded.
Important points!
Due to large number of accessory and re- placement parts of different manufactures
available in the market, it is not possible, not
only for MITSUBISHI MOTORS , but also
for a MITSUBISHI MOTORS Authorized
Service Point, to check whether the attach- ment or installation of such parts affects theoverall safety of your MITSUBISHI-vehicle.

Even when such parts are officially author-
ized, for example by a “general operators permit” (an appraisal for the part) or throughthe execution of the part in an officially ap-
proved manner of construction, or when a single operation permit following the attach-
ment or installation of such parts, it cannot be deduced from that alone, that the driving
safety of your vehicles has not been affected.

Consider also that there basically exists no li- ability on the part of the appraiser or the offi-
cial. Only in the case of parts ( MITSUBISHI
MOTORS original replacement or exchange
parts as well as MITSUBISHI MOTORS
genuine accessories) that are recommended and released by a MITSUBISHI MOTORS
Authorized Service Point and that are attach- ed or installed by a MITSUBISHI MOTORS
Authorized Service Point can you assume, that optimal safety has been provided. Thesame also pertains to modifications of
MITSUBISHI vehicles with respect to the
production specifications. For your own safe-
ty, in such cases, you should only undertake
modifications according to the recommenda-
tions of a MITSUBISHI MOTORS Author-
ized Service Point.Modification/alterations to
the electrical or fuel systems E00200400254
MITSUBISHI MOTORS has always manu-
factured safe, high quality vehicles. In order to maintain this safety and quality, it is im-
portant that any accessory that is to be fitted, or any modifications carried out which in-
volve the electrical or fuel systems, should be carried out in accordance with MITSUBISHI
MOTORS guidelines.
CAUTIONl If the wiring interferes with any part of the
vehicle bodywork or improper installation methods are used, i.e. protective fuses not
installed, etc.), electronic devices may be ad- versely affected, possibly resulting in an
electrical fire or other failures that may cause an accident.Genuine parts
E00200500617
MITSUBISHI MOTORS has gone to great
lengths to bring you a superbly crafted auto-
mobile offering the highest quality and de- pendability.
Use MITSUBISHI MOTORS genuine parts,
designed and manufactured to maintain your MITSUBISHI MOTORS automobile at top
performance. MITSUBISHI MOTORS genu-
ine parts are identified by this mark and are available at all MITSUBISHI MOTORS Au-
thorized Service Points.
Modification/alterations to the electrical or fuel systems
2-05OVWX17E1General information2

Used engine oils safetyinstructions and disposal
information E00200600025WARNINGlProlonged and repeated contact may
cause serious skin disorders, including
dermatitis and cancer.
l Avoid contact with the skin as far as pos-
sible and wash thoroughly after any con- tact.
l Keep used engine oils out of reach of chil-
dren.
Protect the environment
It is illegal to pollute drains, water courses
and soil. Use authorized waste collection fa-cilities, including civic amenity sites and ga- rages providing facilities for disposal of used
oil and used oil filters. If in doubt, contact your local authority for advice on disposal.
Disposal information for
used batteries E00201300016Your vehicle contains batter-
ies and/or accumulators.
Do not mix with general household waste.
For proper treatment, recov-
ery and recycling of used bat-
teries, please take them to ap- plicable collection points, in accordance with your nation-
al legislation and the Direc- tives 2006/66/EC.
By disposing of these batter- ies correctly, you will help to
save valuable resources and
prevent any potential nega-
tive effects on human health and the environment which could otherwise arise frominappropriate waste handling.
Used engine oils safety instructions and disposal information
2-06OVWX17E1General information2

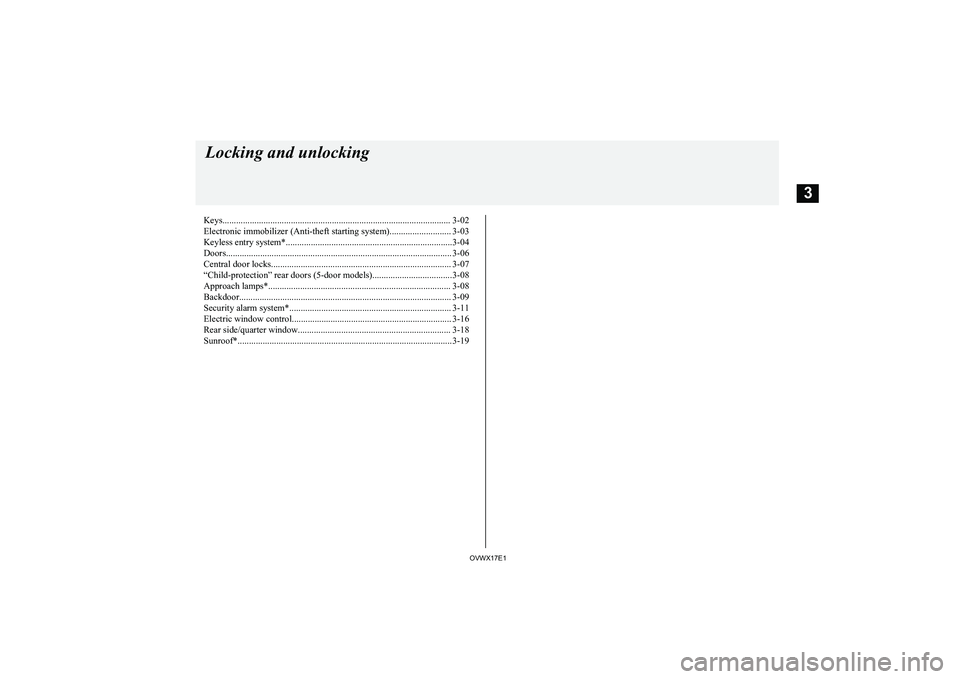

Keys.................................................................................................... 3-02Electronic immobilizer (Anti-theft starting system)........................... 3-03
Keyless entry system*.........................................................................3-04
Doors................................................................................................... 3-06
Central door locks............................................................................... 3-07
“Child-protection” rear doors (5-door models)...................................3-08
Approach lamps*................................................................................ 3-08
Backdoor............................................................................................. 3-09 Security alarm system*....................................................................... 3-11
Electric window control...................................................................... 3-16
Rear side/quarter window................................................................... 3-18
Sunroof*.............................................................................................. 3-19Locking and unlocking
OVWX17E13

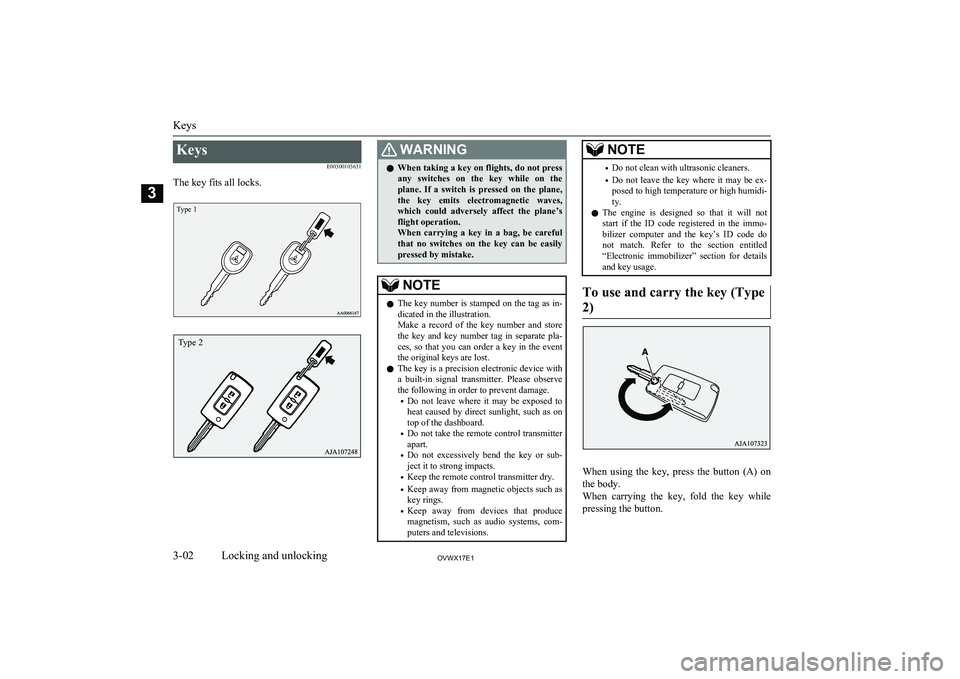

KeysE00300103631
The key fits all locks.
Type 1
WARNINGl When taking a key on flights, do not press
any switches on the key while on the plane. If a switch is pressed on the plane,the key emits electromagnetic waves,which could adversely affect the plane’s
flight operation.
When carrying a key in a bag, be careful that no switches on the key can be easily
pressed by mistake.NOTEl The key number is stamped on the tag as in-
dicated in the illustration.
Make a record of the key number and store the key and key number tag in separate pla-
ces, so that you can order a key in the event the original keys are lost.
l The key is a precision electronic device with
a built-in signal transmitter. Please observe the following in order to prevent damage.
• Do not leave where it may be exposed to
heat caused by direct sunlight, such as on
top of the dashboard.
• Do not take the remote control transmitter
apart.
• Do not excessively bend the key or sub-
ject it to strong impacts.
• Keep the remote control transmitter dry.
• Keep away from magnetic objects such as
key rings.
• Keep away from devices that produce
magnetism, such as audio systems, com-
puters and televisions.NOTE• Do not clean with ultrasonic cleaners.
• Do not leave the key where it may be ex-
posed to high temperature or high humidi-ty.
l The engine is designed so that it will not
start if the ID code registered in the immo- bilizer computer and the key’s ID code do
not match. Refer to the section entitled “Electronic immobilizer” section for details
and key usage.
To use and carry the key (Type
2)
When using the key, press the button (A) on the body.
When carrying the key, fold the key while
pressing the button.
Keys
3-02OVWX17E1Locking and unlocking3Type 2
