Instruments and Controls (Driver’s area)E001001084321. Supplemental restraint system - airbag (for driver’s seat) p. 4-36Horn switch p. 5-50
2. Instruments p. 5-02
3. Hazard warning flasher switch p. 5-42
4. Windscreen wiper and washer switch p. 5-44 Rear window wiper and washer switch p. 5-48
5. Cruise control switch* p. 6-44
6. Ignition switch p. 6-10
7. Active Stability Control switch p. 6-40
8. Fuel tank filler door release lever p. 2-03
9. Steering control switch (for Bluetooth ®
2.0 interface)* p. 7-51
10. Steering wheel height adjustment p. 6-06
11. Bonnet release lever p. 10-03
12. Fuse block lid p. 10-18
13. Sonar cancel switch* p. 6-52
14. Headlamp levelling switch* p. 5-40 Automatic high-beam switch* p. 5-36
15. Electric remote-controlled outside rear-view mirror switch p. 6-08
16. Front fog lamp switch* p. 5-43 Rear fog lamp switch p. 5-43
17. Audio switch* p. 7-24
18. Combination headlamps and dipper switch p. 5-34 Turn-signal lever p. 5-42
Headlamp washer switch* p. 5-48
19. Daytime dipper button (meter illumination control) p. 5-07
Instruments and Controls (Driver’s area)
1-02OVWX17E1Overview1LHD

1. Daytime dipper button (meter illumination control) p. 5-07
2. Instruments p. 5-02
3. Supplemental restraint system - airbag (for driver’s seat) p. 4-36 Horn switch p. 5-50
4. Windscreen wiper and washer switch p. 5-44 Rear window wiper and washer switch p. 5-48
5. Cruise control switch* p. 6-44
6. Ignition switch p. 6-10
7. Front fog lamp switch* p. 5-43 Rear fog lamp switch p. 5-43
8. Electric remote-controlled outside rear-view mirror switch p. 6-08
9. Fuse block lid p. 10-18
10. Bonnet release lever p. 10-03
11. Steering wheel height adjustment p. 6-06
12. Steering control switch (for Bluetooth ®
2.0 interface)* p. 7-51
13. Fuel tank filler door release lever p. 2-03
14. Headlamp levelling switch* p. 5-40 Automatic high-beam switch* p. 5-36
15. Sonar cancel switch* p. 6-52
16. Active stability control switch p. 6-40
17. Audio switch* p. 7-24
18. Combination headlamps and dipper switch p. 5-34 Turn-signal lever p. 5-42
Headlamp washer switch* p. 5-48
19. Hazard warning flasher switch p. 5-42
Instruments and Controls (Driver’s area)
1-03OVWX17E1Overview1RHD

InteriorE00100206325
LHDType 1Type 21. Electric window control p. 3-162. Electric window lock switch p. 3-17
3. Central door lock switch p. 3-07
4. Sunroof switch* p. 3-19
5. Sunglasses holder* p. 7-84
6. Sunroof switch* p. 3-19
7. Ceiling lamp p. 7-78
8. Room & map lamp p. 7-79, 10-25, 10-30 Interior lamp switch p. 7-78
9. Microphone (for Hands-free & voice recognition)* p. 7-51
10. Sun visors p. 7-74
11. Vanity mirror p. 7-74
12. Inside rear-view mirror p. 6-07
13. Video Entertainment System* Refer to the separate “Video Entertainment System owner’s man-
ual”
14. Seat p. 4-02
15. Supplemental restraint system - side airbag (for front seats)* p. 4-36
16. Armrest (for rear/second seat) p. 4-10 Cup holder (for rear/second seat) p. 7-85
17. Head restraints p. 4-12
18. Cup holder (for third seat)* p. 7-86
19. Luggage floor box p. 7-84
20. Seat belts p. 4-21 Adjustable seat belt anchor (front seats) p. 4-23
21. Luggage compartment lamp p. 7-80, 10-25, 10-31
22. Supplemental restraint system - curtain airbag* p. 4-36
23. Roof ventilators (5-door models)* p. 7-02
24. Rear personal lamps p. 7-79, 10-25, 10-30
Interior
1-06OVWX17E1Overview1

RHDType 1Type 21. Sunroof switch* p. 3-19
2. Sunglasses holder* p. 7-84
3. Room & map lamp p. 7-79, 10-25, 10-30 Interior lamp switch p. 7-78
4. Sunroof switch* p. 3-19
5. Microphone (for Hands-free & voice recognition)* p. 7-51
6. Ceiling lamp p. 7-78
7. Electric window lock switch p. 3-17
8. Central door lock switch p. 3-07
9. Electric window control p. 3-16
10. Rear personal lamps p. 7-79, 10-25, 10-30
11. Roof ventilators (5-door models)* p. 7-02
12. Supplemental restraint system - curtain airbag* p. 4-36
13. Luggage compartment lamp p. 7-80, 10-25, 10-31
14. Seat belts p. 4-21 Adjustable seat belt anchor (front seats) p. 4-23
15. Luggage floor box p. 7-84
16. Cup holder (for third seat)* p. 7-86
17. Head restraints p. 4-12
18. Armrest (for rear/second seat) p. 4-10 Cup holder (for rear/second seat) p. 7-85
19. Supplemental restraint system - side airbag (for front seats)* p. 4-36
20. Seat p. 4-02
21. Video Entertainment System* Refer to the separate “Video Entertainment System owner’s man-
ual”
22. Inside rear-view mirror p. 6-07
23. Vanity mirror p. 7-74
24. Sun visors p. 7-74
Interior
1-07OVWX17E1Overview1

Outside (Front)E001005076861. Engine compartment p. 11-14Bonnet p. 10-03
2. Windscreen wiper and washer p. 5-44
3. Rain sensor* p. 5-45
4. Camera (for Automatic high-beam system)* p. 5-36
5. Sunroof* p. 3-19
6. Electric window control p. 3-16
7. Rear side/quarter window p. 3-18 Antenna p. 7-50
8. Outside rear-view mirrors p. 6-08 Approach lamps* p. 3-08
9. Locking and unlocking p. 3-06 Keyless entry system* p. 3-04
10. Side turn-signal lamps* p. 5-42, 10-23
11. Front turn-signal lamps p. 5-42, 10-23, 10-26
12. Position lamps* p. 5-34, 10-23, 10-26
13. Headlamps p. 5-34, 10-23, 10-25
14. Front fog lamps* p. 5-43, 10-23, 10-27
15. Position and Daytime running lamps* p. 5-34, 5-35, 10-23
16. Headlamp washer* p. 5-48
Outside (Front)
1-09OVWX17E1Overview1

Keyless entry system*E00300303789
Press the remote control switch, and all doors (including the backdoor) will be locked or
unlocked as desired. It is also possible to op- erate the outside rear-view mirrors.
1- LOCK switch
2- UNLOCK switch
To lock
Press the LOCK switch (1), and all doors (in- cluding the backdoor) will be locked. Whenthey are locked with the room lamp switch at the middle position (DOOR), the room lamp
and the turn-signal lamps blink once.
To unlock
Press the UNLOCK switch (2), and all doors
(including the backdoor) will be unlocked.
When they are unlocked with the room lamp switch at the middle position (DOOR), the room lamp will be turned on for approxi-
mately 15 seconds and the turn-signal lamps
will blink twice.
NOTEl If the UNLOCK switch (2) is pressed and no
door (including the backdoor) is opened within approximately 30 seconds: relockingwill automatically occur.
l It is possible to modify functions as follows:
For further information, please contact your
MITSUBISHI MOTORS Authorized Serv-
ice Point.
• The time for automatic relocking can be
changed.
• The confirmation function (blinking of
the turn-signal lamps) can be set to oper-ate only when the doors and backdoor are locked or only when the doors and back-
door are unlocked.
• The confirmation function (this indicates
locking or unlocking of the doors and backdoor with the blink of the turn-signal
lamps) can be deactivated.
• The number of times the turn-signal
lamps are flashed by the confirmation function can be changed.Operation of the outside rear-
view mirrors
To fold
Within 30 seconds of locking the doors and backdoor using the LOCK switch (1), pressthe LOCK switch twice rapidly to fold the
outside rear-view mirrors.
To extend
Within 30 seconds of unlocking the doors
and backdoor using the UNLOCK switch (2), press the UNLOCK switch twice rapidly to
return the outside rear-view mirrors to their
extended positions.
NOTEl The keyless entry system does not operate in
the following conditions:
• The key is left in the key cylinder.
• The door (including the backdoor) is
open.
l The remote control switch will operate with-
in approximately 4 m from the vehicle.
However, the operating range of the remote control switch may change if the vehicle is
located near a power station, or radio/TV broadcasting station.
Keyless entry system*
3-04OVWX17E1Locking and unlocking3

Driver’s door with central doorlock switch
Using the central door lock switch locks or
unlocks all doors (including the backdoor).
1- Lock
2- Unlock
“Child-protection” rear
doors (5-door models) E00300900869
1- Lock
2- Unlock
Child protection helps prevent the rear doors
from being opened accidentally from the in- side.
If the lever is set to the locked position, the
rear door cannot be opened using the inside handle, but only with the outside handle.
If the lever is set to the “Unlock” position,
the child protection mechanism does not
function.
CAUTIONl When driving with a child in the rear seat,
please use the child protection to prevent ac-
cidental door opening which may cause an accident.Approach lamps*
E00306100195
The lamps (A) in the bottom of each mirror
come on to illuminate road surface while people are entering or exiting the vehicle.
These lamps turn on/off as follows:
l The lamps come on for approximately
15 seconds when all of the doors (in- cluding the backdoor) are unlocked us-
ing the central door lock function or the keyless entry system (if so equipped).
“Child-protection” rear doors (5-door models)
3-08OVWX17E1Locking and unlocking3

NOTElYou can switch the headlamp beams (high/
low) manually by operating the lever even if the automatic high-beam system is working.Refer to “Dipper (High/Low beam change)”
on page 5-36.
If the lever is operated manually, the auto-
matic high-beam system indication lamp will go off and the automatic high-beam sys- tem will be deactivated.
l The automatic high-beam system is not de-
activated when you pull the lever slightly
(2).
5. To deactivate the automatic high-beam
system, press the OFF side (2) on the au- tomatic high-beam system switch.

Automatic switching conditions
The high-beam headlamps illuminate when all of the following conditions are met:
l Your vehicle speed exceeds approxi-
mately 40 km/h (25 mph).
l It is dark ahead of your vehicle.
l There are no vehicles in front or oncom-
ing vehicles, or none of their exterior
lamps are illuminated.

The low beam headlamps illuminate when
any of the following conditions occur:
l Your vehicle speed does not exceed ap-
proximately 30 km/h (19 mph).
l It is bright ahead of your vehicle.
l An exterior lamp of a vehicle in front or
oncoming vehicle is illuminating.NOTEl The headlamps may not be switched from
high-beam to low beam under the following circumstances.
• A vehicle in front or oncoming vehicle is
hindered by any object such as continuous
bends, elevated median/island, traffic
signs, roadside trees.
• Your vehicle passes an oncoming vehicle
suddenly on a bend with poor visibility.
• Another vehicle crosses ahead of your ve-
hicle
l The headlamps may remain at low beam (or
be switched from high-beam to low beam)
when a reflective object (e.g. street lamp,
traffic signal, noticeboard and signboard) re- flects light.
l Any of the following factors may influence
the headlamp beam switching timing:
• How brightly the exterior lamps of a vehi-
cle in front or oncoming vehicle illumi-
nate.
• Movement or direction of a vehicle in
front or oncoming vehicle.
• Only right or left exterior lamp of a vehi-
cle in front or oncoming vehicle is illumi-
nating.NOTE• A vehicle in front or oncoming vehicle is
a motorcycle.
• Road conditions (gradient, bends and road
surface).
• The number of occupants and luggage
load.
l The automatic high-beam system recognises
environmental conditions by sensing a lightsource ahead of your vehicle. Therefore, you
may feel like something is not quite right
when the headlamp beams are switched au- tomatically.
l The system may not detect a light vehicle
such as a bicycle.
l The system may not detect an ambient
brightness precisely. This causes the trafficto be dazzled by high-beam or the low beam
to be maintained. In such cases, you should switch the headlamp beams manually.
• In bad weather (heavy rain, fog, snow or
sandstorm).
• The windscreen is dirty or fogged up.
• The windscreen is cracked or broken.
• The inside rear view mirror or the camera
is deformed or dirty.
• A light, which is similar to the headlamps
or tail lamps, is shining around your vehi-
cle
• A vehicle in front or oncoming vehicle is

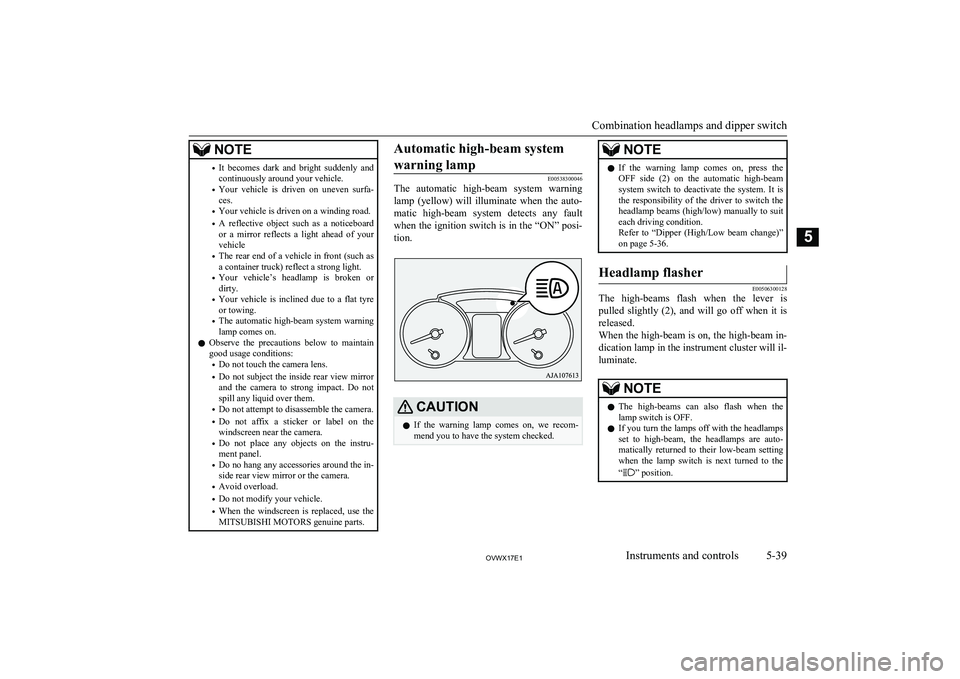

driven without lights, the exterior lamps
are dirty or discoloured, or the direction of the headlamp beams is adjusted im- properly
Combination headlamps and dipper switch
5-38OVWX17E1Instruments and controls5

NOTE•It becomes dark and bright suddenly and
continuously around your vehicle.
• Your vehicle is driven on uneven surfa-
ces.
• Your vehicle is driven on a winding road.
• A reflective object such as a noticeboard
or a mirror reflects a light ahead of yourvehicle
• The rear end of a vehicle in front (such as
a container truck) reflect a strong light.
• Your vehicle’s headlamp is broken or
dirty.
• Your vehicle is inclined due to a flat tyre
or towing.
• The automatic high-beam system warning
lamp comes on.
l Observe the precautions below to maintain
good usage conditions:
• Do not touch the camera lens.
• Do not subject the inside rear view mirror
and the camera to strong impact. Do not spill any liquid over them.
• Do not attempt to disassemble the camera.
• Do not affix a sticker or label on the
windscreen near the camera.
• Do not place any objects on the instru-
ment panel.
• Do no hang any accessories around the in-
side rear view mirror or the camera.
• Avoid overload.
• Do not modify your vehicle.
• When the windscreen is replaced, use the
MITSUBISHI MOTORS genuine parts.Automatic high-beam system
warning lamp
E00538300046
The automatic high-beam system warning
lamp (yellow) will illuminate when the auto-
matic high-beam system detects any fault when the ignition switch is in the “ON” posi-
tion.
CAUTIONl If the warning lamp comes on, we recom-
mend you to have the system checked.NOTEl If the warning lamp comes on, press the
OFF side (2) on the automatic high-beam
system switch to deactivate the system. It is the responsibility of the driver to switch theheadlamp beams (high/low) manually to suit
each driving condition.
Refer to “Dipper (High/Low beam change)”
on page 5-36.Headlamp flasher
E00506300128
The high-beams flash when the lever is
pulled slightly (2), and will go off when it is
released.
When the high-beam is on, the high-beam in- dication lamp in the instrument cluster will il-
luminate.
NOTEl The high-beams can also flash when the
lamp switch is OFF.
l If you turn the lamps off with the headlamps
set to high-beam, the headlamps are auto- matically returned to their low-beam setting
when the lamp switch is next turned to the
“
” position.
Combination headlamps and dipper switch
5-39OVWX17E1Instruments and controls5

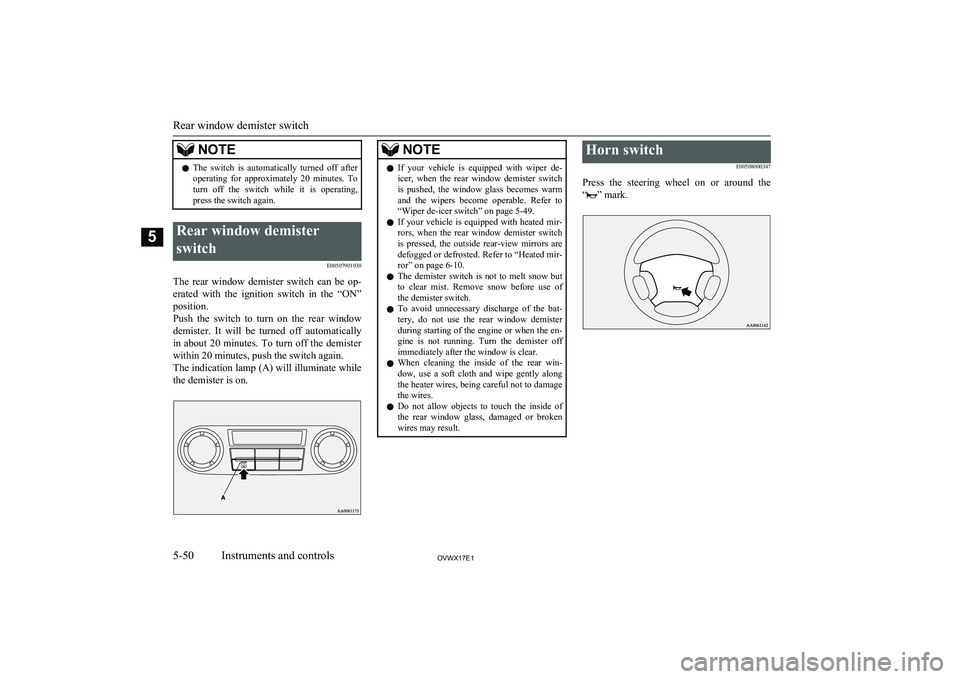

NOTElThe switch is automatically turned off after
operating for approximately 20 minutes. To
turn off the switch while it is operating,
press the switch again.Rear window demister
switch E00507901030
The rear window demister switch can be op-erated with the ignition switch in the “ON”position.
Push the switch to turn on the rear window
demister. It will be turned off automatically
in about 20 minutes. To turn off the demister
within 20 minutes, push the switch again.
The indication lamp (A) will illuminate while the demister is on.
NOTEl If your vehicle is equipped with wiper de-
icer, when the rear window demister switch
is pushed, the window glass becomes warm
and the wipers become operable. Refer to “Wiper de-icer switch” on page 5-49.
l If your vehicle is equipped with heated mir-
rors, when the rear window demister switchis pressed, the outside rear-view mirrors are defogged or defrosted. Refer to “Heated mir-
ror” on page 6-10.
l The demister switch is not to melt snow but
to clear mist. Remove snow before use of the demister switch.
l To avoid unnecessary discharge of the bat-
tery, do not use the rear window demister
during starting of the engine or when the en- gine is not running. Turn the demister off
immediately after the window is clear.
l When cleaning the inside of the rear win-
dow, use a soft cloth and wipe gently along
the heater wires, being careful not to damage
the wires.
l Do not allow objects to touch the inside of
the rear window glass, damaged or broken
wires may result.Horn switch
E00508000347
Press the steering wheel on or around the
“
” mark.
Rear window demister switch
5-50OVWX17E1Instruments and controls5
